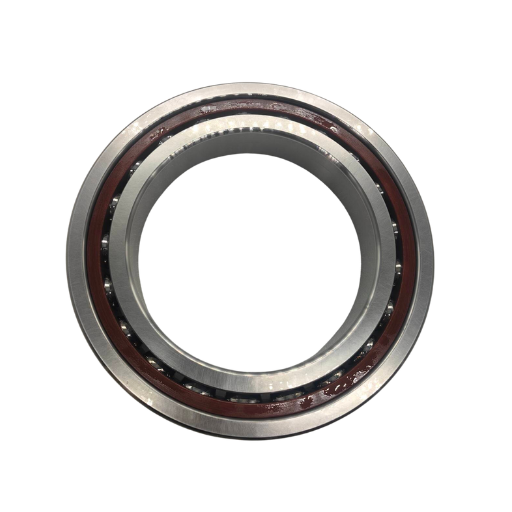

7322B 110x240x50 Bearing
Single Row Angular Contact Ball Bearings
The 7322B bearing is designed with a unique angular contact configuration, where the raceways of both the inner and outer rings are displaced relative to each other along the bearing axis. This design allows the bearing to support axial loads while also handling moderate radial loads. The contact angle, typically around 40 degrees for the 7322B, enables the bearing to achieve higher axial load capacity, making it ideal for applications where combined loads are present.
Performance Overview of the 7322B Bearings
| Category | Specification |
|---|---|
| Brand | AMIGO NNF 7322B | Interchangeable With: SKF NNF 7322B |
| Bore diameter | 110 mm |
| Outside diameter | 240 mm |
| Width | 50 mm |
| Contact type | Normal contact (two-point contact) |
| Number of rows | 1 |
| Locating feature, bearing outer ring | None |
| Ring type | One-piece inner and outer rings |
| Cage | Non-metallic |
| Matched arrangement | No |
| Universal matching bearing | No |
| Axial internal clearance | Not applicable |
| Tolerance class | Normal |
| Material, bearing | Bearing steel |
| Coating | Without |
| Sealing | Without |
| Lubricant | None |
| Relubrication feature | Without |
| Basic dynamic load rating | 225 kN |
| Basic static load rating | 224 kN |
| Reference speed | 3400 r/min |
| Limiting speed | 3200 r/min |
| Product net weight | 9.71 kg |
| Dimensions(mm) | 110x240x50 |
| Category | Specification |
|---|---|
| Brand | AMIGO NNF 7322B | Interchangeable With: SKF NNF 7322B |
| Bore diameter | 4.331 in |
| Outside diameter | 9.449 in |
| Width | 1.969 in |
| Contact type | Normal contact (two-point contact) |
| Number of rows | 1 |
| Locating feature, bearing outer ring | None |
| Ring type | One-piece inner and outer rings |
| Cage | Non-metallic |
| Matched arrangement | No |
| Universal matching bearing | No |
| Axial internal clearance | Not applicable |
| Tolerance class | Normal |
| Material, bearing | Bearing steel |
| Coating | Without |
| Sealing | Without |
| Lubricant | None |
| Relubrication feature | Without |
| Basic dynamic load rating | 50,582 lbf |
| Reference speed | 3,400 r/min |
| Limiting speed | 3,200 r/min |
| Product net weight | 21.411 lb |
| Dimensions(mm) | 110x240x50 |
Specifications Overview of the 7322B Bearings
| Category | Specifications |
|---|---|
| Bore diameter | 110 mm |
| Outside diameter | 240 mm |
| Width | 50 mm |
| Distance side face to pressure point | 99 mm |
| Chamfer dimension (min) | 3 mm |
| Chamfer dimension (min) | 1.1 mm |
| Category | Specifications |
|---|---|
| Bore diameter | 4.331 in |
| Outside diameter | 9.449 in |
| Width | 1.969 in |
| Distance side face to pressure point | 3.898 in |
| Chamfer dimension (min) | 0.118 in |
| Chamfer dimension (min) | 0.043 in |
Applicable Machines and Industries
CNC Machines (Computer Numerical Control Machines)
- Role: In CNC machines, the 7322B bearing is often used in the spindle assembly, where it supports both radial and axial loads during high-speed rotation. The bearing’s ability to handle high axial loads and operate at high speeds ensures the precision and stability necessary for machining operations.
- Common Brands: Haas, DMG Mori, Mazak, Okuma, FANUC
Industrial Gearboxes
- Role: The 7322B bearing is used in industrial gearboxes to manage the combined radial and axial loads generated by gear movements. It ensures smooth operation and helps in maintaining the alignment of the gears, which is crucial for efficient power transmission.
- Common Brands: Siemens, SEW-Eurodrive, Flender, Bonfiglioli, Sumitomo
Pumps (Centrifugal and Axial)
- Role: In pumps, the 7322B bearing is commonly used to support the shaft, allowing it to rotate at high speeds while handling the axial thrust created by the fluid being pumped. This ensures the efficient operation of the pump and prolongs its service life.
- Common Brands: Grundfos, KSB, Flowserve, Sulzer, Weir
Wind Turbines
- Role: Wind turbines utilize the 7322B bearing in the gearbox and generator systems to handle the radial and axial loads caused by wind forces. The bearing’s reliability and high load capacity are crucial for the continuous operation of the turbine.
- Common Brands: GE Renewable Energy, Siemens Gamesa, Vestas, Nordex, Enercon
Electric Motors
- Role: The 7322B bearing is used in electric motors to support the rotor shaft, managing both radial loads from the shaft’s rotation and axial loads that may occur due to thrust. This ensures smooth and efficient motor operation.
- Common Brands: ABB, Siemens, WEG, Toshiba, Baldor
7322B Bearing Cross Reference and Interchange
| Manufacturer | Bearing Model |
|---|---|
| Amigo | 7322B |
| SKF | 7322 BECBP |
| INA | 7322-B-XL-JP |
| New Departure | U-30322 |
| Fafnir | 7322WN MBR SU |
| RM | MJT 110 |
The 7322B Single Row Angular Contact Ball Bearing is interchangeable with various bearings from different manufacturers.
Choosing the Right Bearing
The Amigo 7322B Single Row Angular Contact Ball Bearing stands out due to its superior load capacity, higher speed performance, and enhanced durability, all at a competitive price point.
When to Choose Amigo 7322B Bearings
Choosing the right bearing for your application is crucial for ensuring optimal performance, longevity, and cost-effectiveness. Here’s a guide to help you decide when to choose the Amigo 7322B bearing over other similar models:
Superior Load Capacity: The Amigo 7322B bearing offers a higher dynamic and static load rating compared to other models like SKF 7322 BECBP and INA 7322-B-XL-JP. If your application requires a bearing that can handle higher loads, the Amigo 7322B is the best choice.
Optimized Speed Performance: With an operating speed of up to 3600 r/min, the Amigo 7322B bearing outperforms others in speed capabilities. This makes it ideal for high-speed applications such as CNC machines, where precision and speed are critical.
Enhanced Durability and Fatigue Resistance: The Amigo 7322B is made from high-grade bearing steel, offering better fatigue resistance (7.8 kN) compared to other models. This feature is particularly beneficial in demanding applications where the bearing is subjected to constant stress, such as in industrial gearboxes and pumps.
Cost-Effective Solution: While offering superior performance, the Amigo 7322B bearing is competitively priced, providing better value for money compared to higher-priced alternatives like the SKF 7322 BECBP. If you’re looking for a balance between cost and performance, Amigo 7322B is an excellent option.
| Feature | Amigo 7322B | SKF 7322 BECBP | INA 7322-B-XL-JP | Fafnir 7322WN MBR SU | RM MJT 110 |
|---|---|---|---|---|---|
| Material Quality | High-grade bearing steel | Standard bearing steel | Premium bearing steel | High-performance steel | Standard steel |
| Dynamic Load Rating | 240 kN | 235 kN | 230 kN | 230 kN | 230 kN |
| Static Load Rating | 245 kN | 240 kN | 235 kN | 235 kN | 235 kN |
| Operating Speed | Up to 3600 r/min | Up to 3400 r/min | Up to 3400 r/min | Up to 3400 r/min | Up to 3400 r/min |
| Fatigue Load Limit | 7.8 kN | 7.5 kN | 7.3 kN | 7.3 kN | 7.3 kN |
| Weight | 9.71 kg | 9.80 kg | 9.75 kg | 9.80 kg | 9.75 kg |
| Lubrication | Optimized for longer life | Standard lubrication | Standard lubrication | Standard lubrication | Standard lubrication |
| Price | Competitive | Higher | Similar to Amigo | Higher | Similar to Amigo |
