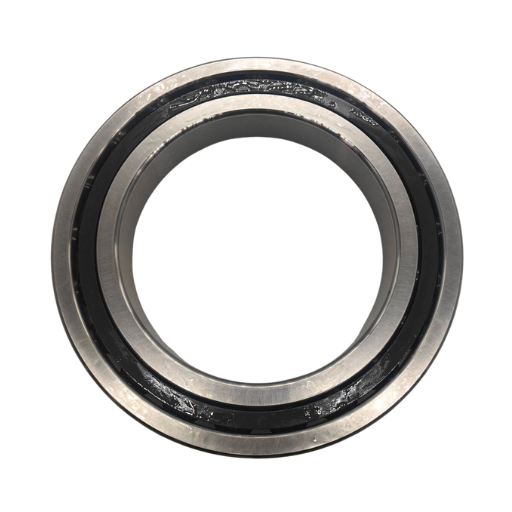

7202B 15x35x11 Bearing
Single Row Angular Contact Ball Bearings
The 7202B bearing is a single row angular contact ball bearing, which means it is designed to handle both radial and axial loads. Unlike traditional radial ball bearings, angular contact ball bearings are built to support loads that are applied at an angle. This is achieved through the bearing’s design, which features inner and outer ring raceways that are displaced relative to each other in the direction of the bearing axis. This unique design allows the 7202B bearing to support combined loads—simultaneously handling forces in both the radial and axial directions.
Performance Overview of the 7202B Bearings
| Parameter | Value |
|---|---|
| Brand | AMIGO 7202B | Interchangeable With: SKF 7202B |
| Bore diameter | 15 mm |
| Outside diameter | 35 mm |
| Width | 11 mm |
| Basic dynamic load rating | 8.32 kN |
| Basic static load rating | 4.4 kN |
| Reference speed | 24,000 r/min |
| Limiting speed | 24,000 r/min |
| Contact type | Normal contact (two-point contact) |
| Number of rows | 1 |
| Locating feature, bearing outer ring | None |
| Ring type | One-piece inner and outer rings |
| Cage | Non-metallic |
| Matched arrangement | No |
| Universal matching bearing | No |
| Axial internal clearance | Not applicable |
| Tolerance class | Normal |
| Material, bearing | Bearing steel |
| Coating | Without |
| Sealing | Without |
| Lubricant | None |
| Relubrication feature | Without |
| Product net weight | 0.0436 kg |
| Dimensions(mm) | 15x35x11 |
| Parameter | Value |
|---|---|
| Brand | AMIGO 7202B | Interchangeable With: SKF 7202B |
| Bore diameter | 0.591 in |
| Outside diameter | 1.378 in |
| Width | 0.433 in |
| Basic dynamic load rating | 1,870 lbf |
| Basic static load rating | 989 lbf |
| Reference speed | 24,000 r/min |
| Limiting speed | 24,000 r/min |
| Contact type | Normal contact (two-point contact) |
| Number of rows | 1 |
| Locating feature, bearing outer ring | None |
| Ring type | One-piece inner and outer rings |
| Cage | Non-metallic |
| Matched arrangement | No |
| Universal matching bearing | No |
| Axial internal clearance | Not applicable |
| Tolerance class | Normal |
| Material, bearing | Bearing steel |
| Coating | Without |
| Sealing | Without |
| Lubricant | None |
| Relubrication feature | Without |
| Product net weight | 0.09612 lb |
| Dimensions(mm) | 15x35x11 |
Specifications Overview of the 7202B Bearings
| Parameter | Value |
|---|---|
| Bore diameter | 15 mm |
| Outside diameter | 35 mm |
| Width | 11 mm |
| Distance side face to pressure point | 16 mm |
| Chamfer dimension (r?,?) | min. 0.6 mm |
| Chamfer dimension (r?,?) | min. 0.3 mm |
| Diameter of shaft abutment (d?) | min. 19.2 mm |
| Abutment diameter housing (D?) | max. 30.8 mm |
| Diameter of housing abutment (D?) | max. 32.6 mm |
| Radius of fillet (r?) | max. 0.6 mm |
| Radius of fillet (r?) | max. 0.3 mm |
| Parameter | Value |
|---|---|
| Bore diameter | 0.591 in |
| Outside diameter | 1.378 in |
| Width | 0.433 in |
| Distance side face to pressure point | 0.63 in |
| Chamfer dimension (r?,?) | min. 0.024 in |
| Chamfer dimension (r?,?) | min. 0.012 in |
| Diameter of shaft abutment (d?) | min. 0.756 in |
| Abutment diameter housing (D?) | max. 1.213 in |
| Diameter of housing abutment (D?) | max. 1.283 in |
| Radius of fillet (r?) | max. 0.024 in |
| Radius of fillet (r?) | max. 0.012 in |
Applicable Machines and Industries
The 7202B Single Row Angular Contact Ball Bearings are versatile components used in a variety of machines that require high-speed operation, precision, and the ability to support both radial and axial loads. Below is a list of machines that commonly use 7202B bearings, along with the role they play in these machines and the common brands associated with each type of machine.
1. Machine Tools (e.g., CNC Machines, Lathes, Milling Machines)
Role: In machine tools, 7202B bearings are used in spindle assemblies where they support the rotating spindle. Their ability to handle both radial and axial loads ensures that the spindle operates smoothly and with high precision, which is crucial for accurate machining.
Common Brands:Mazak、Haas Automation、DMG Mori、Okuma、Makino
2. Automotive Gearboxes
Role: In automotive gearboxes, the 7202B bearing helps manage the radial and axial loads generated by the rotating shafts and gears. It ensures smooth gear transitions and reduces friction, thereby improving the efficiency and lifespan of the gearbox.
Common Brands:ZF Friedrichshafen、Getrag (Magna Powertrain)、Aisin Seiki、BorgWarner、Tremec
3. Electric Motors
Role: In electric motors, 7202B bearings are used to support the motor shaft. They enable high-speed rotation while maintaining the precise alignment necessary for efficient motor operation, reducing noise and wear.
Common Brands:Siemens、ABB、WEG、TECO、Toshiba
4. Pumps (e.g., Centrifugal Pumps, Hydraulic Pumps)
Role: In pumps, the 7202B bearing is used to support the impeller shaft, ensuring stable rotation and the ability to handle the combined radial and axial loads that occur during pump operation. This helps maintain the efficiency and reliability of the pump.
Common Brands:Grundfos、KSB、Sulzer、ITT Goulds Pumps、Flowserve
5. Robotics and Automation Systems
Role: In robotics and automation systems, 7202B bearings are used in the joints and moving parts, where they handle both radial and axial loads. Their precision ensures accurate and smooth movement, which is essential for the proper functioning of robotic arms and other automated components.
Common Brands:FANUC、KUKA、ABB Robotics、Yaskawa、Mitsubishi Electric
7202B Bearing Cross Reference and Interchange
| Manufacturer | Bearing Model | Equivalent Bearing |
|---|---|---|
| Amigo | 7202 B | - |
| SKF | 7202 BECBP | Amigo 7202 B |
| FAG | 7202-B-TVP | Amigo 7202 B |
| NTN | 7202-B | Amigo 7202 B |
To assist users in finding equivalent bearings from other manufacturers, the above cross reference and interchange guide is provided.
Choosing the Right Bearing
When selecting bearings for your applications, it’s important to compare the different options available to ensure you’re choosing the right one for your needs. Below is a comparison of the Amigo 7202B Single Row Angular Contact Ball Bearing with other similar models from leading manufacturers.
When to Choose 7202B Bearings
The 7202B bearing is ideal for applications that require:
- High Precision and Speed: The 7202B bearing’s ability to operate at speeds up to 24,000 r/min makes it perfect for high-speed applications such as machine tool spindles, electric motors, and high-performance gearboxes.
- Combined Load Handling: With a 40° contact angle, the 7202B bearing can effectively handle both radial and axial loads, which is essential in applications like automotive gearboxes and pumps.
- Compact and Lightweight Design: The bearing’s dimensions (15 mm bore diameter, 35 mm outside diameter, and 11 mm width) make it suitable for applications where space and weight are critical factors.
Advantages of Amigo 7202B Bearings
- Cost-Effectiveness: The Amigo 7202B offers similar performance to SKF, FAG, and NTN bearings but at a more competitive price. This makes it an excellent choice for cost-conscious buyers who don’t want to compromise on quality.
- High Availability: Amigo bearings are readily available with shorter lead times, reducing the risk of downtime in your operations.
- Quality and Reliability: The Amigo 7202B is manufactured to high standards, ensuring reliability and long service life comparable to that of premium brands like SKF and FAG.
| Feature | Amigo 7202B | SKF 7202 BECBP | FAG 7202-B-TVP | NTN 7202-B |
|---|---|---|---|---|
| Bore Diameter | 15 mm | 15 mm | 15 mm | 15 mm |
| Outside Diameter | 35 mm | 35 mm | 35 mm | 35 mm |
| Width | 11 mm | 11 mm | 11 mm | 11 mm |
| Dynamic Load Rating | 1,870 lbf | 1,870 lbf | 1,870 lbf | 1,870 lbf |
| Static Load Rating | 989 lbf | 989 lbf | 989 lbf | 989 lbf |
| Reference Speed | 24,000 r/min | 24,000 r/min | 24,000 r/min | 24,000 r/min |
| Limiting Speed | 24,000 r/min | 24,000 r/min | 24,000 r/min | 24,000 r/min |
| Cage Material | Non-metallic | Steel/Non-metallic | Steel/Non-metallic | Steel/Non-metallic |
| Availability | High | Moderate | Moderate | Moderate |
| Price | Competitive | Higher | Higher | Higher |
| Warranty | Standard | Standard | Standard | Standard |
