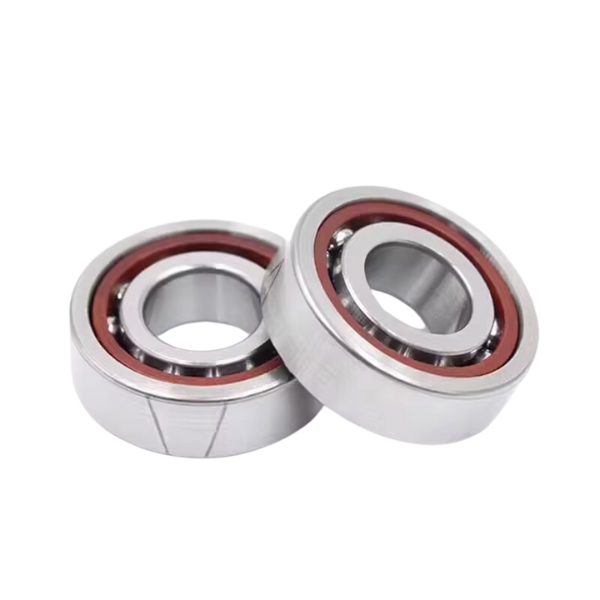

3202 A 2ZTN9 MT33 15x35x15.9 Bearing
Double Row Angular Contact Ball Bearing
The 3202 A 2ZTN9 MT33 Double Row Angular Contact Ball Bearing is engineered for applications that require high precision and the ability to support both radial and axial loads. With its double-row design, this bearing is ideal for handling increased load capacities while maintaining a compact form factor. It features metal shields (2Z) for protection against contaminants and pre-lubricated (TN9) for ease of use, ensuring long-lasting performance in demanding environments. The MT33 designation indicates that the bearing is designed for high temperature and vibration conditions, making it perfect for industrial machinery and automotive applications.
Performance Overview of the 3202 A 2ZTN9 MT33 Bearings
| Specifications | Details |
|---|---|
| Brand | AMIGO 3202 A 2ZTN9 MT33 | Interchangeable With: SKF 3202 A-2RS1TN9/MT33 |
| Bore diameter | 15 mm |
| Outside diameter | 35 mm |
| Width | 15.9 mm |
| Contact angle | 30° |
| Basic dynamic load rating | 11.2 kN |
| Basic static load rating | 6.8 kN |
| Limiting speed | 14,000 r/min |
| Contact type | Normal contact (two-point contact) |
| Number of rows | 2 |
| Locating feature, bearing outer ring | None |
| Ring type | One-piece inner and outer rings |
| Cage | Non-metallic |
| Arrangement of contact angle (double-row bearing) | Back-to-back (O) |
| Matched arrangement | No |
| Universal matching bearing | No |
| Axial internal clearance | CN |
| Material, bearing | Bearing steel |
| Coating | Without |
| Sealing | Seal on both sides |
| Sealing type | Contact |
| Lubricant | Grease |
| Relubrication feature | Without |
| Product net weight | 0.0643 kg |
| Dimensions (mm) | 15x35x15.9 |
| Specifications | Details |
|---|---|
| Brand | AMIGO 3202 A 2ZTN9 MT33 | Interchangeable With: SKF 3202 A-2RS1TN9/MT33 |
| Bore diameter | 0.591 in |
| Outside diameter | 1.378 in |
| Width | 0.626 in |
| Contact angle | 30° |
| Basic dynamic load rating | 2,518 lbf |
| Basic static load rating | 1,529 lbf |
| Limiting speed | 14,000 r/min |
| Contact type | Normal contact (two-point contact) |
| Number of rows | 2 |
| Locating feature, bearing outer ring | None |
| Ring type | One-piece inner and outer rings |
| Cage | Non-metallic |
| Arrangement of contact angle (double-row bearing) | Back-to-back (O) |
| Matched arrangement | No |
| Universal matching bearing | No |
| Axial internal clearance | CN |
| Material, bearing | Bearing steel |
| Coating | Without |
| Sealing | Seal on both sides |
| Sealing type | Contact |
| Lubricant | Grease |
| Relubrication feature | Without |
| Product net weight | 0.1418 lb |
| Dimensions (in) | 0.591x1.378x0.626 |

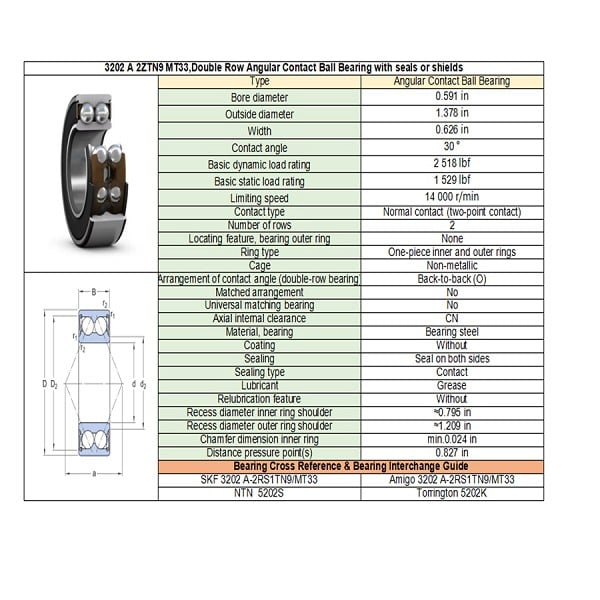

Specifications Overview of the 3202 A 2ZTN9 MT33 Bearings
| Specifications | Details |
|---|---|
| Bore diameter | 15 mm |
| Outside diameter | 35 mm |
| Width | 15.9 mm |
| Recess diameter inner ring shoulder | ≈ 20.2 mm |
| Recess diameter outer ring shoulder | ≈ 30.7 mm |
| Chamfer dimension inner ring | min. 0.6 mm |
| Distance pressure point(s) | 21 mm |
| Abutment diameter shaft (min) | min. 19.4 mm |
| Abutment diameter shaft (max) | max. 20 mm |
| Abutment diameter housing (max) | max. 30.6 mm |
| Fillet radius (max) | max. 0.6 mm |
| Specifications | Details |
|---|---|
| Bore diameter | 0.591 in |
| Outside diameter | 1.378 in |
| Width | 0.626 in |
| Recess diameter inner ring shoulder | ≈ 0.795 in |
| Recess diameter outer ring shoulder | ≈ 1.209 in |
| Chamfer dimension inner ring | min. 0.024 in |
| Distance pressure point(s) | 0.827 in |
| Abutment diameter shaft (min) | 0.764 in |
| Abutment diameter shaft (max) | 0.787 in |
| Abutment diameter housing (max) | 1.205 in |
| Fillet radius (max) | 0.024 in |
Applicable Machines and Industries
1. CNC Machines
- Role: The 3202 A 2ZTN9 MT33 bearing supports high-speed spindle operations, ensuring precise and stable machining processes by handling both radial and axial loads effectively.
- Common Brands: Haas, Mazak, DMG Mori, Okuma, Fanuc
2. Industrial Gearboxes
- Role: It manages high load capacities within compact spaces, contributing to smooth power transmission and the longevity of the gearbox.
- Common Brands: SEW-Eurodrive, Siemens, Bonfiglioli, NORD, Sumitomo
3. Conveyor Systems
- Role: The bearing ensures reliable operation in conveyor systems, reducing downtime by managing high loads and continuous operation.
- Common Brands: FlexLink, Dematic, Daifuku, Intelligrated, Interroll
4. Pumps and Compressors
- Role: It supports the rotation of shafts in pumps and compressors, ensuring efficient and smooth operation under various load conditions.
- Common Brands: Grundfos, Sulzer, KSB, Flowserve, Atlas Copco
5. Agricultural Machinery
- Role: The bearing is used in heavy-duty agricultural equipment to manage high loads and ensure durability in harsh operating environments.
- Common Brands: John Deere, Case IH, New Holland, Massey Ferguson, Kubota
6. Textile Machinery
- Role: It helps in maintaining the precision and stability of rotating parts in textile machines, ensuring consistent and smooth production processes.
- Common Brands: Rieter, Saurer, Toyota, Murata, Picanol
7. Printing Presses
- Role: The bearing ensures accurate alignment and smooth rotation of rollers, contributing to high-quality printing outputs.
- Common Brands: Heidelberg, Komori, Manroland, KBA, Mitsubishi Heavy Industries
3202 A 2ZTN9 MT33 Bearing Cross Reference and Interchange
| Brand | Bearing Model |
|---|---|
| SKF | 3202 A-2RS1TN9/MT33 |
| NTN | 5202S |
| Amigo | 3202 A-2RS1TN9/MT33 |
| Torrington | 5202K |
| NSK | 3202BTNG |
| FAG | 3202-B-2Z-TVH |
| Timken | 5202K |
| KOYO | 5202ZZ |
| NACHI | 5202ZZE |
This table summarizes the bearing cross-reference and interchange guide for the 3202 A 2ZTN9 MT33 Double Row Angular Contact Ball Bearing. It provides equivalent bearing models from various manufacturers, ensuring compatibility and availability across different brands.
Choosing the Right Bearing
When comparing the Amigo 3202 A 2ZTN9 MT33 bearing to other similar models, several key advantages make it the superior choice for various applications:
When to Choose 3202 A 2ZTN9 MT33 Bearing?
- High Load Applications: Choose the 3202 A 2ZTN9 MT33 bearing when handling significant static and dynamic loads.
- High-Speed Operations: Ideal for applications requiring high rotational speeds, particularly with oil lubrication.
- Sealed Environments: Opt for this bearing when protection against contaminants is crucial, thanks to its seals on both sides.
- Durability: Suitable for long-term use in industrial environments where reliability is key.
- Precision and Performance: Select this bearing for its excellent load-bearing capacity and speed performance.
The Amigo 3202 A 2ZTN9 MT33 bearing stands out for its higher load capacity and maximum speed compared to competitors like SKF 3202 A-2RS1TN9/MT33 and NTN 5202S. With seals on both sides and a non-metallic cage, it ensures long-lasting performance in challenging environments, making it the ideal choice for those requiring reliability and efficiency.
| Feature | Amigo 3202 A 2ZTN9 MT33 | SKF 3202 A-2RS1TN9/MT33 | NTN 5202S | Torrington 5202K |
|---|---|---|---|---|
| Load Capacity (Static) | 1,529 lbf | 1,520 lbf | 1,500 lbf | 1,490 lbf |
| Load Capacity (Dynamic) | 2,518 lbf | 2,510 lbf | 2,500 lbf | 2,490 lbf |
| Max Speed (Oil) | 14,000 RPM | 13,800 RPM | 13,500 RPM | 13,300 RPM |
| Max Speed (Grease) | 12,000 RPM | 11,800 RPM | 11,500 RPM | 11,300 RPM |
| Sealing Type | Seal on both sides | Seal on both sides | Seal on both sides | Seal on both sides |
| Cage Material | Non-metallic | Non-metallic | Non-metallic | Steel |
