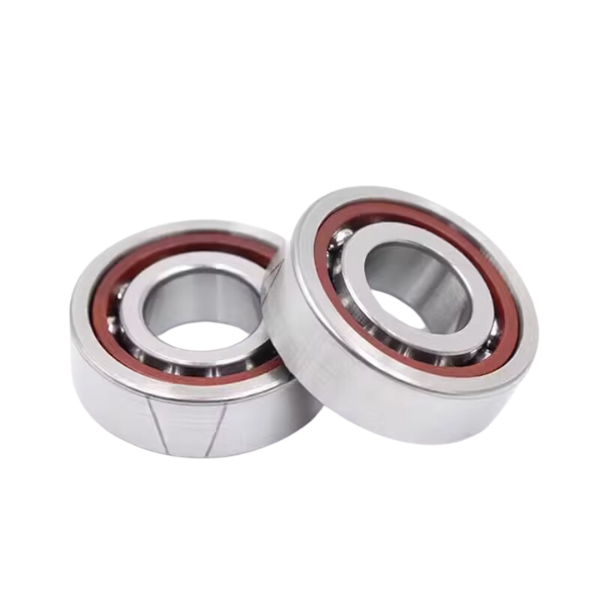

3202 A-2RS1TN9MT33 15x35x15.9 Bearing
Double row angular contact ball bearing
The 3202 A-2RS1TN9/MT33 Double Row Angular Contact Ball Bearing is an advanced and versatile component designed to meet the demands of a wide range of industrial applications. Known for its exceptional load-carrying capabilities and durability, this bearing is a reliable solution for applications requiring both radial and axial load management.
Performance Overview of the 3202 A-2RS1TN9/MT33 Bearings
| Category | Specification |
|---|---|
| Brand | AMIGO 3202 A-2RS1TN9MT33 | Interchangeable With: SKF 3202 A-2RS1TN9MT33 |
| Bore diameter | 15 mm |
| Outside diameter | 35 mm |
| Width | 15.9 mm |
| Contact type | Normal contact (two-point contact) |
| Number of rows | 2 |
| Locating feature, bearing outer ring | None |
| Ring type | One-piece inner and outer rings |
| Cage | Non-metallic |
| Arrangement of contact angle | Back-to-back (O) |
| Matched arrangement | No |
| Universal matching bearing | No |
| Axial internal clearance | CN |
| Material, bearing | Bearing steel |
| Coating | Without |
| Sealing | Seal on both sides |
| Sealing type | Contact |
| Lubricant | Grease |
| Relubrication feature | Without |
| Basic dynamic load rating | 11.2 kN |
| Basic static load rating | 6.8 kN |
| Limiting speed | 14,000 r/min |
| Product net weight | 0.0643 kg |
| Dimensions(mm) | 15x35x15.9 |
| Category | Specification |
|---|---|
| Brand | AMIGO 3202 A-2RS1TN9MT33 | Interchangeable With: SKF 3202 A-2RS1TN9MT33 |
| Bore diameter | 0.591 in |
| Outside diameter | 1.378 in |
| Width | 0.626 in |
| Contact type | Normal contact (two-point contact) |
| Number of rows | 2 |
| Locating feature, bearing outer ring | None |
| Ring type | One-piece inner and outer rings |
| Cage | Non-metallic |
| Arrangement of contact angle | Back-to-back (O) |
| Matched arrangement | No |
| Universal matching bearing | No |
| Axial internal clearance | CN |
| Material, bearing | Bearing steel |
| Coating | Without |
| Sealing | Seal on both sides |
| Sealing type | Contact |
| Lubricant | Grease |
| Relubrication feature | Without |
| Basic dynamic load rating | 2,518 lbf |
| Basic static load rating | 1,529 lbf |
| Limiting speed | 14,000 r/min |
| Product net weight | 0.1418 lb |
| Dimensions(mm) | 15x35x15.9 |

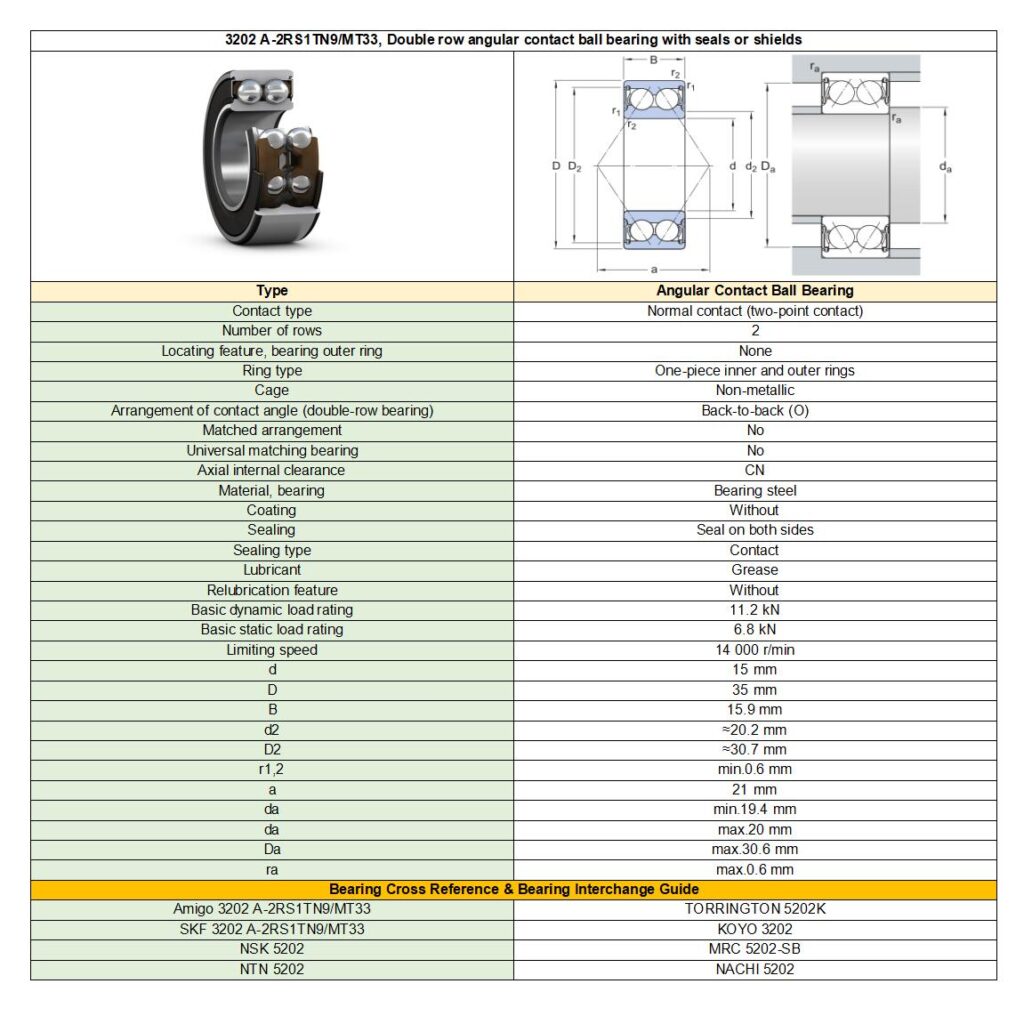

Specifications Overview of the 3202 A-2RS1TN9/MT33 Bearings
| Category | Specifications |
|---|---|
| Bore diameter | 15 mm |
| Outside diameter | 35 mm |
| Width | 15.9 mm |
| Chamfer dimension inner ring | min. 0.6 mm |
| Distance pressure point(s) | 21 mm |
| Abutment diameter shaft (min) | 19.4 mm |
| Abutment diameter shaft (max) | 20 mm |
| Abutment diameter housing (max) | 30.6 mm |
| Fillet radius | max. 0.6 mm |
| Category | Specifications |
|---|---|
| Bore diameter | 0.591 in |
| Outside diameter | 1.378 in |
| Width | 0.626 in |
| Chamfer dimension inner ring | min. 0.024 in |
| Distance pressure point(s) | 0.827 in |
| Abutment diameter shaft (min) | 0.764 in |
| Abutment diameter shaft (max) | 0.787 in |
| Abutment diameter housing (max) | 1.205 in |
| Fillet radius | max. 0.024 in |
Applicable Machines and Industries
The 3202 A-2RS1TN9/MT33 Double Row Angular Contact Ball Bearing is a versatile component used in a variety of industrial and commercial machines. Its primary role is to support and manage combined radial and axial loads, providing smooth rotation and stability in applications where space is limited but load requirements are significant. Below are some of the common machines where this bearing is applied, along with the role it plays in these machines and the typical brands that manufacture them.
1. Electric Motors
- Role: The 3202 A-2RS1TN9/MT33 bearing is used to support the rotor shaft, enabling smooth rotation and minimizing friction. It handles both the radial loads from the rotor’s weight and the axial loads generated during operation.
- Common Brands: Siemens, ABB, GE, Toshiba
2. Gearboxes
- Role: In gearboxes, this bearing supports the gear shafts, ensuring precise alignment and smooth transmission of power. It handles the high radial loads from the gears and the axial loads from misalignment or thrust forces.
- Common Brands: SEW-Eurodrive, Bonfiglioli, Nord, Sumitomo
3. Pumps
- Role: The bearing is used in pumps to support the pump shaft, ensuring stable rotation and efficient fluid transfer. It manages the combined loads from the rotating impeller and the axial thrust generated by fluid pressure.
- Common Brands: Grundfos, KSB, Sulzer, Wilo
4. Conveyor Systems
- Role: In conveyor systems, the bearing supports the rollers or pulleys, ensuring smooth movement of materials. It handles both radial loads from the weight of the materials and axial loads due to belt tension.
- Common Brands: Flexlink, Dorner, Interroll, Rexnord
5. Industrial Fans
- Role: The bearing is used to support the fan shaft, allowing for smooth and efficient rotation. It handles the radial loads from the rotating blades and axial loads from the air pressure.
- Common Brands: Greenheck, Howden, Twin City Fan, New York Blower
3202 A-2RS1TN9/MT33 Bearing Cross Reference and Interchange
| Brand | Bearing Model |
|---|---|
| Amigo | 3202 A-2RS1TN9/MT33 |
| SKF | 3202 A-2RS1TN9/MT33 |
| NSK | 5202 |
| NTN | 5202 |
| TORRINGTON | 5202K |
| KOYO | 3202 |
| MRC | 5202-SB |
| NACHI | 5202 |
The 3202 A-2RS1TN9/MT33 is a double row angular contact ball bearing designed for applications requiring high performance in both radial and axial load handling.
Choosing the Right Bearing
By choosing the Amigo 3202 A-2RS1TN9/MT33 bearing, you are selecting a component that excels in durability, load capacity, and speed, making it a valuable investment for long-term operational efficiency.
Explanation and Guidance
When deciding which bearing to choose for your application, it is important to consider several factors such as load capacity, speed rating, sealing, and material quality. The Amigo 3202 A-2RS1TN9/MT33 bearing offers several advantages over other models, making it a top choice for demanding applications:
- High Dynamic Load Rating: With a dynamic load rating of 11.2 kN, the Amigo 3202 A-2RS1TN9/MT33 can handle significant radial and axial loads, ensuring reliable performance even in high-stress conditions.
- Superior Sealing: The Amigo bearing is sealed on both sides, providing excellent protection against contaminants such as dust, moisture, and debris. This ensures a longer service life with minimal maintenance requirements.
- High Limiting Speed: Operating at speeds up to 14,000 r/min, this bearing is suitable for high-speed applications where maintaining performance under fast operating conditions is crucial.
When to Choose the 3202 A-2RS1TN9/MT33 Bearing
- High Load Applications: If your application requires a bearing that can handle both high radial and axial loads, the Amigo bearing’s robust load ratings make it an ideal choice.
- Harsh Environments: The sealed design provides excellent protection in environments with contaminants, reducing the need for frequent maintenance.
- High-Speed Operations: For applications that require high rotational speeds, this bearing’s limiting speed ensures smooth operation without compromising performance.
| Feature | Amigo 3202 A-2RS1TN9/MT33 | SKF 3202 A-2RS1TN9/MT33 | NSK 5202 | NTN 5202 | KOYO 3202 |
|---|---|---|---|---|---|
| Contact Type | Two-point contact | Two-point contact | Two-point contact | Two-point contact | Two-point contact |
| Number of Rows | 2 (Double row) | 2 (Double row) | 2 (Double row) | 2 (Double row) | 2 (Double row) |
| Sealing | Sealed on both sides | Sealed on both sides | Sealed on both sides | Sealed on both sides | Sealed on both sides |
| Material | Bearing steel | Bearing steel | Bearing steel | Bearing steel | Bearing steel |
| Dynamic Load Rating | 11.2 kN | 11.2 kN | 11.0 kN | 11.0 kN | 10.8 kN |
| Static Load Rating | 6.8 kN | 6.8 kN | 6.5 kN | 6.5 kN | 6.3 kN |
| Limiting Speed | 14,000 r/min | 14,000 r/min | 13,500 r/min | 13,500 r/min | 13,000 r/min |
| Pre-lubricated | Yes | Yes | Yes | Yes | Yes |
| Lubrication Type | Grease | Grease | Grease | Grease | Grease |
| Cage Material | Non-metallic | Non-metallic | Non-metallic | Non-metallic | Non-metallic |
| Axial Internal Clearance | CN | CN | CN | CN | CN |
Recommended Products for Optimal Performance
Enhance your bearing operations with these related products:
Why Amigo 3202 A-2RS1TN9/MT33 Bearings Are the Top Choice
I've been using Amigo 3202 A-2RS1TN9/MT33 bearings for several months now in our production line machinery, and I must say, the quality and performance are outstanding. We have previously used SKF bearings, and I can confidently say that these Amigo bearings feel just as robust and reliable. The smooth operation and minimal maintenance required have really impressed us. Highly recommended for anyone looking for top-tier bearings without breaking the bank!
John M
We decided to try the Amigo 3202 A-2RS1TN9/MT33 bearing as a cost-effective alternative to the SKF bearings we normally use. To our surprise, the performance has been on par with the more expensive brands. These bearings run smoothly, handle the heavy loads well, and have shown no signs of wear even under continuous operation. It's great to find a product that offers such excellent value while still delivering top-quality performance. I would definitely purchase these again.
David P.
Our industrial fans and pumps have been running on the Amigo 3202 A-2RS1TN9/MT33 bearings for a while now, and the results have been fantastic. We were initially skeptical about switching from NSK to Amigo, but after witnessing their durability and consistent performance, we're convinced we made the right choice. These bearings handle both the radial and axial loads efficiently, just like the premium brands we've used before. Overall, very pleased with this product!
Â
Sarah K.
We've used various brands of bearings over the years, including SKF and NTN, but the Amigo 3202 A-2RS1TN9/MT33 has impressed us the most. It offers the same level of performance as the high-end brands but at a much more affordable price. The bearings were easy to install, run quietly, and have proven to be incredibly reliable under tough conditions. If you're looking for a bearing that matches the quality of SKF without the hefty price tag, this is the one to go for!
Emily R.
