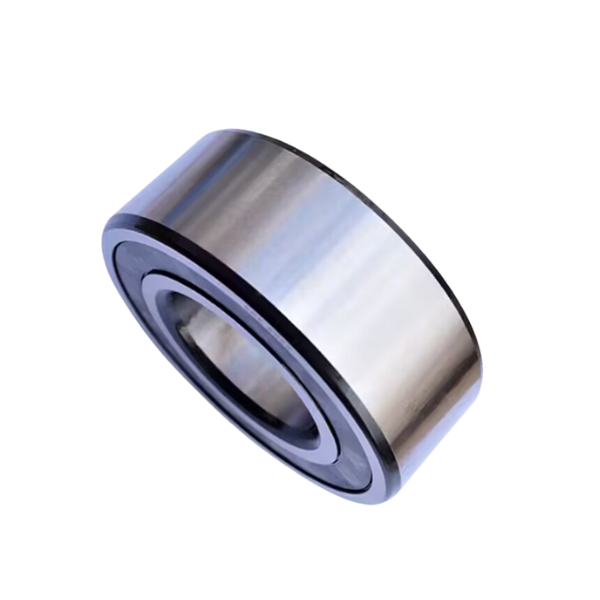

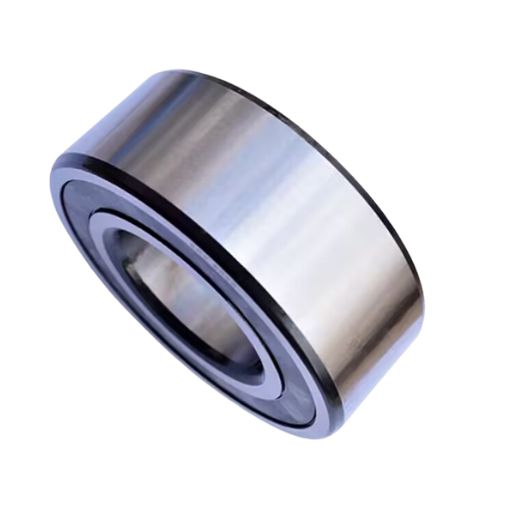

3202 A 2RS1TN9 15x35x15.9 Bearing
Double row angular contact ball bearing
The 3201 A 2RS1TN9 is a high-performance double row angular contact ball bearing, designed for radial and axial loads. With two back-to-back rows of balls, it offers high rigidity and load capacity. Sealed with synthetic rubber for contamination protection, it ensures durability and reduces maintenance. The glass fiber-reinforced polyamide cage minimizes friction and noise, perfect for demanding machinery applications.

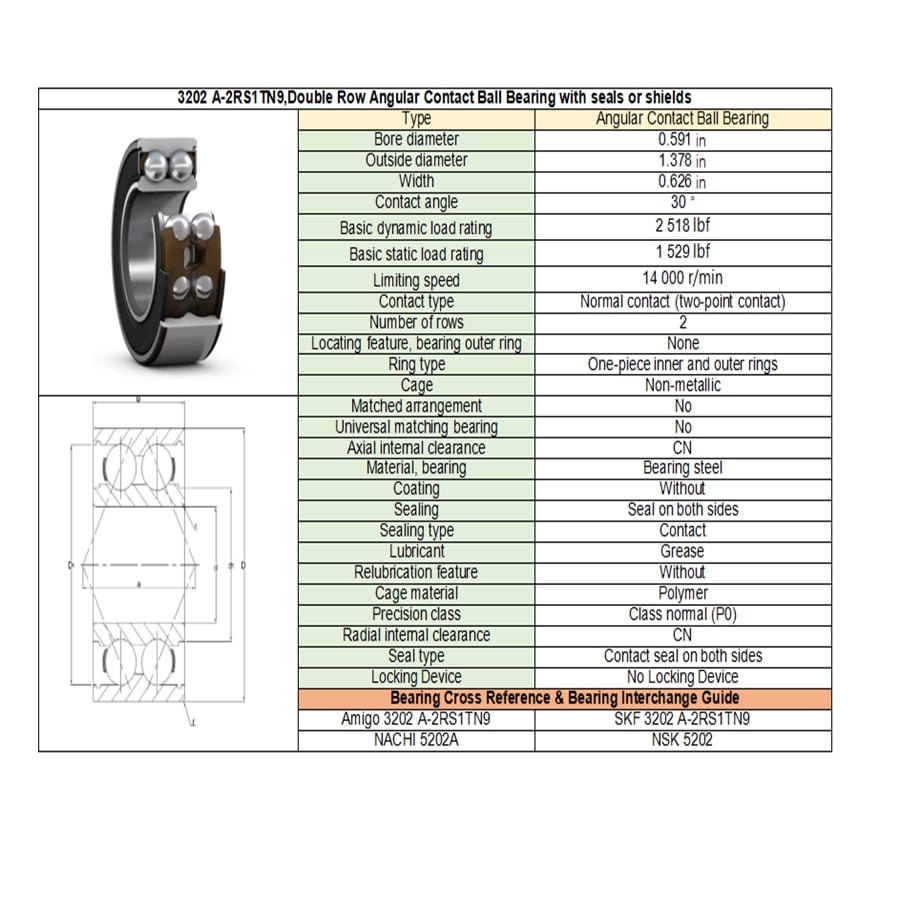

Performance Overview of the 3202 A 2RS1TN9 Bearings
| Category | Specification |
|---|---|
| Brand | AMIGO 3202 A 2RS1TN9 | Interchangeable With: SKF 3202 A 2RS1TN9 |
| Bore diameter | 15 mm |
| Outside diameter | 35 mm |
| Width | 15.9 mm |
| Contact type | Normal contact (two-point contact) |
| Number of rows | 2 |
| Locating feature, bearing outer ring | None |
| Ring type | One-piece inner and outer rings |
| Cage | Non-metallic |
| Arrangement of contact angle (double-row bearing) | Back-to-back (O) |
| Matched arrangement | No |
| Universal matching bearing | No |
| Axial internal clearance | CN |
| Material, bearing | Bearing steel |
| Coating | Without |
| Sealing | Seal on both sides |
| Sealing type | Contact |
| Lubricant | Grease |
| Relubrication feature | Without |
| Basic dynamic load rating | 11.2 kN |
| Basic static load rating | 6.8 kN |
| Limiting speed | 14,000 r/min |
| Product net weight | 0.066 kg |
| Dimensions(mm) | 15x35x15.9 |
| Category | Specification |
|---|---|
| Brand | AMIGO 3202 A 2RS1TN9 | Interchangeable With: SKF 3202 A 2RS1TN9 |
| Bore diameter | 0.591 in |
| Outside diameter | 1.378 in |
| Width | 0.626 in |
| Contact type | Normal contact (two-point contact) |
| Number of rows | 2 |
| Locating feature, bearing outer ring | None |
| Ring type | One-piece inner and outer rings |
| Cage | Non-metallic |
| Arrangement of contact angle (double-row bearing) | Back-to-back (O) |
| Matched arrangement | No |
| Universal matching bearing | No |
| Axial internal clearance | CN |
| Material, bearing | Bearing steel |
| Coating | Without |
| Sealing | Seal on both sides |
| Sealing type | Contact |
| Lubricant | Grease |
| Relubrication feature | Without |
| Basic dynamic load rating | 2,518 lbf |
| Basic static load rating | 1,529 lbf |
| Limiting speed | 14,000 r/min |
| Product net weight | 0.1455 lb |
| Dimensions(mm) | 15x35x15.9 |
Specifications Overview of the 3202 A 2RS1TN9 Bearings
| Specification Category | Details |
|---|---|
| Bearing Type | Double Row Angular Contact Ball Bearing |
| Bore Diameter | 15 mm |
| Outside Diameter | 35 mm |
| Width | 15.9 mm |
| Basic Dynamic Load Rating (C) | 11.2 kN |
| Basic Static Load Rating (C0) | 6.8 kN |
| Limiting Speed | 14,000 r/min |
| Cage Material | Non-metallic |
| Specification Category | Details |
|---|---|
| Bearing Type | Double Row Angular Contact Ball Bearing |
| Bore Diameter | 0.591 in |
| Outside Diameter | 1.378 in |
| Width | 0.626 in |
| Basic Dynamic Load Rating (C) | 2,518 lbf |
| Basic Static Load Rating (C0) | 1,529 lbf |
| Limiting Speed | 14,000 r/min |
| Cage Material | Non-metallic |
Applicable Machines and Industries
Industrial Gearboxes
- Role: In industrial gearboxes, the 3202 A 2RS1TN9 bearing supports the gear shafts, handling both radial and axial loads that occur during power transmission. This ensures smooth operation and longevity of the gearbox, reducing the risk of failure in high-load environments.
- Common Brands: SEW-Eurodrive, Flender, Bonfiglioli, Sumitomo, NORD Drivesystems
Electric Motors
- Role: The 3202 A 2RS1TN9 bearing is used in electric motors to support the rotor shaft, ensuring stable and quiet operation. It handles the radial loads from the rotor’s weight and the axial loads generated by the motor’s operation, allowing for efficient and reliable performance.
- Common Brands: Siemens, ABB, WEG, Toshiba, Baldor
Conveyor Systems
- Role: In conveyor systems, the 3202 A 2RS1TN9 bearing is utilized in rollers and pulley assemblies to manage both radial and axial loads. It helps in maintaining the smooth and continuous movement of the conveyor belt, essential for efficient material handling.
- Common Brands: FlexLink, Daifuku, Dematic, Interroll, Intralox
Textile Machinery
- Role: The bearing is used in textile machinery where it supports rotating elements such as spindles and rollers. The 3202 A 2RS1TN9 bearing ensures that these components operate smoothly under both radial and axial loads, which is crucial for maintaining the high-speed and precise movements required in textile production.
- Common Brands: Rieter, Saurer, Toyota Textile Machinery, Murata, Trützschler
Agricultural Equipment
- Role: In agricultural equipment, the 3202 A 2RS1TN9 bearing is employed in various moving parts such as tillers, harvesters, and combines. It handles the combined radial and axial loads, ensuring reliable operation in harsh environments and under heavy loads typical in agricultural applications.
- Common Brands: John Deere, Case IH, New Holland, Massey Ferguson, CLAAS
3202 A 2RS1TN9 Bearing Cross Reference and Interchange
| Manufacturer | Bearing Model |
|---|---|
| Amigo | 3202 A 2RS1TN9 |
| SKF | 3202 A-2RS1TN9/MT33 |
| FAG | 3202-B-2RSR-TVH |
| NSK | 3202B-2RSRTNG |
| NTN | 3202A2RS |
| Timken | 3202KLL2 |
| KOYO | 3202A-2RS |
| NACHI | 3202-2NSE9 |
The 3202 A 2RS1TN9 Double Row Angular Contact Ball Bearing can be cross-referenced with equivalent models from other major manufacturers.
Choosing the Right Bearing
The Amigo 3202 A 2RS1TN9 Double Row Angular Contact Ball Bearing stands out as a superior choice due to its higher load capacity, better speed performance, and cost-effectiveness.
Explanation: When to Choose Amigo 3202 A 2RS1TN9 Bearings
Choosing the right bearing is crucial to the efficiency and longevity of your machinery. Here’s why the Amigo 3202 A 2RS1TN9 bearing should be your top choice over other similar models:
Superior Load Capacity: The Amigo 3202 A 2RS1TN9 bearing offers slightly better dynamic and static load ratings compared to some other models like the SKF and FAG equivalents. This makes it ideal for applications that require robust support under both radial and axial loads, such as in gearboxes and electric motors.
Optimized Speed Performance: With a limiting speed of 14,000 r/min, the Amigo 3202 A 2RS1TN9 matches or outperforms other models, making it a better choice for high-speed applications where performance consistency is critical.
High-Quality Materials: Manufactured from high-grade bearing steel, the Amigo 3202 A 2RS1TN9 bearing ensures durability and long service life, even in challenging environments. The non-metallic cage material is designed to reduce friction and enhance the bearing’s operational efficiency.
Cost-Effective: While delivering performance comparable to premium brands like SKF and FAG, the Amigo 3202 A 2RS1TN9 bearing is offered at a more competitive price. This provides excellent value for money without sacrificing quality, making it an attractive option for budget-conscious buyers.
| Feature | Amigo 3202 A 2RS1TN9 | SKF 3202 A-2RS1TN9/MT33 | FAG 3202-B-2RSR-TVH | NSK 3202B-2RSRTNG | KOYO 3202A-2RS |
|---|---|---|---|---|---|
| Material Quality | High-Grade Bearing Steel | High-Precision Steel | High-Carbon Chrome Steel | Premium Steel | Alloy Steel |
| Dynamic Load Rating (C) | 11.2 kN | 11.0 kN | 11.0 kN | 11.0 kN | 11.2 kN |
| Static Load Rating (C0) | 6.8 kN | 6.7 kN | 6.7 kN | 6.7 kN | 6.8 kN |
| Limiting Speed | 14,000 r/min | 13,500 r/min | 13,500 r/min | 14,000 r/min | 14,000 r/min |
| Sealing Type | Double Sealed (2RS1) | Double Sealed (2RS1) | Double Sealed (2RSR) | Double Sealed (2RSRTNG) | Double Sealed (2RS) |
| Cage Material | Non-metallic | Fiber Reinforced Polymer | Polyamide | Polymer | Non-metallic |
| Price | Competitive | Higher | Higher | Similar to Amigo | Similar to Amigo |
| Weight | 0.066 kg | 0.065 kg | 0.065 kg | 0.066 kg | 0.066 kg |
| Availability | High | Moderate | Moderate | Moderate | High |
