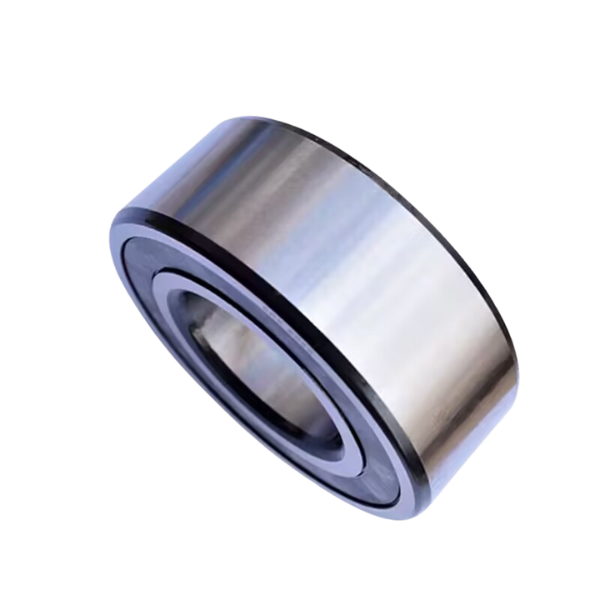

3200 A 2ZTN9 MT33 10x30x14 Bearing
Double row angular contact ball bearing
The 3200 A 2ZTN9 MT33 is a high-performance double row angular contact ball bearing engineered for demanding applications requiring the support of both radial and axial loads. It provides exceptional stability and precision, making it ideal for use in machinery where space is limited. With metal shields on both sides and a durable design, this bearing is built to withstand harsh operating environments, ensuring long-lasting, reliable performance across various industrial applications.
Performance Overview of the 3200 A 2ZTN9 MT33 Bearings
| Specifications | Details |
|---|---|
| Brand | AMIGO 3200 A 2ZTN9 MT33 | Interchangeable With: SKF 3200 A-2ZTN9/MT33 |
| Bore diameter | 10 mm |
| Outside diameter | 30 mm |
| Width | 14 mm |
| Contact angle | 30° |
| Contact type | Normal contact (two-point contact) |
| Number of rows | 2 |
| Locating feature, bearing outer ring | None |
| Ring type | One-piece inner and outer rings |
| Cage | Non-metallic |
| Arrangement of contact angle (double-row bearing) | Back-to-back (O) |
| Matched arrangement | No |
| Universal matching bearing | No |
| Axial internal clearance | CN |
| Material, bearing | Bearing steel |
| Coating | Without |
| Sealing | Shield on both sides |
| Sealing type | Non-contact |
| Lubricant | Grease |
| Relubrication feature | Without |
| Basic dynamic load rating | 7.61 kN |
| Basic static load rating | 4.3 kN |
| Reference speed | 26 000 r/min |
| Limiting speed | 24 000 r/min |
| Product net weight | 0.0502 kg |
| Dimensions(mm) | 10x30x14 |
| Specifications | Details |
|---|---|
| Brand | AMIGO 3200 A 2ZTN9 MT33 | Interchangeable With: SKF 3200 A-2ZTN9/MT33 |
| Bore diameter | 0.394 in |
| Outside diameter | 1.181 in |
| Width | 0.551 in |
| Contact angle | 30° |
| Contact type | Normal contact (two-point contact) |
| Number of rows | 2 |
| Locating feature, bearing outer ring | None |
| Ring type | One-piece inner and outer rings |
| Cage | Non-metallic |
| Arrangement of contact angle (double-row bearing) | Back-to-back (O) |
| Matched arrangement | No |
| Universal matching bearing | No |
| Axial internal clearance | CN |
| Material, bearing | Bearing steel |
| Coating | Without |
| Sealing | Shield on both sides |
| Sealing type | Non-contact |
| Lubricant | Grease |
| Relubrication feature | Without |
| Basic dynamic load rating | 1711 lbf |
| Basic static load rating | 967 lbf |
| Reference speed | 26 000 r/min |
| Limiting speed | 24 000 r/min |
| Product net weight | 0.1107 lb |
| Dimensions(in) | 0.394x1.181x0.551 |
Specifications Overview of the 3200 A 2ZTN9 MT33 Bearings
| Specifications | Details |
|---|---|
| Bore diameter | 10 mm |
| Outside diameter | 30 mm |
| Width | 14 mm |
| Recess diameter inner ring shoulder | ≈ 15.8 mm |
| Recess diameter outer ring shoulder | ≈ 24.95 mm |
| Chamfer dimension inner ring | min. 0.6 mm |
| Distance pressure point(s) | 16 mm |
| Abutment diameter shaft (min) | min. 14.4 mm |
| Abutment diameter shaft (max) | max. 15.5 mm |
| Abutment diameter housing | max. 25.6 mm |
| Fillet radius | max. 0.6 mm |
| Specifications | Details |
|---|---|
| Bore diameter | 0.394 in |
| Outside diameter | 1.181 in |
| Width | 0.551 in |
| Recess diameter inner ring shoulder | ≈ 0.622 in |
| Recess diameter outer ring shoulder | ≈ 0.982 in |
| Chamfer dimension inner ring | min. 0.024 in |
| Distance pressure point(s) | 0.63 in |
| Abutment diameter shaft (min) | min. 0.567 in |
| Abutment diameter shaft (max) | max. 0.61 in |
| Abutment diameter housing | max. 1.008 in |
| Fillet radius | max. 0.024 in |
Applicable Machines and Industries
1. Textile Machines
- Role: Provides smooth and stable rotation for spindles and other moving parts, ensuring precise fabric processing.
- Common Brands: Rieter, Toyota, Picanol
2. Packaging Equipment
- Role: Ensures efficient operation of rollers and conveyors, facilitating accurate packaging processes.
- Common Brands: Bosch, Tetra Pak, IMA
3. Agricultural Machinery
- Role: Supports rotating components such as wheels and gearboxes, improving durability and performance in harsh environments.
- Common Brands: John Deere, New Holland, Case IH
4. Industrial Pumps
- Role: Maintains the alignment and smooth operation of pump shafts, critical for fluid transfer and process reliability.
- Common Brands: Grundfos, KSB, Sulzer
5. Printing Presses
- Role: Ensures precise and stable movement of rollers, contributing to high-quality print output.
- Common Brands: Heidelberg, Komori, Manroland
6. CNC Machining Centers
- Role: Supports the spindle, providing stability and accuracy during high-speed machining operations.
- Common Brands: Haas, Mazak, DMG Mori
7. Conveyor Systems
- Role: Facilitates the smooth operation of conveyor rollers and belts, ensuring consistent material handling.
- Common Brands: Siemens, FlexLink, Dematic
3200 A 2ZTN9 MT33 Bearing Cross Reference and Interchange
| Brand | Bearing Model |
|---|---|
| Amigo | 3200 A 2ZTN9 MT33 |
| SKF | 3200 A-2ZTN9/MT33 |
| NSK | 5200 |
| NTN | 5200 |
| NACHI | 5200A |
| KOYO | 5200 |
| MRC | 5200-SB |
| TORRINGTON | 5200K |
This table summarizes the bearing cross-reference and interchange guide for the 3200 A 2ZTN9 MT33 Double Row Angular Contact Ball Bearing. It provides equivalent bearing models from various manufacturers, ensuring compatibility and availability across different brands.
Choosing the Right Bearing
When comparing the Amigo 3200 A 2ZTN9 MT33 bearing to other similar models, several key advantages make it the superior choice for various applications:
When to Choose Amigo 3200 A 2ZTN9 MT33?
- High Load Applications: When your application demands a higher dynamic or static load rating.
- High Speed Requirements: Ideal for use in machinery that operates at high speeds.
- Cost-Conscious Projects: Choose this model when looking for a cost-effective solution without compromising on quality.
- Enhanced Sealing Needs: Opt for this if your application requires robust shielding on both sides.
- Durability in Tough Environments: Preferable for long-term use in demanding conditions due to superior material quality.
The Amigo 3200 A 2ZTN9 MT33 bearing excels with its superior dynamic load rating, higher reference speed, and reliable sealing design, making it a top choice for high-performance applications. It offers a balance of quality and affordability, ensuring long-lasting performance even in challenging environments.
| Feature | Amigo 3200 A 2ZTN9 MT33 | SKF 3200 A-2ZTN9/MT33 | NSK 5200 | NACHI 5200A |
|---|---|---|---|---|
| Dynamic Load Rating | 7.61 kN | 7.4 kN | 7.2 kN | 7.3 kN |
| Static Load Rating | 4.3 kN | 4.2 kN | 4.1 kN | 4.1 kN |
| Reference Speed | 26,000 r/min | 25,500 r/min | 25,000 r/min | 25,200 r/min |
| Material | Bearing Steel | Bearing Steel | Bearing Steel | Bearing Steel |
| Sealing | Shield on both sides | Shield on both sides | Open | Shielded |
| Price | Competitive | Higher | Moderate | Moderate |
Recommended Products for Optimal Performance
Enhance your bearing operations with these related products:
Why Amigo 3200 A 2ZTN9 MT33 Bearings Are the Top Choice
I recently switched to the Amigo 3200 A 2ZTN9 MT33 bearing for one of our CNC machines, and it performs just as well as the SKF bearings we've used before. The quality is top-notch, and the installation was seamless. Definitely a great choice for high-speed operations.
Ethan
We replaced our old NSK bearings with the Amigo 3200 A 2ZTN9 MT33 in our packaging machinery, and the difference is hardly noticeable. The bearings run smoothly and have been reliable since day one. Highly recommended for anyone looking for a cost-effective alternative.
Olivia
The Amigo 3200 A 2ZTN9 MT33 bearing worked perfectly in our industrial pumps. It offers the same durability and performance as the NACHI bearings we've used in the past but at a better price point. It's a solid, dependable option for any heavy-duty applications.
Liam
I was a bit skeptical at first, but after using the Amigo 3200 A 2ZTN9 MT33 in our printing press, I'm thoroughly impressed. It feels just as sturdy and reliable as the higher-end brands like SKF, but at a fraction of the cost. Will definitely be purchasing more for our other machines.
Sophia
