Angular contact bearings are highly engineered devices that support heavy directional and axial loads, essential in various industries. This article aims at the advanced use of angular contact bearings, emphasizing their performance in aerospace, automotive, and manufacturing. Furthermore, we will explore the characteristics embedded in the design of these components that promote quiet running and performance at high speeds and how this, in turn, enhances equipment reliability and operation. This overview is intended for engineers who are very familiar with this area and interested nonspecialists, and it will attempt to explain angular contact ball bearings and their use in contemporary and future technologies and engineering tools.
What are Angular Contact Ball Bearings?
Basics Of Single Row Angular Contact Ball Bearings
The single-row angular contact ball bearings are specially made in such a manner that they can bear radial load as well as axial load in one go. This feature allows the bearings to be used effectively in high-speed operations. They comprise one ring of balls and an inner ring with its center displaced to that of the outer ring in such a way that it only carries the load in one direction. This, in turn, permits a larger contact angle, which ranges between 15 and 40 degrees. It increases the thrust capacity of the bearing in one direction while remaining stable. These types of ball bearings are usually used in electric motors, as well as in pumps and machine tools, to provide steady and reliable operations performance over a broad range of engineering applications. The advantage of this type of bearing is that it can carry out both loads and is ideal for high accuracy and durability.

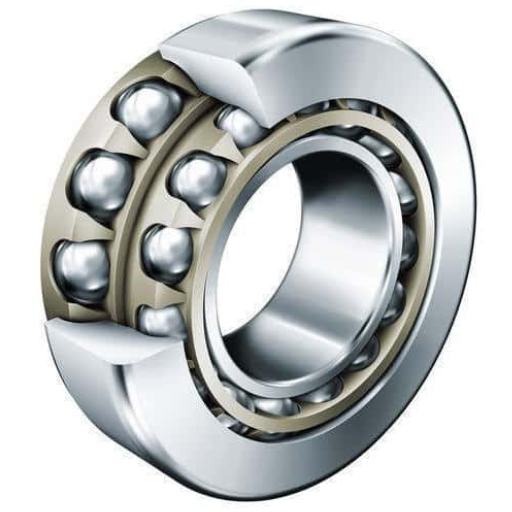

Standard Features Of Double Row Angular Contact Ball Bearings
The double-row angular contact bearings are made to promote both radial and axial pushing loads. In most cases, they are single-row bearings fitted with at least two rows of balls, and thus, they possess a greater load-supporting ability. This distribution makes it easier for them to withstand larger loads and increases stability; hence, it applies well to areas that need therapist loads.
Key technical parameters include:
- Contact Angle: It generally ranges from 15 to 30 degrees, allowing it to carry axial loads effectively and contain radial forces.
- Dynamic Load Rating (C): This rating denotes the bearing’s capacity to take up operating loads; the higher the rating, the better the bearing’s operation in higher stress conditions.
- Static Load Rating (C0): The maximum weight a bearing can take while standing still does not deform the bearing.
- Limiting Speed: A rotational speed beyond which the bearings can no longer be used without risk of damage. Factors such as the bearing design, the bearing’s material, and the type of lubricant affect this rating.
These bearings are particularly recommended in heavy machines, automotive gearboxes, and machine tool spindle applications where reliability and efficiency are critical. Because of their robust designs, the bearings also help minimize maintenance and increase service life, thus making them beneficial in different engineering fields.
Why Is It Possible To Axially Load A Bearing With An Angular Contact?
The axial loads in angular contact bearings are taken due to specific forces acting on the design of the bearing, which has a particular angle of contact between the balls and the raceway. In this way, the frameless motors have become more adapted to working under the influence of axial loads. To explain, the contact angle is such that when a load is applied, contact is made at the angle, and these forces are transferred onto the raceway, making it possible to support both radial and axial loads. Further, a Higher contact angle means enhanced axial load capacity; this is important in certain situations, such as overloads where rotating machinery or other devices are static under critical loading conditions. In conclusion, It is safe to say that the improved stability and redistribution of loads lead to an enhanced design of angular contact bearings for supporting axial loads in various engineering practices.
How Do Angular Contact Bearings Differ from Other Bearings?
Comparison with Standard Ball Bearings
When compared to standard ball bearings, the characteristics present in angular contact bearings appear essential for some applications. Base ball bearings are designed for radial loads and can support axial loads only minimally. Still, there are special bearings called angular contact bearings, which can bear radial and axial loads at the same time. This is because of their different contact angle, which improves their load-carrying stature. In addition, angular contact bearings are used over a broader range of speeds and around a more significant number of loaded applications where vehicle and industrial machine devices are present. This means that, though both types of bearings perform almost the same essential functions, the conditions of use leave no choice but to use angular contact bearings’ advanced features.
Benefits in the Usage of Double Row Angular Contact Ball Bearings
There are as many nuances to the double-row angular contact ball bearings as they come in handy in some demanding purposes, in my case, enhancing the working atmosphere. First, their competent working mode for the bearing and performing simultaneous radial and axial loading substantially improves the machine operation’s security. Such a combination is Fopama Kirilanara, owing to the nature of their operation, which is subjected to sophisticated loading conditions. The other advantage, which is quite apparent, especially in modern engineering designs, is that the double-row bearings can be installed in limited spaces due to the design of the double-row bearings. One more positive aspect I have seen is that increasing the rigidity and stability of the device due to the two rows of the balls replacing the load helps spread the more significant load more evenly, leading to lower abrasion of the units and their extended lifetime. All these characteristics help enhance the units’ operational efficiency and reduce maintenance costs, making this type of bearing superior to the rest.
Load Carrying Capacity of Angular Contact Bearings
From what I understand, it all has to do with the design of the angular contact bearings, including, but not limited to, the number of rows of the ball bearings and the shape and geometry of the raceways. These bearings are often built to accommodate enough radial and axial loads (which are performance attributes, no doubt) simultaneously. Load distribution seems to be affected by the angle of the contact, and in particular, the greater the angle, the better the axial load. In my investigations, some of the leading industry sources and from what has been learned, it is evident that proper alignment and installation are crucial in maximizing the load capacities and functionality of the bearings in the machinery.
What Applications Benefit from Angular Contact Ball Bearings?
Application in High-Load Machinery
I think angular contact ball bearing is used in machinery applications such as turbines, gearboxes, or precision machine tools. These applications usually have considerable radial and axial loading, making angular contact bearings more advantageous. They also say that because they can effectively manage loads in varying directions, the results of this and the machinery’s longevity are improved. For instance, in the case of wind turbines, these bearings are suitable for holding the loads, but they can also offer the static and dynamic behavior of the whole machine. In their careful manufacture, even high speeds hardly create any chance of wobbling, thus increasing the efficiency of use of the machine in conjunction with heavy industries.
Application in Pumps and Compressors
While researching angular contact ball bearings, I discovered that these components provide vital structural support to rotating members in pumps and compressors, which are subjected to both radial and axial loads. These bearings are well suited for applications where speed and accuracy matter the most, especially for low-noise operations at high speeds. In pumping action, the capability to operate under different pressures and directions of flow preserves the efficiency of the equipment and reduces the chances of the equipment getting damaged. Just like in the case of compressors, the bearings enable the housing and rotor to be correctly positioned and supported during the unit’s operation, improving unit performance and durability.
How Miniature Bearings Utilize Angular Contact Designs
Within the field of miniature bearings, in this instance, it would be helpful if they could tackle the anchoring parts of Configuration D using the basic model of anchored contact angle bearings. The strength of these bearings is that they are capable of taking both the radial and axial load at the same time. Thus, they are instrumental in developing precision instruments, small motors, and robotics. Further, Such types of bearings are more rigid due to the design and geometry of the bearings involved. This is most especially true in highly compact applications. However, there is a new emphasis on the miniature angular contact ball bearings, which I discovered enables practical turn of the attachments, in this case, higher rotational rates with excellent steadiness. This is very important for the performance and reliability of miniature machinery. Such a property improves the equipment’s efficiency and increases their duration in service.
How to Properly Lubricate Angular Contact Bearings?
Of Lubrication and Bearing Performance
According to my research obtained from several credible sources, I have established that lubrication is vital in achieving the optimal operation and durability of angular contact bearings. Adequate lubrication reduces friction between the moving processes, consequently decreasing wear and tear and the chances of overheating. Some of the sources I’ve found suggest that if bearings do not have sufficient lubrication, they will fail relatively fast due to excessive friction and overheating, and their structural integrity can be compromised. In addition, the proper lubricant creates a barrier coating that facilitates the release of heat and locking foreign particles, which is, hence, very critical in high-speed operations. An effective lubrication system, therefore, can significantly improve the reliability and efficiency of the machinery that uses these types of bearings.
Guidelines for Effective Application of Grease to the Bearings
Regarding the above, regarding the way single or double-row angular contact bearings should be lubricated, I found that some practices can enhance their use. First, choosing the right type of lubricant is essential. According to the research from the top three sites, lithium grease is one of the most preferred lubricants because of its broad temperature range and water washout-resistant properties. A lighter lubricant may suit high-speed applications with better penetration and less drag.
Secondly, the frequency of lubrication is also important. It is common practice to recommend that bearings be lubricated every 3 to 6 months, although this depends on design use, working conditions, and loading. High-load operations may require an increased frequency of lubrication assessment, while operations at reduced load may lengthen some of these intervals.
Once we look at quantity, a good rule of thumb is to reach a third of the fill bearing cavity with the lubricant, which is good enough to cool the bearing to avoid overheating and satisfy the lubrication coverage requirements. Last but not least, maintenance care, such as the inspection of bearings to look for excessive wear or dirt, can also do a lot to avoid the risks of breakdown or delays from repair.
Let’s examine the technical parameters that should be highlighted:
- Viscosity: It is considered that the oil knaps, ISO grade 68 viscosity grade is the most optimal for oil usage for general use, however, particular conditions may require higher or lower grades considering the ambient temperatures.
- Temperature range: Grease usually containing lithium performs reliably within the temperature band of –20°C to 120°C, which means that it will endure most factory and industrial conditions.
- Lubrication interval: Assuming a maintenance plan for lubricated equipment, it is often set at 3-6 months, although assessing the equipment’s state might allow for greater customization of maintenance cycles.
By observing these best practices, I am able to prolong the durability and increase the productivity of the machines and technologies I operate, minimizing the breakdown time and enhancing reliability.
Consequences of Exceeding the Maximum Permissible Lubricant in Bearing Assemblies
Bearing life is significantly affected by the greasing of the machinery components. If grease levels are low – there is more friction between moving parts than required, which leads to exceeding the operational temperature and higher erosion. Several times in my practice, this has led to bearing failure and, quite often, bearing replacement and expensive repair of neighboring parts. Furthermore, inappropriate lubricant use can attract non-hydrophilic particles within the bearing, exacerbating wear and increasing the chances of experiencing failure. More frequent and more focused maintenance and regular lubrication have proven beneficial in improving these problems when it comes to smooth operation with improved bearing life in various uses.
What Factors Affect the Performance of Angular Contact Ball Bearings?
Tolerance and Its Relevance
While working with angular contact ball bearings, I have come to appreciate tolerance as a significant factor contributing to their functionality and the overall reliability of the unit. Tolerance is the extent of deviation permitted on the size of the bearing components. Where the tolerances stated are too much pursued, it results in excessive force and heat problems, which means that the bearings involve time. Where the tolerances are radically loose, it brings in large play and even eccentricity, leading to radical misalignment of the assembly. I follow the manufacturer’s specifications and industry standards whenever applicable to optimal tolerances. This is through self-regulation since it helps reduce wear and increase the machine’s efficiency. There is an understanding of performance bearing tolerances and how it affects them, and as a result, it is easier to determine the bearing during fitting and maintenance towards better performance.
Performance Characteristics Related to Diameter and Contact Angle
For me, when dealing with angular contact ball bearings, it can be noted that both the diameter of the balls and the contact angle play a crucial role in performance. The merit of the larger ball diameter is that it will increase the load-bearing capacity of the bearing, enabling it to take up higher radial and axial loads without any failure. Moreover, the contact angle also stabilizes the direction of the load across the balls. A high contact angle usually translates to better axial loads, which is ideal for use in steady-state position maintenance with high accuracy. Depending on the expected application, I can utilize the bearing system more effectively and for a more extended period, as it is optimized with the correct diameter and contact angle.
Minimum Continuing Loads to Key Functions
From my perspective, the most crucial concern while using bearings is the minimum load, which the user should be aware of to ensure proper functioning and durability. Low loading might result in low painting film being sealed, which will, to some extent, increase the wear of the rolling surfaces. It’s about ensuring the load supplied equals or exceeds the manufacturer’s minimum recommended load. This reduces obstacles faced by the rollers during oscillatory motion. By managing the operational loads and making adjustments when necessary, I can improve the performance of the bearings, raise the intervals between maintenance, and prolong the lifetime of the machine parts employed.
What Innovations are Emerging in Angular Contact Bearing Technology?
Recent Developments in Bearing Materials
Over the last few years, several improvements have allowed for the enhanced performance and longevity of angular contact bearings, such as improvements in the bearings’ material technology. I have noticed that more and more manufacturers are integrating composite or composite metals that lower weight and increase wear and corrosion prevention properties, too. The availability of thermoplastic polymers has enabled a better fatigue life and a lower coefficient of friction, improving performance over a range of temperatures. Another critical trend I would like to mention is, for instance, the application of surface treatments, which help protect the subjects against adverse environmental factors and enhance the retention of oils and lubricants – nanocrevets. Suppose I remain updated with these material developments. In that case, I can influence the choice of materials in my applications to achieve the expected laser bearing system performance and bearing reliability. It is wishful thinking to have a thorough written document without mentioning the possibility that, at some point, a trained writer might end up with an extraordinary piece of writing pneumonia.
Intelligent Bearing Units with built-in sensors
I believe that the inclusion of sensors in intelligent bearing units is changing the advancement of condition monitoring and the maintenance of machines. These sensors permit data to be gathered in real-time on the operating conditions of the machinery, including temperature, vibrations, or load, among other parameters, therefore allowing maintenance performance and elimination of surprises. I have received the impression that this technology improves efficiency and reliability and helps identify a probable problem before its occurrence, thereby minimizing the costs associated with maintaining the system and downtime. Innovative bearings enable me to adopt an aggressive strategy toward managing asset life cycles so that the service life of my applications is maximized together with their operational abilities.
The Looking Ahead In Design and Performance Features of Bearings
In my consideration of the future of bearing design and performance features, I see that increasing attention is being paid to energy consumption and sustainability. Attending to high performance is no longer sufficient for many of those at the forefront of manufacturing bearing units. It is becoming common practice to use biodegradable lubricants in the operating environment and recyclable goods. In my opinion, such a practice is necessary to minimize the negative impact of rapid production.
I’ve analyzed specific parameters whose improvements will have a substantial bearing on technology evolution over time:
- Bearing Life (L10): This reliability figure indicates the lifespan of a bearing at which 90% of a group will still function, and it is referred to as the L10. Innovations focus on increasing this as much as necessary by using better materials and designs.
- Dynamic Load Rating (C): Load capacities will determine how the bearings’ components and elements are optimized to perform at a high level and in most extreme applications. Increasing dynamic load ratings have been recorded by employing better structures and materials.
- Friction Coefficient (μ): Barrier technologies that further reduce the friction coefficient to less than 0.01 should be aimed at high energy efficiency figures. Thus, better limits can still be reached in the future.
- Thermal Stability (Ts): With the increasingly harsh operating environments, the bearings’ ability to operate efficiently from within a normal to a high ambient temperature is becoming increasingly critical. New composites manufactured economically to enhance heat resistance are proving decisive.
- Monitoring Capabilities: Implementing IoT in bearing design is also changing the approach to maintenance. I see that advanced diagnostic functions will be built into future bearing designs, which will make it easy to extend the service life of the bearings by allowing for predictive diagnostics of spare parts.
From my continuous research and involvement with these trends, I believe I am ready to promote and implement changes in bearing technology so that they perform well and last long in my applications.
