What is a Ball Bearing, and How Does it Work?
Overview of Ball Bearings

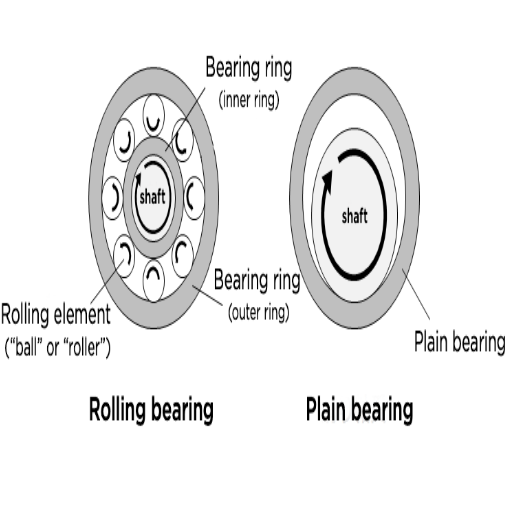

Ball bearings are a subtype of rolling element bearing that contains a ball between races to allow for rotation while minimizing friction. They primarily lower the frictional resistance in pivoting motion while carrying radial and thrust loads. Ball bearings are made from steel, ceramics, and other materials robust enough to provide versatility and usefulness simultaneously.
Essential aspects of ball bearings from the technical side are load capacity in pounds or Newtons, which describes the maximum force the bail bearing can withstand. In addition, rotational speed marked in revolutions per minute (RPM) describes the maximum speed the bearing can be subjected to if its performance is to be maintained. Also, ABEC or ISO grades define the accuracy and tolerance provided. The wide variety of ball bearings (deep-groove, angular contact, and thrust ball bearings) and their simplicity and reliability make them vital in many industries, such as automotive, aerospace, and construction.
Types of Ball Bearings
Deep-groove ball bearings are the most widely used type due to their wide range of applications and high load capacity. They can bear both radial and axial loads.
Angular contact ball bearings: These are made for high-speed applications where axial and radial load support is needed. The accuracy of the contact angle is of utmost importance since it determines the distribution of radial and axial loads.
Thrust ball bearings: These are specifically designed to support axial loads only. Consisting of raceways and balls, they permit accurate alignment in the axial direction only.
Self-aligning ball bearings: These can compensate for the deflection of shafts or the housing, which leads to misalignment. Standing moderate loads are great for coping with alignment errors.
Ceramic ball bearings: These types of bearings are made with ceramic balls instead of steel, which makes them lightweight and allows high-speed operations. These are also corrosion-resistant and can handle extreme temperatures.
Different types of ball bearings are designed to meet specific operational requirements. The technical parameters for each type differ to give maximum efficiency in various industries.
How Ball Bearings Reduce Friction
Friction is alleviated in ball bearings by using rolling contact instead of sliding contact. This design dramatically decreases resistance and tears that could occur. Their efficiency is based on the composition and technical specifications that enable smooth motion. For example:
Material Selection: Loss of energy for movement is minimized when the ball bearings are made out of high-grade steel or ceramics. In particular, ceramic bearings experience less friction due to being lightweight and having a smoother surface finish.
Load Ratings: Each rolling element in the machine is computed to support defined radial and axial loads, which bear minimal weight and friction proportions.
Precision Tolerances: Tight tolerance levels (e.g., ISO grading systems) help ensure the bearing’s smooth rotation and alignment, reducing friction.
Lubrication: Oil or grease is applied to mitigate the contact between bearings, reducing friction and enhancing their life span.
Ball bearings require these specifications to work effectively: less friction with optimized performance in various applications.
Exploring Angular Contact Bearings
Understanding Angular Contact Ball Bearings
The feature that differentiates angular contact ball bearings from other types of bearings is their ability to support both radial and axial loads at the same time. Unlike standard ball bearings with a specific design, these bearings possess a unique contact angle that usually falls between 15° and 40°; this angle governs the axial force the bearing can bear. In this case, the axially applied load is supported by the provision of an increased contact angle. The higher the contact angle, the greater the axial force the bearing can take, which is its primary function.
From a technical standpoint, the following parameters are crucial for ensuring the performance of BC bearings:
Contact Angle: Generally set at 15°, 25°, or 40° to meet the requirements of handling loads at the standard level.
Load Capacity: As the name suggests, these bearings are called “angular contact” because they work with an axial and a radial load acted upon simultaneously.
Material Composition: Excellent corrosion-resistant steel or a hybrid of some ceramic elements for strength and lower abrasion.
Preload: As with most other types of bearings, BC can be adjusted to minimize play concerning the housing and improve rigidity for highly accurate applications.
Lubrication: Effective lubrication policies aid in moving parts under cumbersome loads by reducing loss in productivity.
These bearings suit high-speed and accuracy-sensitive industries needing robust spindles for industrial robotic parts, pumps, and tools. The ability to simultaneously cater to the direction of forces lends angular contact ball bearings wider acceptance inthe industry than standard ball bearings placed in machined parts that demand precise and reliable performance in harsh operating conditions.
Applications and Uses of Angular Contact Bearings
Angular contact ball bearings are practical in many fields and machines. These bearings are crucial in high-speed spindles of machine tools where accuracy is paramount. Their combination of radial and axial load capacity ensures operational accuracy and stability. For instance, angular contact bearings can achieve optimum speed and load in spindle systems with 15° or 25° contact angles.
Furthermore, they are crucial components in pumps and compressors, which support axial thrust and smooth functioning under high pressure. During this process, parameters such as dynamic load rating (C) C are fundamental as they guarantee that the bearings can withstand continuous operational stress. Finally, robotics and automation systems use these bearings because they have reduced friction and are capable of high speeds, resulting in improved dynamic movement accuracy and responsiveness. The robust design of these bearings and the ability to produce dependable performance in negatively demanding work environments benefit every application.
Key Features of Angular Contact
The construction of angular contact ball bearings allows them to take thrust and radial loads simultaneously, which makes them quite versatile. Their primary attributes comprise of an innovative angular configuration that permits high speeds and accurate alignment while under load. Most of these bearings have a contact angle between 15° and 40°, which directly affects their capacity for axial force control—higher contact angles permit higher axial load capacity.
Along with these features, the bearings are also made of optimized materials with high-purity steel or ceramics, which provide adequate strength and resistance to wear in tough conditions. Regarding technical parameters, the dynamic load rating (C) and static load rating (C₀) denote the bearing’s ability to withstand dynamic and static forces, are crucial specifications. Another critical parameter is the speed rating, which signifies the maximum allowable rpm of the bearing without overheating or reduction of performance. All these design and technical features make angular contact ball bearings ideal for precision machinery, automotive parts, and challenging industrial applications.
What Makes Deep Groove Ball Bearings Unique?
Characteristics of Deep Groove Ball Bearings

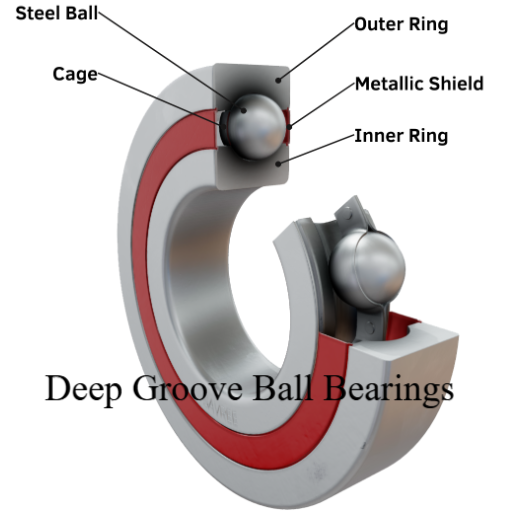

The simple design of deep-groove ball bearings makes them ultra-efficient. Thanks to their deep raceway grooves, these bearings can easily manage radial and axial loads, allowing them to be used in numerous applications. Their compact structure, low friction, and high-speed capabilities also make them extremely useful.
Key tech parameters:
Dynamic Load Rating (C₀): This rating shows the bearing’s ability to withstand a specific operational load over time.
Static Load Rating (C): This rating contains the load that can be applied to the bearing in a stationary position without damage.
Speed Rating: Refers to the highest rotational speed (rpm) the bearing can endure without losing effectiveness.
This makes deep-groove ball bearings best suited for electric motors, fans, conveyors, or any other devices with constant high-speed machinery. Their efficiency is prolonged and remains key to many bearing solutions.
How Deep Groove Functionality Differs
In my opinion, the operations of deep groove ball bearings differ because of the specific design features that dictate their operational capabilities. In particular:
Handling of Axial and Radial Loads: Deep groove ball bearings can handle axial and radial loads, which other types cannot. This is possible due to the most straightforward yet balanced construction where the groove’s depth and the turning operations’ accuracy are sufficient to distribute the load evenly.
Speed Capabilities: Their construction permits their use in high-speed applications due to low friction, validated through a high-speed rating. Therefore, they are ideal for processes that need smooth and uninterrupted motion.
Maintenance and Longevity: The bearings do not require much maintenance as the construction is sealed or shielded to prevent contamination. The combination of engineered materials and construction gives these bearings a prolonged life.
Such features underline the diversity of use of these bearings, but features like the static load rating, dynamic load rating, and speed rating make them exceptional.
Common Applications for Deep Groove
One of the most impressive aspects of deep groove ball bearings is their versatile functionality; typical applications for these components are no exception. Due to electric motors’ minimal friction and high-speed performance, these ball bearings are actively utilized within friction-optimizing components. The dynamic load rating aptly supports their ability to withstand continuous rotational movement.
Deep groove ball bearings are also used in electric motors and various household appliances. They excel at low noise levels and have sturdy constructions that ensure long-term use. Their dependability stems from their static load rating, which guarantees reliable performance under constant weight.
Because they can handle both radial and axial loads, these bearings are often utilized in industrial machinery. Their static load rating and robust construction make them ideal for high-demand work environments and consistently operational over long periods.
Comparing Radial Ball Bearings with Other Types
Difference Between Radial and Angular Contact

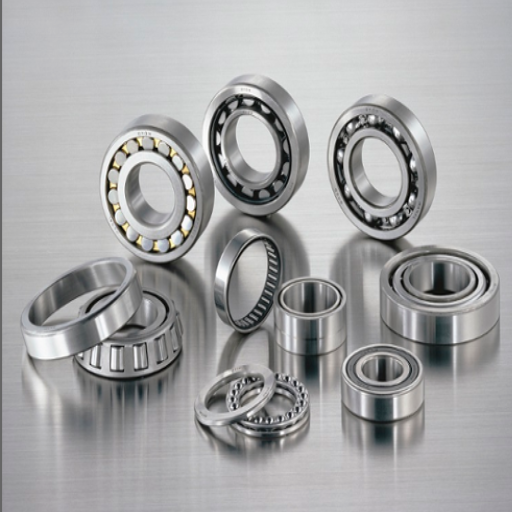

Both radial ball bearings and angular contact ball bearings accomplish specific tasks. Their distinctions are found in construction as well as performance characteristics. Radial ball bearings primarily take radial loads and cannot take any axial loads. In contrast, the engineers from the angular contact ball bearings group were able to construct a bearing capable of taking both radial and large axial loads simultaneously because of its asymmetrical configuration.
Some of the key technical parameters are as follows:
Radial Ball Bearings having Dynamic And Static Load Ratings: Radial ball bearings manage radial loads much better than angular contact bearings, whose static and dynamic load ratings are optimized for these forces. However, radial contact bearings can handle combined loads more effectively than radial ball bearings due to the balls’ and raceways’ angled contact points.
Contact Angle: The contact angle in angular contact bearings (typically 15°, 25°, or 40°) defines their axial load-carrying capability, whereas radial ball bearings operate at a 0-degree contact angle because they seldom handle axial loads.
Speed Rating: Radial ball bearings often perform better at higher speeds due to their simple design and lesser friction. In contrast, depending on the application, angular contact bearings might trade speed for load-handling capabilities.
Selecting an appropriate bearing depends on the requirements of your specific application. Radial ball bearings work best for applications that include high speeds with low axial loads. On the other hand, if your application has significant axial loads or a combination of forces, angular contact ball bearings are more suitable.
Advantages of Radial Bearings
I think radial ball bearings are advantageous in many ways, mainly when evaluated against specific technical parameters. They, for instance, serve high-speed applications very well due to their low friction and uncomplicated design. Contact area with the surface and shape is optimized, allowing these bearings to endure high rotational speeds, often exceeding even the speed ratings of the angular contact bearings.
To begin with, another such advantage is a well-supported radial load while maintaining a 0° contact angle. This means they work well in radial systems where axial loads are very small or not present, such as in electric motors and conveyor belts. Furthermore, these devices are economical to operate because their simple construction increases reliability and decreases the need for maintenance. These features make them, undoubtedly, the best option for various industrial and mechanical systems to be used at high velocity and with moderate radial load.
Choosing the Right Bearing Type
My consideration begins with the requirements of the application’s context. If speed is a decisive characteristic, I tend to move towards ball bearings. Their design features less surface contact, allowing for a more incredible operation speed. In addition, I consider the load conditions: if the system deals with radial loads with barely any axial force, then a deep groove ball bearing with 0° contact angle is probably the best option.
To support this, below are some essential technical parameters that shape my decision-making process:
Speed Rating: Deep groove ball bearings usually have a higher speed rating when compared to angular contact bearings because they are more efficient in frictional encounters. In terms of deep groove ball bearings, frictional contact is less common than that of existing alternatives. Deep groove ball bearings are often claimed to achieve far greater rotational speeds than other alternatives.
Load Type: Effective electric motors and conveyor systems need radial load static load. A good bearing efficiently observes the everyday axial systems handle without managing additional load.
Durability and Maintenance: Simpler in design, broad, deep groove ball bearings, easily defended, allowing for much greater reliability while reducing the chances for maintenance in the future.
Slowly integrating these parameters into the requirement’s context allows me to ensure that the type of bearing chosen will perform properly and meet the system’s lifetime expectancy.
What are the Radial and Axial Loads in Bearings?
Defining Radial Load and Axial Load

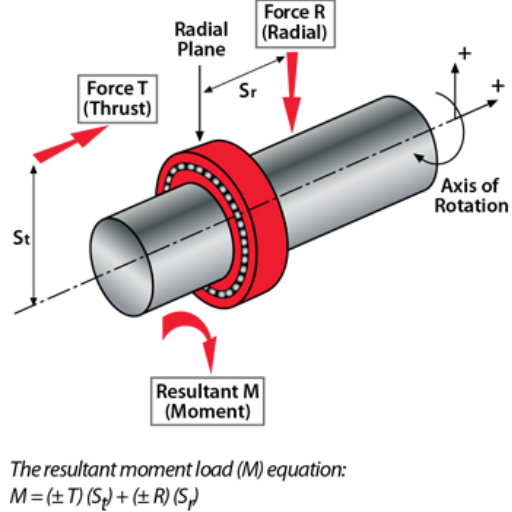

Radial load definition is the load that is perpendicular to the shaft of the bearing. It is crucial in systems where the main load is in an outward or inward direction along the radius of the bearing like in conveyor belts or rotating apparatuses. On the other hand, axial load is the load that is also applied parallel to the bearing shaft but in this case, in an axial direction. This type of load is usually found in thrust washers or vertical shaft applications where the bearing is expected to hold on such directional forces.
Technical Specifications:
Radial Load Capacity (C): The capacity is expressed in kilonewtons (kN), corresponding to the radial force the bearing can withstand without deforming. This is important, especially for high-speed machines, to guarantee operational stability.
Axial Load Capacity (Ca): This parameter, measured in kN, defines limits on axial forces’ bearing. Some bearings, such as angular contact ball bearings, are made entirely to take advantage of these features.
Dynamic Load Rating (Cd): Represents the bearing’s ability to support a certain level of dynamic loads throughout some anticipated lifetime of the bearing.
Static Load Rating (C0): This denotes the fast static loads the bearing can withstand without permanent damage or distortion.
The application’s load requirements enable me to determine a bearing design that, as loads are applied, will maximize the system’s operational efficiency. At the same time, it guarantees reliable service over the system’s life.
Impact of Radial and Axial Loads on Performance
I analyze the effects of radial and axial loads on bearing performance, examining the system’s efficiency, life span, and overall stability.
Radial Load Parameters: Radial loads are more complex since the Critical Load Capacity (C) is one of my core focus benchmarks. Ar radial forces must stay within the bearing’s maximum radial load capacity to avoid deformation or operational instability. This value is critical for systems with high rotational speeds, as excessive radial forces can lead to critical system performance issues.
Axial Load Parameters: Careful attention should be given to the bearing’s axial load capacity (Ca) when considering axial loads. Bearings, like angular contact ball bearings, are provided for efficient coping with axial forces due to their construction. I ensure these loads do not exceed limits to avoid excessive wear, misalignment, and other problems in the system.
Dynamic Considerations: To evaluate dynamic forces on the bearing continuously, I consider Dynamic Load Rating (Cd) as very useful. This parameter ensures that the bearing is reliable and withstands operational stresses throughout its expected lifecycle.
Considerations on Static Load: I reference the Static Load Rating (C0) for static forces. This rating gives me the leeway to incorporate certain overstresses, for instance, shock loads or system start-up conditions, while ensuring that the bearing does not sustain damage from excessive force.
I have developed a thorough methodology to analyze these technical factors and the forces acting in my system. This makes it possible to design systems with an extended range of bearings and an optimum combination of strength and reliability.
How Bearings Can Carry Different Loads
A bearing’s particular construction and specialized features allow it to handle different loads. I would like to address my bearing design in the first person.
Axial Loads: I use thrust bearings to manage axial loads efficiently in my design. When the trust bearing is under an axial load, it can effectively dissipate the forces to the level confined by the manufacturer’s limitations.
Radial Loads: These vertical loads are handled by radial bearings. These types are designed to carry loads perpendicular to the axis where the shaft rotates. I check to see if the radial load the application requires is within the bearing’s capacity to ensure that the machine will function properly and not fail prematurely.
Dynamic and Static Load Ratings: While considering the regular use of the bearing under the radial dynamic load (Cd), I determine if the bearing will still function properly over a more extended period. When there is a chance that the bearing will be put under occasional extreme dynamic loads such as shock, I use the static load rating (C0) to determine if the bearing will not undergo any permanent deformation.
Considering the axial load limit, radial load capacity, dynamic load rating (Cd), and static load rating (C0) allow me to substantiate the choice and confirm that the bearing will operate effectively under different load conditions.
Frequently Asked Questions (FAQs)
Q: What sets apart angular contact from deep groove ball bearings?
A: The major distinguishing factors are the design and purpose of the bearing. Unlike Deep groove ball bearings, which are built primarily for radial load and can manage some axial load, angular contact ball bearings can bear radial loads and bidirectional axial loads simultaneously due to a specific contact angle.
Q: What impacts the efficiency performance of angular contact ball bearings contact angles?
A: In this type of bearing, the contact angle determines what the bearing can support axial load. Such applications arise in low friction and high stability industries where a precision bearing can elevate the performance of the machinery.
Q: Can angular contact ball bearings be combined with other bearings?
A: Yes, angular contact ball bearings might be used in conjunction with other bearings, such as a tapered roller bearing, in specific applications to meet complex load requirements.
Q: Explain the benefits of deep groove ball bearings.
A: One of the main benefits is that these bearings can support a large radial load in high-speed applications. They are also inexpensive, which makes them suitable for many industries and applications.
Q: How do you select the appropriate bearing type for specific applications?
A: It is essential to analyze the operating conditions, such as load (radial and axial), motion speed, and the working environment of the bearing. Reaching out to firms specializing in bearings, like GMN Bearing USA, may also be beneficial.
Q: Tell me about maintaining angular contact and deep groove ball bearings.
A: Both of them require periodic lubrication. Similarly, deep groove ball bearings maintain a service life much longer than angular contact ball bearings, provided that they are properly maintained and lubricated. However, the latter might need more frequent checks because of their higher load capabilities.
Q: Do specific measures exist for angular contact and deep groove ball bearings?
A: There are industry standards for these two types of ball bearings. These standards guarantee the performance, tolerances, and dimensions of the angular contact and deep groove ball bearings defined by a particular manufacturer.
Q: What about the interchangeability of deep groove ball bearings and angular contact ball bearings?
A: In this case, interchanging these ball bearings is not recommended because of the differences in design and load capacity. The wrong ball bearing type may lead to failure in the workings of machines or undesired results.
