The angular contact ball bearing is a part that many take for granted, yet they are responsible for ensuring precision, load-carrying, and enhancing the efficiency of machinery. But what puzzled me is what sets these bearings apart, as their designs seem to have the same standard features. Or as it has been said. ‘The devil is in the details’: the contact angle. This article focuses on this angle, explaining its relative importance and impact on the bearing’s performance, load capability, and dynamics. Whether you are an engineer, a technician, or just an interested person, the introduction of the angular contact ball bearing begins with an understanding of the angle’s importance. The time has come to delve into the theory, the advantages, and real-life applications of the bearings and thus realize their utmost potential.
What are angular contact ball bearings, and how do they differ from radial bearings?
Understanding the unique design of angular contact bearings
Angular contact ball bearings differ in their ability to endure axial and radial loads, making them even more valuable than standard radial bearings, which only have radial load capabilities. One of the benefits of using a bearing with a specific type of ball is that it has an angle. This angle can alter the bearing’s load base. The angle of contact about the bearing axis is changed between 15 and 40 degrees when altering angular contact bearings.
Contact Angle (15°-40°): This angle can change the direction of the load placed on the bearing, precisely the axial load. As this angle increases, the capacity of the load-bearing also increases, even though the capacity of the radial bearing decreases.
Single-row versus double-row design: Due to their construction, single-row bearings can only manage thrust loads in one direction. However, double-row designs can manage axial loads in both directions, enhancing rigidity.
Material and Cage Design: High-grade steel or ceramic is used to manufacture the bearings, supplemented with cage designs and patterns that aid in weight adaptation.
Preload Options: Depending on the connection, practical bearings are usually available with light, medium, or heavy preloads, which enhance rigidity.
Speed Ratings: Primarily constructed for high-speed functions, the bearings have a rating that corresponds to the necessary lubrication, materials employed, and class of precision.
So, for application in precise load management and high performance, such as in marine design, automotive gearboxes, turbos, and many others, as well as machine tool spindles, this mix of attributes makes angular contact bearings quite numerous and effective.
Comparing angular contact and radial ball bearings
Despite radial ball bearings and angular contact bearings serving a similar purpose in machines, their design and application differ. Below is a summary concentrating on the main differences between the two types of bearings:
Load Handling Capabilities: Angular contact bearings can carry both radial and thrust load simultaneously, suggestively with greater axial load capacity depending on the contact angle. However, radial ball bearings can only carry radial loads thanks to their optimization, while the possibility of axial loads is minimal.
Contact Angle: Angular contact ball bearings always have some contact angle (15°, 25°, or more), and that angle establishes the existing possibility of the bearing to sustain axial loads. Whereas radial ball bearings have zero degrees of contact, their use leads to an improved radial load factor at the expense of the axial sight.
Precision and Speed: High speed and perfect load centering are vital in using angular contact bearings in precision applications like spindles or turbines, where they are commonly used. Radial ball bearings are more universal but unsuited to high precision or high-speed applications, which makes them beneficial in typical mechanical systems.
Alignment Tolerance: Thanks to higher alignment tolerance, radial ball bearings can be installed while slightly misaligned so they work correctly. On the contrary, due to design restrictions, angular contact bearings must be rigidly mounted to avoid excessive wear.
Applications and Use Cases: Angular contact bearings are best suited for heavy-loaded applications, including machine tools, gearboxes, and turbines, where radial and axial loads and American National Standards Institute (ANSI) tolerances are essential. Radial ball bearings, on the other hand, are commonly found in low-level and low-bearing stress applications such as home electronics and transport systems, which need to be economically effective and reasonably dependable.
Therefore, these differences help mechanical engineers and designers choose the bearing type to meet the operating requirements optimally.
Key features of angular contact ball bearings
To allude to interesting features of angular contact ball bearings, they are designed to undertake both radial and axial loads, allowing them to perform in challenging operational environments:
Load Capacity: Radial and axial loads can be supported, with buoyancy a function of the contact angle. Commonly used angles include 15°, 25°, and 40°; the higher the angle, the greater the shear axial load.
High-Speed Performance: They have the advantage of being able to be loaded and perform well at high speeds, which means they can work well with high-precision motors and machinery.
Contact Angle: The contact angle facilitates load transfer of the balls and raceways with optimal angular force contribution. This is critical when the axial load is significant concerning the radial load.
Pairing Configuration: Angular contact bearings can be fitted as pairs either back to back, face to face or inline configuration, or single, and this depends on the axial and radial loads to be expected.
Material: To increase the length of operating life, high-grade steel or ceramic materials are employed for greater durability, lower wear, and enhanced heat resistance when subjected to difficult operational conditions.
Preloading Capability: Adjusting the preload is helpful because it optimizes rigidity, decreases operational noise, and enhances the system’s accuracy.
When implementing angular contact ball bearings in their applications, engineers should carefully consider these features and technical parameters to manage the risk of failure and minimize the performance loss associated with the bearing.
Why is the contact angle critical in angular contact ball bearings?

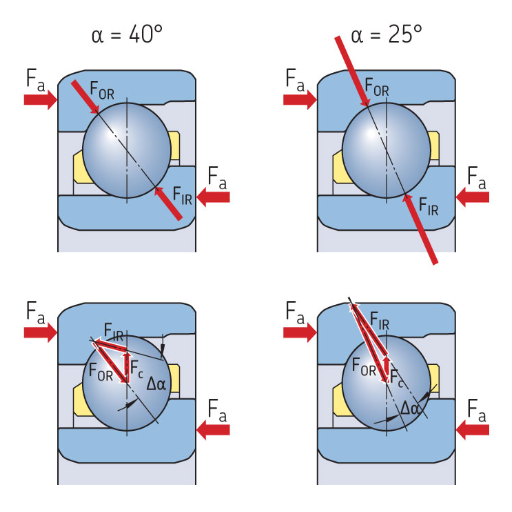

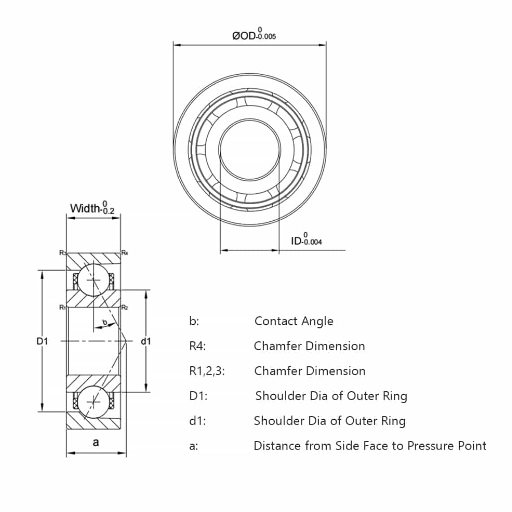

The role of contact angle in load distribution
The contact angle of angular contact ball bearings is essential in determining the load sharing between bearing parts. Increased contact angles enable the bearing to bear axial loads more efficiently; in contrast, reduced contact angles tend to be more effective against radial loads. Since a bearing’s contact angle determines the loads that will apply to it, a measured selection must be made based on how the loads will be used.
Standard Contact Angles: 15°, 25°, and 40° are standard contact angles, with 40° having the best axial influence bearing capabilities.
Axial Load Capacity: Compared to a standard axial load-bearing contact angle of 15°, an axial load-bearing contact angle of 40° will better withstand axial loads.
Radial Load Handling: Smaller angles, such as 15°, are more suited to applications that mostly face radial-oriented pulls.
Stiffness and Precision: When more contact angle bearings are used or made, the stiffness is greatly enhanced, a crucial feature in high-end machinery such as machine tools.
If the parameters are well determined, it allows the engineers to distribute the load between the working parts of the bearing properly, making this unit more efficient and reliable and with the expectancy of better service age within the foreseen operating conditions.
How contact angle affects bearing performance
The operating efficiency and range of use of the bearings are affected by the contact angle as it determines the bearing’s load carrying, stiffness, and performance under working conditions:
Axial Load Capacity: A larger contact angle facilitates bearing systems’ sustaining more significant axial displacement. An angle of around 25° is helpful where heavy axial loads are present, whereas angles of 15° or less are suitable where radial loads are significant. Still, the bearings are employed essentially within the radial axis.
Radial Load Capacity: The angle of contact of 15° or less allows the bearing to rotate with sufficient radial forces and is effective when axial loading is minimal and high speed is needed.
Stiffness and Rigidity: The thicker the contact angle, the more sturdy the bearing becomes, essential in high-precision CNC machines or robots. Nafas air of 25-40 degrees bearings were chosen for applications with high sturdiness.
Speed Capability: Self-aligning Bearings have lower contact angles, and centers spinning at higher angles can operate vertically as they have less internal drag. This allows for speed-focused systems that work better as axial loads.
Bearings can be made to perform efficiently by matching the contact angle to specific application requirements such as high-speed operation, high axial loads, or precision performance. The adjustment in the contact angle must always consider the environment in which the bearing will operate, as well as the load conditions, and these adjustments should be backed by proper technical analysis.
Choosing the right contact angle for your application
While determining the effective contact angle suitable for your application, the first thing that needs to be done is evaluating the working and load conditions in which the contact angle will be subjected to work. A contact angle of fifteen degrees is best suited for all high-speed rotational applications where radial loads are dominant since it aids in the reduction of the contact surface area, hence reducing friction and heat generation. For cases where radial loads are combined with axial loads a contact angle of twentyfive to thirty degrees works out well as it provides the needed tradeoff between load bearing and the effectiveness of the bearing. A high contact angle between thirty and forty-five degrees should be considered when axial loads dominate, such as in thrust bearings, or when greater stiffness is required. For quick response bearings, a 25-30 degree contact angle is recommended to achieve a good balance between radial and axial loading.
Speed: Smaller contact angles are suitable for high rotational speed as they limit energy losses.
Axial Load: A larger contact angle, in turn, provides better support for a more enormous axial load.
Precision Requirements: The application itself can, therefore, define the contact angle when high levels of accuracy or alignment are needed.
Friction and Heat Generation: Minimal axial forces in high-speed systems make using a minimal contact angle logical, as it ensures less friction induction.
Introduce many parameters according to the use case to achieve high reliability and efficiency in bearing performance. Make sure to prove your selection through accurate measurements and calculations.
What are the types of angular contact ball bearings available?
Single-row vs. double-row angular contact ball bearings
I consider their design features and technical parameters when comparing single and double-row angular contact ball bearings. The single-row angular contact ball bearings can handle large radial plus axial loads but are meant for applications where axial loads are not bears, which bear an aspect. This is because they are most often used in pairs or in the mounted ring opposite to each other so that axial loads in two directions are imposed on them. The contact angle varies between 15 degrees and 40 degrees, the greater the angle even while still applying the said contact this higher the shear axial load limit that would the bolt withstand.
On the other hand, double-row angular contact ball bearings are essentially a combination of two single-row bearings forming one unit. They can support axial loads in both directions and cross-axial loads. These bearings are structurally sound and can withstand ample loads for short spans with adequate space. Their contact angle is generally not variable and is around 30 degrees in most cases, which promotes a better equilibrium between load capacity and stability.
When selecting between the two, I consider the load requirements, the space requirement, and the shifting of the axial load in both directions. However, the final choice is affected by the specific needs of operations and the design of systems.
Exploring different contact angle options
When looking at different contact angle options, I start with the application’s requirements since the contact angle has a direct and functional relationship with the load and the efficiency of the operation. In the case of smaller or axial loads, or where radial load capacity is more critical, a smaller contact angle, such as 15°, would be helpful as that increases the radial stiffness. On the other hand, in cases where the bearing is subjected to more axial loads, I would use a wider contact angle greater than 30° as that increases the axial strength and stability.
Radial Load Capacity： Small contact angles emphasize radial load distribution, which is required for high-speed applications.
Axial Load Capacity： A tremendous amount of contact angle or larger would enable the bearing to carry strong axial forces, which is suitable for thrust-dominated cases.
Structural Stability： The various contact angles one chooses affect the rigidity and alignment of the system under load.
Operating Speed： Smaller contact angles may benefit high-speed systems since there is low friction.
By carefully considering these parameters, I ensure that the contact angle meets the specific system design requirements and is suitable for its intended operation.
Sealed vs. open angular contact bearings
Selecting an angular contact bearing type centers around an application’s requirements. I will read the features of sealed and open angular contact bearings in the decision-making stages.
Protection Barrier: The sealed type of bearing is recommended to be utilized in situations where the environment is dusty or wet or has debris since it provides a strong barrier against contamination, resulting in an increased life span of the bearing, while the open bearing is implemented in a clean environment and can be lubricated regularly with maintenance done frequently.
Method of Lubes: The sealed bearing’s maintenance and performance over the years are easy since it arrives pre-lubricated. The open bearing must be greased on a routine basis, which is an opportunity because you can apply tailored greasing based on the application required.
Temperature: Open bearings usually can sustain extreme temperatures; however, sealed bearings can have limits, given the seals and lubricants.
Speed Capabilities: An open bearing is a better option for high-speed operations because no seal is required to support it.
Therefore, these features, Sandwiched together with Lubrication Need, Temperature, and Operating Speed, allow me to find a bearing type that accomplishes the operational objectives of the system while maintaining system reliability and efficiency longevity.
How do angular contact ball bearings handle different types of loads?

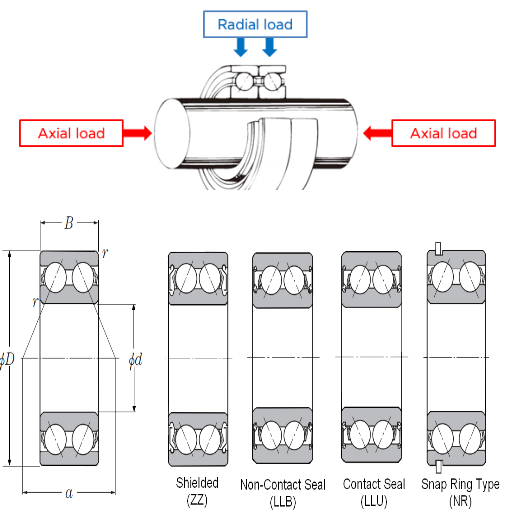

Managing radial and axial loads
Angular contact ball bearings can efficiently bear radial and axial loads depending on the arrangement and application requirements. I assess load distribution and operational characteristics when selecting and utilizing such bearings.
Radial Loads: These bearings are internally radial casters with a precision design that complements their ability to run sluggishly when such drives are applied. However, the strength of angular contact bearings mainly lies in their ability to absorb the axial load. As such, they are used where a combination of loads is to be applied.
Axial Loads: This angle gives the required angular contact geometry so that most contact interfaces can support the radial load. Such a requirement would demand that more bearing surfaces be used and, in turn, drastically increase the maximum operating bearing axial angle. Bearings with operating angles that are greater than 40°, for example, will be able to tolerate greater axial loads. However, more and more such bearings will have lower operating speeds. The operative limit for a system is an angle of more than 15° or 25°. This is a critical factor for parameters that are fixed in systems.
Load Combination: These Bearings are best suited for simultaneously applying radial and axial loads, such as machine tool spindles or high-speed pumps. Preloading the bearings makes them more rigid and lowers the deflection in high-performance systems, enhancing the models’ accuracy and reliability.
Thus, by choosing the bearing’s application according to its contact angle, dimensional tolerances, maximum speed, etc., a proper supply of radial and axial loads may be received, further expanding the component’s lifetime and efficiency in the given application.
Capabilities for handling combined loads
When determining the capabilities for treating the combined loads, I use the application’s distinct parameters to indicate that the system’s technical requirements are fulfilled. For example, I analyze the size and location of radial and axial loads to choose the optimum load rating and stiffness bearings. If the application concerns speed, I sometimes check the die-bearing rating tables to see whether the chosen bearings fall within speed limits; otherwise, too much heat will be produced, compromising performance.
Contact Angle: Large contact angles above 30° are more suitable for bearings axial application, while those between 15° and 25° are applicable in radial load bearing.
Preload: it boosts rigidity and reduces deflection, especially for high-precision systems, but only at optimal levels.
Material and Tolerances: Manufactured processes improve the material quality and dimensions of bearings, improving their load capacity and life cycle.
Considering these factors with imposed limits, such as maximum speed and maximum temperature allowable, the position of the bearings selected can simultaneously provide the highest degree of reliability and efficiency. This method holistically facilitates filtering the alternatives to be consistent with present and future trends in using those alternatives.
Load capacity differences between single and double-row bearings
In my opinion, single-row bearings are reasonably adequate in cases where the axial loads to be supported are relatively small and moderate in intensity. They are small and simple bearings, making them appropriate for space-limited designs. However, their use is restricted to applications where the axial forces are either small or do not exist, as they have a low axial load-bearing capacity.
In contrast, double-row bearings have a considerably greater load capacity because the load is transmitted through two rows of rolling elements. This feature enhances the stiffness and the degree of strength against deformation, thus making them useful for applications where heavy radial loads with moderate to significant axial loads are exerted in both directions.
Static Load Rating (C0) – The static load rating of a double-row bearing is 1.5 to 2 times more than that of a single row of the same dimension.
Dynamic Load Rating (C) – Depending on the design and materials used, double-row bearings have a dynamic load of about 1.3 to 1.6 times that of a single row for the exact specification.
Axial Load Capacity—Double-row bearings can counter axial loads on both sides; single-row bearings need to be fitted up in pairs or have extra configurations to support any bias loading.
Rigidity – The dual-row arrangement improves rigidity and can be crucial in precise machinery or when vibration and shock loads are present.
While bearing selection, I can choose between single rows and double rows depending on the application’s parameters and working conditions. This, in return, improves the performance and reliability of the machine.

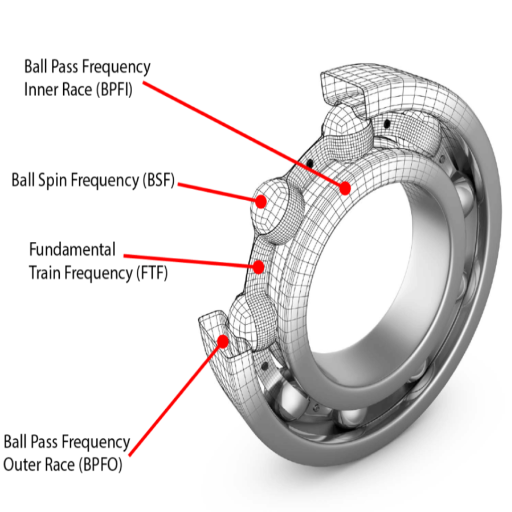

What are the benefits of using angular contact ball bearings in machinery?
Improved stability and precision in high-speed applications
Regarding precision and stability in high-speed manufacturing, angular contact ball bearings are fantastic by design. They are custom-manufactured to accommodate radial and axial loads, which are crucial in high speed. The contact angle mainly influences their capacity to bear at a higher pace, which increases load separation and minimizes internal friction.
Contact Angle – I can choose bearings with specified contact angles (15°, 25°, or 40°). A less contact angle is suitable for faster speeds and more stability, while more considerable angles are suitable for higher-rated axial loads.
Preloading Options—Angular contact ball bearings have preloading options and can be customized to increase rigidity, decrease vibration, and improve accuracy in dynamic conditions.
Material and Cage Design – Good steel or ceramic materials and suitable quality cages such as polyamide and brass provide good speed and durability.
I expect to receive reliable performance, good stability, and precision in high-speed operations by paying careful attention to these parameters and complying with the application’s requirements.
Enhanced load-carrying capacity for demanding environments
I strive to obtain bearings that possess the necessary attributes for radial and axial load applications since this allows me to use the bearings in authoritarian settings. Here are the key considerations and corresponding technical parameters:
Contact Angle Adjustments – A larger contact angle is preferable for bearings that may need to hold a high axial load. This prevents the bearing from becoming unstable when subjected to minimum axial forces within the operating range angles.
Material Selection—Aircraft-quality steel or other quality building materials that would be welded or erected into the structure would be ideal. These materials would be crucial in an environment with high loads and above-average operating hours.
Preloading Options – It is an essential factor that helps to increase stiffness and assist with load sharing under dynamic and high loads. Engineered values of preloading, though, are something that I think should be employed only for those applications that require more stability.
Cage Design – Heavy loads are better maintained by brass cages, which may be preferred, along with reinforced polymer cages, which are light and efficient for dynamic applications in harsh environments.
With these technical parameters, I can rest assured that the bearing’s reliability and performance are optimal at any given time and in any environment.
Frequently Asked Questions (FAQs)
Q: What are the features of angular contact ball bearings?
A: Angular contact ball bearings possess several advantages, such as the ability to be used in a combination of radial and single-direction axial loads, higher speeds, and the possibility of using them at high load levels. They are instrumental in applications that involve speed and accuracy requirements, such as the rotating spindle of machine tools, planetary and other gearboxes, and high-speed structures.
Q: How does a row of a single row and a double row requirement differ in an angular contact ball bearing?
A: A single-row angular contact ball bearing incorporates one row of steel balls, which can bear axial loads in one direction, while a double-row angular contact ball bearing consists of two ball rows and can withstand axial loads on either side. Double-row bearings do, however, have the advantage of greater load-carrying capabilities and stability, which makes them eligible for more demanding applications.
Q: What is the role of the contact angle in angular contact bearings?
A: The contact angle is very important for an angled contact bearing as it defines its axial load capacity and axial stiffness. With the increase of the contact angle, the bearing’s slewing ring bearing’s axial load capability also increases. 15° and 25° are the standard angles of contact. Of the two, the 25° contact has a more remarkable ability to withstand axial loads but has a lower capacity for radial loads than the 15° angle.
Q: In what way or how do you make use of the angular contact bearings in spindle applications?
A: Angular contact bearings are increasingly used as spindle bearings for machine tools and other fast-rotating applications. They provide the desired accuracy, rigidity, and ability to withstand overhung radial and axial loads. Unsupported A spindle bearings are often preloaded to enhance stiffness and remove free play, affording consistent, accurate rotation regardless of load changes.
Q: In what respect are sealed angular contact bearings better?
A: Sealed angular contact bearings are essential in several industries because they protect against pollution. They preserve lubrication, minimize maintenance, and enhance the bearing’s working life. Sealed bearings are imperative when the environment is dusty, wet, or otherwise contaminated.
Q: To what extent does bearing support angle contact affect machinery?
A: The choice of angular contact bearings can significantly influence the performance of machines. Various factors such as contact angle, number of balls, and back or face placement increase or decrease the bearings’ loads, speed capabilities, and stiffness overall. With good selection, machine performance, accuracy, and durability are guaranteed.
Q: What is the difference between an outer and inner ring guided angle contact bearings?
A: In outer ring guided angular contact bearings, the outer ring has a fitted interference in housing. In contrast, the inner (inner ring) rotates freely and can slide in the axial directions. This configuration is widespread in those applications where the outer rotating ring is subjected to some rotating loads. Inner ring-guided bearings, however, have tight fits on the shaft in applications where the rotation load is on the inner part of the ring.
Q: In what way are GMN angular contact bearings superior to those of other industries?
A: GMN Bearing USA is said to manufacture high-quality angular contact bearings with advanced features. Their bearings always possess optimized raceway geometries, high-precision steel balls, and specially designed cages. GMN bearings are widely used in high-speed and high-precision applications with outstanding performance and reliability requirements.
Q: What are four-point contact bearings, and how are they different from the standard angular ones?
A: Four-point contact bearings are a special type of angular contact bearing in which the raceways are constructed to form four contact points with the balls and the rings. Such a design makes them able to take up axial and moment loads in both directions; hence, these bearings are much more multi-functional than the standard angular contact bearings. However, these bearings are usually slower than the standard angular contact bearings.
