Mastering Angular Contact Ball Bearings: The Ultimate Guide for Precision and Thrust

Angular contact ball bearings play a critical role in applications requiring precision, high-speed capability, and the ability to handle combined radial and axial loads. These bearings are meticulously designed to optimize load distribution and performance under challenging conditions, making them indispensable in industries such as aerospace, automotive, robotics, and machinery. This comprehensive guide is tailored to equip you with a detailed understanding of angular contact ball bearings, exploring their structure, operating principles, key specifications, and suitable use cases.

What are the main applications for angular contact ball bearings?

Automotive uses angular contact bearings

Angular contact ball bearings are important parts of many automotive systems and facilitate applications that require a combination of radial and axial loads to be supported. These bearings are widely used in wheel bearing, transmission, and powertrain systems. They are designed to be efficient under high-speed operation and when sharp accelerations or decelerations are to be carried out.

• Contact Angle: 15°, 25,° and 40° contact angles are the standard specifications and are selected to ensure that the required amount of axial load-carrying capacity is achieved by them. Some applications that require large axial loads can operate perfectly with larger angles.
• Speed Rating: Components of automobiles are usually equipped with highly rated bearings that can sustain extreme engine and transmission speeds.
• Dynamic and Static Load Capacity: Load conditions estimate the dynamic and static load capacity that is suitable, for an automotive component, dynamic load capacity may go above 50 kN in a 10 kN application.
• Material and Coating: Performance loss from harsh conditions is reduced via specialized coatings and steel or ceramics of higher quality are used to enhance durability.
• Preload: To lessen the shaft deflection and enhance stiffness often factory preloaded bearings are installed as these need to be used to ensure reliable operation of high precision systems.

The efficiency and reliability that are required in modern automotive engineering are achieved by angular contact ball bearings due to their high-performance specifications and robust design.

Aerospace and high-speed machinery applications

Being capable of withstanding heavy acceleration and axial and radial load with precision, angular contact ball bearings have proven to be the most effective type of bearings in both the aerospace industry and in high-speed machinery. Those bearings are suitable for scenarios where prevention of friction and thermal enhancement is required. For example, in aerospace systems, such bearings could be used in the turbine, actuator, and even in jet engines where reliability and extreme temperature tolerance are a must.

• Contact Angle: For axial load bearing this usually is in between 15°-25°.
• Speed Capability: The upper limit for a high-speed type is 1.5 million dN, (where d is the mm inner bore diameter of bearing times revolutions per minute).
• Temperature Range: This covers I range from -60’f to 400’f depending on the types of lubrication used.
• Load Rating: Some variants can have a dynamic load rating of over 100kn. This is for the type where they need to be combined load-bearing.

By employing cutting-edge materials and designs, angular contact ball bearings contribute significantly to the reliability and efficiency of advanced aerospace and high-speed machinery applications.

What are the advantages of using angular contact ball bearings?

Superior axial and radial load handling capabilities

Due to their unique configuration, angular contact ball bearings can withstand both axial and radial loads concurrently. Since the contact angle lies in the range of 15° to 25°, these bearings have an increased capacity to bear the axial load when compared to regular radial bearings. Therefore they can be used in high speed, high efficiency applications that require load to be properly applied and controlled. In addition, they are made to control and work under combined loads, ensuring their effectiveness in situations with axial and radial loading conditions.

• Dynamic Load Rating (C): Load Ratings of this group have ratings of more than 100 kN depending on the bearings size and material design thus allowing maximum stress to be applied during motion.
• Static Load Rating (C₀): For heavy-duty devices the rating ranges from 50 kN, and 200 kN, thus the device is highly capable in terms of withstanding deformity when stationary.
• Maximum Speed Ratings: Depending on the lubrication and the engineering features of the bearings, these can withstand more than ten thousand revolutions in one minute in applications with higher precision.

They can be applied in aerospace, robotics, and industrial machines where there are high efficiency and load capacity precision requirements.

High-speed performance and reduced friction

To address the questions concisely, the high-speed performance of these bearings directly correlates to their optimized design and precision manufacturing techniques. The combination of advanced materials, such as ceramic or hybrid rolling elements, significantly reduces frictional losses, allowing rotational speeds to exceed 10,000 RPM. Additionally, factors like lubrication type and surface finish of the contact areas play a crucial role in minimizing wear and heat generation during operation.

• Friction Coefficient: Varies between 0.001 to 0.005, it is material and lubrication dependent.
• Operating Temperature Range: Efficient operation is guaranteed between -20 degrees Celsius and 150 degrees Celsius meaning that the bearings can withstand multiple types of thermal load conditions.
• Axial and Radial Load Balancing: This is done so that even in the case where the applications are that are rotationally high-speed and moderate load it is still able to perform effectively.

These bearings are of utmost importance in the fields where efficient output is required any rotationally powered component bears that need high rotational speed yet have to have a very low amount of friction to support the works, for instance, aerospace propulsion systems and high-frequency rotary equipment.

Improved precision and reduced play in machinery

Achieving improved precision and minimized play in machinery often relies on advanced engineering solutions such as tighter tolerances in component manufacturing, enhanced material properties, and optimized bearing design. For example, precision levels can be specified based on ISO or ABEC standards, ensuring minimal deviation during operation. Bearings with reduced play typically feature tighter internal clearances, such as C2 or C3 ratings, which are specifically engineered to handle demanding applications by minimizing backlash and maintaining consistent load distribution.

• Internal clearances: These clearances serve the purpose of minimizing play as well as providing a thermal expansion allowance.
• Tolerance grades: As per ISO 492, grade tolerances of 4 or 5 are recommended to achieve desired dimensional accuracies and alignment.
• Surface finishing: A smooth surface finish is recommended with a roughness value of Ra < 0.2 µm as it minimizes wear and induces smoother operation.
• Geometric accuracy: Ultrafine tolerances (within 1 μm) to achieve a high degree of roundness/cylindricity of rotating components.

With these solutions, machines not only achieve more efficiency but also retain enhanced operational precision, durability, and stability during dynamic conditions.

How do you properly install and maintain angular contact ball bearings?

Step-by-step guide to installing angular contact bearings

1. Prepare the Work Area and Tools: Keep Your workspace organized and gather the needed tools which include a torque wrench, fitters, lubricants ,and cloths.
2. Inspect the Components: Ask yourself- if the inner parts of the shaft the bearing and the housing are all free from damage. After that, measure the critical dimensions such as – shaft and housing diameters to check fitment, the tolerances should fall in line with the manufacturer recommendations such as h6 or H6.
3. Ensure Proper Orientation: Angular contact bearings come with A “load side” imprint to indicate proper orientation for different applications. Make sure to install them so that load alignment is correct to reduce excess stress on the bearing.
4. Mount the Bearing: Applying even force across all sides is paramount to maintaining bearing races which can be followed up with a hydraulic press. Follow the recommended pre-load value that can range anywhere between 50-500 depending on the application type.
5. Apply Lubrication: Make sure the grease and oil used are the same as recommended in the technical guide. When using grease lubricated pipes make sure to fill around 30-50 percent of the internal space of the bearing with grease.
6. Secure the Bearing Assembly: Tighten any related lug nuts or retaining rings with the use of a torque wrench. Ensure to adhere to the approached tightening criteria according to the bearing size.
7. Verify the Installation: Manually, the assembly is turned to see whether it runs smoothly through a full revolution if there is no excessive stiffness or noise. The axial and radial clearance can be measured by the use of feeler gauges or a dial indicator to see whether these fall within the allowed limits.
8. Final Inspection: Perform an operational procedure where the bearing is operated at low speeds and then the speed is steadily increased until the bearing has reached its normal speed to confirm that the bearing is settled correctly and has the lubricant evenly dispersed.

Proper installation combined with ongoing maintenance, such as periodic lubrication and vibration monitoring, ensures peak performance and longevity of angular contact ball bearings.

Proper lubrication techniques for optimal performance

To achieve optimal performance and prolong the longevity of angular contact ball bearings, it is necessary to carry out rigorous lubrication. Adequate lubrication reduces friction, helps to transfer heat away from the bearing system, and also prevents contamination or wear of the bearing system.

• Selection of Lubricant: Decide on the use of grease or oil lubrication based on the particular use. Moderate-speed and sealed bearings are best lubricated with grease while high-temperature and high-speed bearings work best with oil. Always check that the viscosity of the oil used is suitable for the operational speed and load. For instance, ISO VG 68 to 220 oils are generally used, depending on operating temperatures and loads.
• Lubricant Quantity: Avoid over-filling or under-filling since this will lead either to overheating or poor lubrication. When greasing bearings, it is conventional to pack only 30 to 40 percent of the free space in the bearing housing.
• Lubrication Interval: Develop a regular re-lubrication schedule based on operational parameters such as speed factor. For bearings with an n·dm value above 300,000, more frequent lubrication may be necessary.
• Contamination Prevention: Lubricants should be applied in a clean environment to avoid particle ingress. To enhance lubricant purity, sealed systems and filters should be employed especially in dusty or humid environments.
• Temperature Monitoring: Lubricants need to be contained at a certain temperature level to prevent deterioration. Such temperature limits are set so that loss in viscosity or breakdown of oil additives does not occur.

By maintaining a structured lubrication program, you can significantly enhance the reliability and operational efficiency of angular contact ball bearings.

What is the difference between angular contact and thrust ball bearings?

Understanding load directions: axial vs. radial forces

When comparing angular contact ball bearings and thrust ball bearings, the key distinction lies in their ability to handle load directions—specifically axial and radial forces.

In comparison to axial, angular contact ball bearings have the capability of providing axial load. This makes them suitable for applications with simultaneous loads such as turbo engines. The range of contact angles between the rolling element and its race is usually between 15 degrees and 40 degrees. Due to this characteristic, angular contact ball bearings can perform well in terms of axial load. These bearings find applications in gearboxes or machine tool spindles, where dynamic loading performance is obtained at all necessary levels.

In contrast to rotary and sealed ball bearings, axial load can accommodate thrust ball bearings whereas radial force is ruled out. These can be used whenever the load is parallel to the axis of the bearing, i.e. vertical pumps, rotating tables, and so on. Thrust bearings can span moderately low speeds when in contrast to radial and other fast rotating bearings as the design focus has been shifted from directional to thrust capacity.

Understanding these technical ensures proper selection and optimal functionality based on the specific mechanical requirements of a system.

Comparing contact angles and their impact on performance

The contact angle of a bearing is pivotal when it comes to its operational efficiency and superlative load-carrying capability. In angular contact bearings, the contact angle is defined as the angle extending from the line of action of the load onto a perpendicular plane cutting through the center of the bearing. One may encounter three contact angles, namely 15°,25°and 40°. Each has its particular applications alongside possessing its performance characteristics.

• Smaller Contact Angles: It is paramount to note that bearings with smaller angles are perfect for maximum speeds as this configuration reduces operational friction. On the flip side, these bearings do not possess the capacity to bear high axial load with the net optimization of having outer raceways at a high angle.
• Larger Contact Angles: The axial load carrying capacity of bearings that use larger contact angles is significant due to the greater resolution of the axial bearing load bearing. This makes it ideal for use with gearboxes or turbine shafts because of the large axial forces that they are subjected to. But, large angles increase friction which reduces speed capability.

The choice of contact angle involves striking a balance based on performance requirements, such as rotational speed, axial versus radial force ratios, and operational precision. To optimize bearing selection, such as nominal contact angle, axial load rating (Cₐ), and speed limit should be aligned with the mechanical system’s demands.

Choosing between angular contact and thrust bearings for specific applications

When choosing between angular contact and thrust bearings, I would first consider the specific load and speed requirements of the application. Angular contact bearings are better suited for applications with combined axial and radial loads, such as gearboxes and turbines, where the contact angle allows for handling both load directions efficiently.

• Contact Angle: The sharper the angle the better since for high-speed applications involving gearboxes, I would want the less axial load to mess with the motor capability. But when it comes down to applications that deal with load angles being greater than 20 degrees, a wider angle does assist in bearing the axial motor load better.
• Axial Load Rating: This has to be present in alignment with the axial force a system may experience and in most cases involving turntable gearboxes, radial force is applied. This induces moderate axial load through the usage of radial turned bearings, thus sufficing the Cₐ need.
• Speed Limit: once again utilizing cuffed bearings induces lower friction which can assist with any application that requires high operational speeds alongside force.

On the other hand, thrust bearings are designed to bear pure axial loads and should be selected for components such as vertical shafts or other systems where radial loads are minimal or negligible. For thrust bearings, I would focus on factors such as axial load rating and lubrication management to ensure reliability in these high-axial-load scenarios.

How do super-precision angular contact ball bearings differ from standard ones?

Key features of super-precision angular contact bearings

Super-precision angular contact ball bearings are built to operate at high levels while enduring both radial and axial loads. These bearings combine rigidity and speed and are used in aerospace, robotics, and high-end manufacturing industries. Key features include:

• Contact Angle Options: With 15°, 25°, and 30° being the most common varieties temperature angle determines whether it is better employed in a radial load or an axial load. A contact angle of 25°-30° works better with heavier axial loads.
• Enhanced Accuracy: Most angular contact bearings are graded ABEC 7 or ABEC 9 ensuring the devices are designed with little to no runout and overall consistent performance tracking ISO standards.
• High-Speed Capability: Different types of lubricants increase the speed threshold while preventing overheating. Speed limits are reliant on the lubrication and bore size allowing for effortless operation at extreme speeds due to advanced cage materials such as phenolic resin.
• Material Properties: The industry-grade bearings are durable due to being manufactured with a combination of steel and ceramic preventing wear from high-stress regions.
• Preload Options: Moderately or heavily preloaded bearings can be fine-tuned to ensure better control over vibration and rigidity during operation.

I would these bearings differ from standard types due to their superior performance metrics, customized design options, and ability to maintain precise operational tolerances under demanding conditions.

Applications requiring high-precision bearings

High-precision bearings are indispensable in applications where accuracy, reliability, and performance consistency are critical. Common industries and systems where these bearings are used include aerospace, robotics, machine tools, medical devices, and high-speed motors. For instance, CNC machinery benefits from these bearings to achieve ultra-precise machining tolerances, while aerospace applications demand bearings capable of withstanding extreme loads and thermal conditions.

• Contact Angle: The contact angle should be chosen by the predominant type of load. For radial loads a contact angle of 15° is recommended with combined loads or pure axial loads, a hint heavier than 25° is more ideal.
• Preload Level: The operational requirements define the type of preload to be used: light preload reduces the friction and the generation of heat whilst medium preload increases the rigidity of the bearing but only dampens in moderate ranges. Heavy preloading is used to ensure maximum rigidity in the bearing while dealing with extreme shock or vibrations.
• Material and Coating Options: Standard applications – high-grade steel ceramics and protect applications – hybrid bearings behave better at high temperatures or at high speeds. Anti-oxidation coating should also be taken into account if in a wet or corrosive environment.
• Operating Speed And Lubrication: Check for compatibility between the feed lubrication type of the bearing (either oil or grease) and the thermal requirements of the application to achieve optimum operational speed.

I ensure that the bearing performs efficiently under the specific load, speed, and environmental conditions for the designated application.

Frequently Asked Questions (FAQs)

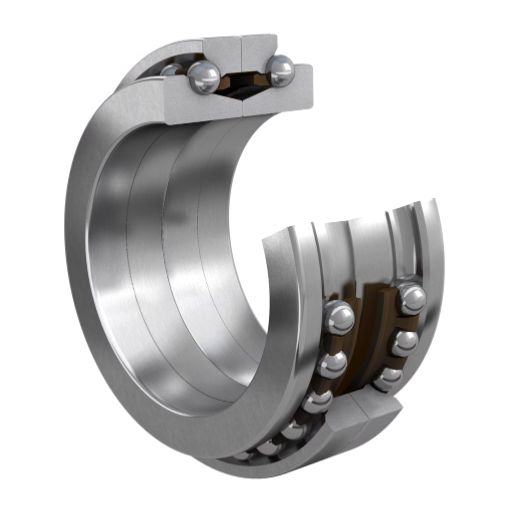

Q: What are angular contact thrust ball bearings and how do they differ from deep groove ball bearings?

A: Angular contact thrust ball bearings are precision bearings designed to handle both radial and axial loads. Unlike deep groove ball bearings, which primarily support radial loads, angular contact bearings have raceways in the inner and outer rings that are displaced relative to each other. This design allows them to support heavy loads in one axial direction and provides high torque capacity, making them ideal for applications requiring precision and thrust.

Q: How is the contact angle measured in angular contact ball bearings?

A: The contact angle in angular contact ball bearings is measured between the line of action of the ball and the bearing axis, perpendicular to the bearing axis. This angle typically ranges from 15 to 40 degrees, with larger angles providing greater axial load capacity. The contact angle is crucial in determining the bearing’s performance characteristics and load-carrying capabilities.

Q: What are the common applications for angular contact thrust ball bearings?

A: Angular contact thrust ball bearings are commonly used in applications requiring high precision and the ability to handle combined radial and axial loads. These include machine tool spindles, automotive wheel bearings, pumps, compressors, and various industrial machinery. They are particularly suited for high-speed rotation and applications where maintaining precise shaft position is critical.

Q: Can you explain the difference between single and duplex angular contact bearings?

A: Single angular contact bearings are individual units that can handle loads in one axial direction. Duplex bearings, on the other hand, consist of two or more single bearings mounted together. Duplex arrangements can be back-to-back, face-to-face, or tandem, offering greater load capacity and rigidity. They are often used in applications requiring higher precision or the ability to handle bi-directional axial loads.

Q: What are some popular brands for angular contact ball bearings?

A: Several reputable brands manufacture high-quality angular contact ball bearings. SKF is a well-known brand that offers a wide range of angular contact bearings. Other notable brands include FAG, NSK, and GMN Bearing USA. These manufacturers provide various options to suit different application requirements and load capacities.

Q: How do I calculate the load capacity of an angular contact thrust ball bearing?

A: To calculate the load capacity of an angular contact thrust ball bearing, you need to consider both the dynamic and static load ratings provided by the manufacturer. The calculation involves factors such as the bearing’s geometry, contact angle, number of balls, and material properties. It’s essential to account for both radial and axial loads, as well as the operating conditions. For precise calculations, it’s recommended to consult the manufacturer’s guidelines or use specialized bearing calculation software.

Q: What size range is available for angular contact ball bearings?

A: Angular contact ball bearings are available in a wide range of sizes to accommodate various applications. The bore diameter can range from approximately 0.078 to 9.448 inches (2 mm to 240 mm), while the outer diameter can vary from about 0.393 to 2.362 inches (10 mm to 60 mm) for smaller bearings and up to 1.499 to 8.66 inches (38 mm to 220 mm) for larger ones. The width of these bearings typically falls between 0.59 to 1.73 inches (15 mm to 44 mm), depending on the specific model and series.

Q: How does the lubrication of angular contact ball bearings differ from other types?

A: Lubrication for angular contact ball bearings is crucial due to their high-speed capabilities and precision requirements. These bearings often require more frequent and carefully controlled lubrication compared to deep groove ball bearings. Oil lubrication is common for high-speed applications, while grease is used for moderate speeds. The choice of lubricant and method depends on factors such as operating speed, temperature, and environmental conditions. Some angular contact bearings come with sealed designs for maintenance-free operation in certain applications.

Q: What are the signs that an angular contact thrust ball bearing needs replacement?

A: Signs that an angular contact thrust ball bearing may need replacement include increased noise or vibration during operation, reduced rotational accuracy, excessive heat generation, and visible wear or damage to the races or balls. Regular monitoring of bearing performance, conducting vibration analysis, and following recommended maintenance schedules can help identify potential issues before they lead to failure. If you notice any of these signs, it’s important to inspect the bearing and consider replacement to maintain optimal performance and prevent equipment downtime.
