Acquiring the correct single-row angular contact ball-bearing supplier is paramount as it affects the machine’s efficiency and lifespan. Specialized bearings can withstand dissimilar loads, such as axial and radial, making them essential parts in every automotive and industrial equipment. This article aims to assist you with reliable and trustworthy suppliers by providing our in-depth research. First, we will look at a checklist one should follow when choosing a supplier: their reputation in the industry, product quality, specialization, aftersales service, and many more. Suppose you are an engineer, business owner, or procurement executive. In that case, this guide intends to provide relevant information to help you make informed decisions about your bearing requirements.

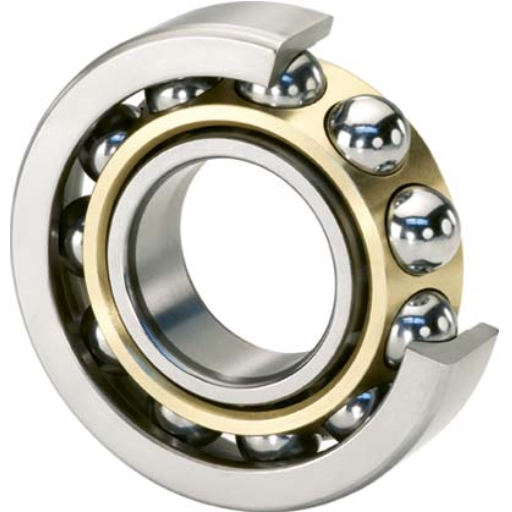

What is a Single-Row Angular Contact Ball Bearing?
How do angular contact ball bearings work?
Versatility is one of the defining attributes of angular contact ball bearings, which simultaneously support combined radial and axial loads. These bearings utilize a contact angle to enable rotation and support axial load; the greater the contact angle of the ball, the greater the axial load the bearing can handle. Accordingly, contact angles between 15° and 40° are considered optimal. A greater contact angle enables higher axial loads to be managed, while smaller angles improve how fast the bearing can rotate.
Contact Angle (α): Specifies axial load capability and is usually measured at 15°, 25°, or 40°.
Dynamic Load Capacity (C) and Static Load Capacity (C₀): These show the bearing’s relative strength under different state load conditions.
Limiting Speed: Max operational speed achievable without changing the design or lubricant used.
Construction Options: They are available in single or double construction. For particular applications, single open and sealed constructions are also available.
Modular design, along with each parameter and their interplay, allows complex systems such as machine tool spindles, pumps, and turbines to function cohesively within defined limits with reliability and accuracy.
What are the key features and benefits?
Ability to Handle Heavy Loads: Telescopic Angular Contact ball bearings are integrated with inner and outer rings that facilitate radial and axial loads. Thus, they suit stringent applications like machine spindle and turbine systems.
Operational Accuracy and Productivity: Low operational friction is achieved, paired with high-speed machinery functionalities that ensure the smooth operation of parts.
Sturdiness and Consistency: Strong materials and ideal raceway shape and form support long life even with high loads applied to them due to high-stress conditions.
Versatility in Design: Open or sealed single and double configurations make these types of bearings suitable for numerous varied scopes of work around different applications and environments.
Variety and Specified Perfection: The different sizes, preloads, and lubrication options provided will allow for meeting the specific requirements of multiple industries and thus enable custom-designed solutions.
These features, along with the accompanying technical specifics, make the scope of application for Angular Contact ball bearings in all demanding applications seamless.
Understanding the contact angle in bearings
The contact angle within angular contact ball bearings is critical in defining their performance and load-carrying capacity. In simple terms, the contact angle is defined as the angle between the two contact points of the ball and the raceways, where a force perpendicular to the ball’s axis is applied. The angle influences the management of axial and radial loads. If the angle is larger, the bearing can support higher axial loads, but the capacity for radial loads is decreased. In opposition, if the angle is smaller, the contact angle will best aid radial load handling and support but will limit axial load support.
The primary aspects are termed technical parameters, and accepting the ranges of these parameters and the contact angle helps with the other considerations:
Axial Load Capacity – The bearing supports greater axial loads with a larger contact angle.
Radial Load Capacity – A smaller contact angle is more efficient in sustaining radial loads.
Speed Capability – Many bearings with smaller contact angles perform better at higher speeds.
Rigidity – Larger contact angles significantly increase rigidity, vital in precision applications.
Different dimensions are essential for various purposes, but proper selection of the contact angle guarantees optimal performance for a desired task.

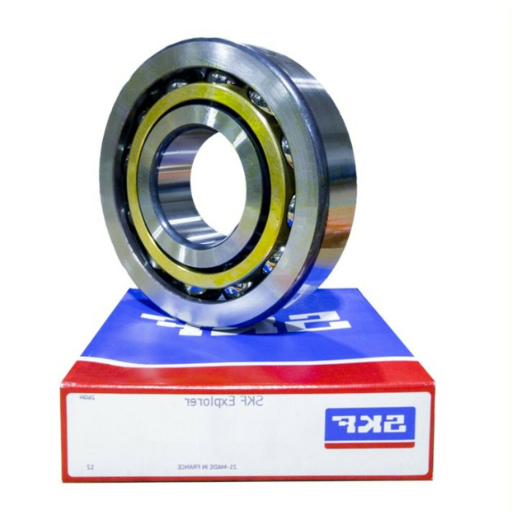

Who are the Leading Suppliers of Single-Row Angular Contact Ball Bearings?
Overview of SKF and its offerings
SKF is a world-class industry leader in the manufacturing of single-row angular contact ball bearings and provides comprehensive solutions for the differing requirements of various industries. Our bearing designs are made for radial and axial loads, which achieve reliable application results at higher precision. We achieve optimal performance for these products by varying critical parameters such as contact angles, material breaks, and surface finish quality.
For example, we can manufacture our bearings with differing contact angles (15°, 25°, or 40°), allowing selection depending on speed and stiffness criteria. More incredible speed demands smaller contact angles, while greater stiffness and precision tasks require larger angles. Also, SKF bearings are made from better, more advanced materials with increased lifetime durability and lower frictional losses. These features emphasize superior performance and reliability, making our products best suited for different industries.
Exploring NSK in the bearing industry
With experience and outstanding resources, NSK strives to offer the industry’s most innovative and reliable solutions, which has enabled the company to secure a place as a leader in the bearing industry. Based on extreme engineering and research, NSK bearings have remarkable precision, durability, and performance. Their bearings utilize optimized internal geometries and smaller contact angles for higher-speed operations. An example is the 15° angular contact bearings, which ensure superior rotational performance and low heat generation.
For rigidity and high load-carrying applications, NSK retrofits bearings with more extensive contact angles at 25° to 40° or double-row bearings that effectively support axial and radial loads. Additionally, NSK employs ultra-clean steel for ultra-premium materials, improving fatigue life and operational efficiency. Their designs incorporate advanced lubrication systems and seals as well, which lowers friction and blocks contamination.
Outstanding design configurations give these bearings remarkably increased speed limits of 1,500,000 dN in some models and support load ratings from exemplary NSK design modifications. Low runout tolerances as precise as 1 micron and amazing bears with high load capabilities best describe NSK’s brilliant features. The coastline-enabled bearings set remarkable benchmarks, efficiently enabling shipments to the automotive and aerospace industries. With these intricate yet straightforward concepts, NSK ensures that practicality performs in style, allowing remarkable engineering.
The role of GMN Bearing USA in the market
GMN Bearing USA has established itself as a key provider of high-performance bearings for all industrial sectors. With unmatched precision, exceptional high speed, and robust durability, they are a reliable partner for advanced engineering solutions. GMN is known for its specialization in angular contact bearings, freewheel clutches, and non-contact seals, all of which are crafted to fulfill the most stringent technical criteria. Some of the key technical parameters are:
Bearing Contact Surface Accuracy: Tolerances as narrow as P4 or P2 for angular contact bearings are achieved in dynamic systems that guarantee optimal accuracy and reliability.
Rotational Speed: GMN bearings can accommodate rotational speeds of up to 2 million dN, making them perfect for equipment that requires high-speed functionality.
Weight Assignment Capacity: Designed for maximum load-bearing, these bearings easily support heavy axial and radial stresses and still perform.
Material design and Engineered Temperature Resistance: GMN products perform reliably in temperatures exceeding 100 degrees Celsius. They are thermally stable and operationally reliable under such strenuous conditions.
Tailoring solutions rooted in technical excellence and proven reliability to specific client needs has enabled GMN Bearing USA to push innovation and set standards in the bearing industry. The company remains determined to advance further.

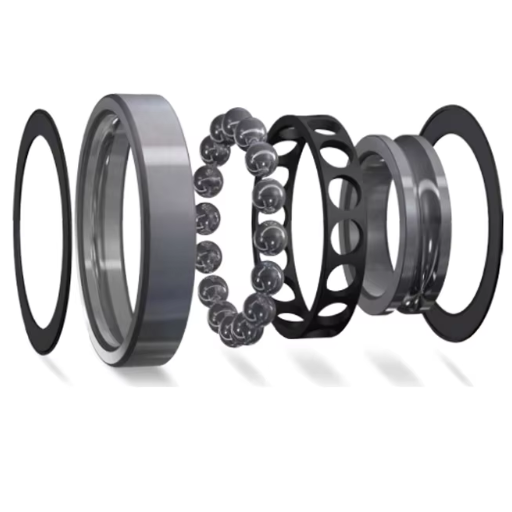

How to Choose the Right Ball Bearing for Your Needs?
Importance of precision and load capacity
Precision and load capacity are fundamental aspects to consider when choosing a particular type of ball bearing for an application. In contrast, precision dictates the level of interference fit and functional accuracy of the bearing parts, which influences the system’s operational efficiency, noise, and lifespan; load capacity represents the forces that the bearing can withstand during its operation, including radial load, perpendicular forces relative to the shaft, and axial load, parallel forces relative to the shaft. For medical devices and aerospace systems that require considerable precision, high-precision bearings compliant with ABEC-5 or ABEC-7 standards are necessary due to their ability to enable low vibrations and smooth operation.
When selecting a bearing’s value, static load rating (C₀) and dynamic load rating (C) are fundamental. The former informs about the bearing’s ability to take loads without being deformed while static and later during operational deformation. Bearings also enable integration into high-speed machinery or heavy-duty equipment because they counterbalance dynamic and thermal stresses.
By consulting the manufacturers’ specifications, an individual can ensure that the technical requirements align with operational requirements. Ultimately, this improves failure or maintenance costs, system reliability, and overall performance.
Deciding between single-row and double-row options
It is critical to appreciate the functional and structural differences between single-row and double-row bearings when choosing which one to use in your project, so let’s consider their distinguishing features first:
Single-Row Bearings
Load Capacity: It mainly supports radial loads and has limited axial load. It is suited for lower load requirements within confined spaces.
Space Efficiency: Lightweight and requires less space; thus, it can be incorporated into smaller devices and machinery.
Operational Speed: Principally operates at a higher speed because of lesser damping.
Typical Applications: Attained at lower aggregate load requirements in motors, pumps, and gearboxes.
Double-Row Bearings
Load Capacity: The additional row of rolling elements provides a larger radial and axial load capacity, making it ideal for heavy-duty operations and delivering better performance.
Stability: The system’s capability to bear bending has increased. Better rigidity and stability are achieved, along with lesser rotational misalignment during operation, which increases system circulation efficiency.
Durability: The capability to endure thermal and dynamic loads and shifts longer.
Typical Applications: Incorporated in industrial equipment, heavy machinery, and conveyor systems supporting lower loads with constant design stresses.
The choice between single-row and double-row bearings lies within the bearings’ ratings. As such, specific load requirements, available space, expected speed, and system requirements should be noted. The manufacturer’s data sets should always be consulted to ensure the bearings meet the expected purpose and parameters.
Factors to consider for machinery and automotive applications
Load Capacity—Design and system needs differ depending on the expected load type, whether radial, axial, or some other combined loading form. Robust and dynamic loads may be better suited to double-row bearings for machinery applications. On the other hand, load sharing needs to be effective and efficient for automotive systems, especially wheel assemblies, as otherwise, it could result in a disaster.
Speed Requirements—When operations must be performed at a high speed, the bearing must be dependable and have low friction, requiring precise engineering. For example, single-row bearings are better suited for high-speed automotive systems, while double rows are more applicable to slower, steady, and reliable machinery workloads.
Space Constraints – Relatively available space determines the configuration for the bearing choice, making it an important consideration. Space-permitting single-row bearings tend to have a more compact design, while double-row bearings, while bulkier, have a higher capacity to support machines.
Durability and Maintenance – The working environment of the bearing with heavy machinery needs to be more maintenance-friendly and last longer due to the harsh conditions under which they undergo wear and tear. Effective sealing and appropriate lubrication matters significantly in this case, both in machinery and automotive applications.
Temperature Tolerance—Because of thermal expansion, Parts of heavy-duty machinery or engines have to use bearings that tolerate very high temperatures and still function optimally.
These considerations immediately impact the technical aspects of bearing material, internal clearance, lubrication type, and sealing systems. Proper selection for your use guarantees maximum working efficiency and durability.

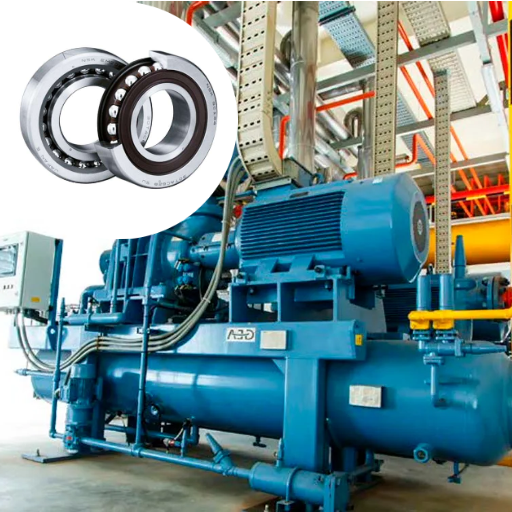

What are the Applications of Single-Row Angular Contact Ball Bearings?
Usage in machine and manufacturing facilities
In my observation, single-row angular contact ball bearings are the most frequently used bearing type in machines and manufacturing facilities because they can support both radial and axial loads. These bearings are critical in high-speed operations, such as CNC machining, where accuracy and dependability are vital.
Contact Angle—A steep contact angle, which few manufacturing processes ignore, makes increased axial load capacity possible.
Lubrication Type – High-speed operating mandates specialized grease or oil as it reduces friction and heat.
Bearing Material – Steel and ceramics possess high fatigue strength and thermal stability, ensuring durability under extreme operational loads.
Sealing Systems—Good seals minimize contamination in industrial environments, increasing bearing lifetime functionality in harsh environments.
With these specifics, I ensure that the equipment can achieve optimal efficiency and service life by carefully tuning these parameters to the application’s demands.
Benefits for spindle and shaft operations
Failure or subpar performance in spindle and shaft systems can be avoided by dealing with the following primary issues:
Contact angle—In high axial load conditions, I set the contact angle as high as possible. This alleviates stress and deformation, enhancing spindle alignment accuracy during machining. A steep angle is most advantageous in such cases.
Lubrication type – I set a higher operational speed than usual for lubrication selection. In this case, like synthetic grease or specialty oil, this lubrication helps alleviate friction and thermal stresses, improving shaft longevity and spindle rotational speeds.
Bearing material—I use materials with high fatigue resistance and thermal stability, such as steel or ceramics, for high-load and high-speed worn spindle and shaft components. This helps boost strength and reduce downtime.
Sealing systems—Effective sealing is perhaps the most critical aspect of spindle and shaft servicing. Contamination can severely reduce the operational efficiency of shafts and spindles, which require advanced sealing protection in dusty, wet, or chemical environments.
By customizing these technical parameters to the operational scope of tasks, I ensure that both spindle and shaft systems operate with the required precision, effectiveness, and durability. This also improves the machine’s reliability and productivity when working under challenging conditions.

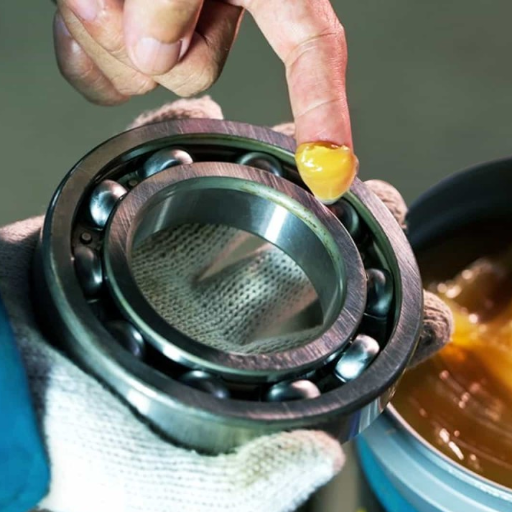

How to Maintain and Ensure Longevity of Your Bearings?
Best practices for avoiding contamination
To prevent the ingress of contaminants into bearing systems, my strategy has always been proactive and meticulous. First, I ensure high-quality seals or shields that fit tightly are used. This is important for keeping out dust, dirt, and moisture, which are contaminants that can rapidly deteriorate the performance of the bearings and cause them to fail prematurely. For more severe applications exposed to aggressive or harsh chemical environments, I suggest using advanced sealing materials such as Viton or fluoroelastomers because they can withstand an extensive array of contaminants and remain flexible and effective. This helps maintain thermal stability while enhancing the bearing’s lifespan.
Another essential practice is the optimal lubrication. I proactively apply barriers that lubricate and reduce friction for the bearings using oils with contamination-resistant additives. It is also necessary to periodically maintain and eliminate the risk of degraded lubricant or residue build-up and perform regular checks. Failing to lubricate or use contaminated lubricant properly leads to negative consequences on the rolling contact fatigue and frictional performance of the bearings.
In addition, I place great importance on the assembly’s cleanliness and the work environment. Where practical, I clean tools and use filtered cleanroom air to minimize contamination risks during installation. It is also advisable not to overexpose bearings to cleaning solvents or high-pressure cleaning sprays, for these may push contaminants into the bearing assembly. These measures are specific in maintaining the parts’ integral functional condition and sustaining accurate operational ability in harsh environments.
These methodologies are carefully considered and precisely implemented, significantly reducing the risks associated with contamination. This results in the efficient operation of the bearings for an extended period.
Regular checks for seal integrity and wear
Consistent evaluations to check for seal integrity and damage must be conducted as they are critical to bearing performance and dependability. In my case, I scope for any potential loss damage, including cracks, deformations, or damage to the seal. Defective seals can lead to the ingress of contaminants such as dirt and moisture into the bearing assembly, resulting in deteriorated lubrication, increased friction, and many other unpleasant circumstances. This influences rolling contact fatigue life, frictional torque, and even the bearing temperature during operation, resulting in adverse outcomes concerning technical issues.
For example, an induced seal can soften the lubricant and leakages, making the bearing extremely inefficient and hot internally. Other than that, the seal wear also makes the system dirty, resulting in the highly vociferous and vibrational, which makes an even more precise around the system’s performance difficult. This facilitates ample opportunity for bearing underperforming control in diverse operating circumstances, compromising seals and opening the opportunity for leakages, which is prevented when managed promptly.
Understanding the impact of axial loads and radial load
Axial and radial loads greatly affect bearing performance and life. When working with them, I always try to meet the design and operational goals corresponding to the bearings’ practical operational limits. Axial loads, which are loads applied parallel to a shaft’s axis, may cause the bearing’s contact points to take greater loads if not adequately controlled. This may lead to technical issues like axial rigidity, contact fatigue life, and temperature stability concerning uncontrolled load distribution.
In contrast, loads that are applied at right angles to the shaft are known as radial loads, which affect the deformation of the rolling elements of the bearing and are necessary for rotation to be smooth. An excessive application of a radial load will bring about a higher rolling resistance, increasing friction, resulting in more significant wear and even causing the bearing parts to shift their position. These parameters affect the speed of rotation, the vibration of the bearing, and the noise it produces.
To avoid such effects, I focus on adequately selecting the bearing’s load ratings and accurately mounting the bearing’s position to the applied axial and radial loads. That way, the bearing’s overall reliability and functionality under different operating conditions are assured.
Frequently Asked Questions (FAQs)
Q: What are row angular contact ball bearings? Do they differ from other types?
A: These types of bearings are called row angular contact ball bearings, which are radial bearings used for both axial and radial loads and hence are classified as precision bearings. They are unlike deep groove ball bearings since the inner and outer rings of these ball bearings have grooves positioned parallel to the axis of the bearing. With this design, they can sustain axial loads in both directions, making them suitable for exact and fast applications.
Q: How does the outer ring of a single-row angular contact ball bearing contribute to its performance?
A: As with most, if not all, types of bearings, the outer ring of a single-row angular contact ball bearing is pivotal to its performance, and therefore, its quality is paramount. It forms one of the raceways for the balls and bears part of the load. The contact angle between the outer and inner rings is formed by a line of action of the ball load, which also dramatically affects the outer ring. This also determines the bearing’s ability to withstand axial loads while rotating at a high speed.
Q: In advanced angular contact ball bearings, what is the most common material used for the cage?
A: Polyamide, brass, and even steel are some options for the cages of advanced angular contact ball bearings. Polyamide offers strength in weight and lubrication, while brass and steel are heavier but offer strength and durability. Various parameters, such as speed, temperature, and load conditions, must be considered to determine the material that best fits a specific application’s requirements.
Q: Is there a difference in the functionality of roller bearings and angular contact ball bearings?
A: Though both forms of bearings can be employed for different kinds of industrial work, each serves a different purpose. Roller bearings are commonly used for relatively more straightforward functions as their contact area is more prominent but can sustain more work. On the other hand, angular contact ball bearings allow higher precision and are more suited for high-speed activities. Which form to use depends mainly on the application and its requirements.
Q: What are the benefits of using double-row angular contact ball bearings compared to single-row designs?
A: Double-row angular contact ball bearings have certain benefits compared to single-row designs. For instance, they can bear increased axial loads in both directions. Also, they can maintain precision and stiffness in the application’s added load. In contrast to single-row bearings, double-row bearings have an improved load-carrying capacity and the ability to sustain moment loads. In general, they are more intricate than single-row bearings, making them more expensive.
Q: What would distinguish between high-precision bearings and standard ones?
A: Unlike standard bearings, high-precision bearings, like most angular contact ball bearings, are made with increased tolerances. They have increased running accuracy, lower frictional resistance, and offer more operating speed. Most of these bearings can be found in machine tool spindles or used in aerospace engineering and other fields of work requiring high precision. It is customary for high precision bearings to possess superior surface finishes on the raceways and ball. In addition, advanced materials or coat construction are used to improve functionality.
Q: Who are some of the top single-row angular contact ball bearings suppliers?
A: SKF, Schaeffler group (including FAG brand), NSK, and Timken are some renowned suppliers of single-row angular contact ball bearings. Some of these companies, like FAG, which started in 1907, have been making these bearings and other products for decades. Bearing manufacturers have different preferences, which makes it essential to determine which factors are more important to them, such as bearing quality, bearing stocks, level of offered services, and the application in question, before selecting a supplier. It is advisable to contact the suppliers for more details or to get a quote.
