Angular contact bearings play a crucial role in numerous pieces of equipment due to their unparalleled accuracy and dependability. These bearings are specially designed to absorb combined axial and radial loads, making them necessary in industries like automotive, aerospace, and manufacturing. They are also built for high-speed applications without sacrificing stability or increasing wear and tear. This article examines the significant attributes of angular ball bearings developed for export markets, including design, material composition, performance grade, and overall global applicability. Engineers, suppliers, and industry hobbyists will find this guide beneficial in understanding these multi-functional components.

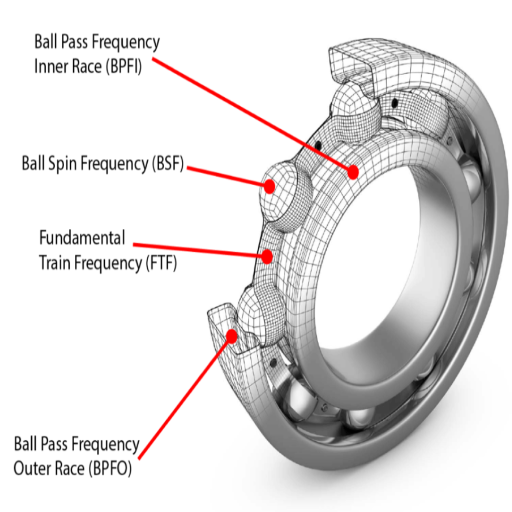

What are the Key Features of Angular Contact Ball Bearings?
Understanding the Contact Angle in Angular Contact Ball Bearings
With the angular contact ball bearings, the most important measurement is the contact angle, which affects the performance of the bearing itself. We can define this as the angle formed between the contact line on the ball’s surface and the line on the radial plane of the bearing. Generally, contact angles in angular contact ball bearings range from 15°, 25°, to 40°:
15° Contact Angle – the best angle for high-speed functions, as the axial load capacity and friction are the lowest.
25° Contact Angle – In between axial and radial load capacity, primarily used in medium-duty work.
40° Contact Angle – Particularly suited for thrust non-dominant systems, excellent support for axial load.
Due to systematic demands, the optimum contact angle constraint is based on speed, the direction of the load application, and the axial or radial load. In selecting the optimum performance, a smaller contact angle prioritizes speed and precision, whereas a greater angle increases the axial load capacity, ensuring better performance under more strenuous conditions.
The Role of Preload in Bearing Performance
Preload is very important when it comes to enhancing bearing functionality. It removes internal gaps and guarantees appropriate contact between the rolling elements. By applying preload, system rigidity can be increased, vibrations dampened, and rotational accuracy improved. For example, load preconditioning on bearings results in a more uniform load distribution, which reduces wear and increases usable life.
While considering the appropriate level of preload, there are multiple technical parameters that I must account for, such as:
Contact Angle—A higher contact angle can accommodate higher axial loads, which, when combined with preload, defines the system’s performance.
Preload Force—This is the force in Newtons (N) that has to balance alleviating internal clearance and stressing the bearing components.
Operating Speed – The maximum allowed RPM needs to be considered because excessive preset loads can lead to overheating at higher speeds.
Thermal Expansion—Uncontrolled material expansion due to heat requires accounting while trying to retain optimal preset loads throughout the operating period.
The listed parameters allow me to guarantee that efficiency while achieving high load calculations along with work and high durability constituents are formed.
Advantages of Single Row Angular Contact Ball Bearings
Single-row angular contact ball bearings have significant advantages in achieving efficiency and accuracy in various applications. Below are the merits:
High Axial Load Capacity—The bearings can accommodate substantial axial loads in one direction, making them suitable for high-speed and heavy-duty applications. Their ability to support these loads is due to their contact angle, which ranges from fifteen to forty degrees.
Superior Rigidity—The capacity to preload these bearings increases the system’s rigidity, which is critical in precision machinery.
High-Speed Performance—The geometry and material of their primary and secondary raceways have achieved the desired balance between micromechanics and friction dynamics, promoting the capacity to achieve a high rotation rate with little friction.
Thermal Stability—A properly preloaded bearing can withstand specific checking values of thermal expansion, which makes it possible to perform at moderately changing temperatures provided the materials and operating environment do not exceed the designed settings.
Compact Design—Because of their low weight and design configuration, they can be easily integrated into compact assemblies without any adverse effects on load or speed performance.
When choosing these bearings, I ensure that the contact angle, preload, and material coefficients are consistent with the application’s requirements so that their merits can be fully utilized.
Why Choose SKF Angular Contact Ball Bearings for Export?
Quality Assurance with SKF Bearings
Regarding the quality of SKF Angular Contact Ball Bearings, I rely on their design and manufacturing capabilities as they continually meet the requirements of high-performance applications. These bearings are manufactured using advanced technology and tested thoroughly for uniformity and reliability across all production. They are made with precision and are tested in a controlled environment.
Contact Angle—These SKF bearings can be purchased with contact angles of 15°, 25°, and 40°, allowing selection based on axial load and the machine’s speed requirements.
Preload Options – I benefit from predefined light, medium, or heavy preload settings, which minimize deformation and improve critical operational rigidity.
Material Quality – The bearings are produced from high-purity steel, ensuring fatigue resistance and longevity while operating under challenging conditions.
Speed Ratings—SKF bearings do not compromise on stability while offering superior speed performance. Alignment to the application’s specific needs is provided as an option.
Precision Classes – Levels of accuracy such as P5 or P4 grade are significant at regions of high tolerances and minimal runout and are critical to smooth performance.
After carefully evaluating and matching these parameters to the requirements, I can achieve reliable, high-quality performance, allowing me to meet export requirements effortlessly and confidently.
Export Standards and Tolerance Levels
I comply with export standards and tolerance levels by implementing other internationally acknowledged regulations, such as ISO and DIN standards. I cross-check that the measurements, such as dimensions, materials, and precision, match the needed specifications for the intended applications. For example, I use tolerance grades ISO 286-1 to evaluate fits and deviations efficiently, guaranteeing compliance in mechanical assemblies.
Dimensional Tolerances—IT6 tolerance-grade precision-fit assemblies meet the minimum requirements and the maximum allowable limits on precision.
Material Properties – Hardness, tensile strength and thermal resistance are checked if they are within the limits of the operational and environmental conditions.
Surface Finish – Roughness shall be maintained as Ra ≤ 0.8 μm because it is essential functionally and aesthetically.
Concentricity and Runout—Values below 0.003 mm for high-speed rotating parts must be followed to ensure alignment with the intended application requirements.
These components must be valid to consider performing these technical and checking aspects; I place equal emphasis on the need to export the goods and the need for the products to perform and comply fully with quality expectations.
Comparing SKF Angular to Other Brands
While I compare the quality of SKF angular contact bearings with other brands, I make it a point to analyze several technical aspects so as to determine the performance and reliability of the bears. This is how I manage the most critical factors:
Load Capacity—SKF bears have a dynamic and static load rating relative to competitors, which translates to better functionality and durability when put under heavy loads. Their dynamic load rating generally exceeds that of the competition by 10-20%, which ultimately helps support longer service life.
Speed Limit—SKF delivers advantages when it comes to bearings for equipment with high-speed operations. Depending on the series and with precise manufacturing tolerances, SKF bearings become stable with minimal vibration under speeds exceeding 20,000 RPM.
Precision Grade—SKF endorses and employs state-of-the-art technology, which allows for cost-effective mass production. This ensures that spindle bearings meet ISO P4 or P5 precision cutting grade, which guarantees optimum concentricity and runout values often lower than 0.002 mm. This outdoes many standard alternatives.
Material Quality—SKF bearings manufactured with proprietary steel and applied heat treatment processes are more reliable in extreme operating conditions. This controlled process enhances fatigue resistance and translates to increased long-term reliability.
Surface Finish – To further guarantee operational performance, SKF guarantees surface finishes (e.g., Ra ≤ 0.6 μm on bearing raceways and balls) that reduce friction and operating noise. Such processes also improve the overall performance.
From the points mentioned above, it is clear that SKF angular contact bearings outperform competitors in terms of quality performance, efficiency, and longevity.

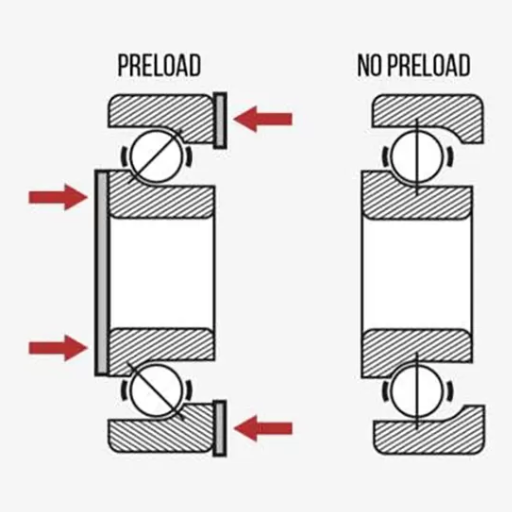

How Does Preload Affect Bearing Performance?
Defining Preload and Its Importance
In bearings, preload refers to the application of axial load to remove any internal clearances. In rotary machines, optimal performance leads to maximizing the rigid body’s inbuilt vibrations, which improves the machine’s accuracy. In my personal experience, preload does wonders in maintaining stiffness during compressive operational forces. This is particularly useful in fields that require meticulous and composed working situations.
Axial Load (Fa): Preload places an axial force on the bearing to reduce intermittent movement and increase bearing stiffness properly.
Rigidity: Increased magnetic preload allows the bearing to have a stronger holding force, which ensures that an arbitrary level of operational force will not compromise the position.
Heat Generation: Too much magnetic heat in the coils increases the friction and heat produced. This sweet spot must be found when engaging with operational conditions.
Optimal Operating Speed: In most cases, finding the balance between noise damping and performance at distinct rotational velocities is crucial, hence the preload adjustment.
Effective preload control enables fine-tuning of the tradeoff between performance and reliability, especially in critical operational environments.
Impact of Preload on Bearing Lifespan
A bearing’s lifespan correlates to the amount of preload applied since it impacts internal stresses, contact forces, and heat generation. Preload fulfills the necessary conditions to ensure the components are aligned and reduce the vibration and rotational inaccuracies. However, if the preload is too high, the increased internal friction can lead to overheating, increased wear, and even damage to the bearing. As a result, this will shorten the service life of the bearing.
Preload Force (N): This is application-dependent. For light operations, presetting the load to around 5-10% of the bearing’s dynamic load rating tends to be effective; however, for precise applications, the tolerances would have to be more stringent.
Temperature Range (°C): Depending on material and lubrication, the operational temperature range has to be constantly monitored to ensure that it does not exceed 70 to 120 degrees.
Contact Angle (Degrees): Axial contact bearings are often used in preload conditions. To enable proper load distribution, they must be maintained at their designated contact angles of 15 degrees or 25 degrees, depending on the type of bearing.
Lubrication Conditions: Adequate lubrication is needed to help reduce the friction and heat generated by the bearings. The type and viscosity of the lubricant have to be compatible with the preload and operational speeds at which the equipment is running.
Axial Displacement (μm): There are limits on axial displacement because of the effect bearing stiffness and deflection will have on the bearing’s ability to operate.
If the optimal preload settings are maintained depending on operational requirements, the balance between performance and longevity is achieved, maximizing bearing life whilst ensuring dependability.

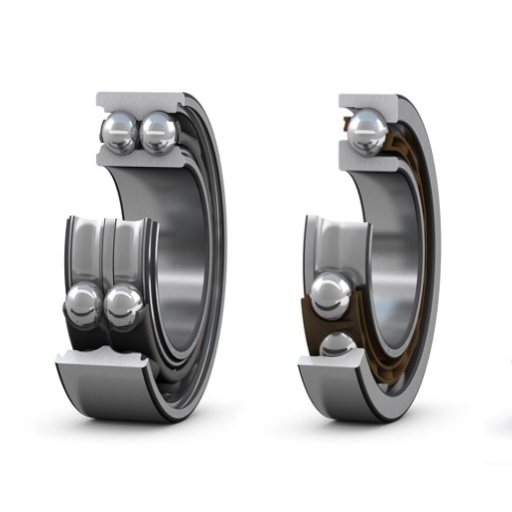

What are the Differences Between Single and Double Row Angular Contact Ball Bearings?
Understanding Double Row Angular Contact Bearings
Double-row angular contact ball bearings can be described as a coupling of two single-row bearings positioned back to back, allowing for greater rigidity and load-bearing capacity. They can accept radial loads, total axial loads in both directions, and partial tilting moments. These attributes make the bearings appropriate for installation in highly compacted structures with exceptional performance.
Load Capacity: Moreover, double-row bearings are constructed to permit higher radial and total axial loads compared to single-row bearings of the same dimensions.
Contact Angle (α): These bearings can efficiently cope with combined load because of the extraordinary ability of the average contact angles, generally between 25° and 45°.
Axial Clearance: The right axial clearance must be set and maintained because it affects the bearing’s rigidity and operational precision.
Speed Limit: Using double-row bearings results in lower rotational speed limitations than using single-row bearings. This is due to the increased internal friction on the bearings.
Dimensions: These compact designs enable quick and easy fixing in a limited area.
Precision Classes: These bearings are produced in various grades of precision P0, P6, and P5, which closely correspond to the application’s precision and load requirements.
Double-row angular contact ball bearings are extensively used in machine tools, gearbox components, and heavy and bulk material handling devices due to their ability to withstand multiple loading conditions. However, performance level and service life are dependent on alignment and proper lubrication.
Comparing Radial and Axial Loads Handling
Like the handling of radial and axial loads in double-row bearings, many aspects define their performance and must, therefore, be kept in consideration:
Radial Load Capacity: The two rows of these bearings help distribute weight, significantly increasing the capacity of the radial and dynamic load rating C. This feature also dramatically increases the strength and overall weight-handling ability compared to single-row bearings.
Axial Load Capacity: These bearings’ capacity to handle axial loads is less than their capacity to handle radial loads, but they can take axial loads in both directions. Angular contact and thrust bearings are more suitable for larger axial load requirements.
Load Ratio: The type of these bearings will affect the ratio of radial and axial loads permitted. Manufacturers provide safe limits for both radial and axial forces per the applications in the form of graphs.
Design Considerations: Taking the radial and axial capacities to the extreme will cause failures and wear. Therefore, the challenges of proper alignment and above housing tolerance are crucial to ensure optimal performance.
Choosing the most appropriate bearing necessitates a thorough assessment of the application’s load dynamics and confirming that the selected configuration works effectively.
Applications of Double Row Angular Contact Ball Bearings
Double-row angular contact ball bearings are precision components capable of effectively combining radial and axial forces. Their robust design makes them ideal for applications across various industries. Here are some common uses and relevant technical specifics.
Automotive Industry: These bearings have found extensive use in gearboxes, wheel hubs, and transmissions because of the critical need for space, load-bearing, and durability. An example can be found in wheel hubs, where high axial and radial loads are frequently encountered during a vehicle’s normal operation, often supporting speeds of 5,000 RPM.
Electric Motors: Employing double-row angular contact ball bearings in electric motors eliminates all problems associated with rotational movement and high-speed working. Key parameters include load capacities up to 20 kN and rotational speeds exceeding 8 k RPM, depending on a motor’s size and power rating.
Aerospace and Defence Equipment: Modern turbine engines and control systems of aerospace and defense equipment need to work under harsh conditions. Their precision and ability to manage complex load dynamics make them suitable for demanding environments. Bearings must often be made from heat-resistant materials and function typically at extreme temperatures (-50° to 150°).
Industrial Machinery: These bearings ensure reliable performance for pumps, compressors, and machine tool spindle applications under heavy-duty operational conditions with radial load limits exceeding 30 kN and axial loads up to 15 kN, depending on the machine’s requirements.
Material Handling Systems: These bearings are widely used in conveyor systems and cranes because they operate effectively under alignment or performance constraints. They are developed to be efficient at moderate speeds (up to 3,000 RPM) while withstanding high radial and axial loads.
All these applications require great care of parameters like the speed of rotation, magnitudes and distribution of loads, the structure of housing, and the amounts and types of lubricants used to increase the bearing’s efficiency and lifetime.
How Do Radial and Axial Loads Influence Bearing Selection?
Analyzing Radial Load Capabilities
Radial load capabilities are essential for selecting the correct bearing since they affect its ability to sustain forces perpendicular to the shaft’s axis. Bearings with radial loads, such as cylindrical roller or spherical roller bearings, are selected in cases where the application is heavy-duty and needs a lot of support and little stress-induced deformation.
Radial Load Limit: Max radial load limit of the bearing beyond which the bearing structure is compromised (i.e., upper limit of 30 kN for some heavy-duty systems, as an example).
Rotational Speed: For effective operation, a bearing should be able to function at the required speeds, which are generally up to three thousand revolutions per minute for material handling systems.
Material Composition: The proper formulation of steel enhances the robustness and life under continuous application of radial loads.
Housing and Fit: Correct housing design is critical to allowing even load distribution to all bearing surfaces, which will minimize wear and increase efficiency.
Lubrication Requirements: Adequate lubrication reduces friction and heat generation under excessive load conditions.
These parameters must be considered in tandem with the application’s requirements to measure radial load-bearing reliability and performance in radial load-bearing-dominated environments.
Managing Axial Loads in Both Directions
In managing the axial loads in both directions, the following considerations and technical parameters must be observed:
Selection of Bearings: It is preferable to use thrust bearings with two directions of rotation or angular contact ball bearings that allow the suspension of axial loads in both directions. These configurations enable asymmetrical forces to be received from either side of the component.
Permissible Axial Loads: Check the bearing’s limiting axial load rating in both directions. For severe cases, check for bearings supporting anything from 20kN to 50kn, depending on the system’s requirements.
Preload: Correct preloading is key to ridding any form of deflection while enhancing alignment. Soak the bearing tips at both ends of the linked bearing towards the middle tip in the recommended soaking levels for appropriate reactions for tip variations under the inverse axial force.
Material and Heat Treatment: Chrome steel is used as a base, and surface hardening through carburization processes also helps the bearing withstand constant axial forces.
Lubrication System: Ensure that replacement grease or oil does reduce frictional heat but is also compatible. Additives incorporated into lubricants that deal with bidirectional forces can also be beneficial.
Housing and Alignment: Protect precision machined symmetrically shaped hose ends from sustaining concentration in the axial loads. End alignment is crucial for proper stress concentration treatment and efficient load balancing to avoid rapid failure.
Engineering expertise enables professionals to tackle these components sufficiently. They allow axial loads to be applied in two opposing directions without compromising the system’s efficiency or reliability under various load conditions.
Choosing the Right Bearing for Combined Radial and Axial Loads
When incorporating radial and axial loads into bearing selection, I stress a number of select issues that influence their effective functioning and durability. The first consideration is the size and nature of the load because they affect the bearing selection. For example, tapered roller and angular contact ball bearings are practical choices for high axial and moderately radial supports because they handle combined forces well.
Subsequently, I consider the requirements for rotation speed. Bearings for combined loads usually have critical speeds. Therefore, I ensure the selected bearing is reliable for the intended speed. Then, I pay attention to the bearing’s material and any treatment, such as annealing, that may be done to strengthen the bearing under persistent loads. I prefer chrome steel that has been carburized because it is hard and resists wear.
Load Ratings: The sectional dynamic load ratings (C) for radial and axial forces must be sufficient to cover the calculated bearing stresses.
Speed Limits: The limitation of the rotational velocity of the machine is due to lubrication and the bearing type.
Misalignment Tolerance: Spherical roller bearings effortlessly accommodate anticipated misalignment and angular misalignment of shafts with respect to each other.
Lubrication Needs: I select lubricants suitable for the type of bearing used, emphasizing elements that reduce friction during a hybrid stress situation.
To identify the system’s operational requirements, I weigh various factors to guarantee that the system will not fail and will meet its expected service life.
Frequently Asked Questions (FAQs)
Q: What are the advantages of angular contact ball bearings over deep groove ball bearings?
A: Unlike deepest ball grooves, angular contact ball bearings are advantageous in a variety of ways, including, but not limited to, their ability to carry a greater load and bear radial and axial loads simultaneously. They allow for precision and six stiffness in either direction, which is perfect for high-speed applications in machine tool spindles.
Q: What is an example of an application that uses angular contact ball bearings on axial loads?
A: Angular contact ball bearings possess a specialized design, making them optimum for other applications. They also have a contact angle between the ball and the raceway, allowing axial loads to be sustained in either direction. This means they excel in scenarios when both radial and axial forces are present. The ball’s inner and outer rings provide strength, stability, and superior load distribution.
Q: What precision angles are available for angular contact ball bearings?
A: These bearings are sold in an array of precise angular contact ranges that begin at P5 and can go beyond that. For example, perfectly round bearings are used for machinery that needs flawless angle ranges, such as in tool spindles. Different angles serve different purposes, and GMN Bearing USA offers a wide array of precision bearings to cater to a variety of precision requirements.
Q: Are angular contact ball bearings able to serve as spindle bearings?
A: Indeed, angular contact ball bearings are widely used as spindle bearings in machine tools and other high-speed applications. The configuration of machines allows for high precision and stability even at extremely high rotational speeds. Additionally, these bearings can be placed in several configurations, including back-to-back or in tandem arrangements, for improved performance in specific spindle designs.
Q: Which is better regarding load capacity, angular contact ball bearings or tapered roller bearings?
A: Both types of bearings can sustain radial and axial loads simultaneously; however, angular contact ball bearings usually have more extensive ranges of speed and lower friction than tapered roller bearings. Although, in heavy-duty applications, tapered roller bearings are superior in both load and speed. It all relies on the application for which they are intended.
Q: What are the uses and advantages of angular contact ball bearings arranged in pairs?
A: Back-to-back or face-to-face configurations or paired arrangements of angular contact ball bearings are routinely used because they allow for increased axial load capacity in both directions and improved rigidity. In paired arrangements, two single bearings, when established against each other, can be easily adjusted for the required thrust preload. This adjustment is vital in providing a high level of bearing accuracy and limiting shaft bending moments.
Q: How do ball bearings influence the torque characteristics of rotating devices?
A: Torque in rotating devices is reduced due to moving parts at work, and ball bearings are constructed using raceway and rolling elements that are separated via a cage, which reduces friction. Furthermore, when the load on the device is increased, the ball-cone interface created when bearing components are fitted together also decreases power consumption. In modern society, where efficiency and minimal heat production are critical, these bearings serve their purpose exceptionally well, such as in electric motors or cold and warm water pumps.
Q: What factors should a supplier consider when exporting angular contact ball bearings?
A: The parameters an exporter of angular contact ball bearings should include are international quality standards, packaging, safe transport, compliance with the import regulations of the destination country, and thorough specifications such as dimensions in mm, load ratings, and precision levels. GMN Bearing USA or any other bearing import and export companies must fulfill the requirements of business customers across the globe in the different industrial sectors.
