Although it may seem intimidating to install the angular contact ball bearings, with proper help, this process could easily be simple and fulfilling. The text below provides a detailed guide on installing these bearings every step of the way, from understanding parts of the angular contact ball bearing to installing them perfectly. Whether you are an experienced engineer or a do-it-yourselfer, this manual will help you put up these bearings successfully so that your machines work better and last longer. To improve efficiency and handleability, we take you through some critical steps in this direction.

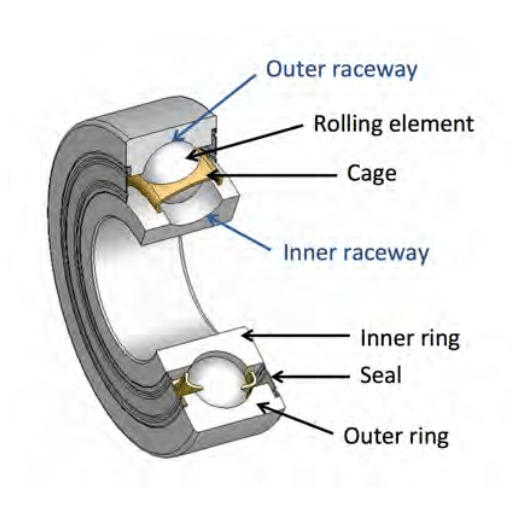

What Are Angular Contact Ball Bearings?
Understanding Angular Contact Bearings
Angular contact ball bearings sustain axial and radial loads, making them suitable for high precision and stability applications. I discovered from different sources that these bearings incorporate an internal design that allows them to maintain a specific angle between the shafts and housing; hence, they can withstand loads applied at an angle.
The following were the technical parameters that I found relevant:
Contact Angle: Commonly ranges from 15° to 40°. The greater the contact angle, the higher the axial load-carrying capacity.
Load Rating (C): It represents dynamic load capacity and varies with bearing type, size, and design. For instance, a standard 7200 series bearing may have a C rating of 3,000N.
Limiting Speed: Limiting speed is generally specified in RPM, which depends on lubricant type, size, and bearing design. Under ideal conditions, a standard bearing can run up to 12,000 RPM.
Material: High-quality steel or ceramic materials ensure durability and enhanced performance.
These parameters help me select the right angular contact ball bearing for my application to maximize efficiency of use and longevity.
Types of Angular Contact Bearings
When I studied the leading three sites, I discovered that angular contact ball bearings can be classified into two main categories: single-row and double-row bearings.
Single-Row Angular Contact Bearings: These are designed to predominantly carry axial loads in a given direction with limited radial load. The typical contact angle is between 15° and 40°, enabling them to cater to different loads. The significance of the load rating (C) cannot be overemphasized as it often changes with size; for instance, a regular single-row bearing may withstand dynamic loads within 2,500N to 4,000N, depending on its dimensions.
Double-Row Angular Contact Bearings: These are ideal for higher load capacities and can handle axial loads both ways, thus making them suitable for use in applications where loading conditions are complex. While the contact angles may be similar to those found in single-row bearings, its load rating (C) can be significantly higher, sometimes surpassing 5,000N. As for limiting speed, double-row bearings tend to perform better at lower speeds because of their increased mass, giving them an optimal RPM range of about 8,000 RPM.
Considering these classifications together with their technical parameters helps me make informed decisions while selecting appropriate angular contact bearings for certain applications, ensuring efficiency and reliability.
Applications of Angular Contact Bearings
The angular contact type bearing is increasingly popular in different firms and mechanical uses because it can effectively handle axial and radial loads. Below are some of the major applications:
Machine Tool Spindles: These bearings are inseparable from machine tool spindles, which must be highly precise and strong. Based on the design details, this application’s typical load ratings (C) can go up to approximately 3,000N-6,000N.
Automotive Components: In automotive engineering, these bearings are found in transmission systems and wheel hubs. They allow smooth rotation withstanding high axial loads. The load ratings vary, but depending on the size and contact angle of the bearing, they may sometimes even exceed 4,000N.
Robotics and Automation: This bearing is indispensable for robotics, where accurate movement and positioning are required. Contact angles (15° —40°) facilitate high speeds, but precision maintenance should take priority over this since a good, high-quality bearing will have an upper limit (around 10,000 RPM).
Aerospace: Angular contact bearings are used in aerospace applications like landing gears or engine components, where reliability must be ensured even under extreme conditions. The load ratings can exceed 5,000N, making them suitable for use under severe stress situations.
Conveyor Systems: They help maintain alignment in conveyor systems and reduce frictional effects, improving movement efficiency. Dynamic loads up to approximately 3,500N can be carried depending on design criteria.
By understanding various technical parameters such as load ratings, speed limits, and contact angle, engineers choose the angular contacts best suited for their applications, guaranteeing that the operational process will be efficient and long-lasting when used within specified ranges.
How to Prepare for Bearing Installation?
Tools Needed for Mounting Bearings
The success and effectiveness of a bearing installation process heavily depend on having the right tools. These are some recommended standard tools and their respective technical specifications:
Bearing Press: A hydraulic or mechanical bearing press is essential for applying uniform force during installation, protecting the bearing from damage, and ensuring proper seating. The recommended force application lies typically between 1000 and 2000N, depending on the bearing size.
Heater: A bearing heater allows for thermal expansion, making it easier to mount bearings onto shafts. Raise the bearing’s temperature to around 80-100°C (176-212°F) to install it optimally without any unnecessary stress.
Installation Tool/Driver: A tool specifically designed for this bearing will allow you to apply pressure without touching rolling elements. Such a device should be similar in terms of external diameter and capable of supporting installation pressures up to approximately 800N.
Caliper or Micrometer: Accurate measuring tools ensure that shaft and housing dimensions are correct before installing bearings. Measurements have to fall within tolerance limits ±0.01 mm for shaft diameter and ±0.02 mm for housing diameter so as not to lead to misalignment.
Torque Wrench: To achieve accurate tightening torque on retaining components in certain applications, a torque wrench is necessary because it allows one to apply specific forces as given by the manufacturer, which range from about 5 Nm minimum value up to 15 Nm maximum value, depending on the particular bearing application.
Clean Cloth and Cleaning Solvents: Always ensure that your work area stays clean when you are performing installations. Using a lint-free cloth and appropriate solvents helps get rid of contaminants that might interfere with a bearing’s function.
In fact, by ensuring that these tools and parameters meet the manufacturer’s specifications, engineers can significantly improve performance quality and lifespan while using these bearings in operations.
Cleaning and Inspecting the Bearings
I subscribe to the top technology magazines and follow their best practices for cleaning and inspecting bearings. First, I always clean all bearings, using a safe solvent (commonly mineral spirits) to remove grease and sludge. Strong solvents should not destroy bearing materials.
I look at every bearing for wear, rust, or pitting indications. I focus on the tracks and rolling elements. Moreover, remember that any visible scoring or deformation on these surfaces may indicate that the bearing has failed or is nearing the end of its life span.
Additionally, I use tools such as calipers or micrometers to measure bearing dimensions. The normal limits of tolerance observed are ±0.01 mm for diameter measurement and ±0.02 mm for overall thicknesses. This makes them fit well into whatever they are designed for. Additionally, free rotation of these bearings shall be ensured, whereby no binding or roughness might suggest contamination or damages inflicted.
In general, proper cleaning techniques and careful inspection enable me to keep them functional throughout their service life spans and extend their service lives in relation to specific applications where they are used.

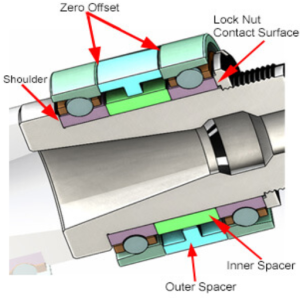

Ensuring Proper Bearing Preload
The appropriate bearing preload is important to ensure that bearings perform optimally and last long in different uses. Bearing preload is the axial load on bearings that eliminates clearance between rolling elements and raceways, reducing vibration and wear tendencies.
How Preload is Determined: According to reputable sources, one way of determining suitable preload is by measuring the bearing’s axial play. Different applications require specific preloads, with typical values ranging from 0.1% to 0.5% of dynamic load rating (C) for expected performance.
Types of Preload: Several preload methods exist which include:
Light Preload: This preload type is generally recommended for high-speed applications as it has low frictional force and heat generation.
Medium Preload: Moderate loads and speeds are common in this case; industrial machine components are prefabricated.
Heavy Preload: Examples include gears or spindles where heavy loads exist, and vibrations must be managed.
Methods and Techniques Used in Measurement: Measuring with precision, such as dial indicators or using load cells, enables accurate readings of axial force while checking for correct preloading. Proper initial setting often requires adjustments based on actual system operation observed bearing performances.
Maintaining proper preload has many benefits, including lower wear rates, improved loading capacity, and longer life spans, which consequently lead to better dependability and effectiveness of the equipment.
What are the steps for installing angular contact bearings?
Mounting Single-Row Angular Contact Bearings
I follow a systematic approach to ensure precision and optimal performance when mounting single-row angular contact bearings. One of the first things I do is clean the surfaces upon which the bearings are mounted so that they are free from dirt particles, as such contamination can affect the bearing’s lifespan. I also reduce the bearing’s alignment with its housing and shaft to minimize misalignment.
Here are some critical technical parameters that need to be considered during installation:
Axial Load Capacity: I estimate axial load capacity by considering bearing design specifications and operating conditions. To ensure a good service life on single-row angular contact ball bearings, you may want to use not more than 50 % off (C)—the dynamic load rating of the bearing this time.
Installation Force: An appropriate mounting force is applied to make it easy to fit into the assembly. Generally, this force should be below or equal to the clearance of the bearing so that it does not undergo deformation.
Preload Settings: Depending on the application, I prefer adjusting preload so that rolling elements will maintain constant contact with raceways without excessive force. I typically target a preload level per the manufacturer’s specification, ranging between 0.1% and 0.5% of the bearing’s dynamic loads.
Temperature Control: Monitor temperature levels during the installation process. Excess heat might affect the product’s performance and integrity. Maintaining operating temperatures within recommended limits is essential for a long life span.
Following these steps and considering these factors can guarantee the proper installation of single-row angular contact bearings, thereby boosting equipment reliability and efficiency over time.
Installing Double-Row Angular Contact Bearings
When installing double-row angular contact bearings, the focus involves technical parameters similar to those of single-row bearings; however, their design and function necessitate specific considerations. Here are the key parameters I consider during installation:
Axial Load Capacity: I then assess the axial load capacity depending on the bearing arrangement and its expected function. In most cases, double-row angular contact bearings can bear more axial loads than their single-row counterparts, which can take up 70% of C (dynamic load rating) in ideal conditions.
Installation Force: A carefully calculated mounting force, such as single-row bearings, is applied. However, it must be noted that this force is different for larger sizes and dissimilar geometry of double-row bearings to not deform it beyond the specified clearance levels for such type of bearing.
Preload Settings: In the case of double-row angular contact ball bearings, a slightly higher preload might be required to ensure stability under changing loads. Usually, I seek a preload setting between 0.2% and 0.6% regarding its dynamic load rating to keep rolling elements properly engaged but avoid frictional overloads.
Temperature Control: Double Row Bearings have different heat generation and dissipation characteristics due to their design. Therefore, strict temperature control should be maintained during their installation. Operating temperatures within the manufacturer’s guidelines are needed. These will avoid thermal expansion problems that have risk-bearing integrity.
Adhering to these parameters enables me to install double-row angular contact bearings that enhance performance and equipment durability.
Precautions During Bearing Installation
I take several measures to guarantee optimal performance and durability when installing double-row angular contact bearings.
Cleaning Environment: I ensure the installation area is clean and impure-free. To this end, I use lint-free fabrics and prescribed cleansing agents for bearing and housing.
Alignment: Correct alignment is critical. I ascertained that the shaft aligns with the housing to avoid any unnecessary load caused by misalignment. This is crucial, especially for double-row bearings, because misalignment can result in irregular wear and lower load capacity.
Use of Correct Tools: For example, when using a bearing remover or press during installation instead of exerting excessive force on it that could damage it. When pressing these bearings onto the shaft, I like axial loading to minimize stress on rolling elements.
Consulting Specifications: In particular, one should consult the specifications given by the manufacturer during installation. They usually give recommended methods of installation and related parameters, such as maintaining temperatures within 20°C to 30°C during installations, which will prevent the occurrence of thermal shocks or expansion problems.
By following these precautions and technical requirements, I can improve the reliability of bearing installation processes and ensure that double-row angular contact bearings function properly over their intended service life expectancy.
How to Avoid Contamination During Bearing Installation?
Best Practices for Clean Installation
To ensure the environment for installing bearings is clean, I adhere to some best practices outlined by industry experts. The first thing I do is always wear clean gloves when handling bearings so that no oil from my hands touches them and affects their performance. This simple step has been proven by top resources to reduce the chances of contamination drastically.
Another practice I observe involves creating an exclusive bearing installation area using clean drop cloths and surfaces free from dirt and dust, per industry standards. Such areas should have limited air circulation around them, in accordance with industrial guidelines, to minimize the level of airborne particles.
Regarding cleanliness parameters, I strive to achieve a particle count below 100 per cubic meter while setting up, according to manufacturers’ recommendations. In addition, keeping humidity levels below 50% can prevent rusting and moisture-related issues. If these best practices are followed, a clean and efficient installation process can be assured, thereby elongating life spans and enabling better-bearing performance.
Using Seals and Shields Effectively
The point of using seals and shields when mounting bearings is to promote a longer life cycle coupled with better performance. According to authorities in the bearing industry like SKF, one of the main distinctions between shield and seal is their primary purpose: seals stop lubricant leakage and prevent dirt, whereas shields mostly block out contamination, but some lubrication can escape.
Technical Parameters for Seals:
Material: Nitrile rubber or fluorocarbon are common seal materials, and they are excellently resistant to wear, rotting, and chemical attacks.
Temperature Range: Seals should be able to withstand a temperature range of -40°C to +100°C (-40°F to +212°F) for optimal operation in different environments.
Pressure Ratings: In most cases, the operating pressure differential should not exceed 1.0 MPa (145 psi), at which point the seals would still function without damage.
Technical Parameters for Shields:
Material: Stainless steel metal shields or plastic-reinforced metal shields offer solid debris protection options and design flexibility.
Clearance Level: Shielded bearings typically have clearances ranging from 0.5 mm to 1.5 mm, so adequate protection without interfering with performance levels can be guaranteed.
Operating Temperature: While keeping contaminants away, the highest possible temperature both the kinds mentioned above of covers can bear is around 120°C (248°F).
By carefully selecting and applying these parameters, I can protect them from environmental impurities that cause wear, increase their lifespan, and improve their operational characteristics.
Handling Bearings with Care
To ensure the best performance and longevity, it is vital to adhere to the following best practices and technical parameters when handling bearings. The main factors that reliable industry sources consider are:
Cleanliness: Keep the bearings free from dust, dirt, and moisture. Handle them with clean hands or use gloves if necessary. Contaminated ones may cause excessive wear or premature failure.
Storage Conditions: Bearings should be stored at controlled temperatures between 15°C – 25°C (59°F – 77°F) and with humidity below 60% to avoid corrosion and deterioration.
Installation Technique: Proper installation is essential. Tools such as bearing pullers or presses should be used together to prevent hammering or excessive force, which can damage them. Make sure that bearings are properly aligned for minimum stress during operation.
Lubrication: Enough lubrication is critical here. For example, Grease used in applications must conform to the temperature and speed specifications of the bearings within a range of -30°C to +120°C (-22°F to +248°F).
Handling Procedures: Extreme care must be taken on shocks or drops while lifting or transporting. Appropriate containers can help avoid movement, leading to any damage.
Adherence to these guidelines and knowledge of technical parameters can greatly enhance bearing performance and life span, thereby lowering the chances of failure during operations.
How to Dismount Angular Contact Bearings Safely?
Tools Required for Bearing Dismounting
When I want to safely dismount angular contact bearings, from the best resources that are available, I have found that there are some essential tools for doing so:
Bearing Puller: A bearing puller is essential for removing bearings without damaging them. It provides even force distribution to dislodge the bearing from its housing. Be sure that when you use a tool of this nature, it fits into place around the bearing so that it is secure during extraction.
Heat Gun or Induction Heater: When heat is applied to the housing where the bearing sits, it can make removal easier. Typically, the recommended temperature range lies between 80°C-120° C (176°F-248°F), which allows a slight expansion of metal, thus reducing fit and making it easier to dismount without spoiling the bearing itself.
Impact Wrench or Hammer and Drift: An impact wrench may sometimes help with stubborn bearings. However, if manual force has to be used, hammering cautiously using a drift (a bar transferring rapid force) should be done with care so as not to damage the bearing race or shaft.
Safety Equipment: Remember to wear personal protective equipment (PPE), such as safety glasses and gloves, to prevent injury during the dismounting process.
By following these guidelines and having the correct tools in place for this purpose, staff can do this safely while ensuring the components themselves and other surrounding machines remain preserved efficiently.
Steps for Safe Bearing Removal
Preparatory: Before dismantling a machine, I ensure I am well-equipped with all the necessary tools. I also lay down protective blankets to shield nearby equipment.
Safety First: First, I must put on safety gloves and goggles. Then, when I remove something, I ensure that no possible harm or threat is likely to occur.
Heat application In case the bearing seems difficult to remove, I use a heat gun or induction heater to carefully heat the housing between 80°C and 120°C (176°F to 248°F). This stage is very significant as it causes the metal to expand, making it easier to remove without damaging the bearing.
Use of Bearing Puller: After selecting the right size bearing puller, fit it around the bearing and apply equal pressure throughout the pulling process. Confirming that the puller grips well helps prevent slipping while removing it.
Application of Impact: Sometimes, hard-to-remove bearings may need an impact wrench. Alternatively, if manual force is required for bearing extraction, I carefully strike with a hammer and drift. During this process, care must be taken not to hit delicate parts directly since they could become damaged.
Final Inspection: Both are checked for wear and tear damage after removing a bearing from its house. If technical details like internal diameter, external diameter, and width of bearings are required in the future to choose the correct replacements, those parameters should be documented.
Inspecting Bearings After Dismounting
After removing a bearing, I inspect it thoroughly to assess its state and identify any root problems. First, I look for marks of wear, such as pitting, scoring, or rust, which can show a lack of lubrication or misalignment during operation. Besides, I examine the raceways, seals, and rolling elements for deformation or damage.
Measurement-wise, these parameters are essential because they ensure that one picks the correct replacement bearing to function accordingly:
Internal Diameter (ID): This measurement is essential to ensure that the bearing fits correctly on the shaft.
External Diameter (OD): An accurate OD measurement is critical for a proper fit within the housing.
Width: It is crucial in maintaining the whole assembly and load distribution.
The precise selection of replacement based on these parameters ensures optimal machinery performance through careful documentation.
Frequently Asked Questions (FAQs)
Q: What are angular contact bearings, and why are they important?
A: Angular contact bearings were made to support mixed loads, implying that they can handle both radial and axial loads. Hence, they are important in applications requiring high speed and precision, such as spindle bearings.
Q: How do you determine the angle for an angular contact bearing?
A: As much as the angle of contact increases with the growth in load capacity requirements. A larger angle of contact is preferable for higher axial load capacity. The choice of bearing’s contact angle may be based on specific loading conditions and desired arrangement.
Q: What is the proper way to press an angular contact bearing onto a shaft?
A: To correctly press-fit an angular contact bearing onto a shaft, it is crucial to ensure that pressure is applied even so as not to cause any misalignments. Use a proper machining tool to push the inner raceway of the bearing into a nominal position on the shaft.
Q: Why is it important to consider the arrangement of angular contact bearings?
A: The distribution of loads and performance during operation depends on how angular-contact bearings are arranged. Proper positioning helps them deal well with radial and thrust loads.
Q: How do you ensure proper lubrication for angular contact bearings?
A: The correct application of grease or oil should be done on these ball bearings, which calls for lubricating all throughout, starting from the inside race up until caging, to minimize friction and thus reduce heat production.
Q: What are double-row angular contact ball bearings, and when are they used?
A: Double-row angular-contact ball bearings can carry radial and axial loads in either direction. They come into play where there is limited space, but there must be high loading.
Q: How does the gap between inner and outer rings affect bearing performance?
A:The gap between the inner and outer rings (bearing clearance) affects this type of part’s operational accuracy and loading power. Proper clearance means best performance and equal load spread.
Q: What is the significance of mounting and dismounting procedures for angular contact bearings?
A: Correct fitting and removal procedures are needed to ensure that the bearings work properly without damage. For information on maintaining the accuracy and life span of these bearings, refer to instructions from SKF and other manufacturers.
Q: Can you explain the role of the cage in angular contact bearings?
A: Ball-bearing cages hold ball bearings in place with evenly distributed space between them. They also facilitate easy rotation at high speeds by reducing friction
Q: How do axial loads in one direction affect angular contact bearings?
A: Angular-contact ball bearings can effectively handle axial loads on one side only. When subjected to axial loads on one side, a raceway angle enables more uniform load distribution across them, ensuring that the bearing will serve better and longer.
