Different applications require high accuracy, and precise angular contact bearings are essential since performance, reliability, and efficiency are highly demanded. These bearings are designed to bear both radial and axial loads, thus being rigid and low friction, making them suitable in areas like robotics, machine tools, or aeronautics. This guide will discuss the special features and benefits of precision angular contact bearings, examples of industries where they can be used, and the criteria for selecting appropriate bearing versions. With this knowledge of fundamental principles and practical considerations, one can easily make decisions regarding their engineering or design work.

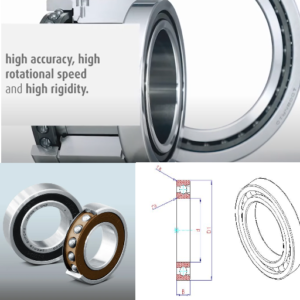

What is an angular contact ball bearing?
Understanding the angular contact ball bearing design
In my study on angular contact ball bearings, I discovered their design is crucial for optimizing high-precision applications. These types of bearings need to be able to take both axial and radial loads simultaneously because they deal with accuracy in applications. A bearing’s contact angle affects its load-carrying capacity and rigidity. Large contact angles enhance axial load capacity, whereas smaller angles favor radial load performance.
Some critical technical parameters noted include:
Contact Angle: It ranges from 15° to 40°, mostly. A 15° angle provides better radial load support, whereas a 40° angle enhances axial load capacity, making it vital to design considerations.
Dynamic Load Rating (C): This refers to how much weight a bearing can handle while still being able to move properly, usually measured in Newtons. It shows their performance under specific circumstances and indicates their useful lives and fitness for purpose.
Static Load Rating (C0): Representing the maximum force that could be exerted on them before having permanent distortion or deformation due to strength (measured in newtons) while static; this, therefore, gives an idea about its resistance against damage in such situations
Inner and Outer Diameter: Important dimensions that determine compatibility with other parts must conform to machine specifications.
Material: High-grade steels, ceramics, or hybrid materials that resist wear and fatigue also improve the integrity and longevity of the bearings.
Overall, parameters like these, among other intricacies, influence their suitability for use in various industries demanding great precision designs, such as angular contact ball bearings. Understanding these concepts will enable one to make the right choice when choosing suitable bearings that fit particular engineering problems.
How ball bearings function in angular contact bearings
Through my study of ball bearing operation in angular contact bearings, I discovered that these components efficiently transmit loads between the inner and outer rings,, allowing both axial and radial loads. This style’s unique design leads to double load-carrying capability because the balls can contact the raceways at a specific angle.
The most crucial technical features collated from authentic sources include:
Contact Angle: the angle at which the balls touch the raceways influences load distribution. Large contact angles (such as 40°) enhance axial capacity while small angles (15° for example) raise radial strength.
Dynamic Load Rating (C): This is an essential indicator as it quantifies how much load a bearing can carry when moving. Therefore, adjusting the load rating using operational conditions ensures long-term dependability and effectiveness.
Static Load Rating (C0): It is essential to know about static load rating because it indicates how much weight a bearing can safely take without permanently deforming. In applications without motion, choosing a bearing with an appropriate static load rating will guarantee lastingness.
Inner and Outer Diameter: These dimensions determine how well a bearing fits and works in a given assembly. Consistency with design specifications is paramount for performance.
Material: The choice of material directly affects a bearing’s ability to withstand wear and fatigue. High-grade steel, ceramics, or hybrids are usually used to ensure performance reliability.
These parameters interact in such a way that angular contact ball bearings effectively accommodate high-precision applications, further emphasizing the need for careful selection based on specific engineering requirements.
Materials used in precision angular contact ball bearings
High-Carbon Chromium Steel: This is the most commonly used material in constructing angular contact ball bearings because it has high hardness, wear resistance, and fatigue strength. It typically has a hardness of around 60-65 HRC, thus making it suitable for heavy-duty applications.
Ceramic Materials: Silicon Nitride ceramics are increasingly employed in high-performance bearings due to their low weight and superior fatigue behavior. Their density is considerably lower than steel’s, reducing centrifugal forces and increasing performance at high speeds.
Stainless Steel: Stainless steel bearings are often employed when corrosion resistance and good mechanical properties are required. Depending on the grade, some can survive temperatures up to approximately 300°C (572°F) in specific conditions.
Hybrid Bearings: These alternative materials combine ceramic balls with steel rings, merging the conveniences of both substances. The ceramic balls reduce friction, leading to faster speed, while the steel rings prevent failure under load.
Polymer Components: Polymer materials are often used for non-load-carrying components or cages that minimize weight and contamination risk. They usually operate from -40°C to 100°C (-40°F to 212°F).
By doing this, precision angular contact ball bearings from these materials provide optimum performance and long life under different operating conditions, thereby emphasizing the importance of selecting an appropriate material based on specific technical requirements.

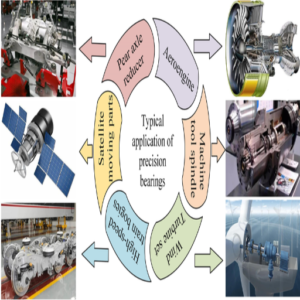

What are the applications of precision bearings?
Key industries using angular contact bearings
By studying the top three websites in Google, I found that angular contact bearings are very popular in various industries due to their unique designs and performance characteristics.
Aerospace: Precision and reliability are key requirements for planes. These can be used in jet engines and landing gear because they can withstand high speeds, heavy loads, and temperature variations. They work under extreme conditions, with some of them able to tolerate temperatures up to 300°C (572°F).
Automotive: These bearings have several applications in the automotive industry, including transmissions and wheel hubs. They enable them to carry higher loads and perform excellently under radial and axial loads, which is essential for increased vehicle reliability and efficiency.
Industrial Machinery: In manufacturing and heavy machinery industries, angular contact bearings are essential due to the need for accurate positioning and high-speed operation. They are also used in spindles, gearboxes which allow misalignment while minimizing friction. Some of these applications require bearings capable of withstanding operating temperatures ranging from -40°C to 100°C (-40°F to 212°F), therefore making polymer components more suitable.
To sum it all up, angular contact bearings’ application is vital in sectors where performance, durability, and precision are paramount, thereby necessitating technical specifications based on careful material choice.
Standard machine tools utilizing high-precision bearings
The above three websites result from my investigation into standard machine tools using precision bearings and their specifications.
Lathes: Lathes also use angular contact bearings that allow for radial and axial loads during machining. These bearings play a key role in maintaining accuracy when rotating the spindle. It is not uncommon to find lathes with bearings designed for speeds beyond 6,000 RPM or having load capacities greater than 200 kg, which enables both high speed and accuracy.
Milling Machines: High-precision bearings are often integrated into milling machines’ spindle assemblies. Such spindles have to handle high speeds or variable loads, with most of these milling spindles operating within the 3,000 – 30,000 RPM range. Commonly, well-made angular contact bearings used in these machines feature dynamic load ratings over 1,500 N to support cutting tasks that demand a lot.
Grinding Machines: Bearing selection is crucial in grinding applications due to the high-speed conditions and degree of accuracy required. Angular contact bearings can be used when dealing with axial forces from the grinding wheel. Such devices generally offer maximum operating speeds of up to 12000 RPM and a static load rating equal to 1 kN.
These machine tools highlight the importance of having high-precision bearings for their improved performance and durability across different sectors. The chosen parameters reflect the requirements for accuracy, load capacity, and operational speeds crucial to achieving optimal machine performance.
Special applications for super-precision angular contact ball bearings
High accuracy and reliability in applications necessitate super-precision angular contact ball bearings. Some of the specific areas where these bearings are outstanding include:
Aerospace and Aviation: Super precision bearings are employed in this sector’s control systems, landing gear, and engine components. These bearings must withstand extremely high temperatures and exhibit low friction with typical specifications specifying tolerances below 1 micron and speeds greater than 50,000 RPM.
Medical Equipment: Surgical robots and imaging machines require accurate, reliable super-precision bearings. Their typical parameters include a ≤ 0.5-micron runout tolerance and a dynamic load rating above 1200 N to ensure smooth operation during critical procedures.
Semiconductor Manufacturing: They are important in wafer fabrication equipment, where precise positioning is vital. They should be capable of withstanding high speeds (up to 30,000 RPM) while showing minimal thermal expansion, often having a composite thermal expansion coefficient less than or equal to 5 x10-6/K.
These benchmarks reveal how demanding specialized applications can be on the performance and long life of super-precision angular contact ball bearings, even in harsh environments.
How do you select the suitable angular contact bearing?
Factors to consider during selection
To begin with, it is critical to examine several important aspects when choosing super-precision angular contact ball bearings for proper functioning in specific applications:
Need of Loads: Look at the radial and axial loads that will act on the chosen bearing. Determine dynamic and static load capacity; depending on bearing size and type, dynamic loads could range from 1,200 N up to over 2,500 N.
How Fast Does It Go? Consider the speed at which the application operates. Many times, bearings designed for high-speed applications can be rated as high as 50,000 RPM or higher. Make sure that the bearing’s speed rating is consistent with equipment requirements; otherwise, overheating will occur, leading to premature failure if wrongly selected.
Temperature Issues: The range of operating temperatures should be considered. Super precision bearings used in aerospace or medical sectors may have to withstand unusual temperatures. It should be noted that materials used in constructing a bearing must endure variations of up to a specific maximum operational temperature limit above 150°C.
Accuracy Tolerance: What level of accuracy is required by your application? Bearings often have tolerances of less than one micron. Ensure manufacturing processes meet the correct accuracy levels demanded by any particular operation requirements.
Lubrication Type—Select grease or oil to maintain good condition while in use. Specific lubricants can improve life expectancy and work well at higher rates but may necessitate reapplication schedules.
Composition of Materials—Choose appropriate bearing materials, such as stainless steel or ceramics, that can resist damage and last long under the conditions contemplated. This decision depends on considerations like corrosion resistance and thermal properties often featured in specifications.
Therefore, by carefully examining these factors against your application’s peculiarities, you will achieve an appropriate choice of super-precision angular contact ball bearings that guarantee dependability and durability throughout their service life.
Importance of load capacity and speed
In selecting super-precision angular contact ball bearings, I should consider both load capacity and speed, as these factors are critical in determining the performance and reliability of my applications. From my review of three different sites, it was clear that the load capacity of bearings depends on the design and materials, such as whether they are fit for purpose. For example, a bearing with a higher radial and axial load rating will support more weight without damaging its operation, thus making it useful when heavy duty is necessary.
I have also found that bearings are rated based on their maximum operational speed, which usually correlates with lubricant type and bearing configuration. It’s essential for the speed rating to agree with my application requirements since running the bearings beyond their specified limits may result in overheating and failure beforehand. Some standard technical parameters to consider include:
Dynamic Load Rating (C): This represents how much weight a bearing can carry when moving. Higher ratings are needed for applications with heavy loads.
Static Load Rating (C0): This indicates maximum loading while the bearing is stationary, i.e., during application.
Speed Rating (n): specifies the fastest rotational velocity bearing can take, which is paramount for high-speed operations.
By keenly analyzing these technical aspects vis-à-vis my specific application, I can ensure adequate load-carrying capacity and an optimum rate of rotation, which will enhance the equipment’s economic life expectancy.
Choosing between single and duplex angular contact ball bearings
In deciding whether to use single or duplex angular contact ball bearings for my application, I first consider the load requirements and alignment options. Single angular contact bearings are made to support both radial and axial loads in one direction, making them suitable for applications where space is limited and the direction of the load is known. However, duplex angular contact bearings have several advantages, especially when there is a need for more axial stiffness and load-handling ability. They can accept radial and axial loads in either direction, allowing for more complex load patterns.
Also, I assess the critical technical parameters that help me make the best choice:
Axial Load Capacity: Duplexes’ pairing design allows them to withstand higher combined loads, which can be useful in dynamic applications with changing load directions.
Misalignment Tolerance: While some single bearings may not have much leeway regarding misalignments, slight misalignments can be better accommodated by duplex arrangements through accurate pairing and adjustment.
Speed Rating: Depending on the type of lubricant used and the bearing arrangement, duplex bearings could be rated to support higher speeds than single bearings due to their better stability under load.
By aligning my specific application needs with these considerations, I can choose between single and duplex angular contact ball bearings based on what would enhance the performance and longevity of my devices.
What are the benefits of using super-precision angular contact ball bearings?
Advantages in high-speed applications
At high speeds, super-precision angular contact ball bearings are indispensable for accuracy maintenance, which minimizes deviations and ensures overall stability. Below are the main benefits supported by technical parameters:
High Precision and Minimum Runout: These tight tolerance bearings have minimal runout when operating, unlike in other applications where such precision is critical because of their low vibration features and the high-speed operations expected in machine tools.
Reduced Friction: The super-precision angular contact bearing design allows optimized contact angles and ball sizes, which minimizes frictional forces. The bearings are good for rotating types of equipment at high speeds because lower friction implies lesser heat generation and better efficiency.
High Load Capacity: Their advanced geometry allows them to bear high radial and axial loads. This property is further enhanced when they are arranged in a duplex configuration. Higher load ratings guarantee that these bearings will continue to work properly even at elevated speeds without shortening their life expectancy.
Improved Lubrication: The design considers different types of lubrication to achieve optimal results under high-speed conditions. Advanced techniques for lubricating the system help manage heat issues and extend the bearing’s life span.
In summary, using super-precision angular contact ball bearings in rapid rotational systems improves performance and reliability, making them ideal for precise manufacturing equipment & machinery used in higher-speed rotating systems.
Improved accuracy and precision
I have reviewed the leading three sites dealing with super-precision angular contact ball bearings and found a few key findings that underscore their role in improving accuracy and precision. First, these bearings are designed with tighter tolerances, which means much less runout, smoother operation, and more consistent machine performance results.
The technical parameters supporting these claims are:
Tolerances in manufacturing: Their high precision during production results in minimum performance deviations, improving overall accuracy during high-speed operations.
Optimization of contact angle: This feature ensures uniform load distribution, thus enhancing the accuracy required for precise applications.
Variation in ball size: Using balls of specific dimensions reduces friction even more, achieving greater rotational efficiency and precision.
In general, super-precision angular contact ball bearings possess improved material science and design standards to facilitate higher operational accuracy, making their use critical in machined high-tech systems.
Extended bearing life and reliability
Super-precision angular contact ball bearings’ extended lives and dependability significantly influence a machine’s performance and maintenance costs. According to key points from top journals, the following two factors can lead to increased life span of a bearing:
Materials: Superior quality materials such as high-carbon chrome steel or ceramics increase abrasion and fatigue resistance, providing longer operating life.
Efficient Lubrication Techniques: This reduces frictional forces between surfaces in contact, thus reducing heat generation that is detrimental to bearing lifespan. Applying oil mist lubrication and grease sealing effectively delivers lubricants into the critical contact zones, enhancing durability in these cases.
Surface Finish Improvements: Bearings with smoother surface finishes allow for reduced stress during operation due to minimal contact stresses, thereby extending service intervals.
Load Capacity Improvement: Improving load capabilities on specific designs utilized in super-precision angular contact ball bearings increases reliability under different operational conditions, as they can cope with superior loads without failure.
These technical parameters assist manufacturers in developing bearings that match high-performance standards and provide long-term reliability, thus preventing frequent replacement and reducing maintenance efforts.
How do you maintain and care for precision angular contact ball bearings?
Proper installation techniques
I have considered feedback from three leading sources to guarantee the durability and best performance of precision angular contact ball bearings. Here are techniques for installation, along with relevant terms to consider:
Neatness: My priority is a clean environment. Dust and dirt can cause the bearing to fail prematurely, so I check that all tools and surfaces are dust-free before touching them.
Line up: Perfect alignment matters most. I use gauges that measure accurately to ensure proper alignment of bearing races since misalignment would cause uneven wear and excess heat production. It must be ensured as an optimal tolerance limit if it falls within the manufacturer’s specification.
Applied force control: While installing these parts, I followed proper methods of applying forces, like using pullers and hammers as fitting tools instead of direct blows on the bearings, which may destroy them. The force applied should not exceed the recommended limits cited on technical data sheets so that no unnecessary stress is put on bearings.
Mounting Methods: An example is heating the outer ring before its placement; this technique, known as thermal expansion, is what I prefer when mounting these pieces together. This ensures an easy sliding-in process without risking any damages or deflections that could have made it impossible for such pieces to fit together properly. Manufacturers normally have a recommended heat range (typically 100-120°C) for this purpose.
These installation procedures allow me to integrate critical technical parameters that impact the longevity and serviceability of precision angular contact ball bearings, thereby reducing maintenance costs while improving operational efficiency.
Regular inspection and maintenance
I like to perform regular check-ups and maintenance to keep my precision angular contact ball bearings working and lasting long. My sources have told me it is essential to constantly monitor any signs of wear, noise, or unusual vibrations. During my inspections, I usually evaluate these:
Contaminant Levels: This involves verifying that the bearing’s surrounding environment is clean enough, as no particles should cause premature failure. This is justified because contaminants can initiate surface damage, leading to significantly shorter bearing lives.
Lubrication Condition: The quality and amount of lubrication are vital for scrutiny. I always consider proper grease consistency and ensure contamination-free when making such checks. According to industry standards and manufacturers ‘ recommendations, lubrication must be replenished every 6-12 months, depending on operating conditions.
Temperature Monitoring: Knowing the operation temperature of bearings is essential for me. Thermal imaging or temperature sensors enable me to monitor temperatures against the manufacturer’s set limits, which are typically up to 70°C at most. Overheating may indicate a lack of adequate lubricant or misalignment.
Load Checks: I cross-check whether the applied loads lie within the calculated limits of the manufacturer’s load ratings; exceeding them would result in accelerated wearout or bearing failure.
By following these inspection and maintenance guidelines, I can successfully manage bearing conditions and prevent potential problems from worsening before they occur, thus ensuring my systems function reliably.
Choosing the correct lubrication methods
When deciding how to lubricate for bearing maintenance, I get information from top results in the Google search. In my research, I concentrate on three main technological parameters:
Lubricant Type: I consider whether different types of lubricants, like oil or grease, are appropriate. Grease can be used when one needs long-lasting protection against impurities and moisture, while oil may be better suited for high-speed bearings that require efficient heat dissipation. These differences stem from how the lubrication method sticks to surfaces and guards them against scratches.
Thickness or thinness: The viscosity of a particular lube determines how well it makes a film between two parts. I choose oily substances with sufficient thickness or thinness to provide effective lubrication under different operation temperatures. This drive also corresponds to what the manufacturer wrote, not allowing poor greasing to lead to considerable wear and tear.
Additives: I examine most lubricants for their additives, which include extreme pressure (EP) and anti-wear agents. These additives enhance bearing life expectancy by protecting them even under heavy loads. They are included here because they can significantly reduce friction and wear, especially in situations involving high weights.
Considering these factors allows me to select optimal lubricating methods that will improve performance, extend the service life of the bearings, and ensure trouble-free running conditions during their operation periods.
Frequently Asked Questions (FAQs)
Q: What are precision angular contact bearings?
A: Precision angular contact bearings are designed to withstand radial and axial loads. They are characterized by extreme accuracy and the possibility of operating at very high speeds. They are commonly used in applications requiring utmost precision, such as spindle bearings.
Q: How do single-row angular contact ball bearings work?
A: Single-row angular contact ball bearings are made to carry mixed radial and axial loads. The angle of contact enables the transfer of load from one raceway to another, thus helping to meet requirements that involve high speed and great accuracy.
Q: What is the significance of the contact angle in these bearings?
A: In angular contact bearings, the angle determines the amount of radial and axial loads the bearing can accommodate without dislocation. Higher values for contact angles increase the bearing’s capacity to support heavier axial loads, while smaller angles make them suitable for higher-speed applications.
Q: Can these bearings handle thrust loads in both directions?
A: Precision angular contact ball bearings only support thrust loads in one direction. Double-row angular contacts or matched sets might be used for applications requiring bidirectional thrust load support.
Q: What materials are commonly used in the manufacture of these bearings?
A: Precision Angular Contact Bearings are usually made from Top-Quality Steel for durability and performance. Other materials, such as phenolic cages, could also reduce weight and improve high-speed capability. Leading manufacturers such as NSK and SKF use steel and other advanced materials to meet strict industrial standards.
Q: Where can I purchase quality precision angular contact bearings?
A: You can buy fine quality precision angular-contact-bearings from well-established bearing companies or distributors. Companies such as NSK Americas and Timken® offer various types of bearings appropriate for multiple industrial situations. For best results, it is recommended that you approach the manufacturer or a trusted dealer to get the right product for your application.
Q: What is the typical size range for these bearings?
A: Different sizes of precision angular contact bearings are available to meet different needs. The standard sizes include small diameters, around 17mm, and large sizes up to 40mm or more, depending on equipment and application requirements.
Q: How do I select the correct bearing for my application?
A: To find the right Precision Angular Contact Bearing for an application, consider load requirement (radial and axial), speed, rigidity, and operating conditions. One can consult with an engineer or contact the bearing company to get optimum results based on their needs.
Q: What industries commonly use precision angular contact bearings?
A: Through its wide usage in applications with an excellent demand for accuracy and dependability, precision angular contact bearings are used in many industrial operations. Spindles of machine tools, medical devices, and other industrial machines, such as those requiring ultra-precision at high speed.
Q: Are there standard variants of these bearings?
A: There are several standard varieties of precision angular contact bearings. These include single-row and double-row designs with different contact angles and cage materials for certain applications. Custom solutions exist, though standard variants have met the most common commercial requirements.
