Unveiling the Power of Angular Contact Ball Bearings: SKF’s Precision Solution

Angular contact ball bearings are pivotal components in modern engineering, renowned for their capacity to handle radial and axial loads simultaneously. SKF, a global leader in bearing technology, has engineered advanced solutions to meet the high demands of industries ranging from manufacturing to aerospace. This article delves into the intricate design, performance characteristics, and diverse applications of SKF’s angular contact ball bearings, offering readers a detailed understanding of how these precision-engineered components optimize machinery performance. By examining their construction principles, material innovations, and real-world benefits, we aim to highlight the superior value that SKF brings to critical industrial operations.

What are the Key Applications for Angular Contact Ball Bearings?

Angular Contact Ball Bearings in Machine Tools and Precision Equipment

Angular contact ball bearings are used most frequently in conjunction with machine tools and precision electronics because they can be performed by taking on both radial and axial loads at the same time. Their effectiveness at high speeds and their strength makes them suitable for tasks that demand great precision coupled with operational reliability. For instance, in CNC machining centers these bearings provide space for movement to carry out the process ensuring high quality of the product.

• Contact Angle: Depending on the shape and degree, a contact angle is said to be 15°, 25°and 40° and the angle determines the extent to which the bearing may support axial loads. The load support when the contact angle is 40 degrees is significantly improved.
• Material Composition: The high-purity steel or ceramic balls as frequently used on SKF bearings considerably improvethe quality of the bearing at excessive speed and great temperatures.
• Preload Options: Preloading eliminates the end play in the space between the various components of the bearing and this improves the rigidity level and lowers the vibration which could be necessary for operations with high precision.
• Speed Ratings: SKF angular contact ball bearings are optimized for rotational speeds that exceed industry norms, ensuring peak performance in demanding environments.

These factors collectively justify the widespread adoption of SKF’s angular contact ball bearings in applications where precision and operational efficiency are paramount.

Use in Compressors, Pumps, and Gearboxes

SKF angular contact ball bearings are integral to the reliability and efficiency of compressors, pumps, and gearboxes, owing to their robust technical specifications. Their ability to handle both radial and axial loads simultaneously makes them particularly well-suited for these applications where combined load scenarios are prevalent.

For compressors, these bearings assist in the shaft’s rapid rotation while ensuring minimal friction is exerted, and in turn, providing greater efficiency.

When using them in pumps, they work stably without fail under quite variable hydraulic forces. Their specialized manufacturing ensures idle angles of 15 – 25 degrees which would be ideal for the SKE spherical contact ball bearings since it will serve its purpose of supporting axial loads, needed for thrust in a pump to work.

To ensure the smooth and accurate character of torque rotation, these bearings are employed on gearboxes. Their static load ratings, for one, are up to 200 Kin, a good base for coping with considerable mechanical stress, to mention some of the other critical characteristics.

Their flawless meeting about the engineering systems under consideration delivers confirmation of the strength and efficiency of the SKF cylindrical end ball bearings in a separate and industrial setting.

How Do Angular Contact Ball Bearings Handle Different Types of Loads?

Managing Radial and Axial Loads Simultaneously

When it comes to managing radial and axial loads simultaneously, I find angular contact ball bearings to be highly effective due to their specific design. These bearings are engineered with raceways in the inner and outer rings that are offset relative to each other. This angular offset allows the bearings to accommodate combined loads efficiently.

For example, their contact angle plays a critical role in determining performance under axial loads. Bearings with a higher contact angle tend to perform better under axial loads, while those with a lower angle are more suited for primarily radial loads. By ensuring proper preload and maintaining alignment, these bearings deliver optimized performance without compromising durability, even under demanding conditions.

• Dynamic Load Rating (C): This defines the bearing’s capacity to handle variable forces. Higher ratings indicate suitability for heavy-duty applications.
• Static Load Rating (C₀): The value is of importance when measuring the ability of the bearing to withstand a certain amount of load at rest without being deformed.
• Contact Angle (15°-40°): This defines the index of the radial load relative to the axial load to be supported.

Each of these factors must align with the application’s mechanical features to create a reliable and efficient operation for a long time.

Bearing Capacity for Axial Loads in Both Directions

1. Dynamic Load Rating: This determines the ability of the bearing to withstand changing loads over some time. It has to be greater than the expected operating load for safety and durability purposes.
2. Contact Angle: A contact angle of 15° to 40° for angular contact ball bearings allows for some axial loads to be applied to them in conjunction with radial ones. It can be seen that a greater contact angle will increase the axial load a bearing can exert.
3. Bearing Geometry and Design: Bearings with symmetrical construction and duplex-type construction have been found to improve axial load-yielding capacity in both directions.
4. Material Properties: Good quality steel or ceramic enhances the load-carrying capacity because of increased strength and improved wear resistance.

If these factors are to be validated, then due consideration should be given to the operational loads or the working conditions of the application. Considering these factors ensures that the appropriate choice is made which guarantees dependability and optimal functionality.

Impact of Precision on Load Handling Capabilities

The load handling capabilities of a component should be precise to increase the level of efficiency, and the longevity of the component of mechanical systems. In this case, precision refers to the amount of tolerances applied in manufacturing, the accuracy of alignment, and the conformity of a given component with other materials. A component can be able to maintain high precision which means that the amount of deviations from the designed specifications is kept to the lowest possible and because of that, it is possible to reduce the unwanted stress on the entire system and also optimize the load.

• Tight tolerances: Dimensionless tolerances in the range of micrometers ensure that precision is achieved during the interaction of the components of the system. Even slight engagement between the components is enough to prevent excessive wear and misalignment due to loads.
• Surface finish type: The smoother the surface finish, the better the friction is. To enhance fatigue resistance, roughness values of Ra < 0.2 um should be achieved.
• Material Composition consistency: The composition of the material and how properties such as rigidity and tensile strength are dispersed in an area are used to normalize values and allow systems to be tested under different amounts of weights.

By maintaining high levels of precision across these factors, the system can achieve optimal performance, greater reliability, and prolonged service life. These technical considerations should be carefully addressed during the engineering and production phases to justify their impact effectively.

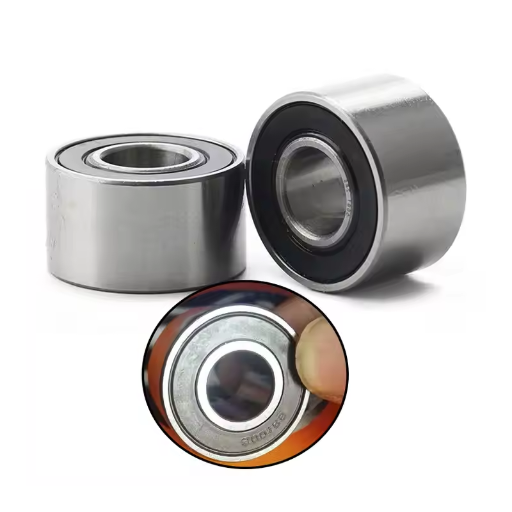

What are the Advantages of Sealed Angular Contact Ball Bearings?

Benefits of Sealed Bearings in Contaminated Environments

Sealed angular contact deep groove ball bearings have fantastic advantages even in contaminated environments owing to their much higher resistance to the penetration of dust, dirt, and water. This is accomplished by the addition of seals which effectively create a barrier but at the same time prevent lubricant leakage. Technologically, the seals increase the chances of having reduced catastrophic failure modes of wear and damage, hence increasing the operating life of the bearing.

• Seal Material： These bear both heavy wear and harsh conditions. Thus they are usually made from nitrile rubber or other synthetic compounds.
• Lubrication Retention： Sealed designs are well-planned and intended to prevent the lubricants from escaping and wearing off, hence prolonging the intervals of service.
• Contaminant Exclusion: Tests demonstrate that sealed bearings can reduce debris intrusion by up to 80%, depending on the dust or particle size.
• Temperature Range: Based on the kind of seal material and type of lubricant used, the temperatures that can be able to sustain without causing damage are usually from -30 to 120 degrees Celsius.

By integrating such technical solutions, sealed bearings enhance reliability and performance even in demanding applications, making them a critical choice for harsh operating conditions. Their design justifies added durability and reduced need for external protective measures.

How Seals Affect Bearing Lifespan and Maintenance

Seals play a significant role in prolonging bearing lifespan and reducing maintenance requirements. The primary function of seals is to protect the internal components of the bearing by preventing contamination from particles, moisture, and other unwanted debris. This protection ensures optimal lubrication retention and mitigates the risk of accelerated wear or early failure.

• Sealing Effectiveness： The Type of rubber configuration and the seal material determines its ability to impede the ingress of contaminants and at the same time decrease losses due to friction. For instance, radial contact seals work well in minimizing friction in areas prone to very small particles.
• Thermal Resistance： Depending on the application, seal materials can range from -30°C to 120°C, but for specialized conditions, this can be taken to 200°C as senior engineers would recommend out of experience, this would usually require seal materials like fluoridated hydrocarbon elastomers or nitrile rubber.
• Friction and Torque： Torque and seal friction are fundamental in the design of seals, as an excessive torque means rotation of a bearing becomes overstrained and energy efficiency of the system would be compromised, thus, seals are designed to have a low friction maintaining acceptable torque.

In summary, to compensate for the internal load factors and maintain bearing efficiency seals are needed, and these factors are critical in resulting in seals that It is reasonable to state that seals can significantly reduce maintenance periods while maintaining the proper functioning of bearings for prolonged periods, especially in rough and contaminated environments.

How to Choose the Right Angular Contact Ball Bearing for Your Application?

Factors to Consider: Contact Angle, Precision Grade, and Load Capacity

When selecting the right angular contact ball bearing for your application, I focus on three primary factors to ensure optimal performance:

• Contact Angle: The ability of a bearing to take up some axial load is what the contact angle determines. In an application where there is a need for great axial load capacity, a greater contact angle such as 25 or 40 will be useful, and for minimal friction in operations that require speed then a small contact angle of 15 is more suited.
• Bearing Precision Grade: This type specifies how accurate the bearing is in its dimensions and its running. When there is speed and precision application, ISO or ABEC standards are largely useful. In some cases, the aerospace and robotic industries might need ISO P4 or ABEC-7 bearings which are known for their accuracy grade.
• Load Capacity: For meeting the working conditions both axial and radial load capacities are required. As the C, rating also called dynamic load rating and C0 static load rating are important factors weight can also be prepared. If the application is more demanding a C-value bearing that is supported by stronger materials that are durable is more trustworthy.

By systematically analyzing these technical, I can confidently select a bearing that meets operational demands while ensuring efficiency and durability.

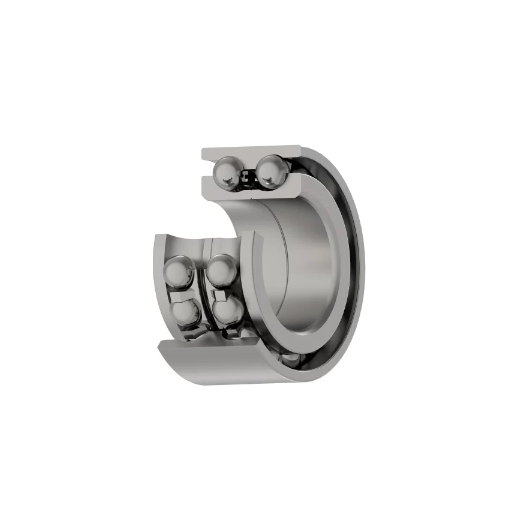

Single vs. Double Row: Which Configuration is Best for Your Needs?

1. Space Considerations: These are normally intended for devices that have small size limitations. This design configuration is beneficial where minimum axial width is required. To achieve the high load capacity that a double-row bearing offers, additional space is necessitated.
2. Bearing Load Capacity: This has a radial and axial load capacity that is greater than that of single-row bearings because of its design. In applications where greater load capacity is to be achieved such as in heavy equipment or automotive devices, this configuration is the most suitable.
3. Allowable Shaft Misalignment: These types of bearings are less tolerant to misalignment and as a result, their life span is shortened. This configuration, however, is capable of resisting the effect of misalignment which makes it more appropriate for applications with complex cyclic shaft deflections.
4. Speed, Torque, and Control Considerations: Since these types of bearings have low inertia and high-speed characteristics, they are ideal for applications where maximum speed is required. In contras,t the double-row designs may create unnecessary friction resulting in the device being used at low to medium speeds where load is more important than speed.

In the context of the application, such as space, load, alignment, and speed are catered to allowing for optimal choice and functionality of the system.

What Maintenance Practices Ensure Optimal Performance of Angular Contact Ball Bearings?

Proper Lubrication Techniques for Angular Contact Ball Bearings

For angular contact ball bearings to work optimally, there needs to be sufficient lubrication applied because this will serve to reduce friction, wear, and even overheating or contamination. I make it a point to pick a lubricant that is correct for the conditions under which the ball bearing is likely to operate, taking into account temperature, speed, and load. In most cases, grease is the most commonly used lubricant with these bearings because grease stays in place and provides an enduring protective function.

• Viscosity: The viscosity grade of the lubricant must correspond to the speed and operating temperature of the bearing. High viscosity is generally required at low speeds and heavy loads, whereas low-viscosity oils are suitable for high speeds.
• Temperature Range: I look for lubricants that exhibit stability and do not change consistency outside a specified temperature range. For example, lubricants with a temperature range of -30 to 150 degrees Celsius are fit for many purposes.
• Re-lubrication Intervals: I recommend short re-lubrication intervals when bearings work with high-speed or heavy rotating loads. I set such intervals based on working conditions and recommendations from equipment manufacturers.

By proper lubricant application methods, such as using automated systems for precise and consistent application, I maintain the bearing’s efficiency and longevity. Additionally, I avoid mixing lubricants, as incompatible formulations can degrade performance.

Monitoring and Addressing Bearing Clearance Issues

To effectively monitor and address bearing clearance issues, I follow a systematic approach that includes measurement, analysis, and corrective actions:

• Measuring Clearance: I use tools such as feeler gauges or dial indicators to measure the radial and axial clearance accurately. These measurements are compared to the manufacturer’s recommended tolerances, which typically range between 0.001 to 0.005 inches for precision applications, depending on the bearing type and operational loads.
• Analyzing Deviations: If clearance deviations are identified, I assess contributing factors such as thermal expansion, misalignment, or excessive wear. For instance, high operating temperatures may cause material expansion, reducing clearance and potentially leading to failure.
• Adjusting Clearance: The clearance can be adjusted by the use of shims, preloading, or replacing components such as spacers or even the bearings themselves.
• Lubrication Adjustments: For bearings with insufficient clearance, I ensure the lubricant is optimized for reduced friction and heat generation. High-viscosity lubricants might be warranted in low-clearance conditions to enhance load distribution.

By maintaining a consistent monitoring routine and addressing these factors decisively, I ensure that the bearing operates within its optimal performance range, minimizing the risk of premature failure.

Best Practices for Bearing Installation and Removal

The machines dependent on proper and precise installation of the bearings are supposed to be reliable and be a service for longer periods. Removal and installation of the bearings not done properly can have adverse effects on the machine and its parts. Bearing as well as the adjacent components can incur damages hence more time would need to be spent on repairs.

• Preparation and Inspection: Before undertaking any job, ensure that the bearing and housing to be installed are free from any external particles such as dust, dirt, or any other language. Measuring instruments would need to be utilized to examine the dimensions of the bearing and the shaft to see if the design specifications are a perfect fit.
• Use of Appropriate Tools: Tools to extract the bearing must always be used. These tools are induction heaters, pullers, as well as presses. Bearings removers are made to eliminate bearing without inflicting any potential damage. Avoid using haphazard or such tools that are not suitable for bearing surface installation as they can lead to unwanted damage.
• Temperature Control: Induction heaters are not to be overused otherwise they can change the metallurgy of the bearing as it will exceed the temperature the manufacturers recommend. To ensure that the weld, bearing, or any other component can fit in effortlessly, applying induction heaters is an ideal option. Using dry ice has the opposite effect, cool shafts with dry ice assist in smoother assembly.
• Axial loading: When installing a bearing, only a uniform force is to be applied to the ring that is being installed, that is, for the inner rings, apply force to the shaft, and for outer rings, apply force on the housing. This stops the transmission of internal assembly loads through the rolling components which otherwise leads to Brinelling or some other form of internal damage.
• Overloading should be avoided when removing the bearing: Bearing removal should be done in such a way that the force is applied directly to the ring which is to be removed and is evenly distributed. Applying excessive load or using the wrong techniques can lead to alterations in the bearing or other parts adjacent to it which may affect reusability.
• Correct lubrication: Use the right kind and amount of lubrication on the shaft or housing of the bearing pre-operational parameters before installing the bearing. Lubrication in the correct amount aids in bearing functions by lowering friction and makes smoother operations of the device easier upon startup.
• Checking after the installation: Rotate the bearing when the mounting is done to ensure that the bearing is working smoothly and the alignment is correct. Axial and radial clearances should also be checked by whether they fall within the specifications of the technical documentation.

By applying the best practices step by step, you will guarantee that the installation as well as the removal of bearings are done accurately helping to improve the work of the machinery and lessen chances for operational failure.

Frequently Asked Questions (FAQs)

Q: What are the main advantages of using row angular contact ball bearings?

A: Row angular contact ball bearings offer several advantages, including their ability to handle both radial loads and axial loads in one direction. They are particularly effective when axial load is high, making them ideal for applications in industrial motors, wind turbines, and other high-precision machinery. These bearings also provide excellent rotational accuracy and high-speed capabilities.

Q: How do double-row angular contact ball bearings differ from single-row designs?

A: Double-row angular contact ball bearings have two rows of balls arranged in a back-to-back configuration, while single-row angular contact ball bearings have only one row. Double-row designs can handle higher loads and provide greater stability, making them suitable for more demanding applications like injection molding machines and turbines. Single-row bearings are typically used in lighter-duty applications or when space is limited.

Q: What are some common applications for precision angular contact ball bearings?

A: Precision angular contact ball bearings are widely used in various industries. They are commonly found in the main spindles of machine tools, semiconductor manufacturing equipment, motorcycle transmissions, and aerospace applications. These bearings are also essential in precision instruments, robotics, and medical equipment where high accuracy and reliability are crucial.

Q: How do angular contact ball bearings perform in high-speed motor applications?

A: Angular contact ball bearings excel in high-speed motor applications due to their design. They can accommodate both radial and axial loads, making them ideal for electric motors in industrial settings. The angular contact design allows for smooth operation at high speeds while maintaining precision and minimizing friction, which is essential for motor efficiency and longevity.

Q: What materials are commonly used in SKF’s angular contact ball bearings?

A: SKF uses high-quality materials in its angular contact ball bearings. The rings and balls are typically made of chrome steel for durability and precision. For certain applications, ceramic balls may be used. Cages can be made of brass, steel, or polyamide, depending on the specific requirements. Some bearings, like the 7004AC series, may have special coatings or materials for enhanced performance in specific environments.

Q: How do angular contact ball bearings perform in challenging environments like quarries or wind turbines?

A: Angular contact ball bearings are well-suited for challenging environments such as quarries and wind turbines. In quarries, they can handle the heavy loads and contamination present in mining equipment. For wind turbines, these bearings provide the necessary support for the main shaft and gearbox, handling the variable loads and high speeds involved in wind power generation. SKF offers specialized seals and materials for these harsh conditions, ensuring longevity and reliability.

Q: What is the significance of the contact angle in angular contact ball bearings?

A: The contact angle in angular contact ball bearings is crucial to their performance. It determines the bearing’s ability to handle axial loads. A larger contact angle (e.g., 40 degrees) allows the bearing to support higher axial loads, while a smaller angle (e.g., 15 degrees) is better for higher speeds. SKF offers bearings with various contact angles to suit different applications, allowing engineers to optimize for specific load conditions and operational requirements.

Q: How do SKF’s angular contact ball bearings contribute to the efficiency of injection molding machines?

A: SKF’s angular contact ball bearings play a vital role in injection molding machines by providing high precision and stability to the mold and screw mechanisms. Their ability to handle both radial and axial loads ensures smooth operation under the high pressures involved in the injection molding process. The bearings’ design also allows for high rotational speeds, which is crucial for efficient cycle times in molding operations. Additionally, their durability helps reduce maintenance downtime, contributing to overall machine efficiency.
