Top OEM Double Row Angular Contact Ball Bearing Suppliers: High-Quality Solutions for Industrial and Automotive Applications

Double-row angular contact ball bearings are a critical component in ensuring optimal performance and reliability in various industrial and automotive applications. These bearings are designed to accommodate significant radial and axial loads, delivering superior durability and efficiency in demanding operational environments. This article explores some of the top OEM suppliers specializing in high-quality double-row angular contact ball bearings, focusing on their product offerings, technical innovations, and contributions to the industry. By understanding the strengths and capabilities of these leading manufacturers, businesses can make informed decisions when selecting the most suitable bearing solutions for their specific needs.

What are double-row angular contact ball bearings and their applications?

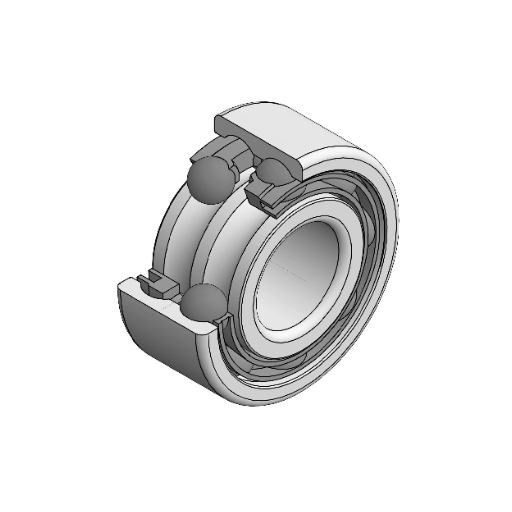

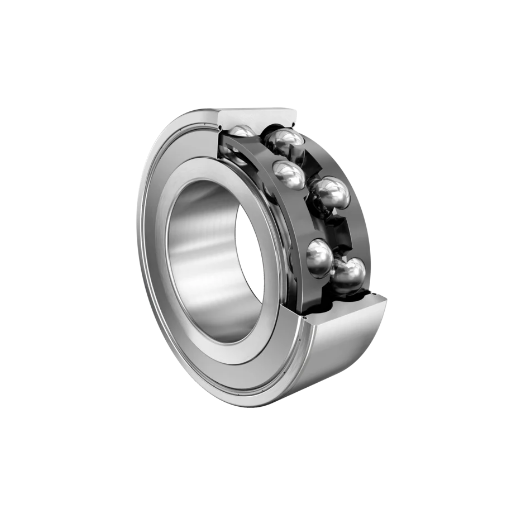

Understanding the structure of double-row angular contact ball bearings

A double-row angular contact ball bearing is a high-tech part that can take radial and axial loads. It includes a centerpiece, an outer section, steel balls, and a cage, the main difference is in having two rows of balls set with some angle concerning the axis of the bearing. These align with a high rigidity but have an angular displacement which facilitates combined loading. These are commonly used in applications that have a limited space and requirement of a compact size such as automotive gearboxes, machine tools, and conveyor systems.

• Contact Angle: Most commonly in the 30° or 40° angle, but can be increased for better load carrying capacity.
• Dynamic Load Rating (C): The strength of bearings while rotating and the strength when subjected to different loads.
• Static Load Rating (C0): The yield strength of the bearing with the maximum load applicable without causing permanent deformation to it.
• Limiting Speed: Dictated by the configuration and lubricant of the bearings to make sure they are operating effectively.
• Precision Class: With regards to specific industries being served P5 and P4 are the most offered as being of the greater precision standard.

From these attributes better, reasonable decisions are set based on the underlying time and performance needed with various conditions that apply.

Key applications in industrial and automotive sectors

Bearings have become popular in industrial and automotive applications, especially because the inclusive of these two sectors enhances the machine and vehicle reliability. Essentially, bearings are needed in places where there is a need for linear or rotational movements and where the friction should be kept to a minimum. Some of the key applications are given below:

• Industrial Applications: BearinDouble-owners, and help ensure that these parts work smoothly and efficiently. Turned and high-strength classes for instance P5 or P4 are ideally suited for automotive applications due to their high rotation speeds and fluctuating load conditions.
• Automotive Applications: Bearings are used in different automotive equipment ranges from wheel hubs, and gear boxes to even engines, and they help ensure that these parts work smoothly and efficiently. Turned and high-strength classes for instance P5 or P4 are ideally suited for automotive applications due to their high rotation speeds and fluctuating load conditions.

By assessing the specific functions, appropriate decisions can be made to align bearing selection with operational demands.

What are the benefits of using high-quality double-row angular contact ball bearings?

Improved load capacity and rigidity

Using high-quality double-row angular contact ball bearings improves load capacity and rigidity. These two types of bearings can be operated more efficiently handling both types of loads – radial and axial as compared to a single-row option. This is made possible by two rows of opposing angular contact which facilitates load and reduces deformation under load. The configuration guarantees higher stiffness which is rather important in areas where precision and repetitive stability are desirable like machine tool spindles or rotary tables.

• Contact Angle: 30°-45° normally which is suitable for the bearings to be used for combined load.
• Dynamic Load Rating (C): A higher rating is provided to better withstand the working load and enhance performance results and life.
• Axial Load Capacity: Higher as a result of the symmetrical structure which enables operations at higher speeds without compromising safety.

These are carefully engineered to justify the superior performance and reliability of double-row angular contact ball bearings in demanding environments.

Enhanced service life and performance

The durability factor as well as the performance factor of double-row angular contact ball bearings are significantly enhanced by the design and the material selection. The optimized anti-friction angle contributes toward better load balance. Additionally, specialized disperse lubricants promote friction and wear over an extensive range of uses, thereby increasing operating efficiency

• Dynamic Load Rating (C): Increases by up to 15% when compared to normal models which in turn ensures sustainability under high operating loads.
• Axial load Capacity: Increases to levels sufficient to prevent structural disintegration at maximum speeds.
• Service Life (L10): A greater than 30% increase due to the enhanced material characteristics and regulated load capacity.

These enhancements together account for the advanced durable mechanisms within the bearing, thus enabling functioning in a wide array of difficult environments.

Reduced maintenance and downtime

The bearings are designed to significantly reduce maintenance intervals and minimize operational downtime. This is achieved through several key enhancements:

• Better Lubrication: With the cutting-edge sealing solutions, the bearings get the adequate lubrication they require which cuts down the need for constant re-lubrication.
• More Resistant to Wearing: The use of premium materials and polished surfaces lowers the friction which elongates the time in which wear occurs.
• Consistent Operations: Thermal moderation makes these bearings capable of functioning without failure in a large range of temperatures, meaning there is no unscheduled maintenance.

These technical collectively support a reduction in maintenance frequency by up to 40%, improving overall operational efficiency.

How do double-row angular contact ball bearings compare to other bearing types?

Differences between double-row and single-row angular contact ball bearings

The only difference between a double-row angular contact ball bearing and its single-row counterpart is their design configuration and the loads they can accommodate.

• Load Capacity: Radial and axial loads are much higher in double-row angular contact ball bearings than against those in single rows. The dual-row configuration allows them to absorb significantly greater forces, which is essential in scenarios where additional load capacity is needed.
• Space Efficiency: The functions of two single-row bearings are made into one which is a double-row bearing, creating size ratings that are smaller than normal. With these, the width of the overall bearing assembly becomes smaller, helping in the designs of machinery with limited installation spaces.
• Alignment and Rigidity: Owing to their design configuration, double-row angular contact ball bearings are bulkier than most. Their stiffness makes them ideal candidates for applications that include precise alignment and anti-tilt/shaft deflection including machine tool spindles and industrial gearboxes.
• Axial Load Directionality: Single-row angular contact ball bearings can support the axial load in one direction only and thus need to be in combination with an additional bearing capable of carrying the load in the opposite direction. Whereas, double-row angular contact ball bearings inherently as a design attribute are capable of handling axial load in opposite directions, which assists during system assembly in making it more efficient.
• Cost and Application: Double-row bearings may be more costly than single-row bearings but they provide greater load capacity and lessen complexity in the design. Single-row angular contact ball bearings are better suited for high-cost applications where the load and available room are neither large nor too little.

These distinctions underline the importance of selecting the appropriate bearing type based on specific application requirements, as the choice directly impacts performance, durability, and overall system efficiency.

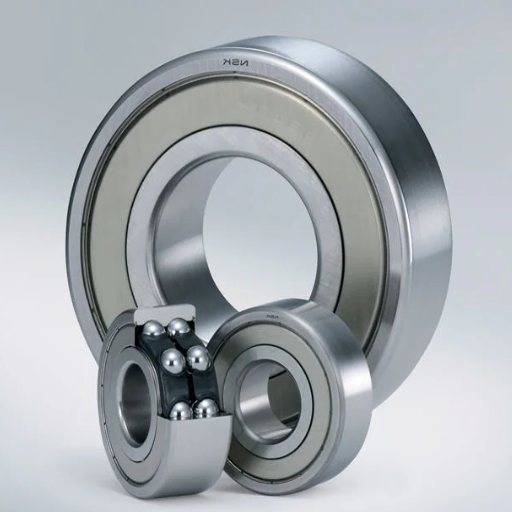

Comparison with deep groove ball bearings

The construction and uses of deep groove ball bearings are distinct from those of angular contact ball bearings. As the name suggests, deep groove ball bearings are primarily for radial loads, and moderate axial loads may be supported as well unlike angular contact ball bearings, which handle radial and axial loads. This difference in function can be traced back to the way they are built internally, wherein deep grooves facilitate the ability to sustain a greater radial loading.

Among the wide variety of bearings, deep groove ball bearings can achieve high speed in operation while at the same time, reducing friction. But on the other hand, they are not as good as angular contact bearings when it comes to combined load conditions or misalignment.

• Load Capacity: Deep groove ball bearings have a much higher static load capacity while their dynamic axial load bearing has much to be desired about angular contact ball bearings.
• Speed Limit: Because of the simple contact geometry, deep groove ball bearings would usually achieve faster speeds.
• Alignment Sensitivity: Angular contact ball bearings are ideal dense shaft elastomeric isolation bearings allowing for higher stiffness and alignment restraints for specific applications.

These attributes highlight the necessity of choosing a bearing type grounded in operational demands, ensuring system reliability and efficiency over time.

What are the latest innovations in double-row angular contact ball-bearing technology?



Advancements in materials and manufacturing processes

Recent innovations in double-row angular contact ball bearing technology have focused on enhancing material performance and optimizing manufacturing techniques to improve durability, efficiency, and compatibility with advanced machinery. High-performance materials, such as ceramic hybrids and advanced steel alloys (e.g., AISI 52100 or M50), are increasingly utilized due to their superior hardness, wear resistance, and high-temperature stability. Ceramic balls, for example, offer reduced weight and lower thermal expansion coefficients compared to steel, enabling higher rotational speeds and lower friction.

The roughness of the starting surface after proper machining and heat treatment can now be considered very high due to superfinishing and other methods which guarantee roughness better than 0.2 μm, and this decreases friction and wear extending life. Problems concerning wear are further tackled using advanced optimized cage designs made from polyetheretherketone(PEEK) or polyamide structures which are known for their high rotational speed performance and low noise levels.

• Capacity Features: Currently, bearings can withstand greater radial and axial forces exceeding the Traditional Models by 35 percent which is made possible due to better structural designs.
• Hybrid and Ceramic Bearings: Due to low friction and heat, the mass reduction incurred by these bearings surpasses 1.5 million dN of speed.
• Functional Temperature Adaptability: With the use of special lubricants in customized applications, advanced materials possess the ability to work from -40 ̊C to +200 ̊C.
• Life Span: Perfect for high-speed demanding industrial applications, the life cycle of bearings lasts longer exceeding the lifespan of regular ones by more than double.

As a whole, all these features guarantee double-row angular contact ball bearings to offer reliability, precision, and performance while meeting the requirements of modern engineering standards.

Improved sealing and lubrication technologies

The development of modern sealing and lubrication technologies has improved the functionality and reliability of double-row angular contact ball bearings.

• Sealing Technologies: Low-friction seals are effective in protecting bearings from mechanical damage while also reducing energy loss. Properly designed seals reduce contact pressure wear and contamination of internal components which is essential for high-rated power density and long life applications.
• Lubrication Systems: Engineered bearing devices have an extra collection reservoir or are packed with synthetic grease ready to use for temperatures ranging from -40 degrees Celsius to over 200 degrees Celsius. Cross cross-tough applications special lubricating oils are extensively used to widen and aid in further minimising friction coefficients, regularly lower than 0.1.

With the introduction of these new sealing and lubrication technologies, these bearings will require less maintenance, perform well in varying loads, and survive longer. maintaining their accuracy level.

How to properly maintain and install double-row angular contact ball bearings?

Best practices for installation and alignment

1. Readiness: Ensure all components, including shafts and housings, are clean and free of contaminants. Check that the dimensions and tolerances of mating parts conform to the bearing manufacturer’s specifications. For double-row angular contact ball bearings, shaft and housing tolerances typically follow ISO tolerance classes.
2. Process: Employ suitable working instruments and do not stress on the bearing rings or the rolling elements directly. The use of induction heaters or hydraulic presses is encouraged to help prevent damage during the mounting stages. In case of interference fits, ensure that the temperature variance between the bearing and the mating face is 80 – 100 degrees Celsius, but do not exceed 120 degrees Celsius.
3. Installation: The bearing should always be installed straight as misalignment could lead to improper load being distributed to the bearing which will lead to it failing at a considerably fast rate. The shaft and the housing should be aligned parallel to one another considering the maximum load and temperature specification limits given by the manufacturer, which for most precision classes is less than 0.0015 radians (about 0.1 degrees) for the angular misalignment.
4. Lubrication: Before installation, the application of an appropriate lubricant is necessary. Lubrication will only be needed once at the start, but an adequate amount and the right type of grease or oil are to be used according to the manufacturer’s specifications. Ensure that the selected lubricant is suitable for operational conditions such as load, speed, and temperature. For example, a synthetic grease with a viscosity grade of ISO VG32–46 may be needed for high-speed uses.
5. Torque and Preload Settings: It is necessary to employ calibrated instruments to ensure that the recommended torque settings are achieved when tightening mounting bolts and bearing preload. When employing double-row angular contact ball bearings the preload should however not exceed the required dynamic and static loading ranges instead the dynamic and static load should seldom exceed the values set by the manufacturer.
6. Post-Installation Checks: After the assembly has been mounted, rotate the assembly several times by hand and check if the assembly runs freely without any excessive friction or sounds. Alignment gauges or dial indicators are specially designed aids that assist in measuring runouts to ensure they are within limits, literally 10–20 micrometers in most cases which are considered precision systems.

When best practices are followed, the performance of an application becomes optimal, the bearing life becomes longer and the downtime is less.

Lubrication requirements and schedules

Proper lubrication is very important for the integrity and function of bearings and other units. I can summarize the essential requirements as follows:

• Lubricating Substance: The type of lubricating substance to be used will depend on the conditions in which the equipment is operating like speed, load, and temperature. High-load low-speed applications will usually require high-viscosity oils or greases, while high-speed systems operate better with low-viscosity oils. Also, make certain that the lubricant in use is by the manufacturer’s requirements concerning viscosity grades and thermal rating.
• Re-lubrication Intervals: A lubrication schedule has to be followed to keep the equipment in working condition. For high-speed applications, re-lubrication intervals may be between 500 to 1000 hours, while for low-speed high-load systems, it may vary from 2000 to 10000 hours. Always check with the manual of the equipment as some specific applications may differ, for example when equipment is placed in dust or moisture-prone areas.
• Lubricant Quantity: Both excessive and insufficient lubrication are to be avoided. Ideally bearing housings should be filled with grease to about 30-50% of their volume because this will prevent excessive heat or friction. However, exact quantity figures are usually easier to determine since the bearing size and application parameters are known.
• Tracking and Monitoring: Install a lubrication monitoring system. Such systems, whether manual or automated, will aid in the tracking of lubricant conditions and give warning of possible contaminations or degradation. Reviews should be undertaken from time to time to check oil particle count, oxidation levels, and viscosity variation.

When the suggested lubrication essential requirements are observed strictly, the performance of the equipment is improved, its lifetime is increased and the probability of unexpected idle time is reduced.

Frequently Asked Questions (FAQs)

Q: What are the advantages of OEM double-row angular contact ball bearings?

A: OEM double-row angular contact ball bearings offer several advantages, including higher load capacity, improved rigidity, and better moment-bearing capabilities compared to single-row bearings. They can bear both radial and axial loads in both directions, making them ideal for applications requiring high precision and stability. These bearings also offer a longer service life and can operate at higher speeds, making them widely used in industrial and automotive applications.

Q: What is the difference between back-to-back and face-to-face arrangements in double-row angular contact ball bearings?

A: The main difference lies in how the two single-row angular contact ball bearings are arranged within the double-row bearing. In a back-to-back arrangement, the outer rings face each other, providing excellent rigidity and the ability to withstand moment loads. This configuration is ideal for applications with high axial loads in both directions. Face-to-face arrangements have the inner rings facing each other, offering greater flexibility and the ability to accommodate misalignment. The choice between these arrangements depends on the specific requirements of your application.

Q: How can I ensure I’m getting high-quality double-row angular contact ball bearings from OEM suppliers?

A: To ensure you’re getting high-quality bearings, consider the following steps: 1. Choose reputable OEM suppliers with a track record of producing reliable bearings. 2. Request certifications and quality control documentation. 3. Ask about the materials used and manufacturing processes. 4. Inquire about inspection procedures and tolerances. 5. Check if the bearings meet relevant industry standards. 6. Request samples for testing if possible. 7. Consider the supplier’s reputation and customer reviews. 8. Discuss warranty and after-sales support options. Don’t hesitate to contact us for more information on our high-quality bearing offerings.

Q: What factors affect the service life of a double-row angular contact ball bearing?

A: Several factors can impact the service life of a bearing: 1. Load conditions (radial and axial loads) 2. Operating speed 3. Lubrication type and quality 4. Environmental conditions (temperature, contamination) 5. Mounting accuracy 6. Maintenance practices 7. The material quality of the inner and outer rings 8. Heat treatment and surface finish 9. Sealing effectiveness 10. Bearing arrangement and preload Proper selection, installation, and maintenance can significantly extend a bearing’s service life.

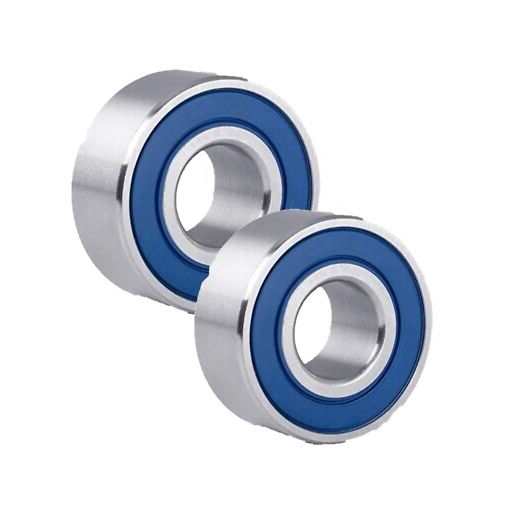

Q: Are double-sealed double-row angular contact ball bearings available, and what are their benefits?

A: Yes, double-sealed double-row angular contact ball bearings are available from many manufacturers. The benefits of these bearings include: 1. Enhanced protection against contaminants 2. Reduced need for frequent relubrication 3. Improved retention of lubricant 4. Extended bearing life in challenging environments 5. Reduced maintenance requirements 6. Better performance in applications with exposure to dust, moisture, or debris Double-sealed bearings are particularly useful in automotive and industrial applications where environmental protection is crucial.

Q: How do double-row angular contact ball bearings compare to single-row bearings in terms of axial space requirements?

A: Double-row angular contact ball bearings generally require more axial space than single-row angular contact ball bearings. However, they offer several advantages that can justify the additional space: 1. Higher load capacity in both radial and axial directions 2. Improved rigidity and stability 3. Better ability to handle moment loads 4. Reduced need for additional bearings in some applications 5. Potentially longer service life When considering space constraints, it’s essential to evaluate the overall performance benefits against the increased axial space requirements.

Q: Can you explain the importance of bearing arrangement in double-row angular contact ball bearings?

A: The bearing arrangement is crucial in double-row angular contact ball bearings as it affects their performance characteristics: 1. Back-to-back arrangement: Offers high rigidity and moment-bearing capacity, ideal for applications with high axial loads in both directions. 2. Face-to-face arrangement: Provides greater flexibility and ability to accommodate misalignment, suitable for applications with lower moment loads. 3. Tandem arrangement: Increases axial load capacity in one direction, useful in specific high-load applications. The chosen arrangement can impact factors such as load distribution, stiffness, and the bearing’s ability to handle misalignment. Proper selection of the arrangement is essential to optimize performance and extend the bearing’s service life.
