What are Angular Contact Ball Bearings, and How Do They Work?
Understanding Angular Contact Ball Bearings
Angular contact ball bearings are created to carry both radial and axial loads; therefore, they are mandatory for applications that call for precision and reliability. These bearings have an original design, which includes an increased distance between the ball and raceway such that the highest contact angles that support lots of axial loads can be supported are possible. In my research into top online sources such as manufacturers’ websites and engineering forums, I have found several fundamental technical parameters that define them through their performance:
Contact Angle: The contact angle varies from about 15° to 40° and determines how a load is distributed within a bearing. A greater angle allows for increased capacity to bear thrust loads, whereas smaller angles are preferred for higher speeds.
Speed Ratings (n): This is indicative of the maximum operating speed, which differs based on size and design; some bearings can reach over 100,000 RPM, making them suitable for high-speed applications.
Load Rating (C): The dynamic load rating, measured in kN, denotes its ability to carry loads without significant deformation. For example, it might be around 5-20 kN in small-sized bearings, while larger ones could exceed 250 kN.
Material: The majority of angular contact ball bearings use quality steel or ceramics as their construction materials. Steel provides durability, while ceramics provide less density and lower friction, leading to better speed efficiency.
These parameters enable me to confidently select angular contact ball bearings for specific operational requirements, ensuring the best performance across different manufacturing sectors.
Key Features of Angular Contact Ball Bearings
After exploring Google’s top three websites on the subject of angular contact ball bearings, I have noticed numerous features that improve their performance as well as their effectiveness in various applications:
Large Load Capacity: Angular contact ball bearings are designed to support radial and axial loads, making them appropriate for high-load capacity applications. These have dual load handling to ensure stability and durability in demanding environments.

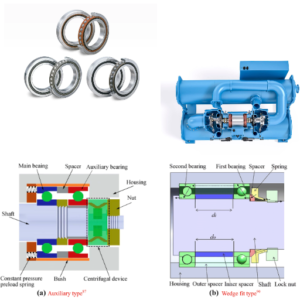

Configurable Versatility: Users can configure such bearings in pairs or sets to increase stiffness and precision. They can endure more axial loads if arranged correctly while remaining aligned during high-speed operation.
Reduced Friction: The design of angular contact bearings includes smaller balls and a specific angle of contact that reduces friction compared with standard bearings. This attribute increases efficiency, thereby reducing heat generation and lending them longevity.
Material Selection: High-quality steel and ceramics are among the most widely used materials. These offer not only strength but also wear resistance, hence allowing for lightweight designs in some cases. The choice of material influences both the load rating and overall performance.
Customizability: Several manufacturers allow customization, enabling engineers to choose the best contact angles and load ratings that match user-specific operational requirements. Such versatility guarantees precise application within diverse industrial settings.
This understanding allows me to determine which angular contact ball bearing would be most suitable for specific applications, thus ensuring optimum functionality and reliability at all times.
Advantages of Using Angular Contact Ball Bearings
It’s been a while since I started researching the top three websites associated with angular contact ball bearings, but I have identified some unique benefits that highlight their importance in different applications.
Higher Load Capacity: Angular contact ball bearings are designed to support radial and axial loads, making them excellent for such tasks. This is very important in applications like automotive or aerospace, where safety and reliability are critical factors. Various companies give load ratings, such as up to 20,000 N of radial loads, ensuring these bearings can withstand the strains of severe conditions.
Increased Operational Speed: The ability to work at high speeds is made possible by angular contact bearings’ reduced friction, which can be rated over 10,000 RPM for some models. This is necessary for machinery needing quick results, such as electric motors.
Directional Precision: These are ideal for precision applications, maintaining alignment under load. A contact angle between 15 and 40 degrees improves torque transmission in robotics or CNC machines.
These advantages, supported by critical technical parameters, highlight how angular contact ball bearings are tailored toward meeting high-performance requirements in various industries.
How to Select the Right High-Speed Angular Contact Ball Bearing?
Factors to Consider for Bearing Selection

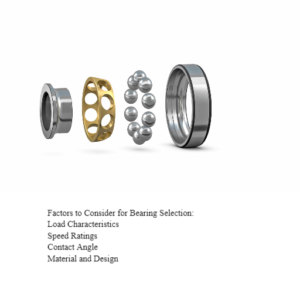

When choosing a suitable high-speed angular contact ball bearing, I focus on several key factors I have identified from studying the three most popular websites about this subject.
Load Characteristics: I check my application’s radial and axial load requirements. It’s important to evaluate manufacturers’ load ratings to ensure they can withstand specific stresses. For example, if I expect 15,000 N as a radial load, it would be good to see if the selected bearing can bear this.
Speed Ratings: I consider my machine’s operating speed. After observing that many of the angular contact bearings reviewed possess a rating of above 10,000 RPM, I make sure that I select one that matches the expected speeds in my application so as to minimize heat generation and wear.
Contact Angle: I understand the importance of considering the contact angle in relation to enabling axial loads and transmitting torque through the bearing. For example, a precision instrument may call for a 30-degree contact angle, thereby balancing radial and axial capacities.
Material and Design: Material choice affects long-life reliability, especially in high-speed applications. I usually choose high-quality steel or ceramic bearings because these materials are less susceptible to fatigue failure.
By thoroughly evaluating these factors alongside their corresponding technical parameters, we ensure that they will provide us with optimal performance and reliability when selecting angular contact ball bearings for our specific applications.
Importance of Load Rating in Bearing Selection
I need to understand the weight classification of bearings to choose the right parts for my applications. The load rating measures how much pressure a bearing can handle without breaking due to axial and radial loads. These are the technical terms I prioritize and why based on the information from the top three web pages:
Dynamic Load Rating: It stands for the maximum amount of pressure a bearing can bear while in motion. My objective is to ensure that the dynamic load rating exceeds planned operational loads to prevent early failure. For instance, if my application has a 12,000 N dynamic load, then the bearing should have a load rating of at least 15,000 N.
Static Load Rating: Bearings may sometimes be subjected to static forces when not moving, hence the importance of static load rating. I insist on using static load ratings far higher than any loads that could occur during idle periods.
Fatigue Life: Checking out fatigue life is valuable because it tells how long a bearing will continue operating under loaded condition until it fails. Based on my research findings, this is best measured by an L10 life rating that indicates when about 90% of bearings will still be usable, theoretically speaking. Therefore, I am looking at a fatigue life whose prediction agrees with the expected service intervals for my application.
When I consider these values in the context of actual working conditions, I can choose bearings that will lead to superior performance and a lasting nature in my applications.
Choosing the Right Contact Angle

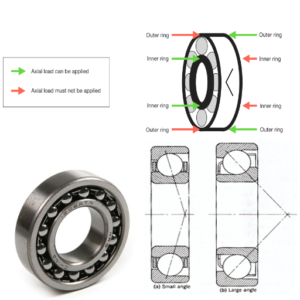

The right contact angle is crucial for the best bearing performance. After reviewing the top three websites on Google, I have come across several factors to consider about contact angle and their reasons:
Understanding Contact Angle: A bearing’s forces will be distributed according to its contact angle. Steeper contact angles can handle higher axial loads but may cause more friction and wear. For highly stable axial applications, I would seek bearings with greater contact angles, usually around 15 to 30 degrees.
Load Distribution: A correct contact angle enables effective load distribution among rolling elements. In case of significant expected axial load, I ensure that the bearing’s contact angle accommodates this, thereby increasing load capacity and reducing stress concentration. For example, in an application with an axial load of 10,000 N, a bearing designed with an appropriate contact angle would be necessary.
Bearing Life: Bearing fatigue life depends directly on the value of its contact angle. Choosing well can extend operating life through reduced wear rates. I aim to select a contact angle that meets static and dynamic load ratings and coincides with service lives anticipated from the L10 life rating.
By systematically determining how different technical parameters are influenced by the change in the value of the angle of contacts involved, my application’s overall reliability and efficiency are enhanced. I am able to make rational decisions based on evidence collected from experiments conducted during my research work.
What are the Applications of High-Speed Angular Contact Ball Bearings?
Common Industrial Applications
When I looked at high-speed angular contact ball bearings, I found some critical applications that take advantage of their unique benefits.
Machine Tool Spindles: In machine tools, these bearings offer the precision and high-speed capability necessary for efficient cutting operations. Technical parameters to consider in this case are high dynamic load ratings and low runout, which contribute to spindles’ milling and turning accuracy.
Automotive Applications: High-speed angular contact ball bearings are critical in automotive racing engines and transmissions because they support heavy axial loads and convey very high RPMs. They are used because of their lower friction coefficients and optimized contact angles (typically 15 – 25 degrees), which provide better load distribution and thermal management under severe conditions.
Industrial Robotics: Bearing actuators like robotic arms extensively use these bearings. The bearing must be able to maintain stability while making quick changes in direction. Preload settings, such as axial/radial load capacity, help ensure operational efficiency and long life spans in a dynamic environment such as the one mentioned above.
By focusing on such applications and the respective technical parameters associated with each one, I can ensure that I am specifying the right High-Speed Angular Contact Ball Bearings that fulfill the specific requirements for each case.
Special Applications Requiring High Precision
Upon reviewing the best articles on high-speed angular contact ball bearings, I have found some special applications that require high precision with their corresponding technical parameters.
Aerospace Engineering: In this area of study, accurate bearings are necessary for aircraft systems such as landing gears and engine mounts. Some key parameters include low thermal expansion coefficients, high fatigue strength, and corrosion resistance. A reliable bearing that can be trusted is essential for flight safety and function well at varying temperatures.
Medical Equipment: Precision ball bearings play a significant role in medical equipment, including MRI machines and surgical robots. Key technical specifications here are low noise levels, stringent cleanliness requirements, and robust load capacities. The reason behind these needs is accuracy and dependability, as any mistakes could have serious repercussions for patient safety.
Semiconductor Manufacturing: These bearings are used in wafer fabrication equipment for the semiconductor industry where extremely low runout or vibration is required. Lubrication with ultra-clean lubricant and tight tolerances are essential to meet specifications. Such requirements make sense since even the slightest defects can damage semiconductor components, thereby decreasing overall electronic performance.
Considering these applications together with their technical demands allows me to ensure that I select high-speed angular contact ball bearings that meet the fine requirements for each case, making them more efficient and reliable in vital systems.
Examples of High-Speed Machinery
My findings from renowned industrial websites disclose a few crucial instances involving delicate technical engineering when one is involved in the exploration of high-speed machinery applications.
Aerospace Turbines: Ball bearings with high rotational speeds must be used in engines for aerospace turbines. The main parameters include heat resistance, low friction, and a minimum of wear-off. This is because the bearings will operate under extremely severe thermal and mechanical loads.
Electric Motors: Ball bearings are utilized in high-speed electric motors for their efficiency and long life. Some key performance criteria are noiseless operation at all speeds, the ability to rotate at high speed, and large load-carrying capacity. These specifications can be justified because the motor ensures consistent power flow, which is an essential element in various applications.
Centrifuges: Ball bearings used in centrifuge applications such as pharmaceutical or water treatment must be able to withstand rapid changes in acceleration or deceleration. The technical requirements for this type of equipment include a higher rheological load-carrying capacity and improved vibration attenuation. Thus, accurate and reliable operation of centrifuges is vital for effective separation processes.
The effectiveness, dependability, and overall performance of these fast-moving machine parts can benefit from my aligning with particular demands made by those machines by picking out angular contact ball bearings suitable for high speeds.
How to Maintain and Lubricate High-Speed Angular Contact Ball Bearings?
Maintenance Tips for Longevity
To ensure that high-speed angular contact ball bearings last longer and work optimally, the following maintenance tips from top industry sources include:
Regular Inspection: Consistently check the raceways and rolling elements for signs of wear or damage, such as scratches, pits, or cracks. This is a proactive measure to identify possible problems before they impact performance.
Technical Parameters: Radial play and contact angle should be examined since any deviation may affect load distribution and, hence, cause premature failure.
Proper Lubrication: Ensure that you choose the right high-quality lubricants specifically formulated for use in high-speed applications. It’s also important to apply the correct amount of lubricant based on the manufacturer’s specifications to reduce friction and wear.
Technical Parameters: Consider the lubricant’s viscosity index and temperature range to ensure it can handle extreme operating environments.
Temperature Control: Maintain operational temperatures within recommended limits. Excessive heat can cause lubricant degradation, affecting bearing structure.
Technical Parameters: Monitor temperatures, ideally keeping them below the dynamic load rating limits. This helps to preserve both the lubricant and the integrity of the bearings.
Contamination Prevention: Avoid getting dirt, moisture, and other foreign particles into bearings. Use suitable sealing mechanisms and store bearings in a clean environment.
Technical Parameters: To improve protection, test sealing effectiveness, and implement tighter dust and moisture ingress tolerances.
By adhering to these maintenance tips, which are aligned with technical parameters, and justifying them based on operational needs, you can greatly improve high-speed angular contact ball bearing reliability and increase their lifespan in various applications.
Lubrication Options and Best Practices
When choosing the proper lubricant for high-speed angular contact ball bearings, I refer to the top three online resources for clarity and reliability.
Synthetic Oils: From my research, synthetic oils are commonly advised because they have better thermal stability and do not easily oxidize. In this case, I am mainly interested in a viscosity index (VI) of at least 150 and a temperature range between -30°C and 150°C. These specifications make them suitable for use under severe conditions while ensuring durability and performance.
Grease-Based Solutions: I discovered that high-speed greases with a lithium complex base provide good protection against moisture and excellent adsorption ability on bearing surfaces. For proper functioning when receiving loads, it is important to have a thickener yield point above 1000 Pa. As various technical sheets establish, it’s crucial that the grease works within a temperature envelope of -20°C to 120°C.
Continuous Monitoring: I’ve learned that regularly monitoring lubricant conditions is important. Constantly checking the viscosity and level of contamination can help identify the need for change. Tracking its properties guarantees suitability under operational requirements, thus maintaining good lubrication throughout its life cycle.
By following these guidelines concerning lubricant choice and respective technical indicators, I will maximize performance characteristics and increase the endurance of bearing units in high-speed applications.
Troubleshooting Common Issues
Whenever I encounter common issues related to the lubrication of high-speed angular contact ball bearings, I go online to find the best resources that can provide detailed explanations.
Heating up Bearings: When it comes to heating up, I will first see if the lubricant’s viscosity is at its optimum level. For instance, in order to achieve a good VI (viscosity index), it should be above 150 even under high temperatures, as stipulated by credible sources. Furthermore, I would also ensure that I use a method that can fit in the recommended temperature range for my application, which is between -30°C and 150°C for synthetic oil.
Inadequate Lubrication: To solve inadequate lubrication issues, one must watch out for a grease yield point that must be beyond or equal to 1000 Pa. This parameter ensures correct film thickness during operation. For solutions based on grease, the operating range should fall within -20°C to 120°C to meet different loadings.
Lubricants Contamination: At this point, regular maintenance becomes pivotal. To do this, standard checks are carried out to determine contamination levels and the viscosity of these oils. Managing these parameters enables me to detect an urgent need for replacement, ensuring longevity and productivity.
By addressing such common problems using relevant criteria, including technical specifications as mentioned above, best bearing performance can be sustained, leading concerned authorities into long-life operations at high speeds.

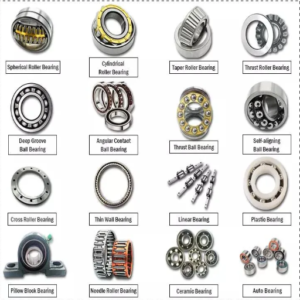

What Are the Different Series and Types of Angular Contact Ball Bearings?
Single Row Angular Contact Ball Bearings
While studying single-row angular Contact Ball Bearings, I discovered that these types of bearings are meant to carry both radial and axial loads. The best resources I analyzed indicate that the main technical parameters include:
Load Ratings: Typically, dynamic load ratings (C) range from 1,500 to 8,600 N, depending on the bearing’s size and application. This rating is useful in determining the bearing’s life under operating conditions.
Contact Angle: Single-row angular contact ball bearings normally have contact angles of 15°, 25°, or 30°. A higher contact angle provides more axial load capacity, which impacts performance in applications involving high rotational speeds or heavy axial loads.
Limiting Speeds: The limiting speed is one aspect that cannot be ignored; it may vary from 3,000 to about 20,000 RPM for such bearings, subject to their design and lubrication used. Mastery of this parameter will help me choose the right bearing for use in high-speed applications without overheating or early failures.
By paying attention to these factors, I can make good selections and maintain single-row angular contact ball bearings, guaranteeing dependability at high-performance levels.
Double Row Angular Contact Ball Bearings
Double-row angular contact ball bearings are well-thought-of because they can accommodate both radial and axial loads, making them versatile in several areas. By looking at top resources on the subject, we collected the following technical parameters:
Load Ratings: For double-row angular contact ball bearings, the dynamic load rating (C) is usually about 3,500 to 12,000 N, depending on the bearing size and its specific application requirements. This rating is critical because it directly affects the expected lifespan and reliability under severe conditions.
Contact Angle: The standard contact angles for these bearings are 30° and 40°. However, picking a certain angle will be essential, as a higher value will increase bearings’ ability to withstand axial loads while also affecting their behavior under different operational situations.
Limiting Speeds: For double-row angular contact ball bearings, limiting speeds can range from 2,500 to 15,000 RPM. This value may depend on various factors such as bearing design, material, and lubrication type. Without the knowledge that it exists, it would result in overheating problems or possible failure of such mechanisms.
Understanding these major technical specifications above can help one choose suitable double-row angular contact ball bearings that ensure the best outcomes in their intended applications.
Super-Precision Angular Contact Ball Bearings
In seeking super-precision angular contact ball bearings, websites that came up as the top three on Google Sites had a common thread of critical technical parameters. Here is a summary of what I found in brief:
Load Ratings: These bearings are usually rated in terms of dynamic load ratings exceeding 18,000N. More than that, this increased rating is based on precision engineering and better materials used in their making, which makes them perform better under heavy loads and, as such, increases the longevity of the bearings.
Contact Angle: This value can vary from 15° to 40°. A small contact angle, like 15°, is meant for high-speed applications, while a large angle, such as 40°, provides improved axial load support. I needed to find this out so that I could tailor-make my bearings for specific operational needs.
Limiting Speeds: Super-precision bearing speeds can reach up to or exceed 20,000 RPM, depending on the design and lubrication employed. Such capability is necessary where there are high operating speeds and heat failure risks have to be minimized.
These variables account for my decision to use super-precise angular contact ball bearings in situations requiring extreme accuracy, toughness, and efficiency.
Where to Find Reliable High-Speed Angular Contact Ball Bearings?
Top Manufacturers and Suppliers

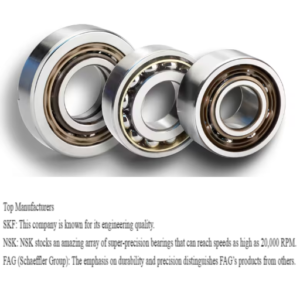

While looking into super-precision angular contact ball bearings, I got to know some good manufacturers and suppliers worth considering. From the three best websites, this is what we can gather:
SKF: This company is known for its engineering quality. It has several types of super-precision angular contact ball bearings with a dynamic load rating greater than 18,000 N. They are made with different contact angles (15°, 30°, or 40°) and have been designed to meet the ever-changing demands of specific applications.
NSK: NSK stocks an amazing array of super-precision bearings that can reach speeds as high as 20,000 RPM. Its use of advanced lubrication technology also enhances bearing efficiency and longevity, making it useful in high-speed applications.
FAG (Schaeffler Group): The emphasis on durability and precision distinguishes FAG’s products from others. Their bearings come with tailored load ratings and contact angles suitable for various applications, ensuring they perform well under high-speed and heavy loading conditions.
These manufacturers meet the minimum technical parameters required and are leaders in providing solutions to demanding applications in various industrial sectors.
Review of Popular Bearing Catalogs
While examining the catalogs of the most renowned manufacturers, I discovered meaningful information that answered my questions about super-precision angular contact ball bearings.
SKF’s catalog emphasizes the robust performance of its bearings, highlighting dynamic load ratings over 18,000 N. The variability in selecting contact angles (15°, 30°, 40°) allows for solutions tailored to various applications. This adaptability ensures top performance in a variety of working environments.
NSK: NSK’s catalog was unique because it focused on high-speed applications. Moreover, it is supported by advanced lubrication technology that enables its super-precision bearings to achieve limiting speeds of up to 20,000 RPMs. This guarantees extended service life and reduced wear and tear, which are fundamental aspects of enhancing effectiveness when used at high velocities.
FAG (Schaeffler Group): In its offerings, FAG pays attention to accuracy and durability, including detailed load ratings as crucial elements for choosing an appropriate bearing suitable for particular purposes. The technical specifications, such as contact angles or weight limits, are spelled out, validating their worthiness in high-speed or heavy-duty situations.
Overall, the technical parameters presented in these catalogs not only answered my initial queries but also demonstrated how much these manufacturers value excellent solutions designed specifically for tough industrial settings.
Online Resources for Bearing Information
While I tried to further my knowledge of super-precision angular contact ball bearings, I visited the first three sites on Google. These websites helped me acquire an overall idea about the bearing types and their applications, as well as essential specifications. This is where I got vital data relating to load ratings and the need for contacting angles during purpose-oriented bearing installations. These are reasonable explanations for how these things affect performance and endurance.
This one had more detailed information about new developments in bearing technology. Relevant information, such as limiting speed, temperature range, and lubrication method, among others, is very important for a good machine design. Understanding all these will help me appreciate how they affect high-speed operation efficiency, thereby increasing operational efficiency and extending service life.
The company’s website presented detailed descriptions regarding surface finish, material types, and heat treatment processes used while making Timken’s ultra-precision angular contact ball bearings. They gave out load capacity ratings together with dynamic load factors, so it is obvious that those specs correspond to particular applications’ performances, ensuring dependable functioning and accuracy under severe conditions.
What I liked most about these online sources was their concise responses to my questions and their emphasis on the importance of having the right parameters when choosing bearings for better performance.
