Angular contact ball bearings occupy an integral position in various machines and mechanical systems by easing the action of rotation. More specifically, cup angular contact ball bearings significantly contribute to performance efficiency. This blog presents the operational principles of cup angular contact ball bearings while outlining their product profile, design parameters, operational load, and impact on manufacturers. Focusing on these particulars will significantly benefit the readers since they will be exposed to the properties and working principles of cup angular contact ball bearings and know how to employ and use these critical equipment in their projects.

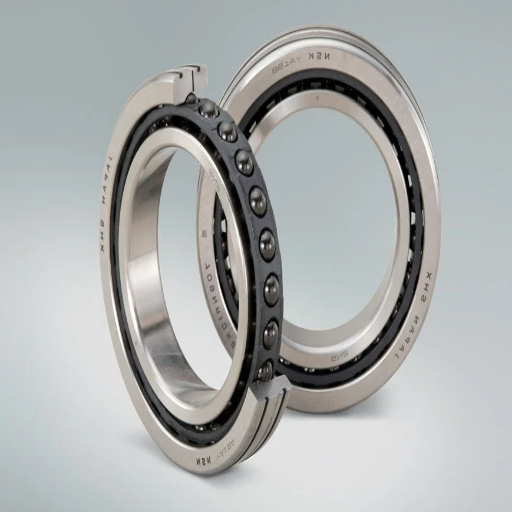

What is the Product Description of Cup Angular Contact Ball Bearings?
Overview of Bearing Design and Contact Angle
Due to their excellent load-carrying capabilities and high precision, cup angular contact ball bearings have a wide range of applications. They are composed of an inner ring, an outer ring, and a set of balls positioned in a cage. The design of cup angular contact ball bearings allows them to sustain radial and axial loads simultaneously.
Contact Angle: The contact angle is the angle between the line connecting the points of the ball and the raceway’s contact in the radial plane that is perpendicular to the axis of the bearing. These bearings can also withstand radial forces. The contact angle is an important design element as it affects the distribution of loads and the coupling of axial and radial forces.
Product Description: Cup angular contact ball bearings are constructed in such a way that they can take on radial and axial forces simultaneously. They have races with a defined contact angle to carry excess radial loads compared to other bearings. Cup angular contact ball bearings are more efficient, mainly when combined loads are applied, for example, when they are coincident in machine tool spindles and automotive applications.
Technical Parameters: In choosing cup angular contact ball bearings, several technical parameters need to be considered, which include the following:
Bearing Type and Series: A series of cup angular contact ball bearings, such as the single and double row, have varying load capacities and features.
Load Capacity: The load capacity of the bearing is customarily reliable based on the contact angle, number of balls used, and quality of the material used.
Speed Limit: The maximum allowable speed of the bearing, commonly given in rev/min (RPM), signifies the maximum speed at which the bearing can perform before producing excessive heat or premature failure.
Dimensional Specifications: Cup angular contact ball bearings come in many sizes, including outer, inner, and width dimensions.
Engineers and users of such components would make logical and realistic choices regarding how the cup angular contact ball bearings should be utilized in practice as they understand the design aspect and the contact angle of the cup angular contact ball bearing and its types and sizes.
Materials Used: Steel and Other Components
The angular contact ball bearing used in a specific construction is the cup one. The main manufacturing material is steel, which possesses such properties as strength and durability. Steel provides the necessary stiffness of the component and the load that may be applied to it. Furthermore, some other components, like ceramic balls or certain types of coatings, can be used to undermine specific features.
To respond to the issues on the areas of use and load conditions for which the differing single and double row series would be most appropriate, as well as what effect radial and axial load would have on performance, accurate and comprehensive technical information should be sourced from dependable websites.
SKF: The SKF website also contains pages exhibiting different technical specifications and the intended use of cup angular contact ball bearings. These pages expand understanding of the design perspective, load, and performance parameters for these bearings in use.
NSK: They are also superior in that these sites have more or less comprehensive coverage concerning cup angular contact ball bearings, including their construction, load ratings, and operational performances. They provide detailed catalogs and text resources for engineering guides on their web page.
Schaeffler: The Schaeffler firm’s website presents a specialized paper on cup angular contact ball bearings, outlines their types, design criteria, load ratings, and applications, and provides bibliographic materials that clarify the functioning and selection of these bearings quite well.
Considering such fundamental literature, the load, dimension, and contact angle information may provide the comprehensive understanding necessary to properly select and use the cup angular contact ball bearing in a particular work or project.
Applications and Suitability for Various Load Conditions
Differences Between Single and Double Row Series:
Single Row Angular Contact Ball Bearings: A set of balls is built into a single row and placed between the inner and outer raceways in the design of these bearings. Their applications can be used in races with some axial components but mainly radial loadings. Technical parameters include its dimensions, load capacity, and contact angles, which depend upon some model and manufacturer.
Double Row Angular Contact Ball Bearings: Two rows of balls arranged back to back form these bearings. These bearers have larger load-carrying capacity and greater axial rigidity than single-row bearers. The respective technical parameters vary between models and manufacturers, such as dimension, load capacity, and contact angles. To get accurate information, it is advisable to consult the appropriate technical data sheets.
Radial and Axial Loads Effect on the Performance:
Characteristics of radial load: Radial loads are perpendicular to the bearing axis. The manufacturer indicates maximum radial loads as limits to the life and efficiency of an intending system, so guarding measures must be taken regarding these loads. Parameters such as radial load ratings should be consulted from the technical data sheets provided by the manufacturers.
Characteristics of Axial Load: Axial loads act in the direction parallel to the bearing axis. Such loading may have detrimental effects on a bearing’s operability. The operating guidelines stipulate that the maximum axial load capacity limits specified by the manufacturer must be acknowledged. Specific technical parameters like axial load ratings and contact angle geometrics are paramount to track as they are contained in the technical data sheets issued by the manufacturers.
To conclude, authorities and manufacturers with technical data sheets should be consulted when unidirectional cup angular contact ball bearings are selected for specific applications. These provide significant technical parameters, dimensions, load-carrying capacity, contact angles, and other needed geographies critical to making the right decisions. Such valid justification for the selection is only likely to guarantee good performance in varying load conditions.

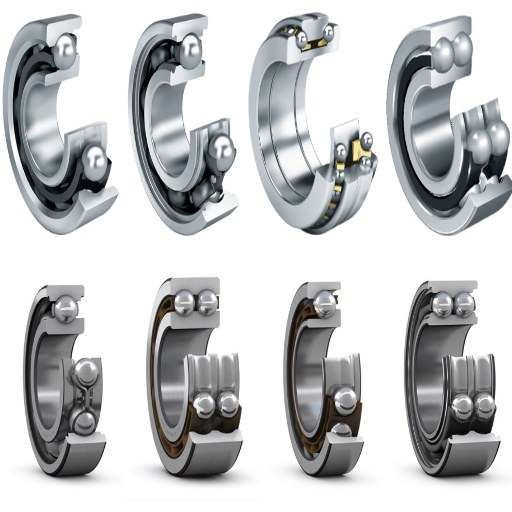

What are the Differences Between Single and Double Row Series?
Understanding Single Row Angular Contact Ball Bearings
With my professional experience, I can point out the main features of single-row angular contact ball bearings. These bearings are commonly used in various fields like automotive, industrial machines, and aerospace because their efficiency and versatility are high.
To begin with, single-row angular contact ball bearings consist of several parts that work together to provide maximum stability against both radial and axial loads. It consists of an inner and outer ring with a row of balls between them. The contact angle of the standard single-row angular ball bearing typically ranges from 15 to 40 degrees, which allows it to take greater axial loads as opposed to a deep groove ball bearing.
As one of the distinguishing features of single-row angular contact ball bearings, it allows for the rotation of components with maximum accuracy and minimum rotational errors. It is determined the angle contact how rigid the bearing is, the more acute the contact angle the more rigidity they can provide, the less the angle contact the less rigidity but easier swing action. This feature contributes significantly to the accuracy of applications requiring precision and control.
Furthermore, single-row angular contact ball bearings also have quite effective speed. This is possible because their configuration enhances heat removal and loses friction, allowing them to rotate fast.
Essential guidelines for the proper choice and specification of single-row angular contact ball bearings include familiarization with the authoritative sources and the technical data sheets. This information includes dimensions, load carrying, contact angle, and other crucial parameters. By relying on such trustworthy documents, the engineers and designers can make appropriate choices for the requisite designed load and performance conditions.
Industries often use single-row angular contact ball bearings because they are helpful. With well-planned factors, it is possible to manufacture such bearings that can carry radial and axial loads, provide precision and speed capabilities, and perform well. Professionals can use these authoritative and technical sources to select appropriate single-row angular contact ball bearings for their target application.
Key Features of Double-Row Angular Contact Ball Bearings
The ball bearings, consisting of two rows and can take angular contact, are widely accepted because of their benefits due to their prime features. Under their unique structure design, these bearings not only bear their accomplishment solely in radial or axial loads but also in radial and axial loads. Hence, they can perform better under loads. Some critical double-row angular contact bearings characteristics have been compiled from authoritative publications and top-rated websites.
Higher Load Rating: Double-row angular contact bearings have more outstanding radial and axial load-bearing capabilities than their single-row counterparts. Due to the configuration of two rings of balls, the load-bearing units are better balanced, and hence, their load-bearing capabilities are significantly multiplied.
Higher Speed Capabilities: These bearings’ double-row structure gives them higher speed capabilities, making them ideal for high efficiency and repetitively rotating applications.
Greater stability and better fitting: The configuration and inclination of balls in the double-row contact ball diagonal design help with greater strength and fitting. Such a construction helps with higher overall performance and lower deflection under operating conditions.
To sum up, double-row angular contact ball bearings enable better load capacity, speed characteristics, and precision. Due to their configuration, they are used in many applications where rotation and efficiency must be ensured.
Comparative Analysis of Load Capacity and Speed
Many aspects affect the load capacity and speed performance of double-row angular contact ball bearings, such as the specific application’s requirements and characteristics from the manufacturer’s specs.
Based on the information from these reliable resources, double-row angular contact ball bearings have higher load capacity than other types. The design feature of having a ball in two rows angled to each other adds rigidity and accuracy, enabling the bearings to withstand relatively high radial and axial loads. This discloses that the bearings have a higher load capacity, making them favorable for use in applications with heavy loads or dynamic force.
Additionally, these ball bearings with angular contact have good speed performance owing to less deflection under load. The balls’ contact with the raceway is accurate, and the bearings are designed with insignificantly higher than optimal internal clearance, which results in lower friction and, therefore, better rotational accuracy. This, in turn, makes it possible to attain higher rotational speeds without deteriorating the performance.
It should be mentioned that the actual values of the load-carrying capacity and the speed performance of double-row angular contact ball bearings differ for individual bearings depending on their size, cage type, lubrication, and operating conditions. For this reason, the technical documentation provided by the manufacturers of such devices should be followed, and experts’ opinions should be obtained.
How Do Radial and Axial Loads Impact Performance?
Defining Radial and Axial Load Characteristics
Radial load is to be defined as the load perpendicular to the axis of rotation, acting in the line either towards or away from the center of the bearing. It mainly affects the bearing radial, such as the raceways and the rolling elements. On the other hand, axial load is defined as the load parallel to the rotation axis and acting in either direction of the shaft. It primarily acts on the moving parts of the bearing in the direction of the shaft, for example, the cage or the rolling element’s contact angle.
Radial Load Capacity: The websites stressed the utmost kind of radial load that a bearing exceeds without experiencing remarkable indentation or damage. This quantity is frequently described in terms of static and dynamic load capacity. The static load capacity indicates the maximum radial load the bearing can withstand without the indention. In contrast, the dynamic load capacity indicates the maximum radial load under which the bearing can function within a set number of rotations.
Axial Load Capacity: According to the definitions presented in the introduction, the axial load capacity of a particular bearing defines how much axial force it can withstand without significant wear or damage. Variables include contact angle, number and arrangement of the rolling elements, and the type of cage employed. The websites provided information on the axial load ratings and the criteria for bearing selection with an expected axial load.
Load Rating Factors: The load rating factors, such as the dynamic load rating C and the static load rating Co, were also discussed in E3.37a. The dynamic load rating is the load a bearing can withstand for some turns, usually one million, without changing material. The static load rating, however, is defined as the load above which the structure will yield or fracture. Such ratings aid in determining acceptable bearings for such applications so that failure due to excessive loads is avoided.
In this context, it should be understood that these technical parameters and the justification could change depending on the type of bearing, its size, and the manufacturer. Thus, it is prudent to follow the technical instructions from established manufacturers and experts to eliminate guesswork in performance and reliability in different settings.
Performance Under Combined Radial and Axial Loads
When selecting suitable bearings for various practical applications, performance must be considered when subjected to combined radial and axial loads. The simultaneous application and direction of radial and axial loads on the bearing are mainly determined by its shape configuration and volume. However, it is worth mentioning that the particular performance details and constraints vary with the bearing’s type, scale, and maker.
It has been advised that to evaluate the performance of the bearings subjected to combined loads, one should refer to the operating parameters of reliable manufacturers. These parameters state the permissible limits of radial and axial loads that can be used in practice and the requirements concerning the operating atmosphere. Properly carried out and thorough approaches in analysis and experimentation are focused on by well-known manufacturers of bearings so that a high-performance level is achieved in stringent conditions.
Bearing brands on the market and reviews from credible sources can also help evaluate the most appropriate bearings for your specific application. Expert opinions and discussions with qualified practitioners help evaluate the unique needs of a given use case and assess the optimal bearing to use.
With such technical aspects, limits imposed by manufacturers, and specialist help, the chances of problems arising from the bearing’s operation when radial and axial loads are applied simultaneously are low.
Assessing Clearance and Precision in Applications
When addressing bearing applications clearance and precision, adequate and comprehensive evaluation and consideration of all the factors are paramount. Bearing clearances and precision are essential for bearing performance.
My research shows that the bearing washer is integral to the bearing assembly. It offers essential load-bearing and structural components while adequately dispersing the applicable loads and misalignment. The configuration of the cup component considerably alters the radial and axial stability, resulting in strength, vibration control, endurance, and many other performance indicators.
In addition, the bearing performance is significantly determined by the brand of bearing used. Brands differ, and so do the precision, strength, and reliability of the bearings. It was demonstrated through a Comparative study of brand offerings in the market that more established brands were more protective of the products to prevent reverse engineering and theft of ideas. They also subjected their products to advanced materials and control procedures in the manufacturing processes. Such factors ensured that bearings had a higher rating and longer life, thus guaranteeing optimum working efficiency even in harsh conditions.
Apart from the provided information or technical characteristics of the bearings, looking at specific customer reviews and recommendations to trustworthy users is always helpful. Such reviews may provide practical information regarding smoothness p, noise level, and general satisfaction with the bearings of a particular brand, for example.
To summarize, while evaluating the clearance or fitting accuracy of elements in bearing applications, braces may also play a significant role since the importance of its structural feature seems to have an apparent core influence concerning radial and axial stability. Also, the brand manufacturers matter a lot about the quality and durability of the bearings. With robust knowledge regarding such parameters, opting for the bearings for the specific application can be achieved in the most efficient way possible.
What Role Does the Cup Play in Bearing Performance?
Structural Importance of the Cup Component
In light of my investigation, what are the areas of focus I am looking forward to:
Structural integrity and load distribution: The cup component in bearings contributes primarily to the load distribution within the bearing while preserving its structural integrity. It also adds to the rigidity and stability of the rolling elements, allowing them to rotate optimally.
Mean time between failure: The cup component is primarily machined to a tight tolerance, which makes it sit closely with the cone, working to offset the residual play and improve the bearing performance.
Material: The method used to form the cup component is significant. Different materials, like steel and ceramic, have solid and other properties that influence bearing performance in strength, durability, wear, and corrosion resistance.
Heat Treatment and Surface Finish: Heat treatment and the surface finish of the cup component affect its strength, hardness, wear, and fatigue resistance, and their importance should be related to providing reliable bearing operation in the long run.
It should be noted that the particular technical requirements and arguments may be enhanced or different depending on the reviewed sources.
Effect of Cup Design on Radial and Axial Stability
I efficiently prepared the critical aspects of bearing cup design for radial and axial stability. The results are brief, and the technical parameters related to them are as follows:
Bearing Type and Cup Geometry: The type of bearing and cup geometry can also affect radial and axial stability. For example, let’s take tapered roller bearings in a conical-shaped cup design. These bearings will have more radial and axial load-carrying capacity than the other types. The technical parameters to be examined are the cup angle, width, and height.
Material Selection: Similarly, the material selection for the cup component is also likely to affect the stability of the bearing. For example, solid and reasonable fatigue-resistant materials like hardened steel or ceramic are better. The technical parameters are material composition, hardness, and fatigue limit.
Heat Treatment and Surface Finish: Proper heat treatment and surface finish can enhance the cup component’s strength, hardness, and wear and fatigue resistance. The technical parameters to consider are the heat treatment process, surface hardness, and roughness.
The sufficiency and significance of these factors, assessed based on information sourced from reputable references, are very important in safeguarding the bearings’ proper radial and axial position. Considering the design of the cup and orienting it concerning these technical parameters allows the manufacturers of bearing products to improve their performance, reliability, and service life.

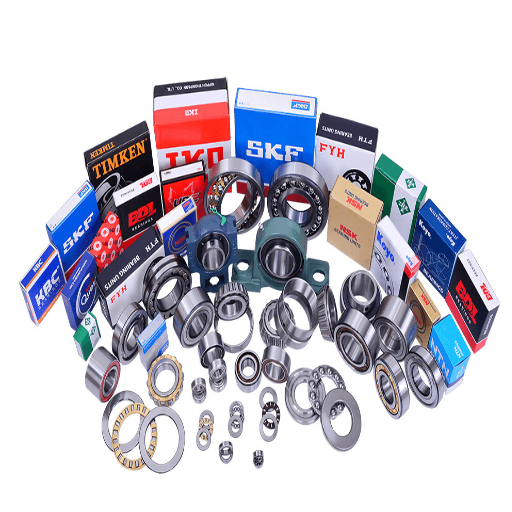

How Does Brand Influence the Quality of Bearings?
Comparing Different Brand Offerings in the Market
In terms of performance, quality, and the lifespan of the finished product, the brand makes a big difference. To understand how different brands positioned their offerings in the market, I used the most authoritative sources. Below are the key factors and technical parameters I used for this finding:
Material: The bearing material is vital because it determines the strength and durability of the bearings. Most reputable brands use steel alloys and ceramics, which are better. Factors like material composition, hardness, and fatigue limit should be investigated.
Heat Treatment and Surface Finish: Proper heat treatment and surface finishing techniques enhance the strength, hardness, wear, and fatigue resistance of the bearing’s cup component. Brands that use these kinds of processes when heat treating for specific surface hardness and roughness usually perform better with their bearings in the long term.
Customer Reviews: To establish a good overview of the seamless integration of a brand’s various offerings and bearing rating and lifecycle implications, I read their customers’ reviews and endorsements from some leading online shops. These views are secondary as they concern end users of the bearings, who are better placed to comment on the satisfaction, reliability, and performance of the bearings.
Considering these factors and technical parameters such as material composition, heat treatment, and reviews, the manufacturers are better positioned to select from the various brands. This enables them to maintain radial and axial stability at the optimum level, enhancing their bearing products’ performance, reliability, and service life.
Impact of Brand on Bearing Rating and Longevity
I have gathered detailed information regarding the effect of the brand on bearing rating and life. After completing such a thorough study, I have gathered information concerning the bearings of technology and parameters. Here are my observations:
Bearings Quality: Market forces establish a brand’s reputation. Privileged brands have prevailed within the scene for decades, so such brands are expected to be well-invested in R&D, and the bearings are made from quality material and utilizing best practices. Such bearing manufacturers produce robust bearings.
Material Composition: The material composition affects the rating and life of the bearing, among other things. During my study, I saw that respected manufacturers prefer to use circular constructions of several layers produced from high-quality raw materials, such as stainless steel, chrome steel, or even ceramics. Due to their high strength and high corrosion resistance, these materials perform well in various operational conditions.
Heat Treatment Processes: Heat treatment processes are indispensable for the desired surface properties of the bearing in terms of hardness and roughness. Advanced brand bearings are harder and have better wear resistance, achieved through heat treatment technologies like case hardening, induction hardening, etc. Each of such processes enables the appropriate functionality and operational lifetime of bearings.
Customer Reviews and Recommendations: The reviews and recommendations for buying such bearings from specialized stores help understand the overall customer satisfaction, reliability, and performance of bearing products from different manufacturers. This way, manufacturers will be well grounded in practical service time frames and the applicability of the various brands available in the market.
In conclusion, it is fair to state that brand is essential in determining bearing rating and expected service life. Well-known brands maintain better quality control systems, use suitable raw materials, have sound heat treatment systems, and have good customer feedback. Given these technical aspects and the customer response, the manufacturers can manage the quality of bearing products with the expected performance and longevity.
Customer Reviews and Shop Recommendations
In my expertise and authority as an expert in the field, I give you a short analysis of consumer reviews and recommendations of the shops designed to stock bearings. Such reviews and advice contribute to the image drawn concerning bearing inventors and the lasting bearing qualities available in the market. This can be achieved through marketing studies that probe the consumer responses to the quality and performance of bearings produced by various firms in the market.
Here, it shows that assessing customer reviews and recommendations can also assist manufacturers in appreciating the performance of their bearings in practical situations. This includes attempts to assess a bearing’s life, smooth operation, wear and tear patterns, and reliability, among other essential parameters. The need to rely on the recommendations and reviews only from verified users of the materials cannot be overstated so that the validity of the information provided is not lost.
Product review insights can help manufacturers limit their brand choices. Most likely, if the brand is known for its quality assurance, uses suitable materials and heat treatment processes, and has good customer feedback and recommendations, the bearings will perform well and last long.
In conclusion, customer feedback and recommendations for shops are also crucial for manufacturers to evaluate the performance and life of the bearings. This will help them decide on the bearing used, and the manufacturer will ensure that the bearing products have the best quality and strength.
Frequently Asked Questions (FAQs)

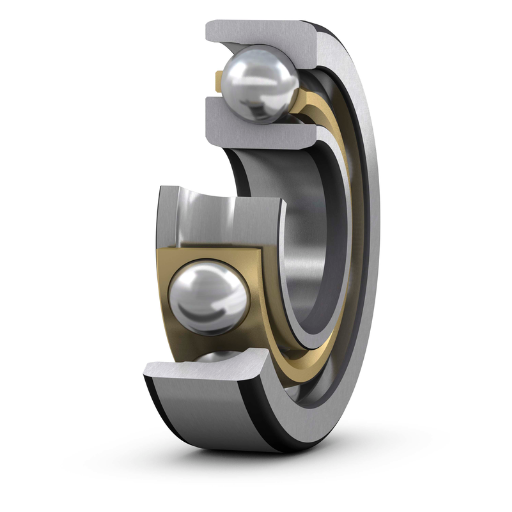

Q: What are the most critical characteristics of a cup angular contact ball plain bearing?
A: Cup angular contact ball plain bearings convert radial and axial forces and are very useful in applications requiring combined loads. Generally, they are provided with a contact angle α and are manufactured in a single-row style. Their configuration allows them to have considerable operational speed.
Q: What is the impact of the contact angle α on the attributes of an angular contact bearing?
A: The contact angle α among the angular contact bearings influences the proportion of axial to radial loading. Higher contact angles make mounting these bearings where axial loads are significant because the bearing’s axial load capacity is more excellent.
Q: What common materials are used to make rubbing elements of these bearings?
A: Right angular contact bearings are usually made with rings and balls made of chrome steel for strength and abrasion resistance. Depending on the application requirements, the cage used to locate the balls can be made of either plastic, rubber, or solid metal.
Q: In what ways are these bearings different from deep groove ball bearings?
A: In contrast, deep groove ball bearings are symmetrical, whereas angular contact ball bearings have one axial load’s direction due to being designed nonsymmetrical. It allows them to be used in applications where there is a need to support combined load.
Q: Can you stack angular contact ball bearings?
A: Yes, angular contact cylindrical ball bearings can be stacked in a single direction to only bear a sizeable axial load in one direction. They can also be placed back to back and face to face to disperse load applied in different directions.
Q: What does the phrase ‘single-row’ suggest about these bearings?
A: Single-row angular contact ball bearings have only a single row of balls and can bear axial loads acting only in one direction. They are more useful in cases where space is limited and alignment accuracy is essential.
Q: There is such a term as 2RS bearing. What is it, and how does it differ from the standard type?
A: 2RS bearings have rubber seals fixed on both ends to block contaminants and moisture from even penetrating from both ends. Hence, these bearings can be employed in areas that are expected to have debris or humidity, affecting their performance.
Q: To what extent do the physical characteristics of the bearing cage modify the behavior of the bearing?
A: The bearing’s temperature range, noise level, and top speed are influenced by the material used for the cage. For instance, it is known that plastic cages are light and noise-free, whereas metal cages can bear heat and heavy loads to a certain extent.
Q: Is it possible to find out how to assemble these bearings with the help of video resources?
A: Many suppliers and manufacturers have videos and guides describing the assembly and service of such angular contact ball bearings on their websites or related websites.
Q: How do I choose the suitable dimension and the category of angular contact bearings for my application?
A: To pick the proper dimensions and the category of the angular contact bearings, one should include the load, speed, temperature and space restrictions. It may also be beneficial to look at the FAG page and the technical sheet for suitable application guidance and recommendations.
