Angular contact ball bearings are critical parts of various industrial and mechanical systems like other bearings. The strength of these parts lies in their reliable operational design and precision manufacturing, which enables them to perform radial and axial load applications efficiently. The purpose of this article is to describe the main features of such bearings in terms of design, function, and their importance for systems and machinery. This information is beneficial if you are an engineer wanting to advance your knowledge or a professional who has to judge which type of bearing to choose. The document’s objective is to understand the role of angular contact ball bearings in modern engineering.
What are the unique characteristics of angular contact ball bearings?
Design and contact angle
Angular contact ball bearings are distinctive when compared to the other kinds of bearing types. In my perspective, the most differentiating characteristic is the so-called contact angle – the angle made by the line joining the points of contact of the ball and the raceway with the radial plane of the bearing. Due to this contact angle, the bearings can sustain combined loads, which are the radial and the axial loads, at the same time.
Contact angles of 15°, 25°, and 40° are the most common. Smaller angle ranges tend to prefer speed, while more extensive ranges offer greater capacity for axial load. For example, high-capacity 40° contact angles support significant axial loads for high-speed spindles or pumps. The inner and outer who effectively take on these loads are designed to ensure sufficient accuracy and sturdiness in highly demanding environments.
Handling axial loads and radial load
In managing axial loads, I pay special attention to selecting a contact angle that corresponds to the application’s needs. For instance, not only is a 40° angle of contact effective, but it is also ideal for applications that require heavy axial loads to be supported, such as in pumps or spindles operating at high speeds. In the case of radial loads, I make sure that the geometry of the bearing is such that the load is evenly distributed on the raceway.
Contact angle: Smaller angles for example 15° are favorable for high speed whereas 40° is good for supporting axial loads.
Load ratings: For efficient performance in service, always verify the dynamic and static load ratings with the manufacturer’s specifications.
Material and lubrication: Ensure the bearing materials and the lubrication method and materials used will contribute positively to efficiency and durability when the bearing is subjected to high axial and radial loads.
I can achieve precision and reliability in load-bearing applications by complying with these principles.
Applications and performance
In my line of work, the first concern when choosing a bearing is its intended application. First, I look for bearings with at least 750,000 mm/min rotational speed rating for high-speed applications, commonly possessed by contact and angular bearings. On the other hand, tapered roller bearings would be best for industrial machinery with heavy loads due to their superior capability to withstand shock loads.
Special attention should be paid to technical parameters to get the best out of any bearing. For example, dynamic load ratings must accomodate for operational requirements, such as for safety longevity, the load bearing rating should be 1.2 to 1.5 times more than the expectation. Furthermore, I also assess the static load ratings if the resting force can be withstood without deformation. Lubrication has an integral part in any application, too, since it avoids overheating and wear; therefore, I ensure to grease or oil depending on the speed and temperature conditions, which range from -30°C to 120°C.
In achieving specific mechanical goals, I am confident in the effectiveness and durability of the bearings’ performance, all while meeting the strict technical measurements aligned to the specified application.

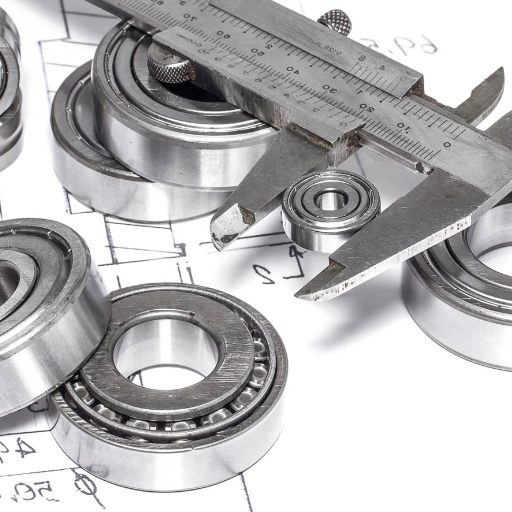

How does precision impact the performance of these bearings?
Importance of precision angular contact ball bearings
It is of absolute importance that angular contact ball bearings function and perform well in high-accuracy, high-speed areas. The contact angles and load that the bearings are subjected to have a direct effect on the component’s configuration. This affects the rigidity and stiffness, allowing for adequate performance stability and accuracy during diverse operational scenarios. For instance, setting the bearings’ contact at 15 degrees or 25 degrees considers radial and axial loads simultaneously and is ideal.
Another thing that affects the entire machining’s runout tolerances is the bearings’ accuracy classes, P4 and P5, to name a few, ISO standards. I continuously monitor the runout as it dictates the precise value of the components’ positional accuracy. On top of that, I monitor the screws’ preload settings and lubrication choices for temperature ranges through heavy, medium, and light deflections. I can achieve consistent and durable performance on various complicated mechanical systems depending on the parameters I set.
Role of high-performance materials
Mechanical systems rely on high-performance materials for dependability and efficacy. I consider the effectiveness of a material’s strength, durability, and resistance to wear when subjected to demanding conditions. For instance, I choose materials with high modulus, tensile strength, and elasticity in processes that require high load capacities and low deformation. Furthermore, I try to ensure that surface hardness reaches a value that resists surface fractures to an extent that enables the material to withstand a severe degree of stress, usually more than Rockwell HRC 60.
When considering the thermal stability of a proposed system, I tend to look out for materials that are steel alloys exhibiting a range of working temperatures from -30°C to 120°C. For corrosion resistance, especially in difficult areas, I select stainless steel and advanced ceramics with protective coatings to improve durability.
An assortment of materials with such technical specifications provides sufficient confidence to guarantee performance in cyclic loads, high temperatures, or harsh conditions. This self-evident approach also quickly tends toward each mechanical system’s optimal lifespan and reliability.
Maintaining bearing life and reliability
Certain crucial aspects and specific parameters must be carefully considered to enhance the reliability and service life of any bearing.
Adequate Lubrication—High-precision lubricators are designed to correlate with particular conditions of temperature, speed, and load, so I use the right lubricants for every case. Synthetic oils will benefit high-temperature applications, while grease with extreme-pressure additives will be needed for heavy loads.
Load Control: I try to stay within safe bounds while monitoring and adjusting the loads to prevent wear or deformation. For bearing systems, two critical parameters I accept are the dynamic load capacity (C) and the fatigue limit load (Pu), which I consider during the design process.
Installation and Alignment—If the bearing is misaligned, its life is bound to be significantly reduced. During installation, properly calibrated tools are used to check alignment, and it is crucial to ensure even load distribution across the bearing’s raceways.
Protection From Contaminants – I fit protective seals or shields to prevent the ingress of contaminants like dust, moisture, etc. Bearings of labyrinth or contact seals have specific sealing designs that protect migrations of contaminants in especially harsh environments.
Thermal Regulation—Excessive heating can Compromise material integrity and cause ceramic degradation of the lubricant, so I try to avoid these issues at all costs. For that reason, I always check the operational temperatures, and I use materials with higher thermal resistance, such as high-carbon chrome steel.
If I stick to these procedures, I can assure you that the bearings will work adequately and have a maximum lifespan.”

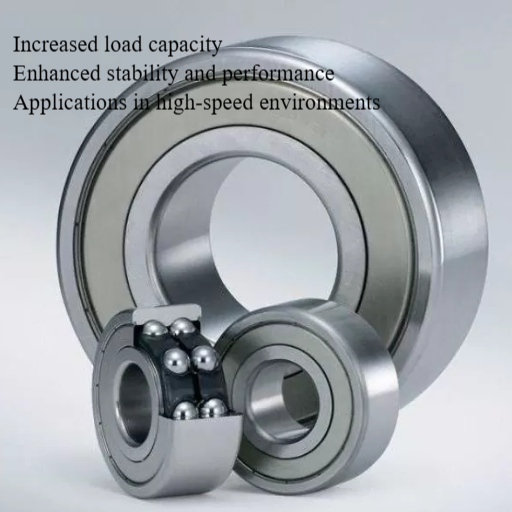

What are the advantages of using double-row angular contact ball bearings?
Increased load capacity
Ball bearing design with double-row angular contact enables the bearing to accommodate higher load capacities than single-row designs. This allows these bearings to simultaneously handle both radial and axial loads in both directions. Based on my experience, the load capacity increase seems to stem from having more rolling elements within the bearing; this tends to improve the load within the bearing and decrease the stress placed on each component. The relevant technical parameters are as follows:
Contact Angle: Most commonly at 30° or 40°, improving axial load-bearing capacity.
Dynamic Load Rating (C): The ability of the bearing to withstand a combination of loads over a specified life expectancy is termed rating C. It is higher for double-row designs.
Static Load Rating (C0): The maximum load that can be applied to the bearing without causing permanent deformation. Supports heavy static loads without moving parts.
Material and Heat Treatment: Superalloy steel is usually optimized for heat treatment to ensure strength under high loads.
Considering these parameters, I confirm that the bearing’s performance coincides with the application’s needs and increases its efficiency and reliability.
Enhanced stability and performance
To be specific about the enhanced stability and performance, I consider many technical parameters to ensure the best possible outcome:
Dynamic Load Rating (C) – In my evaluation, I analyze the bearing’s capacity to handle the expected combined loads for its lifetime to determine durability and overall performance. Double-row designs tend to have better load distribution; therefore, they are the best solution for applications needing extra load stability.
Static Load Rating (C0) – This criterion defines the maximum heavy load the bearing can bear without suffering from deformation, ensuring that the structure remains intact under extreme conditions.
Clearance and Tolerances: Selecting radial internal clearance and terminating excessive precision elitism reduce vibration and misalignment, resulting in smoother operation and longer bearing life.
Material and Heat Treatment—I use high-grade steel and heat treatments that enable the material to perform well, even under very strenuous conditions such as extremely high loads and RPMs. This helps maintain overall piece performance and wear resistance.
In addressing these parameters stepwise, I know that my design implementations satisfy the application’s needs and enable efficiency, reliability, and long-term stability.
Applications in high-speed environments
While reviewing high-speed conditions, I ensure that components and materials’ parameters are appropriately selected based on the unique characteristics these conditions advocate for. Here are some key considerations and technical parameters relevant to such applications:
Bearing Design: The selected bearing is optimally designed, including Angular contact and cylindrical roller bearing types, which best accommodate stability and efficient high rotational speeds.
Lubrication: Using low-viscosity and high-temperature lubricants reduces friction and overheating during fast speeds.
Precision Grades: The P4 and P2 classes, according to ISO standards, demonstrate lower tolerance, which aids in choosing bearings, combining lower vibrations but also high precision at high RPMs.
Material Selection: My choice of material is high-performance steel alloys embedded with ceramic rolling elements to combat the intense centrifugal forces and reduce wear.
Dynamic Balancing: Smoother operation with less vibration noise at elevated speeds is achievable with properly balanced rotary components.
By evaluating and implementing these technical parameters, the application’s performance and durability can be ensured while meeting safety and efficiency conditions in a high-speed environment.
How to ensure proper mounting and maintenance?
Step-by-step mounting process
Preparation of Components: Each part, especially the shafts and the housings, require specific inspection as they need to be clean, free from any blockages, hinges, or screws. That is how I ensure the component is clean enough, preventing contamination, which may bring about wear or complication. Furthermore, I check to see that the shaft and housing dimensions are within the given tolerances, as they need specifications.
Inspection and Lubrication: Before mounting the rolling elements and raceways, I assess their condition to ensure they are undamaged. Appropriate lubrication of the right type and volume reduces friction and operating temperature while improving heat management. The operation factors’ pounds, speed, and temperature must be considered for optimal application.
Mounting with Proper Tools: I always use tools like hydraulic presses or bearing heaters with exact fit types to mount components without excessive force. This ensures that high-performance materials like steel alloys or ceramic elements will not be damaged in the process.
Alignment and Balancing: I continue monitoring alignment throughout the mounting stage, ensuring that the bearing does not undergo undue stress. The dynamic balancing value is essential to alleviating system-related vibrations as well as prolonging the life span of system components during the rotation of the parts.
Screw the Assembly: I make sure that locking devices like nuts and bolts have been locked using the recommended torque. Torsional loosening is one consequence, which is the result of tightening too much or too little.
Testing and Verification: I conduct tests immediately after assembling the parts to ensure all moving elements operate smoothly. One step is listening for excessive noise or signs of overheating, which typically indicate a problem with the installation or alignment of the components. This is necessary to manage heat and the system’s effectiveness.
If the high-speed application is executed as stated above and all my technical parameters are justified, I can guarantee its reliability and durability.
Lubrication with grease and oil
When answering questions about lubrication, I use techniques that consider the application and its operating conditions.
Grease Application: I check if the grease I use suits the operating temperature and speed. In high-speed applications, I use a low-viscosity grease with a -20° to 120°C thermal tolerance rating. This reduces friction and increases ease of use. The amount of grease is also volumetrically proportional to the size of the bearing; hence, too much or too little lubrication can lead to overheating or poor lubrication, respectively, so avoiding extremes guarantees proper usage.
Oil Lubrication: For oil lubrication systems, I provide the correct viscosity according to the ISO VG standard. For example, moderate speed uses ISO vG 68 or vG 100. I set the oil’s flow rates and pressure to the required level, and the oil film is tagged so oxidation and wear are kept to a minimum while drawing away heat. Also, the oil is checked for contamination because a clean lubricant lowers the system’s reliability.
With these boundaries set, I ensure that the lubrication technical requirements are met and the components optimally operate for an extended, period of time.
Regular inspection and condition monitoring
I regularly carry out inspections and condition monitoring to verify that the system functions properly and dependably. I can identify signs of wear and misalignment using vibration analysis and thermographic imaging. For example, vibration analysis does not miss imbalances, looseness, or bearing faults, allowing necessary adjustments to be made before a failure occurs.
Some key parameters I monitor include the amplitude of vibration, which must comply with ISO 10816 standards, and operating temperature, which is set around normal to check for blast deviations. For example, bearing temperatures over 80 degrees Celsius may suggest unreasonably high friction or inadequate lubrication. On top of that, oil analysis is conducted to determine if there is contamination, oxidation, or degradation, which would compromise the lubricant and the system’s integrity.
By precisely addressing these parameters and anomalies, I ensure the system’s stability and optimal performance while increasing its long-term durability and reliability.
Why choose nskhps angular contact ball bearings for your application?
Benefits of the NSK range of angular contact products
THE NSK collection of angular contact ball bearings provides exemplary benefits to guarantee optimal performance and reliability in demanding applications. Considering the operational requirements, these bearings are specialized to be highly precise to support both radial and axial loads. Their design features enable higher speed and lower friction, significantly improving energy efficiency and operational cost savings.
Looking at the details, NSK angular contact bearings also benefit from specifically optimized contact angles, which are set between 15° and 25°, providing higher axial load capacity. They utilize tough heat-resistant steel for parts, allowing the bearing to endure extreme operating conditions. NSK provides seals and cages made to perform better by keeping a grease film unbroken to protect against wear and maintain service life.
These bearings are supplied with electric insulation ceramic balls and scales for obtaining lower weight or higher precision P4 or P5 grades. When I select NSK P4 and P5 angular contact ball bearings, I am sure there will be smooth and reliable operation without failure while providing maximum life to the machinery. Their broad range is suited to multiple industries, making them the preferred choice for high-performance machinery.
Features of NSK Americas offerings
The offerings by NSK America’s range of products stand out because of their innovative, performance-driven, and adaptable traits to specific application needs. NSK’s angular contact ball bearings are recognized for their superior quality and technical sophistication. Below are some of the primary characteristics and technical specifications of these offerings:
Contact Angles Optimized: Ensures high axial load-carrying capacity and is best suited for high-precision load-handling applications. Contact angles are available between 15° and 25° degrees.
Material Adequacy: These bearings enable performance under extreme operating conditions as they are built from high-quality steel with good toughness and heat resistance.
Optional Advanced Lubrication: These also include bearings with seals and cages that capture grease film, minimize wear, and prolong the service life of the bearing.
Integration Of Ceramic Balls: Allows the use of ceramics in applications that require electric insulation or any application that needs weight reduction without performance loss.
Precision Grades: The bearings can be supplied in P4 and P5 accuracy grades for specialized industries needing high precision, like robotics and machine tools.
With NSK products, I am provided with advanced solutions tailored for specific performance requirements, guaranteeing performance, reliability, and efficiency in a wide range of industrial applications.
Such a scope of customization and level of quality i get from their offering justifies my preference for them in high performance situations.
Frequently Asked Questions (FAQs)
Q: What are some notable features of angular contact ball bearings?
A: An angular contact ball bearing can simultaneously accommodate a radial and unidirectional axial load. For example, these bearings possess a ball pocket, which is part of a radial retainer and specially formed raceways for higher rotation speeds than regular ball bearings. These types of bearings are single row or duplex types; single row or duplex types depend upon the load magnitude.
Q: In what way does the cage in angular contact ball bearings impact performance?
A: The cage retains the retainer’s overall configuration and keeps the balls evenly spaced apart to minimize friction. The outer ring-guided brass cage retainer achieved the performance of ball bearings, especially at high speeds. Moreover, the brass cage provides the bearings with better structural strength by enhancing their durability and further aids in improved lubrication distribution to the bearing, increasing its efficiency and lifespan.
Q: What are the speed capabilities of angular contact ball bearings?
A: Unlike many other roller bearings, angular contact ball bearings have much higher operating rotation speeds. Specifically, the NSKHPS precision angular contact ball bearings are designed to operate at significantly elevated speeds. The speed rating varies based on the bearing series, type, size, and lubrication method.
Q: In what ways do angular contact ball bearings accept axial loads?
A: Unlike ball bearings, angular contact ball bearings are built in a manner that makes it easier to deal with axial loads in one direction. Angular raceways and contact points increase the bearing’s ability to carry axial thrust loads, which is ideal for applications that experience axial and radial loads.
Q: What distinguishes single and duplex angular contact ball bearings?
A: Single-row angular contact ball bearings can only accommodate thrust loads in one axial direction, while duplex angular contact ball bearings consist of two simply arranged bearings that can either work back-to-back or face each other. Duplex-mounted angular contact bearings are more versatile as they can sustain thrust loads in both directions while increasing the overall rigidity of the system, which is crucial for highly loaded rotary machines.
Q: Is there a sealed type angular contact ball bearing? If so, who manufactures them?
A: Some manufacturers do produce sealed angular contact ball bearings. These bearings have built-in seals that guard internal parts from contamination and secure the lubricant in place. Such sealed ACBBs (Angular Contact Ball Bearings) are beneficial in applications where upkeep is not possible or harsh conditions are common.
Q: What factors must be considered when choosing an angular contact ball bearing?
A: These include the direction and magnitude of the load, required speed, operating temperature range, and other environmental factors. Also, the bearing series, cage type, clearance, single versus duplex, and other features are important considerations. Companies like SKF provide different types of angular contact ball bearings for various applications, which makes them quite popular.
Q: Are angular contact ball bearings appropriate for use in a pulley system?
A: In some cases, axial load support angular contact ball bearings may be used in a pulley, although they are not the most commonly used bearing in such applications. However, it is rare to find these bearings in pulleys because most have standard deep groove ball bearings or roller bearings, less expensive designs.
