Numerous mechanical systems depend on bearings for continuity in various applications to ensure smooth, efficient, and reliable operation. Among so many types, there are angular contact ball bearings and radial bearings, which are distinct in their designs and functional capabilities. As every kind has advantages suited for its target purpose, it is essential to know the features, differences, and types of applications each is designed for. This article compares and contrasts the features of angular contact ball bearings with radial bearings and outlines characteristics that will guide the reader in making good decisions during the selection of bearings. For engineers, technicians, or even those interested in machines, if you are looking for something simple and nice about these vital equipment parts, this guide is for you.

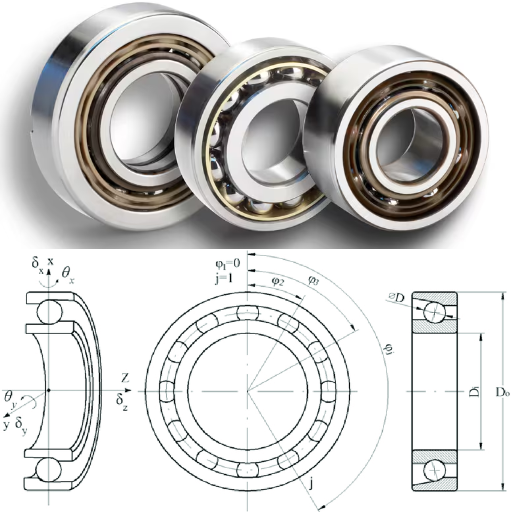

What are the main characteristics of angular contact ball bearings?
Understanding the unique design of angular contact bearings
Angular contact ball bearings have a unique internal geometry and can take radial and axial loads. These types of bearings can propel high precision and high load factors. A contact angle, the angle seen between the ball and the raceway, distinguishes these bearings. A contact angle allows the bearing to work more effectively by preventing excessive forces from being applied to any area.
Contact Angle: This is usually between 15 to 40 degrees, wherever a large contact angle is, heaves, greater load-bearing thrust but diminishes radial load for the bearing.
Load Capacity: Because they can support both radial and axial loads, they can be used in heavy-duty places such as machine tool spindles and high-speed motors.
Precision Classes: meeting Parsons standards, these bearings are available in various precision grades or ANSI, ensuring versatility regarding the applications they can reach out to where high accuracy is required.
Material Composition: These are often made of high-quality steel or ceramics to avoid excessive friction and boost durability.
This design enables angular contact bearings to work efficiently at high speeds, enhancing the system’s reliability.
How contact angle affects bearing performance
The performance of angular contact bearings is directly related to the contact angle since it explains the load capacity and stiffness of the bearings. To my mind, an increased contact angle range (such as 25 degrees – 40 degrees), on the other hand, enables the bearing to be applied to applications that have high axial force requirements. On the other hand, smaller contact angles (such as 15 degrees) encourage higher rotating speeds and increased axial load support, which is ideal for high-speed rotation applications. Other critical technical parameters related to this angle are:
Bearing axial load capacity: It is proportional to the sine of a contact angle where a greater angle provides good axial load support.
Bearing radial load capacity: Small contact angles yield a greater bearing radial carrying capacity.
Dynamic and static load ratings: In this context, these parameters would include the mention of certain contact angles deemed suitable for optimized performance for specific purposes.
Optimal operating speed: Conversely, reduced contact angles result in friction loss and thus increased operational speeds.
Thus, by appropriately choosing the contact angle based on the parameters highlighted above, it would be possible to achieve the desired performance for particular applications while still maintaining system efficiency.
Comparing single-row and double-row angular contact ball bearings
Based on their design and intended application, single-row and double-row angular contact ball bearings exhibit specific benefits that a casual user can appreciate. In my opinion, single-row angular contact ball bearings are helpful when the aim is to support large axial loads but in one direction and do not favor bulky components. Their most critical technical parameters include:
Contact Angle: Sufficiently large, quite 15° to 40°, owing to which adequate loading capacity is available for axial loads in the direction of the contact angle.
Speed Capability: Owing to less friction, they can reach a higher maximum speed than the double-row type.
However, the case differs with double-row angular contact ball bearings as they manage axial and radial loads on both sides and are hence preferred in situations requiring support on either side in relatively minor areas. For these, the key parameters include:
Contact Angle: Though most of these types balance the axial loads, many are operated at around 30° in both directions.
Load Capacity: The double-row type has a higher axial load bearing capacity than single-row types, hence system stability is increased.
Space Efficiency: They are generally more significant than the single-row type, but they are space efficient compared to using two independent single-row bearing components.
Ultimately, which type to choose boils down to understanding the cut between all load, space, and speed features to maintain the system’s performance.

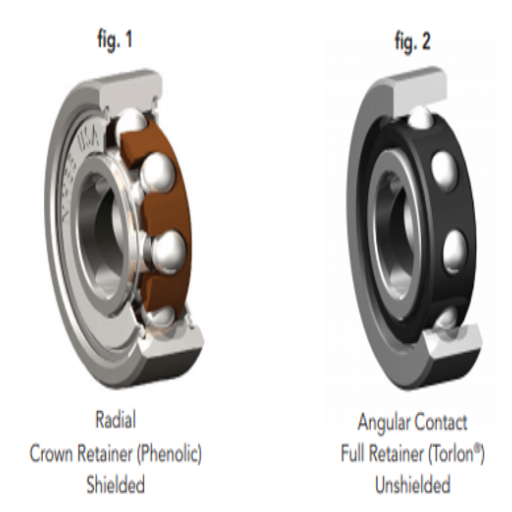

How do angular contact ball bearings compare to radial bearings?
Key differences in design and load handling
Angular contact ball bearings and radial ball bearings significantly differ in their designs and the load they can handle:
Design and Load Angle: Angular contact ball bearings are built to support axial and radial loads due to the raceway grooves’ geometry and their contact angle ranging from 15° to 40°. The contact angle enables them to take up more axial loads than radial ball bearings, which have a zero contact angle and are designed to take on radial loads only.
Axial Load Support: Single-row angular contact bearings can take on axial loads in one direction or bidirectional axial loads in pairs. In contrast, radial ball bearings have a limited axial load capability and are helpful for applications where only a small amount of axial force is required.
Speed Capability: Radial ball bearings are usually more effective when rotated at higher speeds owing to their shape and lower friction. Angular contact bearings can also function quickly, but the faster they go and the more axial load they experience, the more limited they become.
Applications: Angular contact ball bearings have a dual purpose. They are suitable for shaft applications, pumps, and gearboxes where axial and radial forces are present. Radial ball bearings, however, find applications in motors, fans, and conveyors based on radial force requirements and comparatively more straightforward systems.
Considering the stated differences, engineers must consider working conditions such as the axial and radial load requirements, speed, and bearing alignment accuracy to choose the correct bearing type.
Speed capabilities: Angular contact vs. radial bearings
In deciding the speed attributes of angular contact and radial bearings, there are pretty several parameters that I have to consider. The angular contact bearing’s inner and outer race are geometrically designed in such a way that they allow the bearing to be used at more incredible speeds than standard bearings because it enables a better contact angle, thus reducing the friction and allowing for the application of axial and radial loads at the same time. This enables the bearing to be used for high-speed applications such as turbines or high-performance machines. However, radial bearings can also bear radial loads but at pretty moderate speeds and, therefore, are much less advisable for conditions with high rotational requirements due to insufficient axial support.
Maximum Rotational Speed
Angular Contact Bearings usually have higher ratings, and their speed varies from 10,000 to above RPM based on their design and lubrication.
Radial Bearings—in all cases, they have lower speeds to angular equivalents of about 5 to 7 thousand RPM, depending on the bearing’s size and application.
Load Distribution
Angular Contact Bearings – These are relatively well suited for dynamic applications since they can withstand joint axial and radial loads due to their angular configuration, which makes the bearings’ operations ideal for high speeds.
Radial Bearings – These can only apply radial loads, making them practical for use in radial applications. However, they restrain axial loads in doing so, resulting in low-speed operations in many extreme working applications.
Precision and Applications
Angular Contact Bearings are used in harsh environments where speed, precision, and durability are needed, such as aerospace or race car components.
Radial Bearings are best suited for low-speed applications that do not require complex designs, such as conveyor belts or standard electric motors.
Investigating performance parameters for any task ensures that the bearings fulfill the necessary design criteria about the speed, load, and wear of the system is optimized.
Choosing between angular contact and radial bearings for specific applications
When deciding whether to use angular contact or radial bearings for specialized applications, it is necessary to assess the working conditions and technical parameters to achieve the best possible performance.
Load Type and Direction
For applications with combined axial and radial loads or purely axial load requirements, angular contact bearings seem to be the best fit due to their design characteristics. Also, their ability to withstand high axial loads is ideal for high-ending rotating machines like machine spindles or turbines.
Bearings of this type are classified as Radial and are better suited for radial and moderate axial loads. Thus, these are adequate in simple machines, such as conveyor systems or pumps.
Speed Requirements
Lubrication enables the angular contact bearing to reach maximum rotational speeds, making it better suited for high-speed operations.
Radial bearings meet their demands for moderate to low-speed applications for which durability and stability are more important than sheer performance.
Precision and Operating Environment
Angular contact bearings are better suited for places where a high degree of precision and rigidity is required. They provide great operational value and work best in critical applications like CNC machines.
They are better suited for simpler and broader purposes where the cost is an essential factor, like radial bearings.
Key Technical Parameters
Load Capacity: When we compare the two types of bearings, the first one has higher axial load-carrying capacities than the second one. The other two are exceptional for transmitting forces perpendicular to the shaft axis.
Speed Rating: More angular contact bearings can provide higher speed capabilities due to improved design.
Temperature Range: All can function at regular operating temperatures for industrial use but may need specific lubrication for extreme conditions.
Durability: Regarding longevity, radial bearings would remain a preferred choice in low-stress applications, while angular contact bearings perform exceptionally well in high-performance conditions with necessary care.
By examining these parameters one by one, it is possible to pinpoint a type of bearing that would suit the requirements of such operations and be effective, dependable, and economical in the long run.

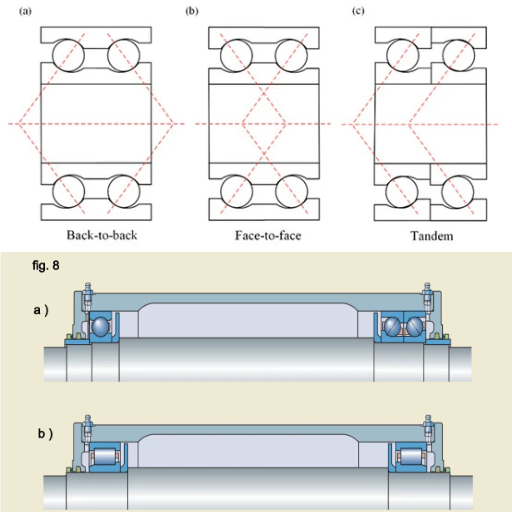

What are the various mounting options for angular contact ball bearings?
Single, duplex, and multiple-bearing arrangements
Regarding the topics of bearing mounting options for angular contact ball bearings, I will try to explain single, duplex, and multiple-bearing arrangements straightforwardly:
Single Bearing Arrangement: This arrangement uses a single bearing. It is appropriate for applications where the axial force acts in one direction with no counter-opposing force or where a different bearing generates an opposite force. In this case, a defining feature is a contact angle that varies with most designs, ranging from 15° to 25° in the bearing.
Duplex Arrangement: This employs a pair of angular contact bearings that are separately mounted but form one unit for high axial loads and more rigidity. The standard configurations include:
Back-to-Back (DB): Increased rigidity and moment support causing overturning. Axial loading ranges from being fully balanced with the recommended amount conditions.
Face-to-Face (DF): Limited angular displacement on the direction axis – potential for axial alignment but lower rigidity than in the DB configuration design.
Tandem (DT): Intended for structures to endure axial loads along the same axis, allowing for a high amount of axial force.
The key points include the appropriate bearing preload to minimize movement during operation and a specific optical alignment during assembly.
Multiple-Bearing Arrangement: This usually permits the covering of larger loads or ensures more extended operations, allowing the incorporation of some duplex pairs. Due to the peculiarities of the construction, parameters like the load spread, dynamic load rating, and correct orientation define the essence.
These mounting alternatives satisfy particular performance requirements; their practical application depends on correctly grasping and using relevant technical parameters.
Preload considerations in angular contact bearing mounting
Regarding the angular contact bearing mounting structure, I always ensure that I do not excessively compress the bearings as I work towards achieving the optimal rigidity that meets the desired bearing life. Preload, or the axial load thrust onto the bearing once attached, affects performance characteristics, including rotational speed and accuracy, stiffness, and heat produced.
To figure out what would be the best preload for the bearing, I take into consideration the following technical specifications:
Application Loading Characteristics—Preload is helpful because it ensures sufficient rigidity for dealing with static and effective dynamic loads.
Limits of Rotation Speed and Operating Temp—Excessive compressive forces may cause considerable stray friction, producing heat and potentially decreasing the bearing’s life.
Dimensional Changes—Certain manufacturing tolerances and thermal expansion must be considered so that the preload does not vary significantly across operational conditions.
The angle of Contact and Roller Bearing Location—The contact angle of the bearing determines how much of the rolling elements receive the effects of the preload, ultimately dictating how the bearing will function.
Lubricating Medium: Adequate lubrication creates less wear and heat, so it is essential at terminals with higher preloads.
Operational compressive forces justify that an angular contact bearing does not have to overwork itself to work optimally, leading to prolonged and reliable life spans. This methodological approach is a foundation for effectively performing angular contact-bearing arrangements in various high-precision applications.
Shaft and housing fit recommendations
Last but not least, the fit of the shaft and housing is crucial for self-alignment purposes, especially in cylindrical roller bearings. A secure fit is emphasized as essential to achieving efficient rotary bearing performance. Additionally, I suggest that binders may be appropriate on smooth surfaces, but slip-on is only applicable where loading causes no slippage. Allow me to explain the reasons for the recommendations first.
Shaft Fit—I urge that shaft size H6 be standard for typical applications, as this will prevent slip during torque action. Based on the operating load, a high load might require a transition or borderline slip fit.
Housing Fit – I usually recommend slightly greater than i7 tolerances for housing for thermal movement during operation and easy fittings and removal. It is easier to alter the fit tolerance for the housing than it is for the shaft.
Operating Temperature – In engineering, a compensatory fit can also be obtained by assembling several cross-section materials in a hollow shaft cover or selecting a single-shift material less prone to thermal expansion.
Load Orientation – Misalignment coupled with high loading would lead to excessive loading, and hence, tighter shaft fits would be necessary to minimize micromovements; otherwise, tolerances would suffice under lighter or axial loads.
In turn, considering these parameters and applying the allowable deviations (ISO or ANSI as required) to the specific purpose of the application, I secure the durability, alignment, and effective operation of the shaft and housing joint.

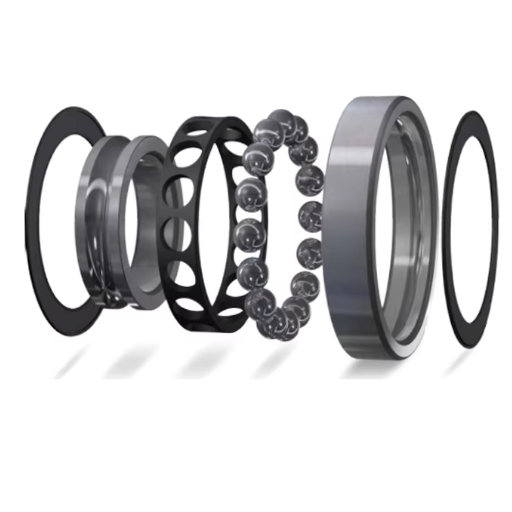

How do seals and cages affect angular contact ball-bearing performance?
Sealed vs. open angular contact ball bearings
Sealed angular contact ball bearings are engineered to operate in extreme conditions with minimal maintenance as they deliver improved lubrication retention and are more contamination-resistant. Furthermore, the seals minimize the ingress of particles, which could potentially damage the bearing. It is pertinent to mention, though, that this sealed design impedes the performance of the bearing since smeared contact with the seal increases friction, especially at higher speeds, which is counterproductive for applications that require the bearing to function at higher speeds.
In contrast, open angular contact ball bearings can operate at incredible speeds due to their inherent design, which requires less friction. They also require customized lubrication, making them more versatile in arrangements requiring extreme cooling or particular lubricating fluids. Maintenance procedures for these ball bearings are much more straightforward, allowing them to be used with regular maintenance procedures.
Speed Limit—Open bearings can operate at higher RPMs, while sealed bearings are restricted due to seal-induced friction.
Maintenance – Open bearings require regular maintenance; however, sealed bearings save grease due to their construction and thus require less frequent lubrication.
Contamination Protection – External contamination is minimized if sealed bearings are utilized over open ones.
Operating Temperature—Open bearings have a wider temperature range because they can be cooled, whereas the sealing material’s limit can restrict the temperature of sealed bearings.
While comprehending these parameters, I choose the type of angular contact ball bearing according to the application requirements, specific operational environment, and load conditions.
Cage designs and their impact on bearing speed and efficiency
The cages’ designs influence the speed and efficiency of the angular contact ball bearing. While considering such factors, I ,however contemplate many fundamental factors that tend to dictate the performance requisites of my applications:
Cage’s Material – The cages are made of vast steel, brass, and polymer arrays. Steel cages are of high tolerance and operate well at high load speeds. Brass cages are said to be better as they are corrosion resistant and can manage relatively higher temperatures alongside polymer cages, which are suitable for quieter higher rev applications due to the less friction they retain.
Design and Structure—The design shape affects the ability of heat and friction in the bearing housing. For instance, machined brass cages offer enhanced strength and stability and provide better service in demanding situations. In contrast, pressed steel cages are lightweight, which assists in higher speed capabilities, but they tend to be weak under extreme loads.
Operating Speed—An appropriately designed cage should ensure ball guidance to prevent excessive wear at high speeds. For high-speed applications, I prefer a cage with an optimized shape and geometry at a low mass to reduce the stress imposed upon the bearing.
Lubrication-Friendly Features—Some cage designs are more functional in facilitating grease distribution or oil flow. Open-pocket polymer cages, for example, aid in lubricant flow, directly affecting efficiency and operational life.
Considering these technical parameters relative to the operating conditions, I selected a cage design that would achieve each case’s trade-off between speed, efficiency, and durability.
Lubrication options for angular contact ball bearings
At the outset, when considering the lubrication options for angular contact ball bearings, I consciously choose only those solutions that best suit the application’s operational conditions and performance criteria. Depending upon specific technical parameters, the selection between grease and oil lubrication is made:
Operating Speed – Since most application conditions are on the higher side of the speed spectrum, oil lubrication is preferred due to improved heat dissipation and friction. Grease can be employed in moderate-speed conditions and is usually more user-friendly in maintenance.
Temperature Range—Oil is ideal for higher temperatures because it improves thermal stability. Specific grease with appropriate additives should decrease oxidation and maintain consistency at lower or moderate temperatures.
Load Conditions—Oil lubrication is best at higher loads, depending on its ability to sustain a thick enough film to carry the churn stress. Grease usually works well with lower loads and helps solve any over-lubrication problem.
Contamination Risks—Grease is an additional sealing agent for dust or sand particles in the environment, so I prefer grease in regions with a lot of dirt. Pouring oil on the environment is more suitable as long as seals are used to prevent the oil from leaking and contaminating the area.
Considering these factors, I evaluate the application and selection of an adequate lubrication method that contributes positively to operational characteristics while minimizing the chances of wear or overheating.

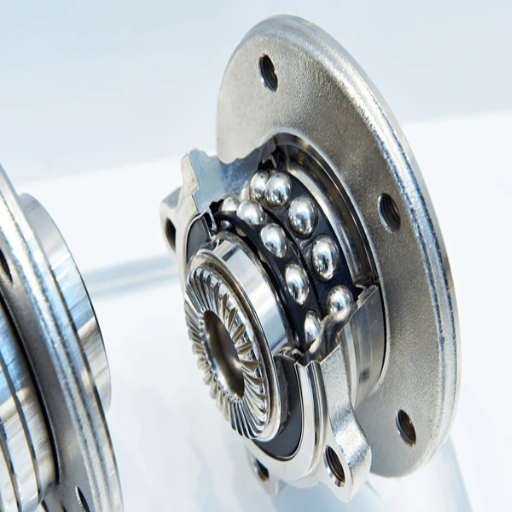

What are typical applications for angular contact ball bearings?
Use in high-speed spindles and machine tool applications
Angular contact ball bearings are vertical and horizontal load-bearing devices widely used in high-speed spindles and machine tools. They are designed to meet the application criteria, which include increased speed, rigidity, and efficiency. These bearings are also designed to be rotatory at high torque limits, which makes them favorable, especially in milling, grinding, and turning operations.
Contact Angle – A spindle of 15°, 25° And 40° Of contact angle can be found at different axial sections. Maximum axial load support is increased when the contact angle is increased, however the maximum speed which could be achieved would be decreased.
Dynamic load capacity—Depending on the size and type of bearings, this value generally ranges from 10 kN to 150 kN. It defines the forces that these bearings can support in operative situations.
Speed Capabilities—If adequately lubricated and the design is effective, these bearings can easily reach 200000 rpm, which is particularly useful in high-speed environments.
Material—Using steel-made and hybrid bearings minimizes wear and heat accumulation, ultimately extending their performance and life spans.
Lubrication – Oil air or even grease lubrication will ensure the efficient functioning of a bearing. Still, for it to be effective, the type of lubricant and its viscosity must be suited for the application’s speed and thrust levels.
Preload – Preloaded bearings are set to a light or moderate level to reduce vibration while increasing rigidity, which is pivotal during machining operations.
Angular contact ball bearings demand their performance and satisfy the speed and precision requirements, but only if the parameters are set and chosen correctly.
Angular contact bearings in gearboxes and compressors
The angular contact bearings are mechanisms that save gears and compressors in terms of rotating speed, accuracy, and service life. It is essential to highlight the key concerns and the corresponding technical parameters and offer brief answers.
Load Capacity
Thrust Load Handing: The case demonstrates that the thrust bearings may combine thrust loads with radial loads but are best suited for rotating devices like the gearbox, which is subject to considerable thrusts.
Technical Parameter: The majority of the load can correspond to the loads expected, in that case dynamic radial load rating may vary depending on size and configuration of the bearing where units range from 25kn upto150 kn.
Speed Capability
Suitability for High-Speed Applications: The performance ability angle type bearing can achieve a speed of 200,000 RPM, provided that bearing conditions are suitable. Therefore, it is easy to see how an angular contact is required for gas compressors or gearbox assemblies that require high rotational speed.
Technical Parameter: Angles-type bearings can achieve good speeds provided lubrication is well taken care of; in this case, oil-air lubricants and hybrid bearings may be required for the type of the angle bearing to achieve stability.
Rigidity and damping of Vibration
Enhanced Accuracy: Preloaded angular contact bearings have increased rigidity and, thus, a better ability to dampen vibrations, critical to smooth movement.
Technical Parameter: The preload setting, which ensures the rigidity and life of the component, is approximately 20N to 100N, depending on the element’s design requirements.
Material and Heat Resistance
Hybrid Rolling Elements: Those bearings consisting of ceramic balls and steel rings (hybrid models) significantly reduce the heat generated and wear suffered by the thermal load applied to the compressors.
Technical Parameters: Heat resistance of up to 250 °C is rated against the chemical composition of the materials used.
Lubrication and Maintenance
Temperature or Load Performance: Proper lubrication, which can involve synthetic grease for moderate speeds or oil-air systems for high speeds, reduces friction and wear.
Technical Parameters: Lubricant viscosity should be between ISO VG 32 and 68, governed by load, speed, and operating requirements.
With those parameters, angular contact bearings give the reliability and performance expected from them in gearboxes and compressors operating under harsh conditions of the industry and mechanical or engineering working conditions.
Industrial applications requiring combined load support
Angular contact bearings can be featured as a solution when combined load support is needed to address several industrial applications. It is worth opting for angular contact bearings as they would withstand axial and radial loads, critical in circumstances like pumps, turbines, and gearboxes. Even under heavy load and considerable speed, the configuration does allow for necessary performance.
In technical parameters, the bearings must possess some of the parameters if they are to be of any use in performance:
Buy Angle: An angle between 15° and 40° provides a good compromise for combined load.
Bearing Speed Limit: The loading speed limit should be suitable for the purpose; expected ranges for high-speed applications are generally over 10,000 rpm.
Material-strength: Steel of good quality or hybrid ceramic will not be deformed and can withstand heavy loads.
Lubrication requirements: Oil-air lubrication systems are best for maintaining operational efficiency while reducing thermal wear for improved performance.
Considering the above problems, angular contact bearings can considerably improve the reliability of operation and productivity of industrial systems subjected to extreme mechanical loads and stress.
Frequently Asked Questions (FAQs)
Q: What are the specifications of angular contact ball bearings?
A: Angular contact ball bearings are characterized by their ability to support both axial and radial loads at the same time. They have raceways in their inner and outer rings that are offset for each other parallel to the bearing shaft. The design also enables the ball bearings to support eccentric loads applied in one direction. Hence, these types of bearings are useful in applications where loads act in combination.
Q: What is the difference between Single and double-row angular contact ball bearings?
A: Single-row angular contact ball bearings can withstand axial loading in one direction only, but double-row angular contact ball bearings can withstand axial loads in two directions. They are generally more load-bearing than a double row, ensuring more reliability even in reversing axial loads or where strength is a dominating factor.
Q: What are precision angular contact ball bearings and their application?
A: Precision angular contact ball bearings are constructed from tight tolerances to improve accuracy and so are classified as precision bearings along with other tools, such as a high-speed spindle. They are ideal in applications that have high speeds, accurate requirements, and high rigidity, such as precision gearboxes. For demanding machinery applications, angular precision bearings are manufactured by an SKF company.
Q: How does the contact angle affect the performance of the bearing?
A: The operative features of the sheaves angular contact ball bearings are also affected by the contact angle. The bigger the contact angle of the bearing, the more significant the ability to axially impact the bearing; however, while achieving this, there could be a slight chance in the radial bearing load of the capacity. In axial applications with higher rotational speed, bearings with smaller contact angles are appropriate. Whatever the application requirement is, there is always a contact angle that meets such specifications.
Q: What are sealed angular contact ball bearings?
A: Sealed angular contact ball bearings feature integrated shields on both sides of the assembled shield. They can block environmental contaminations from infiltrating into the bearings while retaining lubricants to facilitate better operation. Sealed angular contact ball bearings are best suited for applications that deal with harsh conditions where environmental factors could interfere the working of the application.
Q: What are the configurations that include angular contact ball bearings?
A: Angular contact ball bearings are arranged in pairs or groups for satisfactory performance. Standard arrangements include back-to-back (DB), face-to-face (DF), and tandem (DT) configurations. In addition, such arrangements may increase the bearing system stiffness. Adopting any arrangement depends on the loading conditions and the application requirements.
Q: Do you think there is a need for a specific measure for angular contact ball bearings?
A: A preload is an angular contact ball bearing requiring an axial load to be placed during the assembly process. It helps remove the internal clearance of ball bearings, increases their stiffness, and enhances their rotation accuracy. Preloading these ball bearings correctly is necessary for proper operation, especially for machine tool spindles. Preloads need to be chosen based on how the device is intended to be used.
Q: What are the differences and similarities between angular contact and deep groove ball bearings?
A: Deep groove and angular contact ball bearings are both ball bearings, but angular contact ball bearings are generally used for combined radial and axial loads, more so in one direction. Deep groove ball bearings are primarily used for radial loads and only for light loads axially in both directions. Angular contact bearings can rotate at much higher speeds and are designed for precise applications. In contrast, deep groove bearings have a wider practical use and can be found in various general applications.
