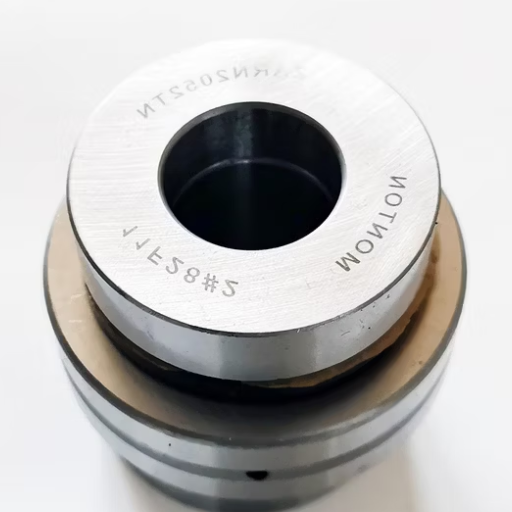

Flange angular contact ball bearings are specifically made to allow the machinery to function with great precision, accuracy, and improved performance, making them one of the significant components of modern-day machinery. These bearings are good on axially and radially loaded applications, making them suitable for numerous industries, including but not limited to automotive and manufacturing. System mounting, alignment, and assembly become more manageable with these bearings with flanged design as they optimize the device’s overall efficiency even in extreme working conditions. This article focuses on the optimal benefits of flange angular contact ball bearings, the working principles that give rise to them, and their significance in enhancing mechanical systems. With this understanding of capabilities, readers will discover how these newly advanced bearings make innovations possible in high-tech bearing systems while at the same time maintaining efficiency.

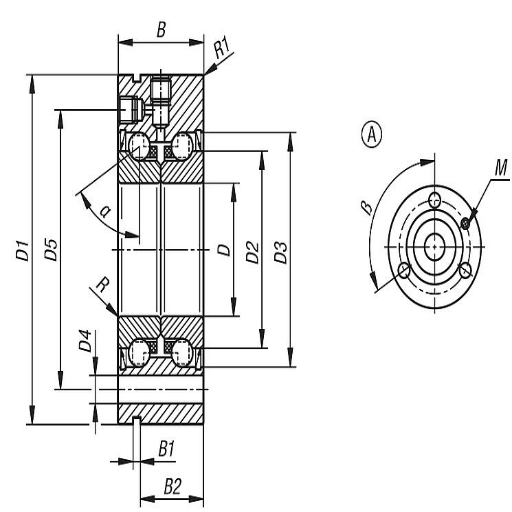

What are Flange Angular Contact Ball Bearings?
Understanding the Basics of Angular Contact Ball Bearings
Angular contact ball bearings are meant to bear axial and radial loads singly or in combination. Raceways, which are cut at an angle to the axis of rotation, make bearing axial loads more efficient. This contrasts standard radial ball bearings, where raceways and rotation axes are parallel. The configuration of these contact balls makes them suitable for use in applications that require high degrees of precision and stability under dynamic or high rotary speed conditions.
Contact Angle: It is available in 15°, 25°, or 40°. A slight angle helps to bear a large radial load, while a higher angle enables the bearing of axial loads.
Load Capacity: These bearings ideally support comprised loads, but the capacity depends only on the bearing’s size and the materials utilized. Manufacturers provide static and dynamic loads for the bearings.
Material Composition: Comprised steels of higher grade or ceramic hybrids are employed mainly to enhance resistance to corrosion and durability and increase operational performance.
Speed Rating: The limit of the rotational speed of high-speed variants can rise to several thousand rpm, and this will all exclusively depend on the lubrication, bearing precision, and cooling practiced.
Precision Class (e.g., P5, P4): Applications in machine tools, robotics, and others require high accuracy, and minimal oscillation and noise are paramount. Therefore, bearings should be manufactured with higher degrees of precision.
Thus, using these parameters, flange angular contact ball bearings are designed to meet specific mechanical needs, considering their functionality and efficiency in contemporary engineering systems.
How Flange Design Enhances Bearing Performance
Flange design is crucial for assuring that angular contact ball bearings operate effectively and enhance their efficiency in different contexts. The integrated flange controls the bearings against axial displacement while maintaining centrical alignment, which is necessary for high and excessive rotary machinery.
Load Distribution: The shaping of the flange enables practical application in compromising both axial and radial loading, which enhances the life of the bearing and retains its performance at a set standard.
Rigidity: Increased structural stiffness almost eliminates structural bending and warping, which is advantageous when dealing with highly accurate processes such as those utilized by CNC machines.
Installation Precision: Internal flanges enable faster assembly and improve accuracy during construction, reducing errors at the installation stage. They also help with placement and intricate networks.
RPM Capacity: The flange enables the bearing to withstand rotation of a few thousand revolutions per minute as it retains stability even in high-speed operations.
Axial Load Capacity: Internally flanged bearings usually resist radial and axial loads, ensuring they work efficiently under severe conditions.
These features have made flange designs enviable in engineering. They can operate different kinds of bearings with high motion and precision.
Single Row vs. Double Row Configurations
A single row bearing configuration may be ideal for one application but using them with specific load conditions may or not allow them to perform satisfactorily, thus in some instances using the dual row ‘may’ be a better option.
Single Row Bearings: In a single row configuration, the design consists of a set of inner race, outer race, and rollers/bearings that complete the assembly. These bearings are used in circumstances with limited space, and the loads being taken are not excessive; they are designed to withstand only radial loads. They have design configurations that are less complex and easier to manufacture while causing less friction when functioning. The specifications and characteristics of this bearing include:
- Load Capacity: Relatively low radial load overall.
- Speed Range: High rpm operations are possible due to the low internal resistance while attempting to make a high intake.
- Axial Load Handling: Limited resistance to radial forces, so extra bounding or supporting may need to be added.
Double Row Bearings: Compared to single row bearings, these designs enable more radial load and axial load to be shared and taken simply due to the arrangement of dual rows of these bearings. The rows being assembled at a certain angle also increases the axial load tolerance and enhances the overall dimensional lateral stability of the assembly. The specifications and the technical characteristics of these designs include:
- Load Capacity: The internal arrangement of rows of inner races and rollers of bearings allows for more radial and axial loads.
- Space Requirements: Larger than single rows pass the specific endurance measures per joint compared to single but do not require added configuring of multiple bearings in some cases.
- Durability and Stability: It has much better endurance when joining loads and is ideal for heavy-duty operations.
Grasping the technical requirements of the system forms the basis of configuration selection. It should be understood that single-row bearings operate better in simple high-speed arrangements, whereas double-row bearings are more suited to complex tasks. The choice stands by the engineering design’s load, application conditions, and design requirements.

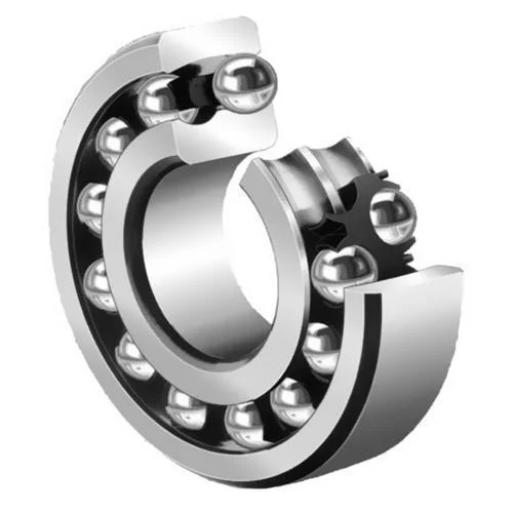

How Do Flange Angular Contact Ball Bearings Improve Efficiency?
Increased Load Carrying Capacity
Flange angular contact ball bearings possess a distinct geometry comprising a contact angle and a dual-race configuration that enables them to withstand higher loading, unlike standard radial bearings. The contact angle, which typically lies between a range of 15° to 40°, enables these spherical ball bearings to endure axial and radial forces at the same time. Thus, they are best suited for applications that require a simultaneous combination of axial and radial forces, such as pumps, gearboxes, and automotive systems.
Contact Angle (α): 15° to 40°. Higher angles are more advantageous as they enhance axial load capacity but slightly compromise slow-speed operation.
Dynamic Load Rating (C): Indicates the maximum load that a bearing can bear during regular operation.
Static Load Rating (C₀) measures the maximum load that can be applied to the bearing without deforming it.
Material Strength: Bearings manufactured from high-grade steel or ceramic have better bearing life and handling transfer.
Lubrication: The use of grease or oil for lubrication assists in decreasing operational heat through friction and improves load transfer efficiency.
As mentioned earlier, these characteristics work together to ensure that the flange angular contact ball bearings achieve the desired performance at high loads, thus improving the performance of the whole assembly.
Enhanced Axial and Radial Support
Flange angular contact ball bearings effectively provide strong axial and radial support, which makes them useful for applications requiring precision and stability. Their construction allows such bearings to withstand effective combinations of loads, such as axial and radial indeed, at the same time without people’s potential deterioration or interference.
Axial Load Capacity: Depends on the contact angle and may increase in radius from 0.5 to 12.7, up to 1.5 times the radial dynamic load rating. Greater angles enhance support when axial thrust loading is present.
Radial Load Capacity: The dynamic load rating (C) is most often measured in kilonewtons (kN), as it is affected by the increase in the bearing’s material strength and size. Although typical bearing dimensions exist, the standard for regular industrial bearings can range from 10 kN to 100 kN.
Contact Angle: Various angles are available. For speed applications, use 15°; for axial applications, use 40°; and for moderate applications, use more than 25°.
Speed Limit: This is modified by centered lubrication and construction. Performance ranges from 5,000 to 40,000 RPM, but it may vary with different experiences.
Material and Coatings: Steel or ceramic with a wear-resistant and anti-corrosion coating increases strength and reduces stress during operations, which is promising.
All these parameters must guarantee that the bearings provide the best possible axial and radial reactions, which would help in efficient and dependable high-end systems.
Reduced Friction and Heat Generation
Reduced friction and heat generation can be managed by considering the following technical specifications:
Lubrication Type and Viscosity: Scheduling lubrication to increase clearance reduces the surface contact area and, hence, friction, making heat discharge effortless. Synthetic oils such as ISO VG 32-100 can be adapted for specific operational modes and temperatures.
Surface Finish and Tolerance: Better finishes in terms of roughness, Ra less than 0.4 to 0.1 averaged between parts, make it easy for involved components to rub against each other, making it easier to control or disperse heat.
Bearing Material Selection: Fast-rotating shafts typically use ceramic bearings made of silicon nitride. Compared to standard steel, these bearings have much better wear resistance and low thermal expansion.
Design Features: Angled contact or tapered roller designs could reduce heat. They allow for the effective distribution of axial and radial forces and ultimately reduce internal loads.
Operating Environment: Operating temperatures ranging from -20 to 120 degrees Celsius, depending on material tolerance, will allow an efficient lubricant without degrading the internal workings and ensure stability.
Each of these parameters affects the energy and thermal efficiency of the bearing’s workings and ensures its effectiveness and reliability in time.

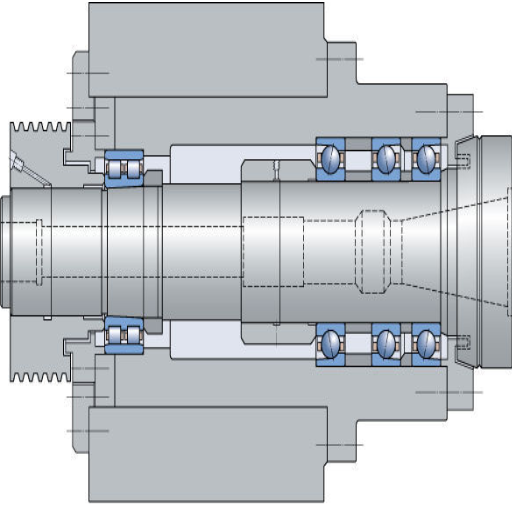

What Are the Key Applications for Flange Angular Contact Ball Bearings?
Industrial Machinery and Equipment
Bearing assemblies of fitted metal rings with annular grooves for angular contact ball bearings are widely used in numerous applications, including heavy machinery in industrial and agro-based settings. They are instrumental in designs where rotary motion and parts placement need to be highly precise, like in machine tools, robotics, conveyor belts, gearboxes, etc.
Load Capacity: They can support radial and axial loads with the additional advantage of dynamic load capabilities that vary between 12 and 125 kN, depending on the dimensions and forms.
Speed Limits: Considering the material used, lubrication, and other properties, the maximum speed can increase as high as 30,000 RPM, while the varying lower limit stands at a minimum of 3,000 revolutions per minute.
Contact Angle: The most commonly used contact angles are 15°, 25°, and 40°. These sizes can guarantee an improved axial load capability relative to the application being used.
Precision Grades: It is recommended that a tolerable grade of P5 or P4 (in ISO) is specified when producing such equipment so that a reasonable run out is achieved while maintaining the precise performance of the devices.
Material Composition: The most common material used is a high-strength steel alloy, such as SAE 52100 and its variants, due to its resistance to wear, thermal reaction, and, most importantly, durability.
Lubrication Requirements: High-speed operations require oil-based lubrication depending on the intended application, while grease lubricants are better suited for moderate-speed operating conditions.
Flange angular contact ball bearings must consistently perform in adverse conditions for industrial machines. This guarantees efficiency and low maintenance downtime.
Automotive Applications
Due to their capability to support combined axial and radial loads, flange angular contact ball bearings are widely used in automotive systems. Their accurate and steady functioning makes them ideal for wheel hubs, transmission, and differential units. Their structure is favorable for reliability and high speeds, which is vital for the performance and safety of vehicles.
Load Capacity: The angular contact in high-axial and radial load bearings is optimized for wheel hubs and transmissions that function under dynamic loads.
Speed Range: An extensive series of bearings can operate at 10000 RPM due to their structural size and materials, which are instrumental factors in high-performance areas.
Material: The material is mostly SAE 52100 steel or ceramic hybrids, effective wear resistors and thermal stabilizers in automotive applications.
Lubrication: With moderate speeds, grease lubrication is commonly employed on wheel hubs. For high revolving speed or high temperature of the components, such as transmission oil-based lubrication systems, it is the most.
Temperature Tolerance: Its operating range is between -30 and 150 degrees, ensuring reliability under environmental and thermal stress variations.
Considering such specifications, one can feel confident that the devices are irreplaceable. Functional Flange Angular Contact Ball Bearings are thick, reliable, efficient, and require almost no service. They are ideal for modern car engineering.
Aerospace and High-Speed Operations
To be used in aerospace and high-speed applications, bearings must adhere to stringent specifications due to extreme conditions. Below is the overview of the essential parameters together with their technical specifications:
Load: Aerospace bearings are subjected to considerable operating radial and axial loads. For example, low-weight and strength designs using titanium can withstand dynamic loads of more than 10,000 N.
Speed Rating: When performed at high speeds, such operations require bearings with well-defined tolerances and sufficient lubrication. Aerospace ball bearings can be used at a rotational speed of more than a million dN (diameter of the bearing bore in mm times RPM) and still perform very well.
Extreme Temperature: Aerospace covers extreme temperatures. The bearings must function between 55 degrees below zero and 300 degrees Celsius. To control thermal expansion, hybrid ceramics or stainless steel must be utilized to stabilize the two features.
Lubricant Preference: High vacuum or low-pressure lubricants in solid or synthetic films raise a high mark against wear and friction.
Resilience Against Corrosion: Stainless steel alloys, chromium, and various anti-corrosion films are often used to enhance the strength of aerospace bearings against moisture and other corrosive environments.
Vibration and Shock Tolerance: Bearings used in aerospace functions withstand relatively more significant vibrations and shock impacts. Certification for shock tolerances is usually as high as 20G, meaning the joint will work even in motion or during turbulence.
These technical parameters justify their existence and need to maintain safe and effective performance in the aerospace environment. They are crucial in controlling compliance and improving reliability and life in harsh environments.
How to Choose the Right Flange Angular Contact Ball Bearing?
Considering Load Requirements and Operating Conditions
The first stage in determining the most suitable flange angular contact ball bearing is considering the bearings’ mounting type and expected operational conditions. Depending upon the specific application, bearings are expected to endure radial, axial, or, in some cases, combined loads. Take, for instance:
Radial Load Capacity: Select a bearing with an adequate amount of Intermittent Dynamic Radial Load Rating C, sufficient for continuous operational force. The most important task of a bearing in a machine is to perform its role without fail under all possible conditions; protection against wear is a desirable characteristic.
Axial Load Capacity: If axial thrust is the dominant factor, the bearing’s static and dynamic axial load ratings are essential. Also, verify the maximum thrust permissible to avoid deformation or failure of the assembly.
Temperature Tolerance: Sometimes, a bearing must operate within the specified temperature range (typically -65 °F to 350 °F (-54 °C to 177 °C) in aerospace applications) to comply with environmental or system conditions.
Rotational Speed: A high-speed application needs a bearing with a high-speed factor dmN, which enhances machine performance without overheating or excessive wear.
Lubrication Compatibility: Ideally, a bearing should be with specific types of lubricants appropriate for active temperatures and speeds; this would limit friction and ensure operational longevity.
Shock Load Resistance: It is preferable to check the shock resistance (for instance, to 20 g or greater) of bearings for those applications that are expected to encounter high-impact forces to avoid loss of structural integrity during sudden mechanical stresses.
By comparing these technical parameters with the operating conditions, one can also ensure that the bearing meets its desired application’s mechanical and environmental requirements while operating reliably within the specified limits.
Selecting the Appropriate Size and Material
In any case, assessing the application requirements and operating conditions for the bearing size and material selection is prudent. Here below are the essential guidelines and their corresponding technical specification in a summarized form that should address these considerations efficiently:
Size Selection: The bearing’s size selected has to be able to take the bending moment or the loading’s impact along with the shaft sizes. Specific vital parameters include:
- Inner and Outer Diameter: These should also be within the range of the shaft and housing for fitting. Too much space adds to instability, which may be antagonistic.
- Load Ratings (Dynamic and Static): Check whether the bearing was constructed to allow impact loads and radial and axial pressures that might be exerted during various working circumstances.
- Speed Factors (dmN): Speed characteristics tend to be critical if there are contrasts in operational speeds; overheating, for instance, is undesirable. A size reduction with an appropriate lubricant may be advantageous in high-speed use.
Material Considerations: The environment and the operation conditions will dictate what the bearing material will be. Factors in regard include:
- Strength and Durability: Ceramics or stainless steel may be advisable in areas likely to be moderately corrosive or under high stress and strain.
- Heat Resistance: High-temperature steels or ceramics are best suited for high-temperature operations where the equipment will likely be exposed to extreme conditions.
- Corrosion Resistance: This may be best suited for use in humid areas or with many chemicals. Such applications may require materials like stainless steel or coated alloys.
Friction Reduction: These materials focus on reducing friction with surface or material enhancement sources of friction, including PTFE, which reduces wear and enhances efficiency.
A reasonable justification of these choices will also ensure that the bearing performs optimally in terms of functionality and operability in the intended application and has the desired reliability over a long period. To enhance the design’s reliability and minimize failure risks, ensure that technical specifications are satisfactory with operational ranges.
Evaluating Sealing and Lubrication Options
When selecting the most appropriate sealing and lubrication agents, I always consider the specific working and environmental conditions for optimal performance. In the case of sealing, there are considerations like:
Operating Environment: In working environments with dust or dirt particles, I prefer using contact seals such as lip or labyrinth seals since they keep contaminants out.
Temperature Range: The limits of the application’s temperature range play a significant role in deciding what seal material to use, as they affect the seal’s heat exposure. Information regarding the core function of borne seals is critical, so if the seal is meant to withstand a range of -40F to 250F, I would use rubber, or for -15F to 400F, I would use Viton.
Speed Capability: With products meant for high-speed applications, the seal must sustain itself while producing minimal friction and little heat, so I pick non-contact seals.
In the case of lubrication, my choices are:
Load Handling: I rely on grease-containing EP additives for extreme loads to stress the bearing but not overwork it.
Operating Temperature: Synthetic greases with a working range of -40 degrees Fahrenheit to 450 degrees Fahrenheit preserve heat stability for parts exposed to extreme heat. Hypoallergenic crude samples are helpful for general applications.
Application Frequency: In some cases, I prefer sealed-for-life bearings because they are maintenance-free, especially in hard-to-reach places. However, in these scenarios, I decide the re-lubrication intervals on a case-by-case basis.
Overall, these selections are always made to meet the requirements of the application’s efficiency, reliability, and specific technical characteristics and ensure that all the parameters meet the established standards in the industry.

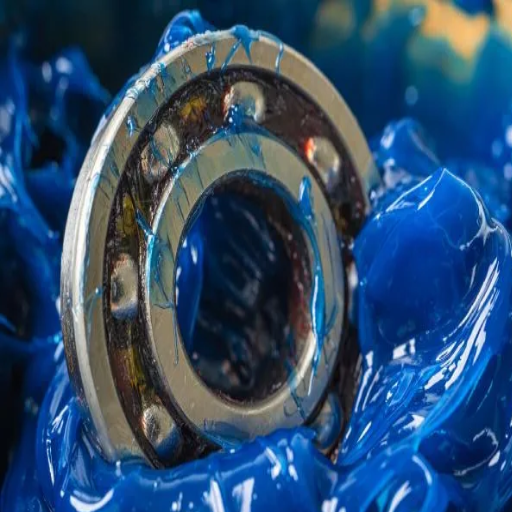

What Maintenance is Required for Flange Angular Contact Ball Bearings?
Proper Lubrication Techniques
They require regular lubrication for flange angular contact ball bearings to function effectively and thoroughly. Regarding my approach, I consider each functional parametric, such as speed, load, and environment, before deciding. I employ low-viscosity synthetic greases designed explicitly for such demanding environments in high-speed applications since they reduce friction. The technical parameters I follow include:
Viscosity Grade: Due to speed requirements, viscosities vary and range from ISO VG 32 to 100, although if speed is more significant, viscosity generally needs to be lower.
Temperature Range: Since lubrication comes into contact with heated surfaces, I prefer greases with thermal stability between -40F and 450F.
Additives: Using EP additives for extreme pressure applications and anti-wear additives is essential for extending the life of high-load bearings in harsh conditions.
When it comes to overhauling, I establish timeframes based on the number of hours the equipment has operated, speed factor, and temperature. For instance, if the temperature is 175 degrees Fahrenheit and the speed factor computes to 500,00, then re-lubrication would be necessary after every 2000 hours. Sealed-for-life bearings are the most suitable in low-access circumstances since they provide constant lubrication and do not require any maintenance. With these adjustments and practices, we increase reliability and satisfy industry and application-specific requirements.
Worn-Out Bearing Monitoring and Its Replacement
When determining how worn out a bearing is, I use a few measures: measuring vibration, checking on temperature, and a visual investigation. Vibration analysis provides the best results regarding lubrication imbalance, misalignment, or wear. To identify these problems, I target overall vibration velocity in mm/s (in/s) or even specific frequency bands. Most likely, if the measurement is 10 mm/s or more than that, there is a bearing performance degradation.
Temperature measurement is just as crucial because parts with temperatures greater than 200° Fahrenheit or 93° Celsius have either low lubrication or high friction. For accurate results, I use infrared thermometers or thermal imaging cameras. I examine any abnormal heating immediately.
As a last resort, I can remove them. Still, I must be careful and ensure that I replace the bearings with those of the original ones based on load ratings (dynamic load capacity in kN) and dimensional tolerances (ISO 492 standard). Doing such measures is essential since they can guarantee proper installation as I can use tools such as bearing pullers and presses, which help to mitigate possible damage.
Ultimately, such measures and steps are paramount in that they help ensure that the set parameters can remain in check while also achieving optimal performance and extending the operational life of the equipment.
Mounting and Alignment in Bearings
If mounting and alignment are done correctly, the life and efficiency of the bearings will be satisfactory. Contaminants, particularly molybdenum disulfide, necessitate this cleaning, have to be removed at the mounting stage, which could prevent the perfect seating of the parts. Furthermore, during the mounting process, I take alignment precautions using precise instruments such as feeler gauges or dial indicators to mount the shaft or run in the center of the housing. Therefore, even at the expense of a small cost, I ensure that the deviation in alignment does not exceed that of the cut limit, which is set at an allowance of 0.5 mm.
The limits of uniting angles that the unit, once united, will be checked so that the assembled bearing outer parts, about each other, are not outside the limits specified by the manufacturer of the one usually bearing less than 1° for all standard bearings except where otherwise specified. In addition, where screws are used, sufficient force has to be avoided to eliminate unnecessary losses to torque. Moreover, the default-oriented assembly torques must be respected because deviating from the default orientation leads to misalignment. On the other hand, if these steps are not followed, smooth movement for the operation will not happen, thus leading to downtime for the equipment due to malfunctioning parts in the assembly.
Frequently Asked Questions (FAQs)
Q: What are the specialties of flange angular contact ball bearings?
A: Flange angular contact ball bearings are specialized in their ability to sustain bending forces, increased rotational speeds, and comparatively larger carrying loads. They also have a large number of balls, which makes them efficient and feasible. The flange type allows for easy fixation and appropriate positioning in the housing.
Q: What is the advantage of the back-to-back arrangement?
A: The back-to-back arrangement of flange angular contact ball bearings interfacially increases efficiency by load redistribution and increased rigidity. In this orientation, pointing inward flanges of both bearings allow the cover to support the axial thrust in both directions, enhancing the device’s efficiency and lifespan.
Q: What kind of information is necessary for the selection of a flange angular contact ball bearing?
A: Some information in the selection of flange angular contact ball bearing should include the geometry of the bearing, such as inch and metric sizes, load limits, speeds, and contact angle of the bearing. Also include the bearing’s characteristics for the required application, working conditions, and whether special requirements such as seals or lubrication are required.
Q: Are flange angular contact ball bearings available as a unit or set?
A: Flange angular contact bearings are mostly sold as a unit, although other manufacturers add additional provisions to purchase it as a set or assembly fit for specific usage. Suppliers such as Norelem and SKF should be contacted to check if they have such provisions.
Q: How do flange angular contact ball bearings integrate with the housing?
A: Thanks to the flange design, the housing and flange angular contact ball bearings interconnect easily. The flange also makes alignment easier since it acts as a base for mounting. Sometimes, they may rub against a steel housing to reduce the force exerted and offer more protection. This incorporation will increase the system’s efficiency and reduce installation time.
Q: Where can I find technical data and additional information about flange angular contact ball bearings?
A: Please note that technical data, along with the rest concerning flange angular contact ball bearings, are available on either the manufacturer’s official website, the product catalog, or through direct contact with any specific supplier. Several companies possess comprehensive product specs, CAD files, and the recommended use of each product. Additionally, you can receive additional information or ask for support concerning your particular case.
Q: What lubrication is best suited for flange angular contact ball bearings?
A: High-quality grease or oil is recommended for flange angular contact ball bearings. Many bearings are supplied lubricated with grease, which is a standard set in DIN 51825. However, special lubricants are required for applications where rotation is high speed or high temperature is involved. Always follow the manufacturer’s configurations for type and intervals when lubricating for the best bearing performance and efficiency.
