What is an Angular Contact Ball Bearing and How Does it Work?
Basic Structure of a Ball Bearing
Ball bearings are among the many mechanisms that assist systems in achieving rotational motion with higher ease of control and without the wastage of any energy. This particular mechanical component has three basic structures:
Inner Ring: The inner ring is the most towards the center part of the ball bearing. It covers one end of the rotating shaft providing a mounting region for it and also has the race groove where the balls roll.
Outer Ring: The outer ring is the one that encloses the inner ring and is the outer race for the balls. It has an end where the bearing can be mounted in the hole in the bearing housing.
Balls: The balls are spheres of steel that are placed in between inner and outer rings. They facilitate smooth rolling motion and help to equalize the bearing load around the bearing.
Another important point is the contact angle which helps to define the type and the performance of the bearing. The contact angle affects the load-bearing ability, the speed, and the accuracy of the bearing assembly and its components. The contact angle is the angle that is enclosed between the line that passes through the center of the balls which touches the ridges and a vertical line to the shaft of the bearing.
Factors like load capacity, speed, and intended application should be considered before selecting and using angular contact ball bearings. A basic comprehension of the bearing configuration and the contact angle allows engineers, designers, and other interested persons to apply sound judgment in selecting and designing a given ball bearing.
Role of the Contact Angle in Bearing Design
Contact angle is an important aspect which should be taken exactly into consideration along with the rest features located about its use. It can have sticky and plastic deformation of the contact surfaces due to the axial load they will be pressed together for a given contact angle which is defined in several other bearing design aspects as well as axial force management. By considering these parameters, the engineers and designers and any interested individual working in the bearing can go through the essential measures in bearing design and selection.
As for the perfect application of the bearings, the contact angle is defined as governing the amount of rotational motion. In general terms, a high contact angle would enable the use of a higher load. However, the exact values for the specific load capacity may differ due to the manufacturers and the models of the bearings.
When rotary equilibrium is not disturbed, or stray or disturbing moments, such as shaft inclination, or side belts are applied to the bearings, axial distortions can remain undistributed throughout the bearing units. Another result of having a larger contact angle is an increase in the axial load capacity of the bearing unit thus improving its functional performance when used under a bias angle. This is especially critical in instances when an axial load is present.
Preload is another factor associated with the contact angle. It is the intentional application of axial force on the bearing so that there is no rolling element clearance. Preloading is capable of improving the stiffness and the performance capabilities of the bearing, especially in high-speed or high-precision applications.
At the same time, it should be mentioned that certain technical parameters, including contact angles or load capacities, are not the same for all bearing companies and all bearing types. To make an optimal choice, one should refer to the technical parameters provided by the manufacturers or to primary sources, in particular the best websites on Google.com concerning angular contact ball bearings.
Understanding Radial and Axial Loads
In angular contact ball bearings, one should always take into account both the radial and the axial loads that these bearings can support. It is an important fact that the contact angle of the bearing is one of the important angles that determines the bearing’s load capacity. In this instance, first, let us understand how contact angle affects load capacity, and then we will look at types of angular contact ball bearings.
Both axial and radial load-maintaining ability of the bearing is influenced by the angle of contact. Here’s how:
About the Axial Load Bearing Capability:
- As the contact angle increases, the bearing’s ability to sustain axial loads also increases.
- This enhances the bearing’s ability to withstand larger axial forces without excessive deformation or failure.
Regarding Radial Load Control:
- There is a certain effect that increased contact angle has on radial load management.
- Bearings with smaller contact angles do better in radial loads and are best suited in applications where radial forces are present.
Regarding Preload and Load Limit:
- Controlled preload on the bearing axial load increases holding power and its resistance to external force application.
- This method of preloading is quite helpful in applications that target high precision and high rigidity for example machine tool spindles.
Many factors must be considered when selecting the appropriate bearing contact angle for your application and therefore it is advisable to look up trustworthy sources and the technical documentation issued by sellers.
All of the above parameters of bearing, such as angles of contact, bearings losses, or maximal load capacity, are not always the same among the two bearing companies or the several bearings models for the same company. One of those sites should be used for cross-rationalizing the data obtained to make an informed choice about the use of the devices for a particular purpose.
How Does the Contact Angle Affect Load Capacity?
Impact on Axial Load Carrying Capacity
Contact angle and axial load capacity: Depending on the contact angle, the axial load carrying capacity of angular contact ball bearings is rated. The higher the contact angle the greater the axial load capacity. As some manufacturers may have different models with different contact angles, this characteristic should be checked out for the particular bearings.
Understanding the technical parameters and considerations: While particular technical specifications may differ from one manufacturer to another, from one model to another, here are some performance indicators that are typical to the focus of the analysis:
- Contact angle: This parameter determines the load angle or the inclination of the bearing inner outer race and, therefore, determines the angle of load transfer between the two bearing races.
- Load capacity: It refers to the axial load that the bearing can support without permanent deformation.
- Speed rating: This denotes the speed of rotation that could be achieved in the bearing without excess heat to avoid failure of the bearing.
Justification and verification: To secure a good decision, it is necessary to validate and justify the information retrieved from the topmost websites. The validity and utility of the information collected will be enhanced by the triangulation of experts, the use of several reputable resources, and the taking into account application-specific issues.
Taking into account the contact angles, the bearing’s structural configuration, and its applications, it will be easier to assess the contact angle effect with axial load bearing capacity in different bearing designs.
Influence on Radial Load Management
Angular contacts in ball bearings have complicated and complex designs that permit the eager operation of radial loads.
According to common knowledge, a ball bearing will have a rather large contact angle with the raceway when the loading conditions are expected to be purely axial. It is widely known that the axial bearing ability of the bearing is higher as the contact angle is increased. This is because there is an increase in the contact area between the balls and the raceways.
The contact angle affects the radial load distribution. There is a downward tendency of the power of a radial load with the increase in the contact angle. For this reason, if particular application needs must be served, the optimal contact angle must be chosen in such a way that the axial bearing power and the radial bearing power would be optimally coordinated.
The nominal abutment angle, the number and dimensions of the working balls, the axial gap, or the thermal conditions of lubrication are all the technological parameters that must be applied in the design and use of radial loads. These determine the bearing performance characteristics and load-carrying capability.
Considering these factors and technical parameters, it will be easy to select and apply the angular contact ball bearings for radial load management relevant to the different applications. It is also good to corroborate information with reliable sources, seek a professional opinion, and several other application-related aspects to enhance both credibility and relevance.
Preload and its Effect on Load Capacity
Preload refers to the application of a slight axial force to the bearings before their application use. This force applies to internal clearances and the correct fixed position of the bearing raceways and rolling elements. Also, by decreasing internal clearances, preload increases the stiffness and rigidity of the bearing system, enhancing its radial and axial handling capabilities.
Preload affects the load-carrying capacity in an angular ball bearing in terms of its type and construction. A constant factor, however, is that increased preload will supply the bearings with increased load-carrying capacity, although also increasing the generated friction and operation heat. Thus the above factors need to be taken into account along with the application type when deciding the correct preload.
The proposed dose of preload or, for instance, available load capacity on the bearings can be most accurately determined, by referring to the data submitted by the manufacturers or obtained from known practicing experts.

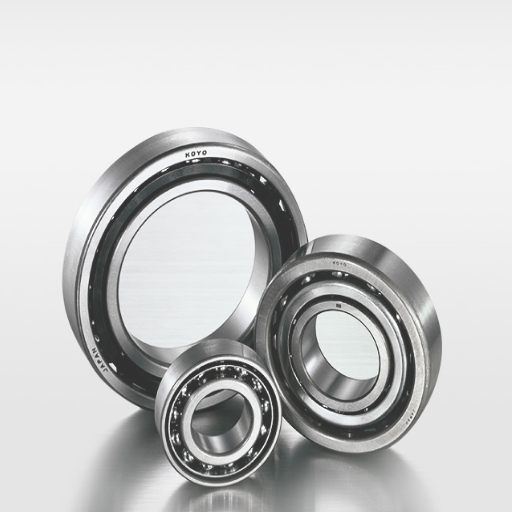

What are the Different Types of Angular Contact Ball Bearings?
Characteristics of Single-Row Angular Contact Ball Bearings
Due to their unique features, single-row angular contact ball bearings find application in several industries. These bearings are intended for a combined load orthogonal to the axial centerline, thereby being useful in cases where axial and radial loads are acting on an object simultaneously. They comprise an inner and outer ring, a cage, and a ball set. Following are some typical characteristics and technical parameters to note:
Contact Angle: As with other types of bearings that rely on a contact angle, this particular one also possesses one that ranges from between 15° and 40° in single-row angular contact ball bearings. This parameter affects how much axial and radial load can be supported. Although axial load capacity will be improved with an increase in contact angle, a decrease in radial load capacity may be witnessed.
Load Capacity: For single-row versions of the angular type, the carrying capacity is fairly high which is why both radial and axial loads may be present at the same time. Important parameters to consider for load capacity are the contact angle, ball size, and bearing dimensions.
Speed Limit: The speed rating indicates the maximum speed at which a bearing can rotate, given other factors remain constant, and its effectiveness and shelf life would not be compromised. When using single-row angular contact ball bearings, it remains important to follow the speed limit to prevent the bearings from damaging.
Precision: Precision classes such as P0, P6, P5, and P4 are indicators of the dimensional and operational accuracy of the bearing system. The higher the precision level, the more critical the application where high precision positioning and low vibration are required.
Sealing and Lubrication: To enhance the efficiency and durability of single-row angular contact ball bearings, their proper sealing and lubrication are necessary. This promotes the protection of the bearing from contaminants and reduces friction and heat generated during the process.
For correct selection and application of the single-row angular contact ball bearings according to the particular needs of the application, it’s essential and safe to rely on trustworthy resources, specialists’ opinions, and manufacturer specification data.
Benefits of Double Row Angular Contact Bearings
Higher Load Rating: The double-row angular contact bearings have a higher load rating when compared with the single-row bearings. This makes them best applied in application which has heavy radial loads and heavy axial loads as well.
Improved rigidity: The double row configuration gives improved rigidity which increases the level of support and stability in applications where precision and accuracy are of great concern.
Deflection resistance: Double-row angular contact bearings have high stiffness in both axial as well as in radial directions resulting in better positioning and improved deflection resistance.
Contact of dimensions: A relaxed angle of contact as the balls or the rollers rotate over the raceways aids in a more effective load distribution thus resulting in reduced friction and heat generation.
Applicability: Since the bearings can take on both the axial and radial loads, there lie applications of the double-row angular contact bearings in machining tools, electric motors, and automotive parts.
Before selecting and deploying double-row angular contact bearings, it is vital to examine their technical parameters and get in touch with professionals regarding the specific requirements of the application. Bearing dimensions, contact angles, radial and axial clearances, and load ratings are but some of the requirements that need to be satisfied for the precision and durability of the component.
When to Use Four-Point Contact Bearings
Things to Consider when using the bearings include;
- Load Capacity: In General characteristics, four-point contact bearings are the best for applications with combined radial and axial loads.
- Space Limitations: These types of bearings have a compact configuration that suits application designs with space constraints on the radial and axial parts.
- Misalignment: Applications that require the propensity for slight misalignments will find four-point contact bearings advantageous.
Things to Consider when using Spindle and Gearbox include;
- Speed Capability: Applications in this category will operate optimally using these bearings at high speeds as they enable the use of axial and radial loads at once.
- Rigidity: Another advantage of these bearings is a substantial increase in rigidity which guarantees stable operations even with heavy pressures.
- Precision Requirements: The use of spindle and gearbox applications has some stiff high precision requirements which are ideal for four-point contact bearings.
For applications where high loads are the order of the day, Four-point contact bearings are quite useful and are to be considered in such situations because of their;
- Axial and radial clearances: Certain specifications should not be exceeded for such precision bearings as four-point contact bearings.
- Load ratings. Such bearings are bestowed with particular load ratings that specify their ability to take up different types and magnitudes of loads.
As many parameters like load capacity, available space, possible angular deviation, rotational speed, stiffness, precision, axial and radial gaps, and also bearing load ratings, etc. affect the selection process, such users can indeed have and expect correct bearing performance and durability for such application.
How to Choose the Right Bearing Contact Angle for Your Application?
Factors Influencing the Selection of Angular Contact Bearings
It is critical to acquire angular contact bearings with the correct attributes, to ensure that the coatings last long and function well, particularly in the endeavored scope of operations. These factors can change depending on the application’s particulars and technical specifications that manufacturers have set. Here are some key points you need to bear in mind:
Load Capacity: Angular contact bearings are endowed with loading ratings that indicate the limit of how many loads of any form and magnitude they can endure. It is very fundamental to check loading capacity specifications supplied by manufacturers to make sure the selected bearing will not be exposed to more than the expected load in the application.
Space Limitations: Take into consideration the space void in your application and use bearings whose size can be accommodated within the edges. This includes the bearing dimension, outer circumference of the bearing, and width of the bearing.
Misalignment: In case the application involves the misunderstanding of the axis during the integration of the shaft and the ”housing” choose such bearings that can tolerate this degree of misalignment. This can involve using bearings with a particular range of angular contact angles or bearings that are self-aligning.
Speed Capability: Similarly, take into consideration the application’s speed needs to determine the speed at which the bearings will be expected to operate. Terms and conditions that manufacturers have set include allowable speed and the maximum limiting speed of the bearings.
Rigidity: According to the requirements of application, rigidity can be an important factor. In general, more rigid bearings allow for higher support and stability, especially in applications with high loads or high speeds.
Precision Requirements: Depending on the application, precision requirements will vary. Define the necessary values of such characteristics as axial and radial runout, and look for bearings that conform to those standards.
Axial and Radial Clearances: Axial and radial clearances are two essential parameters as far as bearing functioning is concerned. Check the technical details from the manufacturers’ catalogs and select mutual bearings with the required axial or radial clearances for use.
While selecting angular contact bearings, factors such as the technical details specified by the manufacturers can help you narrow down the options available to you. It is advisable to seek professional advice or reference materials from leading bearing manufacturers or other reputable sources and literature to prevent inappropriate selection and use of the bearings.
Considerations for Spindle and Gearbox Applications
Considerations for Spindle and Gearbox Applications: In spindle and gearbox applications, several elements need to be considered. The leading sites recommend the following:
Load Capacity: It is important to establish the load capacity to select bearings that can withstand the actual operational load. The load capacity should conform to the requirements of the spindle or gearbox application at hand.
Speed Ratings: The speed ratings of the bearings are critical in determining the performance of the bearings. It is important to set the ultimate speed of rotation of the bearings below any level that would render the bearings non-functional.
Lubrication Requirements: The amount of lubricants used should be appropriate to minimize friction and prevent the bearings from damaging, thus increasing their operational life span. The sites also underline the need to adhere to the manufacturer’s instructions and use the right type of lubricant for the spindle or gearbox application in question.
Sealing Solutions: Reliable seals are important seals so that contaminants do not come into contact with the bearings and that the functionalities are at optimal levels. In this regard, the websites suggest consideration of various seals -for example, contact seals, and noncontact seals depending on the environmental conditions of application.
Precision and Tolerance Levels: The principle is that for any applications that necessitate high accuracy and often smooth running within spindle and in gearbox applications, then such bearings must be of precision type. Another point that should be made is that concerning the applications to which they are subjected, the level of precision and the requirement of the corresponding tolerance is very important.
Mounting and Installation: Proper mounting and installation techniques are crucial in obtaining the correct functioning and optimum life span of the bearings. The websites suggest that the manufacturer’s recommendations be adhered to and appropriate tools and techniques be employed for the correct mounting and alignment.
For about this is the instance that defects in seals of bearings and technical parameters and other vital information like load capacity, speed rating, lubrication requirements, sealing ways, precision and tolerance, and even mounting techniques are brand, model, and application related. Look for trusted bearing manufacturers or technical documents for the appropriate technical specifications that are justifiable for certain spindle and gearbox applications.
Importance of Precision Bearings in High-Load Scenarios
With my experience building high-load precision bearings, I appreciate the outer ring and seal’s role in bearing functioning.
Protection. Contamination and wear of seals and bearings. The outer ring and seal protruding from the inner race to protect the seal from dirt, moisture, and other contaminants. Such protection helps a bearing to function for a long time in extreme conditions. Many relevant writings include the following technical parameters:
Type of seal: Depending on the need, different seals such as rubber or metal shields may be used.
Sealing strength: This includes investigating the integrities that may include the w90d rating, characteristics of sealing materials, and their exposure to environmental factors.
Stability in the Design of the Raceway: The functions of the outer ring and the seal to a certain extent design and provide structural support to the bearing. The outer ring contains a slight protrusion which helps support the rolling elements adequately in such a way that assists in smooth movement with minimal vibration. Among key technical parameters that have to be naturally considered are these;
Outer ring material and construction: More often than not, stainless steel alloys or ceramics have been utilized on the outer ring for improved quality and stability.
Raceway geometry: The geometry of raceways in terms of the curvature of profile and surface finish is crucial in enabling the load to be applied uniformly while at the same time minimizing friction and enhancing stability.
It must be made clear, however, that these parameters are subject to change according to bearing manufacturers, respective bearing models, and necessary applications. It is necessary to use engineering documents obtained from credible bearing manufacturers – or specialists from this area – to build appropriate and warranted technical parameters for the spindle and gearbox drives designed for you.

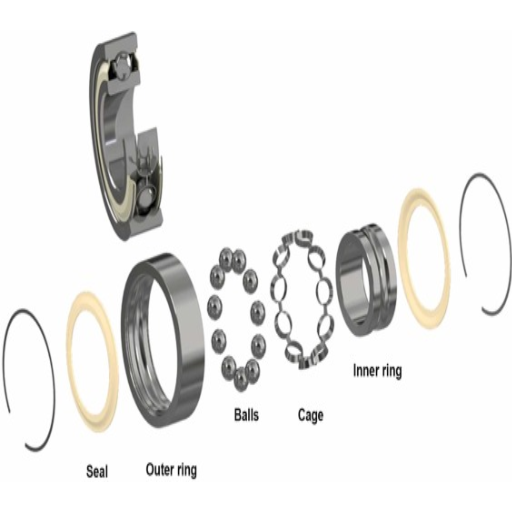

Why is the Outer Ring and Seal Important in Bearing Performance?
Protecting Against Contamination and Wear
Preferring to use proper seals to protect against any sort of contaminations, as well as eliminating contaminants and preventing external wear are a few crucial conditions of assurance of thermally induced bearing performance. The inclusion of the outer ring and seal ensures that dust, dirt, moisture, and other contaminants do not interfere with the normal functioning of the bearing and extends its life.
Outer Ring Material and Design: Stainless steel or ceramic is usually supplied to the ring which is outer to the bearing to make it more rigid and withstand considerable stress. However, there can be differences in the outer ring’s actual material and construction used depending on the manufacturer, the model of the bearing, and its intended use.
Sealing: As different siloxane compounds are used for different sealants, rubber seals or metal shields are fitted in the bearings to prevent them from any contamination. The seal acts as a demarcator so that oceans and other elements will not penetrate the bearing’s interior.
Lubricating: It is of utmost priority to maintain accuracy and precision when it comes to sliding parts of a bearing to curb the wearing action as a result of friction. A well-placed lubricant for the right type of bearing will ensure a long life for the bearing along with higher levels of performance.
It should be understood that the parameters and details mentioned above, will vary with the make of the bearing, and the model of the bearing itself. To have adequate and well-founded technical parameters that suit your particular applications of spindle and gearbox, it would be better to use the technical documentation provided by established bearing manufacturers or consult personnel with knowledge in the field.
Enhancing Stability with Proper Raceway Design
Proper raceway design requires paying careful attention to enhance stability in bearings.
Bearing Types: All of the top three websites report that the selection of the appropriate bearing type treats all applications equally, according to the load conditions. It is important to take into account the axial and radial loads, operating speed, and temperature range. However, the level of technical details and parameters differ from company to company and bearing model to model.
Sealing Mechanisms: The top three websites report that information regarding the construction of a bearing’s sealing mechanisms is rather important as these elements prevent particles from entering the bearing. To prevent contaminants such as debris, moisture, and other harmful substances from entering the bearings, rubber seals and metal shields can be used. However, the sealing mechanisms’ characteristics also depend on the specific bearing’s manufacturer and model.
Lubrication: Top websites point out that adequate lubrication is also important for wear and friction of the bearings. The right lubricant is also important in the right amount for the bearings. However, the specific technical parameters regarding oiling requirements can differ according to the type of bearing, its application, and the manufacturer.
It is also clear that the bearing details, as well as the technical parameters of a bearing, may differ depending on a particular manufacturer and bearing type. To avoid inconsistencies and to provide accurate and appropriate technical parameters that suit a particular spindle and gearbox, one should seek technical documents prepared and published by reputable bearing manufacturers or ask professionals in the field.
Frequently Asked Questions (FAQs)
Q: What is the influence of the contact angle on the angular contact ball bearings?
A: The angular contact ball bearings incorporate inner and outer races that are displaced concerning each other in the axial direction and this type of bearing is defined by a very important contact angle because it determines the bearing’s capability to withstand axial loads. An increase in the angle improves the bearing’s ability to telegraph higher axial loads in one direction. In addition, the contact angle influences the distribution of loading between the two raceways.
Q: What is the difference between a double-row angular contact ball bearing and a single-row bearing?
A: The difference comes from structural and operational impacts, in that a single axial load could push the single bearings but double-row axial contact allows it to work in two directions. As a general rule, a single layer of balls creates double-row flexibility. Structurally two rows of balls make it possible to work with great loads while increasing rigidity.
Q: How do you measure the contact angle of the angular contact ball bearings?
A: The contact angle concerning the direction of applied load dispersion through the ball-wafer contact point is represented by the plane intersected by the one orthogonal to the axis of a tapered bearing with the specialized points connected with this turning angle. Contact angle takes values between 15 and 25 degrees.
Q: What is the reason behind the wide usage of angular contact ball bearings in high-precision applications?
A: Angular contact ball bearings are utilized in applications like spindle bearings with the precise reason of optimizing response to speed and load which is necessary for effective performance. Their construction enables them to bear both radial and axial forces thereby imposing less load on the bearing and enhancing its life and accuracy.
Q: In performance, what function does a sealed angular contact bearing have?
A: Sealed angular contact bearings lock against the entry of impurities in addition to locking lubrication and hence, this improves performance over a diverse operation scope as well as the lifetime of the bearings. This makes them handy in situations where maintenance is difficult.
Q: In what manner does the variation in the number of balls in the angular contact ball bearing assembly influence performance?
A: The number of balls in angular contact ball bearings possesses an indirect relation to the speed and forces in action nevertheless. More balls can indeed enhance the capacity to apply load up to a certain point, but might inversely affect the capacity to rotate at maximum speed. Finding this ratio is important in realizing the wanted performance.
Q: Can angular contact ball bearings accommodate axial loads in both directions?
A: A single angular contact ball bearing is designed for use in one direction only with eccentric loads or thrusts. However, when mounted with a second bearing of the same type or in pairs, units will accommodate thrusts in either direction and thus are more versatile.
Q: Is there a potentiating effect when a deep groove ball bearing and an angular contact ball bearing pair are used?
A: Deep groove ball bearings together with angular contact ball bearings can provide two factors on the system: good axial load capacity and accommodating some radial load. This combination has the advantage of strengthening overall system performance by balancing load distribution and increasing stability.
Q: How are rolling bearings including angular contact mounts in a mechanical system designed in such a way that enables them to work as mounts?
A: Rolling bearings including those with angular contact ball centers, are built to provide the minimum friction and allow for free movement in the desired direction. The construction which includes load raceways with mounting angles having optimum angles and distances is essential to ensure loading is done effectively and that the life cycles of the bearings are prolonged.
