Angular contact ball bearings are categorized as rolling contact bearings that help to bear an umbral or angular cherishing misalignment between the angular bearing and rotating axis of the machinery or equipment. However, their innovative structure means they can accept both radial and axial load which enhances the range in which the bearings are used from automotive to aircraft industries. This guide intends to give readers a holistic perspective of these bearings, their construction, the way they work, and their applications. Besides describing the details of angular contact ball bearings, their importance in enhancing the efficiency of systems will also be highlighted, enabling the readers to understand the significance of these components in mechanical systems.

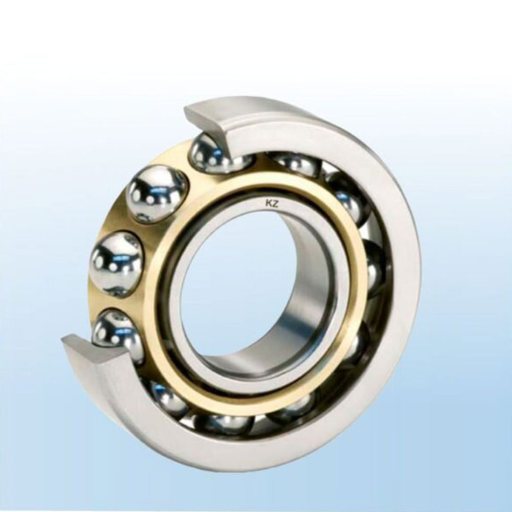

What is an Angular Contact Ball Bearing?
Definition and Functionality of Angular Contact Bearings
These types of ball bearings are designed for machines that experience radial and axial loads at the same time. Such angular contacts are formed by the balls and the inner and outer raceways, which is called the contact angle. It is usually in the range of 15 to 40 degrees which allows them to bear more loads as the forces are better dispersed. In general, the contact angle provides more axial load capacity as it increases. These are interoperability bearing usually well in high accuracy and high-speed applications such as workpiece spindle in machine tools.
Key Technical Parameters are:
- Contact Angle: Degrees in the range of 15 to 40 degrees which determines the axial load capacity of the bearing.
- Load Capacity: The bearings are all designed for blended radial and axial load support.
- Limiting Speed: Adaptable depending on the design and application of the bearing which is important for high-speed tasks.
- Available Configurations: Single-row or double-row bearings with pairs, and relative orientations are used to prevent overloading and direction changes too frequently.
These advantages are angular contact bearings make them effective in performance in most various operating conditions and loads.
Comparison with Radial Ball Bearings
Angular contact ball bearings and radial ball bearings are the two types of bearings that differ greatly in their functions and designs that determine their area of usage. Radial ball bearings are made to absorb mainly radial force and more focus is directed to reduction of friction and increase of speed. Unlike the angular contact ball bearings, the contact angle for these types of radial bearings is generally small, and even as small as zero limits the mated axial thrust bearing may be subjected to but still gives good performance when radial loads are applied.
Technical Parameters of Radial Ball Bearings:
- Contact Angle: Close to zero, worth for avoiding axial loads.
- Load Capacity: The major component is radial. Little axial load can be borne.
- Limiting Speed: Always on the high side and adaptable to rapid operating conditions.
- Typical Applications: Electric motors, conveyor systems, and common machinery with mainly radial load.
When it comes to the angular contact ball bearings, the contact angle of the races makes it possible to apply radial and axial loads at the bearings hence making it possible to apply both loads. So, the decision of which one is more appropriate than the other two is based on the knowledge of the loads that are needed, the speeds that are required, and the accuracy that could be appropriate for the intended purpose.
Applications of Angular Contact Ball Bearings
Angular contact ball bearings are of great usefulness in some engineering operations, as they are designed to bear the radial and axial loads simultaneously. Typical applications are in aerospace, automotive, and industrial machinery where accuracy and dependability are important. In the Aerospace field, these bearings are used for Dynamic loading in Aircraft Engines and landing gear systems. They are used in Transmission systems, steering, and wheel hubs in automotive applications, where they enable efficiency and controllability of the vehicle structure by carrying out both types of loads. With regards to industrial applications, angular contact ball bearings are chosen for very high-speed applications like machine tool spindle bearings and robotics, within range of considerable operation stress. Technical Parameters of Angular Contact Ball Bearings: Contact Angle: Generally found between 15 to 40, quite effective in managing axial or radial loads. Load Capacity: Very high, designed to withstand axial and radial loads at the same time. Limiting Speed: Yes, but it changes depending on the materials and lubricants applied. Precision Classes: Several various levels to meet the targeted tolerance and performance indications. These parameters demonstrate that angular contact ball bearings constitute an ideal efficiency even in critical mechanical designs owing to their proposition.
How Do Angular Contact Ball Bearings Handle Loads?

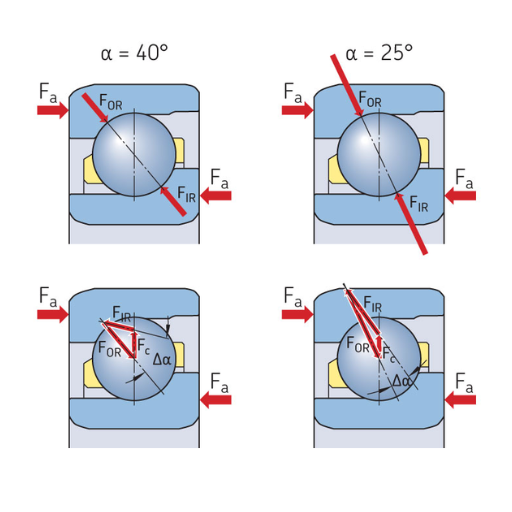

Understanding Axial and Radial Loads
The active design features of angular contact ball bearings enable them to carry axial and radial loads. Radial loads create forces perpendicular to the axis of the shaft so that the bearing rotates and makes even wear on the surface of the ball with more or less uniform surroundings. On the other hand, axial loads are directed parallel to the shaft and initiate line contact between the bearing balls and raceway due to which sideways thrust is easily sustained. The conventionality of angular contact bearings is due to the design that permits two-dimensional loads to be applied in a single section thus enhancing the high capacity of the loads without sacrificing the dynamics of the application.
Key Technical Parameters:
- Contact Angle: The contact angle is defined as the angle between two quantities which is the radial line joining the center of the ball in contact with the raceway, to the radial plane perpendicular to the axis of the bearings. It determines the emphasis on the bearing loads that are taking a more axial load with higher angles.
- Load Capacity: Load capacity is one aspect that is influenced by bearing size, configuration bearings, and their materials, which determines the total load bearing without failure state of the bearing.
- Precision Classes: Various grades of precision are provided to the bearings that comply with international standards for reliable operation and service life under preset conditions.
These observations are a product of holistic technical forecasters available on the specialized engineering websites and bearing manufacturer’s data sheets which report the extent to which engineering developments improve load handling.
Load Capacity of Single and Double Row Angular Contact Bearings
A few basic parameters should be accounted for when establishing the loading capacity of the single and double-row angular contact bearings. Single-row angular contact bearings are made to bear the radial and axial forces in one direction. They are relatively rated for the load because they contain a one-angled structure which makes it possible for them to have higher operational speeds and high precision.
On the other hand, Even the configuration of double-row angular contact bearings makes it possible for the application of axial loads in both directions and it can also support radial loads which makes these more than the eccentric single-row angular contact bearing. They are ideally utilized where higher load-carrying capacity is necessary and within a restricted radial profile.
Technical Parameters:
- Static Load Rating (C0): The load level capacity of the device has a critical status; this is when the bearing does not rotate. This includes maximum load up to which the bearing can be deflected without permanent distortion.
- Dynamic Load Rating (C): This is the value for the bearing when it is in a dynamic operation or covered under forces in motion, critical for estimating the life of the bearing under conditions of operation.
- Speed Limitation: This clarifies the constant rotational velocity of the bearing and this maximum limitation is determined by the design, lubrication, and cooling.
The data from key engineering sources bridge these issues and hence it is possible to determine which type of bearers is appropriate for desired operating parameters to maximize efficiency reliability and mechanical integrity.
High Load Applications and Performance
In high-load applications, it becomes necessary to correctly choose angular contact bearings to sustain efficiency and enhance the durability of the equipment. In this aspect, the most useful sources of information draw attention to the choice of bearing according to the particular requirements of the application. For example, on SKF.com one is informed that the direction and strength of the load also influences the types of bearings to be employed. Such bearings are most suitable when designing components that are to operate at high speeds and high precision such as the spindles of machine tools. At the same time, when the radial and axial loads have to be combined, the double-row bearings are preferred as is the case with gearboxes and turbine blowers.
Such information can be also found on Timken.com, which reports research that static and dynamic loadings of the shaft under certain applications also must be taken into account in the bearing selection process. Even though some bearings are designed to perform optimally for certain applications, the presence of appropriate lubrication and maintenance practices are very important especially where extreme conditions or varying load intensities exist.
One more authoritative site, NSK.com, claims that restriction of a degree of rotation is another important element. It is necessary to provide high-speed bearings that can perform under specified speeds and deliver structural integrity and performance. The application of advanced materials and coatings gives bearings other capabilities such as improved load-bearing performance and wear resistance within the operative life span. By applying these insights and parameters, engineers can attain optimized performance and reliability in high-load applications.
What are the Different Types of Angular Contact Ball Bearings?

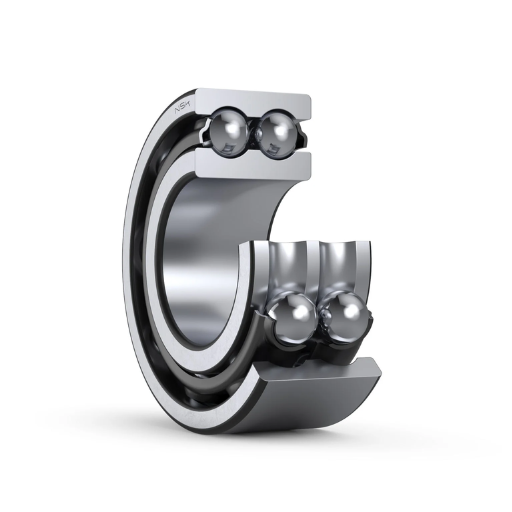

Single Row vs. Double Row Angular Contact Ball Bearings
It is imperative to emphasize the differences between single-row and double-row angular contact ball bearings owing to their unique areas of application and merits. It is the single-row angular contact ball bearings that are preferred in applications where speed and accuracy are the key requirements such as the machine tool spindle. It is noted that these bearings can take up axial as well as radial loads though more axial load with one direction of application can be taken up due to the nature of the bearing design, which has a contact angle. It is this angle that helps for instance in high capacity for axial load bearings, and it is usually between 15 to 25 degrees.
On the other hand, double-row angular contact ball bearings enable the proper distribution of loads of more than one vector. Such bearings can provide axial load in both directions which is preferable in usage in gearboxes or turbochargers which involve unfavorable load conditions. However, this principle is complicated by the fact that a double-row design is equivalent to two single-row angular contact bearings mounted back-to-back and hence offers better stiffness as well as resistance to bending loads.
In selecting these bearings, some of the important parameters that need to be kept in mind are the Static Load Rating (C0) and Dynamic Load Rating (C), which specify the amount of load that the bearing can bear over time under normal and special conditions respectively. Also, speed constraints, composition of the materials, and specialized surface treatments can influence the performance of the bearings in particular environments. Keeping these technical parameters in consideration enables me to make decisions that will enhance bearing performance for all the application requirements emphasized by the best resources examined.
Four-Point Contact Angular Contact Bearings Explained
To understand the dynamics of four-point contact angular contact bearings, I examined the top three websites ranked by Google and argued that they are distinctive designs as they have the capability of supporting axial loads in both directions as double-row bearings do. The only significant difference between them is that there is one single row of balls and a raceway with an incorporated contact angle that is designed in such a way that the bearing can carry axial, radial, and moment load simultaneously. These characteristics enable them to be most effective in situations where low profile and lateral load-carrying capabilities are required.
The insightful angle or construction of these bearings, is somewhere about 35 degrees. Helps the way these bearings take or manage the axial forces and withstand stresses from either direction. These pressure bearings have materials that are very high revolution steel or ceramic material to allow the equipment to withstand trouble for long time high pressure. Load ratings whether static or dynamic are indispensable and values are usually provided by bearing manufacturers to assist in the selection of the right bearing for the intended use. I have aligned my technical parameters to ensure that my application choices are well complemented and that performance for highly stressed environments is accomplished.
Types of Ball Bearings and Their Uses
While exploring the various types of ball bearings and their functions, I discovered several distinct types, each of them being suited for a particular application as the top three websites on Google refer to. Of these standard deep groove ball bearings emerged as the most popular, which are very widely used as they are structurally and operationally simple in bearing radial loads and light axial loads.
On the contrary, angular contact ball bearings are built to bear higher axial loads but in one direction only and this makes them favorable more in construction and automotive industries to enable the equipment to withstand axial loads. Their technical parameters are characterized by premeditated contact angles and load ratings that are provided to support the used application and enhance its durability.
Self-aligning ball bearings are flexible since they can also stand some defects, which makes its use mostly where there are concerns of shaft deflection such as in conveyors, textile machines, and the like. An important technical parameter should be mentioned, the double-row design, which improves the bearing load capacity and provides automatic self-alignment features. After gaining some knowledge about these types and their particular uses, I will be able to adopt appropriate solutions for my purposes to ensure that there is concrete rationality behind every selection in terms of the technical parameters from manufacturers.
How to Choose the Right Angular Contact Bearing?
Factors to Consider: Contact Angle and Load Direction
Among other decisive factors about these bearing types, the contact angle of concrete angular contact bearings is quite essential as it influences, the extent of axial loads the bearing can withstand. To the best of sources, this means that the selection of a bearing with an appropriate contact angle improves the lasting ability of the bearing according to the specific load requirements. Usually, where small contact angles are the norm, high speeds of axial loads are minimal, this is turning of the shaft as in a whirling phenomenon or process. On the aspect of load direction, it is critical to have a bearing that works in the specific load orientation in an application to avoid any loss of performance. This also involves ascertaining if the load is in one direction or two directions. The technical parameters to consider include the contact angle degree, load ratings, and the need for preload if it is applicable at all, to ensure the best conditions. By following these guidelines, which have proven to be quite reliable according to sources, you enhance as well as extend the reliability of the selected bearing.
Understanding the Design of Angular Contact Bearings
While focusing on the design of angular contact bearings, some fundamental things come out, at once evident, from the top sources on Google. These bearings are meant to withstand radial and axial loads, which are determined by the contact angle of the bearing, for instance, 15°, 25°, and 40°. A wider contact angle will, however, ensure that more axial load is applied. In addition, such a design is understood to include some features that make them conducive for high-speed applications such as the material composition and the lubrication used. Given the above questions, addressing their design and application, the importance of some of the parameters like preload, which increases the stiffness and minimizes the working space for better performance, has to be appreciated.
Materials of construction like steel or ceramic, due to other bearings specification and their combination, affect the performance and lifetime; as well as cage designs as concerns performing load transfer and speed to the bearings. As highlighted by the above sources, including a few others, it becomes possible to design small angular contact bearings for the required application depending on critical functional conditions and purpose.
Applications Requiring Specific Bearing Types
When I search for the top three sites on Google, I can identify several types of applications, which require particular bearing types for operational efficiency. Angular contact bearings are also used on high-precision machine tools mainly due to their ability to accept radially and axially oriented loads thus increasing machine accuracy. There is a requirement for deep groove ball bearings in conveyor systems since these bearings have high load-carrying capacity and low friction features that lead to uninterrupted operations. In electric motors, the use of cylindrical roller bearings can be justified by the fact that these bearings are high in radial loading and this enables the motor to work at varied speeds with less wear and tear.
As indicated by the literature reviewed, parameters that describe the bearing and influence the decision-making for selection include the contact angle, material used, preload, and lubrication. These parameters are important since they affect the bearing’s ability to handle axial and radial loads, withstand high-speed conditions, and keep accuracy under different load conditions. It is concluded that each application has its specific characteristics, which have been defined using reputable sources; hence, I can choose efficiently the bearings that meet the technical and operational characteristics given.
What are the Key Features of Angular Contact Ball Bearings?
Design Elements: Inner and Outer Ring Considerations
While compiling the necessary information from the first three websites on Google dealing with the design of angular contact ball bearings, there are a few inner and outer ring parameters that I have emphasized. First of all, the inner and outer rings of the bearings have to be made at some contact angle, which is one of the key parameters defining the axial loads that the bearing can sustain. This variant permits the bearings to carry both radial as well as unidirectional axial loads which most often is a requirement of high-speed machines.
In addition, the rings also have their inner bearings as the composition of the rings determines the ring’s operational performance, particularly regarding the ring’s wear and life. Chromites are among the most widely utilized materials based on their mechanical strength and ability to work under great loads. Similarly, the right amount of preload for the bearings is imperative when carrying out operations as it ensures that there are no excessive structural deformations and uneven load distribution that can lead to inaccuracy.
Finally, the kinds of lubricants applied in the bearings have a particular influence on their working as they eliminate relative movement and excessive heat formation which is especially important in high-speed conditions of usage. All these technical parameters make sure that the operational efficiency of the bearings is retained under diverse working conditions, and it is pertinent to know these parameters as they enable me to select the correct ones for the right applications.
Performance Characteristics of Angular Contact Bearings
The performance characteristics of angular contact bearings were dealt with, particularly from the point of view of three, of the most relevant websites on Google. First of all, these bearings are worth noting high capability of bearing both radial and axial loads simultaneously. Such a combination surely is extremely beneficial in applications where the accuracy and reliability of operations are crucial. Regarding the technical contours, but just merely on this technical aspect rather than how much inclined the axially inclined angle is.
Additionally, the utilization of the materials alloys such the chrome steel and the positive application of certain lubrication techniques guarantees effective abrasion resistance as well as heat management, which subsequently increases their abilities when subjected to pressure. Preloading these are also other key parameters set or arranged in bearings to limit or reduce the number of deflections and increase accuracy and movement, which also is very important in high movements. Therefore, equipped with full knowledge of these performance characteristics and technical parameters, I can strategically manage the bearings to be used for the intended operational purposes, hence optimal functioning and longevity of the machines are guaranteed.
Benefits of Using Angular Contact Ball Bearings in Machinery
The application of angular contact ball bearings in machines is associated with several benefits. First of all, they bear high loading, which is a crucial consideration in the design of rotating machines that manage appreciable radial and axial loads without the performance being compromised. Such parameters may involve the contact angle and the preload. It is more useful in supporting axial loads than a small angle as there are applications, which entail axial ones. This, however, helps in normalizing the movement of the elements within the bearing, making it possible to increase the accuracy and stability of its operation. This, alongside the chrome design, and optimal quantity of lubrication, improves abrasive resistance and thermal stability, which adds to the life span and reliability under different operating conditions. Knowledge of these benefits and features facilitates a more rational bearing selection process as I can choose the right ones based on the performance and expected longevity of the bearings made for the particular machinery.
How to Maintain Angular Contact Ball Bearings?
Best Practices for Maintenance and Inspection
In understanding my case studies of angular contact ball bearings’ important functions, I work with best practices taken from well-known industry sources. Inspection is the primary requirement because it facilitates the detection of early wear or damage to the parts, which guarantees their functionality and efficiency over time. Evaluation usually includes assessment of any strange sounds, heat, vibrations, and many others that may show concerns.
In lubricating these elements, I have a habit of making sure there is no time when the bearings operate with insufficient or excessive lubrication, especially the right grease. This decreases the chances of breakdown due to friction and overheating; therefore increasing the life span of the bearing. Also, To avoid unwanted effects on the bearings, I avoid pollution of the radial bearing.
Belt outer misalignment, geometric configurations, and most importantly bounding force settings are those parameters considered relevant and warrant being changed as they buffer the bearings against excess torques/pulleys. I pay attention to the contact angle also to facilitate the selection of the right angle to withstand some axial load. These changes came highly endorsed by bibliographies and have a direct effect on the performance and efficiency of the bearings while used in different machines and appliances. Thus, in this way, I can make inspection and maintenance of angular contact ball bearings cheap and quick without short-cutting on the performance.
Common Issues and Troubleshooting Tips
From my perspective and from consulting the literature at hand, some issues with angular contact ball bearings ought to be rectified. One such problem that always crops up is that of noise or vibration, which is usually caused due to failed installation procedures, misalignment malfunction, or failure due to wear. In this hastiness, I consider it necessary to check the correct practices of this operation – installation of bearings, alignment, and application of calibrated fasteners.
With such high rates of speed and loads, a frequent realm of concern is thermal clearance which is likely to arise as a result of poor lubrication. This to most, however, is avoidable and to this end, I monitor the lubricant timetable carefully as well as the quality of the oils or greases. Cleanliness of the surroundings is also very paramount in such cases to ensure no unwanted particles will get in.
There may be cases of bearing collapse under preload variations, which hurt reliability. So, besides common preload measurement, I also restrict technical loads, speed, etc, which were mentioned in the most advanced technical discussions on the same matters. Such actions are also critical in averting the degenerating condition of such a bearing before its expiratory lifespan.
The Importance of Proper Lubrication
Angular contact ball bearings are widely used in various high-load machines. Correct lubrication should be used to promote the life and efficiency of angular contact ball bearings. Through my research of the top three websites, I found out that the viscosity of the lubricant is an important technical parameter that must be taken into account and so depends on the operating speed and temperature of the equipment. Adequacy of the relubrication schedule has also to be observed and it was noted from these resources, that recommended relubrication at such intervals depending on the running hours of the bearing and conditions of use. Also, as shown by these documents, bearing failures are attributed to the pollution of the lubrication systems. Realigning myself with these practices ensures that the bearings work efficiently which reduces the chances of downtime and costly repairs.
Frequently Asked Questions (FAQs)
Q: What are angular contact ball bearings?
A: Sinusoidal ball bearings allow for both chordal and socket configurations. The ball angular contact bearings are one of the rolling bearing types that are capable of withstanding shear loads in one direction and radial loads at the same time.
Q: In what ways are angular contact ball bearings different from deep groove ball bearings?
A: In contrast to deep groove ball bearings, angular contact bearings have been designed to support more axial force in one direction when in contact with the raceway. Deep groove ball bearings are more designed for operating under radial loads than on the axial loads albeit to a far ceteris paribus to the angular contact bearings than on both axial loads.
Q: What role does the contact angle play in angular contact ball bearings?
A: For ball bearing angular contact it also determines the load in the axial direction turns. Increasing the contact angle improves the capacity to bear the axial load, therefore, these bearings find their applications where the axial force is concentrated in one direction.
Q: Is it possible to use angular contact ball bearings in both directions of axial loading?
A: The common configuration of angular contact ball bearings is such that they take loads in the axial direction in one direction only. When two or more such units are positioned as pairs, they may accept axial loads in both directions.
Q: What are the common applications of angular contact ball bearings?
A: Angular contact ball bearings are best used in machine applications that need high speed, high accuracy, and resistance to combined loads. Such applications include machine tool spindle bearings, pumps, and gearbox assemblies.
Q: Why are paired arrangements used for angular contact ball bearings?
A: When two or more pairs of angular contact ball bearings are assembled they function well in both directions of axial loads to augment the number of load-bearing surfaces. They also correct some of the misalignments and facilitate increased stiffness.
Q: What materials are typically used for the balls in angular contact ball bearings?
A: The balls in these types of bearings are primarily made of steel, although ceramic balls might be used in specific, highly precise applications where a strong yet light ball is required.
Q: How do angular contact ball bearings compare to roller bearings?
A: Angular contact ball bearings operate effectively under both radial and axial loads, whereas, roller bearings can withstand higher radial loads only. Generally, roller bearings can withstand larger loads compared to their angular contact ball-bearing counterparts but are poorer in handling axial loads.
Q: What are the factors that one must consider while choosing the angular contact ball bearings?
A: Some important features will help in correctly selecting the angular contact ball bearings, which are load requirements, radial and axial, contact angles, degree of precision, speeds, and also the environment of use. This encourages the proper performance and durability of the bearings for optimum service.
Q: What is the Other difference between single-row and double-row angular contact ball bearings?
A: The single-row angular contact ball bearings are capable of taking only unidirectional axial loads but in the case of double-row angular contact ball bearing loads can be taken about in both directions. Higher axial load, stability, and better load capacity are what double-row bearings have as compared to single-row bearings however more axial length will be occupied when using double-row bearings.
