Mastering Angular Contact Ball Bearings: Ultimate Guide for Functional Performance

Angular contact ball bearings serve as critical components in numerous industrial applications, providing exceptional precision, load-carrying capacity, and operational reliability. These bearings are specifically engineered to manage both radial and axial loads simultaneously, making them indispensable in high-speed machinery, automotive industries, aerospace systems, and more. This guide aims to deliver a comprehensive examination of the design, functionality, and maintenance of angular contact ball bearings while offering practical insights for optimizing their performance in diverse applications. By understanding their detailed structure, material compositions, and operating principles, readers will gain the technical expertise needed to make informed decisions regarding bearing selection, installation, and long-term care. Whether you are an engineer, a technician, or simply a professional looking to refine your knowledge of these sophisticated components, this guide provides a solid foundation for maximizing performance and efficiency.

What Are the Different Types of Angular Contact Ball Bearings?

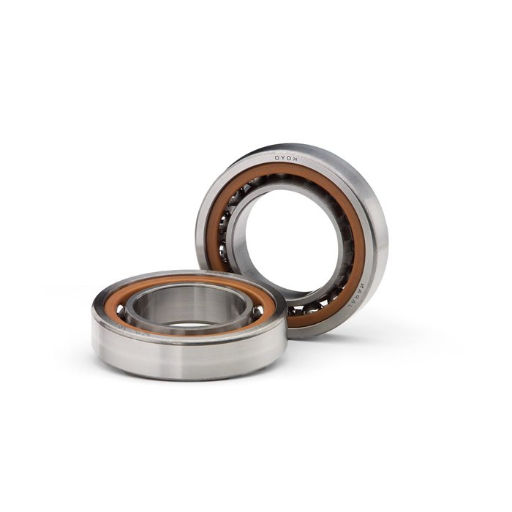

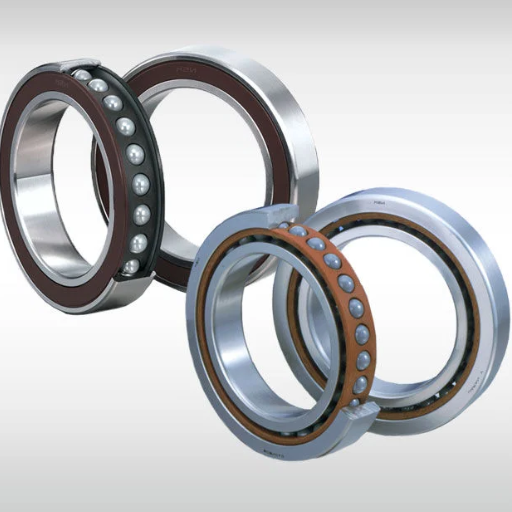

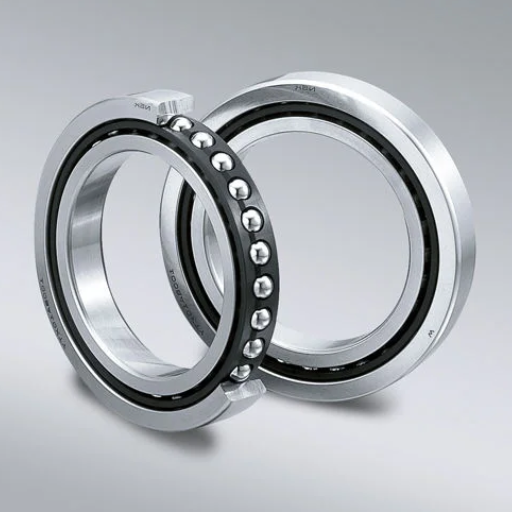

Single Row Angular Contact Ball Bearings: Features and Applications

Angular contact ball bearings designed for single rows have a special design that allows them to bear both axial and radial forces at the same time. The defining characteristic of these bearings is the contact angle, which is usually between 15° and 40 and supports their sufficiency. The optimization for speed in bearings is contact angle, as the smaller the angle, the faster operation they can handle. However, when the bearing has a larger contact angle it allows for the bearing to accept higher axial loads.

These bearings are most commonly used in machine tool spindles, gearboxes, and turbines where accuracy and efficiency are of utmost importance. These bearings tend to use steel or ceramic balls to decrease friction and increase the performance of the bearing at higher speeds.

• Contact angle: 15° 25° 40° depending on load and speed requirement.
• Maximum recommended speeds: ranges vary from 15000 – 30000 RPM for regular designs however the tolerance is higher for advanced lubrication and materials.
• Acceptable Axial Load: Load is proportional to contact angle and bearing size concerning the values derived from the manufacturer specifications.
• Acceptable Radial Load: largely determined by internal design, typically allows for combined loads to be balanced effectively.
• Materials: Balls and raceways are made out of Chrome Steel (AIMI52100 ceramic) making the material decently strong and durable.
• Lubrication: Grease and oils tend to work the best to minimize wear and temperature control during working conditions further needing athe pplication of these products.

When correctly installed with preload, single-row angular contact ball bearings provide excellent rigidity and rotational accuracy, making them suitable for applications requiring high precision and reliability.

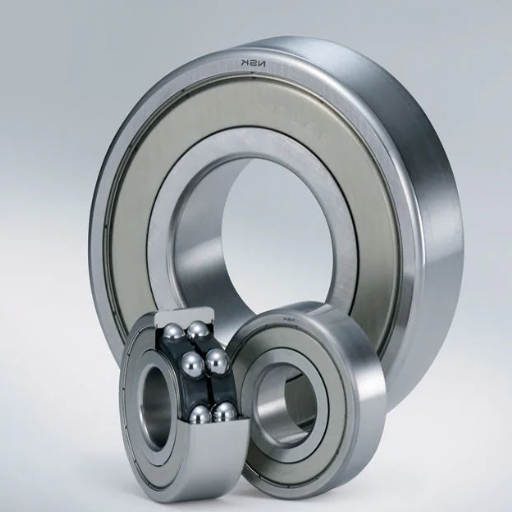

Double Row Angular Contact Ball Bearings: Enhanced Load Capacity

Double-row angular contact ball Allen can take combined loads in two different directions. It has floors and two rows of rolling elements. The axial loads are applicable from either direction, so they can be used efficiently in places where multiple single-row bearings aren’t driveable such as space-constrained areas.

• Contact angle: 25 – 30 degrees (usually) which is a compromise between axial and radial load.
• Recommended speed: Will be 10000 – 20000 rpm (base parameters such as dimensions of bearing, lubrication, and material may alter the result).
• Axial load capacity: With the use of dual row bearing, Ample axial load capacity can be achieved.
• Radial load capacity: With two directions of loading, the radial load capacity has been highly enhanced, thus making the bearing harness applicable for heavy-duty applications.
• Material: Chrome steel is a modifier of AISI 52100, this is considered a standard but those requiring low weight or more temperature resistance have an option of ceramic.
• Lubrication: One of the parameters that needs to be properly adjusted is the amount of grease or oil with the final look resulting in prolonging the bearing life.

These bearings can be best used in pumps, machine tools, and gearboxes and require minimal care while operating in diverse environments. They guarantee seamless functionality if installed with adequate preload.

Four-Point Contact Ball Bearings: Versatility in Load Handling

Single-row, cut inner rings of four-way motion ball bearings are engineered to effectively accommodate radial as well as axial loads while also allowing the bearing to rotate, approximately in any direction. This technology is particularly suited for equipment operating in an environment that has both limited space and a high amount of radial and axial loads, because two angular bearing contacts can be dropped down, with just a single bearing operating.

• Contact Angle: Provides provisions for incorporating a firm contact angle in the range of thirty-five to forty-five degrees which enables the bearing to fully optimally add out more robust loads
• Load Capacity: Depending on the size and material, these bearings can accommodate high combined loads, including dynamic loads commonly encountered in industrial machinery.
• Material Composition: For high-speed and high-temperature applications, It is recommended to use steel or ceramics which have sa uperior life span.
• Lubrication Requirements: Lubrication is key, grease or oil can be selected depending on cost and machine operation.

These bearings are widely employed in applications such as rotary tables, aerospace mechanisms, and industrial robotics due to their ability to maintain stability under variable load conditions. Proper installation, including precise alignment and preload adjustment, ensures enhanced durability and operational accuracy.

How to Choose the Right Angular Contact Ball Bearing for Your Application?

Assessing Load Requirements: Radial, Axial, and Combined Loads

To determine the suitable angular contact ball bearing, I begin my assessment by establishing the type of load that will be readily applied. Loads on the radial side run perpendicularly to the shaft, while loads on the axial side run parallel to the shaft. Combined load applications require both radial and axial forces to be considered at the same time.

• Dynamic Load Capacity： This factor can define the dynamic force restraint of the bearing. It has its importance in applications where there is high-speed rotation or uninterrupted movement.
• Static Load Capacity： This is important in situations where the bearing is not rotating but is under overload whenever pressure is applied to ensure that no plastic deformation is experienced.
• Contact Angle： The axial compression bearings with contact angles of 15 degrees,25 degrees, and even 40 degrees are chosen according to how much axial load they are meant to carry with more acute angles allowing more axial load upon them than obtuse ones.
• Speed Rating： I compare the operational speed of the application with the bearing’s design limits to ensure reliability and performance.

By understanding and justifying these factors, the bearing can be precisely matched to the operational and load criteria of the system for optimal results.

Considering Precision Levels and Operating Speeds

When addressing precision levels and operating speeds, I assess the application’s specific requirements to determine the appropriate bearing selection. Precision levels are dependent on the operational tolerances and the degree of accuracy needed in the performance. For example:

• Accuracy Class： I review the ISO standards, such as ISO P0 for general applications or ISO P4/P2 for high-precision requirements, ensuring alignment with the application’s tolerance demands.
• Revolutions Per Minute： Cross-functional components specifications also include an assessment of the optimal rotational speed of the system and its comparison with the maximum allowed RPM of the bearing during hot operating conditions to avoid potential overheating or failure.

By combining them with load factors, I ensure the bearing’s suitability for the designed mechanical application. The integration of these specific details into the decision-making process ensures that the system performs reliably under predefined conditions.

Evaluating Bearing Arrangements and Configurations

When evaluating bearing arrangements and configurations, I focus on several critical factors to ensure optimal performance and reliability. First, I examine the load distribution and direction, which includes considering whether the application involves radial, axial, or combined loads. For radial loads, configurations such as deep groove ball bearings or cylindrical roller bearings might be more suitable, while axial loads often require thrust bearings. The magnitude and type of load directly influence the selection process.

While looking at the bearing used, I look at the system alignment capabilities and whether there is any potential form of misalignment. Simply, bearings such as self-aligning ball bearings, or spherical roller bearings are needed when there is a need to compensate for shaft deflection or misalignment. Capable regulating the temperature and lubrication is also a major influencer. High-temperature conditions grease would. However, if the aim is better heat dissipation oil lubrication would be effective.

• Dynamic and static load-bearing: The bearing will take a force that is greater than the actual extreme which was expected to be maximum.
• Misalignment tolerance: The measurement is in degrees roughly on angler deviation limits shaft deflections will easily be accommodated.
• Maximum Rotating Speeds(RPM): Verified against both the theoretical calculations and bearing manufacturer specifications.
• Lubrication type and interval: Lubrication is adjusted as required by the system to allow performance and longevity to be maintained.
• Wearing material and coating type: the bearings, are chosen according to the risk of corrosion and extreme temperatures.

Justifying these factors comes down to meet the specific operational needs, minimizing risks of wear or failure, and ensuring compatibility with the mechanical system. Through this comprehensive evaluation, the chosen bearing arrangement maximizes efficiency and durability under the intended working conditions.

What Are the Advantages of Using Angular Contact Ball Bearings?

High Load Carrying Capacity in Multiple Directions

Being a highly flexible component in intricate applications, Angular contact ball bearings can bear both radial and axial loads preferentially. They are classified based on their load cumulating capabilities and their contact angle between 15° to 40°, which states that larger contact angles make greater axial load bearing possible while still having the ability to be radial load bearing. As a result, these ball bearings are suitable for more advanced systems including machine tool spindles, pumps, and gearboxes.

• Contact Angle (α): 15°: Typically set to 15°, 25° or 40° depending upon the off-center distribution of radial and axial load
• Dynamic Load Rating (C): The maximum radial load that a bearing can operate under for a specific duration without causing its fatigue life to drop is known as C and is expressed in kN
• Static Load Rating (C₀): Indicates the ability to withstand non-rotating or shock loads, relevant for preloaded assemblies.
• Speed Capabilities: Based on the type of lubricant used, bearing designs can achieve speeds of up to 15,000 RPM in high-power applications but only if the correct cage materials are applied.

These factors assist in making optimum performance decisions during directional strain which ensures that all mechanical parts involved are working flawlessly.

Improved Performance in High-speed Applications

High-speed applications require equipment that incorporates bearings possessing meticulously engineered parts along with suitable lubricant systems. At elevated speeds, bearing cage materials made from polyamide or brass are particularly effective as they reduce friction while assisting in maintaining thermal equilibrium.

• Speed Rating: It is vital to check if the bearing in question can withstand the required speed after it has reached its limits. This rating can exceed 15,000 RPM, especially when used with synthetic lubricants.
• Dynamic Load Rating (C): This determines the bearing’s endurance under continuous rotational stress, ensuring consistent operation.
• Temperature Range: In high-speed settings, the required operating temperature for the bearing material and lubricant is between -30°C to over 120°C.
• Vibration Resistance: Maintaining a close tolerance in the bearing aids in the reduction of vibrations which is of utmost importance when speeds are high.

These technical considerations are integral for achieving enhanced durability, lower noise levels, and superior reliability, ensuring the system operates seamlessly under demanding conditions.

How to Properly Install and Maintain Angular Contact Ball Bearings?

Best Practices for Installation and Alignment

To make sure the angular contact ball bearings are fitted correctly, It is recommended to observe the following best practices:

• Preparation of Components: First of all, components such as housing and shaft should be cleaned to ensure no dust and dirt are embedded. If there are any burrs or other imperfections on the surfaces that could influence the alignment, they should be removed.
• Correct Orientation: When positioning angular contact ball bearings, the position should be based on the application’s loading direction. If the setup requires a paired set of bearings, ensure it is arranged correctly (back to back or front to front or in a line).
• Application of Force: When fitting any part, make sure the deformation does not occur by pressing only the suggested, uniform force on the inner or outer ring of the bearing. When the fitting of bearings on shafts or housings is carried out, it is preferable to use a special press or an induction heater.
• Alignment Checks: Misalignment decreases bearing performance and durability. Utilize precision measuring tools, such as dial indicators, to confirm shaft and housing alignment, staying within an acceptable angular misalignment limit.
• Lubrication: Ensure the correct type and quantity of lubricant is used for the specific operation.

By following these steps, the bearings will operate at optimal efficiency and achieve maximum lifespan, minimizing costly downtime due to premature wear or failure.

Lubrication Requirements and Schedules

Bearings are a crucial element of many machines and equipment. However, to ensure that these perform optimally and last long, one factor that cannot be overlooked is proper lubrication. Many factors influence selection lubrication and bearing type, operational speed, load conditions, and ambient environment are.

• Lubricant Selection: Use any grease or oil appropriate for the operational settings. If grease is selected, then target products have a base oil viscosity rating ranging between 12-15 cst at working temperature. Also, ensure the grease consistency class (NLGI) is suitable which for most applications would be – NLGI Grade 2. If oil is used, then the viscosity rating has to target ISO VG 46 to ISO VG 100 depending on the bearing load and lifetime.
• Lubrication Interval: The strategy adopted when applying lubrication or the extent after which it might be reapplied, is influenced by the Relubrication schedule. Bearings operating in normal conditions and running at relatively lower speeds may need to be required after every 1000 hours while the ones running at higher speeds or higher temperatures would cut this time to about 100-200 hours.
• Lubricant Quantity: Over-lubrication can be as harmful as under-lubrication, potentially leading to increased operating temperatures and reduced efficiency. For grease-lubricated bearings, approximately one-third to one-half of the bearing housing’s free space should be filled, unless otherwise specified by the manufacturer.
• Monitoring and Adjustment: Schedule periodic maintenance checks to evaluate the condition of the lubricant. For lubrication with oil, check contamination, change of viscosity, or degradation by employing o dominant tools like oil analysis cud. When lubricant condition checks result in negative values, it’s time to change the grease.

If your schedule of lubrication is adhered to along with these lubrication requirements, one bearing should be able to perform ideal operations, endure extended service duration, and most importantly not experience failure due to insufficient or improper lubrication.

Monitoring and Addressing Wear and Tear

Competent detection of mechanical wearing and their timely reporting are achieved using preparing scheduled inspections of equipment and employing appropriate diagnostic tools. I pay attention to indicators including vibration levels, temperature fluctuations, and operational noise, as these measurements are often tell-tale signs indicating wear and tear. For instance:

• Vibration Analysis: I assess energy getting used by employing amplitude and frequency of vibration measures through accelerometers, which have noted any changes to baseline readings of misaligned instruments and parts considered damaged.
• Temperature Monitoring: I ensure bearings and machinery components do not exceed recommended operating temperatures, typically within the range specified in the manufacturer’s guidelines, such as 60°C to 80°C for standard lubricated systems.
• Visual Inspection: Specifically, those components of the machine that are subjected to erosion in surfaces, scratches, pitting, or discolorations are being checked for regularly.

When anomalies are detected, I compare them against predefined thresholds, provided by manufacturers or industry standards, and take corrective actions like realignment, replacement, or lubrication adjustment. This approach minimizes downtime and ensures mechanical reliability.

What Industries Commonly Use Angular Contact Ball Bearings?

Aerospace and Aviation Applications

Angular contact ball bearings are widely used in aerospace and aviation because of their ability to support both radial and axial loads and keep high tolerances even under harsh working conditions. These bearings are used in a variety of aircraft and spacecraft components such as jet engine shafts, helicopter rotors, landing gear assemblies, and turbines.

• Load Capacity: Due to their geometry, angular contact ball bearings are capable of carrying combined loads. Concerning the application specified for a bearing, its typical axial load rating varies from 10 kN to 500 kN concerning the bearing size for use in aerospace applications.
• Operating Speed: In jet engines and turbines, high-speed operation is required. In such applications, the rotation speed of the bearings may be over 10,000 RPM with the aid of good lubrication to minimize friction and heat generation of the part.
• Material Specifications: In aerospace companies, bearings are usually produced from strong alloys and carbonized materials, for example, AISI 52100 bearing steel, M50 tool steel, and ceramic rolling elements to enhance wear resistance and lower thermal expansion during the operation of the bearing.
• Operating Temperatures: The range of temperature for the aviation bearing motors in the aircraft may vary from -54 degrees Celsius to 175 degrees Celsius depending on the surroundings and the area of the specific part in the aircraft.
• Tolerance and Precision Standards: The ISO and AS9100 Quality Standards set stringent tolerances that the bearing manufacturers must comply with during design and production, especially for use in a flight-critical environment.

Angular contact ball bearings have become an indispensable part of the aerospace sector owing to their resilience, accuracy, and load-carrying ability which greatly improves safety and efficiency.

Machine Tool and Manufacturing Equipment

Bearings used in machine tools and manufacturing equipment are vital components designed to support rotating shafts and ensure the stability, precision, and efficiency of machining operations. Key features and considerations include:

• Load Bearing Capacity and Necessary Speed: Due to the radial and axial forces that some manufacturing equipment put out, both contact ball and roller thrust bearings must be integrated into their designs, this is especially true for CNC spindles which can demand a staggering rating of 1,000,000dN.
• Tolerances and Accuracy: Runout values in bearings follow strict micrometer tolerances, more often than not their prime focus is always to ensure that the tool delivers precise machining output.
• Operating Environment and Lubrication: During the manufacturing cycle, wear and damage caused by performance instability can be significantly reduced by using oil-air lubrication systems or any other advanced lubrication method during the operational stages, which also allows for bearings to work in different environments.
• Material: Stress cycles can damage bearings, which is why incorporating hybrid bearings that use silicone elements and metal dominates an industry’s standard for improving thermal frequency and moisture.
• Temperature Range: Bearing surfaces are often subjected to high temperatures that are present in their manufacturing environments. Hence, lubricants and materials that can withstand 120 °C or higher are used.

These factors ensure that the bearings deliver optimal performance under the demanding conditions of modern manufacturing processes.

Frequently Asked Questions (FAQs)

Q: What are angular contact bearings and how do they differ from other types of rolling bearings?

A: Angular contact bearings are a type of rolling bearing designed to support combined radial and axial loads. They differ from other bearing types in that their inner and outer rings are offset, allowing them to handle axial loads in one direction more effectively than standard ball bearings. This design makes them ideal for applications requiring high precision and the ability to support both radial and axial forces.

Q: How do angular contact ball bearings support axial loads?

A: Angular contact ball bearings support axial loads through their unique design. The raceways of the inner and outer rings are displaced relative to each other in the direction of the bearing axis. This allows the bearings to take axial loads in one direction and can be adjusted against a second bearing to support axial loads in both directions. The angle of contact between the balls and the raceways determines the bearing’s ability to handle axial forces.

Q: What are the common arrangements for angular contact bearings?

A: Angular contact bearings are commonly arranged in several configurations to enhance their performance: 1. Single bearings for unidirectional axial loads 2. Bearings arranged back-to-back for bidirectional axial loads 3. Tandem arrangements for an increased load capacity in one direction 4. Face-to-face arrangements for applications requiring high rigidity 5. Double-row angular contact ball bearings for compact designs supporting loads in both directions

Q: What types of angular contact ball bearings are available?

A: Angular contact ball bearings include several types to suit various applications: 1. Single-row angular contact ball bearings 2. Double-row angular contact ball bearings 3. Four-point contact ball bearings 4. Matched pairs of angular contact bearings 5. High-precision angular contact bearings for machine tool applications 6. Sealed and shielded versions for contaminated environments Manufacturers like SKF offer a wide range of these bearing types to meet specific industry needs.

Q: In which industries are angular contact ball bearings commonly used?

A: Angular contact ball bearings are used in various industries where precision and the ability to handle combined loads are crucial. These include: 1. Machine tool spindles 2. Aerospace applications 3. Automotive transmissions and wheels 4. Pumps and compressors 5. Electric motors 6. Industrial gearboxes 7. Robotics and automation equipment 8. Medical and dental equipment Their versatility makes them essential components in many high-performance applications.

Q: How do outer ring designs affect the performance of angular contact bearings?

A: The outer ring design of angular contact bearings plays a crucial role in their performance. Different outer ring configurations can affect: 1. Load capacity and distribution 2. Ease of mounting and dismounting 3. Ability to accommodate misalignment 4. Heat dissipation characteristics 5. Sealing effectiveness For example, some outer ring designs allow for easier mounting in housings, while others may provide better support for specific load conditions or enable the use of more effective sealing solutions.

Q: What factors should be considered when selecting angular contact ball bearings?

A: When selecting angular contact ball bearings, consider the following factors: 1. Load type and magnitude (radial and axial) 2. Operating speed and temperature 3. Precision requirements 4. Space constraints 5. Environmental conditions (contamination, moisture) 6. Lubrication method 7. Mounting and dismounting need 8. Life expectancy and maintenance requirements 9. Cost and availability Carefully evaluating these factors will help ensure the selection of the most appropriate bearing for your specific application.
