Angular contact ball bearings are widely used in numerous machines because they operate precisely under perpendicular radial and axial loads. Notably, 7209.AC.C3 is a multipurpose type suited for strict industrial usage, allowing better, stronger, and more efficient operation. This article examines the distinguishing characteristics of this concrete bearing type, its configuration, materials used in construction, and performance-related advantages. By the conclusion of this exploration, the reader will familiarize himself with the contribution of the 7209.AC.C3`s features to the overall strength and integrity of the mechanical mechanisms.

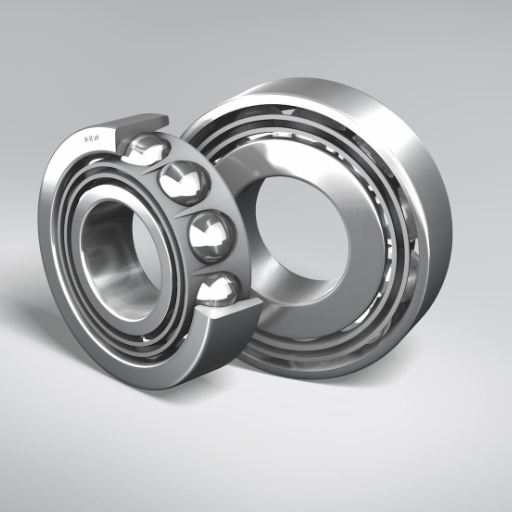

What is a Single Row Angular Contact Ball Bearing?
Characteristics of Single-Row Bearings
Single-row angular contact ball bearings are designed to withstand combined loads simultaneously, pushing the radial and axial components simultaneously. They also have a unique asymmetrical structure in which the raceways and balls are not concentric. This allows the bearings to bear more efficiently axial thrust only in one direction, making them perfect for processes that require high speed and precise machinery alignment.
Contact Angle: Due to being available in 15°, 25°, or 40° ranges, the contact angle is usually why some bearings are more potent than others concerning axial loads. The higher the contact angle, the greater the capacity for axial loads.
Speed Capability: Single-row bearings can rotate at higher speeds, making them suitable for powerful equipment.
Load Capacity: 7209.AC.C3, for instance, is a bearing designed to tolerate very high loads, both dynamic and static.
Precision Classes: Softball bearings are manufactured with different degrees of precision for other uses, which implies tolerance and smoothness of motion.
Material Composition: These bearings are manufactured with wear-resistant steel or ceramic hybrid materials with a long operational life.
These features make single-row bearings a vital choice in applications such as pumps, compressors, and machine tools, where precision, functioning, and dependability are essential.
Applications of Angular Contact Ball Bearing
Angular contact ball bearings are used extensively across industries for accuracy and efficiency. I can succinctly clarify their uses while incorporating the relevant engineering parameters:
Pumps and Compressors: These bearings assist pumps and compressors in achieving combined radial and axial load capability at relatively high speeds. The usual specifications are the contact angle, which is between 15 degrees and 25 degrees, and contact precision classes of P4 or P5 levels to achieve smooth functionality and minimal shaking.
Machine Tools: Problem-free angular contact ball bearings functionalities are critical in machine tools such as milling machines and lathes. Bearings in this application tend to have preload features to eliminate backlash and rigidity.
Electric Motors: These bearings are crucial for electric motors since they guarantee smooth rotations at high and low speeds. The usual specifications are high-grade materials, such as ceramic and steel, to withstand the heat from expansion and the force exerted during operation.
Automotive Industry: These angular contact ball bearings restrain the radial and thrust forces in pumps and are utilized in manufacturing gearboxes and wheel hubs. They enhance the reliability and lifespan of the components.
The fields mentioned cannot do without angular contact ball bearings as they are capable of high load-carrying capacity and are of precision engineering.
Comparison with Deep Groove Ball Bearing
Angular contact ball bearings have the same basic construction as deep groove ball bearings, yet their purpose and application differ. These differences are presented in the table below:
Load-carrying Capacity
Angular Contact Ball Bearings: Capable of working with both radial and axial loads, having, however, an increased emphasis on axial load management. This is also determined by the contact angle, generally between 15° and 40°, making it possible to bear axial loads efficiently.
Deep Groove Ball Bearings: Designed for predominantly radial loads, allowing, however, some moderate axial loads. These are not as effective in axial force application as angular contact bearings.
Design Variations and Contact Angle
Angular Contact Ball Bearings: The contact angle is critical because the higher the angle, the greater the ability to support the load in the axial direction. Standard configurations include single-row, double-row, and four-point contact designs customized for their use.
Deep-groove Ball Bearings do not possess a definite contact angle and are, therefore, better suited for applications requiring a high degree of speed with low resistance when radial loads are present.
Applications
Angular Contact Ball Bearings – Employed in a lot of equipment that is expected to experience combined or large axial loads during use. Such equipment includes turbines, pumps, and automotive gearboxes.
Deep Groove Ball Bearings – These are more applicable in general employment, such as electric motors, appliances, and conveyors, as they are likely to experience radial loads mainly.
Operating Speeds
Angular Contact Ball Bearings—These can be used for high-speed applications; however, because of the heavy axial loads, more heat may be generated when the bearing is under that condition.
Deep Groove Ball Bearings – because of a more basic design, these bearings can handle high speeds with less resistance
Alignment Tolerance
Angular Contact Ball Bearings Have a smaller tolerance window regarding misalignment; any attempts by the user to install the bearing improperly might risk its performance or eradicate it.
Deep Groove Ball Bearings have a greater tolerance for alignment, enabling them to be used on a broader range of more straightforward applications.
Based on the differences in the above principle, the bearing used in given operating conditions and requirements can be easily selected.

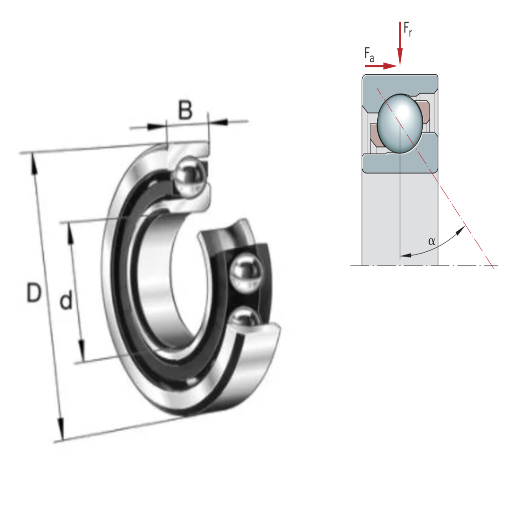

How Does Contact Angle Affect Performance?
Importance of Contact Angle in Bearing Design
The contact angle is an essential factor in bearing design since it directly affects the bearing’s capacity to withstand axial and radial loads. Other factors being equal, increasing the contact angle increases the bearing’s axial load capacity, whereas decreasing the contact angle favors applications that produce mainly radial loads. For example, 15° contact angle bearings are used in high-speed precision applications, while 25° and above are used for applications involving high axial loads, such as axial thrust machines.
The contact angle and its related parameters are critical for the design and selection of a bearing:
Angular Range: The load direction and magnitude dictate the selection of the contact angle, which is primarily 15°, 25°, and occasionally 40°.
Axial Load Capacity: This capacity is a function of the tangent of the contact angle; larger angles provide greater capacity for supporting axial loads.
Radial Load Distribution: Smaller contact angles emphasize radial efficiency and are suitable for modern applications such as electric motors.
Engineers use the correct contact angle to fulfill the application’s functionality and operational life requirements.
Impact on Axial Load and Radial Load Capabilities
The consequences of contact angles on axial and radial load bearing are enormous, and I will explain this concisely. Higher contact angles favor axial load capacity since they enhance support efficiency. The ratio of the proportion to the tangent of the angle of contact mathematically depicts this. For instance, a 40° contact angle would accommodate more axial load than 15° or 25° contact angles.
In contrast, the radial load distribution has optimum angles of contact, which are almost similar to the radial cross-sectional lay-up. For instance, a 15° contact angle is acceptable for specific applications such as electric motors where radial contact is essential due to the high constant speed rotation. Knowing these parameters allows me to explain why a given contact angle is selected concerning axial, radial, or both loads so that the system is designed to operate without failure under pre-defined load conditions.

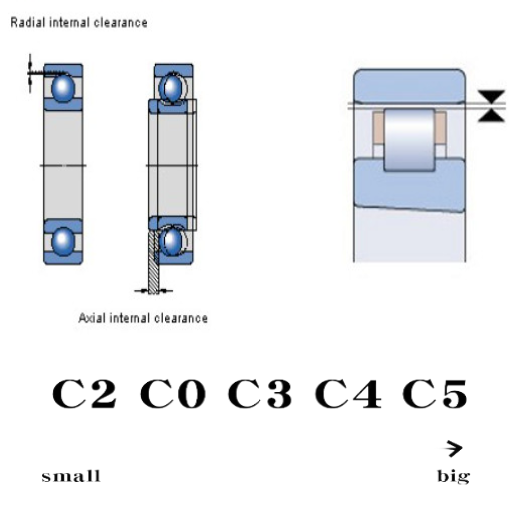

Why Choose C3 Clearance?
Benefits of Internal Clearance
Another benefit of using internal clearance, specifically C3 clearance in angular contact ball bearings, is that it is helpful for a wide range of demanding applications. The first advantage stems from its tolerance to thermal expansion. C3 clearance bearings have somewhat more spacing between rolling elements and the raceways than standard clearances, which is useful when operating temperatures vary greatly. For example, in a hot environment, a C3 clearance prevents metal contact between parts because of heat-induced expansion. Therefore, the wear and failure of components subject to heat are minimized. This feature allows the bearing to work efficiently even in high temperatures.
High-speed performance is quite another advantage offered by C3 clearance. The extra clearance decreases the contact between the inner and outer races, thereby increasing operational speeds. C3 clearance also increases rotary speed. Supporting first-class C3 clearance is particularly useful in electric motors or turbines where higher speeds are expected for proper operation. The optimum C3 class that tolerates greater than usual clearance as required by ISO measures on internal clearance on ball bearings permits high bearing durability while sufficiently satisfying the precision requirements in use under extreme conditions.
Misalignment problems are another issue that they can address more effectively. The additional clearance afforded by a C3 bearing makes it appropriate for applications where the housing and shaft do not align perfectly because there is an allowance for slight misalignment as it is. At the same time, this clearance improves the flow of lubrication inside the bearing, which enhances the heat being transferred away from it and reduces the noise generated during operation. Overall, the careful design of C3 clearance in angular contact ball bearings makes them appropriate for various industries, including automotive systems and industrial machinery.
Applications for High Precision Needs
In the case of applications with high precision requirements, the use of angular contact ball bearings cannot be avoided. In many instances, they greatly assisted me with machine tools, robotics, and some aerospace systems that needed accuracy and reliability. They are exceptional bearings due to their ability to react to combined loads and remain rigid in extreme conditions. Adjustable preload settings, for example, are essential in eliminating backlash and providing machinery with the necessary stability for achieving reasonable accuracy. With light, medium, or heavy preload, these bearings offer adequate stiffness in conjunction with the booming development of CNC machining.
These bearings’ P4 and P5 precision classes go a long way in determining the precision tasks that can be undertaken with their assistance. Bearings of class P4 possess relatively close tolerances, resulting in greater precision and fewer vibrations. Such precision is crucial for performance in robotics, where even the slightest off angle can impact the entire assembly. CERAMIC composites add value by making objects stronger and less likely to overheat. Take, for example, ceramic balls with steel raceways; they provide smooth motion and durability for aerospace parts, which is especially important when the parts must endure harsh conditions and be used for a long time.
Whether for the accuracy of cutting tools or the fluid movement of robotic arms, angular contact ball bearings always perform to the best of their abilities in systems that require high precision. This means that the configurations I make can respond even to the most luxurious industry needs where having even a single milling error would be considered a serious flaw, making them permanently reliable and highly efficient.

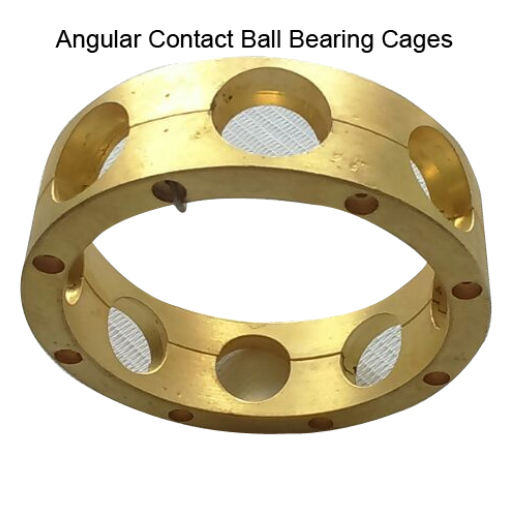

What Makes the Brass Cage Special?
Durability and Performance of the Brass Cage
Introducing a brass cage into angular contact ball bearings has enhanced durability and performance. Brass cages are perfect because they resist wear and deformation even when subjected to high loads. Because they can always perform to high standards, they are ideal for harsh environments like industrial machining and the automotive industry. Their material enables stable operation and longer bearing usage with reasonable toughness, requiring fewer maintenance and lower downtimes.
Another benefit that I have most of the time come across with brass cages is their strong thermal management. Bearings are frequently needed to work in applications and fulfill heat management as a key requirement, and brass is better at dissipating heat than nylon or steel-bearing cage materials. This reduces the chances of overheating or thermal expansion of the components since it lowers the operating temperature of the bearing during long, high-velocity work. Moreover, brass is also exceptionally corrosion-resistant, which is essential for the bearing, especially when harsh conditions or the bearing is exposed to moisture and chemicals. This reliability puts assurance on the bearing to remain intact over the periods.
What I find most remarkable about brass cages is their compatibility with various lubricants. Brass reacts neutrally with oils or greases and can effectively affect such operations in varying temperatures and conditions. Its capability to sustain lubricant integrity also diminishes friction and increases efficiency even under the harshest operating conditions. From facilitating material handling in construction equipment to achieving the correct tolerance in aerospace parts, there is seemingly no doubt about the efficacy of brass cages.
A Comparison with Other Cage Materials
The comparison of brass cages with ones made out of steel or nylon shows that all have their pros and cons for, among other factors, the application. For instance, in a material such as a brass cage, its durability and wear resistance make it possible to withstand great mechanical stress and large loads. Brass, unlike nylon, can weather high temperatures, and so is ideal for use in areas where heat must be dissipated. In the same breath, brass exhibits higher corrosion resistance than steel, which has a higher propensity to rust when exposed to humid or chemically aggressive environments. This degree of strength makes brass to be a favorable material for use in heavy-duty industrial machinery and in aerospace components.
Brass counterparts possess the corrosion and wear resistance vital for their intended high-temperature and high-load roles while simultaneously protecting the confidential industrial secret of lubrication compatibility along with the credit of being pretty much cost-effective. On the other hand, steel cages are credited with being the ‘king of strength’ and having supreme structural integrity. Yet, the high density of the material assures that a substantial amount of incompressible fluid can pass through, hence generating an adequate level of friction to aid in creating relative motion between the shaft and the bearing casing. Regarding nylon, as noted in the previous discussion about low-friction steel bushings, it would allow for quiet and quick motions, primarily serving the interior aesthetic appeal of electric motors.
The range of workable parameters, including tolerable structural deformation, the ability to retain structural integrity, and the amount of weight the material can withstand during operation without yielding, suggests that the selection of brass, steel, and nylon bearings heavily depends on meeting the desired criteria for the job at hand. If the job requirement is the ability to function in moderately demanding environments, then the use of nylon is obvious. The roller cage frameworks, on the other hand, are made of steel and certainly outperform brass in strength parameters; however, when transitioned to high-temp, high-stress environments, the ability of brass bearings to retain structural integrity is simply unmatched. So, all load requirements in terms of operating temperatures, load requirements, and working environmental factors aid in determining which material for the roller-bearing abrasives would be the most suitable and can easily withstand the abrasion.

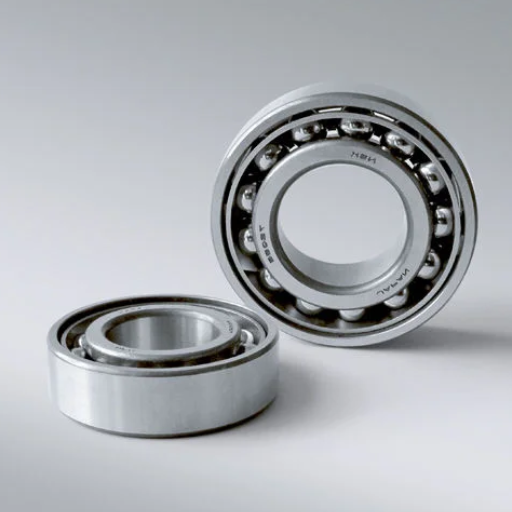

What are the Key Dimensions of 7209.AC.C3?
Significance of the 45 mm Bore Diameter
In the spatial operational arrays of a bearing, the angular contact ball bearing possesses the crucial dimension of 45 mm bore diameter. This size is rather practical as it offers a cop efficient caseload range. Simultaneously, the speed is increased in medium-sized applications. Instantly, it was noted that my designs with a 45 mm bore can bear considerable radial and axial forces, which is helpful for industrial machinery, automotive purposes, and even, at times, precision machines. Furthermore, since this specific bore diameter is not commonly oversized or undersized, it fits into joined shafts, helping avoid shaft movements within synchronized pieces and saving cost on operational embeds of specific devices or processes.
From my experience, a 45 mm bore should not have its fit tolerances overly adjusted, as this would significantly alter the functional requirements. Ill-fitting segments result in inappropriate weight placements or unneeded component vibration, especially at fast speeds. Likewise, a tolerance class should be selected while considering its application, whether loose, transitional, or very tight fitting, allowing the component to function within its required parameters. For instance, a high-speed procedure preferably uses a stricter fit to preserve consistency in alignment or stability.
The 45-mm bore diameter has an added significant benefit as it standardizes the size for many applications. This standard accommodates most types and configurations of shafts and can, therefore, be used across different markets. I rely on this diametric size when working with pumps, compressors, and industrial gearboxes, as it meets my volumetric and geometric tolerances and still works well under different loading conditions. This blend of versatility and performance makes it an important specification.
Understanding the 85 mm Outer Diameter
The 85 mm outer diameter in angular contact ball bearings has always been a key specification, considering the stability and strength of load handling in the axial direction. This diameter shields the bearing from undue motion and aligns with the housing at its interface to ensure solid integrity. The increased diameter also helps ameliorate the load concentrated in a unit area, ideal for heavy machinery and high-speed systems. With this dimension, the bearing delivers excellent stability and performance, even under dynamic or fluctuating loads.
The dimensional tolerances for working with an86 mm outer diameter are essential to bear in mind. The operational requirement of accuracy means that a slight related variance in the bearing and the housing would be detrimental and result in the parts’ vibrations and wear and tear. When bearings of this size are manufactured, close tolerances are used because the parts are expected to expand with heat without affecting their performance. For example, during high temperatures, this outer diameter fortifies structures, allowing for micro-dimensional changes without structural deformation while at the same time keeping the structure’s integrity in place.
The 85 mm outer diameter stands out because it can be used with standard housing dimensions, which facilitates incorporation in varied applications. Whether I am dealing with large-scale industrial assemblies of machines, turbines, or automation equipment, this diameter appears just right. Its ability to be ‘stressed’ yet remain stable is also why it’s trusted across the engineering and operating communities in many high-demand applications.
Importance of 19 mm Width in Applications
In my opinion, the width of the angular contact ball bearing of 19 mm appears to be an adequate balance between performance and spatial congestion. This width determines the bearing’s ability to support axial and radial loads by varying the contact between the balls and the raceways. A material with a width of 19 mm offers the Shaft sufficient material thickness to increase strength while still allowing the Bearing to resist considerable tension without warping, making it an optimal material for tight spaces such as precision-engineered parts or robots where dimensions are minimized and not performance.
I understand that the width is also necessary for the bearings’ life – using wider bearings means the load will be more often shared. Angular contact of 19 mm can interact directly with the wear and tear of the metal components, thus extending mileage even while the machine is subjected to high speed or loads. Also, this breadth can determine the pushing loads the ball cage can withstand. For example, where radial and thrust loads are also applied, this thickness controls the forces developed to avert breakdown and, over time, ensures the system performs smoothly for a long.
A further benefit of the 19 mm width is the possibility of inserting it into restricted spaces without impairing the load capacity. This size is quite functional in gear units, pumps, and automated units, where space is commonly an issue when getting around. It’s small yet strong and allows the effective use of space where required strength is still provided; hence, it is an essential part of various high-precision industries.
Frequently Asked Questions (FAQs)
Q: What are the main characteristics of the Angular Contact Ball Bearing 7209.AC.C3?
A: The Angular contact ball bearing 7209.AC.C3 is designed to accommodate axial and radial loads. It is helpful at high speeds and even more so in accurate positions. Its standard 40° contact angle enables it to carry moderate axial loads in one direction. It is also made with durable and reliable materials.
Q: In what way do the 7209 bearings facilitate very high speeds in their application?
A: The 7209 bearing has been specifically designed to allow it to rotate at speeds that do not create a lot of friction. Also, the angular contact type of the 7209 bearing helps to avoid contact overheating during working loads.
Q: Is installing the Angular Contact Ball Bearing 7209 in gearbox applications possible?
A: The 7209.AC.C3 can be installed in gearboxes due to the radial and thrust load capabilities. It is more appropriate for gearboxes that require accurate positioning and are subjected to thrust loads.
Q: What is the relevance of the marking ‘C3’ when referring to 7209.AC.C3?
A: The Term ‘C3’ implies that the bearing has internal clearances greater than standard bearings. This allows thermal expansion of different components in the bearing and helps minimize the chances of a seizure while in operation, making it useful in high-speed applications.
Q: Who are the leading Angular Contact Ball Bearing 7209 suppliers?
A: The bearing in question is a 7209 angular contact ball bearing, and most of the famous manufacturers, such as FAG, NSK, and Timken, among others, can efficiently distribute this product. This bearing can also be found with many other suppliers who would sell them at a reasonable rate with fast shipping times.
Q: Which loads can be supported By 7209 angular contact bearing?
A 7209 angular contact bearing is designed to withhold axial and radial loads. Due to its unique bearing geometry, the thrust load in one direction is easy to bear in this case, making it ideal for numerous purposes across several industries.
Q: Are there any precautions that should be taken to ensure the correct installation of the Angular Contact Ball Bearing 7209?
A: Care must be taken to properly align the Angular Contact Ball Bearing 7209 with the shaft and housing. Damage to any of the components might lead to malfunctioning. To prevent excessive force, it is always advisable to abide by manufacturer instructions when installing or removing the product.
Q: How long would it usually take for the Angular Contact Ball Bearing 7209 to be delivered?
A: It should be noted that there may be variances in the time it takes to deliver the Angular Contact Ball Bearing 7209, depending on the supplier and their available stock. However, numerous providers allow for streamlined shipping methods, which may include delivery within several days of an order being placed and confirmed.
Q: Are there any special maintenance requirements for the 7209 bearings?
A: Some maintenance would still need to be done, regardless of whether the 7209.AC.C3 bearing was constructed for high durability. Regular maintenance, such as checking the oil levels and replacing any seals that appear worn down, may be the best practice to ensure the ball bearing lives longer. In addition, following the manufacturer’s privacy policy and the support guides and maintenance tips they provide are pretty likely to parallel good bearing life.
Q: What is the load capacity of the Angular Contact Ball Bearing 7209?
A: The design of the material and the bore of the bearing determines its load capacity, and in this particular case, the Angular Contact Ball Bearing 7209 bore and design do the same. This component should provide for low to moderate-sized loads, making it efficient for multiple industrial uses. As for the load rating, the guidelines set by the product manufacturer offer better precision.
