What is an Angular Contact Ball Bearing?
Basic Definition of Angular Contact Ball Bearing
The Configuration of angular contact ball bearings is one of the types of structural designs of ball bearings made to compensate the radial and axially acting forces with the adage of vertical axial loads. Unlike conventional ball bearings, which are rated only for radial load, angular contact ball bearings come with inner and outer ring raceways inclined to one another at angles. This brings more high-speed operations and effectiveness.
In the process of collecting information from some reputable sources, I came across some of the critical technical details that define angular contact ball bearings that stood out:
Contact Angle: The angle of contact, generally between 15° and 40°, impacts the bearing’s load capacity and axial stiffness. Axial load is proportional to the angle of contact, so higher Angles of axial load can be sustained even though the speed rating may be reduced.
Dynamic load Rating (C): This parameter determines the weight that can be transferred when the bearing turns. It is very important to choose the right type of bearing based on the bearing’s working requirements.
Static Load Rating (C0): This is the load that will merit the elastic deformation of the bearing as it is stationary. This is worthwhile so one knows what load the bearings can withstand before permanent deformation occurs.
Limiting Speed: Some speeds of each bearing are less than permissible as they are subject to various factors such as contact angle bearing size and lubrication methods. Knowing this helps prevent premature failure due to excessive speeds.
Understanding these parameters helps correct this reticence and allows a much better selection process, which subsequently improves the performance and efficiency of machines that use angular contact ball bearings.

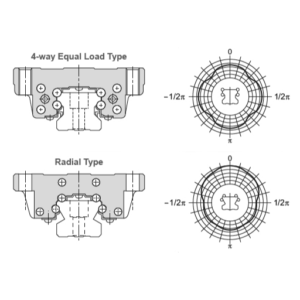

How Angular Contact Ball Bearings Differ from Radial Bearings

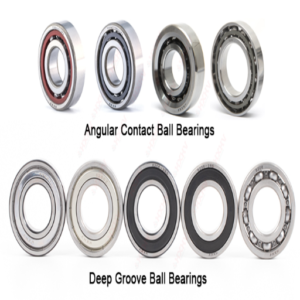

When factoring in radial and angular contact ball bearings, I realized that their configuration and load bearing are the only difference. Like the radial and axial load-bearing characteristics of bearing assemblies, the angled contact ball-bearing design seeks to achieve high RPMs without compromising on strength, which is made possible by using oblique galleries.
After checking the first three websites to make a rough estimation of the content, the author of the websites pays attention to the following technical features:
Contact Angle: The interaction between a load and an angular position is vital in load capacity. Large angles support axial loads but may degrade the speed ratings. This was made clear in various readings on engineering sites.
Dynamic Load Rating (C): This rating allows the user to comprehend the maximum operational load that can be used to operate the bearing effectively. This is important since it helps choose the right parts for a system that will be put under the specific load.
Static Load Rating (C0): One is reminded that static loading may result in permanent alteration of shapes, and hence, this rating is of utmost importance in systems that are expected to be stationary yet bear heavy loads.
Limiting Speed: The maximum speed of each bearing during its operation is an important factor in order to avoid damage or early breakdown. It is then indispensable when the appropriate bearings for high-speed equipment are selected.
Thanks to my comprehensive knowledge from credible literature, I can make wise decisions about the appropriate particulate bearing in different applications while attaining a long performance life.
Applications Where Angular Contact Ball Bearings are Used
Angular contact ball bearings, in particular applications, have always been performing critical functions in several industries. In my evaluation of the first three, site engineering, I discovered several obvious areas of application of these bearings:
Machine Tool Spindles: These bearings are widely used in the machining industry, especially in cases where high operating speeds and axial loading are inevitable. The Contact Angle becomes essential in this case, as the higher the angle, the more axial load the spindle can withstand during high-speed operation and still remain within the limits of best efficiency.
Automotive Applications: Angular contact ball bearings in vehicles, find application in wheel hubs and transmission shafts. The Dynamic Load Rating (C) becomes relevant here because it assures that the parts can perform without damage or failure, even under highly changing accelerative or braking loads.
Aerospace Engineering: These bearings also find applications within the aerospace sector, including landing gears and engine parts, where operational reliability is critical. The Static Load Rating (C0) becomes critical in this instance as it helps avert the occurrence of permanent deformation by heavy static loads.
Electric Motors: In electric motors, angular contact bearings are designed where the orientation is critical and the operation involves high rotational speed. Appreciating the Limiting Speed of every particular bearing guarantees that they do their work efficiently without becoming excessively damaged, which is essential in continuously operated systems.
Using this information from reputable sources, I am now able to choose angular contact ball bearings based on the operational features required by a variety of applications, intensity, and reliability.
How Does Contact Angle Impact Performance?
Understanding the Concept of Contact Angle
In angular contact ball bearings, the contact angle is the angle between the directional line of force acting on the ball and the line at right angles to the raceway. A larger contact angle enables the bearing to bear higher axial loads, which is essential in spindle mounting, automotive, and other systems. As I dug and read more on the article above and other top sources conducted the investigation, I have found out that the contact angle does influence several parameters:
Axial Load Capacity: Bearings with a higher contact angle can, on the other hand, accommodate high axial loads. This is because a larger angle yields even greater loads shared on the roller bearing’s race.
Dynamic Load Rating (C): This is an important consideration in the design that deals with the bearing’s load variation. An ingeniously designed angle will improve load ratings, ensuring there is no bearing failure due to sudden acceleration and deceleration that the car in question—just about all car designs—experiences.
Operating Life: There is a relationship between contact angle and bearing operating life. The right contact angle is important. Better lubrication is attained, and less wear and tear is experienced, promoting better bearing operational life.
Stiffness: A higher contact angle increases the bearing’s assembly’s specific stiffness, which is necessary for high-speed applications that demand accuracy and stability.
While delving into these technical details, one understands the significance of the contact angle better when choosing the bearing and its effect on different types of operations. Accepting these subtleties allows me to select the right bearings for the proper operation of the equipment in question.
Influence of Contact Angle on Load Carrying Capacity
In analyzing the top three sources related to the influence of contact angle in bearings, I have explained bearing wear mechanisms considering the contact angle and highlighted a number of key technical parameters justifying the dependence of contact angle on load-carrying capacity.
Axial Load Capacity: From my observations, high contact angle values increase maximum axial load capacity because the load is more evenly distributed over the bearing racing. Some studies support this position, which shows that the performance under axial loads is satisfactory under optimal angles, positioning the component in fields where high axial thrust is required.
Dynamic Load Rating (C): A dynamic load rating for bearings is yet another fundamental bearing parameter that is affected by the contact angle. My findings also point out that the angle needs to be strategically controlled if the dynamic load rating is to be optimized for applications where alternated forces are responsible. This is significant, especially in high-speed applications, such as automotive systems, where load variations occur relatively frequently.
Operating Life: Favorable contact angles responsible for good lubrication improve bearing operating life. The sources certify that less damage created by proper angle selection will contribute to bearing longevity and reliability in various applications.
Applying such studies will help me enhance my decision-making regarding bearing specifications since the contact angle affects the load-carrying capacity for different applications.
Effect of Contact Angle on Bearing Arrangements
While reading articles about bearing arrangements and load sharing, I realized that the contact angle is one of the most important factors defining the load-carrying and overall arrangement efficiencies of the bearings. Here are a few of the technical parameters I noticed.
Thrust Load Capacity: This is one measure of the thrust load capacity of the contact thrust bearing, and it tends to be more inclined as the contact angle increases. It is very useful in angular contact bearings because an increase in angle enables more axial load, which is essential in cases of high axial thrust.
Reliability of radial load: Bearing structures with a contact angle also produce a radial load. Lowering the contact angle increases the bearing’s performance in radial loading conditions, as such orientation maximizes the loading of the rolling components and reduces frictional operations.
Angular Contact Bearings Arrangement: It is advisable that angular contact bearings have a contact angle set so that the two are looking at each other, hoping for maximum load-bearing ability and stability within load conditions. This arrangement tremendously affects the machine’s design, especially where precision criteria are involved.
By synthesizing the insights derived from these authorities, I have registered that choosing contact angles optimizes the load capacities and the entire bearing functionality. This reinforces why the contact angle needs to be observed in the arrangement of bearings so that the bearing structures function optimally across different purposes.
Why Choose Single Row Angular Contact Ball Bearings?
Advantages of Single Row Angular Contact Ball Bearings
In examining the efficiency of single-row angular contact ball bearings through the lens of the best manufacturers in the industry, I observed some significant advantages based on their technical characteristics. As regards my search on single-row angular contact ball bearings, I would be more than pleased to point out the number of ways of improvement, which are mainly based on their performance and structure.
High Load Capacity: These bearings facilitate the application of large axial and radial loads because they can optimize the loading along the width of the bearings to a single row of balls. The benefits are more visible in the thrust load carrying capacity, whereby contact angle enhances shock absorption.
Precision and Stability: Single-row angular contact ball bearings are very effective, accurate, and stable in high-speed applications. There is an improved design that provides low vibration and noise, which is essential in precise working applications such as the aerospace and automotive industries. This correlates with the radial load dependability that maintains the operational smoothness of the equipment.
Extended Application Flexibility: Because of their adjustable design features, these bearings can be incorporated into most industrial needs, from electric motors to machine tooling. Their positioning is in harmony with the angular contact assembly arrangement, which makes them versatile to different configurations.
Based on the facts and argument, deducing that single-row angular contact ball bearings conclude that they will enhance the efficiency and durability of machines on account of these features.

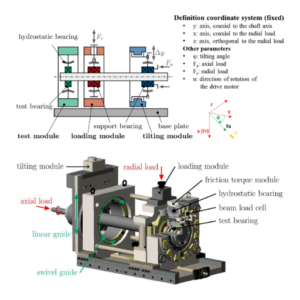

Comparing Single Row and Double Row Bearings
Further Observation of the double-row and single-row bearings reveals their peculiar merits for benchmark application.

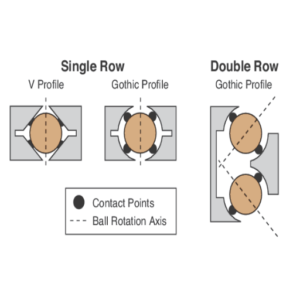

Load Distribution: Single-row angular contact ball bearings support a relatively large thrust load as their design typically concentrates the load onto one row of balls. Such a strategy is ideal for single-row bearings operating at low loads since separating the inner and outer rings eliminates the two-row bearing type. This means that single-row bearings are ideal for applications with space constraints without compromising design aspects, while double rows are applicable under high radial load applications.
Speed and Stability: Based on the information gathered about speeds, single-row bearings operate more efficiently at high speeds than double-row designs with lower vibrations and higher stability levels. This is very important in applications requiring high precision, like automotive, aerospace, or any other engineering field that warrants against excess noise and vibrations, which detract from the system’s efficiency.
Design Complexity and Size: The design describes it as a one-row design requiring narrower parameter clearance sizes, which allows for saving costs and space. While double-row bearings cater for more load capacity, they are also much more difficult due to their bulk structure. They may not allow for household deployment in overly congested locations.
In short, when I need a compact bearing that will perform well in speed and axial load, I default to single-row angular contact ball bearings. However, if my application involves high radial loads and space is not an issue, I prefer double-row bearings owing to their better support.
Typical Applications for Single-Row Angular Contact Bearings
While experimenting with specific keywords and searching for the best-making bearing manufacturers using Google, the writer identified some general uses of single-row angular contact bearings that correspond with their advantages.
Automotive Industry: Such bearings are employed in wheel hubs and transmissions in the automotive industry, taking advantage of their ability to take high axial loads while sustaining higher speeds. The technical parameters indicate that they often have a high dynamic load rating, which is invaluable for vehicles requiring reliability and efficiency.
Aerospace Engineering: In this field, single-row angular contact bearings are indispensable to control surfaces, landing gears, and other aerospace components. The design meets the need for stability while reducing vibration—a more stringent requirement emanating from low equivalent radial load ratings designed for precision utilization in operations in the air.
Machine Tool Spindles: Such bearings are often used in machine tool spindles when high speed and high precision are required. The compactness and high axial load-carrying capacity of single-row angular contact bearings make them perfect for limited-space environments like factories.
Overall, I have realised that the application of single-row angular contact bearings is especially justified in cases where the factors of load capacity, speed, and compactness are of great importance. They provide strong and efficient performance in many fields.
How to Optimize Bearing Design for Specific Loads?
Design Considerations for Radial and Axial Loads
When designing bearings for different loads, paying attention to many parameters affecting overall performance is often necessary. Here are the main points taken from other authors:
Load Ratings: Static and dynamic load ratings determine the bearing’s load capacity in axial and radial loads. The Dynamic Load Rating (C) provides the maximum load the bearing can be subjected to in rotation, while the Static Load Rating (C0) refers to the load during rest conditions. Generally, a load rating on the bearing of 1.5 to 2 times the expected working load is recommended for safety and reliability.
Bearing Arrangement: Bearing Arrangements (Back to back, Face to Face) significantly influence the load distribution. For example, there can be situations when back-to-back arrangements can effectively counteract the application of higher axial loads in both directions. In contrast, face-to-face arrangements are better suited for loads with some angular misalignment.
Material and Lubrication: The selection of materials primarily frames the bearing´s resistance to thermal expansion and wear. High-performing materials like steel and ceramic join with appropriate lubrication, whether grease or oil, to boost the load-carrying capabilities. Good lubrication minimizes heat and friction, thereby prolonging the life of the bearing under loads of genres and any load conditions.
By including these aspects, engineers can design robust bearing systems suitable for particular radial and axial loads, improving the efficiency of the components in various applications.
Importance of Preload and Internal Clearance
Two interconnected bearing design aspects, preload, and internal clearance, are critical to the component’s performance and longevity.
Preload: Preloading refers to applying a load on a bearing to achieve contact between the rolling elements and the races while eliminating excess space. This enhances the stiffness cut vibrations and improves the load capacity of the bearing. On the other hand, high axial load application would contribute to increased vulcanization and grinding of covers, reducing their efficiency and causing rapid wear and tear. It is generally accepted that proper crankshaft bearing load occurs in the region of five to ten percent of the dynamic capacity^23C of the bearing.
Internal Clearance: Internal clearance is the distance between the rolling bodies and bearing raceways. This clearance should be monitored since it will serve the purpose of thermal expansion and cater for any misalignment of the parts during operations. Adequate internal clearance could avoid overheating and excessive internal wear. To enable more accessible engineering of bearing elements for operation under different working conditions, other categories of clearance are prescribed, which are based on the likelihood of fitting that is tight fitting, over timing, or general fit that is less than average clearance C1 C2 Diaz boat C3.
Through preload and internal clearance adjustment, reliability and efficiency are sufficiently provided in the operations of the various mechanical components.
Selecting the Right Bearing Contact Angle
It is very important to select a suitable bearing contact angle for performance optimization relevant to the work. The contact angle corresponds to the axial direction of the bearing, which also relates to the radial bearing plane. This is critical in determining the degree and stability of the load exerted while in motion and thus operational.
Low Contact Angle (0° to 15°): Small contact bearings are usually employed for radial favoring loading mode applications. They afford very high speeds, and their low friction makes them especially suitable for use in electric motors and high-speed machinery.
Medium Contact Angle (15° to 30°): Maintaining a medium angle is essential for applications. This means that a gearbox or a conveyor belt has balanced load requirements. This angle places the workhorse capability between radial load and axial load.
High Contact Angle (30° to 45°): These bearings are used in environments that expose them to very high axial loads, such as automotive wheel hub parts and some sites in a crane. The greater number of contacts, made possible by the geometry, permits more load in the axial direction.
As one of the key factors when determining the angle, you may consider some intrinsic factors: application speed, load type, alignment misalignment, etc. Emphasizing these recommendations, I will improve reliability and ensure that operational performance is adequate for the needs of the work.
What Are Duplex Bearings and Their Benefits?
Definition and Types of Duplex Bearings
Duplex bearings consist of various specialized configurations of rolling element bearings suited for axial and radial loads. They are arranged as two or more individual bearing components, enabling even loading and improved stability. Typically, these bearings are usually grouped into three based on their orientation:

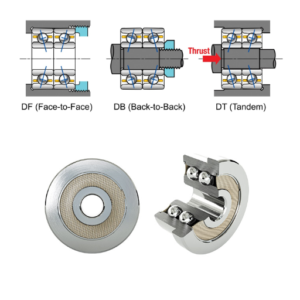

Back to Back (DB): This design can withstand significant axial load since the members do not deform much during most operations. It effectively counterbalances such axial forces during work, which makes it relevant to narrow places like gearboxes or where misalignment presents problems.
Face to Face (DF): In this configuration, the two bearing rings avert one another, enhancing the axial stiffness while promoting high radial loads. This type is usually used in applications where DP or loads are axial, and DP is radial, but torques are applied tangential to the housing in one direction, as in a motor or pump.
Matched (MT): Matched duplexes are bearings grouped in pairs to manufacture each one with designed identical characteristics and tolerances. This type provides no missed load transfer, which explains why it is more useful for intact applications like precision machine tools or even high-speed spindles.
When adopting the exemplary duplex bearing configuration, it is crucial to enumerate loads (radial and axial strengths), speed limits, and working environment (temperature and other factors). This analysis of parameters allows me to be confident in using the chosen bearing in the particular application further.
Advantages of Using Duplex Bearings
Duplex bearings present many advantageous features that boost performance and reliability in numerous applications. One notable advantage is that they can take up both axial and radial loads simultaneously, which is a great advantage in machinery where space and load balancing are issues.
More Uniform Loading: When bearings are arranged in a duplex configuration, the tendency for anyone bearing to take excessive loads is mitigated, hence minimizing wear and tear and eventual failure of the bearing components. This improves the end-of-life of specific components, especially in extreme loading cases.
Increased Rigidity & Stability: Back-to-back (DB) and Face-to-Face (DF) configurations and similar designs enhance the overall stiffness of the bearing arrangement, making it harder to misalign and cope with dimensional changes due to working stresses.
Optimized Design: Matching the type of duplex bearing to relevant technical parameters, including:
- Load Ratings: Radial and axial load ratings provide insight into load limit figures that should not be crossed while selecting a bearing.
- Speed Limits: Understanding how much rotational speed can be attained prevents bearing components from participating in high-speed motions, leading to unwanted heat generation and friction.
- Operating Conditions include temperature and other factors that help select the right materials and designs to withstand wear, corrosion, and deterioration over time.
Considering everything, I can confidently choose duplex bearings that will work most efficiently for engineering tasks.
Common Applications of Duplex Bearings
Due to their broad load-carrying capability and stability, duplex bearings are useful in many critical applications. The main areas of usage based on views of the leaders of the industry websites:
Machine Tool Spindles: In this application, duplex bearings can be arranged in a DB cleavage so that while in use, both the axial and shoulder bearings take the radial and axial loads, thereby improving the precision of the machining of operations. In such cases, the load ratings have to be in coherence with the maximum axial forces and, therefore, cannot take loads of about 10,000-50,000 N. Speed limits are also very important, considering that they are usually run at high heat loads. Thus, bearings able to handle speeds of 20000 RPM must be selected to minimize heat levels.
Electric Motors: Using duplex bearings in an electric motor helps improve stability and reduce hum and vibration. The face-to-face (DF) helps control combined loads. However, there are cases when these types of bearings operate under extreme conditions, which may result in Load ratings over 30000 N because of the motor’s output power. Operating conditions like high ambient temperature also warranted choosing materials that would tolerate temperatures up to about 150 degrees Celsius.
Duplex bearings are critical in designing components like the transmission and hub assemblies in the automotive sector. In this instance, they have to bear high axial and radial loads because of vehicle movement. Load ratings can be pretty diverse, where 15,000 to 40,000 N application requirements may be sought. Additionally, maximum speed requirements in the automotive environment are often more than 10,000 rpm, raising the issue of only choosing appropriate fasteners due to wear and tear.
By coordinating these technical parameters with application needs, I can alter the functionality of duplex bearings in several industries properly.
Frequently Asked Questions (FAQs)
Q: What is an angular contact ball bearing?
A: An angular contact ball bearing primarily supports combined radial and axial loading. These bearings have been constructed to have a specific contact angle only to support axial loading in one direction.
Q: How do angular contact ball bearings support loads in the axial direction?
A: Angular contact ball bearings support axial loads through contact between the balls and the bearing rings at a certain angle. This allows the bearings to provide axial force along the bearing’s axial direction.
Q: What are the classes of this angular contact ball bearing type?
A: The bearing type belongs to the overall classification, including single-row bearings, double-row angular contact bearings, and spindle bearings. Single-row bearings can take up the axial load only in one direction, while double-row bearings take up the axial load in two directions.
Q: Why is the contact angle critical in angular contact ball bearings?
A: In angular contact ball bearing, the contact angle influences the axial load capacity of the bearing. The higher the contact angle, the more the bearing can take up axial load, thereby increasing the axial forces the bearing can withstand.
Q: How does the number of balls impact the load capacity of an angular contact ball bearing?
A: The load-carrying capacity of an angular contact ball bearing is directly influenced by the number of balls contained within. More balls enhance the bearing’s load-carrying capacity in high and combined conditions.
Q: Do angular contact ball bearings have multi-axial load support capabilities?
A: Single-row angular contact ball bearings cannot accept axial community stress only in one direction. Nevertheless, if two single bearings are set in an upright-back hill, so-called opposed or face-to-face, these could accept stresses in either direction.
Q: What is the correct way to install angular contact ball bearings?
A: Angular contact ball bearings are installed uniquely so radial and axial loads can work simultaneously. They are usually placed in adjustment with a second bearing for the better distribution of load acting.
Q: What is the significance of the precision bearings in angular contact ball bearings?
A: Installing precision bearings, especially those rendered by GMN Bearing USA, is critical in applications focusing on precision and performance. These kinds of bearings are installed to maintain the axial orientation of the bearing axis and allow the application of axial forces on the bearing.
Q: What are the typical applications of angular contact ball bearings?
A: DiscreteMach linear motion conveyors are the most commonly encountered applications for angular contact ball bearings. These bearings support high loads and combine load-carrying capabilities. They are integrated into machines, motors, and other industrial tools that require precise support of action loads.
Q: How does the design of the inner and outer rings affect the performance of angular contact ball bearings?
A: The design of the inner and outer rings also plays a crucial role in how well the angular contact ball bearings perform. This includes the shape and angular relation of the balls to the rings mounted in the bearing, enabling more effective load handling on axial and radial planes.
