On the other hand, using adequate bearings in the procedures involved in machinery and rotating equipment can be regarded as an essential factor in achieving the desired performance and life cycle. Angular contact ball bearings, for example, are especially advantageous because they are designed to bear axial and radial loads and are thus suitable for various applications. This manual aims to design a detailed and broad angular contact bearings guide concerning their construction, dimensions, and types of bearings. Most importantly, whether you are an engineer a technician, or even one with mere curiosity, this article will provide you with necessary facts on the disposal of correct factors while making angular contact bearings for your projects.
What are Angular Contact Ball Bearings?
Understanding the design layout of Angular Contact Ball Bearing
The way angular contact ball bearings are constructed makes them appropriate for applying axial and radial loads. The salient feature is the angle formed by the ball’s intersection and the bearing’s raceway; this changes the loading distribution.
Key Technical Parameters
- Contact Angle: This is the angle defined by the load line action and the line drawn perpendicularly to the axis of the bearing. The commonly utilized contact angles are 15° 20° and 25° with the steeper angled configuration used for equipment with high axial loads.
- Dynamic Load Rating (C): This parameter refers to how much load the specific bearing can bear while moving. It is beneficial when selecting bearings for certain operations.
- Static Load Rating (C0): This value is the maximum load down, in which the element has no relative motion and can be held without coil deformation. This is very important when a bearing is expected to be used without rotation for long periods.
- Limiting Speed: It is the rotational speed above which the working conditions put the component at risk of breakdown due to overheating or excessive wear. This also depends on the bearing size, lubrication, and load conditions.
- Internal Clearance: This refers to the space available between the rolling elements and the raceways. It has bearing performance aspects, particularly where changes in temperature and load occur.
The knowledge derived from these parameters allows the users to choose the correct type of angular contact ball bearing depending on the intended use, which is important in ensuring efficient operation without any reliability issues.
Features and Benefits of Angular Contact Bearings
Rapid technological progression has given rise to the development of angular contact bearings with several features that make them suitable for various applications. One of the primary advantages of these bearings is their ability to bear both radial and axial loads simultaneously, making them ideal for axial applications with high speeds where precision is mandatory. Furthermore, the geometry of the designs enables the maintenance of the proper angles of contact, which enhances equilibrium on the applied load, thus reducing erosion and increasing the service period. These bearings also tend to have less friction and allow higher speeds than the standard bearings, an added benefit in high-performance machines. Ultimately, the different designs of angular contact bearings allow users to modify the bearing to meet specific operational requirements, ensuring that users get the best out of several applications.
Types of Angular Contact Ball Bearings
Because of their high performance, angular contact ball bearings are utilized in many industries. It is widely applied in the automobile field, particularly in the gearbox, electric motors, and wheel hubs where radial and axial loads are present. The angular contact bearings are also used on aircraft engines and landing gears in the aeronautical industry due to their accurate and dependable usage in harsh operating conditions. Moreover, it is observed that angular contact bearings are significantly helpful in the machine tool area, as they accommodate the operation of high-speed spindles and precision grinding operations with the least friction for better performance. Thus, it can be deduced that their architecture and functionality are to be appreciated in any context because of the high concentration of accuracy and reliability requirements.
How to Determine the Size of Angular Contact Bearings?
Why Certain Factors Determine the Sizing of Angular Contact Ball Bearings
Several parameters are critical to the size of angular contact ball bearings. One of the most determining factors is the field of application. For instance, during high-speed operations, I have to consider that a bearing will be able to support more weight and will deliver better efficiency. Load ratings, as applicable, include maximum dynamic and static load ratings, which are critical in determining whether or not the bearing selected can withstand forces while in service.
However, another internal configuration of the bearing, for instance, the contact angle, also governs its performance characteristics. An increasing angle of contact almost always enhances axial loading capacity. However, operating under heavier loads may necessitate a more significant bearing to achieve the required performance. In looking for specific technical characteristics, the outer ring, the inner ring’s inside diameter, and the outer ring’s thickness must be taken into account since these must correlate with load-carrying capacities and desired speed ratings.
Last, weather and contamination influence the bearing size and make various parameters necessary for the bearing design. I mostly look at industry regulations like ISO or ANSI and see if such a selection(s) can meet those performance requirements. Considering the purpose, bearing dimensions, load ratings, internal geometry, and environmental factors, I can quickly establish the required angular contact ball bearings of any given size for any application.
Utilizing Load Ratings as a Determining Factor for Bearings’ Dimensions
A pre-requisite in selecting angular contact ball bearing size is the comprehension of load ratings. Here, I consider both dynamic and static load ratings in my choice. Whereas the dynamic load rating demonstrates how much operational force can be exerted on the bearing, the static load rating shows how much weight can be placed on the bearing when it is not working. I normally review the manufacturer’s catalogs and engineering documents to compare these figures and the requirements in my application. This involves looking at how much load the bearing is likely to experience and ensuring that both ratings are more fantastic than such values to ensure good operational conditions and extend the operational life of the bearing. Apart from this, I also keep in mind factors such as working environment and kind of load (radial or axial) so that my selection meets the operational needs, ultimately improving my equipment’s dependability.
What is the Role of Contact Angle in Angular Contact Bearings?
How Contact Angles Affect Bearing Performance
The contact angle is an essential angular feature in bearings, and it determines the bearing load capacity and rigidity to a great extent. In the case of a high contact angle, the bearing assembly can oppose the axial load, making it ideal for particular applications that require high thrust support. On the other hand, low contact angles increase the bearing’s ability to resist radial loads and allow for higher rotational speeds. From where I sit, picking the right contact angle influences not just the performance of the bearing but the ultimate machine’s wear and reliability in operating. After assessing my equipment’s load requirements and working environment, I can choose an angular contact bearing with such an angle that will guarantee high work efficiency.
The Explanation of the Procedure for Establishing the Appropriate Contact Angle
BDM considers the contact angle to be the most critical variable in every application and, therefore, pays considerable attention to it. While defining the optimum contact angle for my application, there are typically a few parameters that I tend to agree with from the industrial practices. First, I consider the nature of the load that is likely to be taken by the machinery, as this can affect how the load is distributed to a great extent. Whenever an application entails alternative loads, I prefer to apply contact angles higher than thirty degrees for better axial loading. However, industrial uses require more incredible radial speed and predominantly radial loads usually require a 15-degree contact angle. So, too, the shape and geometrical design and available regions have ramifications; higher contact angles increase generally the unit size they are designed for. Further, the last but not the most minor factor is that I am very resourceful regarding the engineering literature lines or manufacturers ‘ up-to-date literature. Therefore, my selection is undoubtedly effective in both functionality and longevity aspects.
What are the Differences Between Single Row and Double Row Angular Contact Ball Bearings?
Single Row Angular Contact Bearings: When to Use Them
In most situations, single-row angular contact bearings are the best for space-constrained scenarios and where axial loads are present. They are quite advantageous for under high speeds and moderate radial loads with large axial loads like electric motors and pumps. Single row bearings are my favorite in instances where I ‘am imposing a certain amount of stiffness to the machine, as their geometry allows load transfer effectively with a smaller span, therefore, thinner bearing sections can be used. Further, they are also helpful as I can combine them with other types of bearings to enhance the machine’s performance in all aspects.

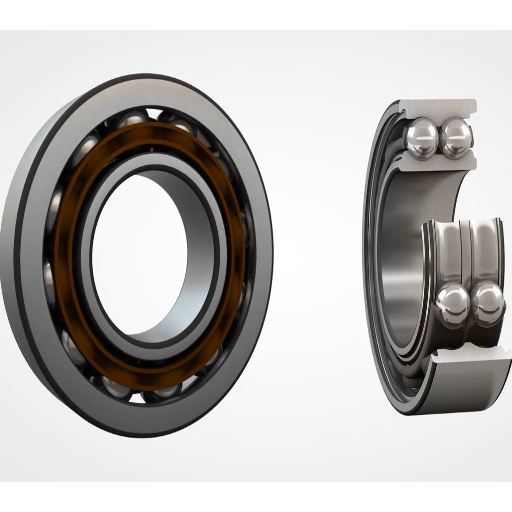

Double Row Angular Contact Ball Bearings: Advantages and Applications
As I studied the thick-walled double-row angular contact ball bearings, I realized there are a few of them that I consider the main advantages for particular instances. One main advantage is that they can take both axial and radial loads, which is essential for equipment that is subjected to forces in more than one direction. This made working stability possible due to overload capacity and extended working life, especially in high-speed machinery and applications.
The load that the double-row bearing can support is more than that of the single-row bearing due to the more significant number of rolling elements. For instance, motorized wristwatch mechanisms tend to exhibit a more excellent rating, particularly in their dynamic load capacity, which is essential to the automotive and aviation industries. For gyroscopes, the bearings that I prefer are balled for a contact angle of 30 degrees and above, as they are subjected to high axial loads.
Moreover, due to the increase in the number of rows, there is enhanced stability, especially when used on double-row angular contact ball bearings. Hence, these bearings come in handy in applications that require accurate alignments, such as gearboxes and spindles. I find this particularly beneficial in high-torque operations while at the same time reducing alignment and wear prevention out of the provisions.
So, I am particularly careful when considering design alternatives and following information on modified design criteria from reliable sources, including the manufacturer’s data and engineering databases. This assists in explaining my choices and enables me to select materials that will work optimally under the operational and load conditions that are typical for my projects.
How do Seals Impact the Performance of Angular Contact Bearings?

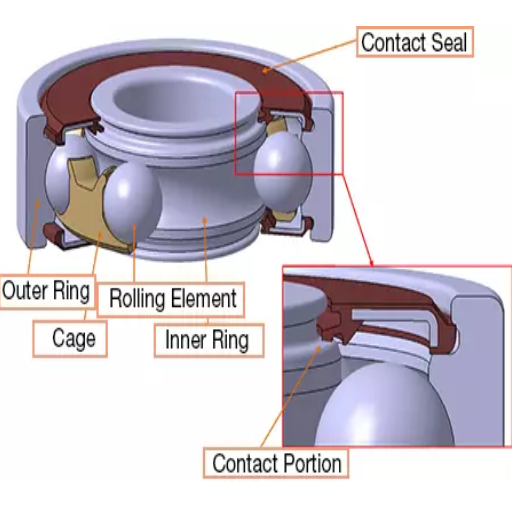

Seals and shields in bearing design, their significance.
In my opinion, seals, and shields are critical components in any bearing design if the aim is to optimize the performance and life of the unit. Seals are essential in preventing fouling of the unit; dirt, moisture, and other contaminants are assuredly kept out of the unit, thus reducing the chances of wear and failure. For example, because housing seals have certain tolerances, I comfortably incorporate sealed bearings for equipment in poor external environments where external elements are of great concern. Seals offer excellent sealing properties, however, shields allow a lower level of friction than seals which makes them very helpful in high-speed applications. In the end, I try to determine which sealing solution will be the most appropriate given the operating conditions because it definitely alters the reliability and effectiveness of angular contact bearings.
For an Angular Contact Bearing – Which Seal Type to Pick
To select the best elastomer for angular contact bearing seals, focus on the working conditions and aesthetics. For example, rubber seals are common as they perform well under various conditions and keep out dirt while holding lubrication. These metal shields can be used at high rotational speed because they contain less friction while providing adequate protection. In the end, I make my decision dependent on the environmental conditions, expected forces, and maintenance intervals and make sure that the sealing element has the required performance and accomplishes the process needs of the machinery.
What Maintenance is Required for Angular Contact Bearings?
Best practices for ensuring high performance of bearings
I follow several procedures to preserve the life and function of angular contact bearings. Inspecting the bearings is essential because it enables me to identify and assess the type of wear or damage present. I also record wear on the bearings and inspect them for damage and their lubrication levels; if the right type and quantity are used, then the heat generated through friction can be minimized, as well as the risk of overheating. Also, great care must be taken during installation to avoid misalignment, as it is a common cause of premature failure. Furthermore, I also maintain the cleanliness of the workspace and the parts to be assembled from contaminants, if needed, using protective covers. Lastly, when carrying out maintenance, the maintenance schedule and recommendations regarding its frequency provided by the manufacturer and use are adhered to.
Signs of Wear and When to Maintain or Replace Your Angular Contact Bearings
I can spot signs of wear in angular contact bearings through various signs requiring replacement. For example, the noise level can rise, which is often a sign of some level of damage or deformation; the temperature can increase in an unusual manner, which means improper lubrication or too much heat; and vibrations can be felt during the operation of the angular contact bearings, which are often due to the angular contact bearings being off-center or simply worn out. In addition, I look for more in states, such as pitting or discoloration of the ring or moving part. In the case of the replacement, it is not solely the replacement of damaged components, as radial and axial loads, allowable speeds, and bearing tolerance classes are also factors for evaluation. If the bearings have been found in standard service but have slipped dangerously close to their maximum load rating, or if the bearings and application slippages occur against speed limits approximation, between substitutes has only one purpose: to keep the machines operational. That failure will not happen anytime soon. So, rotating these units frequently can effectively deal with these mostly obvious problems without so much affecting bearing health.
Reference sources
Frequently Asked Questions (FAQs)
Q: What information can I find in the Double Row Angular Contact Ball Bearing Size Chart?
A: The Double Row Angular Contact Ball Bearing Size Chart provides detailed specifications such as the series, dimensions, dynamic load capacity, static load rating, and bearings arrangements. It also includes information about the cage design and available seal or shield options.
Q: What is the arrangement of a double-row ball bearing?
A: A double-row ball bearing has an arrangement that allows for higher axial loads compared to single-row angular contact ball bearings. This design often features an angular contact of 30°, allowing it to simultaneously handle loads in two directions.
Q: What cages are used in double-row angular contact ball bearings?
A: Double-row angular contact ball bearing cages can be made from various materials, including steel and high-quality synthetic materials. The choice of cage affects the bearing’s performance, load capacity, and operating temperature.
Q: How does the static load rating differ from the dynamic load rating for these bearings?
A: The static load rating refers to the maximum load a bearing can withstand when not in motion, while the dynamic load rating indicates the maximum load the bearing can support while in operation. Understanding both ratings is crucial for selecting the correct bearing for your application.
Q: What grease is recommended for double-row angular contact ball bearings?
A: It is important to use high-quality grease appropriate for your application’s operating conditions. Grease helps reduce friction and wear and provides protection against contamination. Always refer to the manufacturer’s specifications for recommended grease types.
Q: Can double-row angular contact ball bearings be used in high-speed applications?
A: Yes, some double-row angular contact ball bearings are designed for high-speed applications. To maintain performance at higher speeds, it’s essential to check the operating limits specified in the size chart and ensure proper lubrication and alignment.
Q: Are there double-row angular contact ball bearings with seals or shields on both sides?
A: Yes, many double-row angular contact ball bearings come with seals or shields on both sides to provide additional protection against contaminants and help retain lubrication. This can enhance the bearing’s longevity and reliability in challenging environments.
Q: What factors should I consider when selecting a double-row ball bearing for my application?
A: When selecting an a double-row ball bearing, consider the load requirements (both static and dynamic), speed, operating environment, temperature, and whether you need seals or shields. Specifying the correct inner ring and outer dimensions is also essential based on your machinery’s face and arrangement.
Q: How do I match the double-row angular contact ball bearing to my existing setup?
A: To match a double-row angular contact ball bearing to your existing setup, you will need to consider the dimensions, load ratings, and cage type. Refer to the size chart to find a bearing that meets your application’s specifications and ensures it can accommodate the required direction and magnitude of loads.
