Properly fitting angular contact ball bearings constitutes a key aspect of enabling the machine’s smooth and efficient operation. This manual aims to equip engineers with the necessary and fundamental understanding of the principles, methods, and approaches of properly mounting these bearings. This treatise would address the primary design features and operating principles of angular contact bearings used for the joint action of radial and axial loads, hence providing valuable information to engineers at varying levels of practice. By pointing out the negative impacts that engineering decisions might have and outlining how to tackle these issues, the guide prepares people to use bearings with maximum efficiency and reliability for numerous industrial uses.

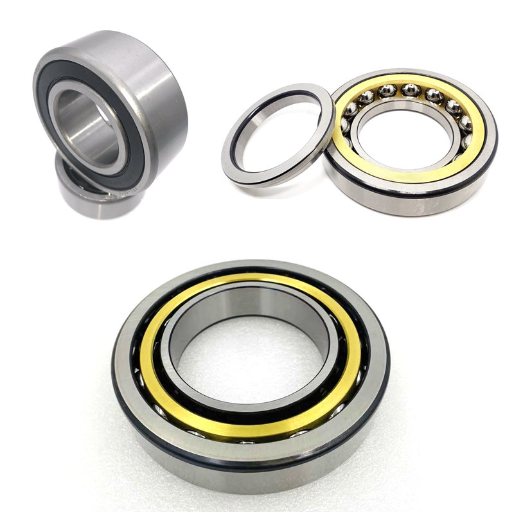

How to Choose the Right Angular Contact Ball Bearing for Your Application?
Factors to Consider in Angular Contact Bearing Selection
There are some factors and parameters which I focus on when choosing the right type of angular contact ball bearing for an application, this helps in making sure that the ball bearing operates effectively and reliably. To begin, the load conditions, which could be axial, radial, or both, will be used to identify the contact angle of the bearing, which is needed since a higher angle, such as 15°, 25°, or more, might be required for more axial loading. Then, suppose the decision is between a grease or oil bearing. In that case, there is a need to verify the speed rating of the bearing about the application’s requirements for continuous operation.
I also focus on the application bearing preload which serves to increase contact stiffness while decreasing vibrations, controlled preloads are enabled through light, medium and heavy depending on the application’s environment. Selecting appropriate materials and coatings is also crucial especially for the reliability of the bearing due to elevated temperatures or corrosion, ceramic or stainless steel may be a better option in those scenarios.
Moreover, shaft and housing fit tolerances should be examined as closely as I do since poor fit tolerance would likely lead to misalignment and strain on the bearing. Finally, various lubrication methods, including grease and oil, can be checked for viscosity level and suitable operational temperature. After evaluating these parameters properly, I am confident I will choose the right angular contact ball bearing that fits the application requirement perfectly.
Evaluating Load Capacity and Axial vs. Radial Loads
Recognizing the difference between axial and radial loads is essential for angular contact ball bearings, which are designed to operate under any loading condition. A shaft radial load applies to a load perpendicular to the shaft, while an axial load applies to a shaft and is loaded in a direction parallel to the shaft axis.
To examine the capacity of the load, it is helpful to check the specifications of the bearing, which include the following:
Dynamic Load Rating (C): The value describes the performance of the bearing towards a dynamic load during a specified time. This number is estimated depending on the angle at which the force is applied or its amount. For example, in high-speed practices of bearing application, the dynamic load bearing has a high rating.
Static Load Rating (C₀): This rating is essential in applications where static loads dominate and when shock loads are applied. It ensures the bearing material can withstand permanent alteration under these conditions.
Axial Load Factor (Y) and Radial Load Factor (X): The coefficient facilitates the performance of the adjustable bearing, axes, and radial loads in combination. For example, when the contact angle of the angular contact ball bearing increases, the axial load that can be accepted also increases.
Bearings have limits, and these limitations should be matched with expected loads, considering surplus factors for operational reliability. Furthermore, proper installation and alignment must be attained to prevent unbalanced loads that could cause the bearing to wear out.
Selecting Single-Row vs. Double-Row Angular Contact Bearings
Correctly understanding the application of single- and double-row angular contact ball bearings is crucial when selecting any side.
Single Row Angular Contact Ball Bearings
Load Capacity: They operate as radial and axial load-carrying bearings, primarily for unidirectional axial loads. The axial load capability increases when the contact angle increases (e.g., 15 degrees, 25 degrees, or even 40 degrees, depending on the bearing’s structure).
Flexibility: Two arrangements are necessary for single-row mounting: back-to-back or face-to-face. The latter allows for better load distribution on both sides and increased stiffness.
Application: This type is used where the small space and the working load can be easily controlled. For example, in the pumps, gearboxes, machine spindles, etc.
Double Row Angular Contact Ball Bearings
Load Capacity: It works effectively in the same way as two single row bearings configured back to back, in that position, it can accommodate radial and axial loads on both sides without being coupled.
Rigidity: This type provides increased stiffness and alignment tolerances, enabling it to handle more demanding applications.
Application: This type is used in areas demanding short constructions that can withstand high total loads, such as industrial fans and railway axle boxes.
Choosing between the two depends on the direction of the axial load(s), available space, and the needed stiffness. To ensure the right choice, always check the load ratings issued by the manufacturer and consider the working conditions.
What Are the Best Practices for Mounting Angular Contact Ball Bearings?
Proper Alignment and Installation Techniques
Angular contact ball bearings should be installed, aligned, and appropriately maintained for the best performance and durability. Per my suggestions, this can be achieved with the focus and care directed towards following the manufacturer’s instructions. First, care is taken to clean the toothed shafts and rotating hoppers properly and protect these parts from any pollutants. Any form of misalignment can give rise to bearing loose, hence during the assembly phase I make use of feeler gauges or dials to look for alignments.
During the installation phase, I avoid using a hammer to strike the bearings, which may damage its raceways. Instead, I apply a jerking motion on the bearings using induction heaters and hydraulic presses. Furthermore, I ensure that the appropriate adjustments are made in respect to the settings of preload. This modification assists in making sure the bearings function optimally in their specific application for suit tolerances ranging from 0.01 mm to 0.03 mm. However, these particular handlings should be checked alongside the application.
Finally, I surface any bold and nipple boundary clearances and lubrication, if required, alongside the correct lubricant to be used for a specific purpose and angles. Furthermore, these two things mentioned above are essential to distance, making the bearings last longer.
Managing Preload in Angular Contact Bearing Arrangements
Regarding the angular contact bearing arrangements, I will commence with the requirements, which include working speed, load, and working temperature. Since the preload directly influences bearing stiffness and damping, I correctly selected static and dynamic preloads to accomplish these objectives. For example, applying a relatively low preload in high-speed operations will be encouraged to enhance performance.
Preload values selection is paramount, too. I usually follow the below parameter ranges depending on the suitability of the application:
Light preload (0.01 mm to 0.015 mm) is recommended for high-speed applications to avoid generating excessive heat and friction while remaining stable.
Medium preload (0.015 mm to 0.025 mm) provides an optimum underload between rigidity and friction, while moderate-speed operations require better accuracy.
High preload (>0.025 mm): Commonly found in low-speed, high-precision applications where a maximum amount of rigidity is needed.
As a safety measure, I double-check the preload values through simulation or testing while also considering geometrical perturbation due to thermal expansion and centrifugal effects. Together, I feel the variation during operation may change the performance. Moreover, I make sure that the lubrication system is compatibly designed by selecting oil or grease with moderate viscosity, which can be workable at operating speed and temperature without loss of effectiveness. By managing these parameters effectively, I ensure that the bearing arrangement functions within the prescribed limits and satisfactorily serves the purpose for which the application is intended.
Avoiding Common Mounting Errors and Pitfalls
I follow specific procedures and observe critical parameters to prevent common pitfalls and mounting errors. First, I ensure the mounting surface is clean, as any impurities could cause the load to be unevenly distributed and even misaligned. I procure the correct tools for mechanical mounting to avoid excessive pulling that could damage the bearing or housing.
Tolerances: I review the relationships between the shaft and inner ring and between the housing and outer ring to determine if they are within defined limits to avoid rotational slip or overheating.
Axial Preload: I ensure that the preloading is the right amount so that excessive vibration and wear do not occur and that both radial and axial loads are effectively balanced.
Temperature Limits: I determine the thermal limits of the materials used in bearings and lubrication so that they perform reliably within working conditions.
Lubrication Flow: I monitor the type and quantity of lubricant used to maintain smooth rotation and avoid using too much, which can lead to energy loss.
When these issues are addressed, I increase the chances of not making mounting errors and, at the same time, improve the reliability and the working characteristics of the bearing arrangement.
How to Properly Lubricate and Maintain Angular Contact Ball Bearings?
Choosing the Right Lubricant for Angular Contact Bearings
Selecting an appropriate lubricant for angular contact ball bearings is crucial for their performance and life span. When choosing a lubricant, I usually consider speed, load, and operating temperature range. For applications with high operating speeds, I prefer low-viscosity lubricating grease to increase operational efficiency by reducing frictional and thermal effects. However, high-viscosity grease and/or oil with good film-forming characteristics are more suitable for heavy-load applications.
Viscosity: More importantly the base oil viscosity should be compliant with the requirement of the particular application, standard conditions require values between within the range of 15-100 mm2/s at 40oC.
Operating Temperature Range: In most lubricants, solidifying or becoming too viscous prevents them from functioning well at sub-zero temperatures. Therefore, I confirm that the lubricant has operating temperature limits within -30 to 150 °C for various use cases.
Additives: Anti-wear, corrosion inhibitors, and extreme pressure additives are essential for bearing use because they protect the bearing under high loads and unique environments with many variables.
In this way, I can apply bearing lubes with these parameters in mind, thus improving bearing life and reducing energy and wear losses.
Implementing Effective Lubrication Schedules
to avoid overspending because of neglect, when formulating my oversight strategies regarding the performance of the machinery, I begin by outlining the influencing factors such as load, speed, temperature, or even the surroundings. Doing this allows the proper setting up of the lubrication intervals for the equipment.
Compared to low-load, low-requirement operations, where around 2000 to 3000 operating hours could be allocated automatically, I am inclined to utilize shorter lubrication intervals when dealing with heavily loaded bearings. Reapplying lubricant every 500 to 1000 operating hours makes complete sense.
Once I have identified the operational conditions, I move on to the next step of my strategy, i.e., scheduling the operational intervals of the machinery. There are, however, instances when this may differ, for example, if the temperature in the environment is too extreme, where high-temperature is 120°C, then lubricant degradation occurs much faster, therefore the oil change would need to be carried out more frequently than normal periods. Typically, for these intermediate temperatures, I would set standard intervals.
To ensure that the machine operates at optimum performance for a significantly longer time frame, I incorporate inspection routines into the equipment’s scheduling while ensuring optimal operating conditions are present. This allows focal parameters to be maintained regardless of any problematic or varied operating conditions.
Monitoring and Maintaining Bearing Performance Over Time
There are considerable variations, such as developing a better fleet monitoring program spanning engineering-focused metrics as well as operational aspects and following several best practices, among which the most important are perhaps the following:
Inspection Intervals and Techniques: It is generally advisable to have a predetermined inspection schedule, which is generated based on operational parameters and the project’s scope of work. The wear-out and damage risk of rolling bearings used in high-torque applications is much greater, thus requiring biweekly instead of quarterly inspection intervals. With lighter uses, a biannual inspection is adequate. When bearings are inspected, check for unusual noise, vibration, or temperature increases, as these parameters are susceptible during the early stages of wear or damage.
Lubrication Management: Dependable lubrication management improves bearing performance. Moreover, the lubricants handled must suit specific operational temperature and velocity ranges. This is where the know-how of synthetic lubricants rated for temperatures -30 to +250 degrees comes in really handy. The speed factor (n × dm) and load dictate when to perform the re-lubrication, which can vary from 500 to about 2000 hours.
Bearing Condition: Incorporating vibration analysis tools into bearing composition enhances bearing lifetime. The bearing acceleration (g) and velocity (mm/s) are parameters that can quickly determine instances of misalignment or imbalance. If the bearing velocity is above 5 mm/s, assuming it has been used for over a month, a maintenance request is required.
Temperature Monitoring: Lubrication quality deteriorates, and the wear rate increases with high operating temperatures. Most standard bearings need to operate at a temperature lower than 200°F. Infrared thermometers or sensors must also be employed to detect any discrepancies immediately.
Load and Speed Considerations: All bearings have a set load (dynamic C and static C0) and speed ratings. Standard practice would operate within these threshold parameters efficiently, as exceeding them can shorten the bearing’s operational duration. The actual loads must not exceed 80% of the bearing’s Dynamic capacity to provide safety factors.
When you systematically approach and manage such engineering details, you will increase bearing systems’ life span and performance in different working conditions. You will also expand your scope of operation since such a mechanism will enable you to foretell problems and take preemptive measures to control them.
What Are the Different Mounting Arrangements for Angular Contact Ball Bearings?
Understanding Back-to-Back and Face-to-Face Arrangements
Using the angular contact ball bearings, I can demonstrate the differences between back-to-back and face-to-face configurations and their advantages.
In the case of a back-to-back formation (DB), the wider ends of the bearings are moved away from one another; there is a broader distance between the centrals of the load. This case grants much better composite stability and rigidity of the structure, especially when dealing with overturning moments, and is praised in applications with powerful deflection forces. However, as a downside, this may require more accurate alignment as alignment errors reduce the effectiveness of the arrangement. The essential technical parameters that can be considered here consist of the amount of axial load applied and the stiffness of the arrangement. This arrangement has more value for these parameters as this configuration is generally more substantial.
A configuration where the narrow ends of the angular bearings face one another is the face-to-face arrangement (designated as DF). Due to this, fewer axial distances exist between each contact point of the two members. Due to the loss of severe rigidity due to all the points being close together, this formation is not suited for applications where powerful forces are expected, however, due to being less strained it does provide a smoother operation. Critical Technical specifications involve the misalignment tolerance and the lower axial loading threshold compared to the back-to-back assembly.
After thoroughly analyzing the operating conditions of load direction, magnitude, potential misalignment, and rigidity requirements, I can select the most appropriate configuration that will serve the purpose of the application most effectively.
Tandem Arrangements: When and How to Use Them
For applications meant to bear phenomenal amounts of axial loads in one direction, I am given the understanding that tandem arrangements are best suited. Such configuration helps redistribute the entire axial load over several bearings and improves the overall strength and reliability of the system. However, it should be stressed that axial horizon only rotary axis does not induce reliance to radial thrust or axial thrust at both ends, therefore the axial thrust has to be combined with other means to counterbalance the said forces.
The significant aspects I analyze in the case of tandem arrangements are:
Axial Load Capacity: This is a prerequisite because its level determines the application in which the configuration is intended to be applied, as tandem is made to accommodate heavy axial loads on one axis.
Load Sharing: All bearings in the assembly must share the load to avoid the collection of the same on a few or one bearing, leading to a lot of wear and tear or earlier than typical failure.
System Rigidity: This structure does work on increasing the load capability of structural systems of frames as well as spaces because of the use of fillers, but it does little or nothing to sheer strength, and if excessive sheer strength is a requirement, then other components will have to be employed to bear the load.
Combination with Other Arrangements: Since tandem can be used solely in unidirectional binding or dedicated pull cases, combining it with complementary packages will guarantee satisfactory results.
By meticulously considering these parameters, I can demonstrate that tandem arrangements are justified and well-covered in applications requiring steady unidirectional pull.
Exploring Four-Point Contact Bearing Configurations
Radial load support is limited in four-point contact bearing configurations, but axial load management is performed in all directions. Such arrangements can be instrumental in places where compactness and multiple functionalities are required. Below is a description of my approach to the subject.
Temperature-dependent runout allows the axial loads to be handled simultaneously in both directions. This is particularly useful when a dual contact point device must be implemented to balance the load.
Shape Factor: Not all applications have a requirement to deal with radial loads primarily, and hence, due to this limitation and others, such as having a shaft and assembly parts that are compound in nature, deep groove bearing capabilities are not required.
Size: Radial load bearings and thrust bearings require more space when assembled together than four-point contact bearings when only axial space is considered, making them ideal for close tolerances.
Stiffness: Most applications do not require excellent axial stiffness, and hence, these bearings provide a good enough level when not combined, but better options exist when combined with other parts.
Taking trade-offs between these parameters allows me to physically implement the four-point contact bearing configurations where size and flexibility are prioritized but not weight distribution elements.
What Tools and Equipment Are Needed for Angular Contact Ball Bearing Mounting?
Essential Tools for Proper Bearing Installation
To guarantee a proper fitting of angular contact ball bearings, I employ many essential equipment together with recommended technical parameters. Here are the tools and their justifications:
Bearing Pullers And Pushers enable the controlled application of force when removing or installing bearings and other parts, thus preventing damage to them.
Torque Wrenches: The correct torque must be used during the installation of bolted joints to ensure proper contact loading between connecting parts, in this case, the angular contact ball bearings. Under or overapplication of bolt loading may cause operational abnormalities or damage the components.
Heaters: These work by heating the bearing to attain an interference fit without applying much pressure. Thus, the bearing can sit appropriately on the shaft without losing its shape. The maximum allowable temperature is 120 Degrees Celsius, or 248 Degrees Fahrenheit.
Bearing Alignment Tools: It is essential to keep the bearings aligned accurately and with an even load to avoid damage to the bearing that may reduce its lifetime. Dial indicators or laser alignment ensure that the bearings are correctly aligned.
Cleanroom Environment Supplies: Grease-free cloth, gloves, and clean grease or oil with no dust particles since the smallest contaminations can cause problems in the performance of high-accuracy bearings.
Following these devices and the set parameters ensures that they are well installed and that the chances of misalignment or damage are minimal, thereby improving the system’s efficiency.
Using Hydraulic and Mechanical Presses Safely
While ensuring that installation procedures are performed as directed, I try to focus on details so that the safe and accurate use of the hydraulic and mechanical presses is observed.
Select an Appropriate Press: Regarding bearing selection, the first point is that I choose the press relative to its size and type, which has a bearing. When handling larger bearings, which require more effort to exert force, I use hydraulic presses because it is easier to control the amount of pressure I exert. If one uses more miniature bearings and focuses on precision, then cementing mechanical presses into use is the ideal course of action.
Adjust the Pressure: A restriction ensures that the applied pressure does not exceed the manufacturers’ suggestions. Otherwise, the bearing and parts around it may become damaged. Too much force, for example, may bend or shift the bearing, leading to excess damage.
Employ the Correct Tools and Fixtures When Pressing Both Types of Presses: Instead of concentrating pressure on a small portion of the bearing, I use fabricated or custom-made fixtures to snap the bearing’s outer or inner ring into its designated position.
Manage Vertical and Horizontal Alignments when using both Press Types: When requiring one compress to seat the bearing, parameters need to be established to ensure that the bearing is not angled or tilted. Angling may lead to inaccuracy in the measurement being used, which will be problematic when using the object later.
All in all, the implementation of the technical recommendations made by both the equipment, and bearing manufacturers ensures that I while being in an optimal safe environment, safely manage to install bearings by following the aforementioned steps.
Specialized Equipment for High-Precision Mounting
Angular contact ball bearings must be understood and handled correctly to achieve an efficient outcome in the various industries and applications that require precision. To add, here are additional factors that play a significant role in the functioning and life span of these bearings:
Lubrication Quality and Type: Selecting the correct lubrication type is crucial to lessen friction and wear on angular contact ball bearings. High-quality lubricants reduce heat development, allow smooth operation, and increase bearing life. Depending on the use, grease or oil lubrication can be utilized. Oil-lubricated bearings are ideal for high-speed applications provided that suitable additives are included as they help in heat dispersal. Used oils and greases should be regularly checked and replaced on time to avoid contamination and breakdown.
Housing and Shaft Geometry: The precision of the craft and housing geometry affects the bearing alignment or load distribution and vice versa. Possible out-of-roundness or out-of-surface finish would put bearing characteristics into writing deformation kink of internal structures, which could put the equipment at risk of failing early. To ensure that the bearings can function adequately, the manufactured bearings have tolerances and surface finish specifications. Moreover, it is critical to have an interference between the bearing and the housing to protect against fretting or slippage.
Temperature Monitoring and Control: Excessively high operating temperatures strongly affect Angular contact ball bearings. High temperatures due to unmet lubrication risk, ventilation system damage, or insufficient elements such as the cage and seals can result in thermal expansion and degradation. Therefore, the introduction of constant temperature monitoring systems and the requirement of maintaining a given range of operating conditions enhance the wear characteristics of the angular bearings, enhancing their operation, especially in high-speed, high-load conditions.
Dynamic Load Changes: The angular contact ball bearings are broadly used in changing load conditions, for example, machine tools, turbines, or cars. These dynamic applications require bearings that can withstand stress while allowing for bending. Preparing for changes in load pattern and obtaining bearings with the correct contact angle and design features internally provides conditions to be met and for the rotating elements to operate adequately without becoming damaged.
Thus, when considering such aspects, the users will likely improve the effectiveness and lifetime of angular contact ball bearings. These factors should be addressed during the selection and maintenance of the equipment to minimize downtimes, improve machinery, and provide economic benefits over the long term.
Frequently Asked Questions (FAQs)
Q: To what extent is the contact angle of an angular contact bearing significant?
A: In an angular contact ball bearing, the ability of the bearing to withstand axial loads directly depends on the value of the contact angle. With an increase in contact angle, the axial load capability of the bearing also tends to increase. This highlights the need to choose angular contact bearings with the right axial contact angle in applications with large axial forces requiring special consideration.
Q: How does the arrangement of angular contact bearings affect the load capacity?
A: The angular contact bearings’ arrangement strongly influences the load capacity that the bearing can withstand. Bearings installed back to back can take axial loads in both directions, enhancing their stability. This is commonly found in applications where high accuracy is needed, together with the capability of withstanding combined axial and radial loading of the bearings, like machine tool spindle bearings.
Q: What measures ought to be taken to avoid contamination while bearing mounting?
A: Such measures include ensuring a clean workplace environment, having clean tools, and mounting the bearing or spacing washers onto shafts with either clean skin or gloves. Furthermore, a fixture should be placed to avoid contamination by dirt or moisture, such as covering or sealing the bearings. If the bearings have seals or shields, do not remove them until right before installation because contamination can cut down the performance and life of the bearing.
Q: What role does heat play in mounting angular contact ball bearings?
A: Heat is pivotal for mounting angular contact ball bearings as that will ease the mounting process. For instance, while mounting the inner ring onto the shaft, one way to do this is to place the inner ring in heat so that its diameter increases for ease of fixing. However, the tip provided by SKF and others states that remember to keep the temperature at a level that will not break the bearing components, such as the cage or seals. Tasks such as this always require a keen eye.
Q: Why is a proper choice of angular contact bearings important for high-speed applications?
A: Choosing the right types of angular contact bearings is key while working with high-speed applications. These bearings are designed to sustain radial and axial loads, typical for such applications. There are several considerations, such as the contact angle, which influences the bearing’s speed limit, and the cage design that allows the bearing component to be used at high velocities without crashing. Optimum bearing selection is one of the key factors to consider to enhance the performance and lifespan of rotating machinery working under high-speed conditions in various industrial settings.
Q: How does an angular contact ball bearing transfer axial loads compared to others?
A: Angular contact ball bearings, on the other hand, can transfer axial loads in one direction since they are specifically designed for such tasks, while many different types of bearings may perform poorly in applications with low axial force. Both racetracks and ball paths are angled so those bearings can accept axial load more efficiently. In applications where axial loads are expected to be applied in both directions, it is common practice to use pairs of angular contact bearings in back-to-back or face-to-face positions to enable load acceptance in both axial directions.
Q: What characteristics are improved by increasing the number of balls in an angular contact bearing?
A: The number of balls in an angular contact bearing is one factor that influences the operating performance aspects of the angular contact bearing. In general, if the number of balls is increased, the bearing will have a larger load-carrying capacity and increased stiffness. However, high-speed operation may increase friction and heat generation. Companies like SKF aim to find the correct number of balls, as well as their dimensions and geometry, to avoid overload or underload of the bearing and to ensure adequate operational speed without heat problems. The efficient number of balls is a ratio of a certain amount responsive to target requirements such as load, speed, and necessary degree of accuracy.
