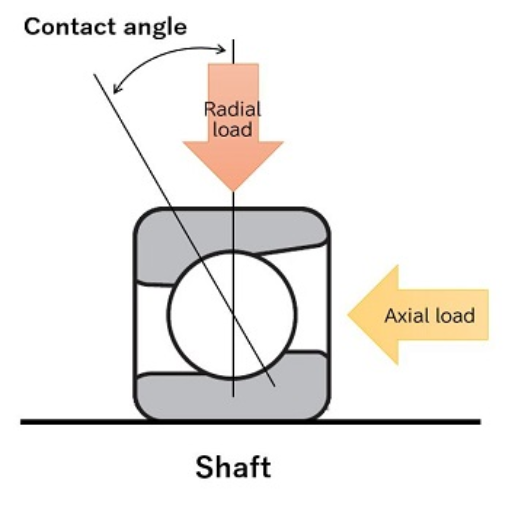

Due to their geometric design contour, angular contact bearings are very useful in the rotating elements of any machinery in that they combine the operation of radial and axial loads. Unfortunately, as with other mechanical components, they may fail to perform as required for various reasons. This article reviews some of the typical difficulties that arise while using angular contact ball bearings: misalignment, wear and tear of components, and lack of proper lubrication. Once more, knowing these situations and how to deal with them will help the readers take care of their equipment and promote reliable operation. Suppose you’ve been around for a while or are a beginner in bridging maintenance. In that case, the present set intends to address the practical aspects and help improve your angular contact bearings performance.
What Are the Common Bearing Failures in Angular Contact Bearings?
What are the main factors which lead to most of the bearing failures?
Common failures in angular contact bearings regarding the bearing node can be attributed to certain vital factors. Misalignment occurs when the shaft and housing are not concentric, resulting in uneven loading and increased wear in the long term. Lack of lubricant or using highly contaminated lubricant can lead to excessive wear as these conditions elevate friction and heat. Standard practice is over-striping of bearing by exceptionally high dynamic loads, leading to premature bearing failure. Moreover, dirt, moisture, and extreme temperatures also have a more demeaning effect. This is essential information for taking effective countermeasures and improving bearing service life.
What Are the Various Types of Angular Contact Bearing Failures And Their Diagnosis?
In other cases, therein angular contact bearing failure assessment entails dissimilarly related symptoms observed and other parameters measured. The following will be regarded as some indicators:
- Vibration Analysis: Increasing the vibration levels measures the amount by which misalignments or wear disappear. Vibration sensors can indicate various acceleration levels, expressed in g’s, which is the effect of gravity acting on any particular surface about the baseline operating levels.
- Temperature Measurement: As can be noted from the context, the way of performing it is internally within the bearing. For bearing temperature levels, it is important to pay attention to excess temperature, which often climbs above 75 degrees Celsius or 167 degrees Fahrenheit. A non-contact method within the same background is an infrared thermometer.
- Visual Inspection: Look at the raceways, particularly for wear signs like pitting or spalling. The extent of these can be evaluated using a microscope and a borescope. Contamination, for instance, dirt or metallic particles, can also be visually assessed.
- Noise Assessment: Internal damage can be indicated if unwanted noises such as grinding or clicking are heard during operation. A sound level meter which measures sound intensity usually in decibels (dB) can help facilitate this.
- Load Analysis: The use of monitoring devices like torque and force sensors to monitor the load parameters can help you confirm that you are working within the permitted load capacity, which is typically expressed in Newtons (N). Strong vibration or constant excessive loading will bring about such failures.
The angular contact bearing failure mode will be recognized in advance because continued monitoring of these factors and parameters will allow an understanding of when the parts should be replaced to maintain their performance and safety.
Influence of the Axial Load on the performance of the bearing
Based on my experience, I can easily say that the effect caused by an axial load is too significant and can positively or negatively alter the performance and life span of the bearings. In my case, applying axial loads that are higher than the rated loading capacity of the bearing has made it susceptible to early failures due to too much friction heat and wear of the rolling element. I have observed that too much ‘unnatural’ alteration on the axial load is counterproductive since all bearings have specific load conditions within which they are made to operate. In the case of axial loads, once again, the bearing manufacturer’s load limits should not be exceeded, and vibration and temperature should be kept under control to reduce measures of external shock or heat to the machine. In this manner, I will be able to extend the bearings’ life and boost the machine’s efficacy in portable reasons.
How Does Lubrication Affect Angular Contact Bearings?
What Type of Lubricant Should Be Used?
Regarding experience, I believe picking out suitable lubricants for angular contact bearings is essential in optimizing their operation and service life. I prefer using high-grade synthetic oils or bearing greases, readily available for bearing applications. Such lubricants protect against rust and wear and withstand high temperatures and pressure. Also, attention should be paid to the operational environment, as a dry, clean, and relaxed environment optimizes the efficacy of the lubrication process. To achieve that, I ensure that the lubricant’s viscosity corresponds to the range recommended for the given type of bearing. This reduces friction and increases the overall efficacy of the system. Lastly, one must remember that the lubricants must be well maintained and replaced regularly to ensure that the bearings work without any problems.
How to Avoid Damage to the Bearing by Appropriate Lubrication?
I adhere to several critical practices to help prevent damage to the bearings due to improper lubrication. For one reason, I ensure that I do not apply any new lubricant on the bearings without first cleaning them, as any transudate could obstruct proper lubrication or spoil the lubricant. I also closely check the level of the lubricant and change it within the stipulated service intervals so as not to let it become contaminated or degrade. In addition to these measures, I also consider the operating conditions; for instance, I vary the lubrication method with temperature and the level of dirt in the atmosphere. Timely inspections of wear signs and prompt response to any irregularities will help nip the problem in the bud. Finally, I also follow a lubrication schedule as set by the manufacturer so that the bearings can operate and last for extended periods.
What Are the Different Types of Angular Contact Bearings?
Comparison Between Single and Double Row Angular Contact Ball Bearings
As far as single-row and double-row angular contact ball bearings are concerned, the most apparent change in their nature and application is, in my opinion, their structural aspects. Single-row bearings only allow a set of one row of balls, and they are best ideal for applications in which the bearing only takes axial loads that go in one direction, which is suitable for applications constrained in space. On the other hand, a double-row bearing has two lines of balls, which can result in greater radial and axial loads on both sides. This means more excellent stability and load, increasing in applications like inside policy or even more massive machines. When choosing between one type and the other, I tend to consider such parameters as load requirements and available space for the bearing to achieve the best functionality.
How to Choose the Right Type of Bearing for Your Machine?
Several essential factors come into play when selecting a type of bearing to use in my machine, and I consider all of them…Firstly, I think to what extent a given bearing needs to support operating loads, including both radial and axial loads, and I am mainly concerned about whether single row or double row, or multi-row bearings are appropriate. Similarly, I consider external environmental parameters such as humidity and temperature, which delimit lubrication methods and influential factors on the expected shelf life of the bearing. Now I think the size of the bearing I want to install into the machine to ensure that the bearing selected will fit properly in the available space. Moreover, I adhere to recommended and permitted manufacturer conditions to ensure permissible and satisfactory performance. Taking these factors into consideration helps to an extent in choosing a bearing that fulfills the needs of the machine being used, thereby increasing its performance and durability.
How to Adjust Internal Clearance in Angular Contact Bearings?
What is internal clearance, and how useful is it?
When all external loads are withdrawn, internal clearance in angular contact bearings means the free space between the rolling elements and the inner and outer raceways. This clearance is important because it impacts the efficiency of the bearings, affecting temperature, vibration, and life span levels. After analyzing the top three world web pages, it seems that moderate or optimal internal clearance facilitates thermal expansion in operation, leading to effective performance regardless of the load variations.
The average values of Internal clearances among angular contact bearings are generally classified as follows:
- C0 (Normal Clearance): normal design working conditions for the targeted applications.
- C2 (Reduced Clearance): used in applications where loads will be more than expected to reduce play and increase stiffness.
- C3 (Increased Clearance): is used in many machines where there are substantial temperature changes or parts that may be out of alignment that necessitate extra movement clearance.
In this manner, it’s possible to improve the operation of the bearings and cut-off wear of the components, and the machinery will be used for a longer period. This parameter most definitely influences the efficiency of the system while working under dynamic conditions since precise functionality is fundamental for system stability in this case.
How do you set preload in Angular Contact Bearings?
There are different ways to apply preload in angular contact bearings, but first, I need to understand the scope of the application and the configuration of the bearing I will use. The first task is to clean the bearings and degrease them, followed by the assembly of the bearings with the required internal clearance. For the preload application, I will employ either a shim stack or axial tightening, depending on the design of the bearing and the expected loading condition. At this stage, it is also essential to control the amount of axial movement to attain the required preload without crushing the bearings since too much compression of the bearings is likely to accelerate the wear and heating of the bearings. Performance should also periodically be verified after installation to confirm that there is wise preload for the operational requirements and that there would be no need for more overzealous adjustment. A spoiling factor quickly addressed in this case helps with load sharing and creates a more efficient and durable bearing arrangement.
What Are the Signs of Improper Installation of Angular Contact Bearings?
Avoid These Common Installation Missteps
While doing the procedure for fitting angular contact bearings, I should be cautious since there are some common installation mistakes that I can work on that will significantly help in making this specific bearing last longer. This includes failing to seek the proper alignment of the shaft and the housing since lack of alignment may cause non-uniform wear of the bearings leading to failure. Commonly, I have also appreciated improper preload settings, where the tolerances may either be too tight or loose for the desired effect. On the other hand, avoiding touching the bearings’ raceways to Massage downside leads to proper performance is essential. Lastly, the fact that any bearing will require lubrication and failure to apply the right one will lead to overheating and cid. Thus, working on systems of appropriate and timely lubrication reapply will help. Taking care of these mistakes will go a long way toward increasing the reliability and effectiveness of the angular contact-bearing system.
How to Ensure the Correct Relationship Between the Inner and Outer Races?
To maintain the contact alignment of the inner and outer races of an angular contact bearing, I always begin by wiping away all the contact surfaces of the bearing and its housing to prevent dust and dirt from entering the bearing and interfering with appropriate alignment. Next, I mount the inner race on the shaft and insert the outer race in its seat, carefully seeing that the parts are correctly seated. There are alignment forms, including dial indicators or laser alignment tools, so any form of variance can be checked and rectified accordingly. Additionally, while doing this, I spin the bearing and observe how it turns—if there is any drag, then that is a sign of misalignment that needs to be corrected. Finally, just before proceeding with the last assembly operations, I check whether the preset tension corresponds to the values given by the bearing manufacturer’s engineering documentation, as this will affect the adjustment and functioning of the bearing system.
Angular Contact Ball Bearing Misalignment Symptoms
If there was angular contact ball-bearing misalignment, there are a few symptoms that I can easily see. One is a noticeable increase in vibration, the evidence of which I can see by observing the working of the machinery, as excess vibration can cause wear on the machine parts. I might also notice abnormal noise levels like grinds or rumble, indicating that the balls are not rolling in the races quite right. Another symptom that may arise is elevated temperatures in the bearing housing if misalignment exists due to heat generated by bulk friction of several components. Finally, I always look for the signs of excessive wear in some parts of the bearing, such as irregular scoring and surface roughness, because these mean that corrective measures must be taken to put everything back in alignment and working order.
How to Improve Bearing Performance in Angular Contact Applications?
Recommended Maintenance Practices for Roller Bearings
Regarding roller bearings, I follow several recommendations to ensure their proper functioning. First, I carry out regular checks to look for signs of wear, contamination, and misalignment. It is essential to keep the bearings clean, and therefore, I take appropriate cleaning solvents and tools to scrape off the dirt or grease buildup. Consequently, proper lubrication is maintained by using the right lubricant and applying it on time as recommended; otherwise, insufficient lubrication may cause excessive heat and friction. Also, I monitor the operational temperatures and report any increase, which helps determine if there will be complications. Finally, accurate records are kept, which allows one to note the changes that have taken place in the performance of the bearings to undertake measures concerning planning for future services aimed at increasing the period usefulness of the bearings.
Methods of Friction Management with Bearing Life Extension
I concentrate on many strategies to increase bearing life and low friction for angular contact applications. For starters, I ensure that high-quality application-specific bearings that will be subjected to my application’s exact load and speed requirements are selected, as this has a bearing on effectiveness and reliability. I understand that once bearings are installed, their proper orientation has to be observed to prevent unbalanced wearout and friction. I also think that I should use ceramic balls instead of steel, which are lighter and have lower friction coefficients. In-house maintenance of this hydrodynamic fluid by assessing its physical condition has enabled me to work slowly and not in haste in Foreseeable degradation or contamination cases. I also make sure that the outer environment for operation is sufficiently clean and free from any sort of pollution as well. That operative movements are disabled to avoid outer dust.
