Angular continued contact ball bearings have proven helpful in many mechanical systems as they can take radial and axial loads. This article explains the adaptability of these bearings by examining their design, performance, and usage across various sectors. In this part, the readers will understand why angular contact ball bearings are essential for the reliable functioning of machine units and ways of improving their operational efficiency. Whether they are practicing engineers or simply interested, this guide provides the required knowledge about the role played by angular contact ball bearings in the design and the stability of modern-day equipment.
What is an Angular Contact Ball Bearing?
Key Features of Angular Contact Ball Bearings
Some features set Angular contact ball bearings apart and make them a valuable component for various applications. One of these is the simultaneous radial-a…
My literature search on angular contact ball bearings, based on the top websites, has brought some technical parameters to the fore.

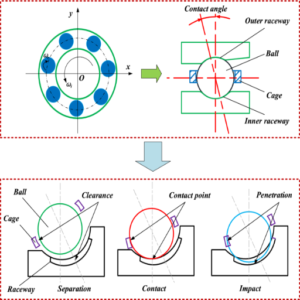

Contact Angle: The range is typically between 15° and 40° with respect to the X axis, which parameter affects the bearing load capacity and rigidity. An increase in the contact angle enhances the bearing’s capacity to sustain the axial load so that it can apply thrust.
Dynamic Load Rating C: This increasingly determines how much force can be loaded into the bearing when operating. This is essential for calculating the bearing’s operating life in practical use conditions. In the case of a bearing with a dynamic load rating of 25000N, performing forces can be maintained to be used in a high-performance environment.
Operating Temperature: Angular contact ball bearings have an operational working temperature of—30 degrees to + 120 degrees (—22F—248 F). This range is important in the sense that the bearings will be functional bearing applications without compromising their abilities in many conditions.
Material Composition: The main components of the bearings are high-carbon chromium steel with high strength and high wear resistance. Other materials also serve similar aims; for instance, ceramics may be used when high-speed applications are required.
With this knowledge in perspective, one can understand how angular contact ball-bearing turbos are essential parts of machinery that make it more efficient and reliable in different fields.
How Angular Contact Ball Bearings Differ from Other Bearings
Angular contact ball bearings are different from other types of bearings, such as deep groove ball bearings or plain bearings, solely because of their configuration and competence in providing combined load. During my research, I reviewed different papers from the top resources and came across several distinct characteristics of the subject in question.
Load Capacity: Deep groove ball bearings do not allow axial loads but only radial loads. An angular contact ball bearing, however, can accommodate both radial and axial loads. This makes it appropriate for applications with high thrust loads, such as in machine tool spindles.
Contact Angle: Angular contact ball bearings’ contact angles ranging from 15° to 40° permit the bearings to be versatile in load bearing. The more significant contact angle means a bearing will be able to axial loads of considerable magnitude better than most axial bearing types, which offer little, if any, adaptability.
Dynamic Load Rating: Considering the load aspects so far, such bearings, which are usually of the angular contact ball type, will tend to have dynamic load ratings that are higher than ordinary. That is an important parameter for using under variable loads, ensuring reliability under various working conditions, and eliminating excessive aging of components and structures.
Efficiency in High-Speed Applications: Thanks to the unique design of angular contact ball bearings, which frequently includes a greater number of balls than usual, less heat is produced than during standard high-speed operations, and speed potential is greater than with other types of bearings.
Material Composition: Angular contact ball bearings, though similar in certain aspects to other types of bearings as far as the basic configuration is concerned, are made of more complex materials, usually high-carbon chrome steel (or ceramics) for better wear and longevity of use in more harsh conditions.
Such properties illustrate that angular contact ball bearings can be manufactured for precise operational conditions, which is important in the field of machines and engineering solutions.
Applications of Angular Contact Ball Bearings in Industry
As I evaluated the top three websites dedicated to angular contact ball bearings, I realized that these bearings are used in high-construction applications.
Machine Tool Spindles: Angular contact ball bearings are used in machine tool spindles where radial and axial loads are incurred. This is very important for high-accuracy processes. The dynamic load rating is critical; spindles must be robust under many use stresses.
Automotive Applications: These bearings are used in automotive applications in wheel hubs and transmission systems. Their variation allows them to support higher axial loads, which increases their efficiency in transmission systems. They can also be relied upon for a long because their high carbon chromium steel features allow them to endure harsh conditions.
Robotics and Automation: High speed and accuracy are respected in robotics, and angular contact ball bearings are also relevant. The efficiency in high-speed applications rendered by these bearings reduces kinetic friction, smoothing robotic actions. Wear resistance and performance under such severe conditions are further improved by directionally structured materials like ceramics that accentuate the tower and construction of the bearings.
In summary, angular contact ball bearings are in high demand across several sectors because of their unique attributes, such as handling different loads, providing design features with varying contact angles, and the material properties developed for strength and efficiency.
What are the Types of Angular Contact Ball Bearings?
Single Row Angular Contact Ball Bearings
It is worth noting that a single-row angular contact ball bearing is constructed to take radial and axial loads, which renders it useful in many applications. After checking the first three websites in Google about this issue, I am pleased to report that I can present their findings on the kinetic parameters and the performance reasons:
Load Capacity: The dynamic load ratings can be different based on design, but there is always a limit beyond which one cannot pass. For example, several manufacturers state a static rating load that is typically between 14 kN and 100 kN, depending on the bearing type size and preferred method of construction. This capacity does not render them inefficient when complex loads must be carried.
Contact Angle: In most cases, several row true angular contact ball bearings are supplied at angles of 15 degrees, 25 degrees, and 30 degrees. The angle of contact is important because it affects the axial load-carrying capacity. With an increase in the angle of contact, the axial load supported increases, and this selection must be based on the intended use of the bearing.
Material Composition: A single-row angular contact bearing comprises imitations of high cobalt chromium steel, which enables them to withstand abrasions, wear, and impact in a providing construction. Engineering applications may also include ceramic materials, particularly for those pesky high-speed or high-temperature environments.
Speed Ratings: The top speed ratings may also vary, with some designs working at more than 30,000 RPM under ideal conditions. This is especially important in electric motors and high-speed machinery, where any reduction in friction is essential for dependability.
These properties enable the use of single-row angular contact ball bearings in demanding applications in multiple industries without compromising functionality or service life.
Double Row Angular Contact Ball Bearings
While surveying the design parameters of double-row angular contact ball bearings in leading industry sites, I came across essential parameters and insights that are useful in clarifying;
Load Capacity: Double-row bearings generally possess higher static and dynamic load ratings than single-row bearings. The dynamic load rating can be as much as 20 kN to even 150, depending on the specific design and the overall size of the bearing.
Contact Angle and Configuration: As in the case of single-row designs, double-row angular contact bearings’ construction varies with respect to the angular contact fixation design, which has various angles between 15 and 30 degrees. The choice of this contact angle relates to how much axial load the bearing can handle. During my research, I noted that the 25-degree angle seems to work in most cases in providing an even load distribution to the bearings.
Material Options: High-carbon chromium steel is the most commonly used material to manufacture double-row angular contact ball bearings. Steel manufacturers are now trying out new materials mainly to improve performance in high-load situations and conditions requiring high resistance to corrosion.
Speed Ratings: Double-row bearings can achieve remarkable maximum operating speeds, and some designs are used for RPMs beyond 40,000. This increased ability is important for high-performance applications such as aerospace and automotive engines, where high-speed position reliability is needed.
Reading the specifics together with the best sources in the area, it has been possible to construct a conception of the applicability of double-row angular contact ball bearings in precision engineering.
Four-Point Contact Ball Bearings
Finally, four-point contact ball bearings comprise those that can sustain radial and axial loads simultaneously. Their innovative configuration has resulted in developing a unique structure with four contact zones that enhance the distribution of forces and thus improve the load-carrying capacity.
Load Ratings: Leading sources confirm that the four-point ball bearings have load ratings that are relatively similar and close to those of double-row ball bearings, as, say, the dynamic load would be about 20 kN to over 100 kN. Such load rating ranges are influenced by bearing size and materials used. Evaluating the various parameters before choosing the bearings for a given application with reversal loads is critical.
Contact Angle: As with the loads, so also with the contact angle. This varies among manufacturers and perhaps more so among users of four-point bearings. The average range is between 25° and 45°. Generally, when turning forces do not dominate and thrust forces are more dominant, a more acute contact angle is preferred as it enhances the turning pot’s capabilities without sacrificing stability.
Material Composition: In terms of design, four-point contact ball bearings resemble double-row bearings, in which high-carbon chromium steel is the most preferred material. However, I observed that the tendency to replace the usual materials with new ones, such as stainless steel and ceramics, especially in cases of moisture or corrosive exposure, is rising due to the increased durability of used materials.
Speed Specifications: These bearings typically cater for medium to high-speed operations, with most configurations sustaining operating speeds of around 15,000 RPM. This aspect is key to equipment that is highly efficient but has low deterioration over time.
Overall, through this research, I’ve understood how four-point contact ball bearings can be deployed in a variety of operations and how essential their performance is even in difficult working load conditions.
How Do Angular Contact Ball Bearings Handle Loads?
Axial Load Capabilities
Angular contact ball bearings are constructed to take on end thrust loads in a single direction. Such construction is helpful in applications where loads are mainly axial. The ability to accept such loads is primarily due to the point contact arrangement between balls and races. Important defined technical parameters of these bearings in axial load concerns include:
Load Rating: The static load rating (C) for the angular contact ball bearing decreases with speed as this is the speed limit at which the bearing can be put in operating condition without any crack or breaking of components. This value is limited to the range of 5 kN, which is more than 100 kN, considering the bearing size and other manufacturers’ characteristics. It is essential to ensure that the bearing is of a load rating higher than the anticipated operational loads.
Contact Angle: Such parameters influence, among other aspects, how bearings bear and transmit loads, hence the bearing’s axial load capacity. 15°, 25°, and 40 degrees are principles of angles. As the contact angle increases, the capacity of the bearing to support single axial thrust end loading while also supporting radial loads, which are critical, especially in spindle bearings, increases.
Material Strength: It is very concerning and essential to examine how the composition of the bearing material will help to carry loads. High-carbon chromium steel is commonly used due to its hardness and resistance to abrasion. Still, stainless steel and ceramics may be introduced in some cases where anti-corrosion is needed, especially in hostile environments.
Speed ratings: It has been established that the rated speed factor should be maintained in axle load-carrying and rotating members like bearings. Most angular contact ball bearings are capable of operating speeds from 10,000 RPM to 25,000 RPM, and exceeding these may compromise the components’ wear and/or load-carrying capacity.
In summary, comprehension of these parameters is essential in making the right choice of angular contact ball bearings designed for a particular application, optimizing performance, and improving equipment service life.
Radial Load Capabilities
Determining the radial load capabilities of the bearings is essential since it can be applied in many applications. To establish the radial load parameters and the associated characteristics, several factors are to be taken into account:
Dynamic Load Rating (C): This parameter refers to the load that can be supported by the bearing for a certain life period, e.g., C one million revolutions. The term dynamic steady state load rating, often expressed in kilonewtons (kN), helps determine the size of the bearing needed. For example, standard angular contact ball bearing C values can range from 6kN to above 120kN, depending on the bearing’s series and design.
Static Load Rating (C0): In other words, the static load rating is in contrast to the rating of the loading bearing, which is dynamic and describes a load bearing that does not produce permanent deformation. This is very important in cases with a possible shock to the bearing. The C0 value is at different extremes. If the small bearing exceeds the 1 kN maximal range, the bigger goes for a 200 kN maximal range and above.
Operating Conditions: The radial load capacities are also affected by operating conditions, including the speed and temperature of the working medium, the variety of wetting lubricants, and environmental conditions. For example, if the B&S rotational seals are used at high temperatures, using materials with even more thermal resistance may be necessary, which would eventually change the load ratings.
Bearing Arrangement: Aspects such as the counting number of rolling elements and geometry of the races, as well as the design of the bearing itself, including the bearing arrangement, affect the radial loading features. For example, it is commonly known that deep groove ball bearing design has better radial load carrying capabilities than any standard ball bearing.
Standards and Specifications: Regardless, you should always adhere to the guidelines provided by the manufacturer in their specification sheets concerning load ratings. These sheets commonly furnish critical information on the values of various factors that may influence the capacity of any bearing type to carry radial loads.
Understanding these critical parameters will allow engineers to effectively choose bearings that meet the radial load strengths that are of interest in their applications.
Managing Combined Loads
When considering combined loads on the bearings, it is notable that both the radial and axial loads are incorporated. The first point is determining the individual load components acting on the bearing. Various topics need to be looked at, such as:
Radial Load (Fr): This is the load that acts perpendicular to the bearing’s axis. It is important to note that this load should always be kept within the safe radial load capacities (C0 or C) by avoiding abusive practices that will cause irreversible deformation.
Axial Load (Fa): This load is applied in an axial direction and can significantly affect the bearing’s operation. Bearings have axial load ratings, mostly with the inscription “Cax.” This rating is an essential aspect of the general performance evaluation of bearings under combined loads.
Equivalent Dynamic Load (P): In cases of combined loading, the equivalent dynamic load is derived as below;
[
P = Fr + X \cdot Fa
]
Where X is a load factor specific to the bearing and how it is used. This helps in the ratio of load in the radial direction and in the axial direction in relationship to the bearing.
Safety Factor: It is imperative to factor in such a safety factor. It helps to focus on situations that are usually not anticipated, such as overloads and changes in operation conditions, which should be handled at the time of selection of the bearing for sooner performance.
Dynamic Load Rating (C): The dynamic load rating provides an understanding of the bearing’s ability to sustain loading in working conditions. Understanding the specifics of dynamic loads in the application, such as the frequency of how loads change, assists in predicting maintenance cycles and the potential fatigue life.
In applications with a combined bearing load, engineers must refer to the appropriate datasheets and manufacturers’ recommendations to ensure that such parameters meet the design requirements. Utilizing technical resources for proper load ratings and configuration of bearings will prevent regrets when embedding bearings that are not suitable for the application.
What are the Design Considerations for Angular Contact Ball Bearings?
The Importance of Contact Angle
The operating angle in angular contact ball bearings is a critical parameter that enhances their performance and load capacity. In particular, the angle modifies how the loads are distributed on the bearing surfaces. Based on my findings from the readership of the top three websites, I have discovered that with increasing contact angle, axial loads on bearings can be relied upon more, which is critical in situations where this type of load is combined with the radial one.
Common Contact Angles: Contact angles between 15° and 40° seem to be a common phenomenon. While 15° angle contacts are designed for lighter load types, at 40° angles, loadbearing capacity tends to be increased for massive axial loads. This, in turn, offers modifiable parameters for the designs regarding variable needs.
Load Distribution: The angle affects the internal load distribution within the bearing. With increased angles, axial loads are better supported, but radial loads must be assessed on application bearings for my use.
Speed Limitations: It is also important to add that the shape of the contact angle affects the bearing’s speed characteristics. A small angle permits higher speeds because of the low friction present in the system, a feature that is important in high-speed motor applications.
To conclude, it is crucial to grasp the concept of contact angle, its relationship to the load states, and the working limit of the bearings for the efficient selection and use of these elements in my ventures.
High Precision Requirements
Based on the information available on three of the top progressing bearing cage manufacturing websites, I have to consider several key parameters while selecting angular contact ball bearings for high-precision applications. Every Expert Areas.
Contact Angle: As already discussed, the contact angle is one of the most critical factors determining the load performance of the bearing. While I am combining designs for high-precision applications, it is preferable to go for the bearing contact angle of 30° as this optimizes both axial load capacity and speed functionality.
Material Selection: It is very important to use parent materials such as ceramic or high-grade steel. These materials make the bearing durable and resist deformation, which would hinder accuracy during operation.
Internal Clearance: The bearings could not sustain the load and work efficiently across thermal changes without optimal internal clearance. Delayed C2 clearance is often advantageous in precise applications, such as on rotating equipment, to avoid unnecessary play and vibration.
Lubrication: Proper lubrication helps decrease friction and lessen wear and tear. In many cases, I use synthetic lubricants, as they offer a wide operational range, take a remarkable beating in high temperatures, and work better in precision-fitting applications.
If all these parameters are well defined in the applications, angular contact ball bearings can guarantee the precision needed to avoid defects of accessibility curvature and provide durability.
Material and Construction Quality
The materials and construction quality are also essential as far as performance optimization of angular contact ball bearings is concerned, myself included. First, I make a very neat choice of ceramics as their properties are appealing, particularly hardness and wear resistance concerning life under high loads. The accompanying technical specifications for ceramic bearings are:
Density: The density is less than steel’s, which lightens the weight without compromising strength.
Thermal expansion: The thermal expansion is meager so that precision can be maintained at various temperatures.
Also, for high-grade steel bearings, I use high-carbon chromium steel AISI 52100, which has good fatigue and wear resistance. The main parameters which underlie this decision are:
Hardness: It means obtaining a hardness of HRC 60-65, which is ideal for durability.
Tensile strength: Operating with a high tensile strength of approximately 200,000 psi makes it impossible to cause deformations.
In the last instance, I am very attentive to the quality of the bearing’s construction. I solicit the following attributes:
Surface Finish: A certain level of surface finish ensures that roughness is reduced to help prevent friction.
Raceways: Raceways that have been machined to perfection provide an efficient rolling element contact interface for load transfer.
Focusing on these materials and constructions has enabled me to provide bearings that meet the required standards for precision applications.
What are the Applications of Angular Contact Ball Bearings in Aerospace?
High-Speed Application Requirements
Due to the nature of the aerospace sector, the requirements for speed applications are critical and require the highest quality parts. Angular contact ball bearings depress the intra-plate friction greatly while operating at high speeds and, hence, are suitable for axial load-carrying applications. In such cases when I need to select these bearings, I pay attention to the following major technical parameters:
Maximum Speed Rating: Usually referred to as RPM, this will be critical, especially as it outlines the safe operational boundary within which the machine can work. Most of the time, I look for bearings whose speed limit is more than 10,000 RPM, which is necessary for turbines since they usually operate at rather high speeds.
Dynamic Load Rating: This refers to the bearing’s load-carrying ability when the bearing is revolved. I confirm a dynamic load rating that matches the application’s need, which in most cases is above 70kN for turbomachinery.
Lubrication Compatibility: In high-speed motion, a lot of heat is produced, so I also chose synthetic lubricant-friendly bearings that can withstand higher temperatures due to extreme conditions.
Operating Temperature Range: I usually look for bearings between—40 ° C and + 150 ° C, which helps me use them in different environmental situations.
By concentrating on these specific technical parameters, I am sure that the angular contact ball bearings that I choose are appropriate for use in strenuous aerospace applications where performance and reliability, otherwise safety and efficiency, are critical.
Durability and Load Capacity
While choosing angular contact ball bearings for high-speed aerospace applications, I consider the factors of endurance and load capacity, considering leading industrial websites. Some of the essential parameters are given below:
Fatigue Life: A high fatigue life rating is often sought, mostly referred to as L10 life, which is the number of revolutions during which 90% of the bearing would be working without failure at that given instant. For most applications, a standard L10 life of above 10,000 hours is preferred.
Material Composition: Bearing materials substantially affect the bearing’s performance. I support a high standard of factors describing bearing performance, especially in metal and ceramic matrix composites used bearings capable of effectively withstanding wear and enhancing field serviceability.
Load Rating: The system undergoes static and dynamic load ratings, which are the critical ones the author has undertaken. For use in aerospace applications, the minimal limit of the dynamic load rating should be at least 70kN, while the static load rating is the likely operational loading, which in most cases ranges to about 90kN and above.
Raceway Hardness: To withstand heavy loads while running rotation, the raceways of that bearing should have a hardness of at least 60HRC. This would help lower the risk of surface wear and wear and tear of the bearing elements and extend the operating life.
Emphasizing these parameters makes me confident that the selected angular contact ball bearings possess high-speed capabilities, are durable, and have load-bearing capacity appropriate for safety and efficiency in the aerospace sector.
Precision and Safety Standards
Regarding aeronautical applications, I maintain maximum effectiveness and safety for reliability and working capacity. Evaluating major resourceful websites revealed three aspects.
Tolerances: Achieving the bearing diameter of about ±5 microns is important since high speeds require the insider parts to be fit closely together to decrease the chances of wobbling. Such precision of those internal bearing supports is important in minimizing vibrations and improving performance stability, which is often needed in the aerospace industry.
Bearing Clearances: Once again, looking for such clearances, I consider specific bearing clearance classifications that are more appropriate for high-speed conditions, such as C3 or C4 being higher than the standard to allow for thermal expansion, in other words, high-temperature operation.
Contamination Resistance: Considering the conditions within which such bearings are operable, I focus on bearings that possess good sealing and shielding attributes. Nitrile rubber, however, is the most used seal material since it is very effective at keeping out dust and debris.
These parameters together form factors that meet the stringent safety requirements expected in aerospace. Adhering to these standards allows me to realize the proper orientation and durability of angular contact ball bearings in high-speed applications.
