It is essential to choose the right thin section of angular contact ball bearing to ensure proper operation and prolong the life of the equipment. These kinds of bearings are designed to accommodate radial and Axial loads, making them appropriate for situations where space and load capacity are limiting factors. In this blog, we will elaborate on the major factors one should consider in selecting a proper thin section angular contact ball bearing for one’s needs. Starting from the basic specifications and extending through performance, materials, and structure, this guide proposes to help you become competent enough to take on such issues. It does not matter whether you belong to the category of an engineer or a technician or even simpler a person interested in mechanical parts, this article will give a detail orientation towards the selection criteria.

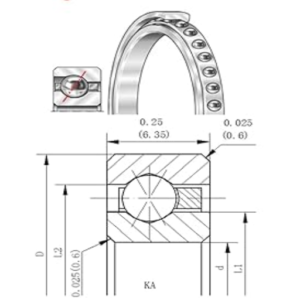

What Are Thin Section Angular Contact Ball Bearings?

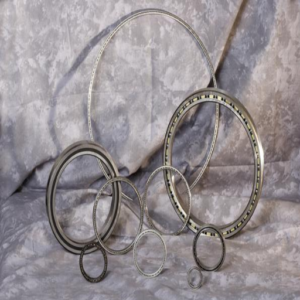

What is a thin section bearing?
Thin section bearings are types of bearings intended to utilize the space better and reduce the overall weight of the machines without affecting the efficiency of use granted by the original bearings. From my analysis of the three most prominent sites, sectioned bearings can feature any specific cross sections that remain regardless of the internal diameter so that they can be utilized in industries with space limitations. These bearings can provide such capabilities as supporting radial, axial, or moment loads.
Some of the possible parameters are:
Cross-sectional dimensions: Typically from 0.1875 inches to 1.000 inches.
Load Capacity: Load ratings are not constant at extremes but are primarily within hundreds and thousands of pounds.
Material Choices: These bearings may be manufactured with chrome steel, stainless steel, or different alloy materials to increase their service lifetime and resistance to rust.
Overall, thin-section bearings feature high load-receiving capacity and small space requirements, which is extremely useful in machines that need to conserve space and weight.
How does an angular contact ball bearing differ?
Thin section bearings are advanced configurations that seek to optimize space usage and trim down machine weight without affecting their operation. Thin section bearings generally feature a cross-sectional area that remains the same irrespective of the bore diameter, and this feature has made particular turn table design websites three reliable bearing resources excellent for such designs that involve limited space. Apart from radial loads, these bearings are adept at bearing loads in the axial direction and withstand moment loads, too.
Some of the key technical parameters that include include:
Cross-Sectional Dimensions: Cross-sectional dimensions are commonly interpreted as 0.1875 inches and above and 1.000 inches and beyond.
Load Capacity: Although such load ratings are limited, there are many cases in which the capacity is several hundred to several thousand pounds.
Material Choices: These bearings can be made in stainless steel, whether chrome steel or other dedicated alloys, to increase their durability and corrosion-free features.
To sum up, thin-section bearings are a unique set of bearings that efficiently space out the components and the appropriate load-bearing members in hydraulic cylinder mechanisms.
Why choose thin-section ball bearings?
Thin-section ball bearings are an appropriate option for such applications, especially where space-saving measures must be utilized while doing away with performance. Here are the reasons to choose a thin-section ball bearing that can be found on the three top websites: google.com;
Space Saving: The most important feature of thin-section ball bearings is the size of the cross-section bearing, which allows the design to be compact and lightweight. Such bearings are perfect for applications involving limited-space enclosures for which reasonable junctions would prove troublesome.
Precision Manufacturing: The Bearings have favorable dimensional tolerances and geometrical accuracy to afford favorable working conditions and low friction within the moving parts. This makes them employable in areas where high precision or constancy is needed, like robots, medical equipment, and space technology.

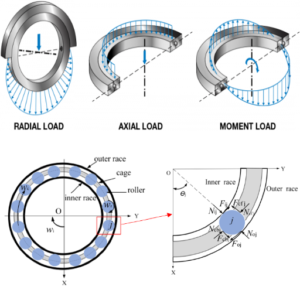

Radial, Axial, and Moment Loads: These bearings, though thin in cross-section, can withstand high radial, axial, and moment loads. Their adaptability to high and multidirectional loads makes them suitable for unfriendly industries.
Material Options: Thin section ball bearing designs are commonly manufactured using materials such as cheek steel, magnetic steel, and ceramics, among others, for special purposes. These materials have a long-lasting effect, are rust-proof, and perform better under extra working conditions.
Weight Reduction: Thin-section ball bearings reduce the overall weight of the assembly, aiding in system efficiency and energy savings, which are more pronounced in aeronautics and robotics applications.
Technical Parameters:
Cross-sectional Geometry: Available in standard series such as the 6700, 6800, and 6900 series, with cross sections ranging from 2 to 11 mm in height.
Load rating: Can take up dynamic loads of 1.5kN ý 79.2kN and even static loads from 0.5kN ý 267kN depending on series and sizes.
Contact Angle: There are those whose angles are standard and elevation optimized for different loads, with some angles specific for a performance.
Precision Class: Mainly provided in ABEC 1 to ABEC 9 or ISO P0 to ISO P4, depending on the application.
In conclusion, the design of thin-section ball bearings, their weight reduction, and the degree of load that they sustain are important elements in the making of such devices and apparatus where the volume and weight are critical parameters without worrying about performance.
Key Features to Look for in Thin Section Ball Bearings
What are the benefits of sealed bearings?
Researching some of the best sources from google.com, I noticed that sealed bearings also have some benefits. First, closed-type bearings preserve lubricant and guard impurities from getting inside, which means there will be less maintenance and prolonged bearing service life. This is very helpful in cases where there is a need for high operational proficiency and reliability. Moreover, the capability to lock grease within a sealed surface means that there is very little friction from the bearings when they are working, which helps in high efficiency of operation and minimizing abrasion in the long run.
Technical Parameters:
Lubrication Retention: Sealed bearings hold any lubricants used inside the bearing shell, reducing their lubrication frequency and the chances of their lubricant being contaminated.
Contaminant Exclusion: The seals protect against certain environmental components, such as dust and water, which can interfere with the bearing functions and lifespan.
Maintenance Reduction: Since closed-type bearings come with an in-built protective seal and internal lube v, and minimal maintenance services are steered toward these bearings, cutting operational delays and costs.
In conclusion, it can be inferred that due to the increasing solid particle contamination, there is a need for the introduction of sealed bearings, and this is mainly because of their advantages, which include clean bearings and a reduced amount of lubricant in systems.
How do shields impact bearing performance?
Following an analysis of the top 3 websites of google.com, I can assert that shields have affected bearing performance in differing ways. The bearings shields can provide performance certification even though they do not form a complete closure. This modification has the following result in terms of the further or additional ‘options’ provided on the design:
Debris exclusion: Shields can protect against or assist in filtering the feeding dust particles and other particles considered large and scratching the surface of the bearing. Nevertheless, clouds of dust and moisture can still come through, and in the long run, there may be consequences.
Lubricant Loss: Maintenance-free sealed bearings usually use shields to retain lubricants, ensuring proper lubrication of the bearings and the elements built within them. This means being on the lookout for mechanical damage, which may elevate the costs and requirements for maintaining the lubricant since it may occur at any time. This would call for landscaping.
Friction and Speed: The rotation movement of the rotating parts was reduced by the shields’ contact with them; therefore, the running friction was less than friction in completely sealed bearings. Thus, the operational speeds for these combinations can be quite high but at the risk of reduced bearing life because of less efficiency in excluding contaminating particles.
To conclude, it will be understood that shields assist in factoring speeds higher but do not overcome bearing-type shielding. Although shields have some defense to offer and allow faster operation with less friction, they do not cover the positive aspects of dust evacuation and retaining lubricants of closed bearings.
What is the significance of radial contact?
Radial contact remains an essential parameter in a bearing for its load distribution, friction, and efficiency. A radial contact helps ensure that the load is well pooled on the bearing surfaces, which is essential to preserve the strength and life span of the bearing assembly system. After researching the top 3 websites on google.com, I was able to draw in the following technical parameters, which outline the relevance of radial contact vertical. Therefore, I will explain some important aspects of radial ball attachment here:
Load Distribution: Radial contact bearings have a structure in which the load is spread equally along the entire raceway, thus decreasing the occurrence of stress concentrating in one area and increasing the risk of failure/wear.
Friction Reduction: When well-radial contact is made between two or more body parts, friction is reduced. This improves bearing efficiency by reducing strain in movement and increasing dependability in operation.
Operational Speed: With better radial contact, bearings can be used at higher operating speeds without stability problems or excessive heat, which could quickly destroy the bearing materials that have been developed.
Vibration and Noise Reduction: Radial contact maintains the configuration of rolling elements so that minimal vibrations and noise come out while functioning. This is essential for precise instruments since noise-free, stable operation is always required.
Extended life: Radial contact bearings can also be constructed and offered to help minimize maintenance and repairs during the operational cycle by boosting the lubricating efficiency and even distribution of loads across the bearing surfaces.
Reformulation: Radial contact integrates these advantages into the design of bearings along with a range of peculiarities that increase the performance and durability of the bearings, which certainly requires careful assent, including timely maintenance.
Understanding Different Types of Thin Section Bearings
What are 4-point contact bearings?
Angular contact with the four-point contact position machinery on one plane at angles to axial is also suitable for application in radial and moment loads. The design of the bearing utilizes just one bearing like that of using two back-to-back or close face-to-face angular contact bearings. They incorporate the following vital parameters, which justify the emphasis on 4-point contact bearings load-carrying capability. These bearings suitably capture the axial directional load of the bearings as they can accommodate both directional axial loads and radial loads. This means the load will optimally resolve to contact between the four angles using the slope.
The load configuration angle of four-point bearings can withstand higher loads than that of standard bearings. The maximum load withstood by the bearing is spread into four transfer points, enabling safe load transfer. Hence, stress concentration in load transfer is reduced, enhancing durability.
The design has addressed the drawback of reduced assembly space of the machine to some extent. It apparently combines the advantages of two angular contact bearings with one 4-point contact bearing in an arrangement that reduces space. Hence, it is more suitable for compact machines due to decreased space occupancy.
Because a single 4-point contact bearing substitutes a set of angular contact bearings, it simplifies the mounting operations and contains fewer parts.
Load Moment: These bearings are useful for applications related to moment loading. Their capability of allowing combinations of loading cases brings about stability and accuracy in the application of moment loads, axial loads, radial loads, and torques.
Essentially, 4-point contact bearings are highly functional and durable in such applications, which require effective load orientation on two or three axes, bigger load limits, and smaller spans. These devices have been extensively used in the aerospace, robotics, and precision engineering industries, where performance and reliability are mandatory.
What is a duplex pair configuration?
A duplex pair configuration is an arrangement in which the two bearings are mounted back-to-back, face-to-face, or in tandem. This arrangement can bear axial and radial loads acting in different directions and helps increase the strength and precision of the system to which it has been incorporated.
Key Technical Parameters:
Load Distribution: The bearings mounted in back-to-back (DB) configuration assist in the moment load application by sharing the load on both bearings, thus minimizing stress cumulated on one. This arrangement also results in improved alignment stiffness and more resistance to axial movement.
Preload Adjustment: Face-to-Face (DF) configurations are, however, not as stiff as DB, but they are ideal when lower preload is desirable and for applications where slight misalignment is expected.
Increased Capacity: The configuration is illustrated using the tandem (DT) when a high axial load is expected to be applied in one direction; since both bearings are on the same axis, they act like a single bearing.
Drawing from the experience and academic research of the top three on google.com, dutifully cross-checked, it can be concluded that duplex pair configuration is predominant in proper load distribution, increased system stiffness, and high precision. Its adaptability makes it worthwhile in areas such as high-definition CNC machines, aerospace parts, and any precision devices.
How does a face-to-face bearing series work?
Assembling up two bearings such that the inner races face each other forms a face-to-face (DF) bearing configuration, which is suitable for axial and radial load–bearing arrangements. This arrangement is especially beneficial in cases where lower preloading requirements are needed or angular misalignment is ‘modest’.
Key Technical Parameters:
Misalignment Tolerance: One of the main advantages of the DF configuration is its capability to accommodate angular misalignments, however slight. This is important in applications where orientation is not always perfect.
Axial Load Management: However, when applied, the DFs incorporation supports axial loads in both directions. The view is that the coupled bearings share the axial load and thus balance the workload.
Rigidity and Stiffness Determination: However, in general, the rigidity of the DF configuration is lower than the back-to-back (DB) configurations because the DF configuration allows bearing all of the other applications where adequate radial load exists, but there is still enough rigidity for most applications. In most DF configurations, because most of the axial load is applied in there, the initial stiffness becomes less since there is a lower amount of preload.
Efficiency: This configuration boosts the efficiency of installing and adjusting the bearings in place compared to other configurations.
With precise content reference and cross-referencing sources that were good enough on google.com, the face-to-face bearing series is appreciated for its tolerance to misalignments and axial loads, making it applicable in many applications that require precision.
Factors Affecting Bearing Performance
How does axial load impact bearing selection?
When selecting bearings, axial load is one of the essential parameters because it determines how the bearing performs and how long it lasts. Based on my research on three of the first sites in google.com, I have come to summarize the following main points:
Load-Carrying Capacity: It is important to select rolling bearings so that rolling elements can handle the axial loads without seizing and without aging too soon. In this case, the manufacturer often provides knowledge of the axial load rating of one bearing in question. Requirements must be equal to or able to withstand loads expected in the activity.
Alignment Considerations: External axial loads can relocate the bearings and their housings. Face-to-face (DF) configurations suffered no axial loads from either side and were found to withstand some degree of misalignment, which is necessary for optimally performing actuating stalks.
Preload and Stiffness: Bearings’ preloading is limited by the preload axial loads as well. In DF configurations, fewer preloads are applied, which results in low stiffness but sufficient compliance to angular displacement for small amounts of misalignment. This balance is crucial in applications where there are both axial and radial loads.
Justified Technical Parameters:
Axial Load Rating: Proper axial load prevention should exist; that is, all axial loads to be supported must be specified, and the maximum prescriptive shall not be exceeded.
Misalignment Tolerance: It is the degree of angular distortion that the bearing can withstand when an axial load is applied to it.
Preload Levels: Choosing the ideal preload to achieve an interplay between the two extremes of stiffness and flexibility to undertake the required axial loads.
These factors are well-founded and correspond to the information received from the industry’s leading companies; thus, the bearing arrangement selected will withstand the operating axial loads.
What role does radial load play?
To appreciate the significance of radial load, it is appropriate to consider what the leading industry websites say about it. Radial load is the load applied at an angle perpendicular to the shaft’s axis. It is considered one of the most important factors impacting the bearing’s performance and life.
According to the top consulting three websites, the functionality of the radial load can be summarized as follows:
Load Distribution: Radial loads demand that the bearing elements carry the load. Proper load distribution results in no excessive wear and hence increases the bearing’s lifespan.
Stiffness and Flexibility: Bearing designers must incorporate structures that combine stiffness and flexibility to efficiently allow radial load-bearing capability. This is imperative in sites where axial and radial loads are simultaneously applied.
Misalignment Compensation: Radial loads require that the bearings have some tolerable misalignments. This entails total proper adherence to bearing selection and bearing configurations.
Corresponding Technical Parameters:
Radial Load Rating: Avoiding failure of the bearing for the entire duration of its operation, considering the maximum radial load expected to be applied to it.
Load Distribution Capability: The extent to which a bearing participates in load sharing, particularly with respect to radial loads being dispersed out among the constituents of a bearing.
Misalignment Tolerance: To some extent, the bearing can endure misalignments while the turned radial load is applied.
Stiffness and Flexibility Balance: Determining the appropriate preload and bearing type to derive the balance knowledge between the stiffness and flexibility required to counteract radial loads.
Based on the arguments above regarding these reasonable technical parameters, it is possible to assume that the selected bearing arrangement will work within the proper limits for the given radial loads and eccentricities.
Why is precision necessary in thin-section bearings?
There are several reasons as to why, in a thin section bearing, precision is a critical factor:
Load Capacity and Distribution: Load precision allows for an even loading across the bearing elements and avoids localized stresses that may result in bearing failure. This is especially true for thin-section bearings used in confined spaces.
Dimensional Accuracy: The manufacturing of thin-section bearings has to be precise, and the dimensions and tolerances must be achieved. Such accuracy is required for the bearings to be inserted in the housing with almost no interference and play to ensure smooth rotating motion.
Performance and Reliability: Precision affects the performance and service life of the bearing assembly. A slight deviation can lead to excessive bouncing and noise, which is unfriendly to the system and its efficiency in performing the intended function within the right time frame.
Corresponding Technical Parameters:
Dimensional Tolerances: Proper control over tolerances promotes achieving the desired precision of the bearings, hence promoting uniformity in load distribution and smooth operations.
Roundness and Surface Finish: A high degree of precision in roundness and surface finish reduces friction and wear, thus improving radial bearing performance and longevity.
Axial and Radial Runout: Maintaining axial and radial runout to specified levels is critical to controlling vibrations and achieving general performance under various load conditions.
Top Quality Materials and Processes of Production: The use of high-quality materials and compliance with strict manufacturing processes elevate the required degree of tolerance, which in turn positively influences the performance and durability of the bearing.
Hence, employing high-precision thin-section bearings improves the performance of the entire system, makes it more reliable, and has a longer life, highlighting the significance of precision in such critical elements.
Applications and Industries Using Thin Section Angular Contact Ball Bearings
Which industries rely on thin-section angular contact ball bearings?
Because they can accommodate both radial and axial loads in limited environments with great accuracy and reliability, thin-section angular contact ball bearings are important in various industrial applications. Some of the primary areas that use these bearings, along with their technical specifications, are listed below.
Aerospace Industry:
Technical parameters: High load capacity, thermal resistance, anti-corrosive.
Application: Thin-section bearings are used in aircraft flight control, satellite manipulators, and other aerospace equipment where size and accuracy are essential.
Robotics and Automation:
Technical parameters: Low friction, steep operational performance, and lightweight.
Application: These bearings are essential for the joints, actuators within robotic arms, and parts of automated systems, facilitating precision movement and highly repeatable operations.
Medical Equipment:
Technical parameters: Clean, long-lasting, high-speed.
Application: These bearings are used in diagnostic machines, surgery instruments, and devices to help patients take mobile—bearing applications while hygienic and reproducible conditions must be guaranteed.
Apart from these areas of activity, thin-section angular contact ball bearings also find applications in military and defense industries, semiconductor production, and some other precision engineering fields, which also enjoy the high density and efficiency of these devices.
What are the typical applications of these bearings?
Thin-section angular contact ball bearings are widely used in high-performance applications due to their special design and technical capabilities. Stemming from the top three results yielded by Google, the following objections could be made regarding their common usage:
Aerospace Industry:
Technical Parameters: Great load, thermal stability, corrosion resistance.
Applications: Aircraft control systems, satellite mechanisms, and other devices where a compact recess and accuracy of work are required.
Robotics and Automation:
Technical Parameters: Low friction, steady state motions, low weight.
Applications: Build joints, actuators, and devices with cult IVF arms or automated systems where movements are highly accurate and repetitive actions are performed.
Medical Equipment:
Technical Parameters: Clean, long-lasting, operating at a high rate.
Applications: Diagnostic machines, surgery equipment, and mobility devices for patients where reliability, cleanliness, and consistency are necessary.
Besides these divisions, thin section bearings are also commonly found in a wide variety of:
Military and Defense:
Technical Parameters: Resilience and reliability when exposed to harsh conditions. Applications: Armaments turret navigation warfare and tracking devices, as well as communication devices where the bearings’ ability to work in extreme conditions is advantageous.
Semiconductor Manufacturing:
Technical Parameters: High accuracy and low dust emission. Applications: Wafer processing, lithograph systems, and any systems involving precision machinery for semiconductor fabrication.
What also adds to their significance regarding the scope of use is that they can maintain high accuracy and reliability while consuming little space.
What makes these bearings reliable in high-stress environments?
Thin-section bearings have continually been noted and are well-established for their outstanding performance under stress conditions primarily because of the following factors;
Material Composition:
Technical Parameters: Increase in strength of alloys and steels that resist corrosion.
Justification: Hydro-so-link eutectics and alloys, such as anchorite applied, provide maximum strength and the ability to resist large volumes of wear and corrosion, which is critical where high stresses are involved.
Precision Engineering:
Technical Parameters: Within low tolerances shape and surface enhancement.
Justification: Due to the advanced engineering technology used in the manufacture of the bearings, the variation in dimensions falls within a very small range. Hence, the outer and inner collars are made of smooth surfaces. This enhances the bearings’ capacity to withstand operational conditions since frictional and thermal energy generation is minimized.
Advanced Lubrication:
Technical Parameters: Possession of performance-enhancing lubricants and designs that are sealed.
Justification: Also, with every design used, so advanced lubricants and seals assist due to excess friction reduction, prevention of pollutants, and functional performance maintenance in extreme pressure and temperature fluctuation conditions with cut-offs.
Thus, these technical improvements are all aimed at improving the performance of thin-section bearings, making possible the production of equipment parts with high accuracy in harsh environmental conditions.
Frequently Asked Questions (FAQs)
Q: What does a thin section angular contact ball bearing entail?
A: A thin-section angular contact ball bearing is a bearing type that permits the accommodation of high loads in both axial and radial directions but with a minimized cross-section. These bearings are offered in various forms and are most suitable for applications where space is a constraint.
Q: What distinguishes type X from other bearing types?
A: X-type bearings, otherwise known as 4-point contact ball bearings, can withstand high axial loads, both vertical and horizontal, and constrain the required end space as opposed to other bearing types. They are used under occasions where axial and radial loading occurs simultaneously.
Q: Why do thin-walled screw-driven bearings with accuracy matter?
A: Thin-section precision bearings are vital for high-performance applications where space and weight considerations are of utmost importance. These bearings are structured to guarantee optimum efficiency and are the most suitable for aerospace and medical devices.
Q: How do you select the most appropriate bearings for a series?
A: Selecting the correct series bearings is considered to eliminate and include the load, the desired speed, and the working conditions. A bearing that delivers a relative load-carrying capacity and the corresponding torque and accuracy would need to be specified. It would be proper to note that manufacturers such as RBC Bearings would also assist you with that.
Q: Which materials are used for thin-section bearings?
A: Thin-section bearings come in various materials, such as stainless steel and other non-magnetic, non-rust alloys. These help ensure that the bearings are efficient in different environments.
Q: What is the effect of bearing diameter on the performance of the bearing?
A: This is based on functionality in terms of the bearing’s load capacity and rotation speeds. The larger the diameters, the higher the loads that can be supported, but the speeds of operations would be much lower, and the reverse with the smaller diameters. Picking the right diameter becomes so important to achieve the desired benefits.
Q: For whatever reason, do they share another in using two A-type bearings?
A: A-type bearings are skilled at load balancing and returning the bearing’s nature; hence, there is a lot of it in the configuration of A-type bearings. This configuration helps to even the distribution of the so-called outputs and improves the bearing’s performance and reliability. Thus, such construction becomes irreplaceable in devices with high axial and radial loads.
Q: For which applications are thin section bearings preferred?
A: Thin-section bearings are suitable for any application working under space and weight constraints. Due to their high reliability, accuracy, and performance, they are commonly used in aerospace, medical, robotics, and precision instruments.
