Selecting the most appropriate angular contact ball bearing is critical as it affects the machinery and industrial equipment’s efficiency, reliability, and expected lifespan. These bearings have been developed to support combined radial and axial loads, making them crucial for numerous engineering and manufacturing operations. However, with many design and material specification options, narrowing down on the best option poses a challenge. This document seeks to equip users with the knowledge and guidance to make sound decisions concerning optimizing performance across all applications and selecting the right fit for angular contact ball bearings.

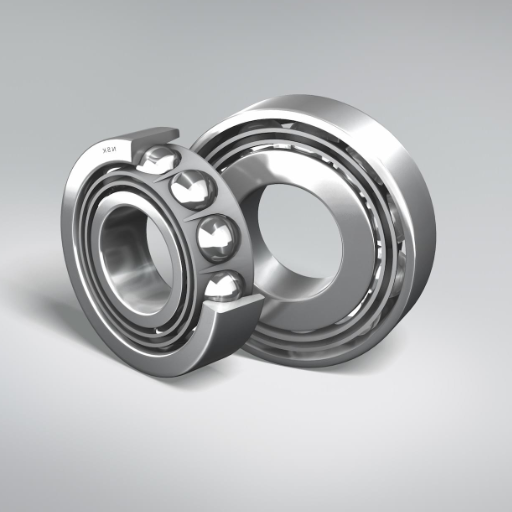

What is an Angular Contact Ball Bearing?
Understanding the Design and Features
I believe the angular contact ball bearing is specially constructed to simultaneously cater to the radial and axial loads, making it suitable for various applications. The design consists of inner and outer ring raceways, which are set at angles to each other, thus forming the “contact angle,” which enables the bearing to carry a load. This contact angle determines the bearing’s ability to manage axial loads. The higher the contact angle, the larger the axial forces that can be endured. In contrast, smaller contact angles prioritize higher-speed performance.
Contact Angle (15°, 25°, 40°, etc.) establishes the proportions of axial capacity and rotational speed obtainable.
Number of Rows (single or double): A single row is preferred when the loads are moderate, and a double row is selected when harsher load conditions are anticipated.
Cage Material (steel, brass, polyamide): This is responsible for the bearing’s durability, speed, and operational temperature.
Precision Tolerance (ABEC/ISO standards): Has an effect on the bearing’s performance when there are high demands on speed or precision.
Lubrication System (grease or oil): This is fundamental to minimizing friction and prolonging the bearing’s operational life.
Each feature has been meticulously crafted to meet specific operational requirements and ensure functionalities work correctly. Awareness of these parts allows tailored decisions to ensure that machines operate efficiently.
How Angular Contact Ball Bearings Work
Angular contact ball bearings are designed to perform in axial and radial loads due to their unique ability to combine high loads. Thus, they are suitable for high-performance applications. They achieve this by offsetting raceways positioned at the outer and inner rings of the bearings. This unique design allows for lower friction while maintaining optimal performance under angled contact conditions, leading to better fuel efficiency.
The following aspects are directly influenced by their operation features and contact geometry, such as contact angle, load capabilities, speed rating, and installation orientation.
Contact Angle: The contact angle determines the capacity for the axial load of the bearing handle. A higher contact angle (e.g., 40°) supports higher axial loads, while a lower load of the optimum 15° is ideal for applications where precision and speed are key.
Load Capabilities: The bearings’ offset raceways, contact angle, size, and material ensure they can carry combined loads, which other bearings cannot. As a result, their load capabilities differ with their offsets.
Speed Rating: Higher lapping and oil lubricants with ensured tolerances are ideal for high-speed environments. Accurate geometry and minimum friction complement this, further increasing the speed rating.
Installation Orientation: The orientation where the angular contact bearings are installed must be single or in matched pairs back-to-back and face-to-face so the loads applied can be distributed quickly and effectively without leading to any misalignment issues.
Considering these parameters, the intended application would help select the optimal bearing configuration focusing on longevity and performance.
Proceed to put your cursor here. You can now write your instructions or guidelines on what needs to be done from this point on.
Key Benefits of Using Angular Contact Ball Bearings
They cost-angular contact ball bearings have two significant advantages: they can cope with high operating speeds and high rates of combined loads. The bearings are specifically optimized for the simultaneous action of axial and radial loads. Therefore, they are critical in cases where accuracy and toughness are interdependent.
The parameters in these bearings can vary depending on the specific angle of the axial load. For example, a larger contact angle is more capable of supporting higher axial loads, whereas lower angles are better suited for high-speed operations. Furthermore, the single or matched pair installation configuration needs adjustment to ensure no performance and durability misalignment.
Angular contact ball bearings in any sophisticated application should improve the machine’s operational efficiency, service life, and trustworthiness.
How to Select the Right Size for Your Application
Assessing Load Requirements: Radial and Axial Loads
When assessing load particulars, radial and axial loads are crucial as they affect bearing selection and performance. Radial loads are distributed perpendicular to the shaft, making bearings with higher radial capacity capable of handling higher loads. These bearings have optimized groove dimensions accompanied by enlarged contact surfaces. Axial loads are forces acting along the shaft’s axis. These loads require thrust-facing bearings, such as angular contact ball bearings with proper contact angles.
Parameters for my application that are subject to load requirements consist of:
Dynamic Load Rating (C): The load the bearing can take while in motion. This parameter is essential to assure reliable function under high-stress conditions for the system’s longevity.
Static Load Rating (C₀): This rating determines the serving force, which is deemed stationary without deformation. It assumes the bearing remains in an aligned position.
Contact Angle (α): Defines the level the bearing can perform under axial load force. With larger contact angles, higher axial load capacity will be increased.
Material and Design: The four parameters above ensure reliability in severe loads with high-strength materials and improved design features.
Setting the type and the magnitude of these loads enables me to avoid overloading. Hence, I make comprehensive decisions to preserve the durability of my bearing system.
Considering Speed and Performance Needs
Considering my system’s needed speed and performance, I analyze its operational speed requirements relevant to the bearing’s design. In high-speed scenarios, I pay particular attention to bearings with optimized geometries made of low-friction materials to reduce heat and energy loss. Some of the fundamental technical parameters that affect this are:
Limiting Speed: This defines the maximum speed of operation at which a bearing can function with some heat and wear but without negative performance consequences. Attention to detail in lubrication systems and precision engineering allows manufacturing bearings that boast high limiting speeds.
Dynamic Load Rating (C): This parameter ensures that the bearing will withstand dynamic forces at elevated speeds without failing.
This way, by taking these particular values, I preset the system bearing with my operational performance targets, which ensures that the specific operational objectives are sufficiently met with reliability at high speed.
Matching Size with Application Specifications
When considering bearing size and application requirements, the primary parameters I analyze are the expected load and the space for installation. A too small bearing might not adequately support the operational loads, which could cause failures. On the other hand, increasing the bearing size above the optimal volume can make the system heavier and less efficient.
As far as the loads are concerned, I evaluate the Static Load Rating (C₀) and make sure that it is aligned with the stationary loads and that the Dynamic Load Rating (C) is appropriate for the operational forces. Concerning speed, the bearing size influences its Limiting Speed, with larger bearings usually having lower speed abilities due to higher friction. I also consider the outer dimensions of the shaft and the housing so that no misalignment will cause premature wear. A balance between these factors enables an optimal design for application-specific parameters while delivering the desired performance within the defined operational range.
Exploring Single Row vs. Double Row Angular Contact Ball Bearings
When to Use Single-Row Bearings
The single-row angular contact ball bearings suit operations with speeds higher than 1800 RPM and moderate radial and axial load accompanying the application. These bearings can support one direction of axial load, resulting in precise axial control that is important in spindle operations in machine tools. Other typical applications include pumps, gearboxes, and electric motors manufactured with space restrictions.
Contact Angle (15°, 25°, or 40°): Capable of bearing axial loads where the higher values are better suited for accommodating greater axial load values.
Outer Diameter: Generally from 10 to 150 mm, depending on the application.
Load Rating (Dynamic and Static): This should be appropriate depending on the bearing load conditions; check manufacturer details for precision.
Speed Rating: High value because of the low friction accompanying the movement, allowing higher efficiency under dynamic conditions.
Single row designs are the best choice if minimum size and high speed performance is necessary, however, they must be combined with suitable arrangements for the mounting that will be able to balance the axial forces effectively. As always, a perfect fitting is vital to the longevity and dependability of the bearing.
Advantages of Double Row Angular Contact Bearings
The utilization of double-row angular contact bearings in high-performance and high-reliability applications presents several clear benefits:
Better Load Handling: These bearings support radial and axial forces in both directions, making them ideal for applications experiencing combined loads. Their ability to carry higher axial forces than single-row designs ensures versatility.
Efficiency of Space: Using paired single-row bearings is unnecessary due to a double-row design conserves space in compact assemblies while sustaining high load-bearing capacity.
Rigidity and Strength: Double-row bearings provide higher rigidity than single-row bearings, which is helpful for systems that require precision alignment with shaft deflection.
Reduction in Installation Difficulty: Compared to paired single-row bearings, the mounting complexity is reduced, making the task less time-consuming while ensuring consistent alignment.
For demanding applications, double-row bearings provide adequate performance, which, if considering the right selection, enables a long life span and accuracy of the bearings throughout the use and maintenance.
Comparing Capacity and Performance
In numerous fundamental criteria, double-row angular contact bearings surpass single-row configurations in capacity and performance.
Load Capacity: Double-row bearings can regularly bear dynamic load ratings that exceed those of their single-row angular contact counterparts by 1.3 to 1.5, primarily owing to their higher radial and axial loads in both directions due to their dual-row configuration. This set them up for success in more demanding applications.
Axial Stiffness: This set of bearings also provides dual-row construction, which enhances axial stiffness, ensuring accuracy and dependability in sophisticated applications such as machine tools and automotive gearboxes, which require high precision movement or alignment under varying forces.
Speed Limitations: However, it is essential to consider the application’s operational speed features. Double-row bearings have a slightly lower speed rating than single-row bearings due to increased friction and heat generated from extra contact points.
Space Efficiency: Double-row bearings are ideal in space-limited scenarios because they eliminate the need for two single-row bearings without sacrificing performance.
When selecting the appropriate bearings, features such as dynamic load rating (C), static load rating (C0), and operating temperatures can be used to determine the suitability for the precise application.

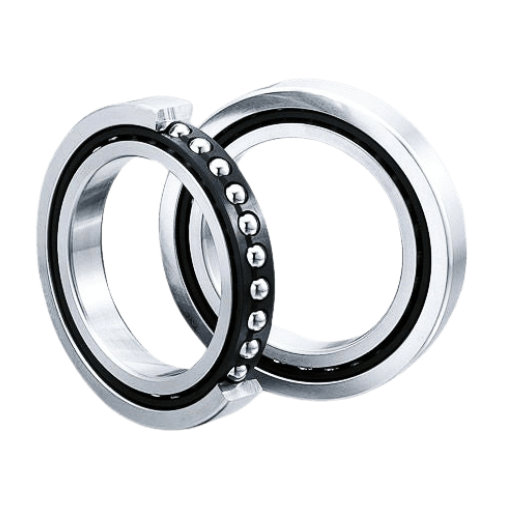

Understanding Super-Precision Angular Contact Ball Bearings
Applications in Machine Tools and Gearboxes
The efficiency and dependability of machine tools and gearboxes are improved through super-precision angular contact ball bearings. Their use in high-speed operations like CNC, milling, and lathe machines is remarkable because these super-precision bearings achieve super accuracy in operations involving rotation at very high speeds. These bearings permit rotation with minimum vibration, resulting in the maximum surface quality of the machined components, thus achieving perfect finishes.
Dynamic load rating (C) refers to the bearing’s operation; speed is essential for super-precision bearings.
Static Load Rating (C0) is important for super-precision applications where the bearing sits idle with a heavy load applied and durability is essential.
Preload Settings: Higher preload increases rigidity and decreases deflection, which is critical for precise motion control during high-torque work in gearboxes.
Permissible Operating Temperatures: The material and lubricant must be able to withstand the high temperatures generated when working at high speeds for a sustained period.
Speed Capability (n_grease, n_oil): Refers to the operating speed of the bearing. It is necessary to define super precision bearings so no problems match the application.
By combining all these parameters with the application requirements, super-precision bearings are perfect for achieving super-high efficiency, life, and performance in machine tools and gearboxes.
The Role of Cage Materials: Brass and Steel
Cage materials are paramount for the functionality and effectiveness of super-precision bearings. The two primary materials used are brass and steel because each offers unique advantages that fulfill particular application needs:
Brass Cages: Brass cages exhibit excellent machinability and corrosion resistance at elevated temperatures. They are also lightweight and reduce friction during operation. Thus, they are highly suitable for use in high-speed environments and oxidative conditions. Brass’s good thermal conductivity aids in heat dissipation during prolonged usage.
Steel Cages: Steel cages are best known for their strength and durability, making them suitable for heavy loads and extreme operations. They also have excellent dimensional stability, ensuring reliable performance over time and even sustained high stress.
Choosing between brass and steel cages requires careful consideration of their properties and technical parameters. This guarantees optimal performance, increased bearing life, and reduced maintenance needs.
Key Features and Standards in Angular Contact Ball Bearings
Importance of Outer Ring and Contact Angle
In angular contact ball bearings, the outer ring is one of the integral components subjected to structural support radially and axially. Its design should allow adequate contact with the rolling elements to reduce friction and wear. The degree of damage and the rate at which the outer ring wears out depend on its geometrical precision and size.
The contact angle is equally an important parameter because it defines the bearing’s capability to resist applied axial and radial forces. At smaller contact angles (example 15°) where speeds are high and axial loads are low, the bearings performance is much better. On the other hand, larger contact angles (example 25° and above) is better suited for the bearings that need to endure significant axial loads. The contact angle that will be chosen directly influences the efficiency with which operational demands will be met.
Outer Ring Dimensions – They are exceptional for accurate fitting and correct alignment of the housing designs.
Contact angle (degrees) – Defines the convergence of axial and radial forces that can be applied.
Material Properties – Defines ability to withstand wear or deformation at extreme temperatures, providing thermal stability.
Surface Finish – Defines the degree of friction and heat loss regretfully produced while working.
By modifying radial dimensions and adjusting other parameters, engineers can guarantee optimal performance, reliability, and efficiency in the application.
Standard vs. Ultra-High Speed Bearings
Between standard and ultra-high-speed bearings, their selection is primarily dictated by the requirements of the intended application. A brief overview of their principal features and their related and relevant operational parameters is summarized below:
Physical Characteristics
Standard Bearings: Most mechanical and industrial systems accept moderate performance characteristics with reasonable functioning speed.
Ultra-High Speed Bearings: These have specialized features that allow for high rotational speed applications, like turbines or spindles.
Justification for Parameters: Ultra-high-speed bearings have been designed with smaller contact angles, such as 15°, and better surface finishes, which help minimize heat and friction generated while in motion.
Load Capacity
Standard Bearings: They can adequately take radial and moderate axial loads in a balanced manner.
Ultra-High Speed Bearings: Known for speed, these bearings can incur smaller axial load capacity due to increased contact angle fatigue.
Justification for Parameters: Standard bearings with higher control over rotation speed (25° or more) have large contact angles, which leads to efficient axial load handling, but they have a slow rotational speed.
Material Composition
Standard Bearings: These are mostly made from steel alloys and are distinguished by moderate durability and erosion resistance.
Ultra-High Speed Bearings: Advanced materials, which include ceramic hybrids for decreased mass and enhanced stiffness, are placed for these bearings for greater efficiency in thermal stability.
Justification for Parameters: Ceramic materials can enhance performance by keeping the operating temperature low while critically increasing speed.
Lubrication Specifications
Standard Bearings: Using grease or oil to lubricate them is recommended.
Ultra-High Speed Bearings: Specialized ultra-low viscosity lubricants are paramount to drag reduction and cooling at extreme ultra-high speeds.
Parameter Justification: The lubrication system must continuously deal with friction and thermal issues in a high-speed setting and constantly adjust.
Understanding these gaps and the associated underlying technology enables engineers to design solutions that effectively address the application’s operational requirements.
How to Improve Bearing Life and Reduce Heat
Optimize Lubrication Systems
Technical Parameters: Apply specialized low-viscosity lubricants in high-speed applications to reduce friction and improve heat dissipation.
Justification: Adequate lubrication helps to manage wear and overheating problems, promoting smoother operation and an extended bearing life.
Accurate Bearing Selection
Technical Parameters: Specify bearing type (i.e., standard or ceramic hybrid) with speed, load, and environment of the application.
Justification: Bearings made of appropriate material and designed to withstand operational stresses guarantee insufficient heat generation and avoid failure for prolonged periods.
Monitor and Control Operating Temperatures
Technical Parameters: Depending on the application, the control temperature of the lubricant and bearing type is maintained between 85F and 160F (29C to 71C).
Justification: Increased temperature eliminates lubricant too quickly, increasing its damaging potential, wear, and lowered viscosity.
Implement Proper Maintenance Practices
Technical Parameters: Periodically clean and inspect bearings to find contamination or misalignment. Check for proper installation and balance.
Justification: Preventive maintenance ensures operational failure due to debris, misalignment, or lubrication deficiency does not occur.
Engineers can maintain optimal bearing performance, service life, and heat issues in demanding applications by considering these solutions with the correct technical details.
Frequently Asked Questions (FAQs)
Q: What are precision angular contact ball bearings, and how do they differ from regular ball bearings?
A: Regular ball bearings support radial loads, while precision angular contact ball bearings can support axial and radial loads in one direction. They have higher accuracy, excellent speed capabilities, and enhanced load-carrying capacity than ordinary ball bearings. These precision bearings are commonly found in industries with high performance and precision engineering requirements, such as industrial machinery, automotive parts, and high-speed compressors.
Q: How do I determine the correct angular contact ball bearing size for my application?
A: Determine the correct size based on the combination of radial and axial loads, the operating speed, the desired degree of accuracy, and free dimensions. Seek the assistance of an engineer or contact the manufacturer directly. Take, for example, SKF. The diameter and width dimensions of the bearing’s inner and outer rings must also be adequate and serve the proper purpose with service life and load capacity.
Q: What are the benefits of using super-precision angular contact ball bearings?
A: Super-precision angular contact ball bearings have outstanding accuracy, performance, and high-speed capabilities. They are well suited for tasks that require extreme precision, such as machine tools, spindles, and aerospace equipment. Using these bearings results in reduced friction, lower heat generation, greater stiffness, and improved overall system performance and a longer service life.
Q: What are the merits of using angular contact ball bearings with larger balls?
A: With the increased number of balls, the angular contact ball bearings have certain benefits such as: 1. Better load bearing capability 2. Improved load-bearing capacity 3. Lower load stress on separate balls 4. Better stiffness and rigidity 5. Better speed 6. Longer working lifespan: Their high precision and higher load-bearing applications, such as in industrial machines and high-speed compressors, make them suitable.
Q: What is the relationship between clearance and performance in angular contact bearings?
A: Angular contact ball bearings require some clearance for functionality. It determines how well the bearing works: load balance, heat produced, etc. The desired amount of clearance permits proper contact between balls and raceways and thus enables rotation and load transfer. Precise Motion angular contact bearings tend to have close clearances for better accuracy and stiffness because high precision is needed.
Q: Are there any unique options available for angular contact ball bearings?
A: There are some unique options in angular contact ball bearings, such as 1. Ceramic ball hybrid bearings 2. High-speed phenomenal cage bearings 3. Phenolic thin bearings 4. Greased sealed bearings 5. Coated bearings for high wear resistance customization in angular contact ball bearings are industrial grade.
Q: How do I ensure proper assembly and maintenance of angular contact ball bearings?
A: To put the maintenance and assembly step into place: 1. Create installation guides for listed procedures 2. Provide tools and other techniques advanced enough not to inflict damage 3. Maintain order during assembly to avoid contamination 4. Incorporate a specified amount of lubricant or grease 5. Check bearings for wear and tear routinely. 6. check operating conditions and ensure they do not exceed limits 7. Preventive maintenance to prolong service life and maximize bearing care, especially during assembly and operation in great detail, is essential in the industrial grade.
