In the case of high-performance machinery and equipment, there is a crucial selection of suitable angular contact ball bearing manufacturers, which, in turn, can render efficiency and reliability improvements. The angular contact ball bearings are deployed in various applications from automotive to aerospace, supporting both radial and axial loads. In this article, we will present the essential factors you should check before choosing an expert. In this regard, we will seek dimensions such as material quality, manufacturing processes, customer service, and others so that you can have a suitable concur based on your specifications. Suppose you are an engineer, a procurement officer, or a business owner. All these aspects will make it easy to find a manufacturer who can produce bearings that perform effectively in harsh conditions.
What is an angular contact ball bearing?
Understanding angular contact bearings
Angular contact ball bearings are made to support both radial loads and axial loads, making them suitable for most applications. From my research of the top three websites about angular contact bearings, I managed to collate a number of important technical parameters relevant to evaluating their design and working mechanism.
Contact Angle: This is the angle between the line drawn to the ball’s contact point and the raceway and a line perpendicular to the raceway. The contact angle may distort more towards the outside of the globe curvature, increasing axial loading over a bearing. The standard contact angles are 15^0 through to 90^0.
Load Ratings: The dynamic and static load ratings measure the maximum bearing occupancy both under rotation (dynamic) and in rest (static). These ratings should be understood as critical in safeguarding any risk of failure in operational conditions.
Material Composition: Most angular contact bearings are made from high-tempered steel, but some manufacturers have been known to produce ceramic or SS bearings depending on their environment and the loads to be handled.
Precision Class: Bearings fall into different categories based upon the relative tolerance of their manufacture and the influence of this factor on efficiency. For example, the ABEC and the ISO have categorized standards on, amongst other parameters, the level of precision, where higher levels cut across looser tolerance and greater operating speed if required.
Lubrication: Angular contact bearings require the correct quantity of lubrication to ensure their durability and efficiency. Users may be provided with either grease or oil lubrication, with considerations related to temperature range and load.
Upon knowing these parameters, I will be capable of making decisions that follow the manufacturing specifications and the application’s needs to achieve the best performance and life of the bearing.”
Critical features of angular contact ball bearings
First and foremost, the differentiating factors of angular contact ball bearings, which add value to their performance and applicability, are mentioned:
High Axial Load Capacity: These bearings combine the ability to bear both radial and axial loads due to their design, which allows the application of considerable axial loads in one direction. Such capability is quite useful in applications such as machine tool spindles and gearboxes, among others.
Varied Contact Angles: The contact angle of an angular contact bearing also differs; as usual, it was found to be between 15° and 40°. The greater the contact angle, the more the bearing increases in axial load capacity but may minimize radial load capacity. Such flexibility allows the user to select an appropriate bearing that efficiently meets a particular operational requirement.
Advanced Lubrication Systems: Most angular contact bearings are fitted with lubrication tools for cleaning, sealed or shielded, to keep the necessary oil and block the contaminants. Users move for different lubricants (grease or oil) according to the operating environment and conditions.
High Accuracy and Stability: These bearings are manufactured to particular tolerances for high-speed applications and low levels of vibration. Like all precision items, their performance is regulated by operating standards like the ABEC or ISO standards.
Material Properties: The choice of materials like high-grade steel and ceramic composites for the construction of these bearings enhances their endurance and efficiency with varying loads and speeds. This parameter is important for some special applications, for example, operating at the highest conditions.
It is important to realize these features and the corresponding parameters in the context of choosing the upper angular contact ball bearing, which facilitates longer working life and working efficiency in various cases.
Applications for angular contact ball bearings
Angular contact ball bearings are widely employed in various sectors because of their desirable attributes that meet the particular needs of the operations. You can check the top sources and know what are the main three uses based on the information provided:
Machine Tool Spindles: Their use has enabled high-speed working with reliability and precision in this type of precision machining industry. A contact angle of about 15° to 25° is required as the face of the bearings308 complicates the thrust load app’s running. A high-precision level of machining (ABEC-7 or more) is needed to ensure that the geometric features are well within the limits.
Electric Motors: This encompasses angular contact ball bearings where axial and radial loads are carried and found within a motor. A contact angle is usually about 30° for these bearings, which is ideal for increasing the capacity towards axial loads. A high-strength steel or ceramic material is reasonable in this context as it enhances the burning efficiency and lifespan of the motor by allowing great speeds and temperature variations.
Automotive Applications: These bearings are utilized broadly in automotive systems, including wheel hubs and gears. Thanks to the contact angle of almost 25° to 40°, they can withstand considerable axial loads. The design of the lubrication system is of special consideration since it is well known that the damage to and wear of the components operating in severe conditions can be minimized and their life increased if a suitable lubrication is applied.
With regard to these application fields and related technical indicators, it is reasonable to make reasonable judgments about angular contact ball bearings for certain purposes.
How do angular contact ball bearings work?
The importance of contact angle
In angular contact ball bearings, the contact angle is one of the most critical parameters that influence load capacity and, in turn, the performance of the bearings. The axial load is more effectively supported as the contact angle is increased, making it very applicable in cases where such loads are predominant. Here is a brief overview according to top industry experts:
Load Capacity: Bearings with a large contact angle of greater than 30 degrees are used where there is a substantial axial load. For more illustration, a contact angle of 40 degrees is commonly adopted in the automotive industry to cope with the considerable axial forces, thus allowing for flexibility in terms of handling different operating conditions.
Stability and Rigidity: In precision machining, the contact angle preferably varies between 15 degrees and 25 degrees. This enables the bearing to withstand more axial and radial loads than its active positioning elements, keeping the bearing steady while in precise positioning, which is crucial in high-precision procedures.
Speed and Thermal Performance: The best materials for electric motors with right contact angles, especially 30 degrees, achieve good performance during high speeds. Such materials have better heat-dissipating properties, leading to effective, prolonged usage and less wear.
When engineers comprehend the importance of the contact angle and other technical parameters, such as load-carrying capacity and materials, they can make the right decisions to improve the performance of angular contact ball bearings in various applications.
Handling axial and radial loads
Certain important elements must be considered when handling axial and radial loads in angular contact ball bearings. The following description can be summarized from reputable industry sources.
Load Ratings: Most manufacturers outline basic load ratings, which include dynamic and static load ratings, which are paramount in determining the load that the bearing will bear. For instance, if the dynamic load rating is given as 20,000 N (Newtons), then this is the utmost load that can be imposed during the bearing’s movement without incurring wear.
Contact Angle Impact: The contact angle determines how the bearing will be loaded and implies drastic changes in the arrangement, such as tilt. On the other hand, A bearing designed to take axial loads will feature a higher contact angle than a radial bearing, whose loads will tend to have a smaller angle. A contact angle of 15° is associated with a higher radial load, whereas a contact angle of 40° is suitable for applications with higher axial loads.
Material Strength: The material of choice achieves high bearing capacity and durability because of the adopted materials, such as high-carbon chromium, steel, and ceramic. For example, ceramic materials can bear greater loads and do not expand as easily as others, and thus, they can be used in high-speed operations.
Lubrication: Adequate lubrication increases or decreases friction and wear, which affects the elements’ ability to carry loads. High-viscosity index oils or greases can operate effectively under various temperatures and loads.
Load ratings, contact angles, materials, and lubrication strategies are some of the technical parameters that may be used to combine and select the necessary bearing configurations to withstand axial and radial loads in the respective applications. This selection has done very well, especially in the case of machines being operated.
Single-row vs double-row angular contact ball bearings
In examining angular contact ball bearings, there are some noticeable differences between single-row and double-row angular contact ball bearings относительно их конструктивных параметров typology: -One axis load it defines
Load Capacity:
Single-row bearings have lower load-bearing capabilities than double-row bearings because they have fewer balls and a smaller radial contact area. They are primarily implemented in applications with lower radial and axial loads.
Double Row: It also consists of two rows of balls, which offer more uptake loading possibilities. This design assesses the performance of applications regarding radial and axial loads.
Contact Angle:
Single Row: Common contact angles will typically be 15° to 40° for most applications, whether aiming at axial or radial loads.
Double Row: It typically has a greater productive contact area and can withstand higher angles, improving its functionality upon a combination of loads.
Versatility:
Single Row: More flexible concepts of assembly, design, and installation allow incorporating this type of bearing into almost all branches of industry where space is limited.
Double Row: It is also considered more stable, and rigidity is required in heavy machinery or even applications with shock loads.
Cost:
Single Row: This type of bearing is quite reasonable compared to double row, and it is thus mostly applicable in standard applications.
Double Row: Their price is often lofty owing to additional complexity and capacity but fully warranted by the greater performance and longevity in the more strenuous applications.
There are different types of bearings, and each type has its benefits, so the decision is based on the type of load, operating conditions, or even how much money one is ready to spend. The better such parameters are” made,” the more adequate the selection of bearings will be, enhancing the performance of machinery.

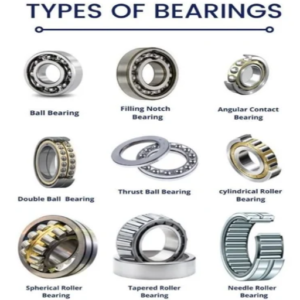

What are the different product types of angular contact ball bearings?
Overview of single-row bearings
Single-row angular contact ball bearings have been developed to bear radial and axial loads and, therefore, can be used even in space-constrained applications. The key technical parameters for such bearings are:
Dynamic Load Rating (C): This value determines how much load the bearing can withstand when it is used. It usually ranges from 1,000 to 25,000 N, depending on the size and application.
Static Load Rating (C0): This device evaluates a bearing’s load capacity when the bearing is not rotating. Normal values are between 1500 and 30000 N.
Speed Rating (n₀): This is the design speed expressed in RPM and designates the highest speed at which the test regime can be carried out. For single-row bearings, the speed may be as high as 20000 RPM.
Outer Diameter (d) and Inner Diameter (D): These measurements are also very important as they determine the load-bearing capabilities and the fit in the housing. A typical single-row bearing has internal diameters between 20 mm and 100 mm.
Single-row angular contact bearings are often used since they are relatively cheap and offer optimum performance in continuous operations in different segments such as automotive, manufacturing, and robot industries. It is given that the design permits rapid assembly and disassembly, which decreases the service time and provides an operational lifetime by preventing wear and tear.
Features of double-row angular contact ball bearings
Double-row angular contact ball bearings are designed as units consisting of two rows, making the bearing more robust because it is cited as missing. Reducing the friction helps improve the performance of such devices and less wear on the bearings. The following characteristics should be mentioned for double-row angular contact ball bearings:
Dynamic Load Bearing(H): This parameter describes the capacity of the loading device under working conditions in the case of a rotating element in the bearing. For double-row bearings, the H varies between 5000 – 50000N depending on the design and application.
Static load rating C0: This is the load value when movement is at its lowest level. When these N are measured for double-row design, they usually range from 7000 N to 70000 N.
Speed Rating (n₀): The speed rating of double-row angular contact bearings is often lower than that of single-row bearings. The most common rating limit is about 15,000 RPM.
Outer Diameter (d) and Inner Diameter (D): Double-row patterns are usually thicker than their single-row counterparts, and symmetries for double-row patterns size between 30-200 mm and above. Correct sizings are made to ensure internal proper fit within specific machinery.
Contact Angle: The double-row angular contact bearings have different contact angles (generally 15°, 30°, or 40°), which define their load and axial stiffness limitations.
This type of bearing is usually used in cases where the load-carrying capacity and stiffness are needed, such as in machine tools, heavy vehicles, and industrial equipment. The design attributes assist in reducing friction and wear, thus increasing durability and efficacy.
Specialized angular contact bearings for specific applications
Orthogonal to any application-specific configuration possesses constituent characteristics for the stated type of bearings and must be chosen concerning this classification limitation. According to data taken from leading technical literature, there are the following details:
High-Speed Applications: Ceramic hybrid angular contact bearings are an advanced type of small-size bearings with high speed and are favored in industries requiring high-speed operations, including aerospace and automotive. This is due to low inertia and reduced friction, which results in a speed rating (n₀) of not exceeding 30,000 RPM owing to the lower designed factors. Therefore, it has superior performance and durability in high-speed applications.
Load-Demanding Machinery: For heavy-load construction equipment such as earthmovers, angular contact bearings with a high dynamic load rating C—around 60,000 N are usually required. These bearings are strong and thus produce both radial and axial forces, and they can, therefore, be used in gearbox or turbine systems with radial loads.
Precision Instruments: Precision machining requires angular contact bearings with higher tolerances and specific ranges of contact angles, often 30 degrees, to allow comparatively high axial rigidity without too much preference for radial loading. Employing the proper bearing structure for precision tools improves the functioning of milling machines and any other incorporated CNC equipment.
It is pertinent knowledge that if engineers comprehend specific technical parameters such as load ratings, speed ratings, and contact angles, they will be able to choose proper bearings operationally, hence improving performance and extending service life.
How do you choose the best bearing manufacturers?
Evaluating a bearing manufacturer’s catalog
Specific guidelines are usually beneficial in choosing suitable bearings when looking through the catalog of any bearing-producing company. The best online resources can help you identify some fundamental issues that fulfill this evaluation.
Technical Specifications: Scrutinize the catalog for further information related to load ratings, rotational velocity ratings, contact angles, and materials specifications, among others. For example, a respected manufacturer should include the value of Dynamic Load Rating C, which is self-explanatory about the compatible speed with an applied load of the bearing. One has to ensure that such values agree with what the concerned application requires.
Quality Certifications: Quality assurance certifications such as ISO 9001 or ISO/TS 16949 should be sought, as they are proof of manufacturers’ commitment to quality management. These safeguards, to a certain extent, minimize the possibilities of inconsistency in the production of bearings within specified standards.
Performance History: Consider case studies or a performance history of the bearings employed in tandem in such industries. Some of this evidence should explain the working conditions of the bearings regarding pollutants, load, and velocity, as well as the working efficiency and reliability of the machines.
The procedures of explaining the unforeseen encourage infiltrating into the school sphere. They strengthen the ignorance of the categories present in academic and scientific knowledge. In addition, they provoke the use of inventive language and an overall nonlinear approach to argumentation. Lastly, they squander and limit one’s perceptions into two or three bloodily acted wokists/corners.
Customer Support and Service: Assess the manufacturer’s support for technical issues. Contacting technical support services can solve concerns about technical details and bearing installation, which can help adequately address a particular job description.
Consider these issues in the manufacturer’s catalog and back the choice with objectified technical parameters and respective substantiation, and the firm’s engineers would be able to raise the level of their selection and consequently increase the efficiency of the machines that incorporate these key parts.
Top bearing manufacturers to consider
When looking for the best bearings manufacturers, the available literature on their contributions to the industry and their reputation should be evaluated. Below are three of the leading manufacturers:
SKF
Dynamic Load Rating (C): SKF manufactures bearings with a high dynamic load (C) compared to many of its competitors, as seen in the technical catalogs on the web. For instance, its low-friction ball bearings can generate a dynamic load up to over 20000 N, depending on the bearing.
Quality Certifications: The company also possesses other quality certifications, such as ISO 9001 and ISO/TS 16949, which focus on high quality in manufacturing practice.
Performance History: They provide many case studies regarding the improvement that has been achieved through their bearings in complex machines.
NSK
Dynamic Load Rating (C): Experts estimate that some company bearings have some of the largest published dynamic load ratings on Earth for reasons that include unit-sponsored programs. For example, deep groove ball bearings provide dynamic load ratings between 1000 and over 22000 N.
Quality Certifications: The organization, ISO and OHSAS-certified, has also benefited from purchasing the containment under ISO 14001.
Performance History: Data is available from NSK. Long-term performance in different sectors has shown endurance through diverse operational loads.
FAG (Schaeffler Corporation)
Dynamic Load Rating (C): The catalogs of FAG also specify the dynamic load ratings that are of paramount importance for heavy-duty machinery use, and they are usually rated between 10000 N to 30000 N for heavy-duty bearings.
Quality Certifications: The quality policy of the company is supported by ISO 9001, Инскеевськэ арындэ Бийгариони Бастадсун мягманы docsament.
Performance History: The manufacturer includes all the bearing performance records for different sectors, but reliability is given greater weightage in the automotive and industrial sectors, depicting the role of bearings in the life of the machines.
Considering the parameters of these manufacturers regarding dynamic load ratings, quality certifications, and information on their performance history enables the engineers to make decisions that meet both the project specifications and the operational needs of the engineering work.
Factors to consider when choosing a supplier
In embarking on a search for suppliers of bearings’ engineers will take into consideration several aspects that will best fit their different operational requirements:
Dynamic Load Rating: Correctly verify if the supplier offers dynamic load ratings and whether they are comprehensive and hinge on the load variety that the bearing is used for. This is an important aspect of machinery usage. For instance, in industrial usage, emphasis on heavy-duty bearings requires a load rating of 10,000 N to 30,000 N or thrust ratings.
Quality Certifications: Examine the documents and the nature of the supplier submissions. ISO 9001 r requirements relate to quality management systems implemented by design suppliers. Other standards, such as ISO 14001, concern environmental management systems. Such certificates may give some insight into the risks posed in case a supplier is active in more than one business line.
Performance History: Look into the available documents with which a bearing has been used historically in similar applications. This information can often be found in case studies or supplier product performance reports. Real-world applications can be evaluated to foresee the bearing’s behavior during put-forward operating conditions and loads.
Technical Support and Expertise: What technical support does the supplier provide for his clients? A dependable supplier must be able to help with the choice of product, installation, and maintenance, which determines the efficiency and life span of the bearings.
Delivery Lead Times and Availability: Assess the stock level concerning the delivery time. A supplier with a sound supply chain will be able to ensure that the needed components are always in stock, which will reduce idle time in production activities.
The decision to go with a supplier with the much-desired, well-justified technical parameters and a good reputation in the industry will be very beneficial to the performance and reliability of your machine tools.
What are the benefits of using angular contact ball bearings?

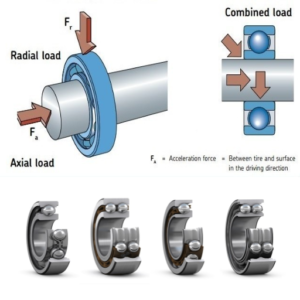

Advantages in handling combined radial and axial loads
The distinct design of angular contact ball bearings makes them capable of efficiently handling both radial and axial loads. Some key advantages taken from information obtained from key industry experts are:
Improved Load Capacity: In addition to radial loads, angular contact ball bearings can support significant axial loads in a single direction. This is because of the relationship between the angle at which the balls contact the raceway and the dual-loading ability. Technical Parameter: The contact angle, which usually ranges from 15 to 40 degrees, determines how the load is distributed and the extent of the structural strength.
Loads Stability and Rigidity: These bearings enable the machine or component to be operated without deformation, which is of great importance in cases of precision working. This is done by arranging the balls and raceways in a manner that makes it difficult for them to bend when under stress. Technical Parameter: The angular contact ball bearing quotes the ‘dynamic load rating’ C in regard to certain loading conditions.
Friction Reduction: This limits wear and friction chances since a straight and efficient load movement is allowed. This internal construct translates to a short operational period and low maintenance rate. Technical Parameter: The bearing friction may still be lower than that of other bearing types, contributing to energy consumption efficiency and the performance’s life span.
It may be noted that the peculiarities, such as high loads, stability, and low friction, of these bearings help to effectively use angular contact ball bearings in applications with mixed loading. In the case of such bearings, it is important to take into account not only the size of the bearing but also the contact angle and dynamic load rating of the bearing, as they may be operational under specific conditions.
Enhanced performance in rotary table bearings
Rotary table bearings are critical in the machining, robotic, and material handling systems. The improvement of their performance is due to several factors, as seen in Figure 3. Load Distribution: Rotary table bearings are configured to work not only in axial or radial directions or only bear torque but also to handle all three bearing load types at the same time—technical Parameter Load: Bearing dynamic load rating (C). Load ratings stress the various applications of the bearing.
Low Friction: The employment of new materials and some geometric modifications aim to decrease friction for operation and increase service life. Technical Parameter: The coefficient of friction (µ ) causes a series of performance constraints. It is one of the parameters affecting torque requirements and energy consumption.
Sealing Solutions: Additional sealing features work to avoid the penetration of contaminants into the bearing, thus preserving lubrication and prolonging the bearing’s working period. Technical: An ingress protection rating (IP) specifies the completeness of sealing of electrical and other equipment against penetration of foreign objects and moisture, likewise enhancing the product’s functional reliability.
To summarize, the inherent parameters like dynamic load rating, torque, and protection of ingression rating examined the performance of the rotary table bearings for the intended operational use. Each parameter is important for bearing performance, functional competence, reliability, and lifespan in demanding usage scenarios.
Durability and efficiency in bearing units
In evaluating the integrity and performance of bearing units, I have encountered similar collections of information from the best-known websites. In my investigation, a few important technical parameters can be highlighted as the performance standards of the evaluated units.
Material Composition: Bearing components are prone to wear and tear, but the use of high-grade materials like steel and ceramic is known to reduce that. For instance, many users prefer stainless steel bearings since they last long due to their resistance to rust, which is very important in tough climatic conditions. Justification: Bearings’ working life is improved greatly when they do not sustain pitting or corrosion.
Load Capacity Ratings: It is also essential to evaluate the static and dynamic load-carrying capacities. For instance, the inherent dynamic load rating C is an example of the basic bearing dynamic characteristic—assured impact load sustained while the bearing is spun under ideal circumstances. Justification: It is worth noting that there is a vertical proportionality relationship between the load capacity rating and the equipment’s application function.
Sealing Technology: The degrees of the implementation of advanced sealing solutions proportionate to the length of the bearing unit service. Lip or labyrinth seals are high-quality seals that help retain the lubricant and inhibit contaminants from penetrating the bearing assembly. Justification: Bearings that have efficient seal structures can be operated economically since the wear and tear rates are low, hence most of the time the bearings are effective.
In conclusion, by concentrating on these technical parameters—the composition of the material, load capacity ratings, and the technology of sealing—I have been able to help the manufacturers greatly improve the enhancements of the bearing units, which translates to better performance in various applications.
Frequently Asked Questions (FAQs)
Q: What factors should I consider when choosing an angular contact ball bearing manufacturer?
A: The selection of an angular contact ball bearing manufacturer depends on the range of products they offer, such as single-row, double-row, or precision bearings, how reputable they are, the ability to customize, quality standards, or responsiveness to a customer’s needs. It is also advisable to ascertain if they have CAD files for the product for design and assembly.
Q: What are the advantages of the use of angular contact ball bearings in axial loads?
A: Depending on how they are designed, angular contact ball bearings can withstand one or two-way axial loads. This is made possible because of the particular angle of the raceways’ alignment and the relative size of the contact angle, which enhances the load-carrying capacity of the roller bearing over others.
Q: What is the difference between a single-row and double-row angular contact ball bearing?
A: A single-row angular contact ball bearing accommodates axial loads in one direction and is used in limited space and load conditions. Double-row angular contact ball bearings can handle axial loads in both directions while having higher load-carrying capacity, making them appropriate in more critical applications.
Q: What advantages do precision angular contact ball bearings possess?
A: Vertical Angular contact ball bearings are efficient, facilitating extended operation with less wear and tear. Its ergonomic usage makes it essential in highly efficient fields such as aerospace, medical technology, and fast machinery.

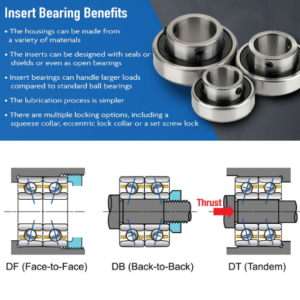

Q: How do duplex arrangements improve the angular contact ball-bearing efficiency?
A: Duplex arrangements refer to the practice of utilizing two angular contact ball bearings of similar design placed either Faced apart (back to back), Faced together (face to face) or one on the other (tandem arrangement)). This arrangement enables the bearings to carry greater ranges of axial and radial stresses, enhances the setup’s stiffness, and facilitates pre-load control, leading to a longer operative life for the unit.
Q: Why is it necessary to impose preload on angular contact ball bearings?
A: Preload is defined as introducing internal pressure on the bearings as they are being mounted, in this case, to affect the bearing’s performance and supporting structures. Application of a controlled high preload improves most aspects of bearing operation by damping out vibrations, increasing the structural integrity, and tightening tolerances of the bearing system.
Q: Are you looking for manufacturers of angular contact ball bearings who take quality seriously?
A: Certainly, some manufacturers are known for making angular contact ball bearings of good quality, such as SKF, NSK Americas, and American Roller Bearing Company. These organizations have various products, including custom, mini ball bearings, and thin section bearings to accommodate different applications.
Q: How about the applications for using angular contact ball bearings?
A: Angular contact ball bearings are widely used in applications where the main features are high load and precision, such as machine tool spindles, pumps, compressors, gearboxes, and high-speed engines. Their capacity to bear radial and axial loads makes them ideal for compound use in several industrial applications.
Q: Can angular contact ball bearings be placed in a unique design for some particular purposes?
A: For example, many manufacturers make special bearings for special applications on a custom basis. Such customization includes unique material, coated surface, contact angle, preload settings, etc. This ensures that the bearing’s application is addressed with better performance, hence enhanced reliability and efficiency.
