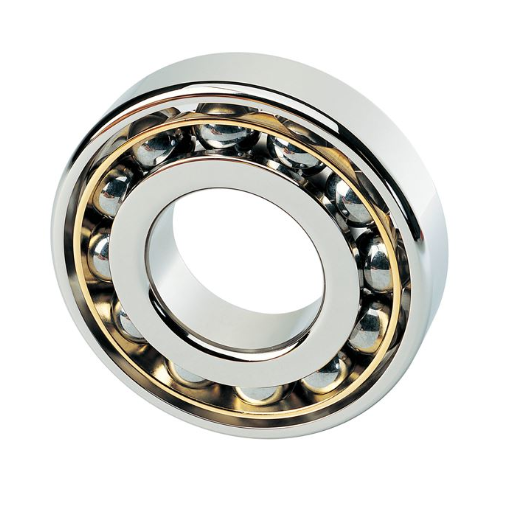

China has emerged as a major global hub for the production of single-row angular contact ball bearings, which are essential components in various industrial applications. These bearings are widely used in machinery, automotive systems, and precision engineering, making their quality and performance vital for operational efficiency. This guide aims to provide a comprehensive overview of China’s single-row angular contact ball-bearing manufacturing industry, including insights into production processes, quality control measures, technological advancements, and key market trends. Additionally, it will highlight the role of leading manufacturers, the benefits of sourcing from China, and the criteria for selecting a reliable supplier.
How to choose the right China factory for angular contact ball bearings?
Evaluating manufacturer quality management systems
When evaluating a manufacturer’s quality management system, it is crucial to assess their adherence to international standards and their commitment to maintaining consistent product quality. Begin by confirming that the manufacturer is certified under ISO 9001, a globally recognized standard for quality management systems. This certification ensures a structured approach to quality control and continuous improvement.
After that, confirm the management of processes of their production. These include the control over the sources of raw materials, the processes of manufacturing, and the final inspection data. Having a system with written documents improves the integrity of the system and the prevention of faults.
- Dimensional Tolerances: Check if the manufacturer complies with tight tolerances e.g. ±0.001 mm, for bearing components to ensure smooth functionality.
- Material Standards: Confirm the presence of high-quality materials such as chrome steel e.g. GCr15 which is equivalent to AISI 52100 to ensure durability and abrasion.
- Rotational Accuracy: Check the compliance to ISO 492 or other similar international standards that fall within precision classes P5 or P4 requirements for high-performance applications.
- Load Ratings: Inquire about the ratings i.e. the dynamic and static of load with regards to what has been estimated when the customer’s application is needed and the universal standards e.g. ISO 281.
- Surface Finish: Assess the surface finishes as smooth, where friction is reduced and operational efficiency is improved due to the Ra < 0.2 µm.
Finally, make sure to check that the company is using CMM, vibration analysis, metallurgical testing, and other modern inspection tools. These tools help check the bearing quality during the different steps of manufacturing and final testing.
Importance of factory certifications and standards
Factory certifications, as well as other international standards, ensure that the processes of manufacture are always compliant with required quality, safety, and performance criteria. Such Certification as ISO 9001 Quality Management System is proof of effective process controls for the reliability of products. ISO standards such as 281 give the dynamic load ratings of bearings and life ratings to enable performance benchmarking and optimization for different applications. Again, the factory has environmental certifications such as ISO 14001 which shows the environmental commitment of the factory.
- Dimensional Accuracy: ISO 286 tolerances must be maintained to achieve the required level of fit.
- Material Quality: The factory complies with ISO 683 standards on slurries for heat-treating steels and metallurgical consistency for strength and composites.
- Surface Finish: Smoother finishes decrease wear and enhance the efficiency of operations hence the maximum allowable Ra values should be less than 0.2 µm.
- Testing Protocols: Use of modern equipment like Coordinate Measuring Machines (CMM), vibration analysis, and metallurgical tests must be carried out to ascertain the integrity of products.
Compliance to the requirements of these certifications and standards enables consistency in the production process to achieve high quality, fewer failures, and within industry standards. They serve a much deeper purpose other than endorsement of quality – they help build trust and stability in the international markets.
What are the advantages of Chinese-made single-row angular contact ball bearings?
Cost-effectiveness and competitive pricing

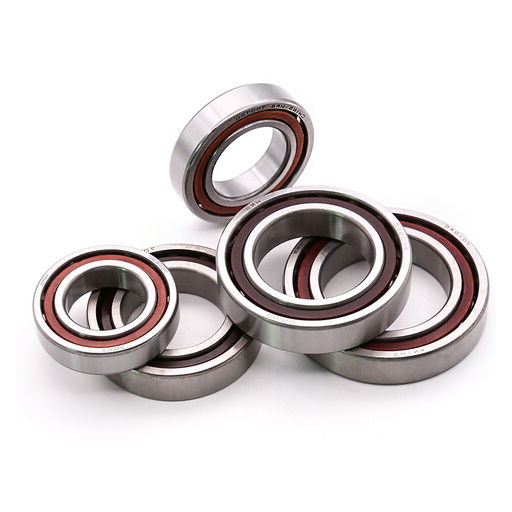

Chinese single-row angular contact ball bearings are celebrated for their performance and price point. Their low production costs driven by mass production techniques allow for their functionality to be met while still selling for competitive rates. Most importantly, these bearings assist in industries where high demand is present while cutting costs for larger scales. In the end, these are cost-effective options due to high production.
- Range: Standard diameters ranging from 10 mm to 150 mm to account for all sorts of machinery-type applications.
- Capacity: Suitable for applications that are medium to heavy-duty, the design variations allow for supporting axial load reaching up to 5000 N while radial variations of up to 10000 N are also supported.
- Construction: Prolonged usage of chrome or stainless steel bearings will ensure your machinery remains durable due to their immense resistance to wear.
- Angles: 15 25 and 40 degrees are standard angles that allow for set load and speeds reaching certain expectations for efficiency.
- Quality Control: There is an international standard set to be followed which these bearings meet for optimal operation to be ensured, ABEC 3/5 or ISO P0/P6.
To conclude, all of these features ensure that these raw materials remain budget-friendly while still holding industrial relevance, making them practical.
High-quality production capabilities
The high-quality production capabilities are achieved through advanced manufacturing techniques and rigorous quality assurance processes. This includes precision machining to achieve exact tolerances for optimal performance. For instance:
- Tolerance Levels: The tolerances comply with ABEC 3/5 ratings or ISO P0/P6 ratings making them economical and suitably accurate.
- Load and Speed Ratings: Load and speed ratings are variable according to application and angle and are generally given as ranges or averages in product performance data sheets.
- Lubrication: Sealed bearings are filled with quality grease making them maintenance-free as they can reduce friction and increase lifespan while under rated conditions.
- Heat Treatment: The parts were previously heat treated to make them hard and resistant to distortion at high loads.
All these production standards and details justify the performance and deliberation cost of the final product that meets industrial-grade requirements.
Flexibility in design and specifications
We prioritize flexibility by offering customizable options tailored to specific operational requirements. Our designs can accommodate varying dimensions, load capacities, and material compositions to ensure compatibility with unique industrial applications. For example:
- Material Options: Depending on the exposure environment and the need for protection against corrosion, the parts can be made of alloy, stainless steel, or plain carbon steel.
- Load Capacity: Custom Load rating use allows the designs to range from 50 kN up to 500 kN and more depending on the use case.
- Dimensional Customizations: The dimensions of the components could be changed to be able to physically fit within some constraints or be able to interface with some existing components.
By implementing these customizable elements, we can optimize performance while meeting precise technical and industrial standards, ensuring that each product aligns perfectly with user requirements.
How do single-row angular contact ball bearings compare to other bearing types?
Differences from deep groove ball bearings
When comparing single-row angular contact ball bearings to deep groove ball bearings, the primary differences lie in their load-handling capabilities and intended applications. Unlike deep groove ball bearings, which can support radial and moderate axial loads in both directions, single-row angular contact ball bearings are specifically designed to handle combined loads, i.e., radial and significant axial loads in one direction. This makes them particularly suitable for high-speed and high-precision equipment, such as machine tool spindles.
- Angle of Contact: What sets deep groove ball bearings apart is their near vertical axis contact facilitating usage without Brewster’s angle, whereas single-row angular contact ball bearings are engineered for multiple angles with 15-degree, 25-degree, and 40-degree designs available. The application requirements largely dictate the angle that should be used.
- Load Handling Capacity: The raceway and the contact angles used in a design determine an angular contact ball bearing’s axial load capacity, while deep groove ball bearings tend to have a greater degree of flexibility when it comes to usage while simultaneously having lower limits on axial loads.
- Axial Load Direction: Single-row angular contact ball bearings only allow for axial load in a single direction. For double axial load functionality, a pair can be used, or back-to-back (DB) or face-to-face (DF) configurations can be employed.
- Rigidity: Angular contact ball bearings are much stiffer which is good for critical parts of the machine that are operating under load, and deep groove ball bearings are better suited for low friction and lower noise applications.
These differences underline why single-row angular contact ball bearings are preferred in applications demanding higher precision, speed, and combined load support when compared to the more general-purpose deep groove ball bearings.
Comparison with double-row angular contact bearings

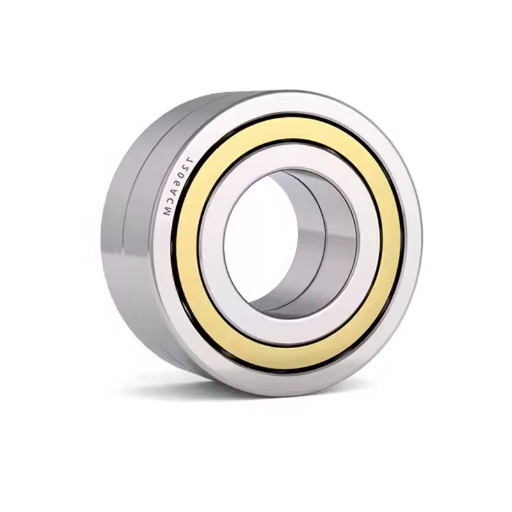

Double-row angular contact bearings are essentially two single-row angular contact bearings placed in one unit. This arrangement is typically used for large loads as well as axial and radial loads in both directions. This design also easily increases load capacity as well as rigidity. However, the downside to this type of design is the decreased tolerance to misalignment as well as lower rotational speeds. Its compact nature also means a lesser chance of separate bearing arrangements in comparison to single-row types.
- Axial Load Capacity: They are capable of carrying axial loads in both directions which can enhance design versatility.
- Radial Load Capacity: Carrying capacity in ‘both’ directions is much greater than that of a single-row bearing.
- Speed Rating: When compared to single-row angular contact bearings, double-row design bearings have a higher rating; however, contact points and friction also weaken performance speed.
- Rigidity: These types of bearings are rigid due to their dual-row features, which provide enhanced stiffness needed for applications that need precise alignment and deflection limiting.
These justifications highlight why double-row angular contact bearings are preferred in scenarios where space-saving designs and bidirectional load management are necessary but where high rotational speeds are not critical.
Advantages over roller bearings for certain applications
Double-row angular contact bearings offer distinct advantages over roller bearings in certain scenarios. Firstly, their ability to manage both radial and axial loads simultaneously in a compact design makes them particularly useful in space-constrained assemblies. Unlike roller bearings, which typically excel in handling purely radial loads, these angular contact bearings provide versatile load-carrying capacity without the need for additional bearing arrangements.
Performance-wise double-row angular contact bearings tend to have better accuracy and smoothness in their operation as it has less friction than roller bearings. Roller bearings can occasionally have a greater load-bearing capacity, but angular contact bearings still excel in maintaining precision and stiffness which is extremely beneficial in high-performance equipment such as robotics and CNC machinery.
- Load Capacity: Can sustain both axial and radial load with directional control set for both sides
- Friction Coefficient: Better than roller bearing therefore making the system more silent and preventing unnecessary noise.
- Misalignment Tolerance: Mechanical tolerance is low therefore the load-bearing device must be aligned perfectly, but their precision application due to their rigidity compensates for this.
- Space Efficiency: Suitable compact design for users who prefer a sleeker alternative to the larger-sized roller bearings while still achieving the same load.
These explain the suitability of double-row angular contact bearings in modern engineering systems where high precision, compactness, and dynamic adaptability are the main performance requirements.
What industries commonly use single-row angular contact ball bearings from China?
Automotive applications and demands
Single-row angular contact ball bearings have found a broad usage in automotive applications due to their capability of supporting high speeds while carrying axial and radial loads.
- Axial Load Capacity: The bearings have been fabricated to carry huge axial loads in reasons such as gearboxes and wheel hubs where axial and radial forces act simultaneously.
- Speed Capability: The bearings construction enables high-speed operations for performance purposes as in automotive engines and transmissions.
- Durability: The quality of material and processes such as heat treatment used in the fabrications provide abrasion resistance and prolonged lifespan which is paramount in automotive applications.
- Compact Design: Their structural design is volume-to-weight efficiency in nature which is a critical parameter in electric vehicles.
These characteristics align perfectly with the stringent demands of the automotive industry for reliability, efficiency, and precision in vehicular components.
Use in industrial machinery and equipment

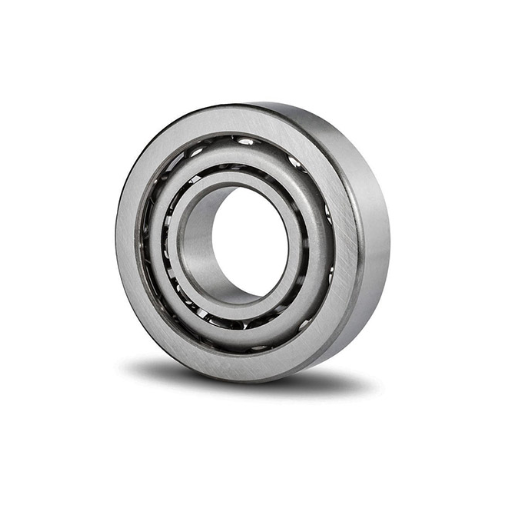

Tapered roller bearings are quite popular and are frequently used in industrial machines where high precision, resilience, and durability are critical when handling large axial and radial loads. They can be employed in heavy-duty machinery components such as conveyor systems, gearboxes, and heavy presses where adequate load sharing and efficiency are the priorities.
- Load Capacity: This design also results in better handling of combined loads with radial loads between 25% and 50% greater than cylindrical bearings of the same size.
- Operating Speeds: They can handle spinning speeds of up to 5000 revolutions per minute or much higher depending on the lubrication type and accuracy e.g. ISO P5 or P4 tolerances.
- Temperature Resistance: The use of advanced materials and heat-resistant lubricants makes it possible to work within a temperature range of -30 degrees Celsius and 120 degrees Celsius and in some particular grades even higher ranges are possible.
- Longevity: The service life of tapered roller bearings has increased significantly in industrial environments where they are used with minimum maintenance due to better contact angles and better manufacturing processes.
These performance characteristics guarantee the reliability maintenance and long-term use of industrial machinery which in turn makes use of tapered roller bearings an integral part of the equipment.
Aerospace and high-precision engineering needs
The aerospace and precision engineering sectors demand components that can deliver unmatched reliability, accuracy, and durability under extreme conditions. Tapered roller bearings are particularly suited for these applications due to their ability to handle high radial and axial loads simultaneously while maintaining stringent precision levels.
- Load Capacity: Tapered roller bearings are most effective in scenarios where combined loads have to be integrated, for example in automobile tail gears. The design is cast in a way that wears lowermost under unimaginable stress.
- Precision Levels: Aerospace settings shall require ISO P5 or P4 standards which can be achieved with precise tolerances ensuring extreme precision as ISO standards require a significantly high tolerance which can result in unwanted vibration hence affecting the device’s optimal performance.
- Temperature Range: Aircraft Tapered roller bearings with specialized high-temperature lubricants can operate at -50 to 160 degrees Celsius which enables these to be employed at high altitudes or at thermal-intensive sites where the temperatures tend to fluctuate.
- Durability: Coatings with advanced technology are generally applied such as black oxide or titanium nitride to resist corrosion comprising hostile environments, thus increasing lifespan.
Aerospace devices can endorse extreme stress and ensure safety by honoring regulations and fulfilling critical positioning, loadings, and impairment.
How to ensure product quality when sourcing from a China-bearing factory?
Understanding quality control processes
Sourcing China-bearing factories requires sufficient quality checks and a management system that satisfies international criteria which I refer to as verification in my base outline. In my process, I begin by getting assurances that ISO 9001 guidelines, which aim to enhance a customer satisfaction management system by outlining global standards, are being followed by the factory. This guarantees that some amount of consistency in the manufacturing processes is being maintained and transcends into the reliability of processes.
Further, my process continues with an examination of their inspection protocols by ensuring the availability of testing equipment such as CMM, vibration analyzers, and radial clearance testers, and if those are optimally checked.
The next thing that I examine is the raw materials. This phase of the inspection checks if standard preset requirements such as ASTM or DIN are met by the materials being used through capability studies and chemical composition checks. By using high-grade materials, the bearings created are long-lasting and highly reliable.
The last part of the process is the quality inspection reports for batch inspection of specially designed bearings. Some areas of focus are failure rates, non-conformance rates developed per percentage of actual units, and reports that could support enclosed certification documents such as Reach or RoHS for environment safety compliance. Because of these steps, I can trace reliable bearings that could be deemed useful in critical applications.
Importance of material selection and heat treatment
The performance of bearings has a lot to do with the selection of the proper material and the subsequent heat treatment processes. Indeed, the material that is selected will also affect properties like tensile strength, toughness, hardness, wear resistance, and even fatigue life. For highly stressed or critical applications, AISI 52100 high hardness high carbon chromium steel is often used due to its wear resistance properties. On the other hand, AISI 440C stainless steel is much more suited for uses when corrosion resistance is desired.
Quenching and tempering are also equally important since they aim at improving the mechanical properties by optimizing the microstructure of the material. For example, the martensitic structure formed while quenching does increase resistance to wear as well as increases hardness, whereas tempering does allow the removal of any removed internal residual stresses without compromising the balance between toughness and assurance. By employing these, such as cooling rate and austenitizing temperature, uniform material properties are made possible, thus barring failure during operations.
I can adhere to specific technical requirements involving high load-bearing capacity, and fatigue life, as well as the ability to withstand hostile environmental conditions, which both the industry specifications and specific application requirements entail, through the application of accurate heat treatment processes and selection of the bearing materials.
Frequently Asked Questions (FAQs)
Q: What types of bearings does a China single-row angular contact ball bearing factory typically produce?
A: A China single-row angular contact ball bearing factory typically produces a wide range of bearings, including single-row angular contact ball bearings, thrust ball bearings, cylindrical roller bearings, spherical roller bearings, and taper roller bearings. Some factories may also manufacture plain bearings, pillow block bearings, and linear bearings to meet diverse customer needs.
Q: Can a China bearing manufacturer customize single-row angular contact ball bearings?
A: Yes, many Chinese bearing manufacturers and suppliers offer customization services for single-row angular contact ball bearings. They can tailor the bearing design, materials, and specifications to meet specific customer requirements. To request customization, please contact the manufacturer directly to discuss your needs and explore options for a new bearing that fits your application perfectly.
Q: What are the advantages of double-row angular contact ball bearings compared to single-row bearings?
A: Double-row angular contact ball bearings offer several advantages over single-row bearings, including higher load capacity, increased stiffness, and better resistance to moment loads. They can handle both radial and axial loads in both directions, making them suitable for applications with complex loading conditions. However, single-row bearings are often preferred for applications requiring higher speed capabilities and lower friction.
Q: How do taper roller bearings differ from angular contact ball bearings?
A: Taper roller bearings and angular contact ball bearings have different designs and load-bearing characteristics. Taper roller bearings use tapered rollers between the inner and outer bearing rings, allowing them to handle heavy radial and axial loads simultaneously. Angular contact ball bearings use balls as rolling elements and are designed to handle combined radial and axial loads, but typically offer lower friction and higher speed capabilities compared to taper roller bearings.
Q: What factors contribute to the excellent reputation of China’s high-quality bearing manufacturers?
A: China’s high-quality bearing manufacturers have gained an excellent reputation due to several factors, including 1. Consistent product quality and reliability 2. Advanced manufacturing technologies and processes 3. Stringent quality control measures 4. Competitive pricing 5. Ability to customize bearings for specific applications 6. Compliance with international standards 7. Excellent customer service and support These factors have contributed to China becoming a leading global supplier in the bearing industry.
Q: How can I ensure I’m buying high-quality single-row angular contact ball bearings from a Chinese manufacturer?
A: To ensure you buy high-quality single-row angular contact ball bearings from a China manufacturer: 1. Research the manufacturer’s reputation and history 2. Look for certifications such as ISO 9001 3. Request sample products for testing 4. Ask about their quality control processes 5. Inquire about warranty and after-sales support 6. Check if they offer customization options 7. Verify their experience in producing angular contact ball bearings If you have any doubts, don’t hesitate to contact us or the manufacturer directly for more information about their products and guaranteed product quality.
