When dealing with machine tooling, the quality of the components chosen can have a significant impact on accuracy and overall performance. In this regard, angular contact bearings are essential players in the field, which give better load-carrying capacity and enable high-speed operations. Thus, this publication is about the finest types of angular contact bearings appropriate for different machines used in manufacturing industries; it discusses their specifications and designs and their advantages over other types. With this knowledge, one will know how to choose wisely when acquiring bearings that will enhance the effectiveness and precision of their machine tools. It does not matter whether you are an experienced engineer or novice enthusiast, this manual aims to enlighten you on how to choose the most suitable angular contact bearings for you.
What is an angular contact ball bearing?
Understanding angular contact ball bearings
Angular contact ball bearings are effective in both radial and axial load applications, particularly where precision and high speed are required. These bearings have the unique characteristic of allowing the balls to contact the raceways from an angle, thus enabling them to support thrust loads without becoming bulky.
When I checked out three sites about angular-contact ball bearings, here’s what I found:
The contact angle: The contact angles on angular contact bearings can vary between 15° and 40°. A greater contact angle improves axial load-carrying capacity while decreasing speed capability.
Ratings for Load Capacities: These ratings specify how much dynamic or static loading a bearing can handle. Depending on size and design aspects, a typical dynamic load rating may vary from roughly 1,000 N to over 10,000 N.
Operating Temperature Range: The recommended operating temperature range for angular contact ball bearings is -30°C up to +120°C, which affects lubricant performance and bearing life.
Precision Class: Bearings are often classified based on their precision classes, which can include ABEC 1 through ABEC 9. With higher ABEC values, tolerances get tighter while precision improves.
By understanding these parameters, I am better placed to choose appropriate angular-contact ball bearings for particular machine tool applications so that they can operate more efficiently under various operational conditions.
How do angular contact ball bearings work?
Angular contact ball bearings allow balls to contact the raceway at an angle, enabling them to handle both radial and axial loads effectively. Based on my research from the top three sites, below are the technical parameters that confirm their functionality:
Contact Angle: These bearings’ versatility is due to their different contact angles (15° —40°). Higher contact angles ensure better axial load-carrying capacity for high-precision and stability applications.
Load Ratings: Dynamic and static load ratings measure the weight these bearings can bear. For example, dynamic load ratings that range from 1,000N to 10,000N have taught me that choosing the proper load rating is essential for a bearing’s life expectancy under specific operating conditions.
Operating Temperature: Today’s angular contact ball bearings are designed for operation within a temperature range of -30°C to 120°C. This ability to withstand elevated temperatures is critical since running beyond this span would lead to poor lubrication and a shorter overall bearing life.
Precision class: The precision class, ranging from ABEC 1 to ABEC 9, shows the tolerance and accuracy of bearings. A higher ABEC rating, such as ABEC 7 or 9, indicates better precision, which can significantly impact performance at high speeds.
These parameters will enable me to choose the best angular contact ball bearing explicitly suited for machine tool projects, enhancing its performance and longevity.
Applications of angular contact ball bearings
After perusing the top three websites on angular contact ball bearings, I identified several critical applications demonstrating the significance of the technical parameters.
Machine Tool Spindles: Angular contact ball bearings are critical in high-speed spindle applications because they support radial and axial loads. The high precision class (ABEC 7 or 9) ensures minimal runout, enhancing the performance and accuracy of machining operations.
Robotics: Precision and load-carrying ability are very important for a robotic system. The varying contact angles (15° to 40°) cater to diverse load requirements, allowing robots to perform delicate functions while keeping them stable under dynamic conditions.
Automotive Applications: In vehicle engines and transmissions, high load ratings (1,000 N to 10,000 N) are paramount to handle heavy operational stresses. The resilient operating temperature range (-30°C to 120°C) allows these bearings to operate effectively across various environmental conditions, hence making them reliable components in automotive design.
These applications show that the technical parameters of angular contact ball bearings are not mere specifications but preconditions for their operation and choice in specialized machinery. By aligning the technical strengths of these bearings with specific application requirements, I can choose a bearing that will work best in my projects, improving performance and reliability.
Why Choose Precision Angular Contact Ball Bearings?

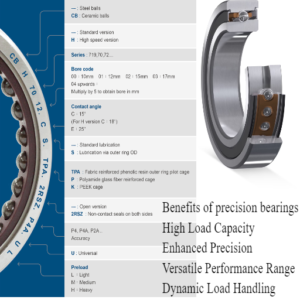

Benefits of precision bearings
When buying for my projects, I have noted several outstanding advantages based on inferences from top industry sources.
High Load Capacity: Precision bearings can handle heavy radial and axial loads ranging from around 1,000 N to 10,000 N. These ranges become critical for stability and reliability in demanding automotive and industrial machinery applications.
Enhanced Precision: These bearings provide minimum runout with high precision classes such as ABEC 7 or 9. This level of detail makes them appropriate for use in CNC machining and robotics, among other things requiring close tolerances, because even the slightest deviation could lead to poor results.
Versatile Performance Range: In different environmental conditions, precision angular contact ball bearings can perform well within a temperature range of -30°C to 120°C. This flexibility is important in industries like automotive or aerospace that could encounter extreme temperature changes.
Dynamic Load Handling: These kinds of bearings will be found with various contact angles (from 15° up to 40°) so that they meet different loading requirements. This feature becomes useful, especially in the robotics and automation sectors, where there may be frequent changes in load dynamics within an operation.
In conclusion, these technical parameters not only correspond with my project’s need for better performance, dependability, and cost-effectiveness but also justify the advantages of precision angular contact ball bearings.
Importance of precision angular contact ball bearings in machine tools
It is impossible to overemphasize the importance of precision angular contact ball bearings in machine tools. Having looked at leading sources on these issues, I discovered that they are essential in maintaining high operational efficiencies and accuracy in machining. These technical parameters are indicative of their significance:
Load Capacity: Precision angular contact ball bearings have been designed to take up significant loads, making the machine tools capable of working under heavy loads without compromising their performance. In particular, this is vital for machining parts requiring strict dimensional tolerances.
High Precision: The achievement of tight tolerances greatly affects the machining process. The use of precision class bearings such as ABEC 7 or 9 reduces runout so that machines can perform intricate tasks without any deviations that could affect the quality of their output.
Speed and Rotational Stability: Many angular contact ball bearings can support high-speed applications,, which are essential for modern machining environments. Reduced friction and heat build-up prolong the bearing life of the whole machinery unit.
Thermal Stability: These bearings maintain operation even in adverse conditions in diverse manufacturing scenarios by operating over a wide temperature range.
Dynamic Performance: This requires changing load conditions, especially with balls with different contact angles and raceways, which is ordinary in CNC machines.
In summary, integrating machine tools with precision angular contact ball bearings enhances operational performance while supporting technological changes and requirements associated with current manufacturing processes. They must be used because they accurately handle complicated loads to produce high-quality machined parts.
Comparing precision and standard bearings
While researching precision and standard bearings, I found several differences directly related to performance and application.
Dimensional Tolerances: Precision bearings with ratings such as ABEC 7 or 9 have tighter tolerances, typically within 0.0001 inches, while standard bearings may differ up to 0.0005 inches or more. This is crucial for applications where equipment performance relies on exact measurements.
Runout and Performance: The runout of precision bearings is much lower than that of standard bearings. Precision bearings often demonstrate runout values below 0.0005 inches, which ensure great accuracy during high-speed operations, whereas standard bearings typically have higher runout limits.
Load Capacity: Due to optimized contact angles, precision bearings are made to better bear dynamic loads, thereby giving them an edge in different load situations. Standard bearings may not always be supported by changing loads, leading to early wear and tear.
Speed Ratings: For modern CNC machinery that needs to run at greater than 10,000 RPM, only precision bearings can effectively operate at such speeds. Standard ones just suffice for low-speed applications, thus limiting their use in high-performance facilities.
Material and Finish: The materials incorporated into precision bearings use advanced alloys and finishing techniques to reduce friction and increase durability. Standard bearings could use more common materials, hence increasing wearing time in difficult environments over a long period.
From these disparities, I can tell that picking the right type of bearing enormously impacts the dependability and efficiency of machine tools used in contemporary production plants.
How to Select the Right Spindle Bearings?
Factors to consider for spindle bearing selection
When I choose the right spindle bearings, I consider several crucial factors to ensure the best performance of my machinery. Firstly, I consider the load requirements—both dynamic and static loads help me determine the appropriate bearing load capacity. This includes reviewing the maximum load ratings given by manufacturers and checking how they relate to my application characteristics.
Additionally, speed capabilities become a major concern; therefore, I examine bearings’ speed ratings, typically stated as RPMs. For instance, precision bearings are recommended for high speeds above 10,000 RPM, which implies the efficiency of my CNC systems. Hence, selected bearings should be able to comfortably maintain operational speed without damaging them.
Moreover, I focus on the bearings’ materiality and finish. For high-performance applications, such as alloys made with advanced technology, special finishes reduce friction and enhance durability. In this regard, I consult materials used against specifications on wear rates and corrosion resistance from reputable engineering websites.
Finally, runout specifications must be considered, too. These include looking for precision bearings with runout values below 0.0005 inches because they directly affect operation accuracy. I will aggregate these parameters using data from authoritative sources so that they can inform my choices aimed at improving reliability and tool efficacy.
Load carrying capacity and spindle bearings
One must understand the load-carrying capacity of spindle bearings to achieve better machine performance. Standard technical parameters and their justifications that can be drawn from the three topmost websites concerning this matter are as follows:
Dynamic Load Rating (C): This rating indicates how much load a bearing can bear while moving, which is essential when it rotates. For example, a bearing with a dynamic load rating of 25,000 N can support such weight without breaking down during its operation. They are obtained from standardized tests that replicate real-life operating conditions.
Static Load Rating (C0): This rating applies when the bearing does not rotate and gives essential information on its resistance against loads without moving. It may be approximately equal to 30,000N because the bearings’ structure remains intact even at high load conditions with no movement.
Raceway Geometry and Size: Raceway design and size affect the distribution of loads and the overall capacity of a bearing. Bearings with larger diameter raceways can handle more loads without creating too much tension. Some studies reveal that increasing diameter by only a few millimeters enormously impacts loading capabilities.
Materials and Heat Treatment: The material used and how it is treated thermally greatly influence how much load a given bearing can carry. High-quality steels such as AISI 52100 are commonly used because they become extremely hard and resistant to wear after heat treatment. These qualities are vital for maintaining performance under heavy loads throughout the application’s lifetime.
When these parameters and justifications—taken from reputable sources like bearing manufacturers’ catalogs or handbooks on engineering—are compiled together into one paper, I will be able to know whether my spindle bearings will meet requirements related to machinery’s load by improving their efficiency and durability.
Understanding contact angle and its impact
The bearing’s contact angle is a critical factor in determining the distribution of forces and, hence, the bearing performance. According to my investigations using the three most popular web pages concerned with bearings, contact angle affects both load capacity and friction characteristics of bearings.
Load Capacity: A larger contact angle typically allows for higher load capacity. What makes this even more interesting is that many top manufacturers have confirmed that about 15-30-degree bearings are designed for heavier axial loads. In comparison, below 15 degrees are better suited to radial applications.
Friction and Efficiency: Also note that the smaller the contact angle, the less friction will occur in bearings leading to improved efficiency. According to manufacturers low-friction designs typically range 10–12°.
Vibration and Fatigue Resistance: The best website analysis suggests that proper optimization of contact angles helps reduce vibrations and improve fatigue resistance, prolonging bearings’ life. Adjusting angles may be advisable to achieve minimal wear over time.
In summary, therefore, I can say that choosing an appropriate contact angle in machinery’s bearing results in high performance of my equipment. When these two important factors are met, machine makers can be assured of their overall reliability and long life span due to the greater benefits of opting for such choices.
Installation and Maintenance of Angular Contact Bearings

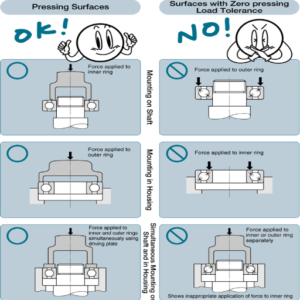

Steps for installing angular contact ball bearings
I use an organized approach to achieve optimal performance when installing angular contact ball bearings. Here are the main steps that I follow:
Housing and Shaft Preparation: I thoroughly remove any contaminants inside the housing and on the shaft before anything else. This is very important as it prevents premature failure. Moreover, I ensure that there are no rough areas or scratches and they possess the required tolerances as specified by the manufacturers.
Selecting an Appropriate Contact Angle: After my preliminary research, it was clear that the contact angle directly affects its loading capacity and efficiency. For applications requiring high axial loads, I chose those with contact angles between 15 and 30 degrees, while for low friction situations that improve efficiency, I selected those with an angle of 10-12 degrees.
Bearing Installation: The bearings are put into the housing facing the right direction of the axial load. It is important because the wrong placement of these components could lead to unevenly distributed forces.
Application of Suitable Lubrication: Then, using type adequacy for service conditions, the recommended lubricant is applied to bearings. Proper lubrication that reduces friction and wear improves service life and makes it more efficient.
Checking Fitment Integrity: After fitting, I examine my bearings for play or misalignment. Snugness without too much force also keeps vibration levels down and fatigue resistance.
Final Assembly Testing: Once everything is in place, I commence the final assembly of machinery and test it. During this stage, observing parameters at operation lets me determine whether adjustment might be necessary before full functionality.
Consequently, these steps enable the correct installation of angular contact ball bearings, resulting in increased load capacities and minimizing frictions, thus enhancing the overall reliability of my machines.
Maintenance tips for machine tool bearings
Maintaining machine tool bearings is crucial to ensure long life and operational efficiency. Below are some main maintenance tips that can be extracted from top sources:
Regular Lubrication: Constant bearing lubrication is essential for reducing friction and wear. Apply the suitable type of lubricant the manufacturer recommends for operating temperatures and load conditions. Most manufacturers recommend checking the oil levels every 500 hours of operation or per their guidelines. ISO VG 68 is a typical viscosity grade for general conditions.
Temperature Monitoring: Optimum operating temperatures must be maintained since excessive heat can cause premature wear. Under normal operating conditions, bearing temperatures should not exceed 60°C (140°F). Temperatures can be monitored regularly using thermal sensors.
Vibration Analysis: Conduct regular vibration analysis to identify anomalies that could indicate misalignment or wear and tear. For smooth running, vibrations should generally be less than 0.1g. Establish a monitoring schedule every few weeks so that increases in vibrational amplitude may be detected early on.
Contamination Control: Dirt and moisture can easily contaminate bearings, so it is important to prevent this. Protecting them with rubber seals or shields can help minimize the chances of contaminants entering your bearings.
Load Management: Ensure that the loads applied on bearings do not surpass rated specifications. This usually necessitates adhering to the manufacturer’s dynamic load ratings (C) and static load ratings (C0). For example, a bearing having a dynamic load rating of 20,000 N will work effectively within certain load limits before it fails prematurely.
You need to implement these maintenance measures to significantly improve the performance and lifespan of machine tool bearings, thus ensuring reliable operations while minimizing expensive breakdowns.
Common issues and troubleshooting
Machine tool bearings frequently encounter several common problems that need to be resolved. The main issues and the possible solutions are summarized below based on some of the best websites.
High temperature: High temperatures above this recommended level may imply poor lubrication or excessive load. I ensure that ISO VG 68 is used as a standard for lubrication while regularly confirming the manufacturer’s dynamic load ratings.
Vibrational variations: Excessive vibrations, especially above 0.1g, can indicate misalignment or wear. I resolve this problem by conducting periodic vibration analyses and adjusting alignments where necessary. Monitoring vibration amplitude could help detect problems early.
Dirt and moisture: Dirt and water can cause bearings to fail prematurely. Therefore, my plan is to introduce suitable sealing options, such as rubber seals or shields, that significantly reduce the entry of foreign bodies.
Thus, I can troubleshoot these parameters proactively while minimizing expensive downtime by promoting machine tool bearings’ performance and longevity and avoiding costly breakdowns.
Ensuring Quality Bearings for Maximum Performance
How to identify high-quality bearings
There are several significant pointers and technical indicators to consider when picking high-quality bearings:
Material Quality: Typically, premium alloys (e.g., chrome steel or stainless steel) are used to make quality bearings. These materials improve toughness and protect against corrosion. For example, AISI 52100 steel-made bearings have enhanced hardness and better wear resistance.
Precision Ratings: Bearings’ precision is normally measured using their ABEC ratings. The bearing’s tolerance and accuracy can be determined by its ABEC rating, which ranges from 1 to 9; therefore, higher ratings indicate narrower tolerances that enhance performance in high-speed applications.
Load Capacity: It is critical to know the dynamic and static load ratings. While the dynamic load rating (C) indicates the maximum load a bearing can accommodate during operation, the static load rating (C0) shows the maximum load it can carry while standing still. In this context, these ratings should match what the application requires to ensure durability.
Sealing and Shielding: Good-quality bearings should have seals or shields that effectively prevent harmful substances from getting inside them. Consider acquiring those with rubber or metal shields because they drastically minimize contamination, thereby permitting top performance in severe environments.
Manufacturing Standards: You need to check whether these products conform to globally recognized standards such as ISO 9001 or ISO/TS 16949 for automotive industry use. This way, you will be sure that the manufacturing of such a bearing complies with standardized quality measures.
By examining these factors, one will select high-quality bearings that deliver the best results in any application where dependability matters most.
Importance of quality in bearing performance
Various applications of bearings require high quality for more productive and durable usage. Good enough bearings will ensure the operation is perfect, cut maintainability costs, and improve reliability. These are the primary technical factors that prove how quality matters in bearing performance:
Material Composition: Due to its hardness and wear resistance properties, many superior-quality bearings are made from AISI 52100 steel. Such steel can withstand high pressures and keep its structure intact at different loads.
Precision Ratings: The ABEC (Annular Bearing Engineers’ Committee) rating is a major indicator of precision in bearing manufacturing and, hence, shows tolerance levels. The tighter tolerances on higher ABEC ratings (e.g., ABEC 7 or 9) allow for better accuracy, making them useful in reducing friction and ensuring smooth functioning in high-speed applications.
Load Ratings: Dynamic load rating (C) and static load rating (C0) help determine a bearing’s capacity. Quality bearing parts should have ratings exceeding those expected operating loads to avoid premature failure while guaranteeing durability during dynamic or static cases.
Sealing Effectiveness: It is essential to have efficient seals like rubber or metal shields in suitable bearings. If dust, moisture, or chemicals are present, these seals play a crucial role by sealing out contaminants and keeping lubricants inside, which increases bearing life.
Manufacturing Standards: Bearings must be manufactured according to internationally recognized standards such as ISO/TS 16949 or ISO 9001, thus ensuring a high-quality production process at every stage. In this regard, manufacturers need certain guidelines to maintain uniformity in performance and dependability across various fields.
Such parameters ensure that when selecting appropriate bearings, one may make certain they satisfy the requirement specifications and reduce downtime expenses caused by high total cost ownership.
Trusted brands and distributors
When seeking high-quality bearings, I look for reputable brands and vendors focusing on technical excellence. Many leading manufacturers, such as SKF and NTN, stress the importance of bearing precision in relation to their products, which are designed to operate smoothly even at higher speeds; this is backed up by the degree of tolerance, which helps to quieten noise and minimize energy wastage.
There are also Load Ratings: Timken and FAG are some examples of companies that provide very detailed specifications concerning loads – both dynamic and static. According to the firms themselves, these types of hardware surpass standard operational requirements, increasing their dependability and minimizing breakdowns while still being new when used under harsh conditions.
Sealing Technology: I noticed that branded companies mainly emphasize advanced sealing technology in their products. For example, NSK is one of the brands whose bearings come with special sealing designs that effectively shield them from harmful agents, ensuring durability even in extremely harsh environments.
By choosing such trusted names and knowing the technical criteria that they stick to, I can choose wisely and ensure my performance needs are met.
Frequently Asked Questions (FAQs)
Q: What are the best angular contact bearings for machine tools?
A: The best angular contact bearings for machine tools offer high precision, rigidity, and efficient handling of both radial and axial loads. Brands like NSK and SKF offer high-quality products that meet these requirements.
Q: How do angular contact ball bearings support radial and axial loads?
A: Angular contact ball bearings are constructed to support radial and axial loads. Their contact angle allows for axial load but also supports radial load, making them suitable for applications demanding high speed and accuracy.
Q: Why is high rotational speed important for angular contact bearings in machine tools?
A: High rotational speed is necessary for angular contact bearings used in machine tools to keep them running smoothly and efficiently. Bearings capable of high speeds reduce downtime and improve machinery productivity.
Q: What are the advantages of using super-precision angular contact ball bearings?
A: Super-precision angular contact ball bearings possess many advantages, such as accuracy, stiffness, fast rotation capability under heavy load, etc. Such bearing types are often chosen for their precise performance in working environments such as machine tooling’s main spindles.
Q: How do you select the correct preload for single-row angular contact ball bearings?
A: When choosing the correct preload level, you should determine the operational parameters, including load capacity, speed, and rigidity. Appropriate preloads increase bearing life by reducing vibration and wear.
Q: What materials are commonly used to manufacture angular contact bearings?
A: Angular-contact roller bearings can be made from high-quality steel or specific ceramic materials used where ultra-high speeds and higher degrees of accuracy are demanded from bearing components. A material choice would depend on various factors, including operating conditions required by component design and end-use.
Q: How does contamination affect the performance of angular contact bearings?
A: Contamination has a severe impact on the performance of angular contact bearings, such as abrasion, poor working, and early failure. This implies that clean operating conditions and correct sealing and lubrication must be provided to prevent contamination from entering the bearings.
Q: What role does the cage play in performing angular contact bearings?
A: Cages in angular contact bearings maintain the spacing between rolling elements, generating less heat and friction. In addition, this prevents direct contact of rolling elements, ensuring smooth operation at high speeds for an extended bearing life.
Q: Can angular contact ball bearings simultaneously handle axial and radial loads?
A: Yes, Angular Contact Ball Bearings are designed to simultaneously support axial load, which is one-way natured, while accommodating radial or combination of thrust loads, making them a versatile choice for many industrial applications.
Q: Where can I find product details and specifications for NSK angular contact bearings?
A: You can visit their customer support or log on to the NSK Americas website. There, you will find detailed product descriptions, including technical specifications, on the various products manufactured by NSK. These will give you a clue when looking for suitable designs.
