The angular contact ball bearings design allows these components to bear both radial and axial loads simultaneously. They also can rotate at very high speeds with great precision and long-lasting sturdiness. Smooth performance is crucial in machinery parts of any industrial, automotive, or aerospace, and angular contact ball bearings are critically vital in assuring reliability. This blog will discuss the functional components of these versatile parts and their significant benefits and broad scope of usage. Understanding these benefits enables more intelligent decision-making when selecting an ideal bearing.
What Makes Angular Contact Ball Bearings Unique?
Understanding the Contact Angle and Its Importance
The contact angle is paramount in angular contact ball bearings since it affects how the bearing handles the axial and radial loads. In my understanding, this angle illustrates the direction of the line of action between the balls and the raceways. The angle has units of degrees and determines the load the bearing can take. Thus, for instance, a greater angle like 25° or 40° means that the bearing can take greater axial loads and is ideal for high-thrust applications. Smaller angles, like 15°, are intended for higher-speed operations but have a lower capacity for axial loads.
The mechanics of load distribution explain this. The load contact angle is directly related to the area of load transfer; an increase in the contact angle increases the area along the bearing axis, thus ensuring stability under significant axial forces. Smaller angles are beneficial because they allow higher rotation rates because less friction is encountered. The precise selection of the contact angle depends on the nature of the work, as there must be an optimal balance between the required axial load and the rotational speed.
How Bearings Are Designed for Specific Loads
The following portions of the design process regarding bearings seem crucial. The balance between the load’s type and magnitude affects the bearing’s operational speed apart from the environmental factors. For example, I choose bearings with high contact angles for high axial loads since those types of bearings are suitable for load distribution and stability. Depending on the severity of the load, angular contact bearings with contact angles between 15° and 40° are chosen. In predominately radial loads, deep groove ball bearings or cylindrical roller bearings are used because they are ideal for high rotational speed with low friction.
Some of the key measures are:
Contact Angle: For high speeds, smaller angles are preferred (<15°), and for axial loads, larger angles (>30°) are desired.
Material Strength: Hardened steel or ceramics are best suited due to their ability to withstand extreme circumstances.
Lubrication Type: Grease or oil can be used to adjust the speed and temperature of the operation; better wear and operation is achieved with these lubricants.
Dynamic Load Capacity (C) and Static Load Capacity (C₀): These must meet the calculated requirements to avoid deformation or failure due to surpassing forces.
Ultimately, the design is aligned with the requirements of a particular application while considering efficiency, durability, and reliability.
The Role of Radial and Axial Loads in Bearing Functionality
Radial and axial loads determine the performance and appropriateness of an application for a bearing. Loads that come perpendicular to the shaft are radial, whereas those that apply parallel to the shaft are axial loads. To make these forces manageable, I would consider the following approaches:
The Dynamic Load Capacity (C) indicates how much the bearing can sustain dynamic loads under specific working conditions. The bearing must meet the calculated criteria to maintain dependability.
Static Load Capacity (C₀): This represents the ideal load a motionless bearing can withstand without structural alterations. This parameter is vital when coping with powerful static forces.
Contact Angle: The bearing capability is limited in terms of managing combined loads. Greater angles are more advantageous for maintaining axial loads, whereas smaller angles favor radial loads by greater magnitude.
Bearing Type: Deep groove ball bearings are more effective with predominantly radial loads, but tapered roller bearings, for example, are best at withstanding both radial and axial loads simultaneously.
By aligning these technical considerations to the requirements of radial and axial loads, I work to ensure optimal performance and endurance of the bearing for the specified application.

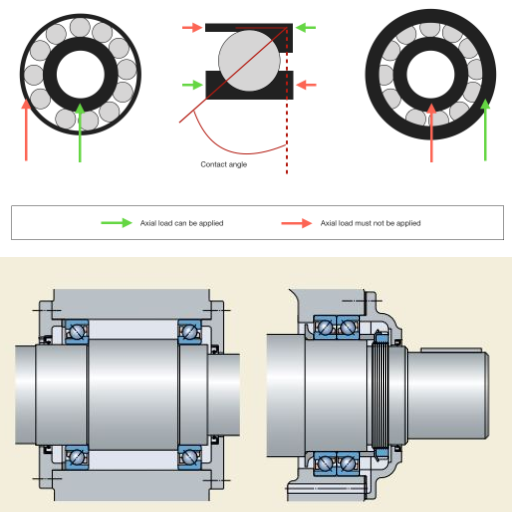

How Do Angular Contact Ball Bearings Work?
The Interaction of the Inner and Outer Rings
Angular contact ball bearings, which can sustain radial and axial loads, are set in motion by their inner and outer rings. The contact angle they form with the rings is the distinguishing factor for their motion transfer. On one hand, this contact angle allows the bearing to take on higher loads while still functioning, which is one prerequisite for a well-performing bearing.
These are the crucial parameters why I consider them so:
Contact Angle (15°, 25°, etc.): With larger angles, capabilities in supporting axial loads increase, while smaller angles enhance speed effectiveness.
Material Composition (e.g., stainless steel or ceramic components): This guarantees a low wear and friction ratio and high durability.
Preload Level (light, medium, or heavy) maximizes angular stiffness while reducing movement in working conditions.
Cage Type (e.g., machined brass or polyamide) affects overall speed and lubricant circulation efficiency.
Considering these parameters from the angle of the application requirements ensures reliability and long-term performance from angular contact ball bearings.
Exploring Raceways and Their Function
Like the outer casing of an angular contact ball bearing, raceways hold the rolling elements and ensure the equipment functions appropriately. I believe they serve as precise hardened paths in which the balls will encounter lesser resistance while having their loads optimally distributed among them. The following technical characteristics determine the raceway performance:
Material Hardness (for example, steel or ceramic): Protects from wear when used under heavier loads at higher speeds.
Surface Finish (micro-level smoothness): Lessens vibration and any resistance to motion, ensuring smooth movement of the equipment.
Geometrical Precision (contact angle and curvature) enhances the bearing’s ability to carry a set load while improving its fit to the definition.
These factors collectively justify how properly designed raceways contribute to the precision, reliability, and longevity of angular contact ball bearings in varied applications.
How Misalignment Affects Bearing Performance
Let me briefly explain how misalignment affects bearing workload and longevity. When misalignment occurs, the load distribution across the bearing’s contact points is uneven, which increases stress concentration. This leads to quick wear and early failure due to over-accumulated stress. The damage done solely relies on the amount of alignment and conditions during operation.
Inaccurate angles of contact: Misalignment shifts the designed angles of contact to a different position, resulting in the bearing’s inefficiency in sustaining radial or axial loads.
Shift in Load Zoning: The load zone shifts strangely, concentrating stress on particular areas and increasing the wear rate.
Removal of Zone of Clearance: Misalignment decreases the clearance zone, increasing friction and temperature.
Vibration and Noise: Misalignment raises the vibration and noise deeper than usual since proper rotation and precise stress distribution are absent.
Lubricating: Disruption of operational efficiency results from changes in the alignment, disrupting the lubrication film and metal shredding.
Optimal alignment enables satisfactory bearing operation by balancing load capacity and mitigating wear and tear. In addition to improving workload, such set alignment also helps boost the bearings’ overall efficiency.
What Are the Different Types of Ball Bearings?

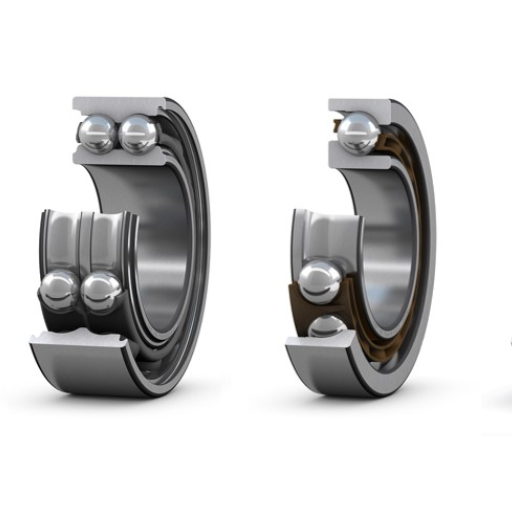

Comparing Double Row Angular Contact and Single Row Bearings
The main differences between double-row angular contact bearings and single-row bearings are the structure, load capacity, and use of the component or equipment.
Load Capacity
Double-row angular Contact Bearings: Because they are configured in dual rows, they can carry higher radial and axial loads than single-row bearings. This makes them ideal for cases where space is limited yet high performance is needed.
Single Row Bearings: These bearings mainly carry radial loads, but in some positions, they can also accommodate limited axial loads. Their load capacity is, however, much lower than that of double-row bearings.
Structural Design
Double-row angular Contact Bearings: These have two rows of ball bearings with specially designed contact angles to divide the load evenly. This leads to improved rigidity and alignment control.
Single Row Bearings: These more straightforward types utilize a single set of ball bearings. Being lighter, they allow higher speeds during operation.
Due to changing industry perspectives, those new to mechanical engineering have likely encountered articles prioritizing collection over analysis. These articles have stressed the importance of gathering more data without making any conclusions to justify their point. However, this should be done using an interdisciplinary approach focusing on the European Union while incorporating multifactorial methodologies.
The Benefits of Four-Point Contact Bearings
Four-point contact bearings have several benefits that make them most suitable for specific applications involving intricate performance and load handling. The advantages and their technical aspects are discussed below:
Reduction In Overall Dimensions: Four-point contact bearings combine radial and axial loads within a single bearing, reducing the number of required bearings and saving space.
Increased Efficiency: The loading pattern provides increased axial and radial forces, enhancing the bearing’s load-carrying capacity.
Load applications become more favorable for bearings because two contact points, above and below the ball, help lower the amount of stress endured.
Reduction in Assembly Time: Four-point contact bearings’ compact and multifunctional nature makes them easy to incorporate into machinery, reducing assembly time and complexity.
Supports Greater Loads: The supporting structure within four-point contact bearings improves the overall rigidity of the structure, increasing its range of applications, such as in rotary tables and aerospace systems.
Four-point contact bearings are best suited to compact, high-reliability designs that require innovative and dependable management of varying load conditions.
Choosing Between Back-to-Back and Preload Configurations
In choosing between back-to-back and preload configurations, I consider the application’s requirements and the relevant technical parameters. I focus on back-to-back configurations’ high rigidity and capability of combining radial and axial loads. This configuration is ideal in cases where overseeing overturning moments is very important, like in machine tools spindles or rotary tables. The angular contact typically ranges from 15° to 25° degrees for optimum performance.
In contrast, preload configurations are essential for eliminating the clearance between the component and the housing while ensuring high positioning accuracy. Depending on the particular operational requirements, I consider things like preload force level, which can be light, medium, or heavy. While heavy preload may increase rigidity, which is ideal for non-precision applications, it reduces bearing life and increases friction, which would be debilitating in most precision applications. In many ways, those considerations justify the choice between the two configurations.
Applications and Uses of Angular Contact Ball Bearings
Why Bearings Are Used in Electric Motors and Gearboxes
Electric motors and gearboxes rely on bearings to facilitate rotational movements while reducing the friction between parts. This integration makes operating the machine smoothly and prolongs its lifespan. For these particular applications, angular contact ball bearings are specifically selected to manage radial and axial loads effectively. This is important in fast-moving and highly accurate environments.
In electric motors, bearings reduce vibration while simultaneously stabilizing the rotor. Some technical essentials I look into are speed ratings, temperature ranges, and load capacitance. For instance, a commonly accepted standard in modern, efficient electric motors is 15,000 rotation per minute speed or above. Another consideration would be the low friction designs and adequate lubrication that minimizes energy loss and reduces heat generation.
Because of their rigidity and load-sharing capabilities, angular contact bearings are also appropriate for gearbox use. I also consider operational factors like torque and shock load resistance. Alignment maintenance under high forces is crucial in the electric motor, while bearings with medium to heavy preload impose alignment without adding too much load.
By using this careful matching process, I ensure that all electric motors and gearboxes perform optimally in terms of reliability and efficiency.
The Critical Role in Aerospace and Other Industries
When we look at the importance of components like bearings in the aerospace sector, I am keen on the performance allied with effective functioning over an extended duration. From an aerospace point of view, the selected bearings should be able to resist extreme temperatures, high rotational speeds, and a wide range of loads without compromising efficiency and safety. Here’s a summary of some of the core qualifying details that I look at and provide justification for:
Load Capacity and Fatigue Strength： Aerospace sector Bearings must efficiently manage static and dynamic loads. Therefore, I often choose materials with fatigue strength above 2000 MPa, such as steel or ceramics, as these materials can undergo multiple cycle repetitions without structural failure.
Temperature Tolerance: Aerospace operating ranges require that the materials work properly at as low as -100°F or +500°F. Achieving this is made possible by the use of advanced lubricants and hybrid ceramic bearings.
Rotational Speed: Bearings are expected to perform at an extreme speed range with slight vibration or wear. Turbine and jet engine components require high-precision bearings with little runout values to ensure unobstructed smooth movement.
Weight Efficiency： In aerospace, every ounce is crucial. To keep the weight of the entire system lower without impacting the strength of the structure, I generally implement lighter materials like titanium alloys or composite polymers.
Corrosion Resistance ：
Bearings in the aerospace and industrial sectors are usually coated using techniques such as PVD treatments to prevent corrosion when exposed to moisture, chemicals, or other environmental factors.
For other sectors like energy and high machinery, the focus shifts to enabling greater torque, shock resistance, and other environmental conditions. By defining the exact technical criteria necessary for each application, I can provide custom-tailored solutions that meet and exceed safety, efficiency, and performance standards.
How Bearings Benefit Rotational and Precision Bearings Systems
Begun Bearings works with various businesses, helping them achieve their goals regarding aerospace bearings and other specialized engineered products. First, let’s look at the question, Why are bearings critical in aerospace systems? Concisely speaking, bearings are needed to improve these systems’ efficiency, reliability, and angular precision in precision bearing systems. Bearings reduce friction, resulting in smooth operation and elongation of component life. These are some of the core metrics that I keep in mind to optimize performance:
Load Capacity: Bearings can withstand axial, radial, or combined loads of some magnitude and perform satisfactorily. As an example, some aerospace systems require bearings that can support substantial radial loads without deformation.
Material Selection: High-strength titanium alloys or ceramics are excellent for lightweight construction and are needed in robotics and aerospace, fully understanding the complexities and challenges unique to these industries.
Tolerances and Precision: Micron precision is essential for ultra-cutting systems’ speed accuracy. Areas like medical devices and semiconductors are significantly reliant on precision and accuracy.
Friction Reduction and Lubrication: Bearings are engineered with highly effective low-friction surfaces, solid lubricants, or modern greases to minimize heat build-up, which aids operational efficiency.
Corrosion and Environmental Resistance: Bearings in the industry are perhaps the most exposed to the harshest environments, demanding anti-corrosion coatings like ceramic or PVD to protect against chemicals and high humidity.
By carefully coordinating these actions with the operational requirements, I ensure that each system attains its desired performance objective, whether it is speed, accuracy, or system life cycle improvement.

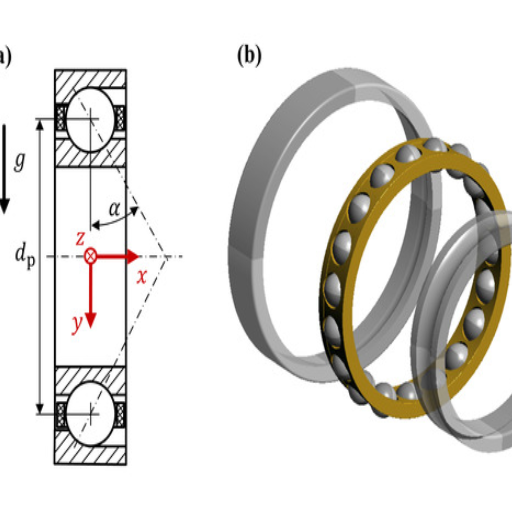

How to Optimize the Design of Angular Contact Ball Bearings
Maximizing Load Capacity and Performance
Begun Bearings works with various businesses, helping them achieve their goals regarding aerospace bearings and other specialized engineered products. First, let’s look at the question, Why are bearings critical in aerospace systems? Concisely speaking, bearings are needed to improve these systems’ efficiency, reliability, and angular precision in precision bearing systems. Bearings reduce friction, resulting in smooth operation and elongation of component life. These are some of the core metrics that I keep in mind to optimize performance:
Load Capacity: Bearings can withstand axial, radial, or combined loads of some magnitude and perform satisfactorily. For example, some aerospace systems require bearings that can support substantial radial loads without deformation.
Material Selection: High-strength titanium alloys or ceramics are excellent for lightweight construction and are needed in robotics and aerospace, fully understanding the complexities and challenges unique to these industries.
Tolerances and Precision: Micron precision is essential for ultra-cutting systems’ speed accuracy. Areas like medical devices and semiconductors are significantly reliant on precision and accuracy.
Friction Reduction and Lubrication: Bearings are engineered with highly effective low-friction surfaces, solid lubricants, or modern greases to minimize heat build-up, which aids operational efficiency.
Corrosion and Environmental Resistance: B earings in the industry are perhaps the most exposed to the harshest environments, demanding anti-corrosion coatings like ceramic or PVD to protect against chemicals and high humidity.
By carefully coordinating these actions with the operational requirements, I ensure that each system attains its desired performance objective, whether it is speed, accuracy, or system life cycle improvement.
Adjusting Bearing Arrangements for Enhanced Operation
While adjusting bearing arrangements for optimal operation, I adjust the technical parameters and alignment to meet the application needs and requirements. Here’s how I take care of these features:
Bearing Configuration: I decide on the angular contact configuration or single or double-row, which meets the best load direction and magnitude criteria. For example, a radial or axial combination of forces is best supported by angular contact bearings due to the increased stability of the system.
Alignment Precision: I have strict measures in place to ensure proper shaft and housing alignment to avoid misalignment problems. I use well-calibrated alignment instruments and ISO 492 tolerance standards to mitigate stress concentrations and reduce uneven load distribution.
Preload Adjustments: I adjust the preload to a level without excessive internal clearance while regaining the rigidity value. Light preload can be applied in high-speed applications to reduce heat and friction, while high-load applications can use medium or heavy preload to enhance system stability.
Spacer and Shim Usage: Precision spacers or shims allow consistent axial positioning maintenance while compensating for assembly dimensional variations, promoting smoother operation under dynamic conditions.
Managing Thermal Expansion: I account for thermal expansions by selecting appropriate bearing fits and materials for expansion without inflicting undue stress. Adding temperature monitoring devices allows adjustments to be made in real-time if necessary.
I manage system performance reliability and bearing service life through simulations and tests that validate compliance with specific operational parameters.
The Impact of Friction and Thrust Load on Efficiency
The thrust load, along with the friction and thrust parts, is essential to the system’s efficiency. Much caution should be taken about the effects and the associated technical parameters. From my experience, I choose proper lubrication and carry out adequate surface finishes to reduce friction. Low-viscosity lubricants are suitable for high-speed operations as they increase fluid resistance, and higher-viscosity lubricants do the trick for heavy loads. The smooth surface roughness values, e.g., Ra 0.2-0.4 μm, facilitate smooth interactions, which causes a reduction in friction wear.
With regards to thrust load, I reduce its effects through a selection of appropriate bearings that can carry sufficient axial loads and by designing supports that allow for enough force distribution. As an example, I may use angular contact bearings with a minimum contact angle of 30° for axial support in systems with higher axial loads. In addition, all preloading techniques, whether static or dynamic, are employed to neutralize rigidity and lower any possible deformation with the loads applied after preloading.
Like all other decisions, these also need to be checked against simulations like a finite element analysis (Figure 1). These criteria serve these goals by ensuring all other parameters correlate with the desired achievements. These practices have allowed me to solve the issues of friction and thrust loads in great detail, enhancing system efficiency and longevity.
