Stainless steel angular contact ball bearings are used in numerous industrial applications with high concerns for their performance and durability. These bearings are specially made to efficiently bear radial and axial loads and find application in the manufacturing, automotive, and aerospace industries. Further, their high-speed and high-precision operation capacity and the corrosion resistance provided by stainless steel enhance their reliability in harsh working conditions. This article provides an overview of the stainless steel angular contact ball bearings by looking at their design, advantages, and applications to demonstrate why they are among the most suitable choices for modern engineering design solutions.
What are the key advantages of stainless steel angular contact ball bearings?
How does stainless steel enhance corrosion resistance?
The corrosion resistance of stainless steel can be chiefly ascribed to its constitution, which usually contains at least 10.5% chromium. The chromium forms a thin vertical oxide layer with a protective function called the passive layer. This layer is inert and does not allow moist air, chemicals, or salts to penetrate the material. Moreover, stainless steels contain alloying elements such as nickel and molybdenum, allowing excellent resistance to pitting and crevice corrosion in harsher conditions.
Chromium Content: Minimum 10.5% – Important in creating the passive layer, which has self-regenerating properties.
Nickel Content (if present): Generally 8-10% – Supports the passive layer and provides additional strength.
Molybdenum Content (in some grades): 2-3% – Provides resistance to pitting in the presence of a chloride ion.
Surface Hardness and Finish: Achieving smoothness below 0.1 microns Ra restricts possible crevice sites for contaminants and reduces the chances of pitting corrosion.
Combining these factors and benefits makes stainless steel an excellent choice for bearing applications that experience fluctuating temperatures and are exposed to moisture and chemicals in many rugged environments.
What makes angular contact design superior for specific applications?
Due to their capability of transferring more axial and radial loads, angular contact bearings are preferred for particular tasks. Differing from other bearing types, the raceways of the angular contacts are placed at an angle for each other’s center line; this angle is known as the angle of contact. From the angle, it can also be identified that such bearings can carry axial load in one direction much more than in other directions. Hence these bearings are suitable for highly speedy and precise works like machine tools, pumps, robotics, etc.
Contact Angle (generally 15°, 25°, or 40°): As the contact angle increases, the axial load capacity of a bearing increases, but at the same time, if it is smaller, higher speed performance will result.
Load Capacity: Capable of effectively handling rigorous dynamic and steady loads with provided ratings for a variety of application conditions.
Speed Ratings: Allows for high rotational speed without impairing the working of the bearing in any significant way.
Preload Options: Bearings can be preloaded to increase rigidity and lessen deflection, which helps enhance precision.
This combination of specialized features helps ensure their reliability, durability, and precision in demanding mechanical systems.
Can stainless steel bearings handle higher speeds compared to standard bearings?
Stainless steel bearings can withstand specific conditions and are regarded as wear-resistant because of their enhanced material. Thanks to their heat—and corrosion-resistant properties, they will likely operate optimally even at high revolutions in the most challenging settings. Nonetheless, such extremes in operational capability depend on various parameters, including bearing assemblies, rubrics, and physical stresses.
Material Strength: Incorporating a stainless steel structure would allow for better disorganization and sustain more excellent mechanical wear and tension.
Thermal Resistance: Operating at more than 250 degrees Celsius or exceeding that with appropriate greasing could be withstood.
Finishing Of Surface: A surface that comes in touch with another will have an easier time when trying to be moved and won’t cause as much friction while at high ranges.
Grades of Balls: Simply put, worsted grade balls of 10 or more are fitted and thus provide less vibrated work.
Lubrication: Synthetic lubricants reduce wear in all speed ranges, enabling incredible speeds.
Stainless steel can be used in high revolutions to round everything together if given the correct configurations.
What industries benefit most from using stainless steel angular contact ball bearings?
How are they utilized in food processing and pharmaceutical industries?
Stainless steel angular contact ball bearings are well suited for the medical and food industry because of their endurance, resistance to rusting, and strict hygiene standards. Cleanliness is a must in these industries, and in many cases, high temperature, high moisture, or high chemical exposure is present, and bearings must function in such scenarios.
Corrosion Resistance: These manufacturers are constructed from stainless steel and are free from self-deterioration caused by moisture contact or cleaning, which can be required for sanitary purposes.
Sealed Design: Moisture, dust, and falling debris can infiltrate through a bearing and damage the product. Hence, shields and seals are incorporated in the design to anticipate possible failure.
High-Speed Operation: These tend to be used in centrifugal sensors and mixers because they cut down rotational friction, enabling the bearing to function optimally at high speeds and points of high contact.
Precision Performance: For processes that involve working in limited space, such as producing pharmaceutical drugs, precision grades like ABEC 7 or ISO Class 4 provide the precision needed to ensure reliability.
Temperature Range: Depending on what type of environment a bearing will be operating in, whether above freezing or below it, and ranges from -20C to above 120C.
Lubrication Options: Choosing a food-grade lubricant that follows the FDA guidelines will be adequate and cost-effective.
For these reasons, stainless steel angular ball bearings are advisable. They are highly reliable and effective in the food and medical industries.
What advantages do they offer in marine and offshore applications?
Stainless steel angular contact ball bearings benefit the marine and offshore industry because they are highly durable and efficient even under the harshest conditions and have superior corrosion resistance. Their corrosion-resistant nature products ensure that these bearings retain their structural strength to exposure to seawater, highly humid conditions, and saline environments.
Corrosion Resistance: The stainless steel framework prevents pitting, crevice corrosion, and rust, resulting in a much longer usability time when deployed in challenging marine environments.
Load Handling: Excellent operational reliability in dynamic offshore machines can be achieved through design as it can support combined axial and radial loads.
Temperature Tolerance: -30 to +120 degrees Celsius or -22 to 248 degrees Fahrenheit is the everyday requirement for most marine situations.
Sealing Options: The supporting structures enhance performance and lifespan by protecting the bearings from water and other impurities.
For winches, cranes, and thrust bearings vital for offshore tasks, angular contact ball bearings made from stainless steel easily provide the required safety and functionality.
Why are they preferred in aerospace and precision machinery?
Stainless steel angular contact ball bearings are admired in aerospace and precision machinery. They are remarkably reliable, accurate, and robust, even in the harshest conditions. These types of bearings mainly help overcome challenges requiring precision and strength, as they are built to sustain both radial and axial loads.
High Load Capacity: Due to their particular geometry, these bearings allow substantial axial and radial loads, and bearing such loads allows them to be employed in dynamic situations, e.g., aircraft engines or gyro systems.
Corrosion Resistance: The bearings, made of stainless steel, are highly corrosion-resistant, avoiding adverse effects on aerospace materials prone to varying temperatures and humidity.
Tight Tolerances (ISO P4/P2 Standards): With high precision grades, these bearings ensure consistent and accurate action, which is needed, especially in equipment where precise motion control is required. Such equipment may include CNC machines, robots, etc.
Temperature Tolerance (-40°F to 572°F): These bearings perform well at low and high temperatures and can comfortably work at extremely high altitudes for aircraft and other applications in harsher conditions.
Low Friction Coefficient (0.001 to 0.005): Operating at such minimal levels allows smoother running operations while expending minimum energy, providing efficacy in precision applications.
Longevity and Stability: The combination of improved sealing systems and viable lubrication makes these bearings withstand the test of time, function well, and cause barely any maintenance problems. This is excellent for aerospace and high-precision machinery.
Aerospace and precision engineering industries can easily rely on stainless steel angular contact ball bearings, combining superior characteristics with advanced technical specifications.
How do single-row and double-row stainless steel angular contact ball bearings differ?
What load capacities can each type handle?
From my perspective, single-row stainless steel angular contact ball bearings are made to withstand one-way axial loads and, at the same time, support radial loads of modest magnitude. This is made possible by their internal contact angle, which is within the range of 15 to 40 degrees, and which angle helps distribute the load efficiently. The key features of these thrusts are their ability to withstand high precision and more incredible speeds, thus allowing them to manage a directed thrust in one way while the rest of the structure remains unstrained.
In contrast, double-row constructions can withstand axial loads in both manners and radial because of a second row of balls and a symmetrical arrangement. This arrangement enhances the radial load capacity and stability, which is especially useful in applications that require non-directly proportional or variable force. The compromise is that there is a minor decrease in speed performance compared to single-row type bearings.
The actual load-carrying capabilities for both types will depend on the load zone, bearing structure, material composition, and, most importantly, lubrication systems. To function smoothly, these systems must be designed to meet the application’s specific requirements.
How does the row configuration affect axial and radial load management?
How rows are configured determines how a bearing operates its axial and radial loads. To my understanding, single-row and single-column bearings are considered more effective in transferring radial loads than double-row bearings but tend to be less able to sustain axial loads. Conversely, double-row type bearings are constructed to transfer axial and radial forces efficiently, thus improving the operability of devices requiring both axial and radial forces composites.
Axial Load Capacity: Two rows of rolling elements have more than a single row of rolling elements. Hence, they cover a wider area, thus allowing for greater axial forces and tolerances and delivering more than single rolling bearings.
Radial Load Capacity: Contact and dimension application are the basic parameters on which both configurations are designed; however, the essential advantage of double-row bearings is the area and number of contact points, which enable them to sustain greater radial loads. The trade-off to this is the velocity limits.
Contact Angle is even more critical since it governs the all-around axial force that a bearing can sustain. A greater contact angle translates to greater forces sustained.
Lubrication and Material: Lubrication and materials have been shown to enhance and aid the utilization of axial and radial forces within a row, single or double.
Each configuration must conform to the application requirements for the desired life cycle, efficiency, and performance.
In which applications is a double-row configuration preferred?
Double-row configurations are the choice when there is a requirement for high radial and axial loads simultaneously and when the space is limited. For instance, I would use this configuration in automotive hubs, machine tool spindles, or gearboxes where compact design and load capacity are critical. The reasoning behind this preference lies in their technical parameters:
Load Capacity: Although the single-row design can share the combined load profile, the double-row configuration is superior in bearing load due to its larger contact areas.
Rigidity: The double-row units offer higher rigidity, necessary for precision applications such as spindles in machine tools or robotic devices.
Compact Design: With two rows of rolling elements, the design helps optimize space. No extra longitudinal space is needed to increase the load capacity, making it suitable for places with limited space.
All these characteristics enable a double-row configuration to provide an optimum combination of performance, strength, and efficiency for applications with stringent requirements.
What maintenance benefits do stainless steel angular contact ball bearings offer?
How does their corrosion resistance impact maintenance schedules?
Their corrosion resistance significantly mitigates the frequency and intensity of implemented maintenance programs. Because stainless steel angular contact ball bearings do not rust or deteriorate even in extreme environments, cleaning, lubrication, or effecting component changes are rarely necessary. Such as:
Material Resistance: Stainless steel, on the other hand, can self-oxidize, which results in it lasting longer than ordinary steel bearings due to its natural corrosion resistance.
Lower Lubrication Requirements: Due to high resistance to moisture and exposure to chemicals, minimal extra lubrication is required, and the bearings function optimally, which translates to time and resource savings.
Uniform performance: The degradation of angular contact ball bearings with stainless steel components is minimal because stainless steel possesses consistent surface properties over time.
These characteristics explain their efficacy in working under humid or chemically hostile environments, which also require dependable performance over extended periods.

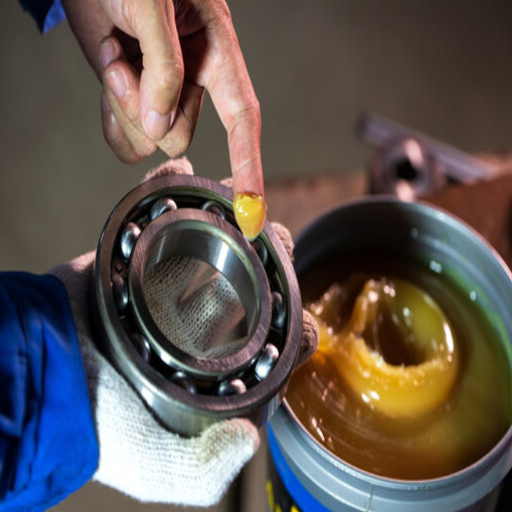

Are there any special lubrication requirements for these bearings?
Stainless steel is highly resistant to water, rust, and other chemicals, so its bearings usually require minimal lubrication. However, a few fundamental guiding rules exist for using such bearings in extreme conditions or high-performance applications.
Lubrication: Appropriate, noncorroding stainless steel-grade oils and greases are necessary. Silicone—or PTFE-based lubricants are often used in aggressive chemical environments.
Operating temperature: Ensure the lubricant is within the bearing’s operating temperature range of -20 C to +120 C. Though standard-grade lubricants are within this range, unique formulations can extend the range of bearing lubricating temperature.
Relubricating intervals: The regular interlubrication differs based on speed, load, and environmental attributes. For higher speeds, re-lubricating after every three to five thousand hours suffices.
Cleanliness: avoid contamination during the application of bearing lubricants as such contamination will alter the performance of the bearing, hence always use clean conditions when lubricating the bearings.
These technical parameters should ensure the necessary performance while minimizing wear or parts failure even in high-demand operating conditions.
How do they compare to chrome steel bearings in terms of longevity?
In many instances, specifically those of chromic steel bearings, ceramic bearings tend to outlast them with service life and perform better. This can be attributed to the ceramic material, which has excellent properties, including low operating temperature, owing to the lower coefficient of friction. Its great capability makes it challenging to deteriorate, not to mention the fact that it increases lifespan as well.
Hardness: Like other ceramic materials, Silicon nitride is less ductile than chrome steel. However, it dramatically increases resistance to wear and rolling element fatigue, directly correlating with lifetime.
Friction Coefficient: More importantly, ceramic bearings have been shown to have a low friction coefficient. This reduces energy loss and prevents heat build-up that degrade an assembly’s lubricant, bearing, and other components.
Corrosion Resistance: In cases where the application is in an environment with higher humidity or chemicals, ceramics would be more favorable due to their corrosion-resistant properties, unlike chrome steel.
Thermal Stability: Thermal stability is also advantageous as ceramic bearings are effective at high temperatures without deformation, which aids in scenarios with high-temperature exposure.
That said, a ceramic bearing is not necessarily universal, as the application and maintenance largely determine whether or not it is practical. In standard conditions where an application can be appropriately lubricated, and maintenance intervals are adequate, a ceramic bearing can outlast a chrome steel bearing by double the time or, in some cases, five times the duration. This leads to a higher value/price ratio, which is one reason a ceramic bearing is favorable for applications that quickly wear and tear.

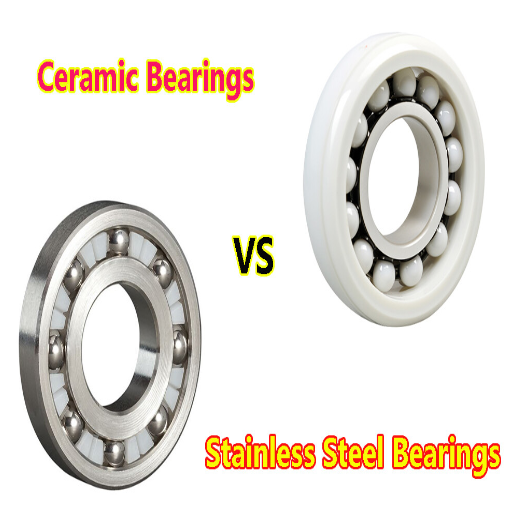

How do stainless steel angular contact ball bearings compare to other bearing types?
What are the specific application advantages that roller bearings do not have?
Compared to roller bearings, stainless steel angular contact ball bearings have numerous advantages that allow them to be more effective in particular phenomena. First, their inherent capacity to accommodate axial and radial loads makes them advantageous when the load is combined. This is especially useful in cases such as machine spindles or pumps.
Another point worth mentioning is their assembly accuracy, which allows the design of systems with narrow operating tolerances. This is why angular contact ball bearings best suit robotic arms or CNC machines. On the other hand, roller bearings do not perform very well when accuracy is needed when changing loads.
These features, sturdy construction, precision, and stainless steel material, make angular contact ball bearings more advantageous in high-speed conditions.
What is their performance like against the ceramic hybrid bearings?
In general, radial contact bearings and ceramic hybrid bearings differ in performance measures for high speed, high precision, and life performance. Because these bearings include ceramic balls and steel races, they are lighter and produce less centrifugal force, which allows them to be used in high-speed applications. For example, due to ceramic materials’ lightweight and good thermal characteristics, they can avoid overheating and achieve more than 30,000 revolutions per minute.
On the other hand, all-steel angular contact ball bearings, although capable of reaching very high speeds (approximately 20,000 RPM in many cases), tend to produce more heat. However, they retain good precision and reliability when used under controlled conditions, making them suitable for CNC machines and robotics.
Furthermore, because of their enhanced wear resistance, the ceramic parts of hybrid bearings provide better corrosion resistance and prolong their life expectancy. However, they are more expensive than the regular angular contact ball bearings, which may affect the decision depending on the amount of money available and the requirement of the application in question.
In conclusion, if speed and durability are the prime focus, you would be better off using ceramic hybrid bearings. If, however, you are on a budget and require something much more affordable, then you could go for the angular contact or ball bearings, as they are very economical and offer high levels of precision machining.
Frequently Asked Questions (FAQs)
Q: What are the advantages of using stainless steel angular contact ball bearings?
A: Stainless steel angular contact ball bearings have many advantages, such as anti-corrosive properties, high load-bearing capacity, and the ability to withstand axial and radial loads. They are specially designed for use where tolerance is a prerequisite, such as machine tool spindles, and can be used in high-speed applications. These bearings also have a longer life because they can withstand general wear and tear better than standard bearings.
Q: How do single-row and double-row angular contact ball bearings differ?
A: Single-row angular contact ball bearings are constructed to accommodate axial loads in one direction, whereas double-row angular contact ball bearings can axial loads in two directions. Generally, double row bearings have a higher axial load rating and higher stability, thus they are more efficient in general purpose applications where different types of loads are to be meshed. Most of the time, the single-row bearings are used in pairs to enable them to handle axial loads in both directions.
Q: What is the importance of the contact angle for angular contact bearings?
A: Contact angle in angular contact bearings governs the capability of such bearings to endure axial loads. A greater angle broadens the load capacity, although it may diminish radial loading capabilities. The bearing’s speed performance or maximum operational speeds also depends on the contact angle. Tapered roller bearings come in a range of contact angles from 15 to 40 degrees, with higher angles proper for systems with greater axial contact loads.
Q: Would stainless steel hybrid ceramic bearings perform better than conventional stainless steel bearings?
A: Substantial literature exists on the advantages of stainless steel hybrid ceramic bearings, which contain ceramic balls (generally composed of Si3N4) and are encased in stainless steel rings. They have higher speed limits, better heat resistance, less friction, and wear and tear. These bearings are ideal for high-precision applications like machine tool spindles and aerospace equipment, where performance requirements and reliability are fundamental to success.
Q: The ABEC7 rating is essential, but what exactly is the meaning of the ABEC7 rating for precision angular contact bearings?
A: Bearing which has been rated ABEC 7 is considered to be of high order as it guarantees accuracy and tight tolerance control. Bearing an angular contact ball rating ABEC 7 will have a more significant deal of accuracy, smooth operation, and greater deal speed capabilities. These types of bearings are crucial in areas where there is a need for excellent precision, such as CNC machine spindles, robotics, and aerospace equipment. The consistent rating of ABEC 7 guarantees that the required task will be performed consistently without degrading performance or shortening the bearing’s service life expectance in harsh environments.
Q: How do stainless steel angular contact ball bearings function when dealing with a hostile atmosphere?
A: Due to their resistance to corrosion and strength, stainless steel angular contact ball bearings perform exceptionally well in hostile atmospheres. This makes them appropriate for wet, humid, or chemically active settings, which would otherwise destroy regular bearings. Such bearings may be utilized in food production machinery, nautical equipment, and chemical plants. Their resistance subsequently enhances performance, allowing the bearing to last longer in extreme conditions.
Q: What factors should be considered when selecting the right angular contact ball bearing for a specific application?
A: Determining contact ball bearing topologies requires assessments such as the load characteristics (radial, axial), the angular load NC and the contact type of loads, the operating speed and angular velocity of the key elements of the design, the accuracy requirements for the bearing structures, the operating temperature and other limits prerequisites, and the available mounting space. Also to be considered is the size of the bearing or the contact angle, specifically, the angle between the vertical axis of the bearing and the axis of rotation, the type of metal of the cage, including solid brass cage or polymer cage, the need for oil or specific lubrication, among others. When the bearing is used for spindles for high speed operations or in gearboxes, it is important to consider the temperature rise and speed of operation.
Q: How does the cage design in angular contact ball bearings affect performance?
A: The cage design determines the angular contact ball bearings’ performance. The cage design consists of features or construction comprising several components that position the spheres or balls such that good ball-to-ball contact is minimized to reduce friction and adequate ball-to-ball contact spacing is maintained. Additionally, the polymer and brass give different attributes and advantages. Brass cages have high-temperature resistant properties and can withstand a tremendous amount of stress, while polymer cages are lighter and have a better retention quality of lubricants. Also, the implemented design will determine the maximum rotational speed of the bearing and the level of noise created during its operation. Quality manufacturers provide a variety of types of cages that are suitable for various customization needs of bearing applications.
