Like many modern components in machines, double-row angular contact ball bearings significantly provide mechanical efficiency and enable a long shelf life for a machine. They are used in servicing axial and radial loads, making them highly suitable for use where compactness and higher strength are sought. Bearing units, single-row angular contact ball bearings, are combined, forming a double row. This deep groove bearing is an angular contact bearing with a significantly increased volumetric capacity for carrying the load while saving space simultaneously. This blog will outline the distinct features, advantages, and real-world implications of double-row angular contact bearings, offering insightful use cases on how these innovations balance industries. From a seasoned engineer or technician to someone with simply an interest in complex mechanical systems, this guide aims to flaunt the importance of these components in the ever-innovating world of technology.

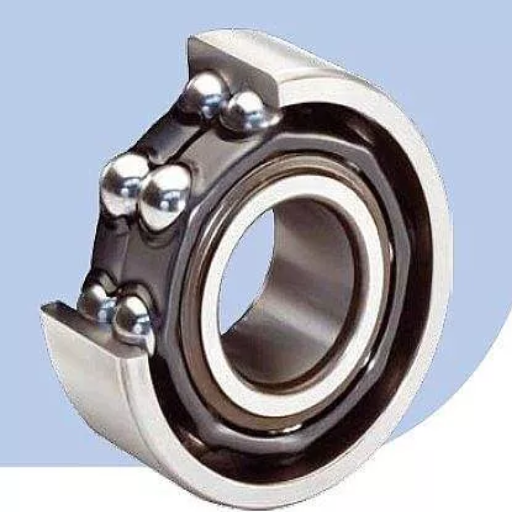

What are Double Row Angular Contact Ball Bearings?
Understanding the Unique Design of Angular Contact Ball Bearings
Because of their construction, double-row angular contact ball bearings are efficient when bearing both radial and axial loads. The design feature that stands out is the two belts of balls placed angularly, which enhances load-carrying capacity compared to a single-row design. This improves the overall stability and performance of the ball bearings, where, in most cases, accuracy and reliability are critical, thus enabling them to perform much better.
Load Capacity—The dual row configuration allows greater capacity to take axial and radial loads from different directions simultaneously.
Rigidity—The arrangement of contact angles relatively improves the overall structural rigidity of the ball bearing, thereby lowering deflections under heavy loads.
Speed – The design can support considerable loads; however, it might limit the operational speed compared to single-row bearings.
Axial Displacement—The bearings can support axial displacement from both ends, giving them some degree of freedom regarding alignment.
Fatigue Life – Better load sharing between rows prolongs bearing life in normal working conditions.
Combining all the features, double-row angular contact ball bearing designs will enable the performance features of demanding mechanical systems to be achieved without loss in efficiency and durability.
Differences Between Single Row and Double Row Configurations
Like all other parts, the design configuration and performance characteristics of single-row and double-row angular contact ball bearings differ significantly. I believe the selection decision rests primarily on specified application needs and how well the parameters match them in the case of these two designs.
Load Capacity—Double-row bearings have significantly higher radial and axial load capacities than single-row bearings. This is due to the extra row of balls with more bearing elements, which improves load sharing. Double-row bearings are justified for applications demanding higher loads and more robust performance.
Design and Space—Single-row bearings are slim and trim, perfect for jobs where space is limited. Double-row bearings are bulky but eliminate the necessity for two single-row bearings in some situations, improving the overall design and decreasing the assembly time.
Axial Displacement—The pairing concept is necessary for most single-row bearings to bear axial loading in both directions. In contrast, one-directional axial displacement is automatically handled in double-row bearings, which can be used in some dynamic mechanical applications without additional parts.
Limit of Speed—Single-row type bearings can usually work at higher speeds because of their more straightforward internal configurations and reduced internal friction. This fact is genuinely crucial to consider when speed is imperative.
Considering such distinctions and evaluating the parameters makes the selection decision more rational and justifiable from an operational efficiency perspective.
Key Components: Inner Race, Outer Race, and Ball Elements
In the bearing application, in my view, the inner and outer races are of primary importance regarding the fit and positioning of the bearing. The inner raceway encircles the shaft is the inner race, and the one surrounding the housing is called the outer race. Lack of precision in the parts impacts the load distribution, increasing the component’s wear over time.
On the other hand, the ball elements rely on the ball’s rotation in a load-supporting and load-resisting function of friction. Depending on their size, number, and volume, these elements also influence other essential design characteristics, such as load capacity, allowable rotational speed, and the expected life of the mechanism. For instance, larger or more numerous balls would increase the load capacity, but speed efficiency may suffer because of the additional drag.
When developing answers for particular questions on these components, the explanation must cover their effect on the value of load capacity, speed limits, and depth of contour wear. The specific selection and combination of the features is crucial for the ideal functioning of such dynamically loaded systems.

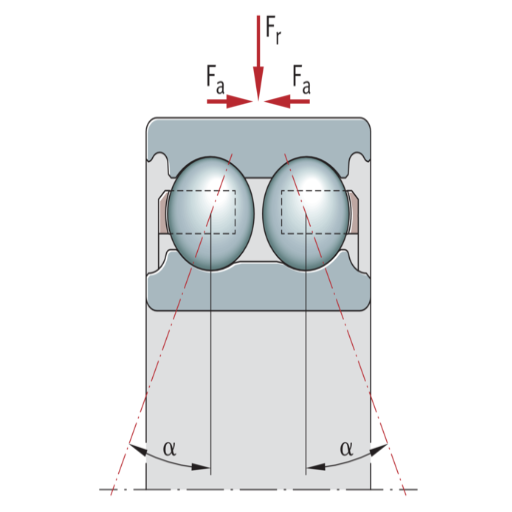

How Do Double Row Angular Contact Ball Bearings Enhance Load Capacity?
Axial Load Handling in Both Directions
Because of their effective internal geometry design, double-row angular contact ball bearings can efficiently manage axial loads in both directions. This design features two rows of balls at opposing contact angles, typically 30 degrees or 40 degrees. This type of internal design enables the bearing to distribute axial forces uniformly across the two rows, guaranteeing stable performance under bidirectional axial loading conditions.
The contact angle, 30 or 40 degrees for this type of bearing, determines the bearing’s capability to handle axial and radial load combinations.
The Dynamic Load Rating (C) indicates the maximum motion-sustaining load the bearing can hold, which is mainly described in kilonewtons (kN).
The Static Load Rating (C0) describes the capacity to withstand a static load without deformation or damage. It is also measured in kilonewtons (kN).
Limiting Speed: This is set by the manufacturer and indicates the maximum speed of operation permissible regarding the heat and stress that can be tolerated.
Axial Load Range: Due to their particular bearing design, double-row angular contact ball bearings can manage higher axial loads than single-row versions, thus improving bearing system reliability.
These bearings are vital for applications needing increased bidirectional axial load support, including machine spindles, gearboxes, and pumps, as they assist in distributing the loads through dual rows while maintaining balance. Meeting the full load-handling capabilities depends on the appropriate selection based on application requirements.
Improved Radial Load Support
Double-row angular bearings were specifically developed to handle greater radial loads than single-row bearings. Their construction with two rows of rolling elements evenly distributes radial forces and reduces stress concentration. This extra support makes them ideal for machinery and equipment applications requiring great precision and high performance.
Contact Angle (e.g., 25° to 45°): This ensures a good compromise between the bearing’s ability to accommodate radial and axial loads.
Bearing Material (e.g., chrome steel, Ceramic): This determines the strength, resistance to wear, and the range of operating temperatures.
Dynamic load rating (C) and static load rating (C0) (Considered in kN) are applied to the model bearing and defined as their capacity for variable and stationary loads.
Speed Limit (e.g., 10,000 RPM): The maximum operational speed is provided, essential for differing dynamic uses.
Rigidly evaluating the above-mentioned parameters against an application’s operational requirements can improve a bearing’s radial load capability while ensuring reliability for long-term use.
Dynamic vs. Static Load Ratings Explained
Dynamic and static load ratings must be considered critically when analyzing the performance of the bearing. Here’s a short definition:
Dynamic Load Rating (C): Usually expressed in metric kilonewtons (kN), this value is imperative for an application that involves continuous motion. It pertains to the maximum load a specific bearing can take while rotating without causing significant wear on it or leading toward malfunction.
The Static Load Rating (C0) is the maximum load a range-of-motion supporting bearing system can withstand without causing a deformation so great that it stops functioning optimally. This rating, too, is expressed in kN. It is relevant when determining suitability for stationary or slow applications where movement is relatively low.
To select proper bearings, these parameters should be verifiably analyzed, and some methods should be justified regarding the operational situation:
Load Type: C versus C0 for static and dynamic force domination.
Rotational Speed: C values must be appropriately high for high-speed applications.
Operational Environment: These include shock loads or vibrations that can further increase the static stresses.
Knowing and comprehending these ratings and their connection to your particular scenario will yield optimal performance and bearing durability.
How Do Double Row Angular Contact Ball Bearings Compare to Other Types?
Double Row vs. Single Row Angular Contact Bearings
Double-row bearings have distinct advantages in leveraging flexibility compared to single-row bearings, especially in design. Bearings in single-row formations have different applications, a less flexible design, and a relatively wide load capacity.
Load Capacity: The dual angular contact bearings can be radial and axial and used back-to-back, providing two single-row bearings. This can give a single-row mounted back. The performance and load capacity are further increased single, which results in increased bore size.
Rigidity: The increased support of the two alignment formations allows for higher deflection, termed double row. This deflection is especially crucial in machine tools, which have reduced deflection under load.
Misalignment Tolerance: In pairs, single-row angular contact bearings can better sustain moderate angular shifts than double-row bearings. While double-row bearings are more substantial, they do not provide much tolerance to angular shifts.
Common Technical Parameters: To evaluate double-row bearings, some critical parameters are dynamic load rating (C), static load rating (C0), load, and angle of contact, which is preferably between thirty and forty degrees for all other types. Justifying the angular distance of double-row bearings and single-space constraints is essential.
A detailed study of your application’s requirements will enable you to choose the most appropriate type of angular contact bearing, maximizing efficiency, reliability, and service life.
Advantages Of Radial Ball Bearings
Radial ball bearings are widely used in various industries because of their performance merits and flexibility. Given below are the most essential benefits, along with the technical data to support their usage:
Effective at High Rotational Speeds: Radial ball bearings are proficient at managing high rotation speeds. They have a very low friction coefficient, which decreases heat generation and, thus, functions well. The application’s operating speed must be equal to the bearing’s limiting speed parameter.
Capable of Multi-Directional Loads: These bearings can withstand radial loads and, to some degree, vertical axial loads in both directions. Ensure that the dynamic load rating (C) and static load rating (C0) are not lower than the loads that must be imposed on the system; otherwise, the system can fail much earlier than anticipated.
Design Efficiency: The bearings have a low profile and can, therefore, fit in a small volume, which is ideal for use in restrictive environments. The spatial limitations can be satisfied if the bore and outer diameters are chosen appropriately.
Dependable with Adequate Maintenance: Provided with adequate lubrication and good alignment, radial ball bearings perform well reliably over time. In addition, the material from which the bearing is made, its cleanliness, and the fatigue limit load need to be considered for the rotational life to be extended.
Assessing speed, load ratings, and size constraints lets you conclude whether radial ball bearings fulfill your application’s technical requirements. This provides an optimum combination of operational economy, dependability, and effectiveness.
Comparison with Tapered Roller Bearings
Important distinctions exist concerning the design, performance, characteristics, and optimum uses of tapered roller bearings and radial ball bearings. The two are compared as follows:
Load Capacity: Tapered roller bearings are best used in situations requiring simultaneous radial and axial loads, as they can best accommodate combined forces. Radial ball bearings are still better than tapered roller bearings, but they are only suitable for lower radial loads and have minimal capability for axial load management.
Speed Performance: Radial ball bearings are best suited for higher-speed uses due to their lower friction and more simplistic geometry. Tapered roller bearings can handle substantial loads, but they function best at lower speeds due to rolling resistance, which makes them suitable for optimal conditions.
Axial Load Handling: The inclined position of the taper rollers makes them suitable for cumbersome axial loads. Radial ball bearings should be used primarily when there is little or no axial loading to minimize damage.
Applications and Suitability: Radial ball bearings are the preferred choice for lightweight electric motors, fans, and precision instruments, especially at high speeds. Tapered roller bearings are the most commonly used in heavy construction machinery, load-bearing vehicles like trucks with high-performance engines, gearboxes, and automotive wheel hubs.
Considering these factors, it is apparent that the selection of tapered roller bearings and radial ball bearings depends on the type of load, speed, and application requirements.
How do you select the right double-row angular contact ball bearing?
Determining the Correct Size and Bore
Acquiring a double-row, angular contact ball bearing with the correct size and bore requires examining several key technical characteristics to guarantee performance and compatibility. The following is a brief outline:
Load Ratings: Establish the bearing’s corresponding dynamic and static load ratings for the application. This is important for optimal engineering manipulations, ensuring that operational forces incur no deformation or premature wear.
Shaft and Housing Dimensions: Verify that the bore diameter corresponds to the shaft dimensions and that the outer diameters cohere with the housing tolerances. Use standard sizing (e.g., 20mm or 25mm bore) to make installation more convenient and cheaper.
Speed Limitations: Determine the maximum permissible speed of rotation in rev/min for the system and check this against its speed capability; overheating or instability must be avoided.
Contact Angle (α): Estimate the contact angle, usually 30° or 40°, to assess its impact on the axial load capacity. A higher angle would support the axial load but reduce the speed capacity.
Material and Lubrication Compatibility: Confirm the compatibility of materials with operating conditions like very high temperatures and corrosive or lubricant-laden environments. Depending on the application, bearings may be made of steel, ceramic, or hybrid materials.
Degree of Misalignment Accommodation: Make allowance for operational misalignment and select bearings with suitable flexibility with nonfunctional complications.
A conclusion is that after considering these issues and the corresponding peculiarities of individual applications, one will optimally choose the double row angular contact ball bearing you need.
Choosing the Appropriate Seal Type
Choosing the right seal type for your double-row angular contact ball bearing is crucial to achieving the desired performance and prolonging the bearing life. Below are the main parameters and their related technical parameters to assist your decision:
Operating Environment: Determine whether dust, moisture, or chemicals will be an issue for the application. Consider contact seals, such as rubber or PTFE, for harsh environments that provide high protection. Noncontact seals, such as low friction shields, may be adequate in cleaner environments.
Temperature Range: Determine the system’s operating temperature. Contact seals perform moderately well, whereas non-contact designs and high-temperature seal materials, such as fluorocarbon rubber, work better with high-temperature applications (up to 230°F and above).
Speed Requirements: Determine the required rotational speed of the bearing. Non-contact seals are more suited for higher-speed applications, while contact seals can cause a reduction in the maximum speed due to drag. Check with the manufacturer of the bearing the speed limits (e.g., 6000 RPM for non-contact shields vs. 3000 RPM for contact seals).
Lubrication Retention: The seal design must allow re-tensioned lubrication without leakage or contamination if the application needs grease or oil lubrication. Contact seals are perfect for retaining lubricants, which improves bearing reliability.
Maintenance Considerations: Assess whether your system permits seal replacement or both replacement and maintenance. Integrated rubber seals are permanent seals that reduce maintenance, but their selection requires precise matching to operational specifications.
By studying these algorithms along with your application needs, you can choose the seal that balances your bearing system’s cost, performance, lifespan, and efficiency.
Considering Load Ratings and Operating Conditions
Considering the load ratings and operating conditions, I would first analyze the load requirements of my application: static and dynamic. This is pertinent because the type and amount of load directly affect the bearing’s ability to perform. For instance, greater loads may necessitate a bearing with a higher dynamic load rating to prevent it from deforming or failing prematurely.
Secondly, I would consider how fast my system operates. Bearings, in this case, need to be time-bound to prevent overheating or undue wear and tear that may impair functionality. For non-contact sealing applications, friction reduction may be more advantageous for high-speed applications.
Another critical parameter is the temperature. Extreme cold or high heat requires a particular class of bearings with appropriate materials and lubricants that will not degrade due to thermal conditions. Inappropriate selection might cause lubricant failure or fatigue on the material.
Lastly, contaminants or moisture is another range of criteria to consider. Should this exposure be sufficient, I would prioritize suitable sealing mechanisms to eliminate contamination while allowing the smooth functioning of parts. Such contact seals may work well, but they slightly increase the friction.
Reconciliation these factors—the type of load (static or dynamic), speed of operation, range of temperature, and the scope of the environment—with relevant technical parameters allows me to make an informed decision that maximizes reliability and efficiency for my particular system.
What Maintenance and Care is Required for Optimal Performance?
Proper Lubrication Techniques
In assessing lubrication methods, I would analyze the type of bearing and operating conditions first because that defines whether grease, oil, or solid lubrication is selected. For example, grease is appropriate for low-maintenance applications that operate at moderate speeds, while oil is better suited for high-speed applications because of its capability to reduce friction and heat buildup in the system.
Additional considerations include ensuring that the correct quantity of lubricant is applied, as insufficient amounts would cause excessive wear, while too much would generate heat and inefficiencies. Moreover, the degree to which re-lubrication is carried out has to correspond to operating parameters, including speed, load, and temperature. Most bearings with high loads or continuous, high-speed operations will need frequent re-lubrication intervals if performance is to be sustained.
Lubrication affects technical parameters like the friction coefficient, operating temperature, load capacity, and even service life. The reasons for these parameters are obvious — proper lubrication reduces friction, supports thermal management, improves the load-distribution characteristics, and minimizes the deterioration rate of the bearing assembly. If these principles are followed, I can achieve the system’s performance and intended reliability.
Monitoring and Preventing Bearing Wear
To monitor and prevent premature bearing wear, I would prioritize inspection and condition monitoring methods, like vibration analysis, temperature measurement, and noise evaluation, as they indicate problems early. Excessive vibrations or noise indicate some loss of alignment or contamination due to debris. If this problem is not addressed, it could result in issues with the friction coefficient and operational temperature, which should be optimal for seamless operation.
Furthermore, avoiding contamination during the installation and operational stages is vital. Contaminants can lead to increased friction, elevated thermal loads, and enhanced wearing rates, directly affecting bearing load capacity and reducing service life. Adopting aggressive cleaning protocols and utilizing protective sealing shields can help combat these problems.
Finally, care must be taken to achieve alignment and balance during bearing assembly. Misalignment tends to result in improper load distribution, increasing localized stress on the bearing surfaces. This has detrimental effects on the bearing load capacity and overall service life. Good maintenance and attention to these preventive measures allow for bearings’ reliable and efficient performance.
Best Practices for Installation and Replacement
Throughout my career, I have learned certain practices that guarantee the best performance of bearings and protection from potential issues. Before installation, I always ensure that the bearing and window area is clean and free from obstructing objects. This implicitly eliminates scenarios that lead to an increase in friction, thermal loads, and wear. Contaminants, if present, would lead to changes in the friction coefficient and operating temperature, which is detrimental to seamless operation and productivity.
Also, I ensure that the assembly is well-aligned and adequately balanced. Misalignment leads to oblique load distribution, which causes undue stress to some bearing surface areas. This leads to poor load capacity and may result in short service life. Special tools, techniques, and instruments that align with the integrative approach are employed to resolve these issues.
Lastly, adhering to torque specifications brings the same issues about not meeting the set parameters when adjusting fasteners. Either too much or too little clamping pressure impacts the performance of a bearing by driving rolling resistance and wear down to the changeable patterns. Following the guidelines, torque provided by the manufacturer removes the roadblocks and maintains the desired working parameters, such as optimum load distribution and the ability to manage temperature.
Implementing these best practices and considering the underlying technicalities allows me to carry out dependable, productive work and simultaneously prolong the operational lifespan of the machinery.
Frequently Asked Questions (FAQs)
Q: What are the main benefits of using a double-row angular contact ball bearing in engineering applications?
A: Double-row ball bearings are the best option in engineering procedures where heavy loads are used because of their radial and axial capability and excellent productivity and accuracy. These bearings are precisely fabricated to ensure great reliability at elevated speeds. Axial loads may be sustained in both directions, thus allowing generalized application within industry sectors. They can also withstand large amounts of force due to their excellent steady-state speed capability. These properties make them very useful for workpiece spindle bearings and others requiring high precision.
Q: How does the design of a double-row ball bearing contribute to its performance?
A: The construction of a double-row ball bearing consists of two sets of balls placed between two raceways (inner and outer). This means the bearings are more stable and capable of balancing loads than single-method ones. The measurement of this angle, for which the bearing is made, is the whole ball to raceway combination, which gives an imparted load through the bearing. This makes such a bearing ideal for operations anticipating large amounts of radial and axial force, which is meant to be done accurately and with heavy machinery.
Q: What factors should be considered when selecting a brand of double-row angular contact ball bearings?
A: The factors associated with selecting double-row angular contact ball bearing brands include the manufacturer’s accuracy and quality reputation, the size and specifications catalog, and the bearing’s load and speed ratings. In addition, it is essential to note that brands with high-precision bearings made of chrome steel or ceramic are beneficial. Well-known brands such as GMN Bearing USA and others who are sought after for industrial bearings are also reputable. Customer care support and technical assistance from the suppliers are equally important.
Q: How do double-row angular contact ball bearings enhance the operation of machinery?
A: The stability and accuracy of the double-row angular contact ball bearings greatly enhance their operation. Their capacity to support axial and radial loads reduces vibration and increases the accuracy of rotating motion. Moreover, these bearings are very efficient and have high torque capability, improving machinery performance. Their ability to bear loads parallel and perpendicular relieves shaft alignment difficulties, making them very useful in machine tool spindles and industrial robot applications.
Q: What are some typical applications for double-row angular contact ball bearings?
A: For instance, double-row angular contact ball bearings are crucial components of precision instruments and Aerospace equipment, as well as in the machining and industrial sector, like spindles in machine tools and gearboxes in industrial equipment. They are also found in hi-tech machines, robotics, and the automotive industry. As the name suggests, these bearings are best for ensuring accuracy, stability, and handling combined loads. Their versatility makes them popular in manufacturing processes backed by reliability and precision.
Q: How does the contact angle affect the performance of a double-row angular contact ball bearing?
A: As in most mechanisms, there are simple rules which can be followed, however the requirements of the specific design are manipulated. In this case the contact angle is what needs to be manipulated in the double row angular contact ball bearing, since it houses two rows of balls the contact angle has a significant effect on productivity. If the angle is too large, the bearing becomes too weak radially to stay sound, while if it is smaller, better radial bearing capacity will come, but with a negative effect on axial bearing capacity. In addition, the angle of contact influences the speed of the work and the amount of heat produced in the process. It is one of the engineers’ tasks to evaluate the various pieces required in their specification and choose the axis angle, which, as far as I can comprehend, is thus best ensuring that the presented needs are supported.
Q: What are the maintenance requirements of double-row angular contact ball bearings?
A: The maintenance of double-row angular contact ball bearings involves proper lubrication, bearing periodic lubrication intervals, selecting an appropriate bearing, ensuring that the chosen lubricant fits the operating environment, and the bearing speed is also crucial. The bearing should be inspected periodically to detect contamination, wear, and misalignment. In some applications which require high precision, monitoring vibration and temperature is helpful. Proper storage and handling and adherence to the manufacturer’s installation guidelines are other essential aspects of maintenance.
