ZKLN angular contact ball bearings are critical in industrial and mechanical settings thanks to their excellent features, high durability, and range of applications. With accuracy and high operational efficiency, these bearings can sustain axial loads in both directions, making them suitable for various functions. ZKLN bearings are industry-proven to give great support and perform exceptionally well under harsh environments, whether in machine tools, robotics, or any other precision-focused industry. The following content exposes the fundamentals, benefits, and practical uses of ZKLN angular contact ball bearings, enabling you to improve project design and functionality. Better load capacity and effortless integration are just some reasons ZKLN bearings have been adopted as a go-to solution in many industries.

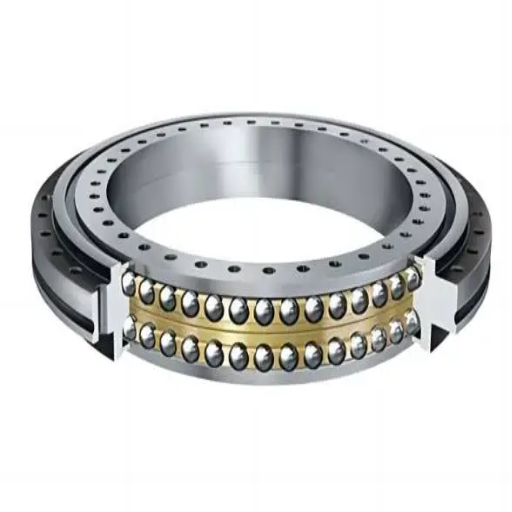

What Makes ZKLN Angular Contact Ball Bearings a Preferred Product?
Understanding the Axial Angular Contact Ball Design
In my opinion, the most remarkable ZKLN bearing feature is the axial angular contact ball’s ability to manage the axial and radial loads simultaneously. This dual-load capability is made possible by the comprehensive angular alignment of the contact areas, which ensures the best performance under extreme conditions.
The contact angle is crucial among the technical parameters because it influences load distribution. The average contact angle for these bearings is between 15° and 40°, which is optimal for the simultaneous use of axial and radial stiffness. In addition, ZKLN bearings are supplied with raceway geometry that reduces friction, increasing operational speed and durability. The high-grade bearing steel materials also improve wear resistance and thermal stability.
These designs guarantee the performance reliability of the ZKLN series, making them ideal for highly precise, compact, and durable applications.
Key Industrial Applications and Uses
The ZKLN series thrust angular contact ball bearings are advantageous in various industries due to their accuracy, size, and reliability. I suggest these bearings for use in CNC machines, robotics, and medical devices because they can manage heavy axial loads while maintaining high precision and low vibration.
For example, in CNC machines, the ZKLN bearings guarantee defined placement, which influences machining accuracy, further enabled by specially designed raceway shape and frictionless characteristics. Robotics need compact design and smooth movement, ideally provided by the ZKLN series because of their radial and axial stiffness. Medical imaging machines use high-grade bearing steel to ensure low noise, high thermal stability, and long-lasting strength.
Looking at the technical details, the high efficiency of these devices, including their load capacity, speed, and resistance to wear and tear, explains why they can be used in these industries. All these parameters complement the operational requirements of these industries.
Advantages of Double Direction Bearings
Double-directional bearings are advantageous in managing axial loads in both directions. They take high loads in a compact structure with great rotational accuracy. Due to the size and weight concerns in the design of most machinery, this type of bearing ensures optimal space utilization.
High Rotational Axial Load—In demanding operations, simultaneous rotation in both directions can provide assistance with high stability.
Precise Rotational Movement—The shape and movement characteristics, which tend towards tight tolerances, accommodate smooth and super-accurate rotations. This is critical in applications such as machine tools and precision units.
Extended Service Life—This bearing type is extremely popular because it offers exceptionally high wear resistance and durability caused by plastic deformation and continuous demanding stress.
Operational Simplicity – With high-bearing steel, the effects that exceeding wear causes under high temperatures become manageable without operational interference.
Space Efficiency – Their Adjusted Efficient Design enables the bearings to fit into detailed and complex structures easily.
With a combination of features that justify their superiority, it’s no wonder they’re so commonly used in automotive, aerospace, and heavy, bulky machinery industries.
Why Choose INA ZKLN for Your Needs?
Overview of Brand Reputation and Reliability
INA ZKLN bearings are well known for their exceptional quality and reliable performance across various applications. They are produced by Schaeffler, a leader in precision engineering, and are renowned for their quality control measures, innovative technology, and extensive technical know-how. INA ZKLN bearings are built to perform in harsh operational conditions; hence, they are highly functional and resilient.
The superior reliability of these bearings results from their robust specifications, which include high axial and radial load capacity, alignment tolerances, and sealed mechanisms for optimum protection against contamination. For instance, ZKLN bearings have a contact angle of 60 degrees, which provides the bearings with superior axial rigidity. These bearings operate efficiently at –30 degrees F – +300 degrees F (-34 degrees C – +150 degrees C), preparing them for high-temperature applications in industrial and aerospace settings. These features reflect Schaeffler’s INA ZKLN bearing’s focus on innovation and the use of strong materials, giving trust in the INA ZKLN bearings for critical systems.
Exploring the Details and Specifications
An angular contact ball bearing, including the INA ZKLN series, is ideal for handling axial and radial loads. These bearings possess a series strength, which translates to their ability to withstand axial loads because of the increased contact angle, which typically stands at 60° for this series. In simple words, these angular contact ball bearings are ideal for high-rigidity and accuracy applications.
Contact Angle: 60° – High-performance stability is achieved under high axial loads owing to enhanced performance providing rigidity.
Operating Temperature Range: -30°F to +300°F (-34°C to +150°C). This range encompasses even the most demanding environments, including, but not limited to, high-temperature industrial and aerospace operations.
Material: High-grade steel – Reliability during heavy wear and tear under constant operation.
Lubrication: It is pre-lubricated with long-life grease, which reduces maintenance and ensures smooth operation during busy lifestyles without compromising performance.
Load Capacity: High axial and moderate radial load support – System integration for accurate positioning and dependable load management.
Each of these technical parameters indicates the robust construction and innovative designs of the INA ZKLN Series. These serve all high-performance demands alongside machines where utmost precision and dependability are needed, such as robotics, other advanced machinery, and machine tool spindles.
Customer Feedback and Satisfaction
The INA ZKLN series has consistently gotten excellent ratings and reviews because of its reliability and high-performance capabilities. These are the most highlighted comments provided by the users:
Reliability and Longevity: Users state that due to the advanced engineering and high-grade materials utilized to create the bearings, they inflict less damage and have an increased service life.
Operational Efficiency: The smooth operating capability reduces the vibration and the downtime in demanding applications.
Construction Productivity: Customers state that capturing the axial load with the circumferential radial notches (for example, the high axial forces in machine tool spindles) is performed at the level that meets the expectations for heavy-duty tasks.
Multi-Purpose Function: The ZKLN series bearings are said to be compatible with numerous applications, ranging from robotics to CNC machines, which is a big plus.
This information highlights the series’ ability to pay attention to crucial operational requirements, which is made possible by the device’s strong design and modern technical parameters. This has led to a positive perception of its usefulness in many industries.

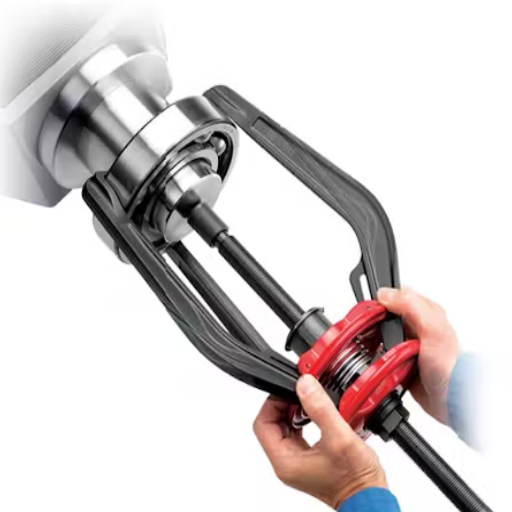

How to Ensure Proper Installation of ZKLN Bearings?
Guidelines for Precision and Accuracy
To guarantee and confirm the setting of ZKLN bearings is done with exactness and precision, I observe these detailed procedures:
Complete and Thorough Cleansing of All Components: I ensure that the shaft, housing, and all other components are thoroughly washed and cleaned before installation to mitigate any chances of contamination. Clean components ensure correct fitting, decreasing the possibility of misalignment while increasing the life span of the bearing. Contamination can drastically influence the bearing’s preload and smooth operation, which are critical for performance.
Correct Measurement of All Dimensions: The shaft and housing dimensions should agree with the tolerances set by the manufacturer since I always confirm the correct gauges when measuring the shaft and housing. Correct dimensioning guarantees the most optimal fit and allows the bearings to move in the axial and radial directions with precision and support.
Controlled Preload Application: The correct amount of longitude must be applied; this is an essential part that should never be overlooked. Too much or too little latitude impacts the rigidity of the bearing and the accuracy of the rotation. With torque wrenches or other specialized tools, I ensure that these recommended values are achieved to attain the abstracted performance value without any chance of failure due to wear.
Slow and Uniform Installation: The recommended procedure for installing the bolt is to apply an even amount of pressure using the right tools so that no external forces result in misalignment or deformation. This procedure goes a long way in preserving the axial uniformity of the bearing, which is always known to be closely related to its load-handling ability.
Lubrication: I use the recommended ZKLN bearings lubricant, applying it cautiously to reduce friction and heat production. Lubrication is vital for proper functioning, helps avoid overheating problems, and protects the bearing from long-term damage when used under high-speed conditions.
Each of the steps mentioned also complies with the technical details of ZKLN bearings, which include, but are not limited to, preload settings, axle force capabilities, and precision levels to ensure reliable and efficient results when used in challenging conditions.
Tips for Handling Radial and Axial Loads
Regarding axial and radial forces, I make sure to observe the following pointers so that I achieve operational efficiency while adhering to technical requirements:
Balancing Load Distribution: I ensure that A and R loads are evenly distributed across the bearing. A favorable but uneven distribution might damage the device due to misalignment. Proper distribution will balance and preserve the rolling parts.
Preload Adjustment: The proposed settings are roughly adjusted to meet the factory’s prescription. The preload levels must be correct enough to handle the combined A and R thrust forces without putting too much pressure on the bearing.
Speed and Load Ratings: I never exceed the approved limit for the speed and load the bearing can take. Otherwise, equipment will overheat, and raceway parts will be junked.
Lubrication Consistency: In restraining excess friction in combined loads, I ensure that the lubricant placed will try to manage radial and axial stresses for added effectiveness. It will also serve as a cooling mechanism along with heat and reduce beating.
From these aspects, I have been successful in constraining the stresses placed by loads and responding to the bearing’s specific technical standards while ensuring long-term reliability, maintenance, and efficiency for radial and axial forces.

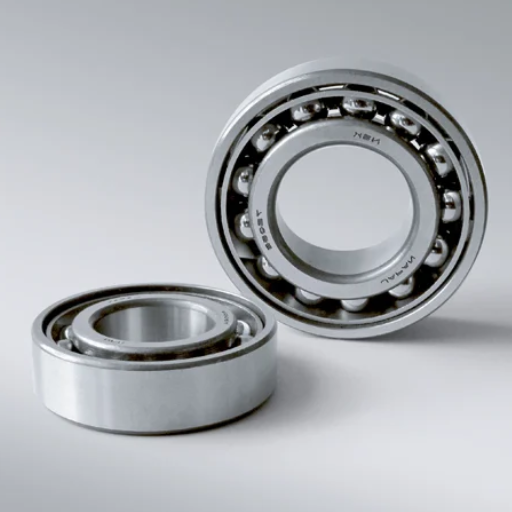

Where to Buy ZKLN Angular Contact Ball Bearings?
Finding Available Options Online
The ZKLN Angular Contact Ball Bearings are available online. Look out for trusted suppliers matching technical specifications to your application needs. Always start by searching for manufacturers or distributors with good reviews and products they have certified. Motion Industries, Misumi, and SKF’s official distributor network are good options to check out first. Ensure that the chosen bearing meets the necessary parameters for your use case, such as:
Bore Diameter (d): Ensure the bore fits your shaft size. Standard sizes most often range from 12mm to 30 mm, depending on your bearing’s model.
Outer Diameter (D): Check the outer diameter and ensure it fits within your application’s housing dimensions.
Width (B): Ensure the bearing’s width is thick enough to provide stability but slim enough to fit in your installation space.
Load Ratings (C & Co): Ensure the dynamic (C) and static (Co) loaded rating ranges given in catalogs can sustain both axial and radial forces without deformation or failure.
Speed Rating (n): When choosing a bearing, ensure its speed rating matches your machine’s operating requirements. This will improve its performance.
Lubrication Requirements: Check the bearing’s trait, which demands either grease or oil lubrication, and follow the guidelines for proper lubrication intervals.
Based on these criteria, the online databases will allow you to optimally choose the ZKLN Angular Contact Ball Bearing necessary for the project in question while guaranteeing maximum quality and longevity.
Choosing the Right Supplier and Service
Supplier reputation and technical support for ZKLN Angular Contact Ball Bearings’ range of products were carefully considered regarding long-term reliability. The key points are listed below:
Supplier Certification: Check if the supplier possesses requisite certifications such as ISO/TS 16949 or ISO 9001 to indicate compliance with the quality standards. Look into customer testimonials and reviews for reputation and reliability.
Availability: Ensure the bearings you require are available and inquire about delivery lead times. Projects will be forever delayed if suppliers lack proper stock management, so do everything possible to avoid this.
Custom Solutions: Suppliers who appreciate more fantastic details of comprehensive technical support need to be located, are proactive in some applications, and recommend supporting the specific Java use case. But are they willing to go the extra mile and modify dimensions, tolerances, or materials?
Pricing: Different suppliers typically have different tolerances and measures, and load ratings are set out to determine pricing. Confirm that all criteria reflect a good balance in their pricing.
Supplier warranty policy serves as a cost w(problems mitigate allotment) to confirm the supplier can advise on accidents happening through the actual–mentioned- problems.
Considering these considerations with potential suppliers, you can assess whether their technical parameters suit your project. This will help you make decisions that save the organization time and money.

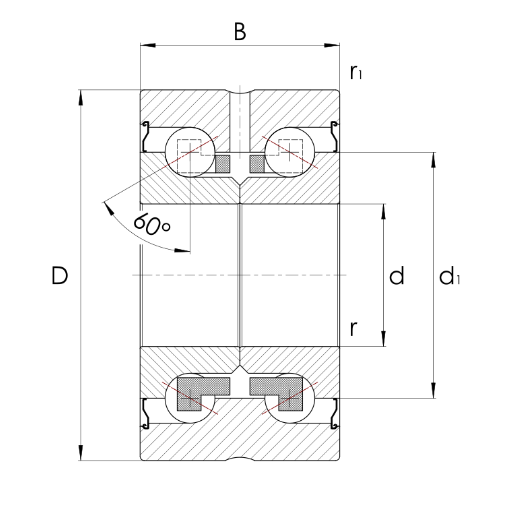

What Are the Common Challenges and Solutions?
Addressing Load Capacity Issues
Incompatibility regarding load capacity frequently occurs when a chosen part or a tool cannot meet set requirements, which might lead to system breakdowns or underperformance. To mitigate these issues successfully, consider the following steps:
Comprehend Operational Essential: Identify the maximum load your application will put on your component. This comprises static load, dynamic loads, and impact forces.
Select Components With Verified Ratings: Select components whose load capacity has been verified by the manufacturer or third parties. The rating should exceed your maximum operational requirements (10%- 20% safe margin).
Determine Material Strength: Make sure your component’s material composition can withstand stress over a prolonged period of use without deforming or failing. High-grade steel or composite alloys are usually well-suited for heavy-duty applications.
Consider Environmental Aspects: Controversially, components do not alone exhibit load-sustaining capacity. They are significantly impacted by external factors such as temperature, humidity, or the buildup of corrosive elements. Make sure materials or coatings that can withstand these conditions are chosen.
Evaluate and Test: Validate the performance of the selected components by conducting tests or simulations and anticipating the maximum load conditions. Modify your design if there are discrepancies.
A proper review of these technical parameters and their correlation to your application should help deal with load capacity problems and guarantee the longevity and effectiveness of your project.
Managing Seal Integrity and Maintenance
You can achieve maximum efficiency in preserving the seal maintenance guidelines by systematically paying attention to the following factors that matter the most:
Material Selection: Identify temperatures, chemicals, and abrasives that specific seals should tolerate. For instance, elastomers like Viton and EPDM are suitable as they are high-temperature and chemical tolerant.
Operating Conditions: Check pressure, temperature, and type of fluid. Ensure the seals are within their maximum operating temperature range, such as – 20°F for more advanced synthetic materials and the required pressure levels.
Installation Procedures: Disable the installation guide at any point to avoid misalignment, multifarious tightening, and excessive load, which can lead to premature seal failure.
Regular Inspections: Schedule regular intervals and set inspections to control overheating, cracking, and deformity. Finding issues early on can save the system from breathing leaks or contamination.
Lubrication Management: To keep the seal elastically restored and in proper shape, use the needed lubricants and reduce friction—pair seal material with lubricant to evade chemical degradation.
Environmental Protection: Implement suitable housings or coatings to seal the components from moisture, dust, and UV rays.
Considering these factors ensures that the relevant technical prerequisites are met, enhancing the seal’s performance, preventing failures, and assuring long-term operational stability.
Dealing with Tolerance and Fit Adjustments
Tolerances and fits require a lot of consideration to ensure a proper seal and avoid any interruptions to the operation. Below are brief recommendations with the most essential pointers:
Dimensional Compatibility: Check that the dimensions of the housing seal correspond appropriately with those of the shaft. Check tolerances for inner and outer diameters and thickness using basic standard measurements, such as the ISO 286 limit and fit system.
Interference Fit: Secure placement should be achieved without excessive force, which may undermine the interference fit. For elastomeric seals, a radial squeeze of approximately 10%-15% can be set to compromise firmness and flexibility.
Operating Temperature Range: A decrease or increase in temperature and materials expansion or contraction must be factored in since it will change tolerances. Most standard elastomers should be reliably functional within the -40F to 250F range.
Surface Finish: The degree of roughness needs to be checked to ensure no excess wear or loosening of the seal, which will damage the product. Most dynamic sealing applications generally recommend a range between Ra 0.2 and 0.8 µm.
Concentricity and Alignment: Measuring both concentricity and shaft runout avoids excessive strain on the seal. An indicated runout (TIR) of 0.05 mm or less must be ensured to achieve optimal performance.
Compression Set Resistance: To retain sealing force over time under high pressure, choose materials with compression set properties not exceeding 25%.
By adequately evaluating these parameters, fit and tolerance modifications can improve durability, lower maintenance expenses, and mitigate process interruptions.
Frequently Asked Questions (FAQs)
Q: What are the main advantages of ZKLN angular contact ball bearings?
A: ZKLN bearings are designed to stand out due to their high axial load capabilities. They also allow for precise positioning and can accommodate axial and radial forces. These bearings can also withstand extremely high rotational speeds, which makes them easier to set up on adjacent constructions, such as screw drives and other precision mechanisms.
Q: How do ZKLN bearings compare to other angular contact ball-bearing series?
A: ZKLN bearings have a characteristic of the axial angular contact ball bearing set that provides various benefits. They tend to have a higher load rating than single-row angular contact or double-row contra bearings, and they can withstand greater axial forces. Another distinguishing feature for ZKLN bearings compared to other series is that they have easily mounted rings, which is not often found in different series.
Q: Can ZKLN bearings be used in double or triple-row configurations?
A: Although ZKLN bearings are designed as single-row bearings, they can also be arranged in double—or triple-row setups in applications that require higher ZKLN bearing loads. It is crucial to understand that increasing the bearings will impact the overall bearing arrangement and system design.
Q: What is the ‘da’ parameter in ZKLN bearings, and why is it so important?
A: The ‘da’ parameter in ZKLN bearings indicates the measurement of the outer diameter of the bearing’s inner ring. This dimension is critical from the perspective of fitting and alignment within the housing bore. Selecting the correct ZKLN bearing greatly depends on understanding the ‘da’ value.
Q: Can ZKLN bearings be utilized in exact areas?
A: If high precision is required, ZKLN bearings can be utilized. These bearings allow accurate shaft positioning with only minimal axial play. Other bearings may also be used depending on the system’s needs for less precise requirements.
Q: What are the differences between the mounting process of ZKLN bearings and other types?
A: ZKLN bearings are to be mounted by screws onto an adjacent construction. This feature removes the housing requirement, simplifying the mounting and lessening the total amount of components needed. Because the outer ring has holes, it can be easily and securely fastened to the machine structure.
Q: What should I consider when purchasing ZKLN bearings from the web?
A: When buying ZKLN bearings from the web, consider the following: ensure the model number is correct, measure the dimensions (particularly the ‘da’ value), evaluate the load ratings, and look at the delivery options. Then, select the bearing that corresponds to the application’s speed, load, and environmental conditions.
Q: In a few words, what is the construction of the basic ZKLN bearing?
A: ZKLN bearings usually have an inner ring, an outer ring with mounting holes, a cage, and a set of balls. The outer ring is positioned to be mounted directly onto the adjoining structure. These types of bearings are made for high axial loads and moderate radial loads, which makes them suitable for applications such as screw drives together with other precise movement devices.
