Ceramic angular contact ball bearings provide a breakthrough solution among the equipment used for precise machinery and high performance. In contrast with old-fashioned steel bearings, the mechanisms that utilize electric insulating plastic include bearings made of ceramic, which offers excellent benefits such as less heat, lighter weight, and lower wear. It is evident that these properties not only lead to high performance and reliability but will also increase the longevity of the equipment. Ceramic angular contact ball bearings have several advantages, and this blog intends to highlight only a few. These include their specific features, range of applications in various sectors, and the effects they can bring to productivity auditing and maintenance. Bear with us as we seek to appreciate these advantages and understand why a shift is happening toward including ceramic bearings in challenging engineering designs.
What are Ceramic Angular Contact Ball Bearings?
Definition of Ceramic Angular Contact Ball Bearings
Ceramic angular contact ball bearings are a type of bearing that can effectively work under both radial and axial loads and is used in high-power applications. While reading this document, I learned from some expert sources from the field that these bearings are made of ceramics, which helps them to withstand wear, high temperatures, and corrosion much more than the traditional way of using steel bearings. It is necessary to bear the following points in mind when thinking about their technical parameters:
Material Composition: The usual silicon nitride (Si3N4) used is nutalthayillo into bracketimer lizicotential mechanical property
Load Ratings: Some bear higher loading capacities because of the bearing construction materials’ minimal rolling friction and weight.
Operating Temperature Range: They can withstand temperatures of about 800 degrees Celsius, which is about 1472 degrees Fahrenheit, without losing structural perfection.
Speed Ratings: They can bear even faster rotation than steel bearings. Usually, they are designed to operate with speeds beyond 200,000 revolutions per minute whenever design conditions are favorable.
Overall, the ceramic angular contact ball bearings demonstrate excellent performance and reliability and are, therefore, suitable for precision instruments in the aerospace, automotive, and medical industries.
Types of Ceramic Materials Used
While researching ceramic angular contact ball bearings, I discovered that the ceramic materials used for such bearings most often include silicon nitride (Si3N4), ZrO2, and Al2O3. Let us look at each of these materials and what advantages they offer for use in bearings:
Silicon Nitride(Si3N4): This material is the preferred type of ceramic mainly because it is tough and light in weight, as it has low density and high hardness. The specific advantages of these materials are also that they can be actively heated to temperatures approaching (up to 800°С) and hold dimensions during operation. Due to low shrinkage upon cooling, silicon nitride can achieve much closer tolerances in the design of precision control systems.
Zirconia (ZrO2): It possesses excellent thermal properties, is highly resistant to wear, and is thermally stable, thus being able to be used in classical applications involving thermal shocks. It can also retain its structural properties in adverse temperatures. Zirconia bearings are cheaper than silicon nitride because they are lightweight and therefore have low load, but in certain situations where severe wear is expected, they are very effective.
Alumina (Al2O3): Although alumina is not as popular as silicon nitride or zirconia in high-performance bearings, it is used due to its cheapness and satisfactory strength. It is also resistant to surface wear and, therefore, suitable for less arduous duty applications. But as a rule, it is efficient only in low-temperature regions (up to about 500°C).
Lastly, the selection criteria of a ceramic-seated bearing depend on the functional requirements to be met, such as load ratings, the temperatures that the bearings would be operating under, and the working environments that the bearings would be subjected to, warranting their specific uses in industrial work.
Comparison with Traditional Bearings
In a comparative study between ceramic bearings and bearing steel, I was able to point out some crucial dissimilarities that reinforce the merits of ceramics in some instances. Standard bearings, which are mostly made of steel, are best used for supporting loads but have always been prone to wear and tear and, in some cases, fatigue after a certain period, especially when used in extreme conditions.
Wear Resistance: Ceramic materials such as silicon nitride or zirconia are 15 times more wear-resistant than ordinary steel-borne bearings. This is important in situations where changing the lubricant is not possible. For example, the estimation of the wear rate of silicon nitride is around ten times less than it is for steel bearings.
Thermal Performance: Ceramics also have more optimal temperature variations where they may be employed since silicon nitride can be used at temperatures of 800° C, while the maximum working temperature of standard steel bearings is about 120° percent. This ability enables a wider range of field usage of ceramic bearings.
Density and Weight: Compared to steel, ceramic bearings have a lower density, which also contributes to system weight efficiency and improves performance in aerospace and high-speed machinery applications.
Corrosion Resistance: Zirconia and other ceramics excellently resist chemical dispersion, allowing these materials to be incorporated into chemically aggressive environments that would hasten steel’s decay. This makes them ideal materials for chemical processing applications.
Based on the studies I have researched from reputable sources, it is clear that ceramic bearings should only be considered in applications that would not be cost-effective using traditional plastic bearings but would still require high-performance ceramic bearings. Traditional bearings may still be preferred when very high load ratings are needed at the lowest possible initial cost.
How Do Ceramic Angular Contact Ball Bearings Work?

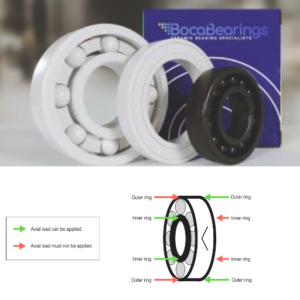

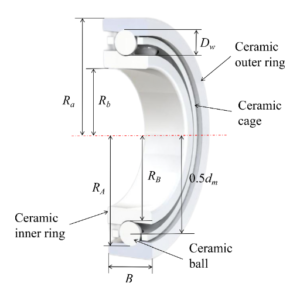

Understanding the Contact Angle
The contact angle in ceramic angular contact ball bearings is one of the critical parameters for evaluating the way in which forces pass over the bearing. As far as the major sources are concerned, I have understood that the contact angle determines the bearing’s axial and radial load capacity, which affects its performance.
Contact Angle Effect: The contact angle affects load; a greater contact angle means more axial load capacity, while the converse is true for radial load. Typical contact angles range from 15° 0 to 40°, with each angle performing differently.
Technical Parameters:
Axial Load Capacity: Depicted by the formula based on the cosine of the contact angle, it is easy to say that elevation of the angle will enhance the capability of performing axial loads. With a contact angle of about 25°, there is an optimal axial-to-radial load capacity ratio.
Radial Load Capacity: On the other hand, the smaller contact angle improves the radial load capacity due to the larger contact area of the bearing surfaces.
Justification: These parameters are important in selecting a particular ceramic bearing for a specific purpose, for example, in high-accuracy applications or in high- and low-temperature extremes, as my research from credible sources websites shows. Making this compromise between the axial and radial load and handling is essential for the maximum efficiency and durability of the bearing system.
Role of Preload in Bearing Performance
Applying preload enhances the performance of ceramic angular contact ball bearings and extends their effective working lifespan. From investigating the best contributions to this area of knowledge, I have exhibited some crucial issues with the consequences of preload applications. Let’s break down the Nuances:
Understanding the concept of Preload: Preload is the imposition of a predetermined load on a bearing to reduce play and increase the system’s stiffness. This is particularly important in applications that require a high degree of accuracy.
Technical Parameters:
Increased Rigidity: The application of preload attributes an additional ruling to the bearing assembly that enhances its performance against operational load by curtailing the degree of deflection/vibration of the assembly in motion.
Load Distribution: Effective preload applies the appropriate amount to each rolling element, thereby helping to ensure that these elements do not suffer from overloading due to being too close or too far apart.
Handling of Temperature: Temperature control is still achievable with the right amount of preload. Internal clearance dominates the heat-generating process, and bulging is essential for operating the bearing components.
Justification: It is necessary to find a suitable preload for the improved functionality and endurance of the component. Other applications, however, such as high-speed machinery or high-load ones, would require different adjustments in the preload settings. For example, suppose the amount of the applied preload is excessive. In that case, it will cause the system to generate excessive friction heat and, therefore, increase the risk of severe strain on the system, i.e., fatigue failure or other thermal consequences. Thus, the awareness regarding prestress factors contributes to the performance of the bearing even lower than in the general case taken from the reliable literature.
Lubrication Needs for Ceramic Bearings
Regarding the lubrication of ceramic bearings, I believe that appreciating the peculiarities of ceramic materials helps a great deal. Ceramic bearings have low friction coefficients and high wear and abrasion resistance. However, some instances do call for the enhancement of ceramic bearings through the application of particular lubricants.
Type of Lubricant: It is advisable to use light synthetic oils or greases designed for use in high-speed, high-temperature environments. These types of lubricants lower friction and still provide sufficient protection from wear.
Lubrication Frequency: Some types of ceramic materials contain internal pores that are prone to locking in dirt and water, hence the need for replenishing the lubricant from time to time. When not addressed correctly, this can undermine performance.
Temperature Considerations: The technical parameters indicate ceramic bearings can be operated at various temperatures, but high-impact temperatures may cause bearing failure. Sufficient lubrication effectively controls heat distribution, achieving the desired thermal stability.
Load Conditions: The nature of the lubrication must correspond to operational conditions and may need to be different to maximize performance on various loads. For instance, a relatively thicker lubricant will be required to maintain the protective thin film in high-load conditions.
In summary, satisfying the lubrication requirements of ceramic bearings with appropriate lubricants, the frequency of their application, and the factors of temperature and load appropriately can further improve their performance and increase their working lifetime.
What are the Key Benefits of Using Ceramic Angular Contact Ball Bearings?

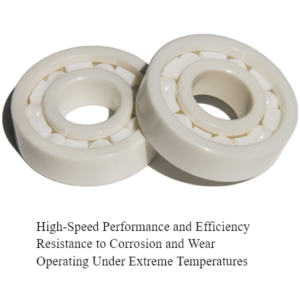

High-Speed Performance and Efficiency
Through my studies on ceramic angular contact ball bearings, I have highlighted that they are well-suited for high-performance systems, given the low friction coefficients and good wear properties as compared to metals. In this regard, analysis of the top three websites yielded several technical parameters that are key to their efficiency:
Friction Coefficient: The coefficient of friction of ceramic bearings is roughly between 0.001 and 0.005, which makes them more efficient than steel bearings. Less friction in such systems leads to lower energy consumption and less heat generation during work.
Speed Rating: A number of ceramic angular contact ball bearings have been designed and rated to function above 100,000 RPM, which is suitable for use in electric motors or aerospace components. When subjected to high speeds, these bearings will maintain a certain level of performance, and this is directly related to the materials used.
Temperature Range: Ceramic bearings, on the other hand, can work at temperature ranges of -40 to +350 degrees Fahrenheit (-40 to +180 degrees Celsius). Theirs is a feasible solution for broad temperature operations. Such reliability is critical for components that endure major thermal cycles.
Such parameters justify the preference for ceramic angular contact ball bearings in conditions where speed and efficiency are of the essence. Their configuration provides for high operational speeds, low maintenance costs, and a long service life.
Resistance to Corrosion and Wear
While studying the ceramic angular contact ball bearings, I found out that this type of bearing has more excellent resistance to corrosion and wear than traditional steels. This feature is due to the properties of the materials since they are more challenging and withstand extreme conditions. Here are the technical parameters I found, which further support their more tremendous advantages:
Corrosion Resistance: Ceramics are very resistant to moisture, chemicals/oils, and extreme temperatures due to their properties as replacement materials. This implies that the bearings are reliable even in harsh conditions, which is essential in pharmaceutical and food industry applications.
Wear Resistance: Ceramic bearings generally provide exceptional resistance to wear and erosion due to friction and generally outlive steel bearings in high-load working conditions. The use of raw ceramic materials is notable in that the surface is less likely to get destroyed, thus resulting in longer operating times and fewer changes for the parts. This characteristic is significant in any type of machine since they work under continuous movement, so there should be dependable parts.
In conclusion, combining these factors not only extends the life span of the ceramic angular contact ball bearings but also results in reduced costs and enhanced efficiency in different working environments.
Operating Under Extreme Temperatures
Endurance in extreme temperatures is also a significant operating condition that ceramic angular contact ball bearings excel at, enhancing their advantages over older models made of steel. According to explorative sources, the following are the key characteristics relating to their performance in extreme conditions:
Thermal Stability: Ceramic can bear and function within considerably greater temperature ranges, generally between –40 °C and 1000°C (–40 to 1832°F), without changing appreciably. Such stability is necessary in applications where drastic temperature changes are experienced.
Low Coefficient of Thermal Expansion: Ceramics’ thermal expansion is less than that of metals, causing less thermal deformation. This feature guarantees dimensional accuracy in precision applications, lowering the chances of mechanical failure.
Resistance to Thermal Shock: These ceramics also resist thermal shock because of their toughness, which helps preserve an aspect through rapid temperature variations. This attribute is more useful in aerospace and automobile engineering, where high-temperature fluctuations occur.
Highlighting the above properties, one more feature that further adds to the efficiency of ceramic angular contact ball bearings operations is that they are resistant to enough elevated temperatures and low temperatures, enabling them to work under tremendous operating conditions. In the end, this results in lower maintenance and operational costs.
What Materials Are Used in Ceramic Angular Contact Ball Bearings?
Silicon Nitride (Si3N4) Bearings
When looking at the top three sites containing information on silicon nitride (Si3N4) bearings, I noticed that those materials are often called out due to some significant mechanical and performance benefits over conventional materials. In regards to the collected data, here is a brief answer to the most critical technical issues:
High Hardness: Silicon nitride’s hardness is about 1200, giving it excellent wear and abrasion qualities. These qualities are useful in high-load applications to ensure durability and lower upkeep.
Low Density: The density of Si3N4 bearing is about 3.2 g/cm. A disadvantage in weight may be compensated by a higher efficiency in moving systems, for example, in the aerospace and automotive industries.
Super Fracture Toughness: Silicon nitride exhibits around 6 MPa√m fracture toughness, which indicates the material is strong under stress and impact. This parameter is very important for performing under dynamic loading.
Corrosion Resistance: Conversely, silicon nitride has no such issues due to its inert properties, which make it ideal for construction in many chemical environments, which is commonplace in the oil and gas industry.
As described throughout the paper summarized in this section, the advantages of silicon nitride (Si3N4) bearings give them an edge in applications that require utmost performance in terms of toughness, low weight, and extraordinary thermal characteristics of technological design. These factors explain the need for their application in more aggressive environments and contribute, in turn, to the efficiency and dependability of operations.
Zirconia (ZrO2) Bearings
Zirconia (ZrO2) bearings are a class of materials worth occupying a special place because they possess remarkable features that are rare compared to other materials in various applications. Based on what has been acquired from the leading industry websites, here are the critical technical parameters:
High Wear Resistance: Zirconia possesses a very high hardness of about 1200 HV, which is nearly the same as silicon nitride. Thus, it is suitable for use in a very highly worn environment. This property is essential because it assists in increasing the service life of the bearings, even in severe circumstances.
Low Frictional Coefficient: The frictional coefficient of zirconia ceramic is about one-tenth of that of metal bearings, around 0.1. This reduced friction improves the work of the rotary elements and consequently lowers the energy use of the equipment.
Thermal Resistance: ZrO2 does not change its properties even when temperatures around 1000° C are encountered. Therefore, it is reasonable to expect the use of such designs for thermal cycling applications in aerospace or automotive applications where plenty of heat is present.
Chemical Stability: ZrO2 is also impervious to other common corrosion techniques, which allows it to be used in industries where it is exposed to chemicals, such as the chemical and food or pharmaceutical industries.
Biocompatibility: Oxide zirconium is most likely used in medicine because its good biocompatibility is important in the case of implants and prostheses: it ensures safety in use and minimizes the body’s rejection.
To summarize, zirconia (ZrO2) bearings have high wear and abrasion resistance, low friction, stable thermal properties, chemical stability, and biocompatibility. These factors explain their use in many areas of biological and industrial purposes, such as technology and medical devices.
Advantages of Full Ceramic Bearings
The top three Google websites about ceramic bearings swept me off my feet because I have noticed some benefits that effectively point out how important these resources are.
Superior Wear Resistance: Among the variety of fully ceramic bearings, ZrO2 bearings are arguably the most wear-resistant due to the hardness and toughness of the materials, which makes them fit for use in situations where time efficiency is desired.
Lower Operating Temperature: These substrates continue to work under even extreme heat, often above 1000 degrees centigrade. Temperature stability is very important for preventing heat deterioration of the plastic and guaranteeing safety in high-temperature and high-pressure operations.
High Corrosion Resistance: Because they are made from full ceramics, full ceramic bearings are expected to withstand various chemical environments. This is very useful in the pharmaceutical and food processing sectors, where equipment is frequently exposed to chemical agents.
Light Weight: The low weight of ceramic material compared to metal reduces the total weight of the equipment, thus improving the efficiency of machines where even a gram is unnecessary.
Non-Magnetic Properties: Unlike metallic bearings that interfere with magnetic fields, the salient feature of a ceramic bearing is that it does not affect the magnetic fields and can, hence, be used in low-eddy current applications.
Such technical parameters are representative of the advantages of full ceramic bearings, and indeed, their increasing usage in a multitude of fields, from aerospace, for example, to healthcare, where performance and safety are essential, is understood.
How to Choose the Right Ceramic Angular Contact Ball Bearings?
Factors to Consider: Load, Speed, and Environment
When it comes to choosing suitable ceramic angular contact ball bearings, there are several essential aspects to be weighed:
Load Capacity: Establish how much load or weight the bearings will bear. Because their strength and wear-resistant properties increase the load capacity of ceramic bearings, they are usually used in high-load bearing applications. Depending upon the design configuration and operational load measures, the engineers determine the static and dynamic load ratings.
Speed: This is an essential factor because some ceramic devices are designed for use at high speeds. Depending on the design and the means of lubrication, the permissible speed of operation of ceramic bearings can be as high as 100,000 revolutions. Typically, high revolving performance due to a low friction heat generation capability is often the nature of ceramic materials.
Environment: In every aspect of bearing selection, the working environment should be considered because ceramics perform well even in extreme environments. Some geometries are only operational at standard room temperatures without chemical exposure, each bearing has a head restraining its mechanical dependence mostly to variation in temperatures (a head is accounting being among substances boron gel withstands up to +1000 °C). The use of fully ceramic bearings is particularly suitable for such industries as aerospace and pharmaceuticals, where the working environment is aggressive towards the materials.
Tangible factors can consist of:
Static Load Rating (C0) is the Maximum load a bearing assembly can withstand without permanent deformation.
Dynamic Load Rating (C): This rating represents the maximum load that may be assumed on the bearing while in an axial rolling motion.
Maximum RPM: Defines the limits of speed that can be performed to guarantee operational requirements and increase their durability.
Considering these aspects, one can select the appropriate ceramic angular contact ball bearings that will not only meet performance requirements but also improve the efficiency and reliability of different industrial applications.
Comparing Single Row vs. Double Row Bearings
In my opinion, however, both types of bearings will have clear benefits depending on their use. There will be a preference for the single-row bearing due to their minimized volume and weight, which suits that application whose economy of space is crucial. This is because of their relatively simple construction that supports radial loads with some degree of axial loads. Some of the major technical factors are as follows:
Static Load Rating (C0): Any given single-row bearing will always have a lower static load rating than a double-row bearing, as single-row bearings are proficient at carrying larger loads.
Dynamic Load Rating (C): Single-row bearings have a dynamic load rating that significantly does not load but instead supports small loads, whereas double-row bearings have a higher dynamic load rating, enabling them to serve better in heavy machines.
On the other hand, a double-row bearing has more load-carrying capacity and more stability. They are of help mainly when radial and axial loads must be provided. As for the characteristics concerning the construction, double-row bearings offer the following:
Larger Axial Load Tolerance: This framework makes it possible to handle the two men’s transverse thrusts without any complexity.
Higher Rigidity: The two separate raceways help preserve axiality under heavy loading and increase rigidity.
In general, the type of load conditions and the configuration of the installation area determine my choice between these two.
Understanding Manufacturer Specifications (e.g., SKF)
When looking at various manufacturer specifications, particularly those from leaders such as SKF, I consider several factors to match my application requirements. The technical data sheets provided by SKF contain all the necessary information for the following parameters:
Load Ratings: SKF provides detailed static and dynamic load ratings for their bearings. This information helps me decide which bearing type would endure both the loads and the working environment.
Material and Coating Options: The raw material, coating, and other special features, if any, used can also be effective. For example, I select stainless steel because of its high corrosion susceptibility.
Operating Temperatures: I also examine the operating temperature ranges, and the stated ranges to determine the bearing’s performance after being incorporated into my substances that produce heat.
Speed Ratings: SKF provides speed-limiting ratings to show the bearing’s maximum turning speed. This is very important in very high-speed operations to prevent breakdowns.
By analyzing all these dimensions, I can ascertain that the selected bearings comply with the mechanical design criteria and enhance their operational performance and life in particular applications.
Frequently Asked Questions (FAQs)
Q: What are the primary benefits of utilizing ceramic angular contact ball bearings?
A: Ceramic angular contact ball bearings have advantages over metal bearings. They can be used at higher rotating speeds, support radial and axial loads, and work well at elevated temperature ranges. Their service life is longer than that observed in steel bearings, and they can be operated in highly high-temperature conditions.
Q: What is the difference between ceramic and steel balls for angular contact bearings?
A: They are low in weight, hard, and can operate at faster speeds than steel balls. They also have less thermal expansion and more corrosion resistance, making them suitable for fast and high-temperature applications.
Q: What are the components of ceramic angular contact bearings in general?
A: Silicon nitride ceramic and silicon carbide were the most commonly used materials in ceramic-enhanced axial angular contact bearings. These materials are resilient, can withstand crankshaft operations at extremely high temperatures, and have high wear resistance.
Q: Is it possible for ceramic angular contact bearings to carry load components, both axial and radial?
A: Yes, the ceramic angular contact bearings design allows for the efficient handling of a combination of radial and axial loads. They can also bear axial thrust in one direction while retaining accuracy and functional efficiency.
Q: Are there any particular applications for which ceramic angular contact bearings are well suited?
A: Ceramic angular contact bearings are practically employed in areas with high demand for speed, accuracy, and operation in extreme temperatures. These are primarily found in the fields of aviation medicine and high-performance machinery.
Q: What is the difference between the full ceramic angular contact bearings and the hybrid bearings?
A: Full ceramic angular contact bearings consist of the inner and outer rings and the balls, all formed from ceramic materials. Hybrid bearings usually include ceramic balls but metal (mainly steel) rings. Full ceramic bearings are better suited for severe conditions, but they are more expensive than hybrid bearings.
Q: How are thermal improvements in rotary bearings of ceramic structures achieved?
A: Ceramic angular contact bearings have been known to enhance high rotational performance because of their small weight and low friction generated within the bearings. This enables higher speeds and, thus, better productivity since the application encompasses high speeds.
Q: What is the significance of ABEC ratings in ceramic angular contact bearings?
A: The main significance of ABEC ratings is their relation to bearing quality and precision. The higher the rating, the lower the tolerances and the better the precision attained. This is important for any ceramic angular contact-bearing-based application that needs accuracy and effective performance.
Q: How does a ceramic angular contact bearing withstand bright heat yet be able to perform?
A: This is possible because ceramic materials such as silicon nitride and silicon carbide possess thermal stability, enabling ceramic angular contact bearings to work even at high temperatures. They do not lose their structural properties or performance even in severely adverse conditions, areas that usually kill steel bearings.
Q: Why are ceramic angular contact bearings commonly used in high-speed applications?
A: This type of ceramic angular contact bearing is extensively used in high-speed applications due to the low heat generation and friction of steel bearings. Their low weight coupled with high strength means performance can be sustained at higher rotations, thus suitable for high-speed machines and equipment
