Angular contact ball bearings are used widely in many different mechanical systems; they are highly efficient in radial and axial loads. From the various configurations available, the back-to-back arrangement has a broad range of unique advantages and versatility. This arrangement sheds the forces efficiently while increasing rigidity by positioning the bearings with their contact angles diverging from each other. The article aims to discuss the significant characteristics of the back-to-back design and how it effectively resists considerable external loads, provides enhanced stability, and supports precise operations in harsh environments. With the help of this discussion, the readers will comprehend why this particular configuration is favored over others in applications such as machine tools and automotive components.

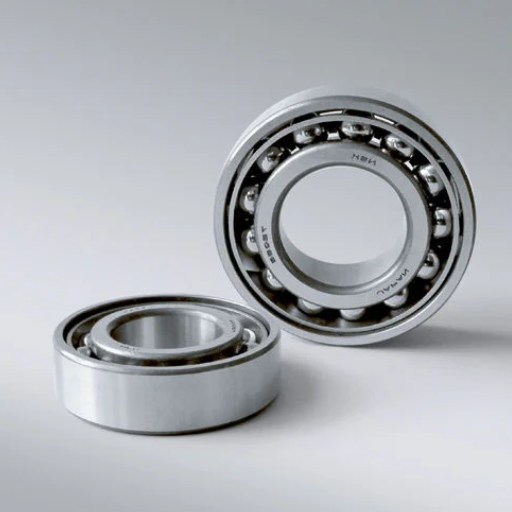

What is an Angular Contact Ball Bearing?
How do angular contact ball bearings work?
Angular contact ball bearings can withstand a combination of loads, simultaneously enduring radial and axial loads. The distinct feature of these bearings is the contact angle defined concerning the bearing’s axis. The angle between the ball, the bearing axis, and the raceway becomes the contact angle. The standard angles are 15°, 25°, and 40°; larger angles offer more axial load carrying as they increase.
The asymmetrical raceways give these bearings higher precision and smooth functionality, allowing for the concealed power of efficient load distribution. Unlike other types, angular contact bearings are used in opposition to one another, back-to-back or face-to-face, to ensure comprehensive load distribution and elevate rigidity. Factors such as the material (chrome steel or ceramic) used for balls and raceways, the type of lubrication, and the level of preloading are essential for optimal functioning and bearing lifespan.
What are the unique features of angular contact bearings?
Angular contact bearings have everything short of an ensemble performance due to their design for undivided axial and radial use. The primary distinguishing feature is the contact angle, which is usually given in the ranges of 15°, 25°, 30° or 40°. With a greater contact angle, higher axial load-carrying capacity is achievable, allowing drastic performance improvement in complex applications. Significant highlights include the following:
High Axial Load Capacity: They efficiently handle directional axial loads due to moderate contact angle.
Preloading Capability: Can be preloaded from moderate to severe, whereby rigidity is enhanced and operational noise is reduced.
Material Options: Standard applications have chrome steel bearings, whereas ceramics are used in low-friction, high-speed applications.
Precision and Tolerance: Varying grades of these bearings, as offered by ISO or ABEC standards, meet high-precision applications.
Arrangements: These bearings are preferred in face-to-face (DF), back-back so-called (DB), or tandem (DT) arrangements for catered complex load cases and more excellent system stability.
The functionality and performance of angular contact bearings unleash endless possibilities for aerospace, automotive, machining, and other manufacturing industries.
Why choose angular contact ball bearings?
Due to their capability of handling radial and axial loads, angular contact ball bearings are the easiest to use in many applications. They have high precision and load capabilities, making their operation smooth even in harsh conditions. Some of their advantages include:
Contact Angle: Usually offered in 15°, 25°, or other angles, which defines the ratio of axial to radial load carrying capacity.
Load Capacity: Values vary with the bearing’s dimensions and composition, but they are tailored to manage dynamic and static loads effectively.
Speed Rating: The well-set internal shape of the bearing and the use of modern lubricants enable performance at high rotations.
Precision Levels: Narrow tolerances define some ISO and ABEC standards, P2, P4, or P5, with all ensuring a high degree of accuracy.
Material Quality: Primarily consists of high steel grade and ceramic hybrids for enhanced strength and low wear.
These specifications widen the options for using angular contact ball bearings, ideally in applications with tight tolerances, high rotational speeds, and efficient combined loading.
How Does the Back-to-Back Arrangement Work?
What is the back-to-back arrangement?
Also known as the “DB” Design, the back-to-back configuration has two angular contact ball bearings facing apart, i.e., their wide ends facing outwards. This arrangement increases the distance between the two bearings’ load centers, giving maximum stiffness and resistance to tilting movements. The configuration is suitable for absorbing axial and radial loads in opposite directions, yielding stable operation performance.
Contact angle: The normal range is between 15° and 25 °, allowing better support for the axial load in either direction.
Load Distributions: Acceptable for use cases with high radial and axial loads simultaneously.
Preload classes: Common choices are light, medium, and heavy preloaded, which minimize the vibrations and deflection in critical applications where these factors can cause considerable damage.
Alignment tolerance: The shaft and the housing must be appropriately aligned; otherwise, performance degradation and non-uniform surface wear will result.
Designs with this configuration are standard in machine tools, spindles, and robotic arms, which require high accuracy and rigidity.
How does the contact angle affect performance?
The performance of angular contact ball bearings is affected by the contact angle, particularly their load capacities and stiffness. A larger contact angle improves the bearing’s ability to cope with axial loads, making it appropriate for applications with higher thrust requirements. A smaller contact angle, on the other hand, facilitates higher radial load capacity and speed performance.
15° to 25°: Typical for standard uses where axial and radial load capabilities are essential.
30°: Common in high-thrust applications where greater axial rigidity is necessary.
40°: Best in cases where heavy axial loads are present and high stiffness is required.
Choosing the most suitable contact angle requires careful evaluation of the specific operating conditions, including the application’s load direction, speed, and precision requirements. Adequate attention guarantees optimal bearing performance and durability.
What are the advantages of bearings arranged back-to-back?
Bearings placed in back-to-back (DB) configurations have specific benefits that make them uniquely useful, such as:
High Radial and Axial Rigidity: This configuration demonstrates considerable resistance to changing shape under excessive radial or axial deformations, increasing a system’s resiliency.
Wide Load Distribution: The separation of the loading points is much greater, diminishing the relative load. This results in reduced bearing stresses and increased bearing life.
Enhanced Alignment Tolerance: Back-to-back set bearings can endure a particular amount of rotation around the longitudinal axis of the housing, which allows for reliable functioning in cases of low shaft or housing deformation.
Optimal Heat Dissipation: This configuration allows heat to dissipate in areas where the bearings rotate at higher velocities, increasing their operational life.
If placed correctly, back-to-back bearing arrangements ensure good overall reliability and performance in tough operational conditions where accuracy and load capacity are critical.

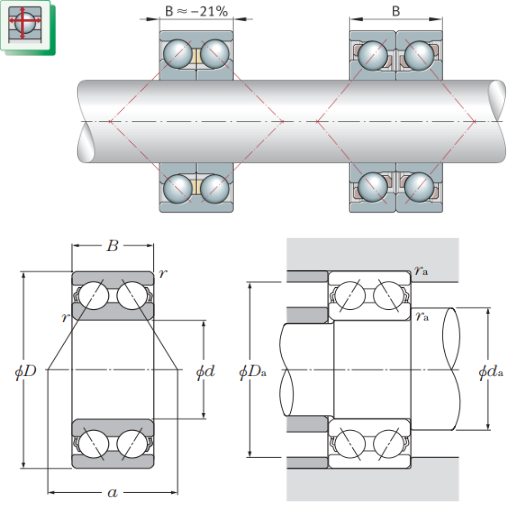

Why Choose Double Row Angular Contact Ball Bearings?
What are double-row angular contact ball bearings?
Bearings of type double-row angular contact balls have a unique design that allows them to handle combined radial and axial loads. Unlike other types of bearings, these feature two rows of balls placed in one bearing, allowing them to accept heavy loads from either side. Increased stiffness and load-carrying capacity are provided by this particular configuration when compared to single-row variants.
Contact Angles: Due to excellent load and bearing characteristic management, contact angles are available from 30° to 40° with zero to low axial displacement.
Load Capabilities: Resistant to high torque and radial and axial loads make them standalone in their class.
Space Efficiency: The functionality of two single-row angular contact bearings amalgamated into them allows greater functionality in limited space.
Running Speeds: The speed efficiency is average compared to the single-row configuration, meeting the lower limit but still serving its purpose in many moderate-speed situations.
Alignment: Requires greater precision in installation position when compared to single-row configuration but allows better misalignment management.
Along with speed, these bearings are superbly used in more demanding applications such as machine tool spindle servos, automotive systems, gearboxes, or other highly rigid and compact systems.
How do double-row bearings differ from a single-row?
Double-row bearings, unlike single-row, differ in design, construction, load-carrying capacity, and alignment tolerances.
Design: The two rows of double-row bearings have an increased load-carrying capacity while compact. On the other hand, single-row bearings carry only one row of rolling elements.
Load Capacity: Double-row bearings possess higher radial and axial loads due to their dual-row configuration than single-row bearings.
Stiffness: The dual rows add structural rigidity, making them suitable for precision applications that require minor deformation.
Alignment: Compared to single-row bearings, double-row bearings are less tolerant of misalignment, which means precise installation is needed to avoid premature wear or performance issues.
Space Efficiency: Their compact design allows double-row bearings to save axial space, making them ideal for applications with critical size constraints.
These differences explain the use of double-row bearings in gearboxes, machine tools, automobiles, and other setups that require high load capacity and stiffness with little space.
What applications benefit from double-row angular contact ball bearings?
Double-row angular contact ball bearings are best suited for applications where limited space, high lateral and vertical radial and axial loads, and additional support structures are required. Their most useful application is in gearboxes because the ability to withstand combined loads ensures smooth operation. Likewise, in machine tools, their stiffness allows precision machining without loss of accuracy, even under high stress. These bearings are crucial for automotive applications, such as wheel hubs, because of their small footprint, ability to deal with heavy axial loads and severe axial space restrictions.
These bearings with two rows have an upper boundary in the load-carrying capacity compared to single-row ones because the extra row of rolling elements increases the capacity. However, accurate alignment of these bearings is necessary during installation; otherwise, they will suffer from excessive wear. Additionally, combined radial and axial loads can be easily supported in equal proportions due to the angular contact feature, which is most useful in rugged applications. For instance, they enable compact structures where space is at a premium, like in automobiles or industrial machinery, while offering uncompromised efficiency.
What Factors Influence the Selection of Angular Contact Bearings?
How does axial load affect selection?
Selecting angular contact bearings requires special attention to the axial load since the bearing’s design and performance capabilities are directly influenced by it. In my understanding, the bearing’s ability to take axial load is a function of the contact angle; with lower bearing angles, more axial support is taken. For example, in some instances where axial loads are considerable, bearings having a larger contact angle (i.e. 40°) are favorable.
Load Capacity: The bearing concept for large axial loads has an improved material strength and geometrical precision of the modular parts to sustain these stresses reasonably.
Speed Rating: Axial load-focused bearings may have a lower speed rating than those with radial load-oriented bearings with axial load capacity.
Preloading and Rigidity: Adequate preloading is critical to deal with axial load to enhance rigidity for proper operational stability.
These factors explain why there must be a comprehensive examination of load conditions before choosing an angular contact bearing intended to serve for both efficiency and durability optimally.
What role does preload play in performance?
Preload is vital in functioning angular contact bearings since it removes internal clearance and guarantees continuous contact between the rolling elements and raceways. In my opinion, preload application enhances rigidity, reduces vibration, and improves the accuracy of the bearing’s operation. On the other hand, improper preload may result in excessive heat, undue wear, or decreased lifespan, so it should be controlled closely.
Rigidity: Preload increases rigidity, which increases rigidity, and is needed to minimize deflection for precise positioning.
Friction and Heat Generation: Preload may enhance stability, but excessive application may cause increased heat and friction.
Load Distribution: Preload guarantees rolling elements share load uniformly; thus, stress concentration is avoided.
Lifespan: Preload may optimize and extend the life of bearing reels when applied, but incorrect preload may lead to more significant fatigue and wear.
Achieving the ideal preload balance is fundamental for consistent and effective bearing operation, which is why these facts are so helpful.
How do we consider radial and axial loads?
As for radial and axial loads, my primary consideration is their effects on the bearing’s functionality and technical parameters. Radial loads are primarily supported perpendicular to the shaft, which is shown to be most predominating in many cases, restraining the system’s rigidity. Applying suitable preload allows the bearing to reasonably deal with these loads without excessive deflection, which is more optimal.
Regarding the shaft, axial loads operate parallel to the shaft, and it is necessary to control the distribution of loads amongst rolling elements, so special care is given here. Failure to adequately control excessive axial loads can result in unequal stress distribution, which can cause premature bearing failure. Such uneven cylindrical roller bearings can also increase friction and heat if they do not share the expected load or if there is a poorly calibrated preload.
In my experience, optimizing the limits of application performance loads while maintaining the bearing’s integrity and usability can be achieved by analyzing the magnitude and direction of radial and axial loads, which are best handled by suitable preloads.
Comparing Angular Contact Bearings with Other Types
How do roller bearings compare to angular contact?
Roller and angular contact bearings differ primarily in managing load and deformation. Because of their contact angle and basic shape, advanced angular contact bearings can support combined axial and radial loads. In contrast, roller bearings are more capable of supporting higher radial loads because of their line rather than point contact mechanism. This design minimizes surface stress while maximizing load capacity supremely.
Load Distribution
Angular contact bearings perform well with axial and radial loads because they focus on bearing geometric and angular alignment.
Roller bearings tend to deal with radial loads for the most part; however, they do encounter difficulties with significant axial forces.
Contact Type
Point contact is the primary type of contact for angular contact bearings. They achieve better precision but at a greater heft with load capacity.
Line contact is the primary contact for roll bearings. They lose some operational precision but gain more load capacity.
Friction and Heat Generation
Due to angular contact and higher axial loads, angular bearings tend to dissipate heat energy a bit more.
Roller bearings’ combination of radial loads equals less friction through the bearing, which helps thermally.
Stiffness and Deflection
Improvement is noticed in exploiting angular contact bearings where rigidity and precision are required.
Roller bearings possess greater radial stiffness but may yield deflection when applied with combined loads.
By choosing a specific bearing type with these characteristics, I can guarantee the required performance and lifetime of the bearing for any application.
What are the benefits of cylindrical roller bearings?
With cylindrical roller bearings, multiple advantages make them useful in some areas. One of the primary benefits they offer is superb radial load capability because of efficient load with the line contact between rollers and raceways. That feature makes these bearings best for heavy radial loads. Also, these bearings have low operational friction, leading to low heat production and functional thermal performance, especially for high-speed devices. Because friction is low, these devices can effectively function with limited power consumption. Furthermore, the design permits the inner and outer rings to be axially displaced, making these bearings useful when thermal expansion occurs, or there is a misalignment of shafts.
Load Capacity: Excellent due to line contact.
Friction: Low heat is produced, which, in turn, improves operational efficiency.
Axial Displacement: Allows shaft or thermal expansion movement without negatively impacting performance.
Cylindrical roller bearings would ensure reliability while prolonging the bearing’s lifespan in circumstances with a tremendous radial load and much thermal control needed.
When to use tapered roller bearings?
Tapered roller bearings are an excellent choice for applications that require proficient handling of combined radial and axial loads. I use them when high-speed performance and robust load support are necessary, such as in automotive wheel systems or industrial gearboxes. Their cone-shaped profile enhances their versatility in mechanical assemblies.
Load Capacity: These roller bearings can handle a significant volume of radial and axial loads, particularly useful in scenarios requiring simultaneous load handling.
Axial Load Management: Their tapered design provides an outstanding ability to manage the axial load.
Alignment and Stability: Offers precise alignment and stability under challenging heavy loads, reducing wear and increasing lifespan.
Speed Capability: Performance is ideal in medium- or high-speed applications, depending on the lubrication that helps minimize friction.
By incorporating tapered roller bearings in these examples, I can guarantee precise load distribution and durability, which satisfy the systems’ specific technical parameters.
Frequently Asked Questions (FAQs)
Q: What is the back-to-back arrangement in angular contact ball bearings?
A: A back-to-back arrangement involves two angular contact ball bearings mounted with their backs facing each other. This configuration provides better flexibility in managing axial loads in both directions and enhances stability. This is quite a standard configuration in mechanical engineering with applications that require high precision and rigidity.
Q: How does the back-to-back design differ from a face-to-face arrangement?
A: In the back-to-back design, the outer rings of the two bearings are further apart, while in a face-to-face arrangement, the outer rings are positioned nearer to each other. The increase in distance provides a better rigid structure that backs the handling of moment loads compared to a face-to-face setup that is better suited for misaligned bearing cases.
Q: What are the main benefits of using a back-to-back bearing arrangement?
A: A back-to-back bearing arrangement improves the overall performance in multiple ways, such as offering a better flexible response to axial loads in both directions, enhancing rigidity, better resistance to moment loads, and increased stability. It also aids in reducing the impact of centrifugal forces acting on the bearings which can increase service life.
Q: How does back-to-back design affect the control of axial loads?
A: The configuration is versatile enough to accommodate axial loads in either direction. A single-row angular contact ball bearing can only accommodate an axial load in one direction. However, two bearings arranged back to back can accommodate axial loads in both directions, allowing them to be used in a wide range of applications.
Q: Can back-to-back angular contact ball bearings function as a matched set?
A: Yes, back-to-back angular contact ball bearings are used as a matched pair with great frequency. The purpose of a matched pair is that both bearings are identically constructed, enabling them to work in tandem. Matched pairs also enhance load balance, precision, and overall functional capability of the bearing system.
Q: How does the back-to-back design compare with other bearing types, such as deep groove ball bearings?
A: Compared to the deep groove ball bearings, the back-to-back style with angular contact bearings has more excellent axial load capability and improved rigidity. While deep groove ball bearings can accommodate radial loads, the back-to-back design is more adaptable and economical, allowing for effective radial and axial load handling. This makes it ideal for applications that require great precision and stability.
Q: What factors should a design engineer consider when selecting a back-to-back bearing arrangement?
A: For a drilling engineer, the problems to consider include the type and magnitude of the loads (axial, radial, and moment), speed of operation, accuracy, environmental conditions, and space limits. In addition, they must analyze the benefits of the back-to-back approach instead of other arrangements, like face-to-face or tandem, and consider the overall system requirements to provide the optimal bearing solution.
Q: What are the effects of a back-to-back design on the overall load-bearing capacity of the system?
A: For axial and moment loads, the back-to-back design maximizes the final load capacity level of the system bearing. The arrangement of two bearings helps achieve a higher overall load-bearing capacity than a single bearing. Overall, this configuration gives more excellent load-bearing stability, which can help in improving the service life of the system bearing.
