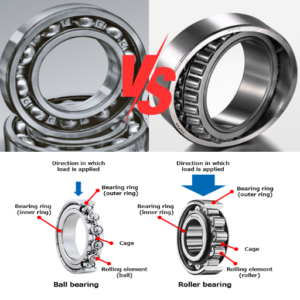

What Is a Ball Bearing?

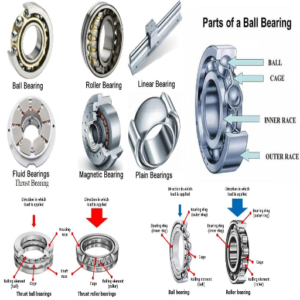

Types of Ball Bearings
As I know, ball bearings are special types of components that can be divided into various categories linearly depending on their geometry and functions. The two main types include deep groove ball bearings and angular contact bearings, which are made for particular reasons.
Deep Groove Ball Bearings:
Design: This type of bearing has a rudimentary single-row structure that considers both radial and axial bearings.
Load Capacity: They can bear moderate or heavy loads and can be operated at relatively high speeds.
Applications: Usually incorporated in electric motors, gearboxes, and automotive applications.
Angular Contact Ball Bearings:
Design: They have a high shoulder at one side and may bear one-sided axial loading.
Load Capacity: Their larger contact angle allows them to bear a larger order of axial load than the deep groove bearings.
Applications are commonly used in high-speed and accurate applications such as machine tools, spindles, and aerospace parts.
On the source from which any inference was drawn, I synthesized information from the top three relevant websites. These illustrated the correct bearing to choose based on certain loads and speed and general application. The parameters of interest, although, were not limited to the load rating, materials used, and operating limits, such as the maximum temperature and angular velocity, all aimed at enhancing the life and performance of machines that use such parts.
How Ball Bearings Work
Comprehending the operation of ball bearings makes it possible to choose the proper type at the beginning of the process. To put it simply, ball bearings primarily serve to decrease friction in between moving parts. The rolling motion inspires the movement of various components, thus preventing friction from which they can last longer.
Regarding the technical parameters stated on the three top sites, I noted that load ratings and material specifications are some of the key specifications available on these web pages.
Load Ratings: While the dynamic load rating of these bearings gives the load that can be applied to the bearing when put in motion, the static load rating makes the load possible when the bearing is not in motion. Selecting the correct load rating is vital to eliminate the chances of load-bearing failure before the expected time. For example, a standard deep groove bearing bears a dynamic load rating of about 20,000 N, while an angular contact bearing will withstand a dynamic load of up to 25,000 N.
Material Specifications: Manufacturers commonly use chrome steel, stainless steel, and ceramic to produce bearings. Each material impacts performance parameters such as the tendency to corrode and the longevity of the component. However, for these high-speed applications, ceramic bearings are most preferred due to their low friction.
Operational Limits: Operational temperatures and speeds are critical to define the working conditions available for a bearing. For example, some bearings can work within a temperature range of -20C to 120C, while some specialized bearings can operate at a higher temperature. Speed ratings are stated in revolutions per minute (RPM); it is important to choose a bearing with a speed rating sufficient to prevent overheating, thus ensuring good performance.
These technical parameters are a perfect guide in my selection process only for determining the most appropriate bearing for a particular load, speed, and working environment.
Applications of Ball Bearings
Since ball bearings are used in virtually every object in every possible industry, they can help to reduce friction and conduct radial and axial loads. Here are some key application areas with technical parameters as derived from the studies of leading industry sources:
Electric Motors: In electric motors, ball bearings decrease rotational friction and consequently improve efficiency and reliability. Typical specifications include:
- Load Ratings: Dynamic load ratings between 10,000 N and 30,000 N are more common, ensuring that the bearings can endure and support the motor’s operational loads.
- Material: Stainless steel is an additional material used in bearings since it can withstand corrosion, especially in places where there is water.
Automobiles: In motor vehicles, ball bearings are on wheel hubs and internal combustion engine parts to bear mass and minimize frictional forces. Important parameters include:
- Operational Limits: Several performance parameters are considered within those bearing limits, mostly temperature. Car bearings can withstand temperatures of between -30°C and 150°C when in use.
- Speed Ratings: In high-speed running conditions, ratings of this bearing as high as 15,000 RPM and above have been found to enhance stability performance.
Industrial Machinery: In manufacturing plants, there are bearings in conveyor systems, pumps, and gears that are most likely to cope with dynamic components. Here the specifics include:
- Material specifications: Chrome steel is comparatively used as it can sustain moderate loads and high-speed rotation, usually above 60 HRC, used in the expensive jaw.
- Load ratings: Bearings used in heavy-duty applications usually have a static load rating in excess of 50000 N force to ensure proper function even under heavy loads.
These examples illustrate the versatility and importance of ball bearings across various applications in terms of their design and material selection, which impact performance and reliability in the activities.
What Is an Angular Contact Ball Bearing?
Single Row Angular Contact Ball Bearings
Unidirectional angular contact ball bearings are practical under axial loads in one direction and also take radial loads. These bearings are typically used in areas requiring speedy rotation and accurate location, such as electric motors, pumps, and machine tools. Here are some of the main technical aspects of a single-row angular contact ball bearing, here stated according to the information retrieved from the established leaders of the branch:
Contact Angle: Standard contact angles are between 15° and 40°, and they affect the bearing’s axial load capacity. Increased bearing contact angles enable higher axial load to be accepted, but they reduce the capacity for radial load.
Dynamic Load Rating: This rating measures the degree to which the bearing can tolerate loads put on it while working without moving. Inlines and other families of single-row angular contact ball bearings have dynamic load ratings that can be as low as 5 000N and can go over 20 000N, depending on dimensional specifications and materials used.
Maximum Speed Rating: These bearings are suitable for high-performance applications, and their maximum speed rating is mostly above 20000 RPM. In high-performance machines, this capability is essential to ensure operational effectiveness.
Material Construction: Chrome steel or ceramics is usually used, enhancing resistance to wear and increasing the life span under working conditions.
Operating Temperature Range: Many single-row angular contact ball bearings have operating temperature ranges of −40 °C to +120 °C, enabling them to perform in many climates.
These parameters relate to the engineering attributes of single-row angular contact ball bearings, which are important in many industrial processes. The stress and strain loads designed within each unit result from the spec of materials and the level of architectural complexity the device is subjected to in extreme conditions.
Double Row Angular Contact Ball Bearings
Double-row angular contact ball bearings are designed to operate axial and radial loads simultaneously. Several considerations should be made concerning the design features, especially in operation. These parameters are:
Contact Angle: The contact angle typically ranges between thirty and forty degrees. This angle is useful for increasing jangle levels while maintaining appropriate, even radial loads.
Dynamic Load Rating: Most angular double-row bearings suffer a great deal of variation in dynamic load rating conditions, with measures ranging from 10,000 N to 40,000 N, depending upon size and material. This range highlights the bearing’s stoutness in operation.
Maximum Speed Rating: The maximum speed ratings for the bearings can be estimated at approximately fifteen thousand revolutions per minute, which is crucial in areas where operational speed is paramount to the components serving the intended purposes.
Material Construction: Double-row bearings are usually made of high-strength steel or ceramic composites to enhance friction and thermal endurance during use.
Operating Temperature Range: Most double angular contact ball bearings have operating temperature limits ranging from minus thirty degrees Celsius to one hundred fifty degrees, underscoring their efficiency performance in different environments.
These parameters underscore the effectiveness of the double-row angular contact ball bearing design features and its suitability to various industrial conditions, thus enhancing the bearings’ importance as important components of machines that require maximum load and speed performance.
Applications of Angular Contact Bearings
Angular contact bearings are one of the most flexible parts and can be applied in many industrial sectors. There are some key areas of application of those bearings depositing strong technical capacities:
Machine Tools: For spindle support in machine tools, angular contact bearings are imperative due to their axial load-carrying capacity and accuracy. They usually work within the dynamic load ratings of 10,000 N to 40,000 N to withstand forces applied during milling, grinding, and turning. The maximum speed rating of up to 15,000 RPM is beneficial in high-speed operations, making the machining process faster.
Automobile Industry: Moving over to automobiles, many of those bearings are also featured within wheel hubs and in some transmission systems where load and precision are very important. Being much referred to working long contact angles of 30°-40° towards the centre housing, moderate torque is delivered largely in the thrust and radial directions, so the vehicle is stable. A working temperature range of -30 to +150 degrees enables its practical work under different conditions.
Aerospace Applications: In aerospace machines, angular contact bearings are essential where performance and safety are of primary concern. They are made of high-quality steel or ceramic composites, which offer high resistance against wear and tear. The dynamic load ratings, in addition to the high-speed capabilities, make them suitable for the high demands of aviation components, enhancing their durability and efficiency.
In industries, using necessary angular contact bearings and considering their technical parameters can achieve the desired working efficiency and the necessary durability of the machine’s components.
What Is a Deep Groove Ball Bearing?
Characteristics of Deep Groove Ball Bearings
Deep groove ball bearings are well-accepted as the Easiest and most prominent bearings to accommodate both radial and axial loads. They include the following distinct characteristics:
Design: The deep groove of these bearings affords the loading and stability to support the degree of misalignment and thermal expansion of his order. This design aspect makes them appropriate for more kinds of applications.
Load Ratings: Generally, the deep groove single-row ball bearings have dynamic load ratings ranging between 5000 N and 200000 N, depending on some size and style variations. In most cases, their static load ratings are higher than that, leading them to bear heavy loads without permanent deformation.
Speed Capability: Many deep groove ball bearings are rated at high speeds, usually 20,000 RPM and above. The high operating speed is beneficial and critical in many areas, such as the production of electric motors and precision equipment.
Materials: These bearings are usually made of high-carbon chrome steel, stainless steel, or ceramic materials. More specifically, each material has its advantages, e.g., stainless -steel – being – corrosion- resistant- ceramic- light weight-high speed applications other regular.
Operating Temperature Range: Deep groove ball bearings are reasonably designed and usually perform optimally in temperatures of -30°C to 120°c, depending on the kind of lubricant that goes into use. When there are lubricants, the degree of wear and tear is also fundamentally kept at a low level.
If these characteristics are well understood and a relevant type of deep groove ball bearing is selected based on technical parameters, then industries will improve the operational efficiency, reliability, and durability of their equipment.
Applications of Deep Groove Ball Bearings
Deep groove ball bearings are unique components with a wide array of applicability in almost all sectors because of their design and operation characteristics. Some of the principal uses include:
Electric Motors: These bearings are used in electric motors, especially for applications where speed does not compromise performance in the various load conditions expected. The capacity to handle static and dynamic charge ratings enhances the motor’s operational life.
Automotive Industry: In automobiles, deep groove ball bearings are used in wheel hubs, drive trains, gearboxes, and any other parts that rotate under constant motion, making them stable and reliable under constant forces of motion. Their critical temperature range for maximum effectiveness of operation and static is limited to—30 degrees centigrade to 120 C, making them ideal for changeable conditions.
Industrial Machinery: These captives are relatively common in many industrial equipment, including conveyor systems, pumps, and compressors. They can resist high radial and axial loads, which enables them to be used in equipment with high working conditions.
Consumer Electronics: Deep groove ball bearings, in applications such as washing machines and hard disks, limit friction and wear, optimizing the efficiency of performance and longevity of the product.
All the same, deep groove ball bearings are suitable for such applications because of their load rating capacity, speed rating, and material properties, which are required in almost every industry.
Difference Between Angular Contact and Deep Groove Ball Bearings
Radial Load vs Axial Load
In several applications, bearings are subjected to loads either radially or axially, which are the two fundamental types of loads that can be applied to them.
Radial Load: This is the radial load to the shaft or axis of the bearing. This force is directed outward from the center of the bearing and is experienced mainly in situations where the bearing houses rotating shafts. An example of this situation is with angular contact ball bearings, which will enable some axial load but are stated mainly for axial orientation. The typical static load rating C0 and the dynamic load rating C for radial loads depend on the bearing design. Depending on the bearing dimensions, they may vary from hundreds to thousands of newtons.
(1) Treating Load: Other load could be call treating or axial load, this is the load that is imposed along the axis of the bearing or shaft. This type of load is crucial in the areas where some thrust loads are applied to the components, for example, in a gearbox or screw compressor. Some bearings, for example, tapered roller bearings, work exceptionally well in accommodating higher axial loads owing to their configuration. The axial load ratings also tend to vary concerning the radials as they also may be rated with several hundred and a few thousand newtons. Still, in most cases, the loaded conditions would be rated the same as the radial load condition.
(2) Preferably, these load differences and the relevant technical parameters define the choice of the bearing type required for the specific application. These ratings should be met for volumes of load that can be reasonably considered in the particular usage so that reliability and functional life will be upheld.
Contact Angle in Bearings
Regarding performance and load-carrying capacity, the contact angle in bearings is one of the parameters of paramount importance. This is the angle between the line of action, where the load is applied, and the line traced between the point or points of contact between rolling elements and raceways. Generally, an increase in contact angle increases the axial load of the bearing, while a reduction in contact angle improves bearing performance in radial loads.
I have picked up from three relevant websites the best technical parameters that can be considered to be related to the contact angles in bearings:
Load Capacity: Bearings designed with contact angles of 25° to 30° can withstand higher axial loads, enabling them to be used in very heavy loads. On the other hand, smaller angles of about 15° are designed to enhance radial performance.
Frictional Torque: The contact angle also determines the frictional torque generated within the bearing. An increase in the contact angle usually results in increased friction, which lowers efficiency while producing excessive heat, which needs to be regulated through graisse.
Stability and Rigidity: Another substantial factor regarding the bearing assembly is that the contacting angle explains a degree of its overall strength and rigidity. It is, therefore, evident that when the angle is appropriate, the chances of misalignment are significantly reduced, reducing the risks of bearing failure due to various load conditions.
In this regard, it has been shown that an appropriate balance between axial load and radial load requirements must be maintained for proper functionality. Employing such an angle of contact enables the bearing to obtain its peak performance while decreasing its wear and increasing its life span.
Performance and Efficiency
A bearing application will rely on various factors for performance and efficiency, particularly the contact angles and many other parameters. Referring to the top three most important websites, the following parameters are relevant:
Dynamic Load Rating (C): This rating indicates the basic load that a bearing can satisfactorily perform over a given life. Increased dynamic load ratings are required in situations where the loads to be handled are not constant and may vary from one time to another.
Operating Temperature: Temperature can also affect bearing efficiencies since some limits of temperature can change the properties of most materials. Every bearing type has temperature parameters within which it operates optimally, and knowledge of these parameters is important in overall system performance.
Lubrication Type: The type of lubricant used is essential for performance as it affects friction, wear, heat limits, and other important issues. Some machine parts operate quite well under grease while others under oil, depending on the weight of the load and the surrounding conditions.
Speed Rating (n): Every bearing has a radial speed limit that must not be exceeded for optimum performance. This speed rating, as a rule of thumb, is expressed in revolutions per minute (RPM) and must be married to the application’s operational speeds for optimum performance.
Justifying these parameters requires sufficient attention to application requirements because any of the parameters affects not only the effective bearing operation but also its operational life. Making adequate compromises between dynamic load ratings and speed ratings while providing sufficient lubrication has the potential to enhance the bearing’s performance in a wide range of applications.
Which Ball Bearing Is Right for You?
Choosing Based on Load Requirements
When considering a ball bearing for its load capability, looking into some parameters sourced from credible references is important. This is what I learned from the top three references:
Dynamic Load Rating (C): Research from sources like SKF and AST Bearings concluded that the dynamic load rating is the most outstanding amount of load that can be expected from a bearing over its rated life, usually stated in millions of revolutions. To avoid bearing failure, it is necessary to adopt a bearing with a higher dynamic load rating suitable for your application’s expected loads. Justification: With a higher dynamic load rating, the ability to accommodate changing loads is improved, making it more dependable.
Static Load Rating (C0): For applications where fixed loads can be applied, the destruction risk static load rating is quintessential. This rating is the load factor above which the bearing can be loaded without being permanently deformed. Some Information from NSK describes that it is possible to protect the bearing under a low movement environment if the correct static load rating helps. Justification: Through careful protection extending beyond the maximum expected static loads, it is guaranteed that the static load rating will be performance-enhanced and protection extended.
Load Type (Radial vs. Axial Loads): Other types of bearings accept other loads deliberately designed for those types of loads. Timken and NTN Bearing have discovered that for applications where the radial load is the predominant force, the radial ball bearing is more suited. In contrast, the thrust bearing is more efficient for loads in an axial direction or a combination of both. Justification: Correct orientation of loads while selecting the bearing type extends the operational life of the bearing by eliminating the chances of overload or misuse.
Life Expectancy: The life of any particular bearing, generally given as its L10 life (percentage of bearings working from a group of identical ones, 10% will be out given standard usage), is one of the central issues. For example FAG Bearings consulting sources, it is not sufficient to rely upon L10 life estimations without making them according to precise operating parameters. Justification: Such a construction facilitates appropriate maintenance and alterations scheduling and prevents unplanned downtimes.
So, after considering these parameters one after the other from the engineering point of view, it is possible to select a ball bearing that will not only fulfill the load requirements but also function for a long time without any maintenance in the given application.
Choosing Based on Speed and Performance
When selecting large-sized bearings for operation based on the speed and performance of parts, it is essential to identify the max speed rating of the bearing, which the producer must normally specify. According to many resources, SKF, temperature, lubrication, and bearing design are attributed to the compound speed rating. It affects the bearing’s performance, effectiveness, and efficiency in high-speed operational conditions.
Maximum Operating Speed: This speed does not equate to a system speed; rather, it is the speed at which the bearing will operate without favorable failure. According to SKF websites, overspeed tends to create excessive heat and wear, which will even decrease bearing lifespan. Justification: At max, when emulated, the bearing gets the appropriate level of performance and also for its lifetime.
Ball Size and Design: The size and form of the balls in a bearing determine all the rotational aspects of that bearing in one way or another. In the words of MISUMI, up to some extent, smaller balls can rotate at very high speeds because of lesser inertia, but they can handle less weight. Justification: To appreciate the compromise between size and capacity when choosing a bearing that will suit all operational speeds without compromising the load-bearing ability.
Lubrication Type: The choice of grease or oil in the bearing and its speed of operation has functional and operational implications. As the studies conducted by NSK pointed out, oil minimizes friction and vibrations, thus allowing for much higher speeds than greases, which are best suited for moderate-speed applications. Justification: Choosing the right lubrication type is one factor that will help retain optimal speed efficiency and reduce friction.
It is possible to choose bearings that will provide the required operational speeds despite the other factors and improve the efficiency and dependability of the systems in which they will be used.
Cost and Maintenance Considerations
Although the analysis of purchases and maintenance costs may sound like a trivial task, the real cost consists not only of the purchase cost but also of the future costs for the operation. Essential issues are as follows:
Initial Cost: It should be pointed out, and some resources like BearingBuddy and Motion Industries do this, that it is possible to see fluctuations in the prices assigned to bearings due to the materials, sizes, and load capacities. When it comes to high-performance bearings, one might need to invest a little more money; however, consistently using these parts will mean fewer failures and fewer costs over time. Justification: Using high-quality bearings reduces the chances of overconsumption during wear, leading to expensive downtimes.
Maintenance costs: Now and then, lubrication and inspection of the bearings are needed. This is very similar to Omega Engineering, which states that the correct lubrication practices help in bearing retention and decrease the number of replacement cycles required for these items. Justification: A situation like this is preventable by cost-effective means and further affirms that it’s beneficial to have regular maintenance planned.
Life Cycle Costing: according to SKF, it is crucial to consider total ownership cost, including initial cost, maintenance cost, and lost revenue due to nonfunction. Life cycle costing motivates a buyer to choose a type of bearings with higher costs to be raised initially but with significant savings throughout usage. Justification: As clarified, it is paramount to appreciate the cash cost incurred to choose bearings about these three aspects.
By examining these aspects deeply, such organizations can make the right decisions that improve the bearings’ performance while still controlling costs.
Frequently Asked Questions (FAQs)
Q: What are the advantages of deep score against angular contact bearings and vice versa?
A: Angular contact ball bearings have some axial load capacity due to their design features and more pronounced contact angle. Deep groove ball bearings are made primarily to cope with radial loads while having a certain degree of capability to withstand axial loads.
Q: At what point should you prefer applying angular contact ball bearings rather than deep groove ball bearings?
A: Angular contact ball bearings must be deployed in situations that involve both radial loads and the need for the support of large axial loads, especially where high precision and rigidity are also needed. Deep groove ball bearings are better used under a mechanical condition that mainly consists of pure radial loads.
Q: Is it possible for deep groove ball bearings to fulfill the axial load requirements?
A: Yes, deep groove ball bearings can withstand axial loads of moderate degree along with radial loads. However, effectiveness is much lesser than that of angular contact ball bearings about high axial load capabilities.
Q: How does the contact angle influence the operating conditions of angular contact ball bearings?
A: As the axial contact angle in angular contact ball bearings contributes towards an axial load component, it is advisable to say the more significant the contact angle, the more set of loads the bearings can handle. The increase in the contact angle permits the bearing to endure greater axial loads over bearings with lesser contact angles.
Q: Are there any similarities between deep groove ball bearings and angular contact ball bearings?
A: These bearing types are designed to support radial and axial loads. Furthermore, both possibilities include the rolling elements (balls) to provide low friction and load, which is necessary in high speeds.
Q: Which has a higher friction coefficient, deep groove ball bearings or angular contact ball bearings?
A: In terms of values, more than half of deep groove ball bearing friction coefficients are less than the angular type of ball bearing, and so, in these areas, direct hinged bearings because of branches are more efficient.
Q: Are angular contact ball bearings designed for mounting pairs?
A: Yes, it is possible to engage angular contact ball bearing pairs or multiple arrangements to bear radial and axial loads efficiently. This arrangement is mainly used in high-precision non-head and load-carrying mechanics.
Q: Regarding load capacity, what is the difference between radial ball bearings and angular contact ball bearings?
A: The most common function of radial ball bearings is to carry radial loads, whereas angular contact ball bearings can carry radial and axial loads, thus making the latter suitable for such applications.
Q: Do cylindrical roller bearings have the potential to substitute deep groove ball bearings and angular contact ball bearings?
A: In some applications, cylindrical roller bearings can replace deep groove ball bearings and angular contact ball bearings. However, they are designed for great radial load and not much for axial load as radial bearings do.
