Mastering Single Row Angular Contact Ball Bearings: Ultimate Guide

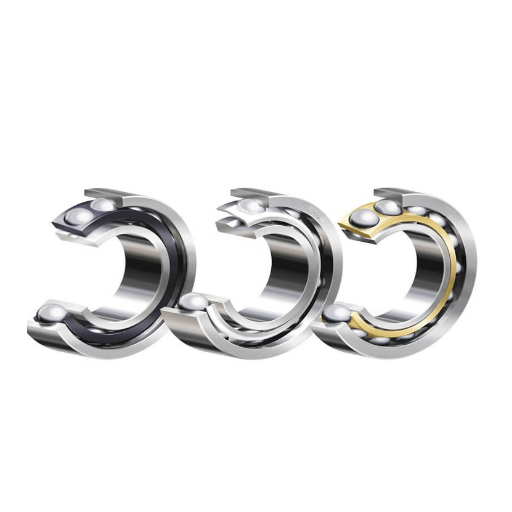

Single-row angular contact ball bearings are critical components in numerous mechanical systems, renowned for their ability to accommodate both radial and axial loads with high precision. These bearings are designed to handle high-speed operations while maintaining stability and reliability, making them indispensable in industries such as automotive, aerospace, and machine tools. This guide aims to provide a comprehensive overview of single-row angular contact ball bearings, covering their design principles, key features, performance advantages, and practical applications.

How do single-row angular contact ball bearings handle loads?

Radial and axial load capacity of angular contact bearings

Single-row angular contact ball bearings are particularly constructed to withstand a combination of loads that comprise radial and axial forces. The inclination of the raceways concerning the bearing axis employs efficient movement of these loads. Radial loads are mainly taken along the line perpendicular to the shaft while the angular nature of the bearing is capable of restraining an axial load in one direction.

The load-carrying geometries can also have differences such as the contact angle, dynamic load rating (C), static load rating (C0), and materials of the bearing. Standard contact angles are 15 degrees, 25 degrees, and 30 degrees as an example, larger angles are considered to have greater axial load-carrying capacity but lower the radial stiffness. For example:

• Dynamic load rating (C): This rating defines the fatigue endurance of the bearing or a bearing-mounted mechanism during normal conditions geographically rated from 10 to 200 kN depending on the size and design of the machinery.
• Static load rating (C0): Nondestructive load rating which is the maximum static load that can be exerted across the bearing with designs varying between 5 and 150kN for standard single-row models.

It is essential to calculate these values accurately during the selection process to ensure optimal performance based on application requirements. If bidirectional axial load support is needed, pairing the bearings in duplex configurations (e.g., back-to-back or face-to-face arrangements) is recommended. These configurations improve stability and distribute loads more evenly across the bearing assembly.

Load carrying capacity compared to deep groove ball bearings

Compared to deep groove ball bearings, angular contact ball bearings have a greater capacity for axial load since the design possesses a contact angle which allows it to withstand higher axial forces in one direction. However, deep groove ball bearings are designed with a greater radial load capacity and do not perform well under high axial loads.

• Contact Angle: Deep groove ball bearings, in comparison to angular contact ball bearings, do not have significant or any contact angles which makes deep groove ball bearings inadequate for such applications since they allow for a little or no contact angle which ranges between 15-40 degrees.
• Axial Load Rating: The contact angle enables angular contact ball bearings to have a higher axial load rating that can be in the range of 30-50% higher than the deep groove ball bearings, depending on the dimension and the material property of the bearing.
• Radial Load Capacity: In addition to that, the radial load capacity of the bearings is influenced by the internal structure since deep groove bearings with the same dimensions have a higher internal radial load capacity than angular contact ball bearings.

When it comes to high axial load applications, angular contact ball bearings are the best option. On the other hand, deep groove ball bearings are appropriate for high precision, high-speed applications with only a small radial load to support. Several factors should be considered while bearing selection in particular the load direction, speed, and the conditions to be expected from the application.

High load performance of X-life angular contact ball bearings

The enhanced load value of X-life angular contact ball bearings is generally the result of the improved design and material engineering of these bearings. These include the optimized contact angles and the high precision of the raceway geometry which enable them to withstand both the axial and radial loads effectively. Furthermore, the application of higher grades of steel and performing heat treatment processes provide greater fatigue resistance and durability.

• The angle of Contact: 25º or 40º, dependent on the application where the aim is for efficient handling of axial loads.
• Dynamic Load Rating: The load rating has been increased by as much as 15% on standard bearings allowing a wider scope of operations both at higher speeds and larger load conditions.
• Material Properties: The manufactured steel is of high quality with high purity and increased hardness which reduces wear and increases service time intervals.
• Friction Optimization: The coefficient of friction is also lower which reduces the amount of heat that is generated when operating from high speeds.

By comparison, these attributes show that X-life angular contact ball bearings are the best option for engineering solutions in applications where high load capabilities are outstanding for equipment such as machine tool spindles, automotive gearboxes, or industrial pumps. The right type of bearing should be chosen to meet in what radius the load will be applied as well as the strength of the load and performance of the system.

What are the advantages of using single-row angular contact ball bearings?

Superior performance in high-speed applications

Single-row angular contact ball bearings are suitable for high-speed applications. The primary reason for their use is their ability to support radial and axial loads in a single bearing: I dare say that they have an ability of a high contact angle ranging from 15 degrees to 40 degrees which enables load to be well distributed thus minimizing the stress and friction during rotation. Moreover, their lightweight construction and the profiled design of the cage allow decreasing the drag moment,.

• Contact angle: 15°–40° to support thrust loads in one direction.
• Limiting speed: May reach 300,000 rpm limited only by lubrication and size.
• Load capacity: Performance ratings differ with series but they can exhibit a uniform strength against both dynamic and static loads in efficient systems.
• Material: Ceramic or high-quality steel materials for wear resistance and durability in hostile environments.

These characteristics justify their widespread usage in precision-driven industries where both speed and reliability are critical.

Ability to support combined radial and axial loads

The ability of bearings to support combined radial and axial loads is a result of their internal geometry and material composition. In these configurations, the load distribution within the raceways ensures optimal performance under complex loading conditions. For instance, angular contact ball bearings are specifically designed to manage both types of loads due to their angular displacement between the raceways and balls.

• Contact Angle: about 15° and up to 40°, depending on the intended axial bearing load, the contact angle can be a larger factor.
• Dynamic Load Rating (C) And Static Load Rating (C0): T indicates the maximal extent to which the bearing can endure a combination of forces and equates to its mass and structural configuration parameters.
• Material Strength: Great aluminum/ceramic which has favorable load distribution characters is employed for construction to minimize the amount of deformation while applying radial and axial loads simultaneously.

The suitability greatly depends on operational speeds, lubrication conditions, and specific application needs to maintain reliability and optimize lifespan under combined loads.

Compensation for angular misalignments in bearing arrangements

When we have angular misalignments of bearing arrangements, we have to use components that are capable of withstanding some degree of misalignment without in any way affecting the performance of the system. One viable option for this situation is the combination of self-aligning bearings or spherical roller bearings since these are intended to compensate for the angular displacement between the axis of a shaft and the axis of the bearing housing.

• Misalignment limit: It is a known fact that the self-aligning bearings have a stated misalignment tolerance which for the ordinary self-aligning type bears a threshold level of about 2 degrees on both sides. This level of tolerance has to be acceptable concerning the application that the operation is being done for.
• Bearing Resistance: The bearing structure must be capable of bearing both the radial and axial loads imposed onto it without the chance of excessive wear and deformation. Sourcing for stronger steel or ceramics composites can help in durability and load management.
• Inward structure: Certain aspects such as enhanced raceway curvature and rolling element profiles can increase and improve the capacity of bearings to handle and sustain misalignment for longer times.
• Use of Lubricants: Employing highly viscous lubricants when engaging in angular movement can greatly assist with preventing heat from building up therefore greatly reducing the chances of wear.
• Stability Dynamics and rotation: The system has to ensure that rotational vibrations and noise are minimized all the while compensating for any angular changes that occur to keep the system in equilibrium and stable.

By considering these aspects, it is possible to control angular misalignments in a manner that preserves the reliability and durability of bearer arrangements. As a result, this bespoke approach minimizes mechanical stresses and improves functional efficiency as well.

How to properly arrange single-row angular contact ball bearings?

Single bearing vs. bearing pairs: When to use each

I would recommend using a single-row angular contact ball bearing when the application requires simple load handling, particularly under conditions where axial load is exerted in only one direction. Such configurations are ideal for compact designs that prioritize space efficiency and where minimal axial stiffness is sufficient. For example, these bearings are commonly applied in small motors or gearboxes where the load conditions are stable and predictable.

Bearings pairs on the other hand ought to be used, when proper rigidity is needed and there is a requirement that both ends of the bearing can bear axial loads. Mounting pairs in the assemblies such as back-to-back (DB) and face-to-face (DF), or tandem (DT), provide the system with combined loads as well as maintain effective alignment and load distribution. Such configurations are highly effective on high-speed spindles, robotic systems as well as applications for high precision positioning of items or materials.

• Contact angle (15°, 25°, or 40°): Increased axial loads support better with higher contact angle facilitating pairing of the two.
• Preload type (light, medium, or heavy): Preload pairs will decrease vibration and increase the rigidity of devices but still have to be picked according to the conditions of each environment or the average thermal expansion of the system.
• Dynamic and static load ratings (C, C₀): One of the prime factors that affect the durability and reliability of an equipment is the ability of the bearings to carry the said load, hence testing the load capacities is of utmost importance.

By carefully evaluating these, I can determine whether a single bearing or bearing pairs are better suited to the specific operational requirements of the system.

Optimizing bearing sets with universal bearings

When optimizing bearing sets using universal bearings, there are several critical technical factors that I consider to achieve the desired performance and longevity. These include preload configuration, alignment accuracy, and operational load distribution.

• Preload Type: Preload is set given the application expecting either improvement in stiffness with variations or lesser vibration. Universal bearings usually come with preset preload values which I set to apply some variance while ensuring unchanged results.
• Load Ratings (C, C₀): Similarly, the dynamic load rating C and the static load rating C₀ are set to the bearing sets at the highest estimated loads but within their rated limits to avoid rapid wearing or damaging of the parts as affecting their safety parameters.
• Tolerance Classes: In the selection of the bearings, undesired misbalanced structures or the effects of possible misalignments are kept to a minimum by ensuring that the appropriate dimensional tolerances of the parts likewise interface with the shaft and housing.
• Contact Angle: The contact angle made will help ascertain the axial, radial, or a mix of the two loads on which the bearing will work best. I ensure the angles specified, which are the contact angles, will not exceed or fall short of what the application needs.

By addressing these factors systematically, I effectively optimize the universal bearing sets to meet operational needs efficiently.

What factors affect the performance of single-row angular contact ball bearings?

Impact of internal clearance on bearing performance

Internal clearance has a huge bearing on the performance of single-row angular contact ball bearings hence affecting load, temperature, and efficiency. I concentrate on the requisite selection of the clearance optimum for the operational requirements of the application.

• Axial and Radial Load Distribution: Lesser internal clearance makes it possible to have good control of the radial and axial load distribution but this also raises friction and heat generation. For example, unwanted misalignment or vibration can result from very high clearance.
• Operating Temperature: During functioning sufficient clearance must be allocated bearing in mind thermal expansion. As the temperature of the bearing increases they usually get less clearance so I do the calculations and give the specifications of clearance tolerances so that these changes are expected in the normal working conditions.

By a careful study of these, I ensure that the internal clearance optimization is in line with the intended performance envelope and wear and life are minimized in the system.

Influence of the number of balls on load capacity

The load-carrying capability, reliability, and lifespan of a bearing depend on the number of balls in it. When the number of balls is increased, the ball avails to cushion loads more effectively, therefore, enhancing its radial and axial load-bearing capabilities. For example, a larger number of balls will help distribute the applied load over a wider area, thus minimizing contact pressure and wear on the localized area. There is, however, a caveat to this concept — such as generating heat and internal friction.

• Load Bearing Capacity: Increasing the ball number translates to increased bearing dynamic load rating. The increase, however, lies in factors such as the ball count ratio, materials used, and the geometry of the bearing.
• Axial Load Distribution: Ball counts can be adjusted to improve axial load, these are particularly useful when used under combined load. They help reduce the chances of premature aging of the device due to higher edge stresses.
• Friction and Power Loss: Extra balls might slow down internal friction, leading to a slight rise in heat loss. Hence the lubrication measures employed should be tweaked accordingly.

In the end, I consider adding load capacity against frictional losses concerning its features, so that bearing configuration can be adapted without affecting the reliability or efficiency of the system’s performance.

Role of contact lines in bearing efficiency

The efficiency and operational life of rolling element bearings depends greatly on the contact lines. Well-engineered contact lines minimize localized stresses by spreading loads over a large area which reduces wear and strengthens fatigue resistance. More specifically, the contact lines, be they point, line, or elliptical, influence the stress concentration of the bearing along with its friction.

• Contact Stress (σc): Contact stress is estimated utilizing the Hertzian contact theory, which takes into account the hardness of the material, the force, and the contact geometry. Greater σc diminishes the lifespan of the bearing so it’s ideal to use lesser values.
• Load Distribution Factor (k): Even load distribution along the contact line has been associated with moderate deformation and wear, which is necessary for high rotational speed applications.
• Friction Coefficient (μ): A lower friction coefficient enables the generation of low levels of operational heat which has a positive effect on operational efficiency.
• Ellipticity Ratio (k’): In the case of elliptical contacts, proper ellipticity leads to uniform stress distribution and hence increases both efficiency and life of the component when the loads fluctuate.

I employ the best material coating and lubricants using contact geometry optimization to approach the aforementioned issues allowing the operational conditions to be met more efficiently. This way durability and system reliability are not compromised at the cost of bearing efficiency.

How to design bearing arrangements using single-row angular contact ball bearings?

Considerations for selecting the right contact angle

When selecting the appropriate contact angle for single-row angular contact ball bearings, it is crucial to assess load conditions and system requirements systematically.

• Maximum Capacity to Bear an Axial Load: This angle exhibits slightly more than 60% difference in friction and contact pressure which tends to raise the axial load capacity of the bearing. If Machine Spindles or Pumps are the applications of concern, angles measuring 30° or 40° would fit the purpose perfectly because they bear excessive axial forces.
• Maximal Capacity to Bear a Radial Load: 15° is the ideal contact angle to evaluate as it accommodates an even higher radial load and is perfect for applications requiring mostly radial loads exerted on them at a high speed.
• Preemptive Load and Rigidity Constraints: A higher contact angle circumvents the amount of deflection to a bare minimum while on a load, making NPM more effective when adapted to high-precision machinery with strict injunctions about deflection.
• Restrictions on the Speed: Tighter bearing axial loads generate more heat, therefore a bearing that uses a compact contact angle such as 15, would be able to sustain a higher rpm.

By carefully matching the contact angle to the application’s load distribution, speed, and rigidity demands, I ensure optimal performance and longevity of the bearing system. These considerations are supported by well-documented relationships between contact angles and bearing behaviors, balancing mechanical efficiency with reliability.

Balancing radial and axial loads in bearing design

Balancing radial and axial loads in bearing design requires a systematic evaluation of the application’s operating conditions and load distribution. When responding to such design challenges, I assess factors such as the magnitude and direction of each load type, speed requirements, and system rigidity. If a higher radial load predominates, deep groove or cylindrical roller bearings are typically selected due to their capacity to efficiently handle such forces. Conversely, for applications involving significant axial loads, angular contact or thrust bearings are more appropriate due to their higher axial load-carrying capacities.

• Load Ratio: Establishes the predominant direction of the load and assists in the selection of the bearing.
• Limitations due to Speed: This considers the safe limits in which the bearing could operate when movement is in progress preventing the component from overheating; this is determined by the conditions present and the architecture of the bearing.
• The angle of Contact: This was incorporated to assist in controlling the total of axial and radial force components, but a greater angle allows for a larger axial load-carrying capacity but constrains speed.
• Service Life: Predicted using the basic dynamic load rating, ensuring bearings meet longevity requirements under combined loads.

By aligning them with the mechanical demands, I deliver optimized solutions tailored to the specific application context while ensuring the long-term reliability and efficiency of the bearing design.

Strategies for compensating angular misalignments

Angular misalignments occur when the axes of coupled components deviate from perfect alignment, often leading to performance issues, excessive wear, and reduced system durability. Effective strategies for compensating angular misalignments include:

• Use of Flexible Couplings: These types of couplings can cope with angular misalignments due to their ability to rotate about a certain axis and have torsional flexibility. Elastomeric, gear, and diaphragm couplings are examples of such which are selected based on the torque transmission requirement and angling tolerances.
• Implementation of Self-Aligning Bearings: Spherical roller bearings or self-aligning ball bearings are self-aligning bearings that correct angular differences automatically due to rolling elements shifting their position. These are most beneficial when the system has to endure dynamic or changing alignments.
• Precision Machining and Assembly Practices: For angular misalignments, excessive machining tolerances and precise alignments during assembling can minimize angular misalignments at their root. Exact positioning is accomplished through the tools and laser alignment systems.
• Rigid-Contouring Mechanical Designs: Using spherical washers or concave-contoured mating surfaces may be able to maintain reasonable load distribution by allowing some rotation of the components and hence not getting too concentrated stress to only a part of the component.
• Advanced Feedback Mechanisms: In real-time systems, encoders can help track movements, sensors, etc. alongside other types of feedback mechanisms to help over time ensure that the real-time aligned systems can easily receive and sort track and align other varying loads or operating conditions.

By combining these strategies based on specific operations, engineers can mitigate the adverse effects of angular misalignments, ultimately improving mechanical efficiency, system lifespan, and overall performance.

Frequently Asked Questions (FAQs)

Q: What are the main features of single-row angular contact ball bearings?

A: Single-row angular contact ball bearings are rolling bearings designed to support high radial and axial loads in one direction. They feature a contact angle α between the balls and raceways, allowing them to carry combined loads efficiently. These bearings are often used in pairs or adjusted against a second bearing to enhance their performance in various applications.

Q: How does the design of bearing arrangements affect the performance of angular contact ball bearings?

A: The design of bearing arrangements plays a crucial role in maximizing the performance of angular contact ball bearings. Proper arrangement, such as mounting bearings in O or X configurations, can significantly impact load distribution, stiffness, and overall system performance. The arrangement also influences the carrying capacity of the bearings and their ability to handle specific load combinations.

Q: How do single-row angular contact ball bearings compare to other bearing types?

A: Compared to other bearing types, single-row angular contact ball bearings excel in applications requiring high-speed operation and the ability to support combined radial and axial loads. They offer better axial load capacity than deep groove ball bearings and are more suitable for precision applications than tapered roller bearings. However, they may have lower radial load capacity compared to some other bearing types.

Q: Can single-row angular contact ball bearings support axial loads in both directions?

A: Single-row angular contact ball bearings are designed to support axial loads primarily in one direction. To support axial loads in both directions, they are typically used in pairs or arranged in a back-to-back or face-to-face configuration. This arrangement allows the bearings to effectively handle bidirectional axial loads while maintaining their high-speed capabilities.

Q: What is the significance of the contact angle α in angular contact ball bearings?

A: The contact angle α is a crucial parameter in angular contact ball bearings. It determines the bearing’s ability to support axial loads relative to radial loads. A larger contact angle increases the axial load capacity but may reduce the radial load capacity. The contact angle also influences the stiffness of the bearing arrangement and the formation of contact lines between the balls and raceways.

Q: How do double-row angular contact ball bearings differ from two single-row bearings used in pairs?

A: Double-row angular contact ball bearings combine two single-row bearings in one unit, offering several advantages. They require less axial space, are easier to mount, and provide higher stiffness compared to two single-row bearings arranged separately. However, two single-row bearings used in pairs offer more flexibility in terms of preload adjustment and can be more suitable for certain applications requiring specific load-handling characteristics.

Q: What factors should be considered when selecting angular contact ball bearings for a specific application?

A: When selecting angular contact ball bearings, consider factors such as load type and magnitude, operating speed, temperature, environmental conditions, and space constraints. The dimensions of angular contact ball bearings, their precision class, and materials should also be evaluated. Additionally, the specific requirements of the application, such as the need for preload or the desired stiffness of the bearing arrangement, should be taken into account to ensure optimal performance.
