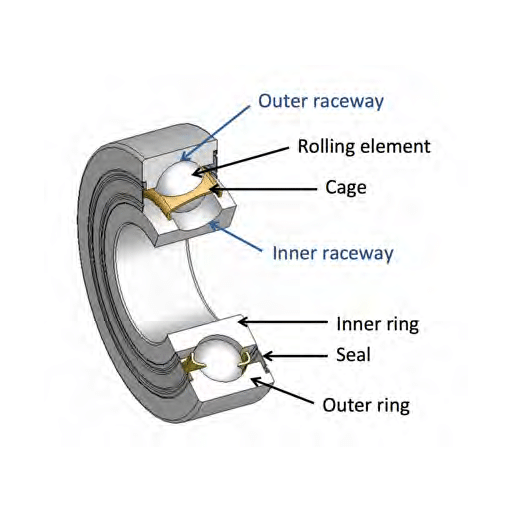

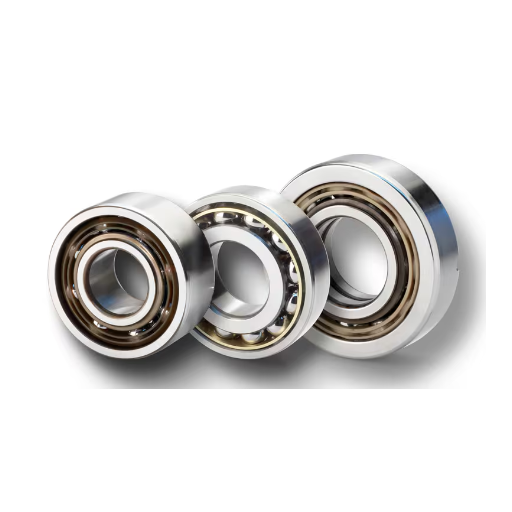

Understanding Angular Contact Ball Bearings: A Comprehensive Cross-Section Guide

Angular contact ball bearings are an essential component in numerous industrial and mechanical applications, valued for their ability to handle combined radial and axial loads effectively. This guide provides a technical, in-depth exploration of the cross-sectional design, operational principles, and performance attributes of angular contact ball bearings. By examining their unique structural features, material composition, and alignment capabilities, this article aims to offer readers a foundational understanding of their functionality and practical applications.

What are the key advantages of using angular contact ball bearings?

High load capacity and rigidity in machine applications

Bearings with an angular contact design tackle the high load and stiffness criteria simultaneously. Because of their design, they can bear both radial and axial loads which makes them ideal for components of machines that would otherwise not be able to function due to a combined load on them. The contact angle of these bearings, which ranges between 15° and 40°, is a very important design parameter since an increase in the contact angle increases the bearings’ ability to bear axial loads but reduces the capability to bear radial loads.

• Axial Load Capacity: Proportional to the sine of the contact angle, higher angles with larger axial contact with larger axial contact force.
• Stiffness: Determined by the preload levels; stresses are high at higher preload but internal friction begins to limit service life.
• Rotation Speed: Researched and tested on tolerances and lubrication, angular contact ball bearings serve a variety of functions with rotational speeds reaching up to 3 million dN (bearing bore diameter in mm × speed in RPM).
• Material and Coatings: Pieces are made out of either high-quality ceramic materials or hardened chromium steel as these materials help enhance strength, durability, and thermal stability. Black oxide coating is also amongst the variety of coatings available and is most suited for functioning under extreme conditions

To put it concisely, these features of angular contact ball bearings are top-class for aerospace equipment, machine tools, and high-speed spindles because of their durability, precision, and load-carrying efficiency.

Ability to handle combined radial and axial loads

Angular contact ball bearings are made to withstand both radial and axial loads at the same time. This kind of bearing type is used in applications that require high precision and durability, unlike the other types because of its raceways’ unique angular position which helps with load distribution. For instance, applying an axial force translates to a contact angle pushing the rolling elements and the raceway efficiently when moving This is realized through:

• Contact Angle: A contact angle can range from 15° to 25° and this will set the load that is to be carried in the axial directions. The higher the range, the lower the radial load is, but the axial load increases with the angle.
• Material Strength: Structural integrity is maintained under the combined loads using either high-grade steel or ceramic materials.
• Cage Stability: Smooth running is aided by modern cage designs, for instance, the polyamide or brass cages despite a high-speed application and varying load conditions.

Because of these features why these bearings perform well with high-speed spindle and aerospace systems which are highly complex in loading and are stable are quite evident.

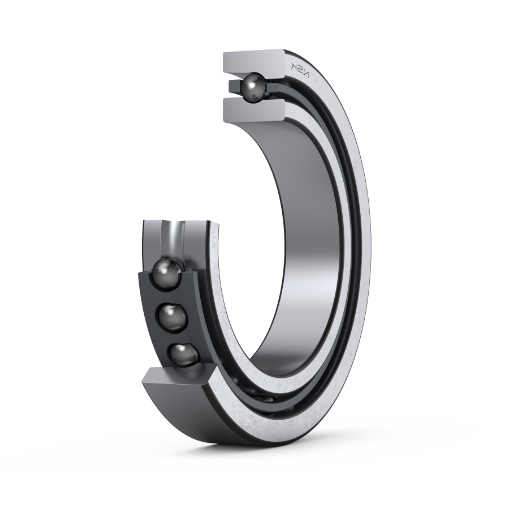

Suitability for high-speed operations

1. Material Composition： The use of high-performance steels or modern ceramics guarantees exceptional mechanical strength and thermal stability which is crucial in high-speed regimes. Such materials are resistant to indentation and have great endurance even during extreme load conditions.
2. Low Friction Coefficients： The surface finish as well as the manufacturing technologies employed are such that the friction is low and so the heat generated is also low. This is important in ensuring good performance in high-velocity systems.
3. Cage Design： Modern cage materials such as polyamide or brass are specifically used to ensure stability and smooth functioning. These materials are selected due to their ability to withstand high-speed high-velocity high-speed rotational stresses without failing.
4. high-speedThe reduced friction also contributes to improved thermal management of the system and helps ensure that the temperatures of the bearings remain within operational limits which are very important in high-speed applications.

Taking these factors into consideration and their rationalization into account it can be stated that these bearings are best suited for high-speed spindle systems and applications in aerospace, which require maximum reliability, great stability, and high accuracy.

How do single-row and double-row angular contact bearings differ?

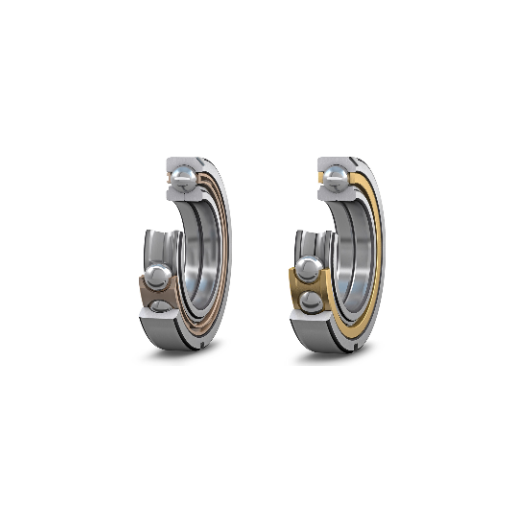

Comparing load capacities of single and double-row bearings

Single-row angular contact bearings are ideal when both radial and axial load capacities are to be met. However, these bearings can bear an axial load in one direction only and hence they would need a secondary bearing to take care of the opposite direction axial forces. For example, a single-row bearing with a larger contact angle applying restraining force on rotational displacement will indeed bear a larger restraining load than a row bearing with a smaller contact angle.

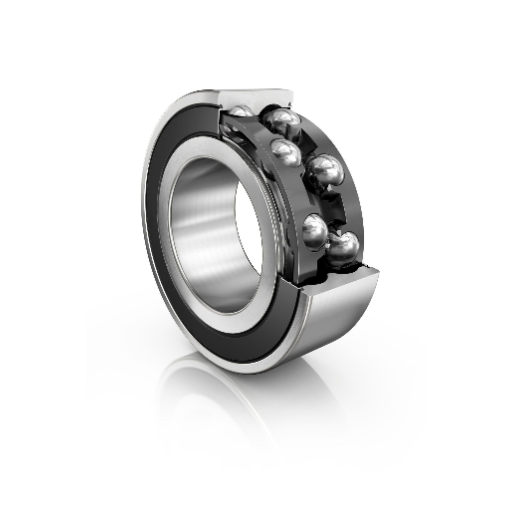

Double-row angular contact bearings can be interpreted as simply two single-row bearings incorporated together. Such arrangements will enable them to bear axial loads in either direction and substantially improve their radial load capacity. Hence, double-row bearings can be used in applications that require high load-carrying capacity but do not have sufficient space.

• Equivalent Dynamic Load Rating (C): This is generally found to be higher in double-row bearings as these bearings are made up of two loading paths which increases their efficiency under dynamic load conditions.
• Static Load Rating (C₀): This, however, is generally more in double-row types owing to the larger area of contact surfaces.

While single-row bearings are preferred for precision applications with unidirectional axial loads, double-row bearings are more reliable in systems where bidirectional forces and greater radial loads are factors.

Applications suited for single-row vs. double-row bearings

In short, single-row angular contact-type bearings are better suited for applications with a greater degree of accuracy and speed and load in one axial direction only. They are used on high-speed spindles, pumps, and gearboxes for example. The structure’s high efficiency in these cases is due to its lightweight and low friction, though it becomes ineffective in handling bi-directional axial loads unless accompanied by another bearing.

Heavy machinery, electric motors, and automotive wheel hubs are examples of equipment where radial and axial loads can come from both directions. In such applications, double-row angular contact bearings perform much better. They contain more elements due to the presence of two rows of elements and are thus more rigid and have a higher load capacity, but they work at lower speeds compared with single-row type.

• Static Load Rating (C₀): In general C₀ of double row bearings is greater than single row because they have more contact surfaces for the load to act on, substantiating this is their lower C0.
• Dynamic Load Rating (C): single-row bearings are constructed and engineered to a very high degree of speed and accuracy and therefore have low friction in moving parts, so they always have a high dynamic load rating.
• Ability to Handle Axial Loads: The capability of dealing with unidirectional axial load belongs to single-row bearings, The other way around is to apply bidirectional axial load, which only works with double-row types.
• Speed Rating: Single-row types can achieve higher permissible speeds because of the improved design, while double-row bearings, because of the greater load capacity, are more stable at lower speeds

Every bearing type should be selected based on the working conditions and limits of a concrete task.

What are common applications for angular contact ball bearings?

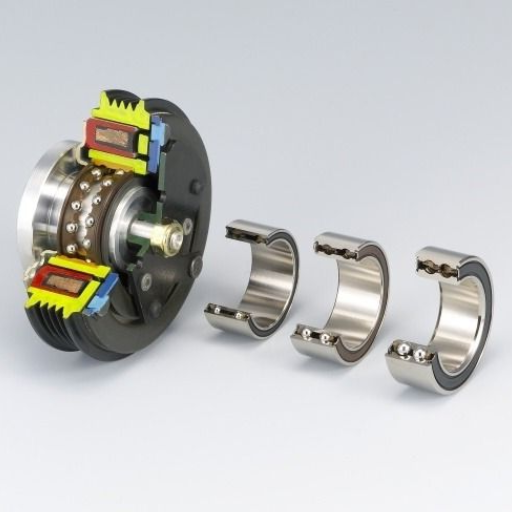

Use in machine tools and spindles

Angular contact ball bearings are best known for their ability to perform axial and radial loads making them an ideal fit for machine tools and spindles. These ball bearings are made specifically for tasks that involve high load-carrying capabilities alongside maximum rotational accuracy and higher rigidity levels.

• Contact angle: Angular contact tree bearings are graded on a scale of 15°, 25°, and 40° based on axial load requirements and the axial load requirements on machinery. One thing to understand about contact angle is that higher contact angles will lead to faster axial load capability but will in turn decrease the speed performance by a certain extent.
• Preload: In most cases, ball bearings will be preloaded to eliminate the possibility of deflection and ensure rigidity, something that can cause a lot of issues in precision machining tasks.
• Speed Limits: In ideal conditions, single-row bearings paired with sufficient lubrication and cooling will exceed RPMs of 10,000.
• Materials: To enhance the speed capabilities of the angular contact ball bearing while ensuring low levels of friction and increased durability.
• Accuracy Grades: Ball bearings specifically built for machine tools have been typically classified under ISO P4 or P2.

Due to the sheer nature of their factors and requirements about reliability, performance, and most importantly precision; angular contact ball bearings have become one of the most sought-after components in the manufacturing world.

Applications in automotive and aerospace industries

Due to their capacity to bear axial and radial loads simultaneously while still being highly accurate, angular contact ball bearings are essential for the automotive and aerospace industries.

1. Angular Ball Bearings in the Automotive Sector: Different types of angular contact ball bearings are employed in joints, wheel hubs, and suspension systems. For example:

• Transmissions: Effective operation of an automobile requires small friction bearings that bear high speeds such as 20000 rpm.
• Wheel Hubs: Employ double-row angular contact ball bearings because they can withstand combined loads and use high-carbon chromium steel for toughness and fatigue resistance.

2. The use of bearings in aerospace is restricted to highly reliable systems such as jet engines and landing gear that can withstand high operating conditions. For example:

• Jet Engines: the use of bearings that meet ISO P2 accuracy grade during speeds above 30,000 rpm holds the rotor in place preventing excessive vibration.
• Landing Gear Systems: It is best to use bearings with the highest static load ratings and advanced coatings, such as ceramic, to resist forces during landing and takeoff.

Rigorous certification metrics further validate the reliability of these bearings; AS9100 for aerospace and ISO/TS 16949 for automotive applications, which satisfies the expectations of their use in critical environments.

Angular contact bearings in wind turbines and gearboxes

Since angular contact bearings can take both axial and radial loads, they are essential components of wind turbines and gearboxes. These bearings have been developed primarily to be used in high-precision applications, which these systems require.

In the case of wind turbines, angular contact bearings tend to be incorporated within the main shaft assembly as well as at various stages of gearboxes to combat the loading and high level of stress that wind alterations cause. They are intended to be able to bear both dynamic rotary designs along with dynamic axial forces exerted by the rotor at high accuracy. Such bearings are produced with high-grade chromium steel to remain durable and allow low amounts of wear to occur over constant shifts in load. The standard contact angles are 15° to 25° which assist with strong axial load bearing while performing at pumping speeds of up to 2000 RPM in accordance to set turbine specifications.

Like lubricated bushings, these bearings are used in gearboxes to improve efficiency and cope with multi-directional loads in a compact high-torque system. Their raceway and ball types are designed in such a way as to encompass the maximum contact area during combined loading without increasing the friction and losing power. Preload configurations for angular contact bearings are usually mandated in gearbox designs to reduce vibration and enhance the stiffness of the gears, with these thresholds being carefully micrometer gauged.

These bearings have a long operating life while requiring minimum maintenance, which is critical in these applications, thanks to the usage of high-quality lubricating materials and compliance with industry regulations like IEC 61400 for wind turbines.

How do angular contact bearings compare to deep groove ball bearings?

Differences in load handling capabilities

Angled contact bearings versus deep groove ball bearings stem from structural disparities that us with an alternate load handlingorce. A contact angle of 15 to 40 degrees allows the angled contact bearing to be the best fit in applications demanding axial loads such as spindle machinery and other high-speed machines since the angle provides it an edge with the axial force.

Electric motors, conveyor belts, and other low-maintenance equipment thrive off deep groove ball bearings as they require minimal internal structural friction allowing those machines to operate on a moderate axial load with them since their cross-section geometry enables them to work with high radial loads and moderate cross-sectionapacity.

The selection ultimately depends on the specific operating requirements, including load direction, magnitude, and rotational speed. For example, if an application demands axial loads exceeding 0.5 times the radial load or higher speeds up to 30,000 RPM, angular contact bearings would be more appropriate due to their higher stiffness and precision under such conditions. Deep groove ball bearings, however, may suffice for simpler systems with predominant radial loads and operating speeds below 20,000 RPM.

Speed and precision considerations

When addressing speed and precision considerations, it is essential to evaluate the application’s operation systematically. For instance, if the system requires rotational speeds above 20,000 RPM while maintaining high positional accuracy, angular contact bearings are justified due to their optimized geometrical design that supports both axial and radial loads efficiently. Conversely, for applications with moderate speed requirements (below 20,000 RPM) and limited axial load, deep groove ball bearings provide satisfactory performance with simple installation and cost-effectiveness.

• Rotating speeds: Use angular contact for up to 30,000 RPM speeds, and employ deep groove ball bearings for under 20,000 RPM.
• Nature and direction of the load: Use angular contacts when the axial load is more than 0.5 of the radial load. For radial load, use the deep groove ball bearings.
• Degree of precision: Incorporate angular contact for areas that require more stiffness and positioning accuracy.

Every single one of the above-mentioned factors needs to be verified against the specific operating conditions to make sure they are suitable and functional.

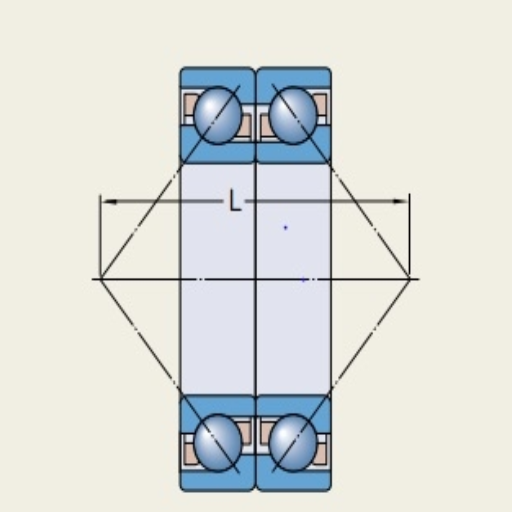

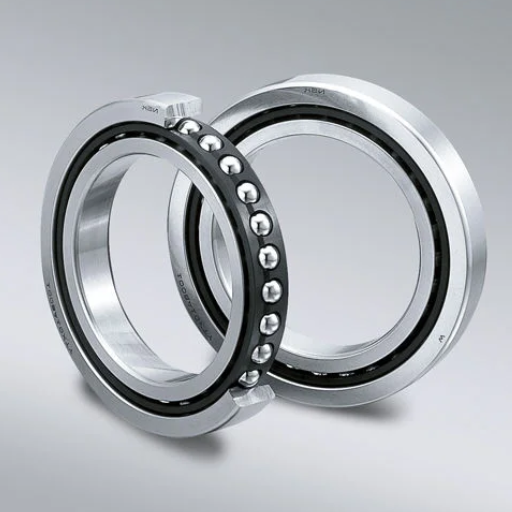

What are duplex angular contact ball bearings?

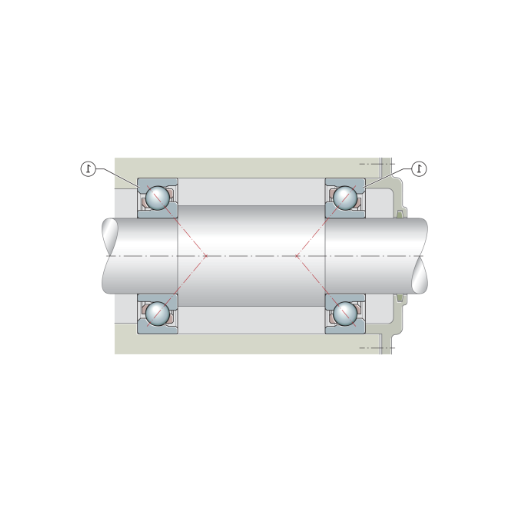

Understanding preload in duplex bearings

Preload in duplex angular contact ball bearings deals with the application of an axial load on purpose during assembly which gets rid of internal clearance and increases the rigidity of the bearing. It is also mentioned that the application of preload tends to improve the performance of the bearing as it increases the stiffness and vibration is reduced as well as accurate positioning is achieved. Also, the level of applied preload is specified by the working environment conditions of the apparatus and is designated as light, medium, or heavy.

• Bearing capacity: Check how much the bearing is going to experience axial forces to correlate with the categories of the applied preload.
• Max. Speed: As the bearing is rotated, there is a high likelihood of heat generation due to the higher preloads, even though they increase stiffness; ensure the desired operational speeds are set.
• Stiffness Requirements: For example, medium to heavy preloads would be inapplicable due to the varying levels of accuracy needed from the machine tools.
• Temperature Changes: Thermal expansion is something to consider, as it will change the number that is used to consider the magnitude of the load.

By carefully calibrating these factors, the bearing can achieve optimal performance tailored to its specific application.

Benefits of duplex bearings in high-precision applications

Duplex bearings can be efficient for high-precision applications due to their versatility. First, they are capable of axial and radial stiffness which allows for load alignment to remain in its precise location. This precisely matches the conditions required in CNC machining and advanced robotics where one would be very rigid in their tolerances.

The second advantage of duplex bearings is the ability to eliminate internal clearance by preloading thus lowering the overall vibration and deflection during operations. For instance, many high-precision duplex bearings offer a predefined light medium from 1-2% dynamic load rating which is recommended based on the requirements of the application. This kind of controlled preloading not only improves flexibility but also precision as it reduces the risk of movement from several forces.

Another prominent advantage is that they offer immense thermal stability. With the right configuration for data modeling, duplex bearings can expand and contract when needed while maintaining the same operational performance. An ideal temperature range to work with is between -20 degrees Celsius and 120 degrees Celsius.

Lastly, duplex bearings allow for improved load distribution and maximized load capacity owing to their double raceway design. By incorporating these bearings into machine tools, measuring devices, and other high-speed spindles, the overall reliability and lifetime performance are considerably improved, due to better load balancing and decreased wear and tear over the long term.

How to choose the right angular contact ball bearing for your application?

Assessing load requirements and operating conditions

In determining load conditions and requirements that bearings can endure, I would analyze load types and their intensity that will be applied on the bearing which has axial, radial or combined bearing loads as their ratios are crucial in the selection process. For example, if the axial load (Fa) is more than 60% of the radial load (Fr), I suggest a contact angle of either 25 or 30 degrees or higher due to associated thrust forces.

The next consideration is the speed of operation. For high-speed applications, these bearings require optimized internal geometry or, perhaps, ceramic balls to reduce both centrifugal forces and heat generated. If the speed is greater than the d·n value of 1 million mm/min, then the high-speed design and appropriate lubrication are essential.

Also, operating conditions such as variation in temperature and level of contamination are immensely important. For operating in a variable temperature condition, for instance, I would calculate the thermal expansion of bearing and housing materials to maintain the same preload. A steel bearing used with an aluminum housing may expand differently, giving a need to begin compensation in the initial fits.

Considering bearing size and arrangement options

When selecting bearing size, I take several factors into account to ensure optimal performance. These include the required load capacity, the available installation space, and the speed of operation. For example, if the primary focus is on radial loads, a deep groove ball bearing may be appropriate due to its high load-carrying capacity in compact dimensions. However, if axial or combined loads are significant, angular contact or tapered roller bearings might be more suitable.

• Radial and Axial Loads (N)： Determining the Minimum Varying Static load ratings and the maximum dynamic load ratings.
• Speed Ranges (rpm)： To determine if the type of bearing is applicable and if the lubricant is satisfactory by the d.n value.
• Operating Temperatures (°C)： To calculate material expansion rates and assess lubrication performance.
• Contamination Levels： Testing if applying seals and coatings would be optimal for the bearing.
• Dimensions Aided (mm)： Use in specification of the bearing size and for verification concerning the structure.

All these endorsements are based on accurate calculations, so we need to narrow down the criteria first. For example, in the case of high speed (>750000 mm/min d·n value) adding hybrid ceramic bushing with lower weight and lower thermal expansion coefficient may be necessary. Likewise, in the case, of unusual regions, there may be a requirement for specialized seals or lubricants to reduce the corrosion or temperature effects.

Evaluating the need for contamination protection

To evaluate the need for contamination protection in your application, I would carefully consider the operating environment and its potential impact on the bearing’s lifespan. If the system operates in environments with high levels of dust, moisture, or chemical exposure, contamination protection becomes a critical factor.

• Contaminatively Developed Classification Type and Size： The liquid or solid contaminants that a device will be exposed to can be filtered with seals.
• Rating for IP Protection： These are abbreviated forms for protection rating against access to certain parts of the application, tools, or fingers. In cases of highly contaminated environments, IP67 seals are accepted.
• Compatibility of Lubricants： A lubricant should not be emulsified or broken down by certain gases or substances within the lubricant. For instance, Wet conditions require grease to have higher levels of corrosion inhibitors than normal conditions.
• Environmental Pressure and Temperature： Considerable and minimum internal and external pressures such as humidity and temperature measurements increase the chance of contamination and may need extra sealing features to be built.

A combination of these considerations guarantees a longer life and more effective operations of the bearing system even under tough conditions.

Frequently Asked Questions (FAQs)

Q: What are angular contact ball bearings and how do they differ from radial bearings?

A: Angular contact ball bearings are designed to support both radial and axial loads, unlike standard radial bearings which primarily handle radial forces. The key difference lies in their internal geometry, where the raceways of the inner and outer rings are displaced relative to each other in the direction of the bearing axis. This design allows angular contact bearings to handle both radial and axial forces efficiently, making them suitable for applications requiring support in multiple directions.

Q: How do single-row and double-row angular contact ball bearings differ in their load-bearing capabilities?

A: Single-row angular contact ball bearings are designed to support axial loads in one direction, while double-row angular contact ball bearings can support axial loads in both directions. Double-row bearings typically have a higher load capacity and can handle moment loads more effectively. The choice between single-row and double-row bearings depends on the specific application requirements and the direction of axial forces expected in the system.

Q: What is the significance of the contact angle in angular contact ball bearings?

A: The contact angle in angular contact ball bearings is crucial as it determines the bearing’s ability to handle axial loads. A larger contact angle allows the bearing to support higher axial loads relative to radial loads. The contact angle is typically between 15 and 40 degrees, with higher angles providing increased axial load capacity at the expense of some radial load capacity. The specific angle is chosen based on the application requirements and the balance needed between radial and axial force handling.

Q: In which industries and applications are angular contact ball bearings widely used?

A: Angular contact ball bearings are widely used in various industries due to their versatility. They are commonly found in applications such as spindles of machine tools, automotive wheel hubs, industrial pumps and compressors, aerospace equipment, and medical equipment. These bearings are particularly suitable for high-speed applications where both radial and axial loads need to be supported, making them ideal for precision machinery and equipment that requires high accuracy and rigidity.

Q: Are angular contact bearings available with seals and shields?

A: Yes, angular contact bearings are available with seals and shields. These features help protect the bearing from contaminants and retain lubricant, extending the bearing’s life and reducing maintenance requirements. Sealed bearings are ideal for applications in dirty environments or where regular relubrication is challenging. Shielded bearings offer similar protection while allowing for higher-speed operation compared to sealed bearings.

Q: How do thin-section angular contact ball bearings differ from standard ones?

A: Thin-section angular contact ball bearings are designed with a smaller cross-section compared to standard bearings, making them ideal for applications where space is limited. Despite their compact size, these bearings can still support both radial and axial loads effectively. They are commonly used in robotics, semiconductor manufacturing equipment, and aerospace applications where weight and space savings are critical while maintaining high precision and load-bearing capabilities.

Q: What advantages do angular contact bearings offer over other bearing types?

A: Angular contact bearings offer several advantages over other bearing types. They can handle both radial and axial loads simultaneously, making them versatile for various applications. Their design allows for higher-speed operation compared to some other bearing types. Angular contact bearings also provide high stiffness and precision, making them suitable for applications requiring tight tolerances. Additionally, they can be preloaded to increase rigidity and eliminate play, which is crucial in many high-precision applications.
