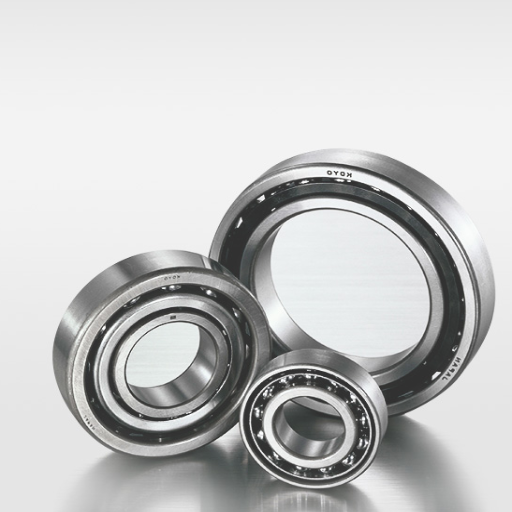

Angular contact ball bearings are critical components in modern engineering, designed to handle combined radial and axial loads with remarkable efficiency. These bearings are instrumental in applications requiring high precision, speed, and durability, making them indispensable in industries like aerospace, robotics, automotive, and heavy machinery. This guide explores the unique design, operating principles, and key advantages of angular contact ball bearings, providing an in-depth understanding of their role in optimizing machinery performance.
What are the advantages of using angular contact ball bearings in industrial applications?
Superior performance in handling combined radial and axial loads
Angular contact ball bearings are modern artifacts built to face combined radial and axial loads in demanding industrial applications. They perform so well due to the variety of contact angles, created by the unique structure of the raceways.
- Contact Angle: Contact angle ranges from 15° to 40°. A higher contact angle means the ability to carry more axial load but lower radial stiffness.
- Load Ratings: During operation, the bearings experience high dynamic and static loads so they have high load ratings to last long in extreme operating conditions.
- Speed Capability: Advanced geometrical orientation allows fast speeds which are essential for high-accuracy applications like turbine and machine tools.
- Preload Options: Variable geometric configuration enables many axial contact capabilities, which alters the bearing’s preload to suit certain desired specifications.
- Material and Coating: Special coatings and materials such as high-carbon chromium steel and ceramic enable the bearings to withstand higher temperatures and experience less friction.
These bearings have hyperbolically higher adaptability and reliability in terms of enhancing a machine’s performance even when the complexity and magnitude of the loads vary.
High-speed capabilities for demanding machinery
When addressing high-speed capabilities in demanding machinery, I would first consider the specific system requirements such as rotational speed, vibration tolerance, and thermal behavior. Angular contact ball bearings are particularly suited for these applications due to their optimized design.
- Rotational Speed: In precision applications, these bearings can be designed for rotational speeds higher than 12,000 rpm due to low friction geometry and good lubrication.
- Vibration Tolerance: Dynamic systems with proper elastomer preload options can greatly reduce excessive vibrations when operating at maximum speeds.
- Thermal Performance: Using ceramic or steel with a special coating can minimize heat development due to energy losses to facilitate normal operations during elevated temperatures.
This makes angular contact ball bearings suitable products for increasing the effectiveness and durability of high-performance machines. Controls such as preload, lubrication, and proper material selection should be able to tailor the bearing’s performance objective to an actual operational need.
Increased rigidity and precision in machine tools
When optimizing machine tools for increased rigidity and precision, I would focus on several design considerations. High rigidity is typically achieved by utilizing materials with greater stiffness, such as cast iron or welded steel structures, which reduce deformation under load. Precision improvements depend heavily on factors like spindle accuracy, backlash minimization, and thermal stability. For example, the use of direct-drive motors minimizes mechanical wear and ensures consistent motion accuracy. Additionally, implementing linear scales with sub-micron resolution justifies enhanced feedback accuracy, while advanced control systems like CNCs ensure precise motion coordination during operation.
- Amount of spindle runout: for obtaining uniform conduct of machining processes, the value should not exceed 2 microns.
- Value of feed drive resolution: has to be not less than 0.001 mm in measure of accuracy of tool positioning.
- Stiffness of the machine frame of the machine: this needs to be greater than 40 N/µm to prevent deflection when in use.
- Stability of temperature: use of forced cooling systems or thermal expansion coefficient low materials to limit the shifts due to temperature changes.
By addressing these factors, there is full assurance on my end that optimal ideal rigidity and precision ensure the best performance of the machine tool.
How do angular contact ball bearings compare to other types of bearings?
Angular contact ball bearings vs. deep groove ball bearings
Angular contact ball bearings are different in construction as well as in working from deep groove ball bearings, angular contact has been specialized to take care of axial and radial loads at the same time. This is due to a combination of a deep contact angle and a contact radius that is capable of providing enhanced radial and axial load-bearing capabilities. Informal contact angles of 15° and 25° or even above these values are common.
Radial load application on deep groove ball bearings is more suited for everyday usage buddy as they are well suited in applications that only require simple radial load applications. This is due to the presence of a deeper groove on these bearings which allows little room for axial load use at the expense of low friction needed for high-performance applications.
- Axial Load Capacity: The larger contact angles possessed by angular contact ball bearings and their accompanying raceway configuration enable them to lose the least amount of heat which is a big advantage during ball bearing operations.
- Speed Capability: Deep groove ball bearings are mostly designed to work with such high operational speeds that a slight reduction in friction is preferred.
- Application Constraint: Deep groove ball bearings are coarse kits for general all-purpose tools and are low maintenance while angular contact ball bearings are low for precision applications such as machine tools where higher axial loads are expected.
Both designs serve distinct roles depending on the operational priorities, so selection should be based on the specific requirements of load and speed in the application.
Differences between angular contact ball bearings and roller bearings
Angular Contact ball bearings and Roller bearings differ when it comes to their capacity to bear loads, construction, and use. The first type of bearing is meant to withstand combined thrust and radial loads for instance high load with higher contact angles, this bearing is most suited for high-speed applications owing to its lower frictions and precision in design which is often found in machine tools.
In contrast, Roller bearings can withstand a heavy radial load but with the least deformation because of the linear contact between and raceways, and because of this, these bearings are ideal for low rotational speed but high radial load industrial machines like conveyor belts.
- Load type: Angular contact ball bearings outshine roller bearings if the load is combined otherwise they tend to fair equally well, opposing the roller which still then performs well.
- Speed: The low friction characteristic built into angular contact ball bearings allows it to work at a greater rotating speed when compared to roller bearings.
- Durability: When working under high radial loads, roller bearings appear to be more wear-resistant and get the job done when functioning for longer hours.
- Precision: Angles contact ball bearings excel in performing precise functioning that is essential to works that require strict tolerances from the operator.
Selection should be based on these factors relative to the specific operational demands.
What industries and applications commonly use angular contact ball bearings?
Machine tools and precision manufacturing equipment
Because they combine design attributes, high precision, and rigidity, machine tools, and precision manufacture equipment utilize angular contact ball bearings, which can support axial loads in one direction only or both. Such as:
- Bearing class: This type of bearing tends to conform to ISO P5 or P4 standards to fulfill the high speed and accuracy standards.
- Contact angle: A larger contact angle is chosen to retain stability while handling higher applied axial loads. A contact angle of 25 degrees or 40 degrees is usually used.
- Speed capability: To reduce wear in high-speed applications, high-speed bearings with optimal internal structures and grease systems are used.
- Rigidity: Preloading methods are generally applied to reduce deformation under load which is necessary to enable the required machining accuracy.
These factors are justified because machine tools demand components capable of withstanding dynamic conditions while ensuring high operational precision and longevity.
Wind turbines and renewable energy applications
Wind turbines are sophisticated devices that capture the centrifugal energy contained in the wind and deliver it as electricity. The windmills must satisfy a few basic requirements to function to their full potential:
- Energy Generating Efficiency: There is a limit to the amount of energy produced in a wind turbine and it is called the Betz limit. According to this limit, the wind turbine can only harness energy not greater than 59.3% of the wind. However, depending on blade and aerodynamic optimization, current turbines typically reach 45-50% efficiency.
- Aerodynamic Blade Shaping: Blades that are used in wind turbines can have a combustion length of 40 to 80 meters. For the blades to be able to generate optimal lift, they are built using carbon composites or fiberglass, which allow the blades to produce energy at a wider range of speed.
- Power Rating: Based on the power output, the wind turbines can be classified into various categories. The offshore wind turbines tend to have a power rating of 1.5 MW to over 10 MW with a standard wind speed of 12-15m/s for optimized electric generation.
- Opening and cut-out speeds: the opening speed which is usually in the range of 3-5m/s is the lowest speed at which energy can be produced while the cut-out speed is between 20 to 25m/s after which, the wind turbines cease to operate to avoid stress caused to the structure by the wind.
- Structural integrity: Considering the towers and nacelles employed in the turbine are engineered to last 20 to 25 years, advanced composites steel along with diverse environmentally beneficial coatings that render rot protection, impressively reduce the risk of corrosion and damage from wear and tear, particularly for offshore installations are used.
- Control systems: Some of the modern systems include yaw, pitch control, and advanced blades which assist in efficient energy capture by altering blade angles and the orientation of the turbine while being able to sustain rough climatic conditions.
By incorporating these factors, wind turbines can achieve the durability, efficiency, and scale required for scalable renewable energy generation, contributing significantly to global sustainability goals.
What are the maintenance requirements for angular contact ball bearings?
Proper lubrication techniques for optimal performance
Ensuring optimal performance of angular contact ball bearings relies heavily on proper lubrication techniques. I would recommend using lubricants with the appropriate viscosity, determined based on the bearing’s operating speed and load conditions. Generally, for high-speed applications, low-viscosity oils are ideal to minimize friction, while heavy-duty applications may require grease or high-viscosity oils to handle greater loads. It is essential to regularly monitor lubrication levels and reapply as needed to prevent contamination and degradation.
- Lubricants of operational temperature: Pouring a lubricant with an operational temperature of 10 – 40 cSt viscosity within the targeted range of temperature will suffice but one must hold in their bearings speed and load requirements.
- Method of application: Putting in circulation mist, circulation oil, and even grease is quite suitable though consideration of the desired maintenance intervals is also required.
- Maximum And Minimum Operating Temperature: The lubricant must be able to sustain its form and work spring through a range of -30 to 150 degrees Celsius.
- Contamination control: Contaminated lubricants are of little use hence using filters or sealed bearings will allow the reduction of particle ingress which will in turn control the lubricant’s quality degradation.
That must be followed to ensure proper lubrication for your angular contact ball bearings Moreover, from these factors angular contact ball bearings can improve their life span and efficiency.
Monitoring and addressing preload adjustments
Preload settings are important for the use and care of the angular contact ball bearing. While applying the preload, I would check the axial movement as well as the load measurement in use in the best professional manner. The aim is to harmonize the preload so that too much friction and too low a torsional stiffness are avoided, thus preventing abrasion and lack of stability of the bearing.
- Preload type: selection may be done between a fixed and elastic preloaded configuration depending on the requirement of the application in question. Fixed preloaded systems can prove to be very effective, for instance, for applications that require being in a precise position while elastic preloaded systems in a strain that needs to handle thermal expansion or changing loads.
- Axial force range: Apply the against the bearing size and the working condition of the bearing a certain percentage which is under the recommendation by the manufacturer, generally between 5% and 20% of the dynamic load rating.
- Temperature considerations: The temperature tolerance has to be taken into account such that there is no excessive increase of preload due to thermal expansion, at the same time the housing and shaft material should have close thermal expansion coefficients.
- Monitoring tools: Testing and stable instruments such as load cells, strain gauges, or dial indicators should be employed to monitor the preload value and make records concerning the predetermined values.
By systematically monitoring the factors listed above and adjusting preload carefully as needed, I can ensure the bearing operates within its intended specifications and maintains its desired performance characteristics.
How do precision angular contact ball bearings enhance machine performance?
Improving accuracy in semiconductor manufacturing equipment
Angular contact ball bearings play a significant role in strengthening the accuracy of devices used in semiconductor fabrication by providing the rigidity, rotational accuracy, and low vibes needed for the job which is as cited earlier a sensitive one. The provision of these ball bearings allows for more effective handling of operational combined axial and radial loads, thus making them perfect for use on machines equipped with high-speed spindle units and all forms of positioning devices. For instance:
- Axial Load Capacity: High precision roller or ball bearings can provide a relief of some good range of axial loads which stabilizes the assembly during operations running at a high speed.
- Contact Angle: Multiple angles of contact with bearing units such as 15° or 25° depends on the requirements and care taken by the manufacturers to ensure balanced load distribution for the whole unit which is aimed at improving the performance of the device while increasing accuracy.
- Dimensional Tolerance: Class P2 or P4 tolerances, which are suited for ultra-precision applications with very close limits of bearing alignment divergence, are also common in use enabling manufacturing of tools and machines involved in semiconductor fabrication like lithography machines.
- High-Speed Performance: Precision bearings are designed to allow for lower friction torque as well as high-speed ratings to ensure smooth operations in difficult situations.
By carefully selecting and maintaining these bearings based on their factors, I can achieve the high accuracy and reliability required in semiconductor manufacturing processes.
Enhancing reliability in medical devices and diagnostic machinery
To improve dependability in medical devices and diagnostic equipment, I pay attention to the installation of high-quality and precise parts as well as efficient and effective system design. In most cases, this includes the use of bearings with tight dimensional tolerances for example Class P4 or P2 which aid in supporting the image system and analysis equipment. Furthermore, high corrosion-resistant materials such as stainless steel or ceramics are utilized to avoid corrosion in cases where sterility has a high priority.
- Load Capacity: Bearings’ inner and outer rings interact to support radial and axial components efficiently.
- Friction Torque: Components with a low level of friction torque are very important for the reduction of energy wastage and excessive heat generation which could compromise the lifetime of the device.
- Speed Ratings: Strongly-built high-speed bearings allow the easy movement of rotary devices including centrifuges and MRI machines without affecting their efficiency.
- Lubrication: Biocompatible lubricants offer safety and reduced wear while allowing compliance with medical standards.
By rigorously maintaining these and applying thorough testing protocols, I can ensure the reliability and precision required for critical medical and diagnostic technologies.
Frequently Asked Questions (FAQs)
Q: What are angular contact ball bearings and how do they differ from other types?
A: Angular contact ball bearings are a type of rolling element bearing designed to support both radial loads and axial loads in both directions. Unlike standard ball bearings, they have raceways in the inner and outer rings that are displaced relative to each other. This design allows them to handle higher speeds and greater precision, making them ideal for applications such as gearboxes, compressors, and industrial motors.
Q: What are the main product types of angular contact ball bearings?
A: The main product types include single-row angular contact ball bearings, double-row angular contact ball bearings, and four-point contact bearings. Single-row ACBBs are typically used for moderate loads and high speeds, while double-row designs can handle heavier loads. Four-point contact bearings are specialized for applications requiring high axial load capacity in both directions.
Q: How are angular contact ball bearings typically used in industrial applications?
A: Angular contact ball bearings are typically used in high-performance machinery where precision and speed are crucial. They are commonly found in machine tool spindles, injection molding machines, industrial motors, and compressors. In gearboxes, they help maintain gear alignment under heavy loads. Manufacturers like NSK and SKF offer a wide range of angular contact ball bearings for various industrial applications.
Q: What is the difference between single-row and double-row angular contact ball bearings?
A: Single-row angular contact ball bearings have one row of balls and can support axial loads in one direction. Double-row angular contact ball bearings have two rows of balls and can accommodate axial loads in both directions. Double-row designs generally have higher load capacities and are more suitable for applications with combined radial and axial loads.
Q: What types of cages are used in angular contact ball bearings?
A: Angular contact ball bearings can feature various cage types, including pressed steel cages, brass cages, and polyamide (plastic) cages. Pressed steel cages are economical and suitable for most applications. Brass cages offer better performance at high speeds and temperatures. Polyamide cages are lightweight, reduce friction, and are ideal for high-speed operations.
Q: How do angular contact ball bearings support axial loads?
A: Angular contact ball bearings are designed to support axial loads through the angular contact between the balls and the raceways. The contact angle allows for the transmission of axial forces between the inner and outer rings. This design enables the bearings to handle thrust loads efficiently, making them suitable for applications where axial forces are significant, such as in machine tool spindles and gearboxes.
Q: What is a duplex arrangement in angular contact ball bearings?
A: A duplex arrangement refers to a pair of angular contact ball bearings mounted together to provide enhanced performance. They can be arranged in back-to-back, face-to-face, or tandem configurations. Duplex angular contact ball bearings offer increased axial and radial load capacity, higher stiffness, and better precision. This arrangement is commonly used in machine tool main spindles and other high-precision applications.
Q: How do angular contact ball bearings contribute to the performance of industrial motors?
A: In industrial motors, angular contact ball bearings play a crucial role in maintaining shaft alignment and handling both radial and axial loads. Their design allows for higher speeds and precision, which is essential for motor efficiency. The ability to support axial loads in both directions makes them ideal for vertical motor applications. Some angular contact ball bearings also come as hub bearing units, which simplify motor design and assembly.
