It is indispensable that there is accuracy and dependability in high-performance machinery, and at the core of several industrial and manufacturing processes stand spindle applications. In these applications, not only the spindle `interface` but also the elements that support the rotation of the spindle interface contribute towards achieving such efficiency and accuracy. Among these critical elements are angular contact ball bearings, known for their configuration design and performance characteristics. This article focuses on the angular contact of ball bearings and their usefulness in improving spindle performance in terms of speed, precision, and load-bearing requirements. By focusing on their specific strengths, you can raise the operating standards’ of industrial systems and technologies, thus qualifying the standards as critical in contemporary engineering solutions.

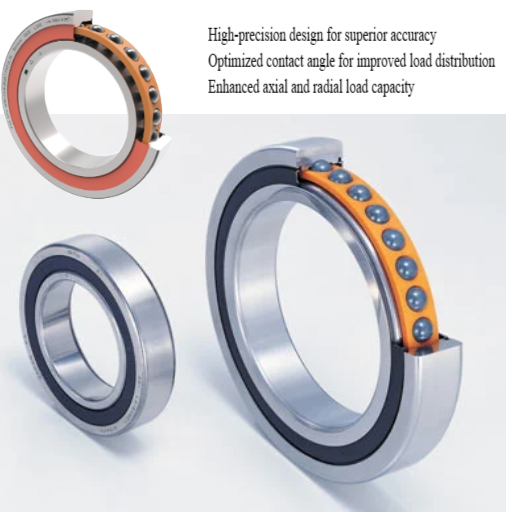

What makes angular contact ball bearings ideal for spindle applications?
High-precision design for superior accuracy
Using angular contact ball bearings claims the high accuracy required in spindle applications, which are important in machinery engineering. This is because they are specifically manufactured to support radial and axial loads simultaneously and thus provide support even at very high speeds. This is realized by incorporating features like optimized contact angles, which typically range between 15° and 25°, which improve load bearing and reduce deformation.
The main technical parameters of angular contact bearings are:
Contact Angle: This angle varies between 15° to 25°, allowing greater precision to be improved by increasing the axial rigidity.
Tolerances: P4 or P2 (ISO 492 standards) Precision grades provide little allowances that benefit high-speed spindles.
Material: They are made of high-quality steel or ceramic balls to withstand more wear and friction.
Speed Capability: Most spindles have a speed limitation of about 1,000,000 DN; it is critical for various machining operations.
Based on the features mentioned earlier, these bearings are well-suited for spindles as they provide efficient angular contact.
Optimized contact angle for improved load distribution
The load capacity of angular contact ball bearings is raised through the optimized contact angle. The tapered angle which mostly occurs between 15° to 25° improves the bearings axial and radial force distribution characteristics of the bearings.
Axial Load Capability: 25° contact angle is more appropriate for designs subjected to large axial loads.
Radial Load Capability: Using 15° a contact angle faintly increases the radial load capability.
Stability: To ensure smooth operation, the bearing contact during operation can increase the stability of high-speed spindles.
These parameters are selected depending on the application’s needs to assure efficiency and longevity in high-precision conditions.
Enhanced axial and radial load capacity
When the subject involves enhanced axial and radial load capacity, I would like to suggest some of the particular design parameters that will contribute and cater to performance optimization:
Ability to bear axial load: When axial loads tend to be higher, select a higher contact angle, such as 25°. This enables a better load ratio across the bearings’ surfaces, increasing reliability when under the influence of axial force.
Ability to bear radial load: In situations where the application has more significant radial load objectives, selecting a low contact angle, such as 15 degrees is best. This greatly enhances how radial forces are transmitted through the bearing without excessive static friction, thus enabling radial stability throughout the operation.
Distributed contact angle: This offers stable performance throughout operations at high speeds by preventing misalignment and vibration.
These parameters are optimal for a specific application to ensure operational efficiency, high durability, and accuracy for high-end systems.

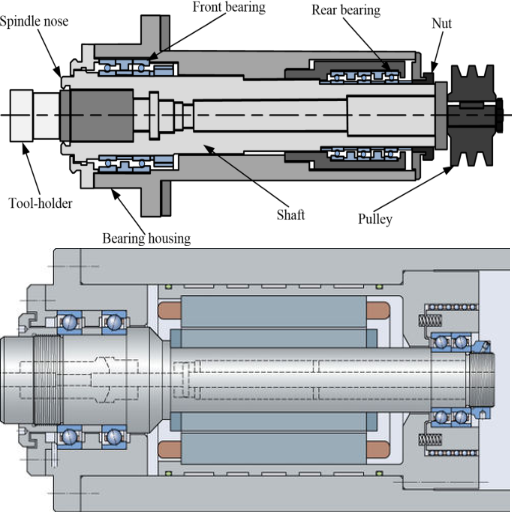

How do angular contact ball bearings improve spindle speed and efficiency?
Reduced friction for higher rotational speeds
Reducing friction is critical in increasing the spindle speed and other efficiency parameters in angular contact ball bearings. I accomplish this by effectively reducing energy losses during operation, which is a function of the design and materials used. In this case, the contact angle allows for optimizing load and motion because it allows for high rotational speeds.
Contact Angle (15° to 25°): Better handles combined radial and axial loads while providing stability and high speed.
Material Composition (e.g., Steel or Ceramic): Ceramic balls have less volume than steel balls due to lower thermal expansion, enhancing their speed of operation.
Lubrication (Oil or Grease): Adequate lubrication would lead to reduced wearing out processes while less heat is generated, and therefore, a consistent speed can be maintained.
Considering these parameters, I designed the bearings to function as intended, allow for more incredible spindle speeds, and possess more excellent stability in harsher conditions.
Improved heat dissipation for prolonged operation
Enhanced heat dissipation is crucial to extend the use of applications with high speeds and heavy loads. Utilizing specialized cooling systems and materials with excellent thermal conduction is imperative. For example:
Thermal Conductivity of Materials: Alloys or ceramics with high thermal conductivity (for example, copper alloys, which have a value of 400W/m.K, and Skutterudites, which have a value of 30 – 40W/m.K) can help dissipate heat.
Design of Cooling Systems: Using liquid or air cooling systems with the required flow rate (for liquid cooling, 2- 5 L/min) can help with heating issues.
Lubricants with Thermal Stability: Special synthetic oils with high heat tolerability at around 150 degrees Celsius can minimize breakdown and enhance dissipation.
These parameters, complemented by modern heat dissipation methods, can help the systems consistently work within the safety margins for extended periods without probable output degradation.
Optimized cage design for smoother running
Optimized cage construction is fundamental in achieving smooth operation of components, especially in high-speed or high-precision applications. Enhanced kit performance results from material, geometry, and manufacturing tolerances:
Material Selection: Light and abrasion-resistant materials such as nylon or bronze reduce mass and friction, allowing smooth working and lowering wear rates.
Geometry Optimization: Elliptic frames and accurate size of the cavities prevent stress concentration and promote good force balance, thereby allowing smooth operations during high-speed rotations.
Manufacturing Tolerances: Controlling the tolerances within close values (for example, ±0.01 mm) guarantees reasonable vibration control and a good fit, which increases the device’s performance.
If all such parameters are appropriately considered, the KIT can be designed for smooth operation, increased wear resistance, and efficiency in numerous applications.

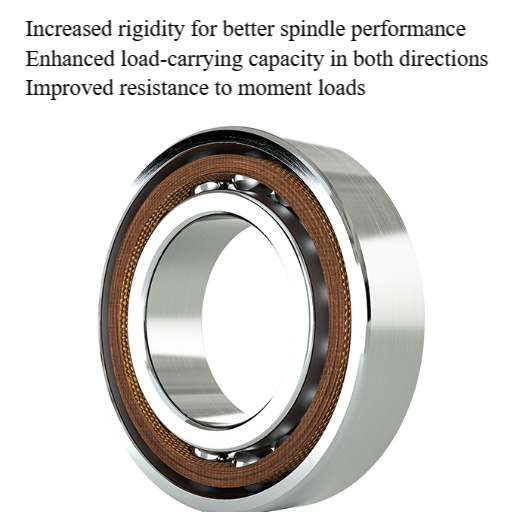

What are the advantages of using duplex angular contact ball bearings in spindles?
Increased rigidity for better spindle performance
Using duplex angular contact ball bearings in machine tool spindles significantly affects spindle performance. This is achieved by pairing the bearings in back-to-back or face-to-face arrangements, allowing them to resist radial and axial loads coming from different directions. Higher rigidity minimizes deformation under load, ensuring operation accuracy and stability.
Contact Angle (usually 15° or 25°): Higher contact angles facilitate an increase in the axial loads bearing on the ball utilizing the axial force component, increasing the angle of contact, which translates into more stiffness.
Preload (light, medium, or heavy): Correctly applied pre-load results in adequate stiffness by preventing internal clearance from existing and cutting down on vibration.
Material Properties (high-quality steel or ceramic): Materials with high elastic moduli further enhance bearing rigidity and improve deformation resistance.
With the proper adjustment of these parameters, duplex angular contact ball bearings can work reliably and accurately in the harshest conditions of working spindles.
Enhanced load-carrying capacity in both directions
Duplex ball bearings are formed in a manner that optimally handles loads in both directions while also considering the application of proper preload. More than one load capacity comes to mind in this case:
Axial Load Capacity: The bearing’s ability to withstand equal axial loads while mounted in back-to-back (DB) or face-to-face (DF) configuration comes with a specific range. Notably, this range is the contact load angle, usually from 15° to 25°, determining the load direction and magnitude.
Radial Load Capacity: Load distribution in the arrangement facilitates sound reinforcement of the radial forces. Substituting steel or ceramic materials necessitates improving overall durability and performance, especially if the load is upsurging.
Preload (light, medium, or heavy) is given in such a way that removes internal clearance, rigidity, and load distribution is also optimal. These features ensure the excellent performance of the components, whether solid or high-precision items.
Improved resistance to moment loads
My main aim is to incorporate bearings with relatively high stiffness and appropriate preload settings to bear the increased moment loads. Owing to their contour geometry and load distribution, angular contact ball bearings and tapered roller bearings can adequately handle such loads.
Contact Angle – Increasing the contact angle (e.g., 25°–40°) enables greater axial and moment load capacity to be applied without excessive deformation.
Preload Setting – Great amounts of preload, light, medium or heavy, remove the small spaces between the components and help to make the parts rigid, thus, less deformation is likely to take place when the moment loads are applied.
Material Properties—Advanced materials with adequate hardness and thermal stability, such as high–grade steels and ceramics, should be used to ensure long life and increase weight-carrying capacity.
Bearing Arrangement – Fixing pairs in back-to-back or face-to-face arrangements helps in moments of force being evenly applied to the bearings. It reduces the chances of rocking or turning moment specifications being disregarded.
Considering these parameters, I can confidently say that the bearings would operate efficiently and effectively under any extreme moment load application.

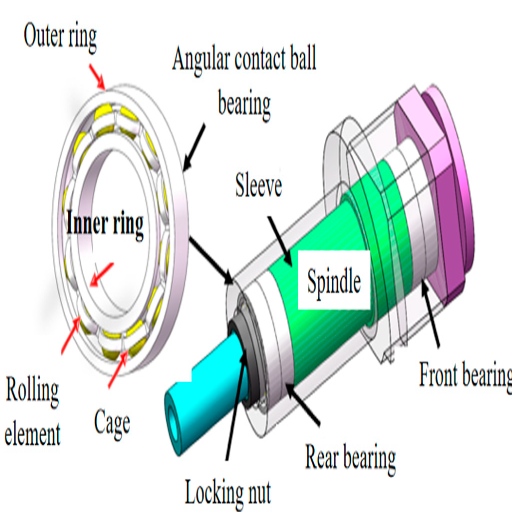

How do angular contact ball bearings contribute to spindle longevity?
Superior sealing options for better contamination protection
It is relatively common in practice to give seals priority, especially those in angular contact ball bearings, because they conserve the efficiency of the lubricants while also keeping the bearings clean so that the effectiveness of the lubricants, as well as the seal, is improved. In this case, I regularly make it a point to determine the sealing options most suitable to potential operating conditions and environment. For instance:
Contact Seals (Rubber Seals)- These can be a good solution for bearings that will be exposed to dust and/or moisture because they can resist contamination exceptionally well by enclosing the bearing fully. However, due to the heightened friction, torque may increase slightly.
Non-Contact Seals (Shielded Designs): These seals do not achieve excellent contamination resistance but don’t generate too much heat or wear. They are great for applications that operate at high speed.
Material Selection for Seals – Using materials that are considerably more resilient when used in extreme circumstances, such as nitrile rubber or fluorocarbon, ensures that sealing is appropriately performed and done consistently, regardless of the circumstance.
Considering such parameters while determining and selecting them would enable me to improve the reliability and service life of the spindle bearings while simultaneously providing dependable performance against a range of operating settings.
Optimized lubrication retention for extended bearing life
Concerning the sustained optimized lubrication retention for the enhanced performance of the bearings, I would address the following key points and technical parameters:
Seal Engineering: I would choose seals that can hold lubrication while avoiding contamination. Labyrinth or contact seals would work perfectly for casing since they are designed to minimize lubricant loss and moisture or dust entry. These designs increase lubrication retention and reduce maintenance.
Lubrication Amount and Kind: Applying synthetic grease, which is good quality and can withstand higher temperatures, works wonders. The amount of grease to use should always be said concerning the size and working conditions of the bearing so that a perfect ratio is achieved, meaning the bearing will neither be over-desired, see a heat build-up, nor go without sufficient lubrication and meet wear.
Housing Construction Characteristics: Including grease reservoirs or sufficient venting could assist with spool volume retention. This way, the lubricant supply is controlled, and pressure build, which can lead to the lubricant being expelled from the system, is avoided.
With those measures and hundreds of examples of the above technical parameters, I can obtain optimized lubrication retention, which would, in turn, increase what and how much one can do with the bearing and its durability in the specified surroundings.
Reduced wear due to optimized internal geometry
Optimized internal geometry is vital because such design ameliorates wear, as contact stresses are limited and loads are better balanced. From the perspective of minimizing wear, designing the internal geometry of the working parts further enables smoother functioning and minimizes local stress concentrations, which are usually sources of wear.
Contact Angle Optimization – Altering the contact angle is beneficial in load-sharing, thus retarding surface fatigue and leading to an increase in the operational life of the system.
Surface Finish Quality—A good surface finish produces enhanced contact points with lower friction, improving contact durability and reducing energy loss.
Material Selection – Providing materials with optimal wear-resistant properties and low friction coefficients will yield good results even under extreme working conditions.
Component Alignment—Proper component linkage is vital. It ensures that loads are applied as intended over time, reducing the chances of damage.
Tackling these parameters, particularly those formulated above would mean confidently minimizing wear while retaining the system’s efficiency and life.

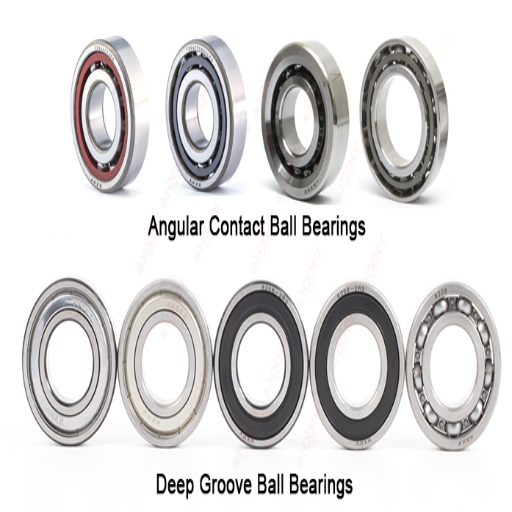

How do angular contact ball bearings compare to other bearing types for spindle use?
Superior axial load handling compared to radial ball bearings
Angular contact ball bearings are superior to standard radial ones concerning axial loads. Since they are required to bear radial and axial loads simultaneously, these bearings are constructed such that the raceways are noticeably inclined to the axial bearing direction. This geometric arrangement of the points of contact with the central axis of the ball determines the `contact angle,’ which usually ranges between 15° and 40°: the more significant the angle, the better the capability of the bearing to withstand axial loads.
Contact Angle: Usually 15°, 25°, or 40° depending on the application, with higher angles having higher support for axial loads.
Dynamic load rating (C) measures the bearing’s life in overcoming the applied static load. Still, a higher rating is a PT feature of angular contact ball bearings designed for combined loading.
Axial Load Capacity is far larger than what radial bearings would be suitable for. It is applicable for purposes such as the spindle of a machine tool, where axial and high-speed precision is necessary.
Speed Capability: It can also be classified as high speed for the ball type due to the availability of aided precision in its manufacturing and design.
Preload Options: Preloading increases the stiffness of the construction while minimizing bending, enabling better precision under complex conditions.
This combination of technical characteristics suggests that angular contact ball bearings are much more suitable for applications involving high axial load considerations, precision, and durability than radial ball bearings, such as spindles of high-performance machines.
Better speed capabilities than cylindrical roller bearings
Angular contact ball bearings excel in speed compared to cylindrical roller bearings as a result of the following reasons:
Mitigated Friction – Angular contact ball bearings possess a point contact design, which restricts friction, unlike cylindrical roller bearings where line contact is applied, producing excessive amounts of heat that may reduce speed.
Enhanced Materials—Advanced materials such as ceramic and high-performance steels are common in angular contact bearings, reducing weight and allowing for high operational speeds.
High-Quality Production: High-quality production involving more teeth and a better surface finish enables smooth operation at high speeds, essential in high-performance applications.
Lubrication Systems—Optimized lubrication systems also extend the life of angular contact ball bearings and generate less heat from friction, promoting high-speed operation.
Technical Parameters:
Limiting Speed: Depending on the design and material, angular contact ball bearings may achieve 30% to 50% higher limiting speeds than cylindrical roller bearings. For example, the angular contact bearing can support rotating speeds of 10,000 to 30,000 RPM, while the maximum of the cylindrical roller bearings is 5,000 to 15,000 RPM.
Contact Angle: In case of high speeds, adjustable contact angles (15°, 25°, etc.) in angular contact bearings improve the load handling.
Ceramic Balls (hybrid bearings): Because of their low density and minimal thermal expansion, ceramic balls can achieve higher speeds without wear and additional losses.
The above aspects make angular contact ball bearings suitable for high-speed operating applications, including precision machinery and aerospace systems.
More compact design than tapered roller bearings
Due to their compact design, angular contact ball bearings can be integrated into a wide range of applications where space is limited. This is made possible by their low profile and more streamlined internal configuration, which reduces the bearing unit’s size.
Aspect Ratio: Because of their size and contact angles, angular contact ball bearings can have a higher load-to-size ratio. The geometry of their raceways enables them to have equal loads in a smaller size.
Weight Efficiency: The compact size and streamlined construction make the bearing assemblies less dense, making them suitable for high-speed and low-density applications like robots and aerospace systems.
Axial Load Handling: The angular contact ball bearings themselves may be small, but do not let that fool you, as they can support large amounts of axial loads, especially when combined in back-to-back or face-to-face design, to distribute the blame evenly.
Looking at tapered roller bearings, angular contact ball bearings might be a replacement as they are both used in modern engineering designs because they complement each other perfectly. They do not take a lot of weight or room but do not compromise on performance.
Frequently Asked Questions (FAQs)
Q: What are the primary benefits of employing precision angular contact ball bearings in spindles?
A: There are quite a few for spindle application: it has high rotational accuracy, good axial and radial load capacity, and can withstand high speeds. They are suitable for machine tools and many other precision applications due to the features enabling high performance under stringent conditions.
Q: What is the effect of angular contact bearings on the precision of the machine?
A: Precision angular contact ball bearings are critical in precision work because they increase machine rotational accuracy while providing rigidity. They can also better control shaft positioning, making machinery tools and other precision equipment more effective. The angular contact design also reduces runout and, therefore, the size of the performance and wear variability.
Q: Why Use Double Row Angular Contact Ball Bearings in Spindles?
A: Double-row angular contact ball bearings in spindles have benefits such as increased load-carrying capability, stiffness, and stability. These bearings can also sustain axial loads in horizontal and vertical axes better than single-row bearings, suggesting a broader range of applications. They also provide better torque resistance and are thus best suited in various spindle configurations, especially those that require them to be driven.
Q: How does using outer ring-guided bearings affect the spindle?
A: Outer ring-guided bearings are standard components of high-precision spindles, which can be operated with tunable thermal operation and increased accuracy. The guidance of the outer ring improves the control of the rolling elements, resulting in better operational smoothness and fewer vibrations. This makes this design possible for high-velocity applications where heat generation and accuracy control are the focal points.
Q: What is the importance of the brass cage in constructing precision angular contact ball bearings?
A: In constructing precision angular contact ball bearings, brass cage serves multiple important purposes. It assists more tangentially in ball spacing, friction minimization, and decay than other cage materials. Brass cages are more rigid and support high velocities, making them dependable as a spindle for machine tools and other high-end devices.
Q: How do angular contact ball bearings perform when spindle applications have axial loads?
A: Angular contact ball bearings are made explicitly because they perform very well with axial loads, especially when mounted on spindles. The incline of the raceways allows the bearings to bear an axial load in a single direction (single row bearing) or both directions (double row bearing). This characteristic will enable them to be used effectively in operations with radial and axial forces in application, such as those on a machine tool spindle or high-speed compressors.
Q: What are the benefits of superprecision angular contact ball bearings regarding ultrahigh-speed applications?
A: Super-precision angular contact ball bearings, also called spindle bearings, are useful in many ways, particularly for ultrahigh-speed applications. These include optimal roundness, little noise, low frictional heat, and the ability to remain accurate at extremely high RPMs. They are most relevant in high-end machine tools and avionics applications, where speed and accuracy are crucial.
Q: What is the contribution of angular contact bearings in a spindle to the overall performance of a machine tool?
A: Angular contact bearings in a spindle contribute substantially to the overall performance of a machine tool by providing high torsional accuracy of rotation, structural rigidity, and sufficient bearing load(s). Such properties render it possible to perform cutting processes with high precision and achieve better-surfaced finishes and longer tool life. The ability of bearings to hold at high speeds implies improved productivity, as machining operations can be sped up.
